Premium P3.91 Rental LED Display for High-Definition Stage Presentations

RFR-RA Series

The P3.91 rental LED display (RFR-RA Series) is a modular stage screen engineered for temporary installations at concerts, conferences, exhibitions, product launches, weddings, TV studios and live broadcast events. Each 500×500mm or 500×1000mm cabinet is built from ultra-light die-cast aluminum, only 71mm thick and 6.5–13kg per unit, allowing crews to assemble, transport and dismantle the screen quickly for repeated rental use. Its 3.91mm pixel pitch and 250×250mm modules deliver clear, high-definition visuals ideal for medium-distance stage viewing.

Get a quote Set OEM

Rental LED display Details

What Is a P3.91 Rental Stage LED Display Screen?

The P3.91 rental LED display (RFR-RA Series) is a modular stage screen built for temporary installations at concerts, conferences, exhibitions, product launches, TV studios and live events. Each 500×500mm or 500×1000mm cabinet is made of ultra-light die-cast aluminum, only 71mm thick and 6.5–13kg per unit, so it can be assembled, transported and dismantled quickly for repeated rental use.

With a 3.91mm pixel pitch, 16-bit grey scale, up to 7680Hz refresh rate and a 160°/140° wide viewing angle, this P3.91 rental LED video wall delivers flicker-free, true-color images for camera and broadcast. Fast-lock cabinets ensure seamless splicing with ≤0.1mm flatness, while curved splicing (-10° to +15°), front & rear maintenance and an IP65 outdoor option make it a reliable, flexible solution for event companies and stage production. Indoor pitches cover P2.604, P2.976 and P3.91; outdoor options include P3.91 and P4.81.

Large-scale Concert LED Screens Are Full Of Glory, And The Aurora Is Colorful

Cost-effectiveness

● Well-thought-out component connections provide secure performance and make maintenance a breeze;

● Modules (4 or 8 pieces) are fixed with M4 screws, which improves durability and achieves IP65 waterproofing;

● Choose your preferred LED brand (HS/RS by default), IC, power supply (CZCL by default) and control system (Novastar by default) to meet your project needs.

Performance advantages
● Colorful and smooth pictures
● Ultra-wide viewing angle
● High refresh rate
● High contrast
● Arc-shape Adjustable
● Special cabinet, light and convenient
● Energy-saving, power-saving and environmentally friendly
● SMD full-color quality lamp beads (GOB optional)
● Quick installation and easy maintenance

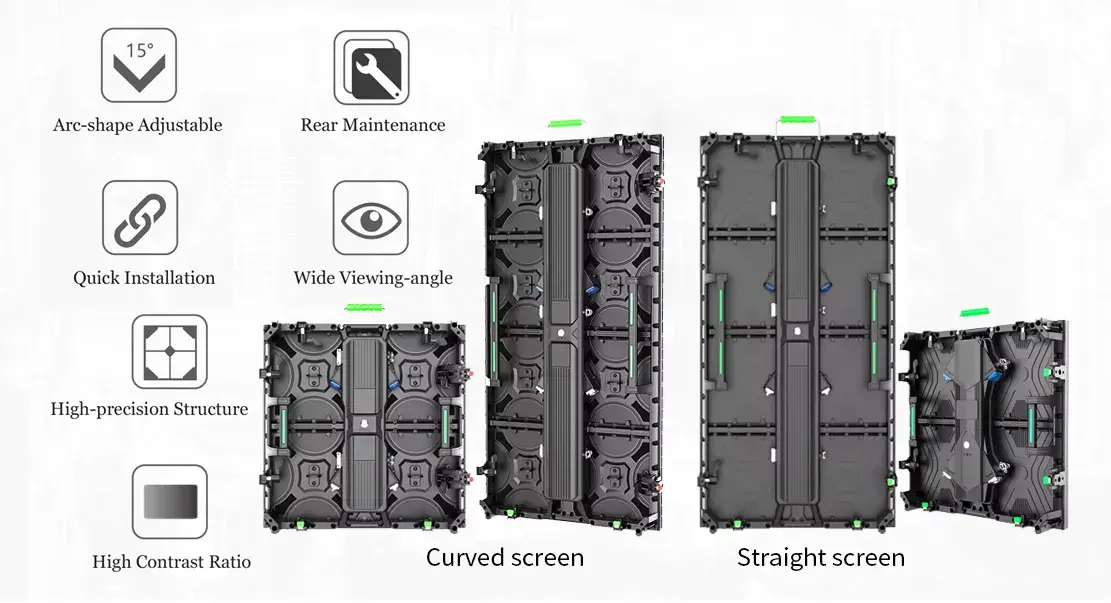

Large-scale Concert LED Screens Are Full Of Glory, And The Aurora Is Colorful - RFR-RA Series

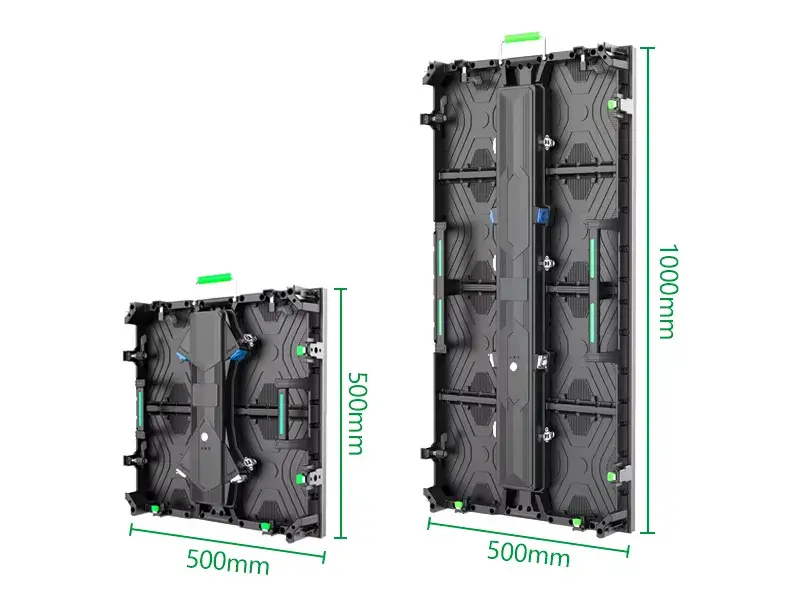

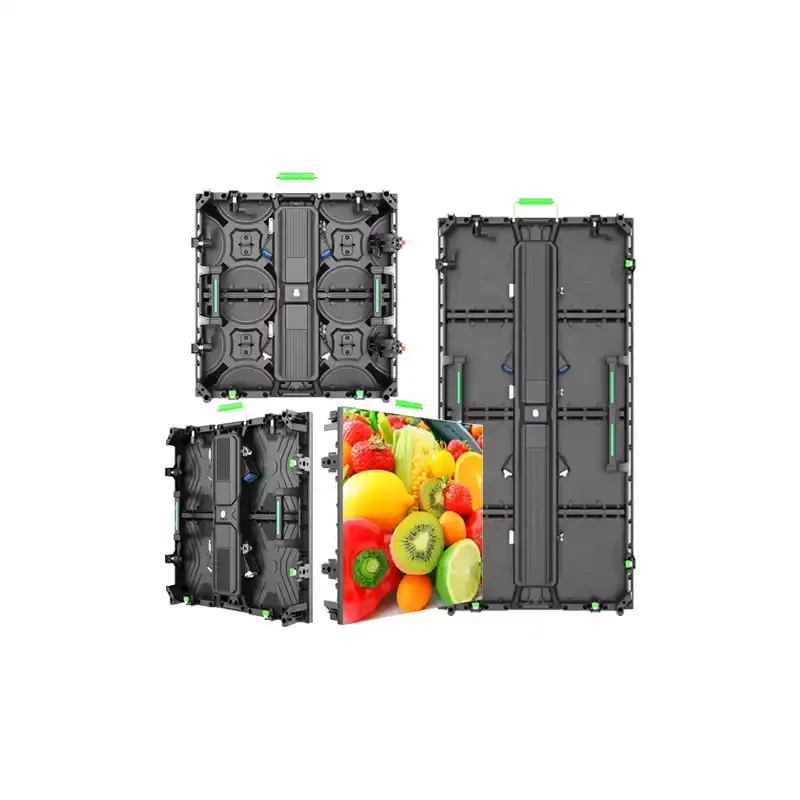

All-in-one Cabinet

Standard sizes of 500x500mm (1.64×1.64ft) 500x1000mm (1.64×3.28ft) use ultra-lightweight die-cast aluminum and are only 71mm (2.8in) thick, making it very easy to carry, transport and install.

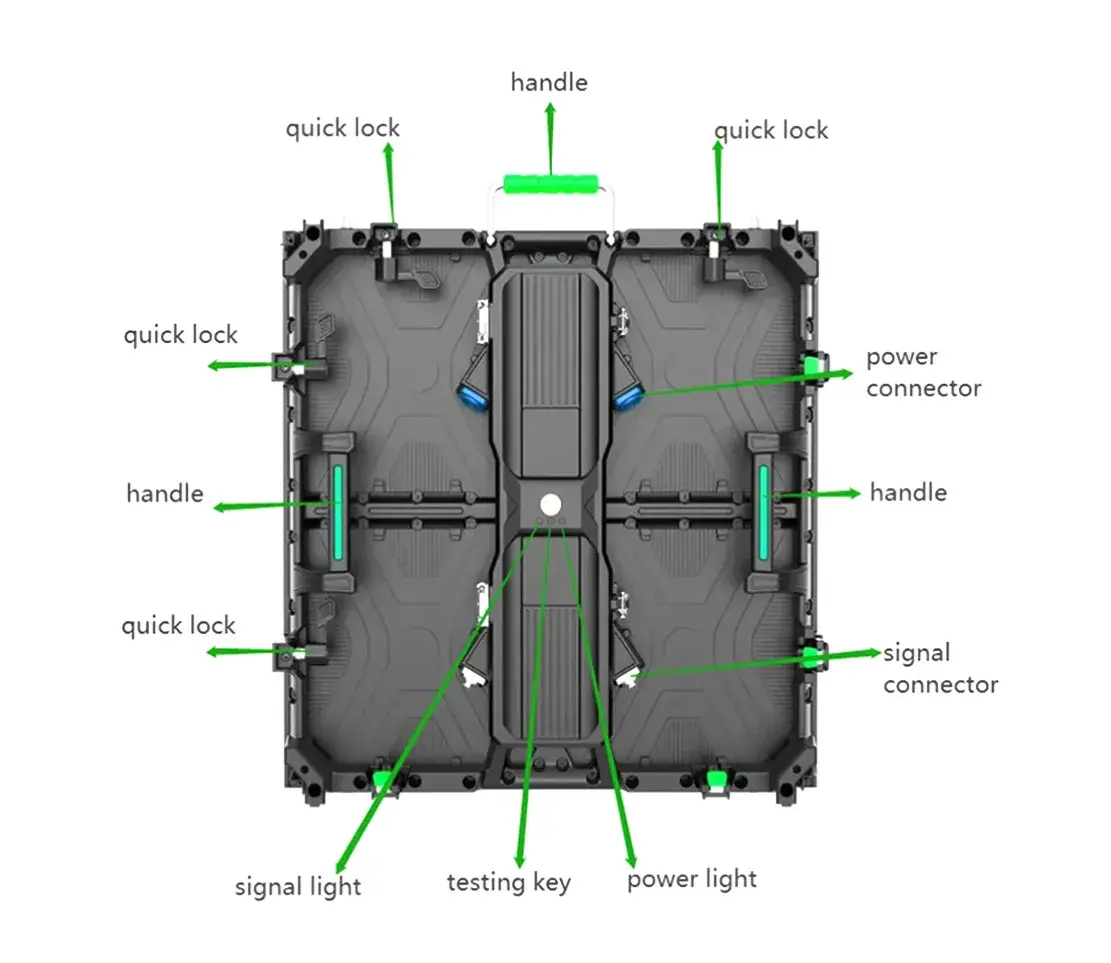

Rental Large Concert LED Screen Cabinet

● Every details, from the cabinet handle (optional colors) and fixed slots to the quick locks and installation knobs;
● The standard cabinet is made from ultra-light die-cast aluminum, easy to transport, install, and carry;
● The cabinet has four foldable corner protectors to safeguard the led display during assembly and transport.

16 Bit Grey Scale

It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.

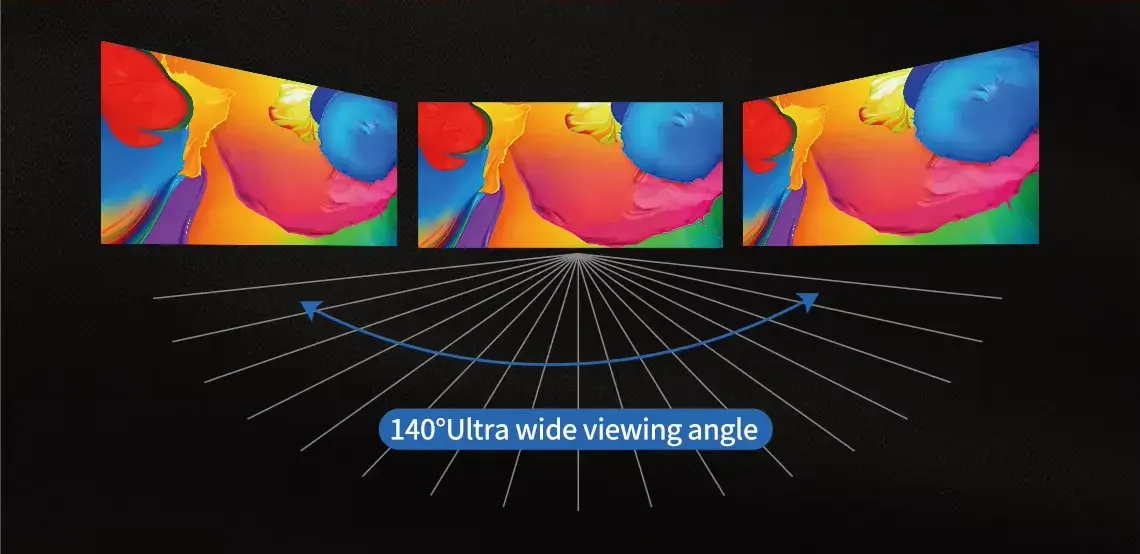

140°Super Wide Viewing Angle

Providing consistent and clear visuals from almost any direction.

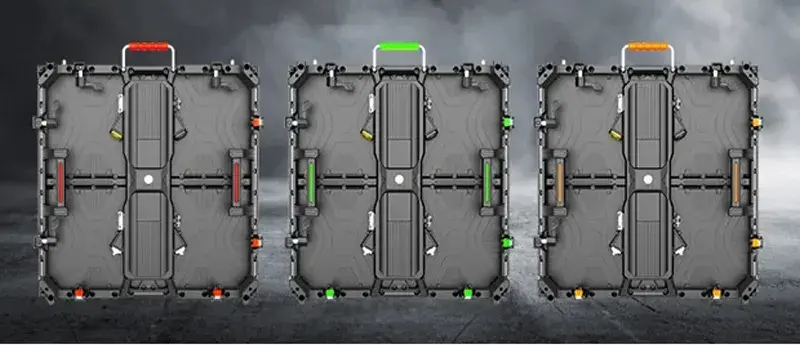

Color

Every detail is purposefully designed – from optional handle colors and fixing slots to quick locks and simple mounting knobs, this cabinet is built for convenience.

The handles color can be customized according to your needs.

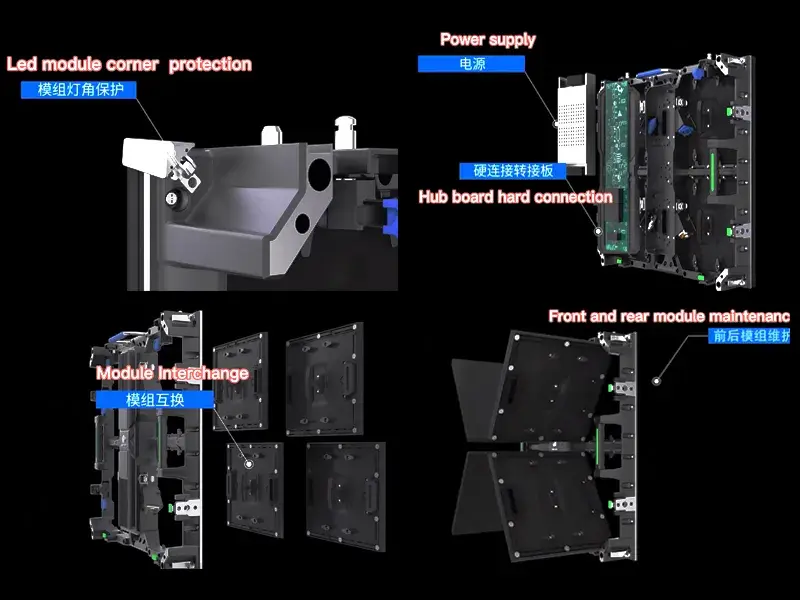

Detachable Back Cover

Indoor outdoor rental LED screen display adopts magnet adsorption LED panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.

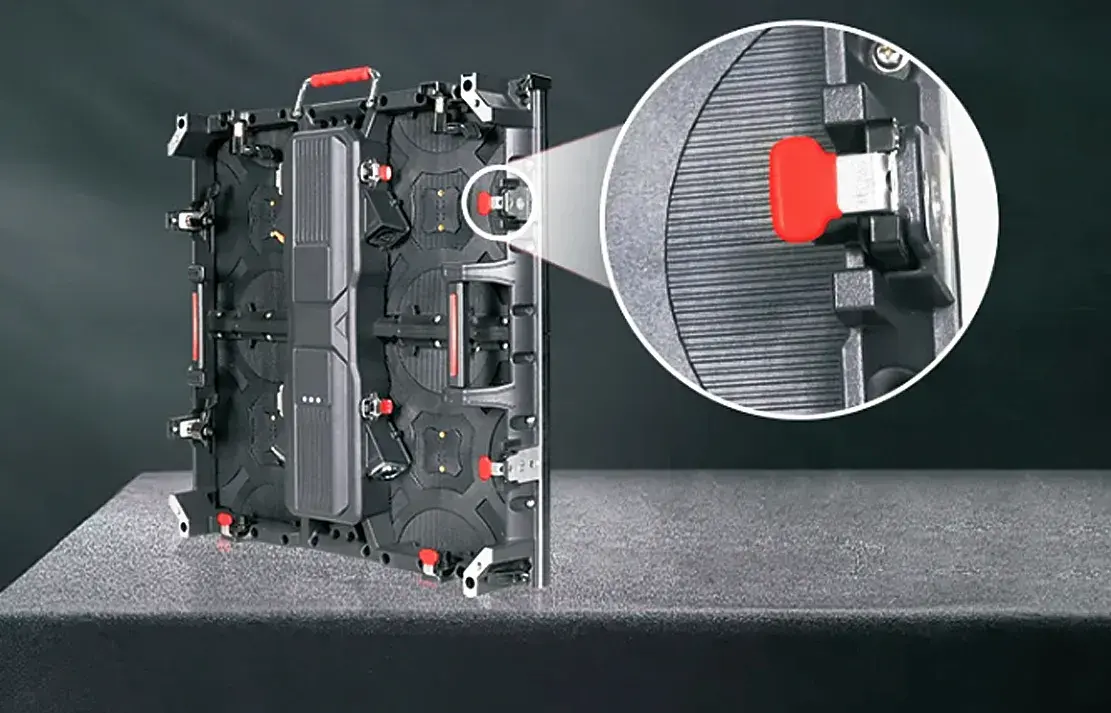

Fast Lock Design

RFR-RA series has 4 fast lock for each panel, quick operation, ensuring the flatness the whole screen, perfect seamless splicing, abutted seam fine tunning, error <0.1mm.

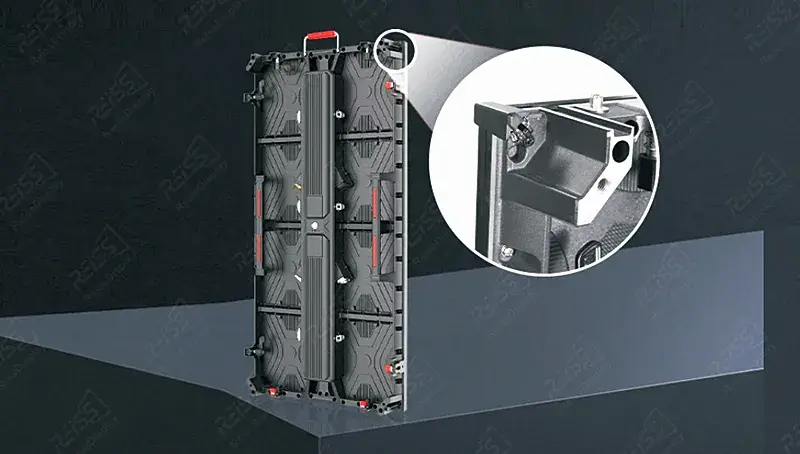

Corner Protection

RFR-RA series LED video panel has corner protection equipment, it can protect LED video wall not be damaged during assembly and transportation.

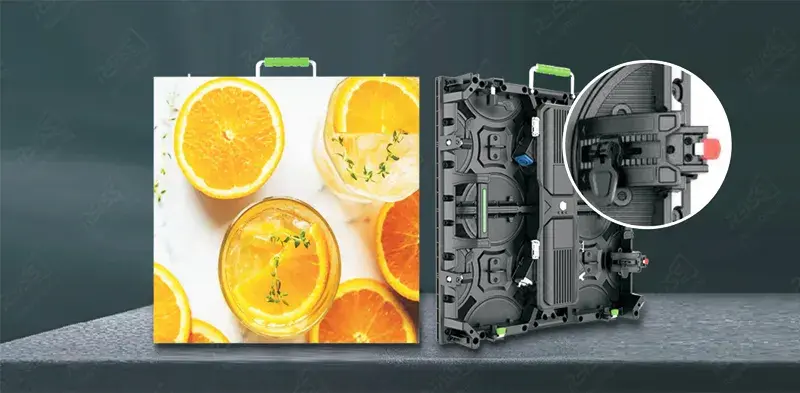

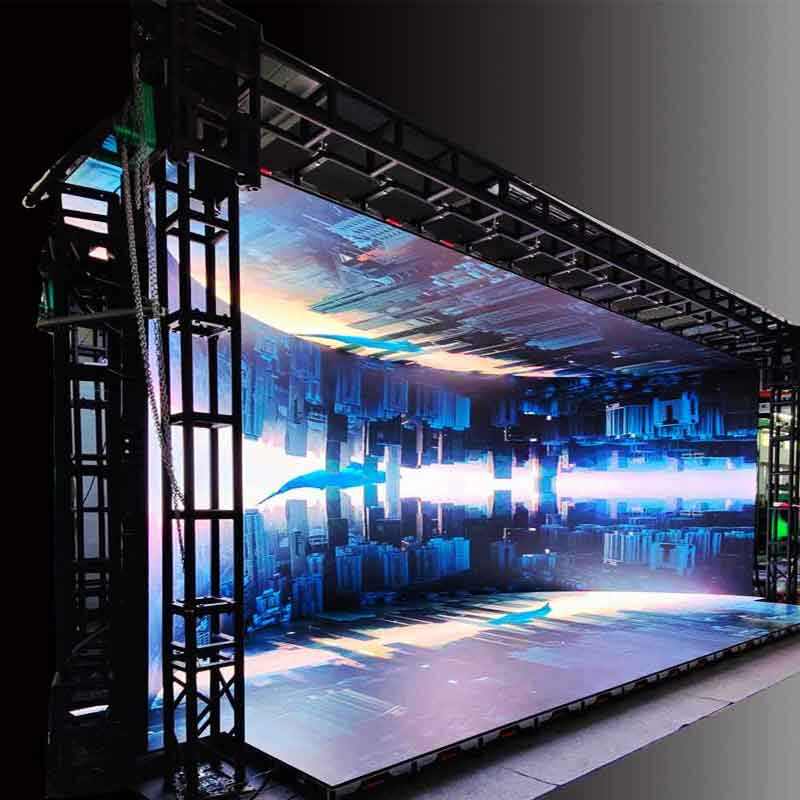

Curved Cabinet

Supports curved splicing via convex or concave curved video walls with angles between 15° and -10° with every 2.5°.

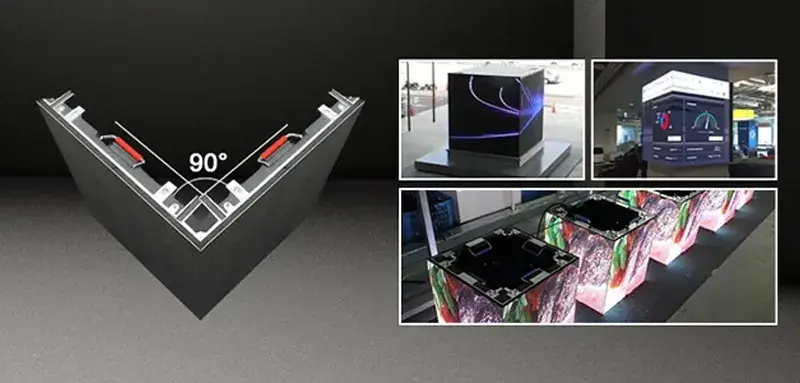

Right Angle Design

RFR-RA series LED panel can make 45° angle, two LED panels will make 90° angle. Besides, cube LED screen also can be achieved with this LED cabinet. It is an exact good product for right angle pillar LED screen.

Outdoor High Protection

Outdoor LED display supports IP65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

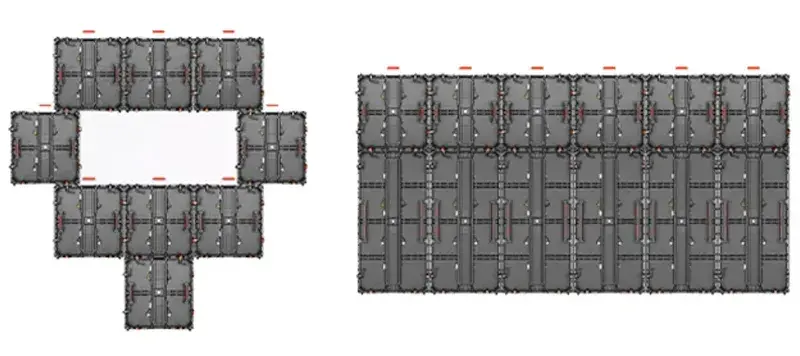

Seamless Splicing

● 500x500mm LED panels and 500x1000mm LED panels can be seamless spliced from top to bottom and from left to right.

● Die-casting Aluminum cabinet structure with CNC high-precision processing;

● Ensures cabinet flatness ≤0.1mm for seamless splicing;

● The cabinet can be equipped with curved locks and rotation control for quick curvature adjustments;

● The led panels can form a 45°angle, two panels can create a 90° angle.

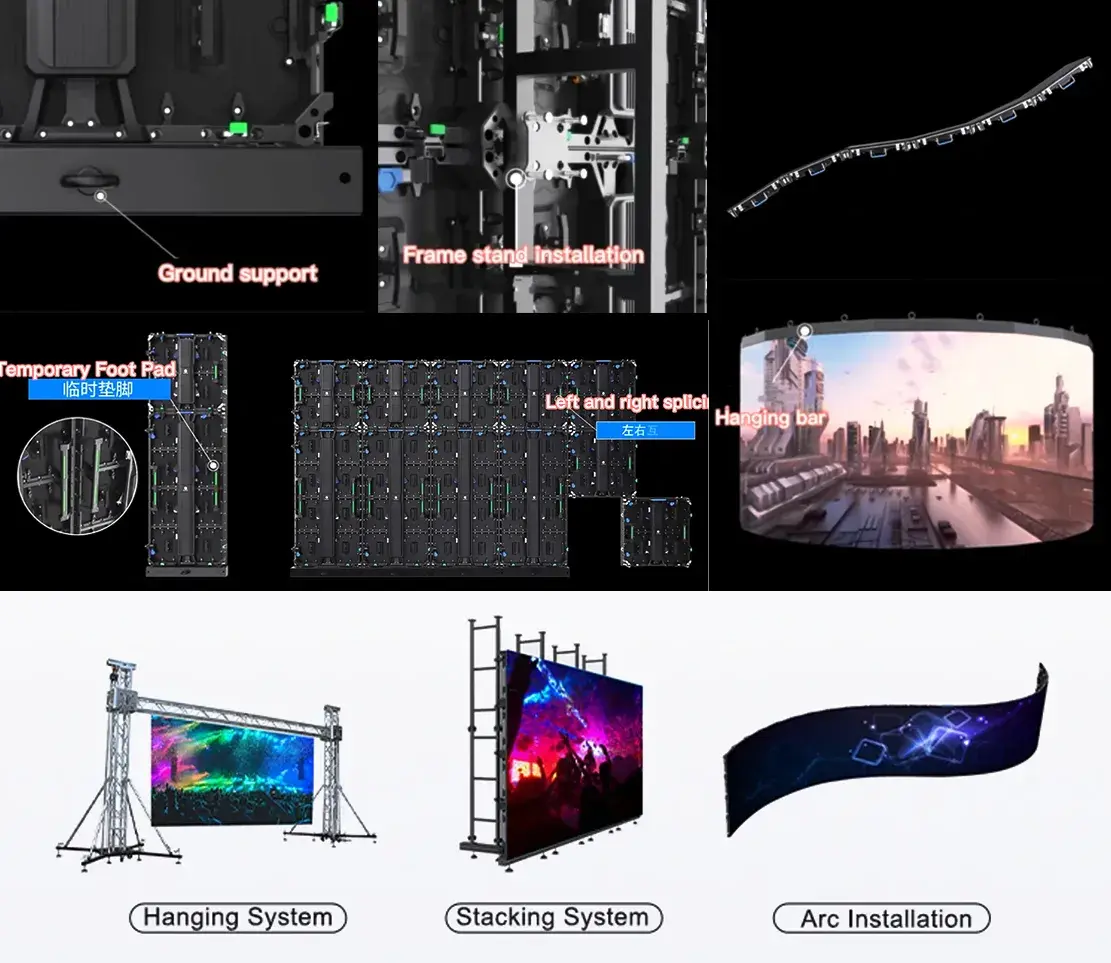

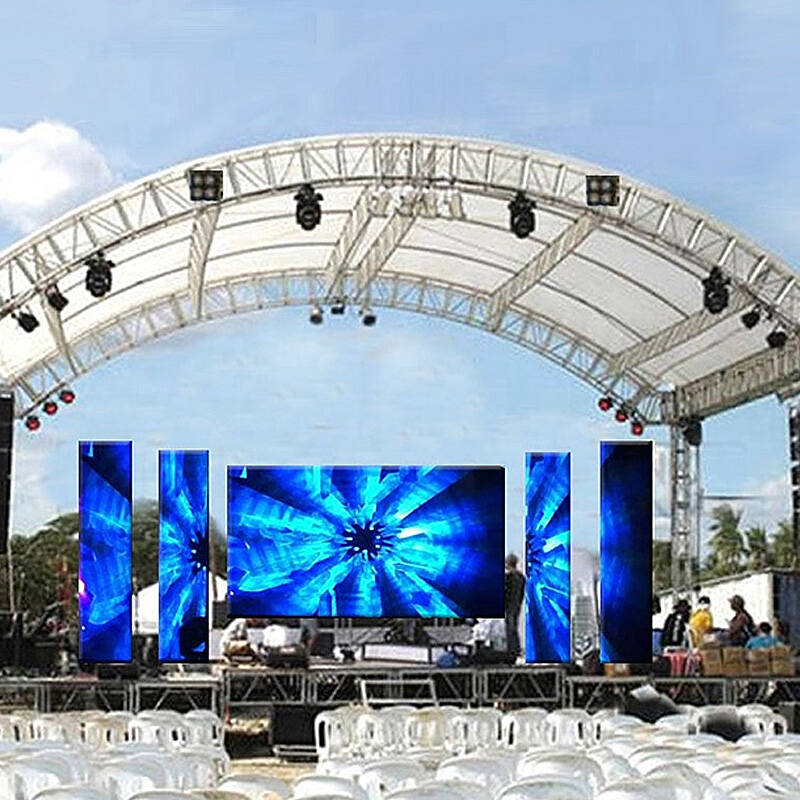

Rental Large Concert LED Screen Variability Installation

As a professional rental large concert LED screen product, the convenience and variability of installation is one of the key points of your rental business. It can be assembled into most standardized sizes and installed in various ways, such as hanging installation, arc installation, stacking installation, etc.

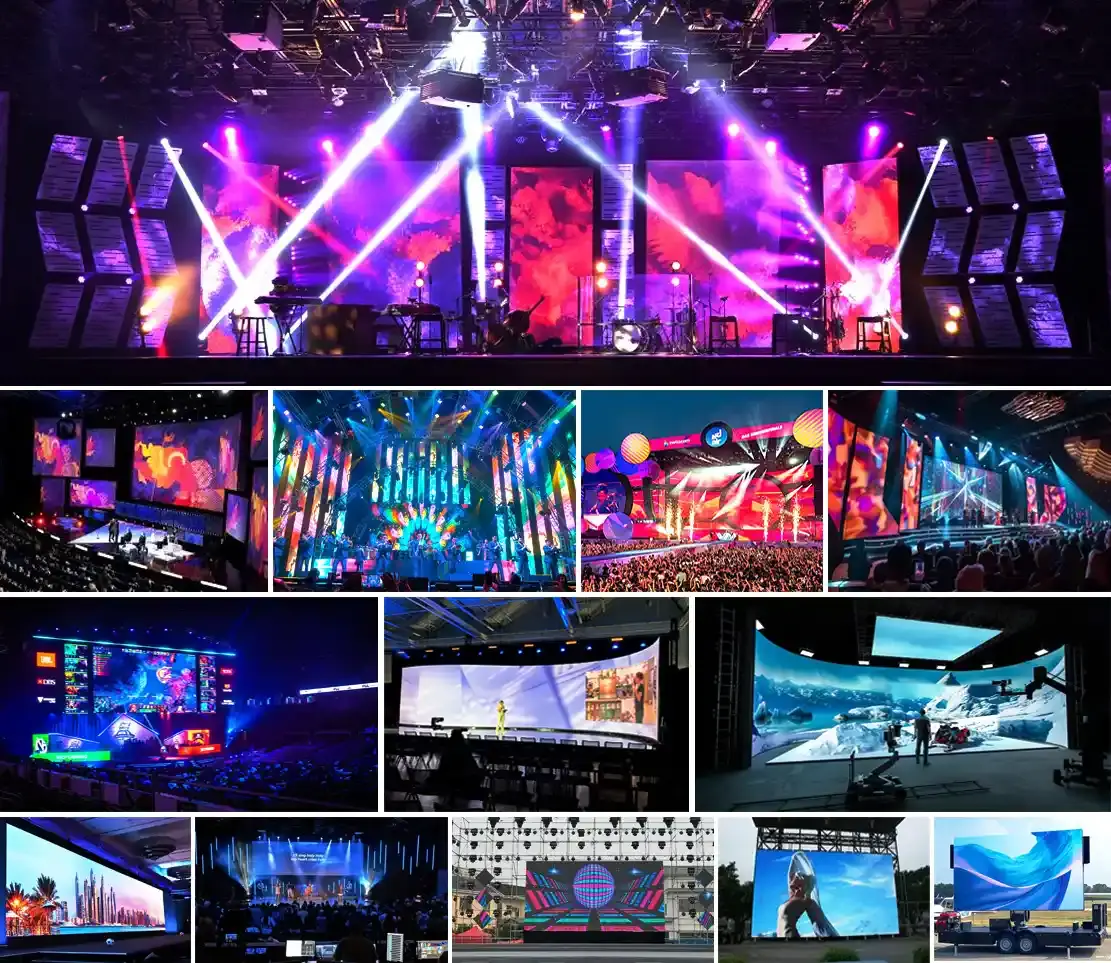

Applications in Various Fields

Meet our RA series rental LED displays – affordable, easy to maintain and quick to set up. Perfect for events such as concerts, weddings, birthday parties, product launches and marketing campaigns indoors or out. Whether it’s a stage backdrop or an exhibition booth, this display provides reliable performance and vibrant visuals for every occasion.

Indoor Series｜Fine Pitch Stage LED Display
Pixel Pitch (mm)	P1.56	P1.953	P2.604	P2.976	P3.91
Module Resolution	160×160	128×128	96×96	84×84	64×64
LED (HS/RS/Nationstar)	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020
Driver IC	DP3264S/ICN1065S	DP3153/ICN2153
Driver Mode	1/40	1/32	1/32	1/28	1/16
Brightness (nits)	600–1200
Refresh Rate	≥7680Hz
Viewing Distance	2m–30m
Protection Level	IP45 (Indoor)
Control System	Novastar/Linsn/Colorlight
Certification	CE, EMC, RoHS, ISO9001
Outdoor Series｜Waterproof Stage LED Display
Pixel Pitch (mm)	P2.604	P2.976	P3.91	P4.81	—
Module Resolution	96×96	84×84	64×64	52×52	—
LED (HS/RS/Nationstar)	SMD1415	SMD1415	SMD1921	SMD1921	—
Driver IC	DP3153/ICN2153
Driver Mode	1/24	1/21	1/16	1/13	—
Brightness (nits)	≥4500–8000
Refresh Rate	≥7680Hz
Viewing Distance	3m–30m
Protection Level	IP67 (Outdoor)
Control System	Novastar/Linsn/Colorlight
Certification	CE, EMC, RoHS, ISO9001
Common Specifications (Indoor & Outdoor)
Module Size	250×250 mm
Cabinet Size	500×500 mm / 500×1000 mm
Cabinet Weight	7 kg / 12 kg
Cabinet Material	Die-Cast Aluminum
Gray Scale	8-bit input, 16–18-bit correction
Display Color	16.7M
Viewing Angle	140° (H) / 140° (V)
Operation Power	AC100–240V, 50–60Hz (switchable)
Max Power Consumption	750W/m²
Average Power Consumption	350 W/m²
Frame Update Frequency	50-60Hz
Gamma Correction	-5.0 – 5.0
Color Temperature	5000–9300K adjustable
Support Input	Composite Video, S-Video, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600, 1024×768, 1280×1024, 1600×1200
Applicable Environment	Indoor / Outdoor
Operating Temp	-20°C – 60°C
Operating Humidity	10–95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Out of Control Pixel Rate	0.01%
Continuous Working Time	≥48 hours
Standard Fittings	Power Airplug, Signal Airplug

Frequently Asked Questions

What is a P3.91 Rental LED Display?

A P3.91 Rental LED Display is a modular rental LED screen with a 3.91mm pixel pitch, designed for temporary events, stage backgrounds, exhibitions, concerts, conferences, weddings, festivals, churches, and commercial shows. It offers clear image quality, fast installation, flexible screen size, and reliable performance for both indoor and outdoor rental applications.

What are the advantages of a P3.91 Rental LED Display?

A P3.91 Rental LED Display offers a good balance between image clarity, cost, and viewing distance. It features quick-lock cabinets, seamless splicing, high refresh rate, vivid colors, lightweight structure, easy maintenance, and flexible installation. It is one of the most popular rental LED display options for event companies and stage production projects.

Where can a P3.91 Rental LED Display be used?

P3.91 Rental LED Displays are widely used in concerts, music festivals, exhibitions, trade shows, corporate events, product launches, weddings, churches, nightclubs, TV studios, sports events, fashion shows, and live broadcast stages. They are suitable for stage backdrops, LED video walls, side screens, advertising displays, and temporary event screens.

What is the best viewing distance for a P3.91 Rental LED Display?

The recommended viewing distance for a P3.91 Rental LED Display is usually around 4 meters or farther. At this distance, the image appears smooth and clear for most audiences. It is suitable for medium-distance viewing in indoor halls, outdoor stages, exhibition venues, and live event spaces.

Can a P3.91 Rental LED Display be used outdoors?

Yes. A P3.91 Rental LED Display can be used outdoors if it is designed with outdoor brightness, waterproof protection, and weather-resistant cabinets. Outdoor P3.91 rental LED panels usually need higher brightness, sealed connectors, and proper installation structures to ensure stable performance in rain, dust, wind, and sunlight.

How do I choose the right P3.91 Rental LED Display?

To choose the right P3.91 Rental LED Display, consider indoor or outdoor use, screen size, viewing distance, brightness, refresh rate, cabinet weight, fast-lock design, curve or flat installation, maintenance access, control system compatibility, transportation protection, and event setup time. A reliable P3.91 rental LED screen should be easy to install, visually clear, stable during events, and suitable for repeated rental use
