P5 Outdoor LED Screen | Outdoor Advertising Display

OF-FD Series

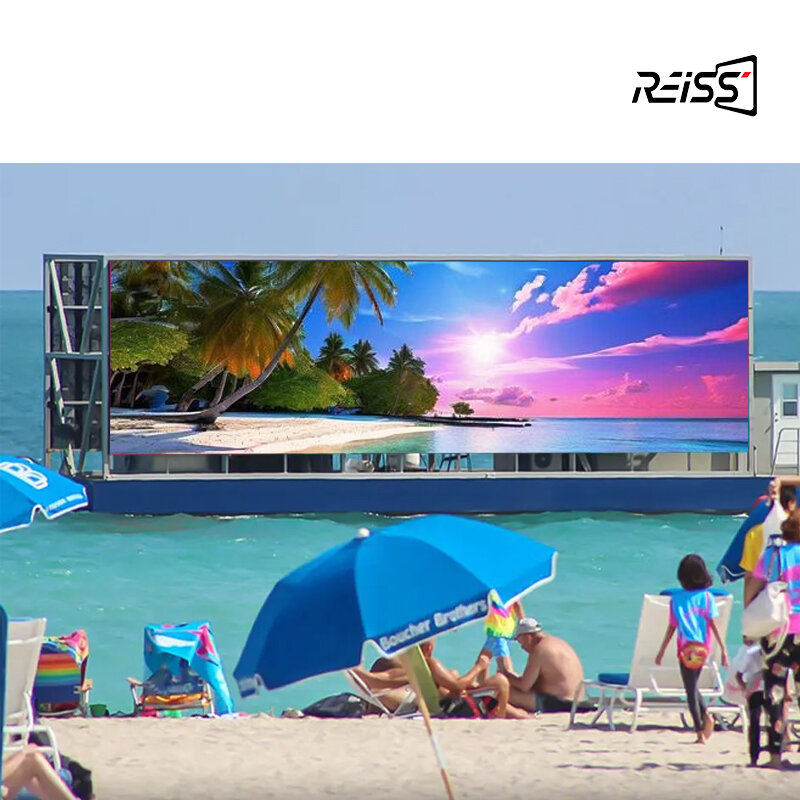

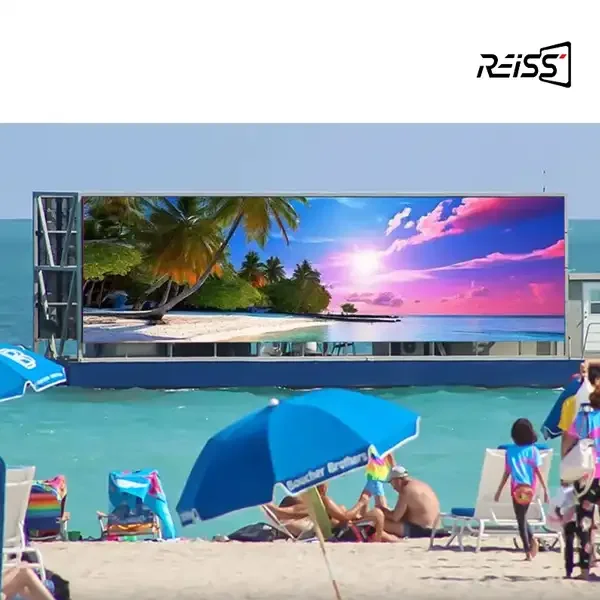

P5 outdoor LED screens are widely used for outdoor billboards, building facades, shopping mall exteriors, roadside advertising, stadiums, squares, and transportation hubs. With a 5mm pixel pitch, they offer the ideal balance of resolution and viewing distance for medium-to-large outdoor advertising displays, typically viewed from 5 meters and beyond, capturing audience attention with bright, dynamic content.

Get a quote Set OEM

Outdoor LED screen Details

What Is a P5 Outdoor LED Screen?

A P5 Outdoor LED screen is a type of digital display panel that uses a pixel pitch of 5 millimeters, indicating the distance between individual LED pixels. This specification determines the resolution and clarity of the screen when viewed from a distance.

These screens are designed with modular components, allowing for flexible assembly and scalability. Their construction supports various installation methods, making them adaptable to different outdoor display requirements.

Product Features & Advantages

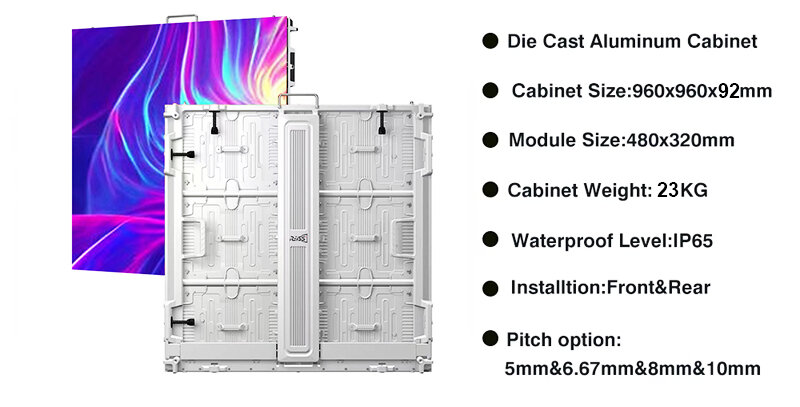

High-Definition Display

Die Cast Aluminum Cabinet
Cabinet Size: 960x960x92mm
Module Size: 480x320mm
Cabinet Weight: 23KG
Waterproof Level: lP65
Installtion: Front&Rear
Pitch option: 5mm&6.67mm&8mm&10mm

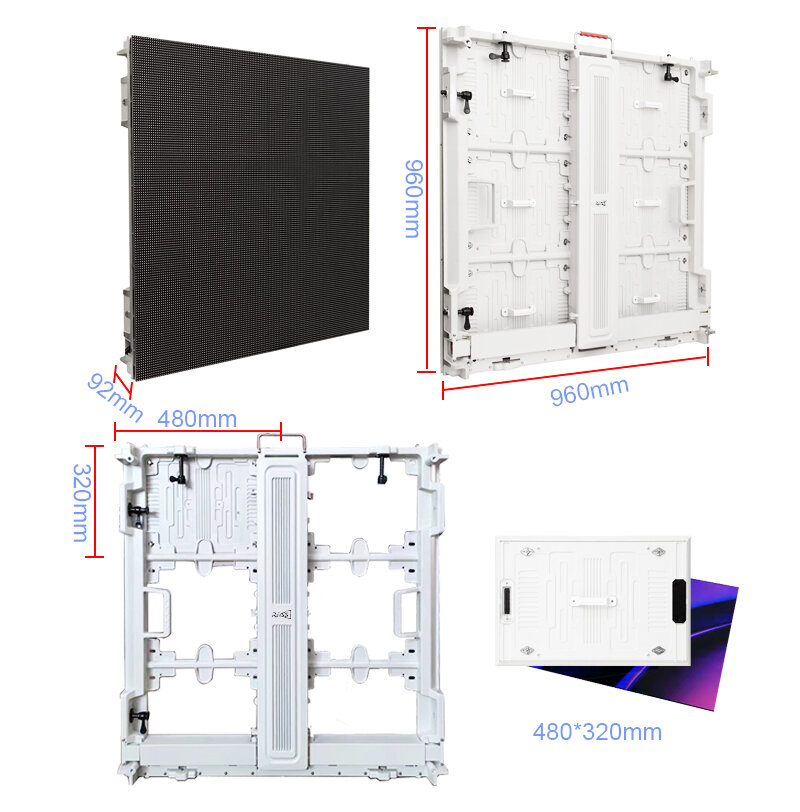

Stadard Cabinet Size

The Standard LED display cabinet size with 960mm×960mm, the thickness is only 75mm.

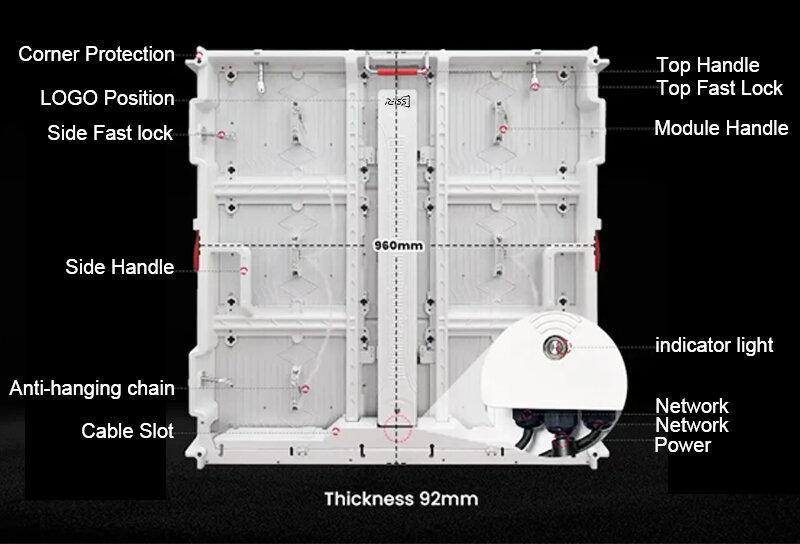

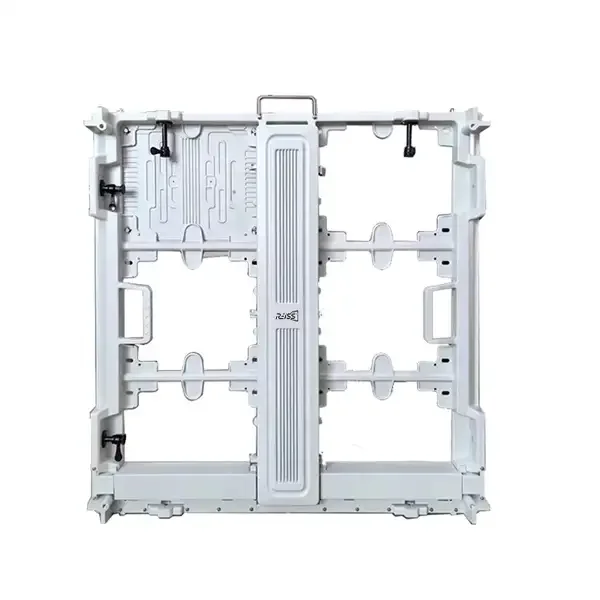

LED Cabinet

With stylish design elements, LED modules, power boxes, positioning beams, safety ropes and wiring troughs are seamlessly integrated, which enhances the overall functionality and visual effects.

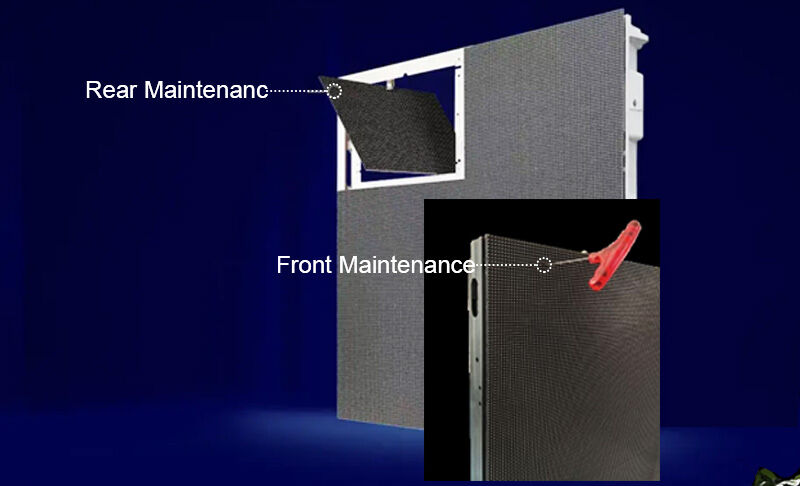

Maintenance Method

Equipped with ambient light sensors that automatically adjust the screen’s brightness in real time, ensuring optimal visibility during both day and night while saving energy.

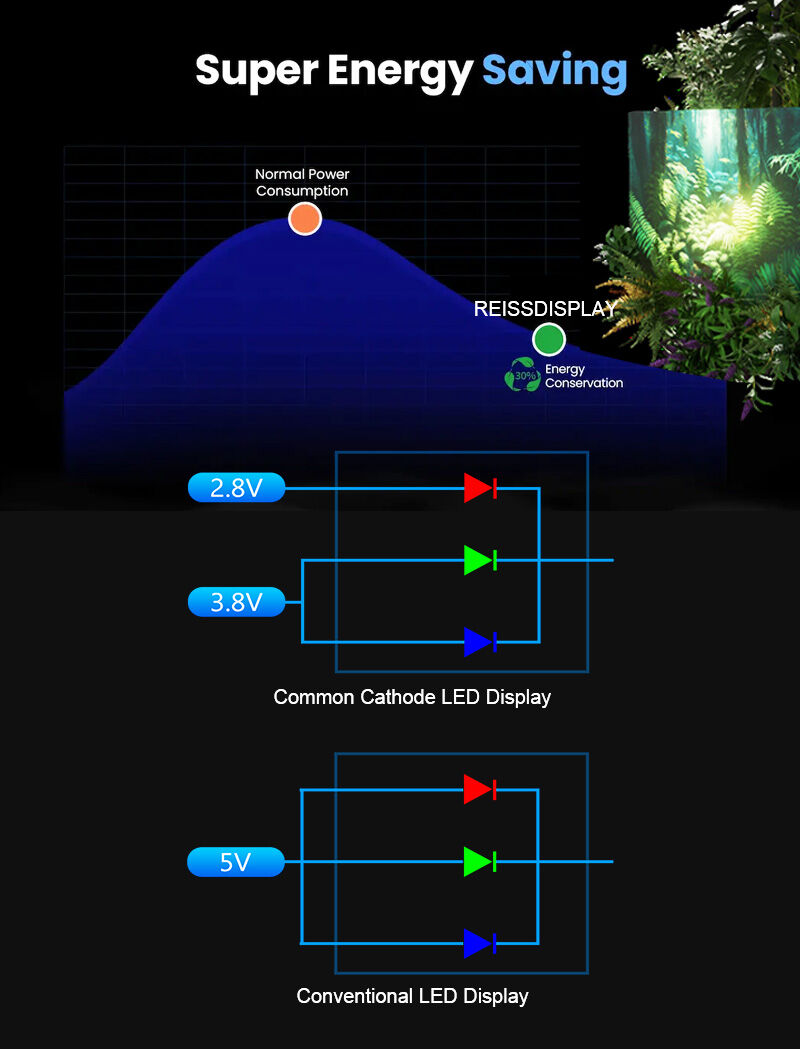

Super Energy Saving

Energy saving 40% Dual voltage design Ultra-low power consumption

The design of dual voltage energy-saving circuits and the blessing of ultra-bright lamps save 40% energy compared with conventional products, effectively reducing carbon emissions, green and environmentally friendly, and helping customers reduce costs and increase efficiency.

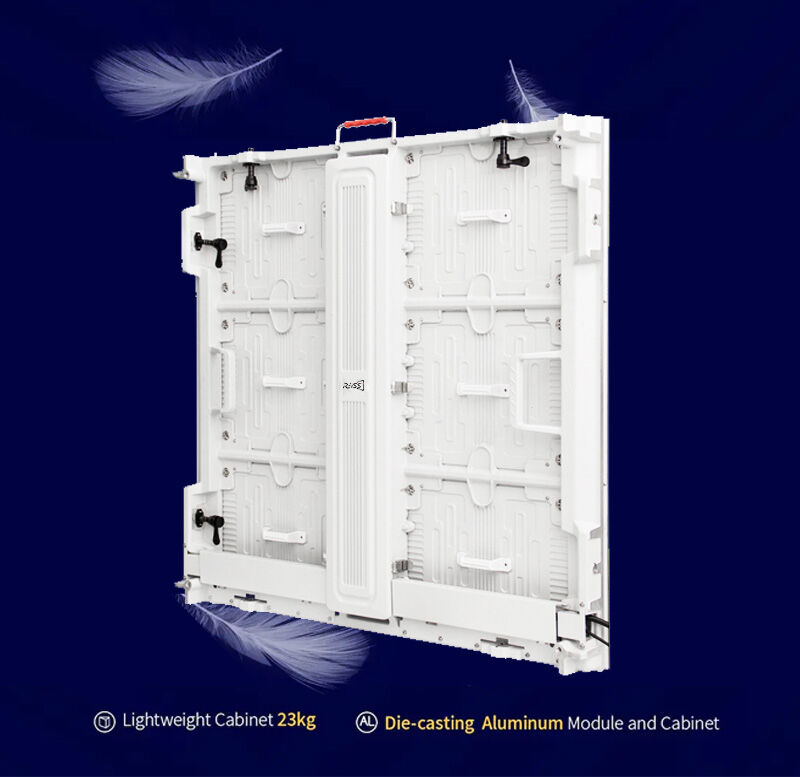

super Lightweight

Light Weight, Aluminum Panel 23kg /pcs With Thickness is 75mm

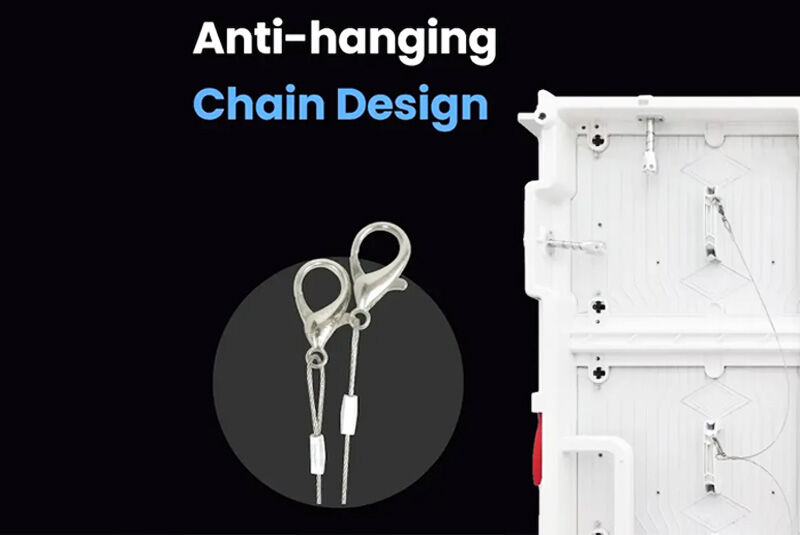

Anti-hanging Chain Design

The addition of a safety rope ensures enhanced protection for LED modules and cabinets, minimizing the risk of damage or injury during disassembly.

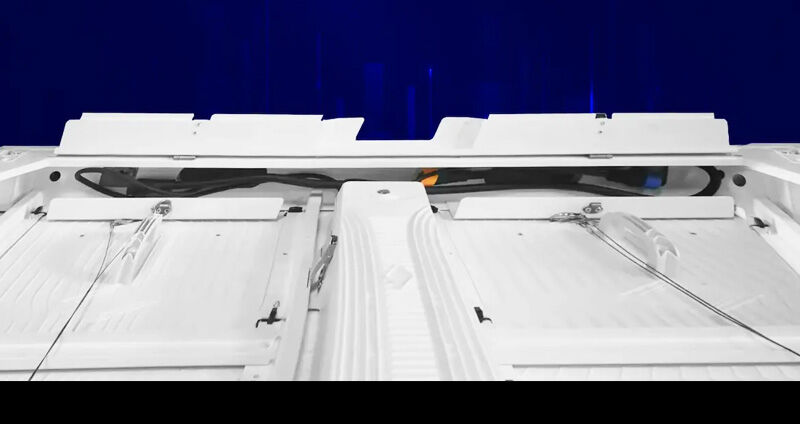

Cable Slot Design

Prevent Sun Exposure, Anti-insect And Rodent.

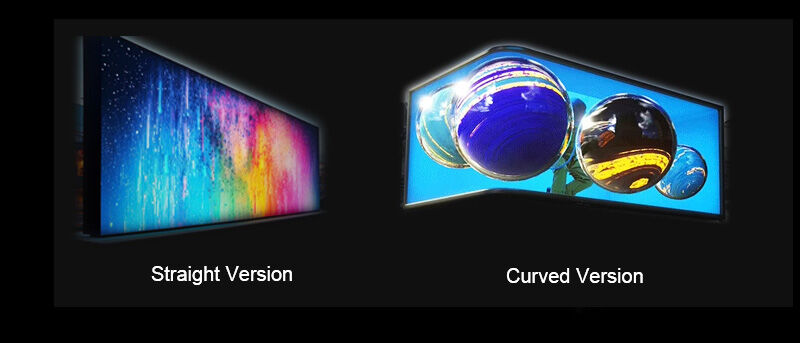

Full scene matching and creative splicing

Supports front and rear installation and front and rear maintenance to achieve full scene matching; the box size can be flexibly customized, supports right-angle splicing and arc splicing, flexibly matches the naked eye 3D display requirements, and realizes more creative splicing possibilities.

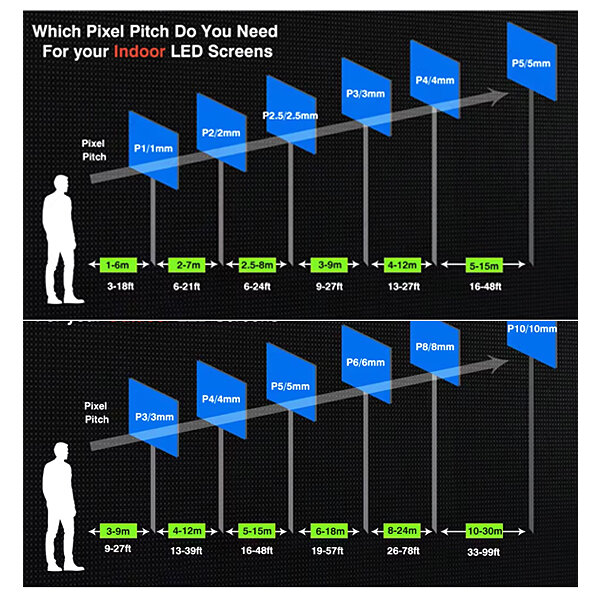

How To Choose Correct Pixel Pitch Of LED Screen Display

Outdoor LED Screen Best View Distance(Meter/Feet)

1.Determine The Viewing Distance Of Your LED Screen
2.Determine The Size Of Your LED Screen

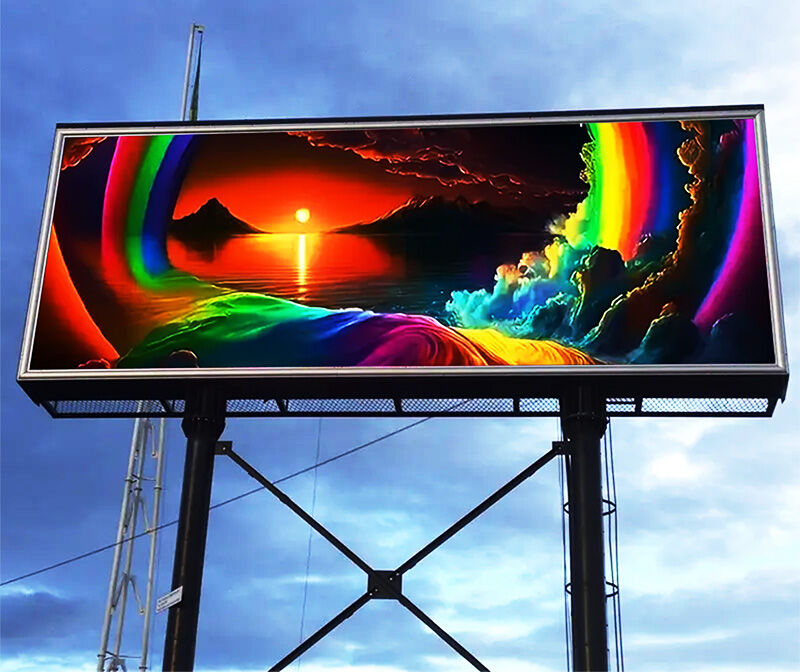

High Brightness

Feature High Brightness LED Lamps, This Outdoor IP68 Aluminum Led Screen Can Achieves A Peak Brightness Of Up To 10000 Nits (Using Gold Wire ), Making It Perfect For Outdoor Conditions In Bright Daylight.

Specifications

Outdoor LED Screen Parameters
Model *For more models, please consult customer service	P4	P5	P6.67	P8	P10
Pixel Pitch	4 mm	5 mm	6.67 mm	8 mm	10 mm
Cabinet Size	960×960×92 mm
Module Size	480×320 mm
Cabinet Resolution	240×240	192×192	144×144	120×120	96×96
Pixel Density (dots/㎡)	62,500	40,000	22,500	15,625	10,000
Cabinet Weight	23 kg
Cabinet Material	Die-cast Aluminum
Brightness	Up to 10,000 nits
Grayscale	16 bit
Contrast Ratio	5000:1
Refresh Rate	>3840 Hz
Viewing Angle	140°/140° (H/V)
IP Protection Rating	IP65
Installation Method	Hanging beam, fixed installation (front & rear)
Usage Environment	Outdoor
Input Voltage	AC 100–240V 50/60Hz
Working Temperature	-20℃ – +50℃
Working Humidity	10%RH – 90%RH
Service Life	100,000 h
Included Accessories	Screw/quick lock, handle, system/power board, connecting piece
Box Color	Black, other colors customizable
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a P5 outdoor LED screen?

A P5 outdoor LED screen is a weatherproof display with a 5mm pixel pitch, designed for outdoor advertising and digital signage. It offers high brightness up to 10000 nits, IP65 waterproof protection, and clear visuals in direct sunlight, making it ideal for billboards and building facades.

What is the best viewing distance for a P5 LED display?

The optimal viewing distance for a P5 outdoor LED display starts from around 5 meters. The 5mm pixel pitch balances resolution and cost, making it perfect for medium-to-large outdoor advertising screens where viewers stand at a moderate distance.

Is the P5 outdoor LED screen waterproof?

Yes. The P5 outdoor LED screen features an IP65-rated die-cast aluminum cabinet that protects against rain, dust, and heat. This weatherproof design ensures stable performance for permanent outdoor advertising installations in any climate.

How bright is the P5 outdoor advertising display?

The P5 outdoor advertising display achieves a peak brightness of up to 10000 nits using high-brightness gold-wire LED lamps. This ensures content remains clear and vivid even under strong daylight, ideal for outdoor billboards and roadside signage.

What is the cabinet size and weight of the P5 LED screen?

The standard P5 outdoor LED screen cabinet measures 960×960mm with a thickness of only 75mm and weighs 23kg per panel. The lightweight die-cast aluminum design simplifies installation, transport, and maintenance for large outdoor LED walls.

Can the P5 outdoor LED display be customized?

Yes. The P5 outdoor LED display supports flexible pixel pitches (P4, P5, P6.67, P8, P10), custom cabinet sizes, right-angle and curved splicing, plus OEM services. This makes it adaptable to creative shapes and any outdoor advertising project requirement.
