P8 Outdoor LED Display – IP68 Waterproof, 10,000-Nit High-Brightness LED Advertising Billboard

960D Series

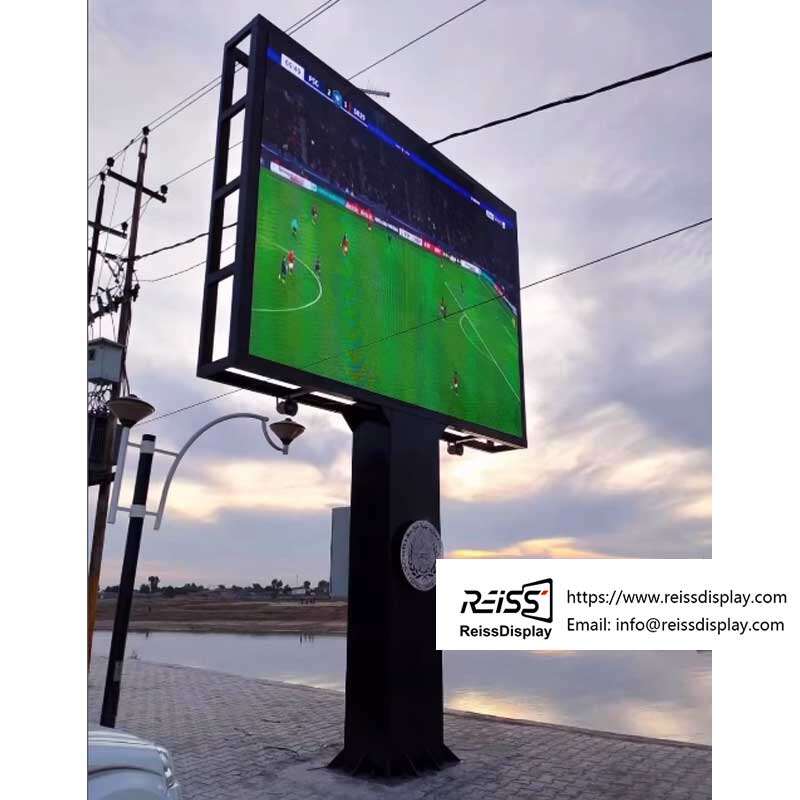

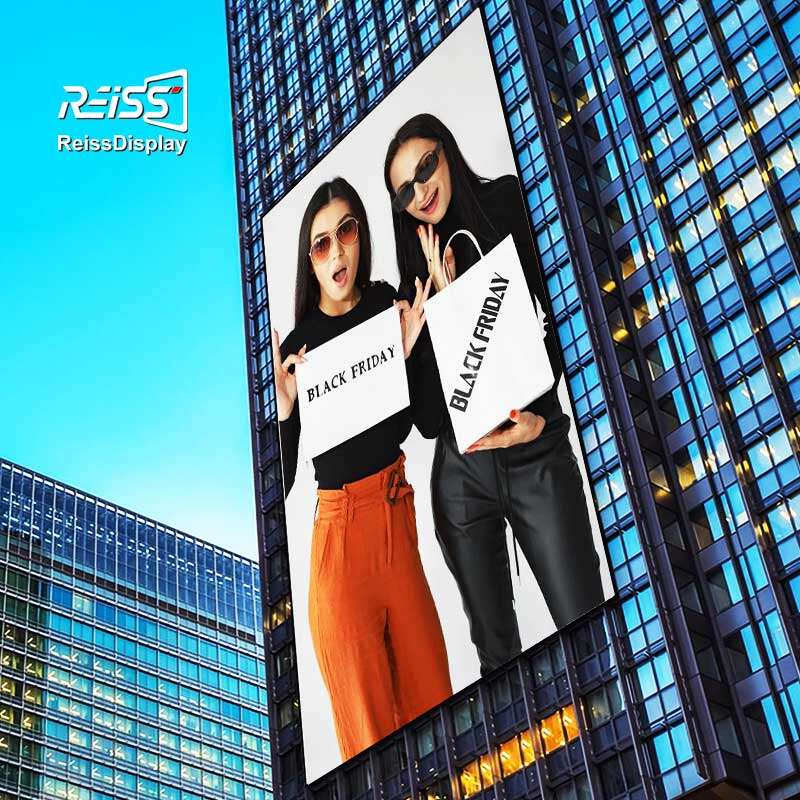

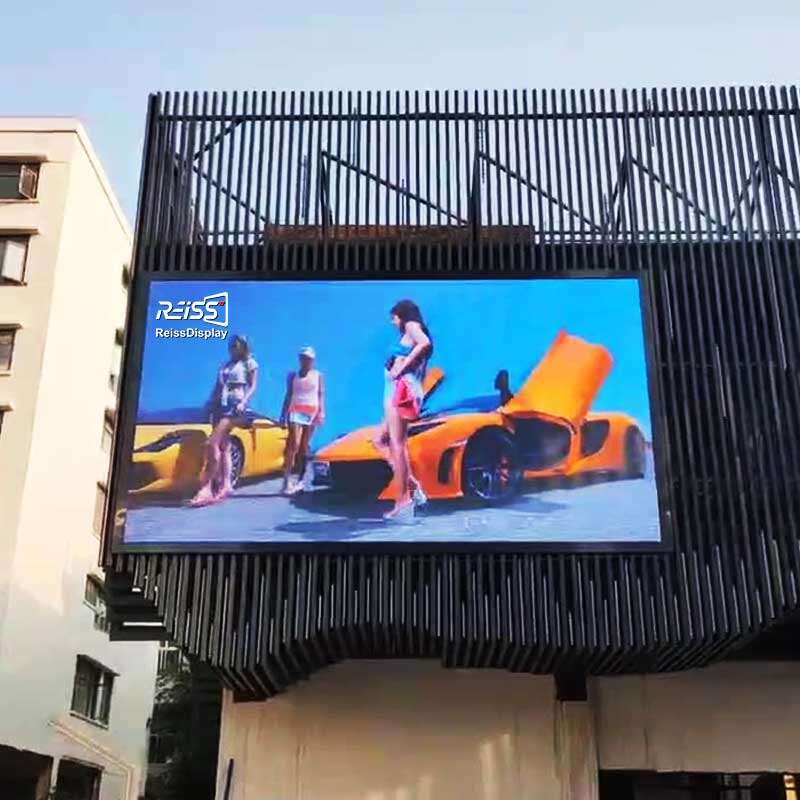

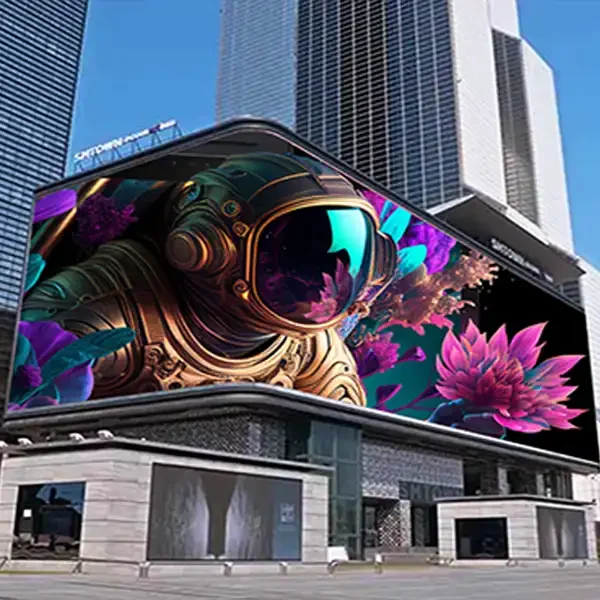

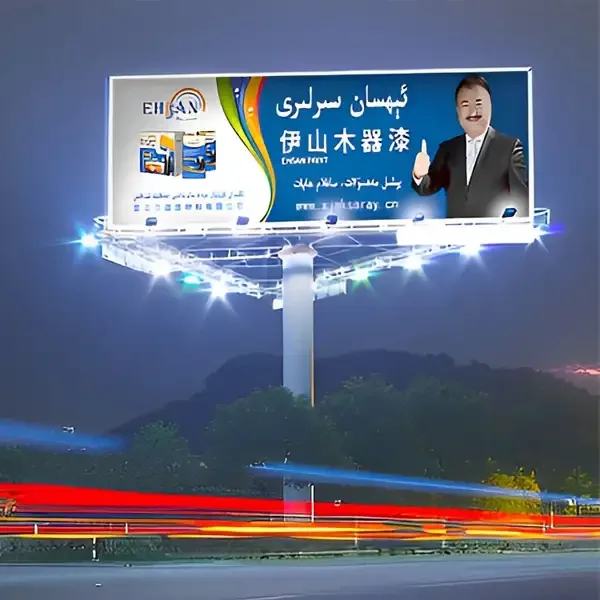

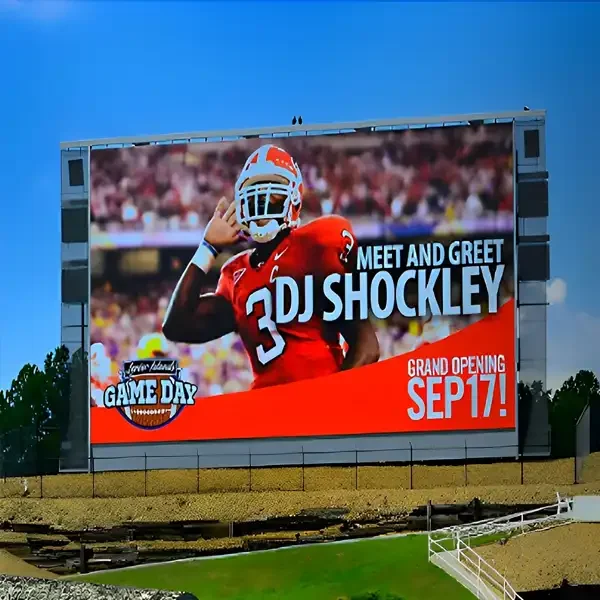

P8 outdoor LED screens are widely deployed for outdoor advertising billboards, building facades, stadium perimeter displays, shopping malls, city squares, highways, airports, and transportation hubs. The 8mm pixel pitch and up-to-10,000-nit brightness make this outdoor LED display ideal for high-traffic environments where content must stay visible from 8 meters or farther, day and night. As a weatherproof, IP68-rated outdoor LED billboard, it supports 24/7 commercial operation across diverse climates, giving brands a reliable, high-impact platform for long-term outdoor digital advertising worldwide.

Get a quote Set OEM

Outdoor LED screen Details

What Is a P8 Outdoor LED Screen?

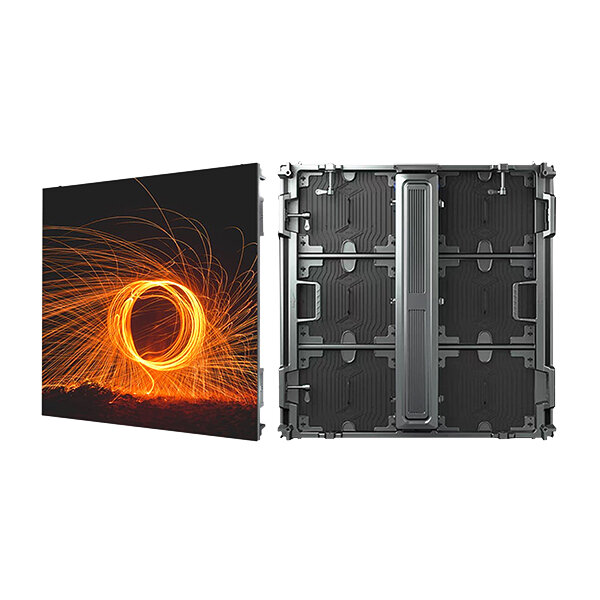

A P8 outdoor LED screen is a high-brightness outdoor LED display built on an 8mm pixel pitch, delivering sharp, vivid visuals for medium to long-distance viewing. Housed in a die-cast aluminum cabinet with an IP68 waterproof rating, it withstands rain, dust, and temperatures from -40°C to +80°C, making it a durable choice for permanent outdoor advertising. With brightness up to 10,000 nits and a 160° wide viewing angle, this outdoor LED billboard stays clear and readable even under direct sunlight. Its modular panels support flexible sizing, front and rear maintenance, and seamless splicing for large-format outdoor LED walls.

Constructed from modular LED panels, the P8 screen allows for customizable sizing and configuration to fit various outdoor installation requirements. Its design emphasizes ease of assembly and scalability, facilitating seamless integration into complex visual display networks. This flexibility supports diverse applications requiring vibrant, high-definition outdoor visuals without compromising on durability or performance.

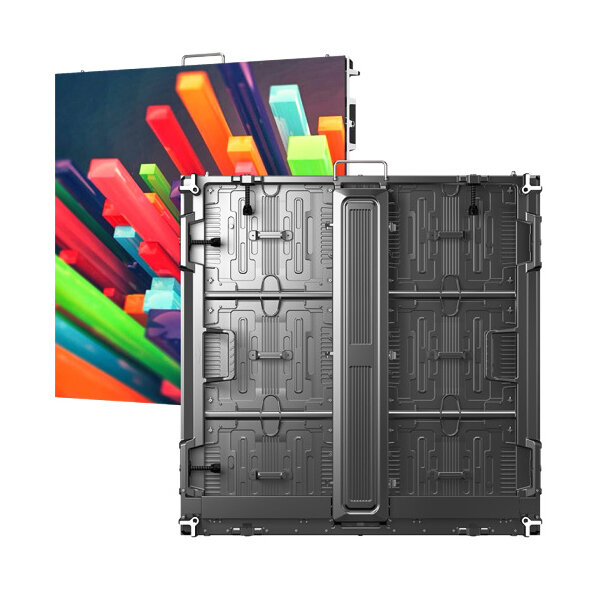

Cabinet Features

- Ultra-light---The weight of the box is 40% lighter than that of traditional aluminum boxes, which greatly saves costs
- Ultra-thin---Due to the high strength of magnesium alloy, it can be thinner than iron in design, about 30% thinner
- Anti-interference---Unique anti-electromagnetic interference function
- Fast heat dissipation---Good heat dissipation performance, effectively protecting the module circuit
- Quick installation---Installation takes only 20 seconds
- High precision---After CNC processing, the box has higher precision and can be seamlessly spliced
- Strong versatility---Can be processed according to the kit hole position and can be used indoors
- High cost performance---There is a complete production supply chain for large-scale production

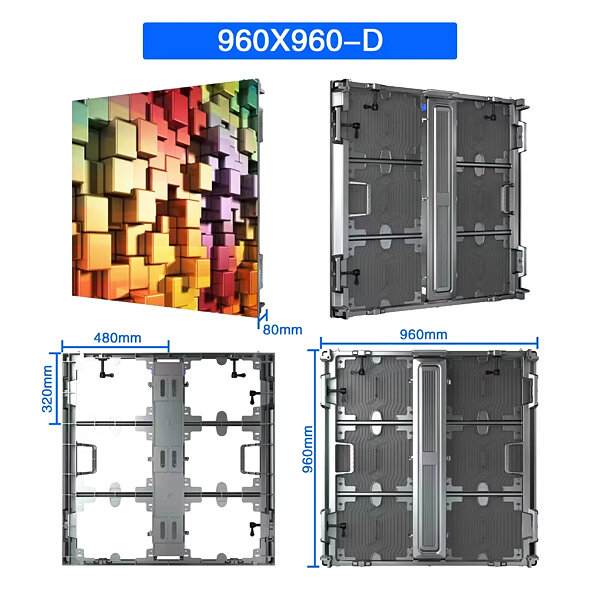

Supporting Products

PCB Board: P4/P5/P6.67/P8/P10/P13.33
Kit Specifications: 480mm*320mm
Flight Case: One for five, one for six
Hanging Beam: One for one, one for two
Power Supply: 200W-5V 40A, 300W-5V 60A
Power Connector: 20A 3*2.5㎡ National Standard

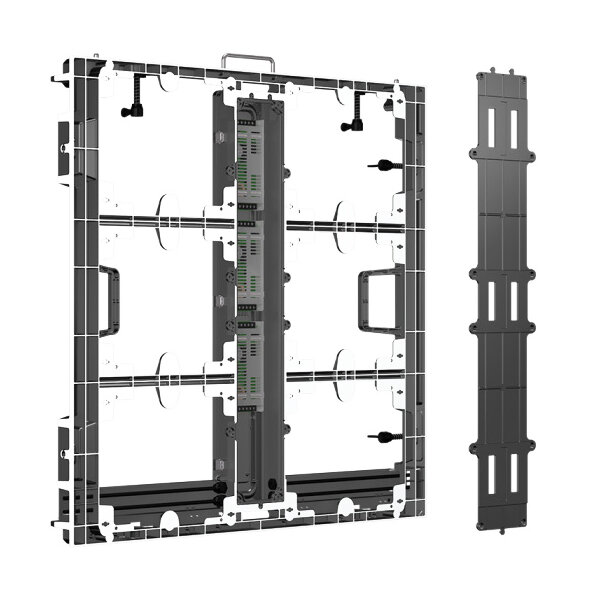

Outdoor High-end cutting edge Permanent

Aluminum materials. Cabinet size: customized.

Compatible maintenance, front/rear.

Ultra-High Protection with aluminum sealed casing.

Push and Plug insertion assembling, convenient installation and maintenance.

Unique Strong Aluminum type, waterproof and resilient in every aspect.

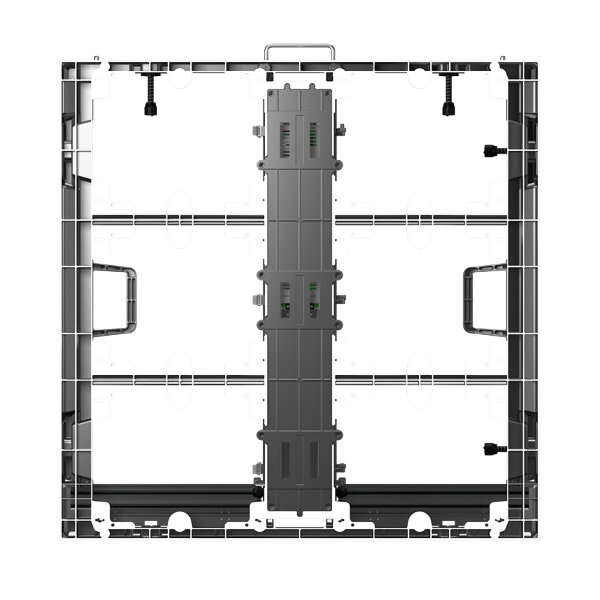

Front Service Design

Common Cathode Outdoor Aluminum IP68 LED Screen features a Dual service with front and rear design, allowing for quick installation and maintenance, while simaple lock technology simplifies assembly and module replacement.

Strong Adaptability

With an IP68 protection rating, the 960D is built to withstand harsh outdoor conditions, including temperature extremes (from -40℃ to +80℃) and seaside environments, making it a reliable choice for diverse applications.

Wide Wiewing Angle

The LED display boasts a wide 160° horizontal and vertical viewing angle, achieved through SMD packaging’s unique shallow well spherical light emission technique, ensuring an immersive viewing experience suitable for broad audience areas.

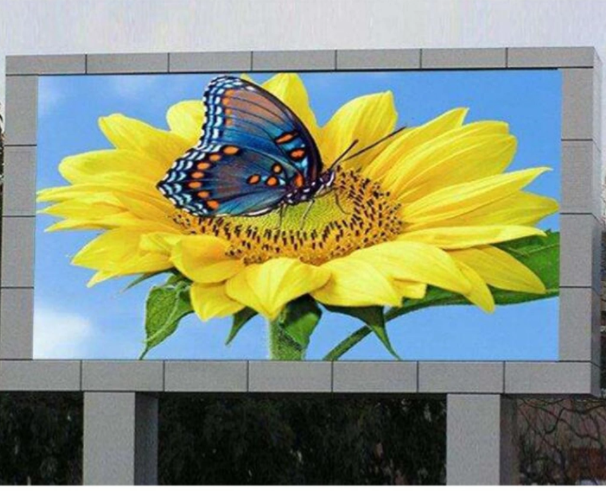

High Brightness

Feature high brightness LED lamps, this outdoor IP68 aluminum led screen can achieves a peak brightness of up to 10000 nits (Using gold wire ), making it perfect for outdoor conditions in bright daylight.

How to Choose Correct Pixel Pitch Of LED Screen Display

Outdoor LED Screen Best View Distance(Meter/feet)

1.Determine The Viewing Distance Of Your LED Screen
2.Determine The Size Of Your LED Screen

Specifications

Outdoor LED Display Cabinet Parameters
Model *For more models, please consult customer service	P5	P6.67	P8	P10
Pixel Pitch	5 mm	6.67 mm	8 mm	10 mm
Module Size	320×160 mm
Module Resolution	64×32	48×24	40×20	32×16
Cabinet Size	W960×H960×D80 mm
Cabinet Resolution	192×192	144×144	120×120	96×96
Pixel Density (dots/㎡)	40,000	22,500	15,625	10,000
Cabinet Weight	9.7 kg
Cabinet Material	Aluminum alloy
Box Wiring Mode	Internal wiring (clean back)
Grayscale	16 bit
Brightness	≥5500 nits
Contrast Ratio	5000:1
Refresh Rate	3840 Hz
Viewing Angle	140°/140° (H/V)
IP Protection Rating	IP65 (Front & Rear)
Frame Change Frequency	60 Hz
Input Voltage	AC 100–240V 50/60Hz
Working Temperature	-20℃ – +50℃
Working Humidity	10%RH – 90%RH
Service Life	100,000 h
Installation Method	Hanging beam, fixed installation
Usage Environment	Indoor / Outdoor
Included Accessories	Screw/quick lock, handle, system/power board, connecting piece
Box Color	Black, other colors customizable
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a P8 Outdoor LED Screen?

A P8 Outdoor LED Screen is an outdoor LED display with an 8mm pixel pitch, meaning the distance between the center of two adjacent pixels is 8mm. It is designed for outdoor advertising, building façades, stadiums, transportation hubs, commercial displays, and public information screens where medium to long viewing distances are required.

What are the advantages of a P8 Outdoor LED Screen?

A P8 Outdoor LED Screen offers high brightness, good image clarity at medium and long distances, weather resistance, wide viewing angles, seamless large-screen display, and cost-effective performance. It is a popular choice for outdoor billboards, roadside displays, shopping mall façades, event screens, and public advertising projects.

Where can a P8 Outdoor LED Screen be used?

P8 Outdoor LED Screens are widely used for outdoor advertising billboards, building walls, stadium perimeter displays, shopping centers, highways, city squares, airports, train stations, bus terminals, schools, churches, hotels, and commercial media screens. They are suitable for applications that require durable outdoor performance and clear visibility from a distance.

What is the best viewing distance for a P8 Outdoor LED Screen?

The recommended viewing distance for a P8 Outdoor LED Screen is usually around 8 meters or farther. At this distance, the image can appear clear and smooth to viewers. For longer distances, P8 can provide a good balance between image quality and project cost, especially for outdoor advertising and large-format displays.

What brightness is recommended for a P8 Outdoor LED Screen?

For a P8 Outdoor LED Screen, the recommended brightness is typically 5,000–8,000 nits, depending on the installation direction and sunlight exposure. If the screen faces direct sunlight, a higher brightness level helps maintain strong visibility and clear image performance during daytime operation.

How do I choose the right P8 Outdoor LED Screen?

To choose the right P8 Outdoor LED Screen, consider screen size, viewing distance, brightness, IP rating, cabinet material, installation structure, front or rear maintenance, refresh rate, power consumption, control system, and local weather conditions. A suitable P8 outdoor LED display should provide stable performance, easy maintenance, clear visibility, and long-term advertising value.
