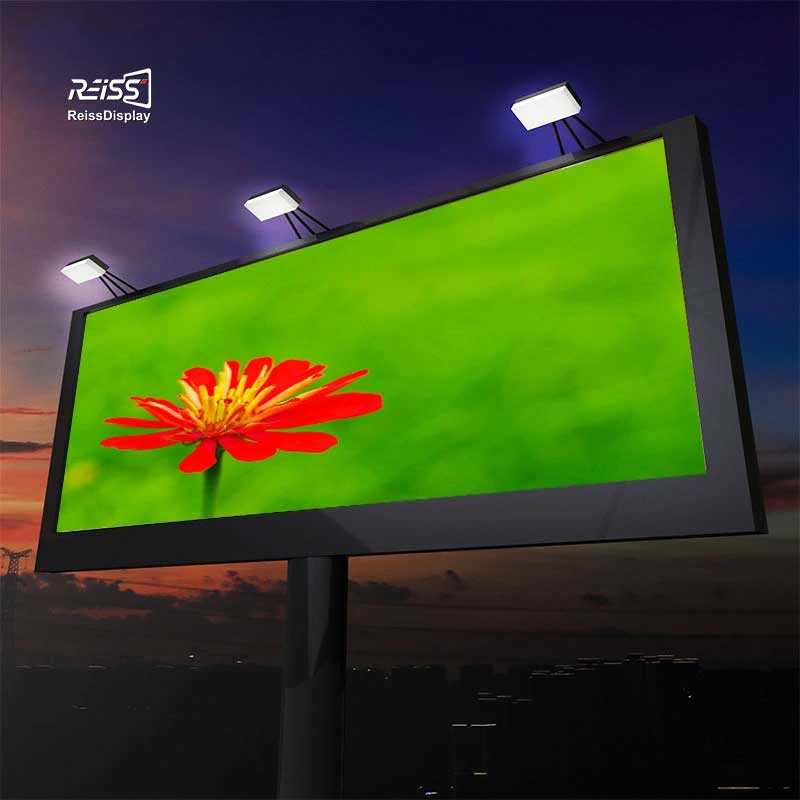

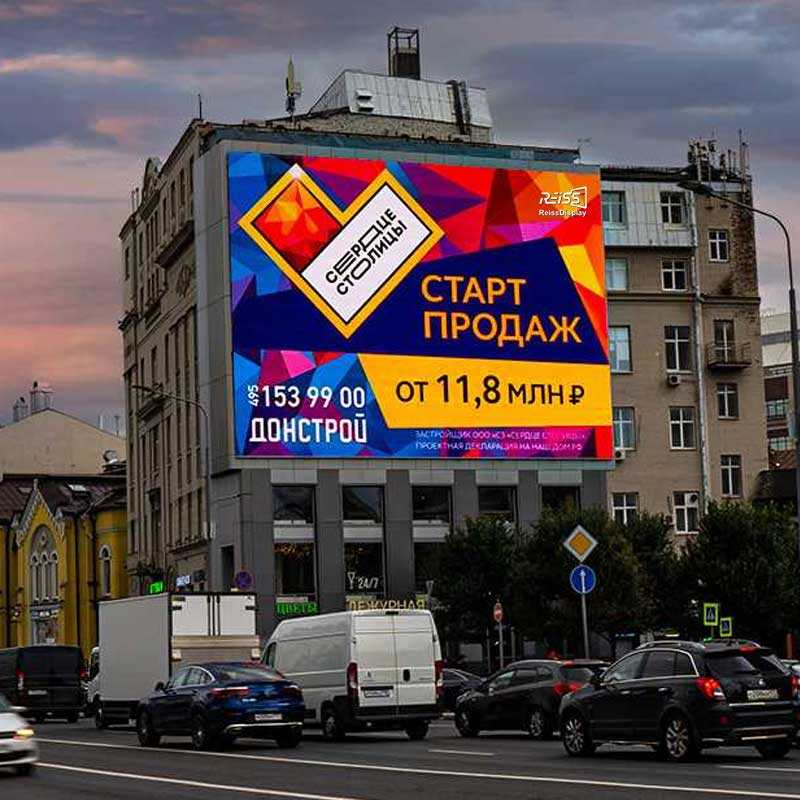

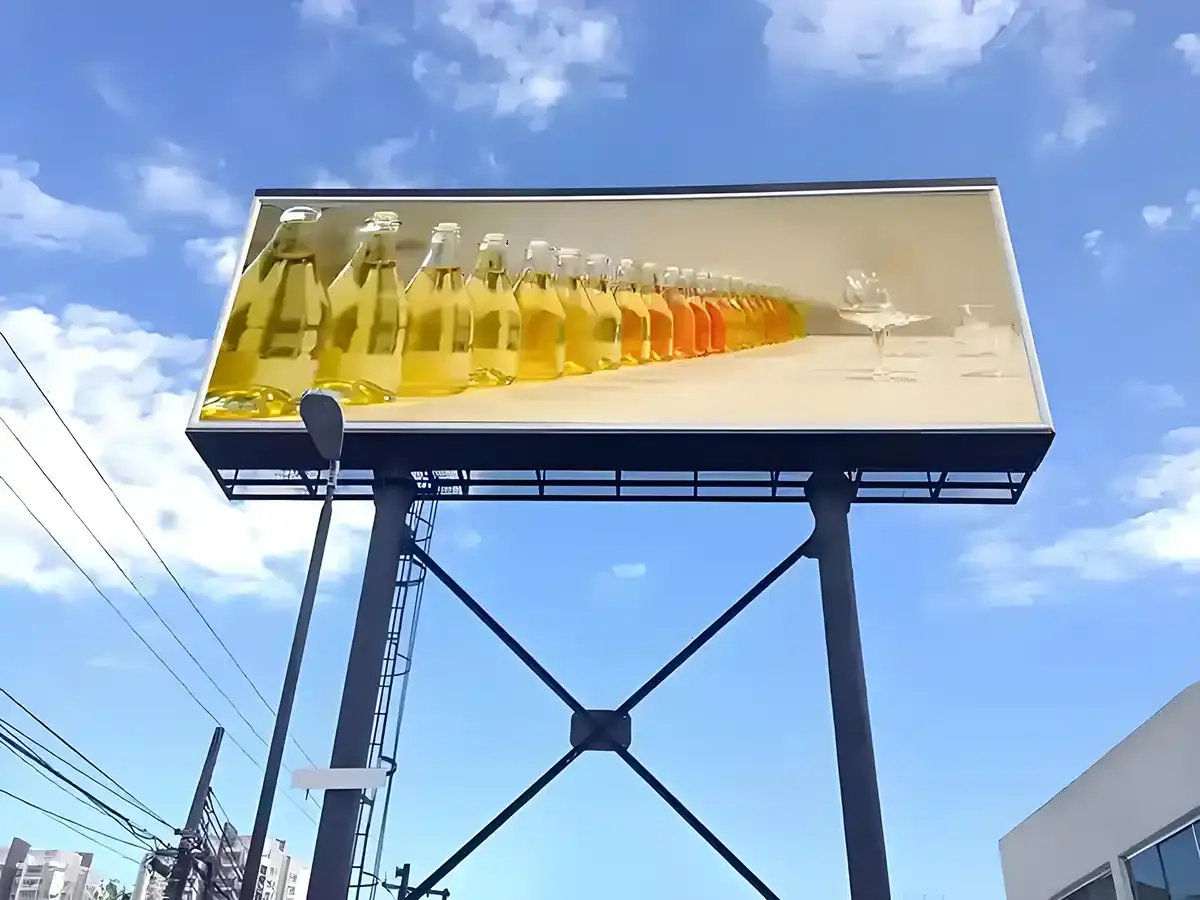

Widely deployed in outdoor advertising billboards, shopping-mall facades, commercial streets, transportation hubs, stadiums, and public squares, the P4 outdoor LED screen helps brands and DOOH networks display dynamic video, real-time promotions, and public information with strong daytime visibility and long-term commercial value.
The P4 outdoor LED screen is a 4mm pixel-pitch display built for high-impact outdoor advertising. With 62,500 dots/m² pixel density, ≥6,000 nits brightness, and a 7680Hz refresh rate, it delivers sharp, flicker-free visuals that stay clear under direct sunlight. Its IP65 waterproof, dustproof die-cast cabinet withstands rain, heat, and humidity for reliable 24/7 operation, while front and rear access enables fast maintenance.

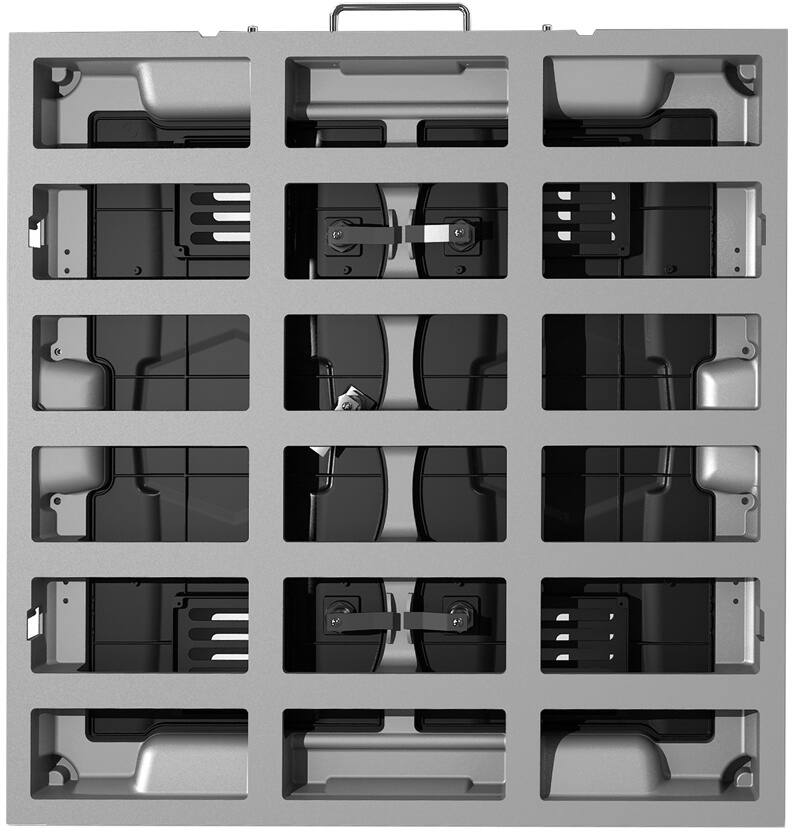

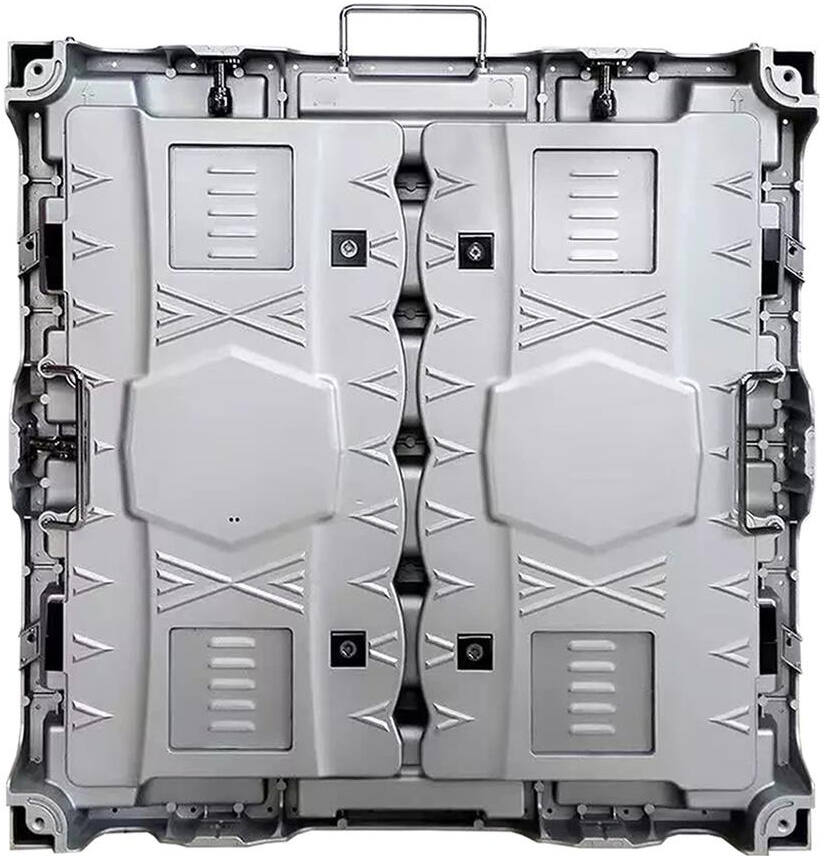

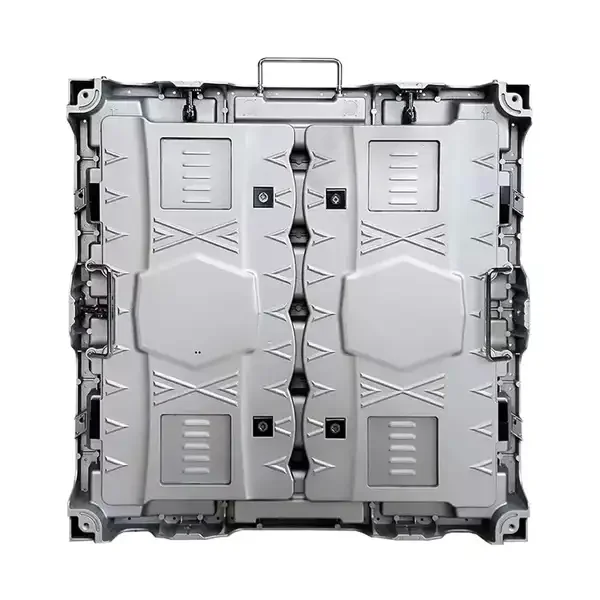

Ultra-lightweight - The weight of the case is 40% lighter than traditional aluminum cases, significantly reducing costs. Ultra-thin - Due to the high strength of magnesium alloy, it can be designed to be about 30% thinner than aluminum. Interference-resistant - Unique function to resist electromagnetic interference.
Ultra-light --- The box weight is 40% lighter than traditional aluminum boxes, significantly saving costs.
Ultra-thin --- Due to the high strength of magnesium alloy, it can be designed to be thinner than aluminum, about 30% thinner.
Anti-interference --- Unique electromagnetic wave interference resistance function.
Fast heat dissipation --- Good heat dissipation performance effectively protects the module circuit.
Quick installation --- Installation only takes 20 seconds.
High precision --- The box is processed by CNC, resulting in higher precision and seamless splicing.
Strong versatility --- Can be processed according to kit hole positions, suitable for indoor use.
High cost performance --- A complete production supply chain for large-scale production.
PCB Board: P2/P4/P8/P16
Kit Specifications: 320mm*160mm
Flight Case: One pack five, one pack six
Hanging beam: One support one, one support two
Power Supply: 200W-5V 40A, 300W-5V 60A
Power Connector: 20A 3*2.5㎡ National Standard

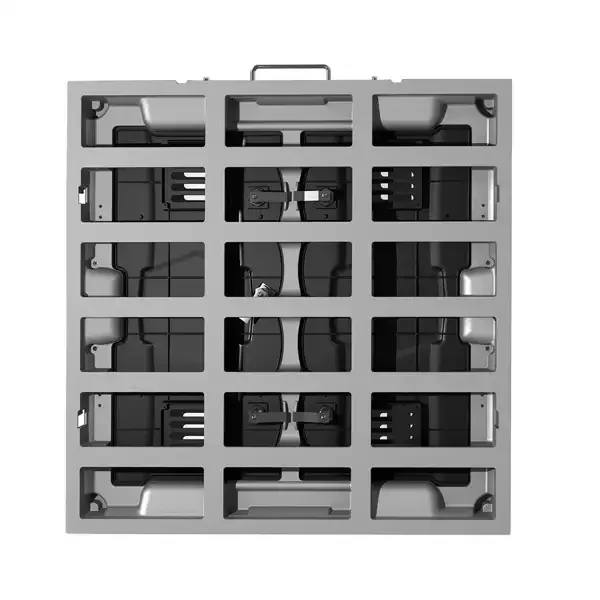

Adopting high-precision aluminum cabinet design, the protection level reaches IP65, which can withstand harsh outdoor environments. Better waterproof, dustproof and fog-proof design.

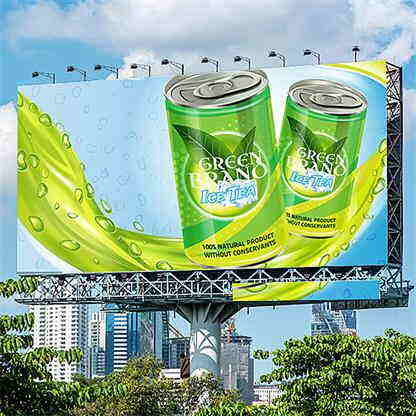

In order to clearly display the content on the LED screen in outdoor scenes, we adopt a new approach, including excellent PCB design and LED chips, to achieve a brightness of over 10,000 nits. Ultra-high brightness, refresh rate and grayscale make the visual effect of the screen impeccable.
Provides consistent image quality across large crowds or wide viewing positions.

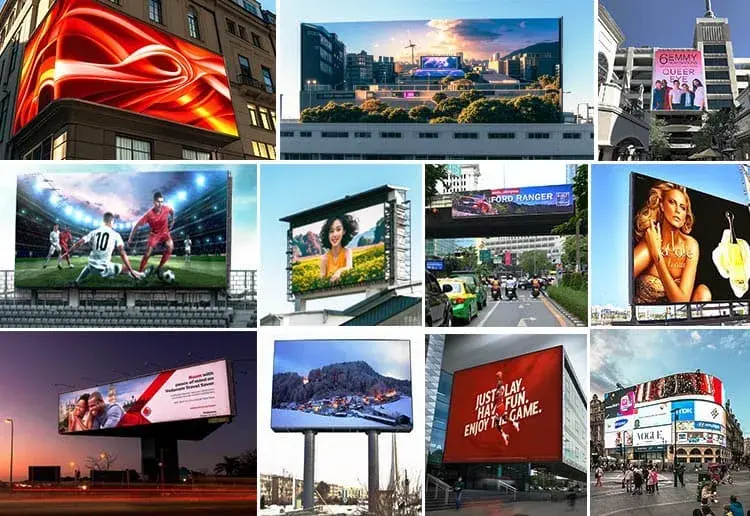

To fit every different scene, our products utilize superior materials with the concise and strong structure, and various installation methods make it flexible and easy to apply. This product is usually used in.
Truck Trailers; Scoreboards; Digital Out Of Home(DOOH).

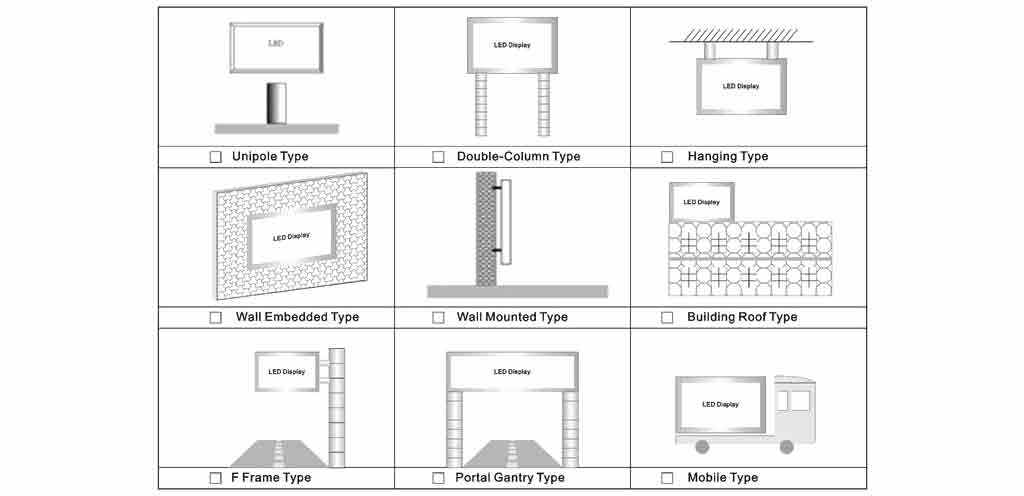

Supports wall-mounted, hanging, freestanding, or curved installations, adaptable to different project needs.
Specifications
| Outdoor LED Screen Parameters | ||||
| Model *For more models, please consult customer service | P2 | P4 | P6 | P8 |
| Pixel Pitch | 2 mm | 4 mm | 6 mm | 8 mm |
| Cabinet Size | W768×H768×D80 mm | |||
| Cabinet Resolution | 384×384 | 192×192 | 128×128 | 96×96 |
| Pixel Density (dots/㎡) | 250,000 | 62,500 | 27,778 | 15,625 |
| Cabinet Material | Magnesium alloy / Aluminum alloy | |||
| Weight | Magnesium alloy 8.75 kg / Aluminum alloy 10.7 kg | |||
| Grayscale | 16 bit | |||
| Brightness | ≥6,000 nits | |||
| Refresh Rate | 7680 Hz | |||
| Viewing Angle | 140°/140° (H/V) | |||
| IP Protection Rating | IP65 | |||
| Usage Environment | Indoor / Outdoor | |||
| Installation Method | Hanging beam, fixed installation | |||
| Input Voltage | AC 100–240V 50/60Hz | |||
| Working Temperature | -20℃ – +50℃ | |||
| Working Humidity | 10%RH – 90%RH | |||
| Service Life | 100,000 h | |||
| Included Accessories | Quick lock, handle, system/power board, connecting piece | |||
| Box Color | Black, other colors customizable | |||
| Control System | NovaStar / Colorlight (optional) | |||
| Certification | CE, RoHS, FCC, ETL, UL, ISO9001 | |||
| Note | The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service. | |||
An Outdoor Advertising Display is a digital display system used to show advertisements, brand messages, videos, images, promotions, and public information in outdoor environments. It is usually built with high-brightness LED technology, weatherproof cabinets, and stable control systems to ensure clear visibility in sunlight, rain, wind, dust, and changing weather conditions.
An Outdoor Advertising Display offers high brightness, dynamic content playback, remote content updates, wide viewing angles, strong visual impact, weather resistance, and long-term advertising value. Compared with traditional static billboards, it can display multiple campaigns on one screen and attract more attention with video, animation, and real-time information.

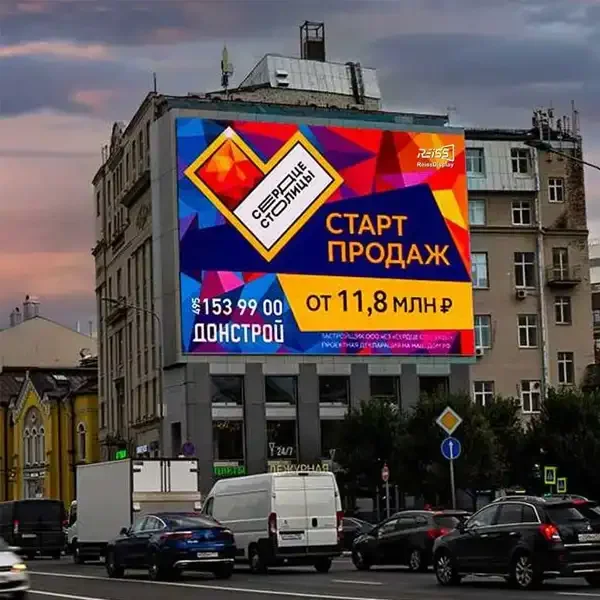

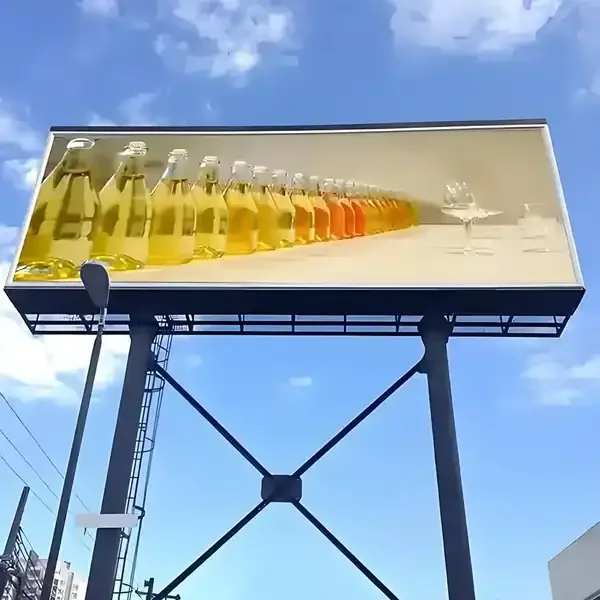

Outdoor Advertising Displays are widely used on building façades, roadside billboards, shopping malls, commercial streets, airports, train stations, bus terminals, stadiums, public squares, schools, churches, hotels, theme parks, and transportation hubs. They are suitable for brand promotion, retail advertising, event announcements, public messaging, and digital signage networks.
The suitable brightness for an Outdoor Advertising Display depends on installation direction, sunlight exposure, and viewing environment. For general outdoor advertising, 5,000–7,000 nits is commonly recommended. For direct sunlight or roadside applications, 7,000–10,000 nits can help maintain clear visibility and strong image contrast during daytime operation.
The right pixel pitch depends on viewing distance, screen size, traffic speed, content detail, and budget. Common pixel pitches for an Outdoor Advertising Display include P1.8, P2, P3, P4, P5, P6, P8, P10, and P16. Smaller pixel pitches are suitable for closer viewing areas, while larger pixel pitches are more cost-effective for long-distance roadside and large-format billboard applications.
To choose the right Outdoor Advertising Display, consider viewing distance, screen size, pixel pitch, brightness, IP rating, cabinet material, installation structure, maintenance method, power consumption, heat dissipation, control system, local weather, and advertising content needs. A reliable outdoor advertising display should provide clear daytime visibility, stable weatherproof performance, easy content management, and long-term commercial value.
