Outdoor 3D LED Display | Glasses-Free 3D Advertising Screen

3D-FA Series

Naked-eye 3D LED screens are widely deployed on building facades, shopping-mall corners, airports, city landmarks, exhibition halls and flagship stores across markets in North America, Europe, the Middle East and Southeast Asia. Their eye-catching 3D effect drives dwell time and social sharing, delivering measurable brand exposure for outdoor advertising, retail promotion and event experiences worldwide.

Get a quote Set OEM

Outdoor LED screen Details

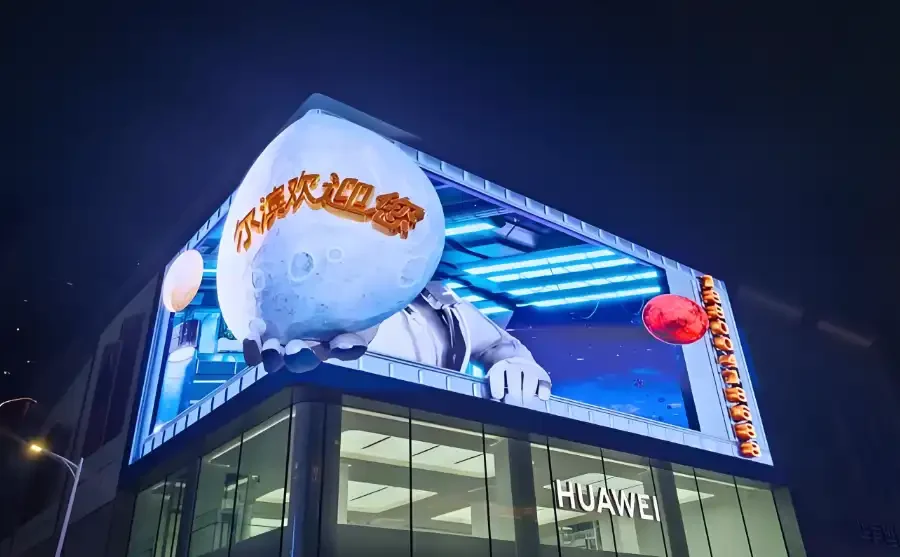

What is 3D Display?

An outdoor 3D LED display is a high-brightness LED screen that produces glasses-free (naked-eye) 3D visuals by combining a curved or right-angle cabinet layout with depth-simulating content, so viewers perceive real spatial depth without any 3D glasses. Built with die-cast aluminum cabinets, IP66 waterproof protection and up to 10,000 nits brightness, it stays clearly visible in direct sunlight and operates reliably outdoors year-round. Standard pixel pitches range from P4 to P10, with front-and-rear maintenance for fast servicing, making it a proven choice for large-format 3D advertising and landmark digital signage.

This technology works on the principle of stereoscopic vision, leveraging the human eye's ability to perceive depth. To achieve this, 3D displays typically require specialized hardware, such as 3D screens or glasses, although some systems allow for a "no-glasses" experience through advanced techniques like autostereoscopy.

What is 3D Display

3D LED Display Solutions

3D LED display solutions offer a unique way to create dynamic, lifelike visual experiences in various settings. These displays are particularly effective in environments that require high levels of engagement and attention, such as shopping malls, museums, theme parks, and public spaces. With the ability to show three-dimensional content without the need for special glasses, 3D LED screens can captivate audiences by offering a more interactive and immersive viewing experience. This makes them ideal for advertising, digital signage, and exhibitions, where visually striking content is essential to draw viewers' attention.

In event spaces such as concerts, sports arenas, and trade shows, 3D LED displays enhance the overall atmosphere by creating a more engaging, multi-dimensional environment. These displays can bring content to life with depth and motion, transforming traditional presentations into interactive, attention-grabbing experiences. Whether it's showcasing product features, creating immersive storytelling, or enhancing live performances, 3D LED displays offer a versatile solution for any event or marketing campaign that aims to stand out and leave a lasting impression on its audience.

Product Features & Advantages

Perfect Dimension Of 3D Outdoor Screen LED Display

1: 960*960mm and 480*960mm cabinet design, aluminum material
2: Magnesium alloy material, the lightest, the module shell is also made of aluminum alloy material
3: High precision, seamless connection
4: Quick and easy installation, saving manpower
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP66

Arc Splicing and Right-Angle Splicing in 3D Displays

3D display screens can be configured using two primary splicing methods: arc splicing and right-angle splicing. Arc splicing creates a curved display, ideal for immersive, panoramic experiences often used in events or control rooms. It allows for a fluid, engaging view of 3D content. Right-angle splicing, on the other hand, arranges screens at 90-degree angles, providing a sharp, clean layout perfect for corner installations or digital signage. Both methods enable seamless integration of 3D visuals, tailored to different environments and viewing needs.

Front Maintenance and Benefits for 3D Displays

3D displays designed for outdoor advertising are built to withstand tough environmental conditions, whether extreme heat or cold. With front maintenance, these displays offer exceptional accessibility, allowing for quick repairs and part replacements without the need for space behind the screen. This feature is particularly beneficial in outdoor settings, where ease of maintenance is crucial for ensuring continuous, high-quality performance. The combination of durability and easy servicing makes 3D displays ideal for various advertising applications, maintaining both efficiency and longevity in challenging environments.

D Screens: Common Cathode vs. Common Anode

In 3D LED displays, energy-saving configurations are crucial for optimizing performance. The two main designs are common cathode and common anode. The common cathode configuration is known for being the more energy-efficient option, as it minimizes power loss and enhances heat dissipation, resulting in lower energy consumption and longer lifespan. This makes it particularly suitable for large-scale 3D screens, where energy efficiency is essential. On the other hand, the common anode design tends to consume more power and generate additional heat, making it less efficient for energy-conscious 3D display applications.

Fully Waterproof Design Function in 3D Screens for Outdoor Displays

The fully waterproof design is a crucial feature in 3D screens used for outdoor displays, ensuring their durability and reliability in harsh environmental conditions. This design protects the internal components of the display from water ingress, dust, and other damaging elements such as humidity and extreme temperatures. By sealing the display effectively, the waterproof feature enhances the longevity of 3D screens and guarantees consistent performance, making them ideal for outdoor advertising, public spaces, and events where exposure to the elements is inevitable. This ensures that the display maintains high-quality visuals, regardless of the weather conditions.

Super Cold and Heat Resistant

Outdoor application products, lP66 protection grade, integrated all-aluminum design, with corrosion resistance, high melting point, flame retardant and fire resistance, moisture resistance and salt spray resistance working temperature -40°C -80°C, can operate normally in the seaside environment for a long time, The ability to adapt to the environment is very strong, and it can work outdoors all day long.

Excellent Heat Dissipation

3D screens are equipped with multiple unique heat dissipation designs to ensure optimal performance and longevity. These screens use advanced contact thermal conductance technology, which accelerates the transfer of heat away from the display's internal components, preventing overheating. Additionally, the fin shape structure increases the heat dissipation surface area, allowing for more efficient airflow and cooling. By effectively managing heat, these designs not only improve the screen's reliability and durability but also ensure consistent, high-quality performance even in demanding environments, making them ideal for large-scale 3D displays used in outdoor advertising and public installations.

All-Aluminum Bottom Shell LED Display Module

all-aluminum chassis led billboard module is expertly designed for durability, lightweight construction, and enhanced thermal management. This design is particularly effective in outdoor and high-performance applications, where reliability is critical, especially in challenging conditions such as snowy and ultra-high temperature environments.

Energy-Saving 30-60%

Outdoor energy-saving LED Billboards are designed to provide high-quality visual output while minimizing energy consumption. These displays are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.

Super Brightness in 3D Screen LED Displays

3D screen LED displays are designed with super brightness to ensure clear visibility in outdoor environments, even under intense direct sunlight. These high-brightness displays feature advanced LED technology that delivers vivid, sharp images that can be seen from a wide range of angles, making them ideal for outdoor advertising, public installations, and large events. With a brightness level significantly higher than traditional displays, they maintain visibility and clarity in bright, sunlit conditions, ensuring that content remains impactful and easily readable to a broad audience, day or night.

Various Installation Methods for 3D Screen LED Display

3D screen led display offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.

Specifications

3D-FA Series Specification
Model *For more models, please consult customer service	P4.4	P5.7	P6.6	P8	P10
Pixel Pitch	4.4 mm	5.7 mm	6.6 mm	8 mm	10 mm
LED Type	SMD1921	SMD2727	SMD2727	SMD2727	SMD3535
Pixel Density (dots/㎡)	50,625	30,628	22,500	15,625	10,000
Module Size	480×320 mm
Module Resolution	108×72	84×56	72×48	60×40	48×32
Cabinet Size	960×960×75 mm
Cabinet Resolution	216×216	168×168	144×144	96×96	96×96
Cabinet Material / Weight	Aluminum Frame / 26 kg
Brightness (cd/㎡)	≥5500–10000	≥6000–10000	≥6000–8000	≥6000–10000	≥5000–10000
Scan Mode	1/9	1/7	1/6	1/4	1/2
Refresh Rate	≥3840 Hz
Grayscale	≥65536 (14–18 bit)
Contrast Ratio	3000:1
Viewing Angle	140° (H) / 120° (V)
Ave. / Max. Power Consumption	≤650W/㎡ / ≤200–250 W/㎡
Input Voltage	AC 110–240 V
IP Protection Rating	IP66 (Fully Waterproof)
Maintenance Way	Front and Rear
Installation Way	Fixed Installation
Working Temp. / Humidity	-10℃ – +50℃ / 10%RH – 98%RH
Storage Temp. / Humidity	-40℃ – +85℃ / 10%RH – 98%RH
Service Life	100,000 h
Control System	NOVA / LINSN / MOOCELL / COLORLIGHT
Certification	CE, RoHS, FCC, EMC
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a naked-eye 3D LED display?

A naked-eye (glasses-free) 3D LED display is an outdoor LED screen that creates a real sense of depth without any 3D glasses. It uses a curved or right-angle cabinet layout combined with specially rendered content, so the human eye perceives objects "popping out" of the screen — ideal for eye-catching 3D advertising on building corners and landmarks.

How much does an outdoor 3D LED screen cost?

The price of an outdoor 3D LED display depends mainly on pixel pitch, total screen size, and the control system. Finer pitches such as P4 cost more per square meter than P8 or P10. For an accurate quote based on your dimensions and installation environment, contact our sales team for a customized offer.

What pixel pitches are available for 3D LED displays?

This 3D LED display series offers P4, P5, P6.67, P8 and P10 pixel pitches. Smaller pitches (P4–P5) suit close-viewing indoor or facade installations with high resolution, while larger pitches (P8–P10) are more cost-effective for large outdoor screens viewed from a distance.

Is the outdoor 3D LED screen waterproof?

Yes. The 3D LED display uses a fully sealed IP66-rated die-cast aluminum cabinet that resists rain, dust, humidity and salt spray. Combined with an integrated heat-dissipation design, it operates reliably in temperatures from -40°C to +80°C, making it suitable for permanent outdoor advertising installations.

How bright is the 3D LED display and can it be seen in sunlight?

The 3D LED screen reaches up to 10,000 nits brightness, so content stays vivid and clearly readable even under direct sunlight. Brightness is adjustable, allowing the display to dim automatically at night to save energy and avoid light pollution in city environments.

What is the difference between arc splicing and right-angle splicing?

Arc splicing joins cabinets into a curved surface for immersive, panoramic 3D visuals, ideal for landmarks and control rooms. Right-angle splicing arranges cabinets at 90° corners, which is the classic layout for naked-eye 3D effects on building-corner advertising screens. Both methods deliver seamless, high-precision 3D content.
