Outdoor LED Screen Display | IP65 Waterproof, 10000 nits

Name: Outdoor LED Screen Display | IP65 Waterproof, 10000 nits
Brand: REISSOPTO
SKU: SKU-6
Availability: InStock

OF FX Series

From dense city centers to highways and stadium façades, outdoor LED screen displays have become a global standard in out-of-home (OOH) advertising. Deployed on billboards, shopping malls, transport hubs, and building exteriors, they turn public space into high-impact digital media reaching thousands of viewers daily. Advertisers rely on them for brand campaigns and real-time promotions, while operators generate steady advertising revenue. With IP65 protection, 10000-nit brightness, and remote 4G/5G scheduling, outdoor LED displays deliver reliable, high-exposure performance across climates worldwide.

Get a quote Set OEM

Outdoor LED screen Details

An outdoor LED display is a high-brightness, weatherproof LED screen engineered for permanent or semi-permanent outdoor installation, delivering clear, full-color visuals under direct sunlight and in harsh weather conditions. The OF-FX Series outdoor LED screen display is built exactly for this purpose—ensuring your content stays bright and readable outdoors, whatever the scene. No matter the environment, we help you find the most suitable outdoor LED display solution.

Our OF-FX outdoor LED screen display offers a high level of protection, engineered to withstand the challenges of outdoor use. From the very beginning of product design, real-world conditions such as direct sunlight exposure, heavy rain, and extreme cold were taken into account, so the high-performance build quality is dependable across any outdoor scenario.

· Outdoor LED models available in P2.5, P3, P3.91, P4, P4.81, P5, P6, P8, P10, P16 and P20
· Brightness from 5,000 to 10,000 nits (model dependent)
· IP65–IP67 waterproof rating
· Maintenance accessible from both front and back

The OF-FX outdoor LED screen display delivers a 3,840Hz high refresh rate for flicker-free on-camera capture, a >140° horizontal and vertical viewing angle, 10,000:1 contrast, and a rated lifespan of over 100,000 hours. Pixel density ranges from 27,777 dots/m² (P6) up to 160,000 dots/m² (P2.5), covering everything from long-distance billboards to close-range building facades.

Cost-effective Solution for Outdoor LED Screen Display

OF-FX series fixed outdoor LED screen display proves affordability and quality, providing unparalleled value for various outdoor display needs. With its customizable size options and support for different module sizes, such as 320×160mm, 258×128mm, and 192×192mm, this display can meet various installation requirements, making it a versatile solution for outdoor advertising, signage, and event applications.
– 960mm×960mm cabinet standard size, support customized size.
– Post-maintenance is serviceable.
– Support cabinet internal wiring, beautiful and practical, with simple wiring.
– High-precision iron cabinet, high protection IP66
– SMD 3-in-1 full-color LED package.
– High brightness, good heat dissipation.
– Energy-saving, 4 fan cooling design.
– Seamless splicing, better flatness.

140-degree Wide Viewing Angle

The viewing angle is up to 140° vertically and horizontally, providing a wide viewing angle.
The ultra-wide viewing angle provides you with the largest screen viewing area. It provides you with a clear and natural image.

High IP Rating IP66- Safe and Reliable

The special waterproof design of LED screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating lP66 ensures great quality outputs in every condition.
Compared to other DIP products, our product saves energy by 45%, leading to lower operational costs and higher ROI.

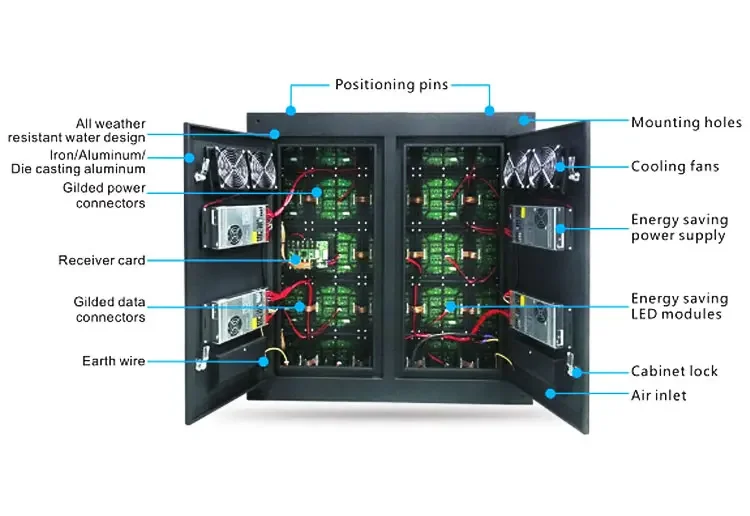

Outdoor LED Screen Display Panel Structures

The outdoor LED screen display box has high hardness and excellent wind and cold resistance. The humanized structural design makes assembly and disassembly very simple, convenient and fast

Outdoor LED Screen Display Excellent Display Effect

Amazing dynamic LED screen display

OF-FX series provides vivid display effects and realistic color performance with SMD technology, high brightness, high refresh rate, and high contrast.

Outdoor LED Screen Display Excellent Display Effect - OF FX Series

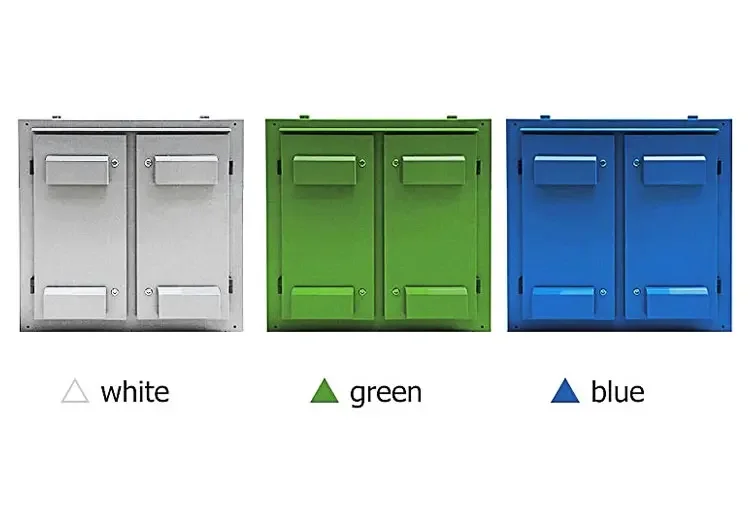

Outdoor LED Panel Color Customization

Personalized customization, multiple colors can be selected

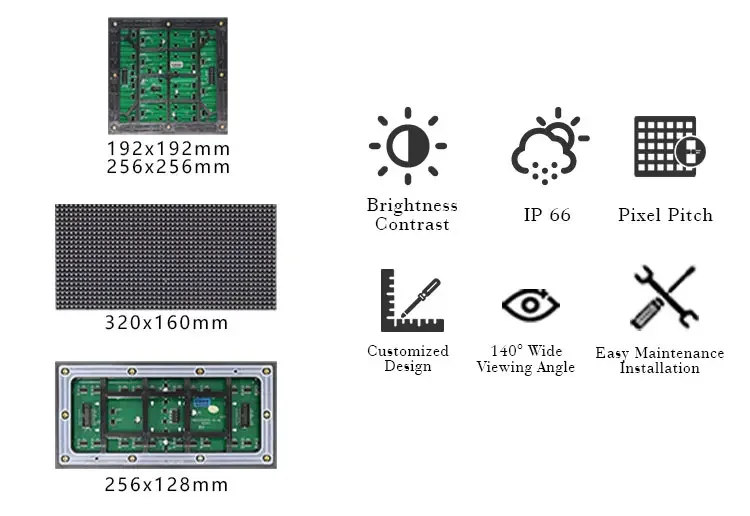

Support Various Modules, Easy Upgrade

Based on 320×160mm 256×128mm192 ×192mm 256 ×256mm universal module design, you can easily upgrade the screen with different pixel pitches without replacing the steel structure; bilateral door design leaves more operating space, can reach convenient and fast maintenance.

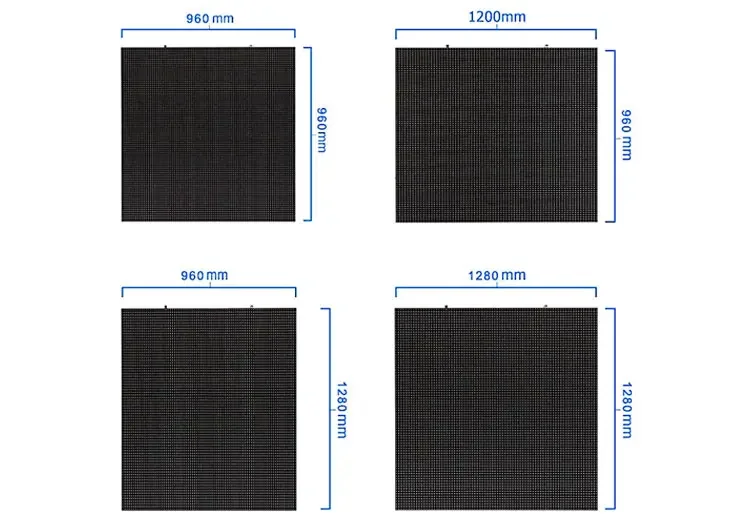

Customized Size

Supports customized size, allowing displays of any scale to be tailored to specific project requirements. Whether it is a large outdoor billboard or a smaller signage display, the OF-FX Series can be configured to fit seamlessly into any space.
Outdoor fixed LED display video wall has high brightness, high refresh rate, high contrast, P2, P2.5, P3.076, P5, P4, P6, P8, P10. Various sizes are available 960*960mm, 960*1280mm, 1280*1280mm, 1280*960mm, 960*800mm, 800*960mm, etc.

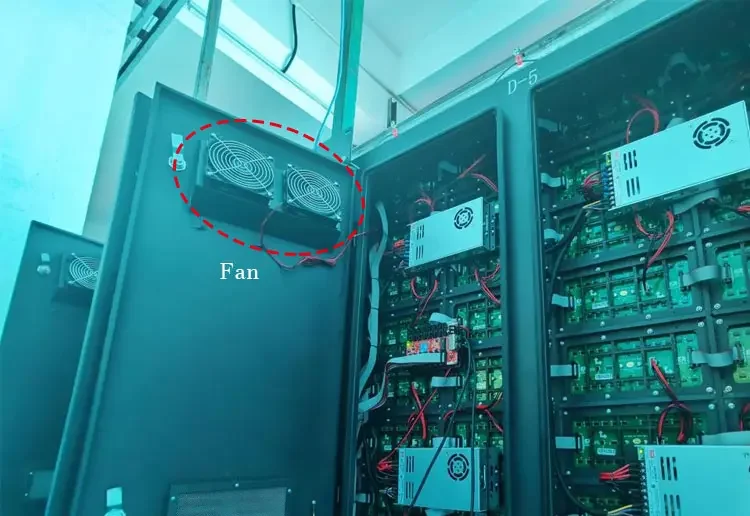

Excellent Heat Dissipation Design

Fans are designed to reach excellent heat dissipation, which can ensure that the product is more durable and stable during operation.

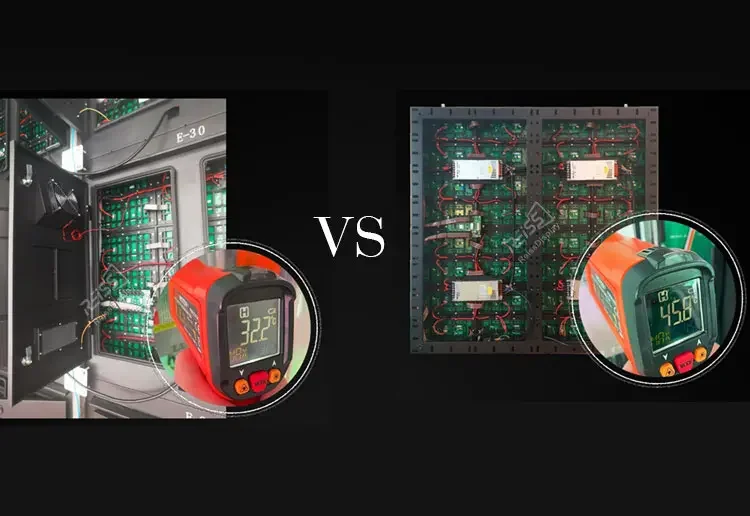

Low Temperature Technology

LED display adopts the core technology of low-temperature energy saving to reduce the heat value of key electronic components inside the LED display, which can improve the reliability and prolong the service life of LED display.

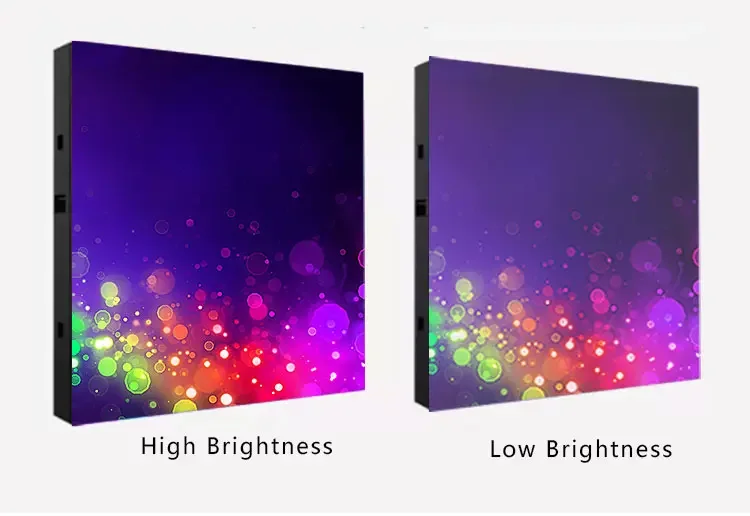

High Definition

Good Color Consistency, High contrast, Clear picture. The picture quality and the audience are faced with a whole new sensory experience.

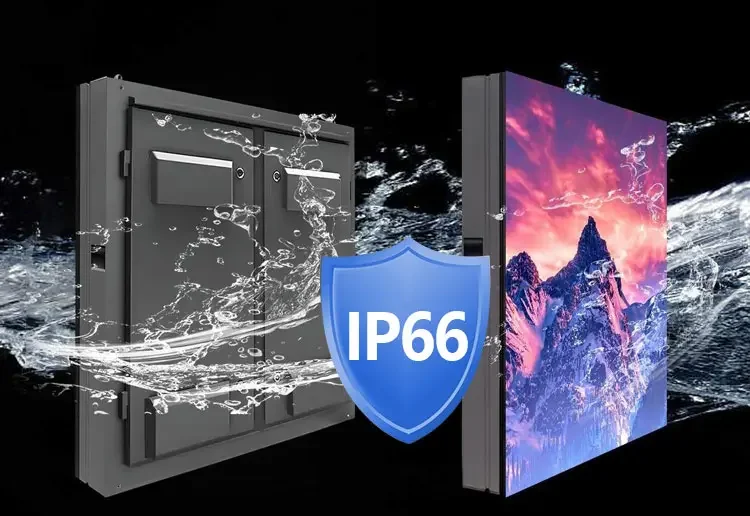

All Weather Durability

High protection & weather resistance, adapt to all kinds of harsh outdoor environment; Unique mask, dustproof and IP66 waterproof; Dual channel independent heat dissipation, more stable and reliable performance.

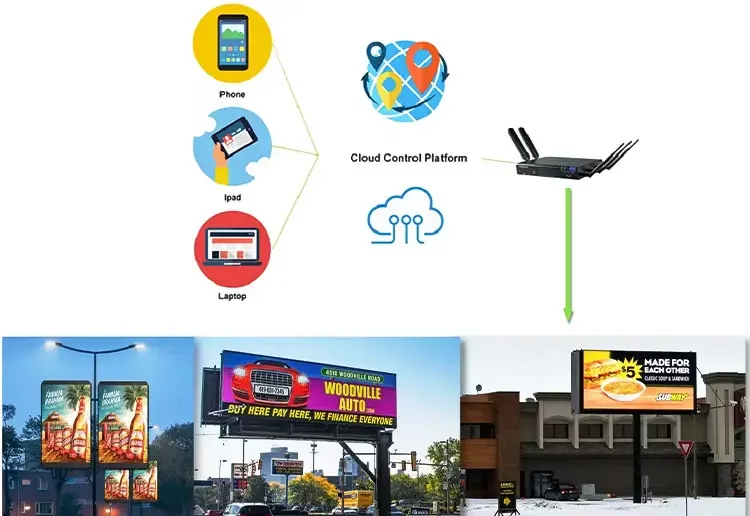

Intelligent Control Systems

Equipped with timer switch, remote control, remote communication, power monitoring, and no need for manual operation of the computer on a daily basis, supporting cloud control, Wi-Fi control, USB flash drive, 4G/5G, with simplified and effortless operation.

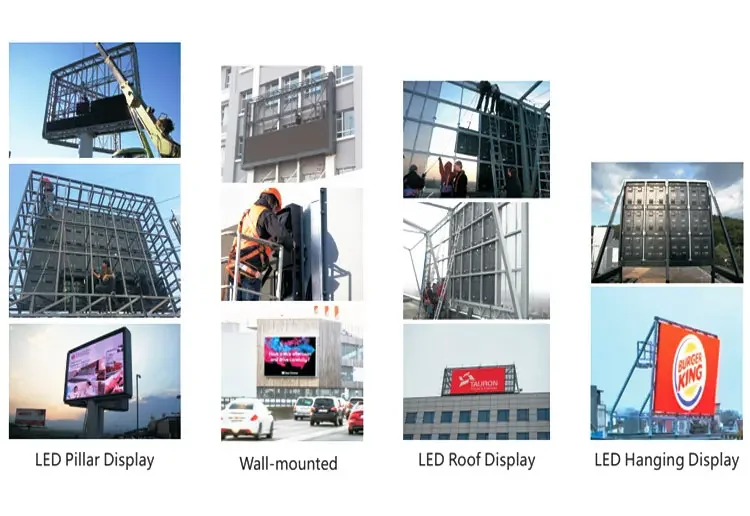

Outdoor LED Video Wall Displays Multiple Installation Types

There are 5 main installation methods for outdoor LED displays, namely:
· Wall mounting
· Column mounting
· Ground mounting
· Suspension mounting
· Vehicle mounting

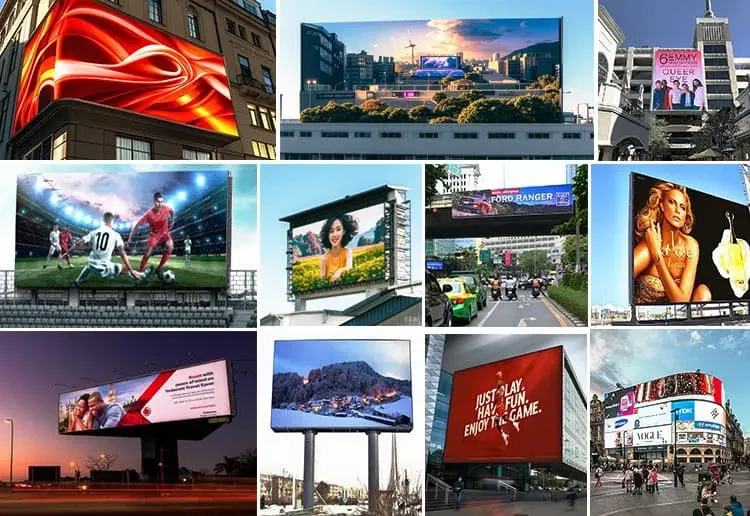

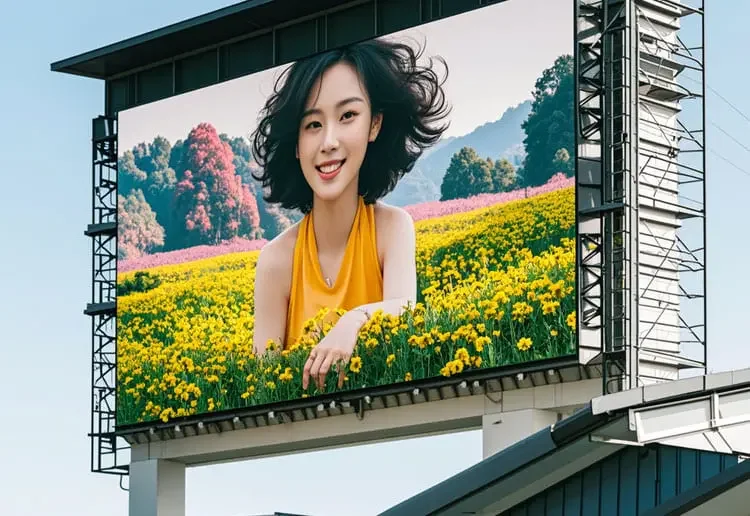

Outdoor LED Display for Different Scenes

In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. This product is usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.

Specifications

Outdoor LED Screen Display Parameters
Model	P2.5	P2.976	P3	P3.91	P4	P4.81	P5	P6	P8	P10
Module size (mm)	320×160	250×250	192×192	250×250	320×160	250×250	320×160	192×192	320×160	320×160
Module resolution (dot)	64×64	84×84	64×64	64×64	80×40	80×40	64×32	32×32	40×20	32×16
Scanning	1/16S	1/21S	1/16S	1/16S	1/20S	1/13S	1/8S	1/8S	1/5S	1/2S
SMD	1G1R1B
Maintenance	Back
Installation	Back
Cabinet size (mm)	960×960	1000×1000	960×960	1000×1000	960×960	1000×1000	960×960	960×960	960×960	960×960
Density (dot/㎡)	160000	112896	111111	65410	62500	62500	40000	27777	15625	10000
Brightness (cd/㎡)	4500-6500	5000	5500-6500	6000	5000-10000	5000-6500	6000-10000	6000-10000	6000-10000	6000-10000
Max. Power Consumption (W/㎡)	1000	1000	1000	1000	900	900	800	800	800	1000
Average Power Consumption (W/㎡)	350	350	350	350	300	300	400	300	300	500
Cabinet weight (kg/㎡)	35kg
Cabinet material	Iron
IP Protection Rating	IP65
Grayscale	10000:1
Refresh Rate (Hz)	>7680Hz
Frame Change Frequency	50/60Hz
Horizontal Viewing Angle	>140°
Vertical Viewing Angle	>140°
Best viewing distance	>2.5m	>3m	>3m	>3m	>4m	>4m	>5m	>6m	>8m	>10m
Input Voltage	AC110V – AC220V
Module Max. current (A)	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	5.5-7.5	5.5-7.5	5.5-7.5	3.5-5.5	5.5-7.0	8.0-10
Working Temperature	-10℃ ~ +60℃
Working Humidity	10%RH ~ 90%RH
Service Life (H)	≥100,000
MTBF (H)	>10,000
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is an Outdoor LED Screen Display?

An Outdoor LED Screen Display is a large-format digital display designed for outdoor environments. It uses high-brightness LED modules, waterproof cabinets, and stable control systems to show videos, images, advertisements, live feeds, and public information clearly in sunlight, rain, dust, wind, and changing weather conditions.

What are the advantages of an Outdoor LED Screen Display?

An Outdoor LED Screen Display offers high brightness, weather resistance, wide viewing angles, seamless large-screen performance, flexible size customization, remote content updates, and long service life. It is widely used for outdoor advertising, commercial façades, stadiums, transportation hubs, public squares, concerts, and event displays.

Where can Outdoor LED Screen Displays be used?

Outdoor LED Screen Displays are commonly used in outdoor billboards, shopping mall façades, commercial buildings, stadiums, highways, airports, railway stations, bus terminals, schools, churches, hotels, city squares, theme parks, and public event spaces. They are suitable for advertising, branding, live broadcasting, wayfinding, and public information communication.

What is the difference between P5 and P8 outdoor LED screen displays?

A P5 outdoor LED screen display has a 5mm pixel pitch with about 40,000 dots/m², giving sharper images for viewing from 5m and above, while P8 uses an 8mm pitch (15,625 dots/m²) that is more cost-effective for long-distance viewing beyond 8m, such as highways and large billboards.

What pixel pitch should I choose for an Outdoor LED Screen Display?

The right pixel pitch depends on viewing distance, screen size, content type, and budget. Common pixel pitches for an Outdoor LED Screen Display include P2.5, P2.976, P3, P3.91, P4, P4.81, P5, P6, P8, and P10. Smaller pixel pitches are better for closer viewing, while larger pixel pitches are more cost-effective for long-distance viewing and large outdoor screens.

How long does an outdoor LED screen display last?

A REISSOPTO outdoor LED screen display has a rated lifespan of over 100,000 hours (MTBF >10,000 hours). The IP65 iron cabinet, dual-channel heat dissipation, and low-temperature energy-saving technology ensure stable performance for years of continuous outdoor use in temperatures from -10°C to 60°C.
