P4.81 Outdoor LED Display - Outdoor High Resolution Display

A1000 Series

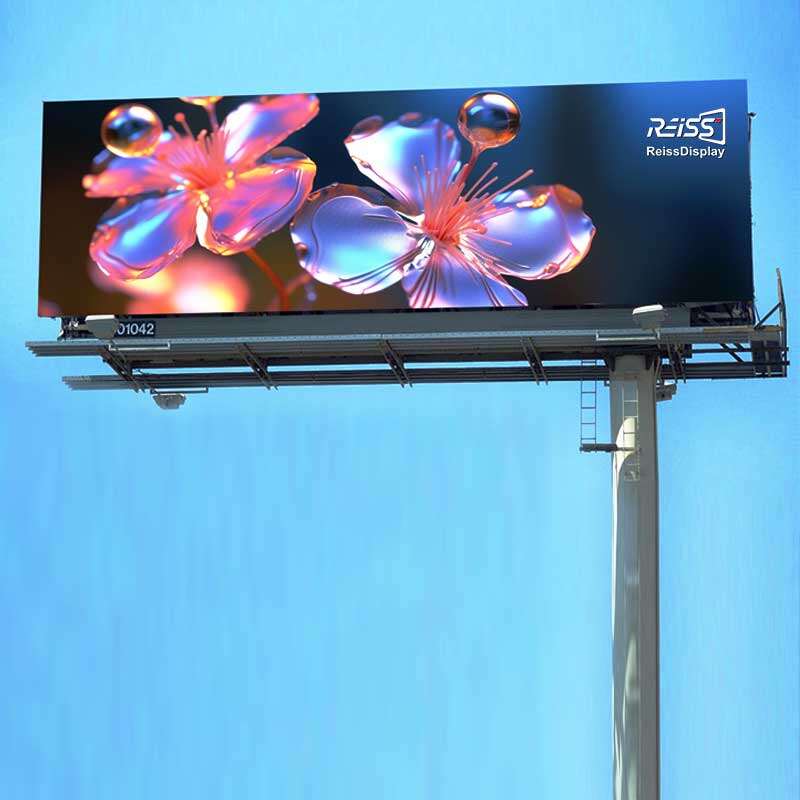

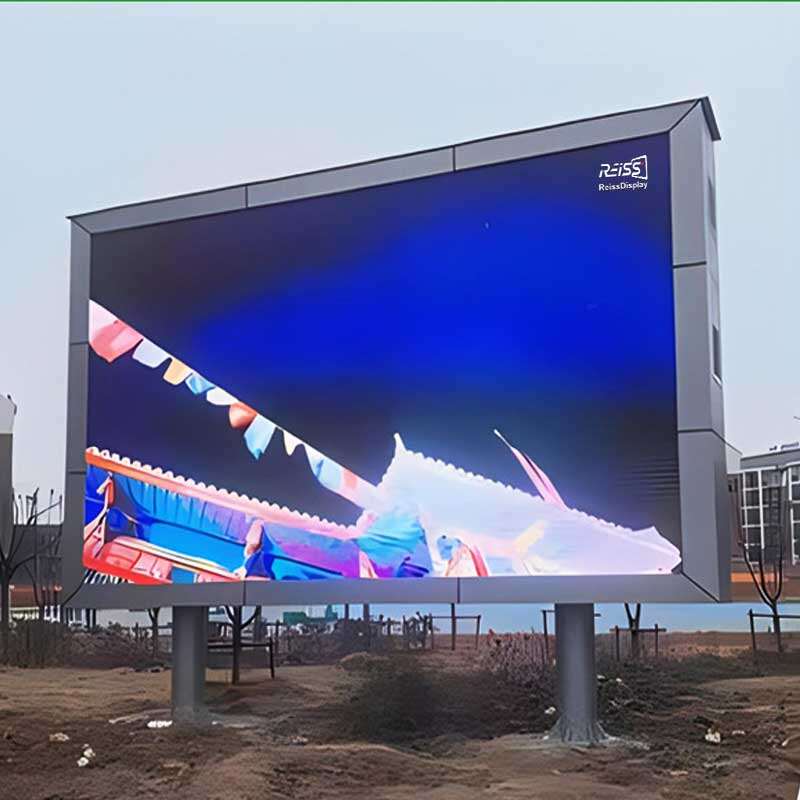

Widely deployed on street billboards, shopping-mall façades, roadside pylons, city squares, stadium perimeters and transport hubs, this P4.81 outdoor LED display fits fixed advertising, DOOH networks and large-format brand campaigns across Europe, the Middle East, Southeast Asia and Latin America.

Get a quote Set OEM

Outdoor LED screen Details

What Is a P4.81 Outdoor LED Display?

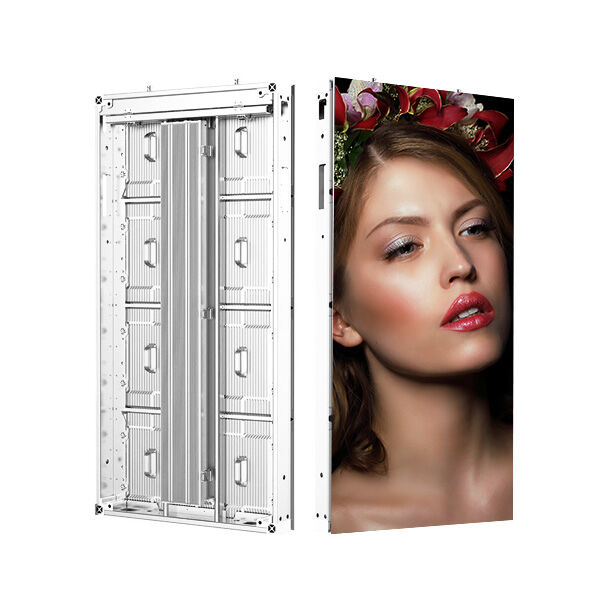

The P4.81 Outdoor LED Display is a die-cast aluminum, IP66-rated screen built for 24/7 outdoor advertising. With a 4.81 mm pixel pitch, 43,264 dots/m² pixel density and brightness up to 6,500 nits, it stays sharp and readable under direct sunlight. The 500×1000 mm cabinet weighs about 28 kg/m², supports front and rear maintenance, and splices seamlessly into large walls or 90° right-angle and 3D billboard shapes. A 3840 Hz refresh rate delivers flicker-free video for broadcast and on-camera capture.

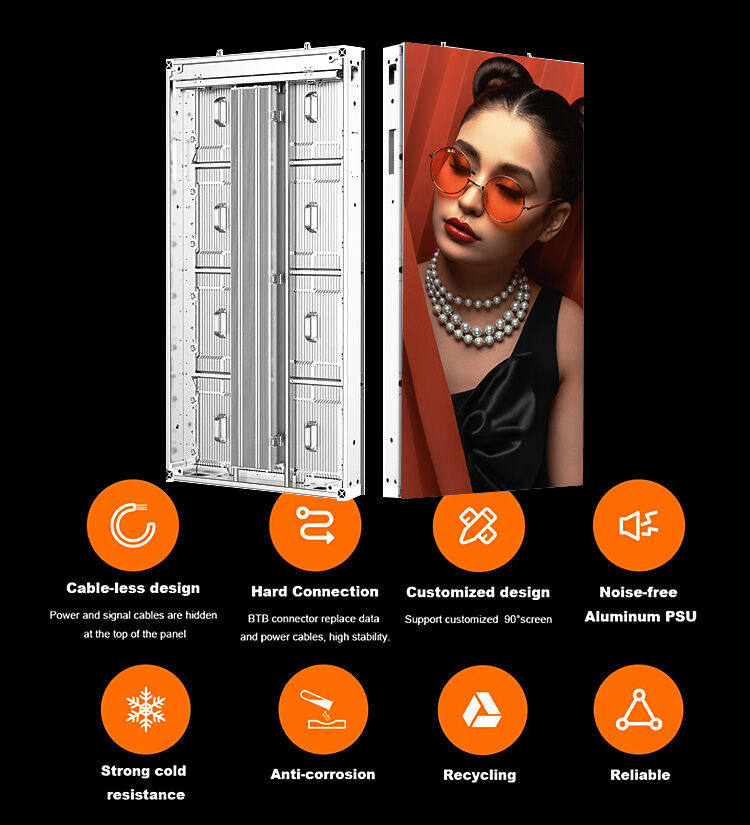

Outdoor HD Curved Corner LED Screen

- 500x1000mm standard cabinet size. 250/500*250mm module size.
- Front and rear dual maintenance.
- Support 90° right-angle screens and support LED billboard 3D display.

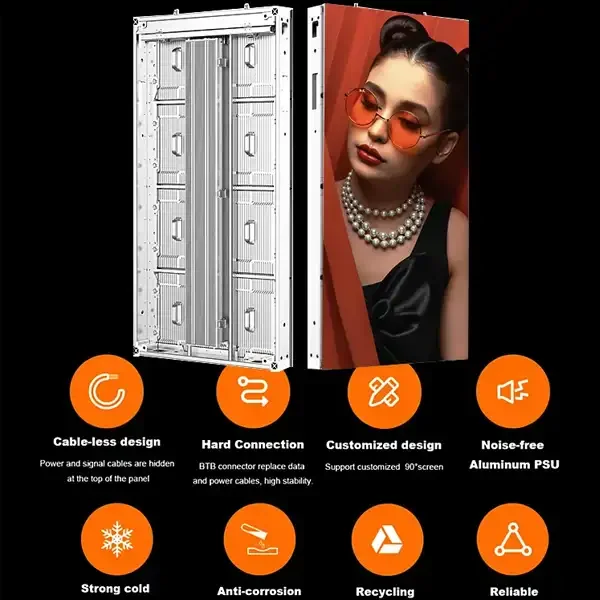

- The power and signal lines are hidden on the top of the panel.
- The BTB connector replaces the data line and power line, and the stability is high.
- High-precision aluminum chassis panel design.
- SMD three-in-one full-color LED package.
- Ultra-light cabinet, easy to transport and carry.
- Wire trough design, insect and rodent proof.
- High brightness, good heat dissipation performance.
- Energy-saving and environmentally friendly, fanless design, waterproof grade IP66.
- Seamless splicing, higher flatness.

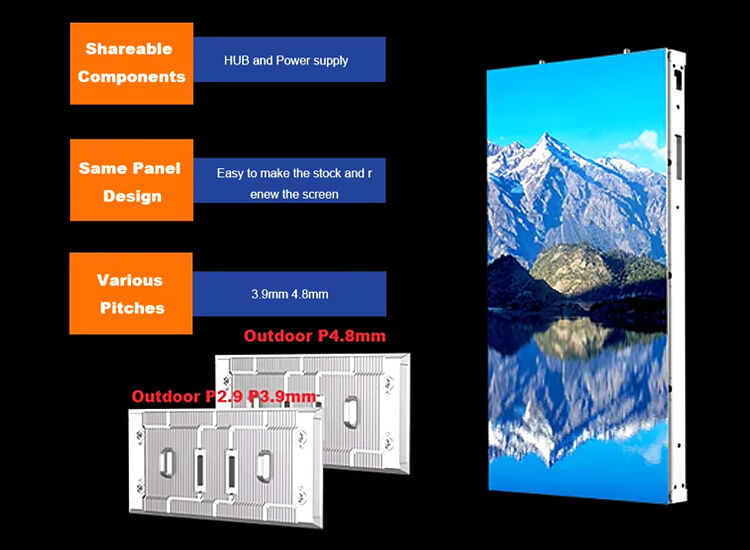

Die-cast aluminum frame

The A1000 Series features a die-cast aluminum module chassis and panels with high temperature resistance and 5VB fire rating, ensuring reliable operation in harsh outdoor conditions.

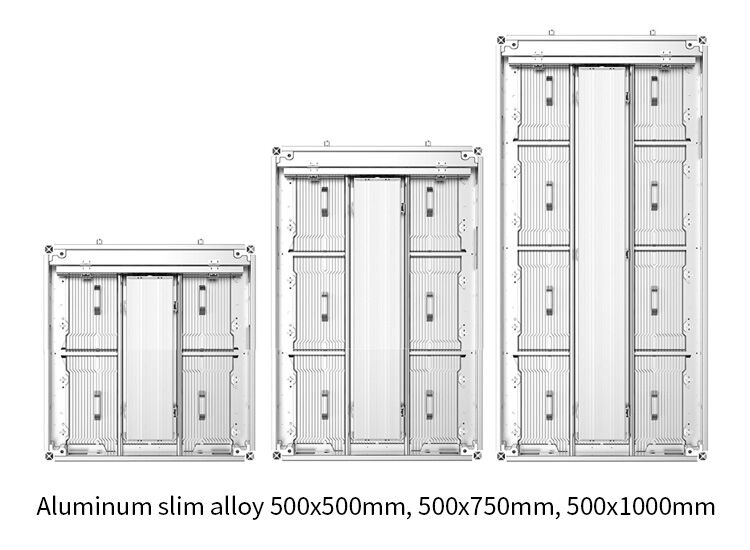

Saving Transportation costs & supporting structure costs

Flexible Size
500mm*1000mm
500mm*750mm
500mm*500mm

Light weight
Weight: 28KG/m?
Thickness:75mm

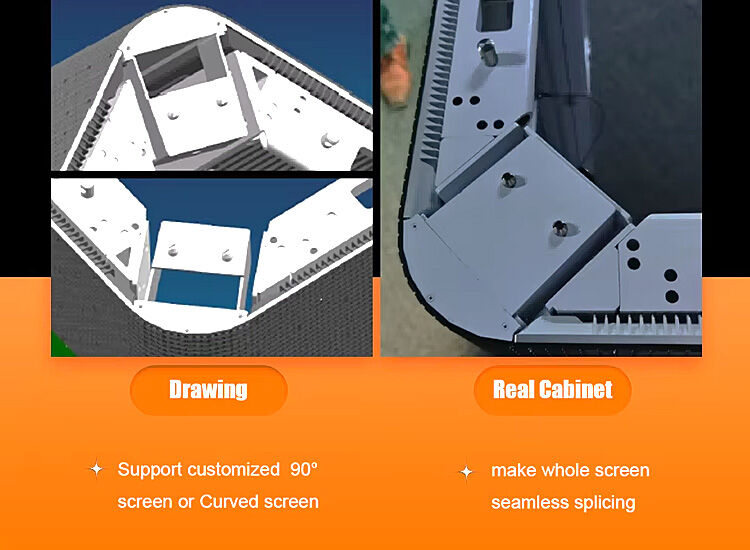

Customized Design

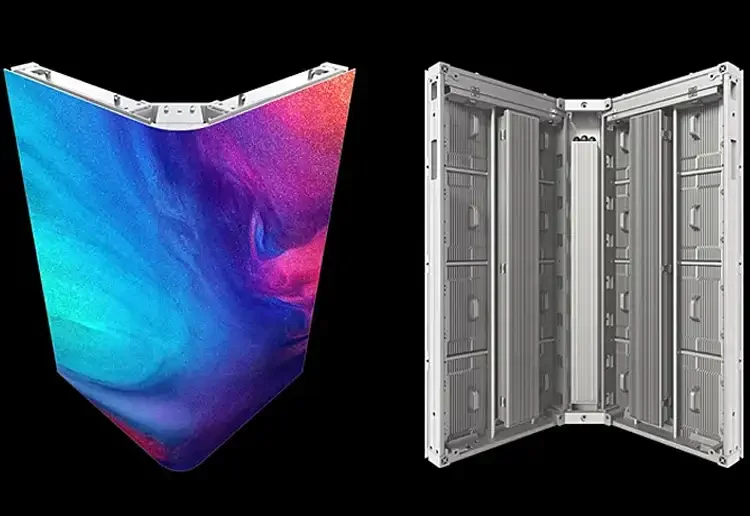

90° Curved Display

Support 90° curved installation, no gaps at the corner, and the whole screen is seamless.

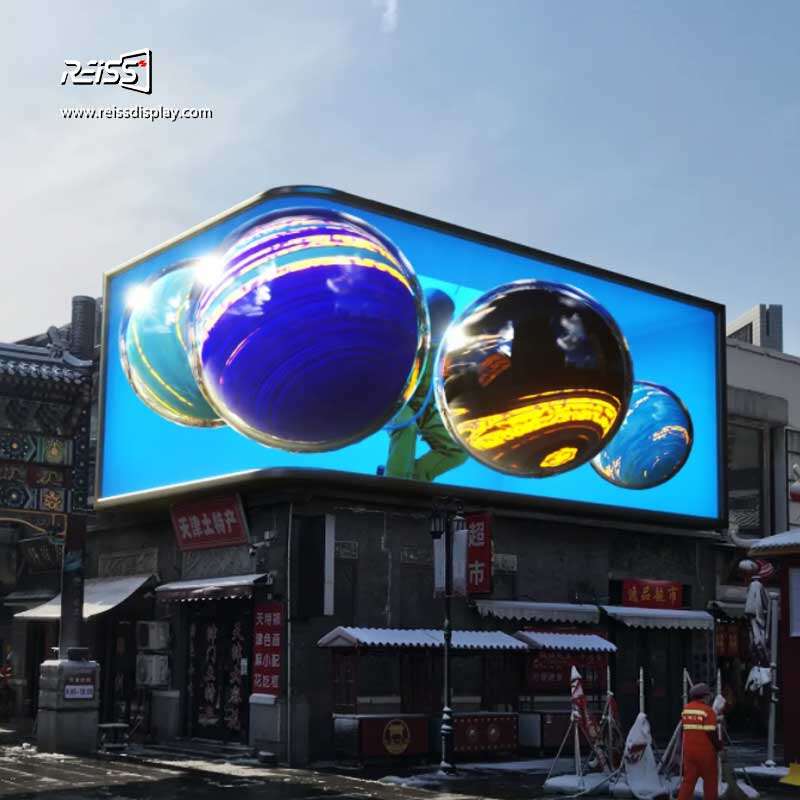

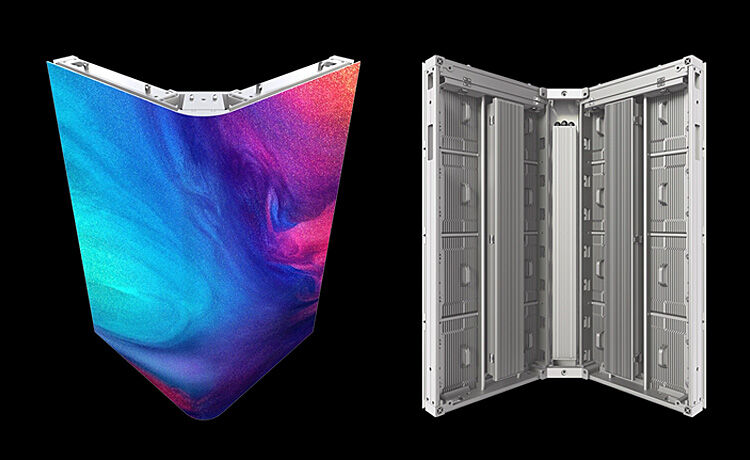

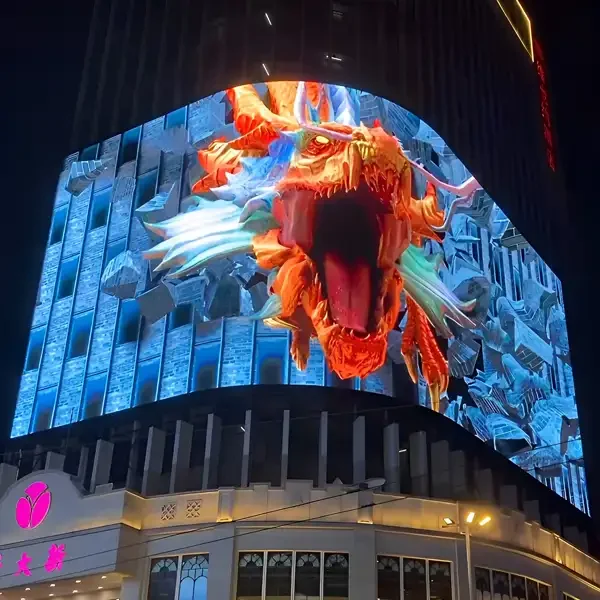

Support 3D LED billboards.

Supports 3D LED billboards and curved screens, enabling creative and eye-catching visual presentations.

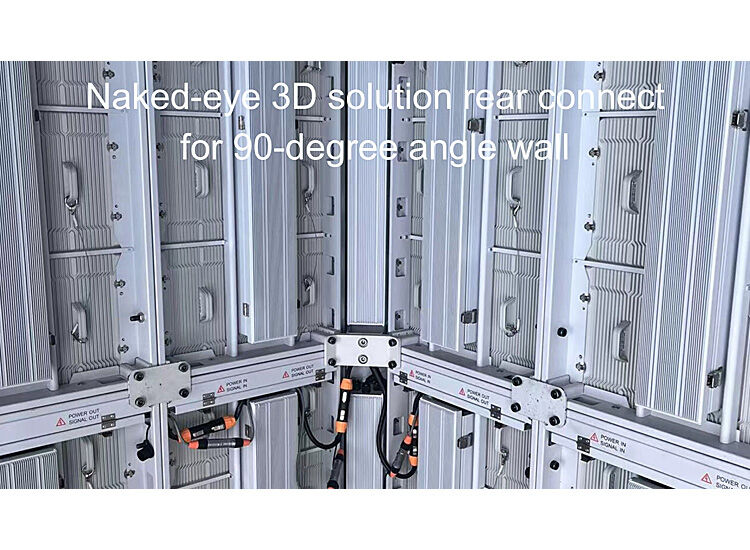

Seamless splicing cabinet

Fast heat dissipation

Thanks to the high-precision aluminum cabinet, the A1000 series LED display has excellent flatness, and the cabinet can be seamlessly spliced into a large screen.

New heat dissipation system, equipped with high-stability radiator. Compared with traditional outdoor displays, the A1000 LED display improves energy efficiency and reduces operating costs while maintaining excellent performance.

Large Viewing

The LED display boasts a wide viewing angle of 160°/140°(V/H). No matter where you’re seated, experience the full spectrum of stunning visuals. It brings the whole picture to every corner of the room.

High Performance

3500~7000 Nits high brightness with adaptive adjustment ensures great performance in any sun light enviroments.

Specifications

A1000 Series Outdoor LED Display Parameters
Item Number *For more models, please consult customer service	P2.976	P3.91	P3.91	P4.81	P4.81
Pixel Pitch (mm)	2.97	3.91	3.91	4.81	4.81
Pixel Density (dots/㎡)	112,896	65,536	65,536	43,264	43,264
LED Arrangement	SMD1515	SMD1921	SMD1921	SMD1921	SMD1921
Module Size (mm)	250×250	500×250	500×250	500×250	500×250
Module Resolution	84×84	128×64	128×64	108×52	108×52
Brightness (nits)	4500	6500	5000	6500	5000
Max Consumption (W/㎡)	600	660	550	660	550
Ave Consumption (W/㎡)	280	300	195	300	195
Cabinet Size (mm)	500×1000
Refresh Rate (Hz)	3840 -7680Hz
Viewing Angle (H/V)	160° / 140°
Grayscale (bit)	≥14
IP Protection Rating	IP66
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is the pixel pitch and brightness of the P4.81 outdoor LED display?

The P4.81 outdoor LED display has a 4.81 mm pixel pitch with a pixel density of 43,264 dots/m² and brightness up to 6,500 nits, keeping content clear and readable in direct sunlight.

Is the P4.81 outdoor LED display waterproof?

Yes. The cabinet is rated IP66 on both front and rear, so it withstands heavy rain, dust and humidity for permanent outdoor installation, and uses a fanless design for quiet, low-maintenance operation.

What cabinet size and weight does the P4.81 outdoor LED display use?

It uses a standard 500×1000 mm die-cast aluminum cabinet, about 75 mm thick and around 28 kg per square meter. Optional 500×750 mm and 500×500 mm sizes are available for flexible screen shapes.

Can the P4.81 outdoor LED display be maintained from the front?

Yes. The A1000 series supports both front and rear maintenance, so modules, power supplies and receiving cards can be replaced quickly even when the screen is mounted against a building wall.

Does it support curved or 3D billboard installation?

It supports 90° right-angle corner screens with seamless, gap-free joints and can build glasses-free 3D LED billboards, making it ideal for creative DOOH and landmark advertising displays.

What control system and certifications are available?

The P4.81 outdoor LED display works with NovaStar or Colorlight control systems and is certified to CE, RoHS, FCC, ETL, UL and ISO9001 for global outdoor advertising projects.
