Outdoor LED Billboard | High Brightness Digital Advertising Display

Name: Outdoor LED Billboard | High Brightness Digital Advertising Display
Brand: REISSOPTO
SKU: SKU-4
Availability: InStock

OF-AF series

An outdoor LED billboard is a high-brightness digital advertising display built for all-weather 24/7 operation in direct sunlight. The REISSOPTO outdoor series delivers up to 8000–10000 nits brightness with automatic dimming, IP65 front & rear protection, and a 140°/140° wide viewing angle for clear, vivid content at any distance. Available in P4, P5, P6.67, P8, and P10 pixel pitches, it uses SMD or DIP lamps, a 7680Hz refresh rate, and energy-saving power supplies to guarantee stable, flicker-free playback across changing weather and lighting conditions.

As a large-format outdoor advertising screen, the digital LED billboard is deployed worldwide for roadside and highway advertising, building facades, shopping mall entrances, gas stations, stadiums, and commercial plazas. Trusted by advertising agencies, media owners, and system integrators across global markets, it combines waterproof durability, high refresh performance, and remote content management to deliver bright, dependable brand messaging in any climate — from tropical heat to freezing outdoor environments.

Get a quote Set OEM

Outdoor LED screen Details

Outdoor LED Billboard Overview

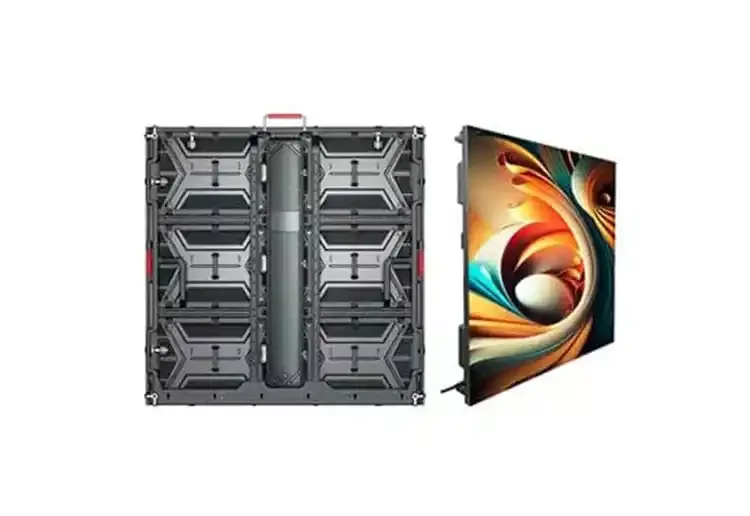

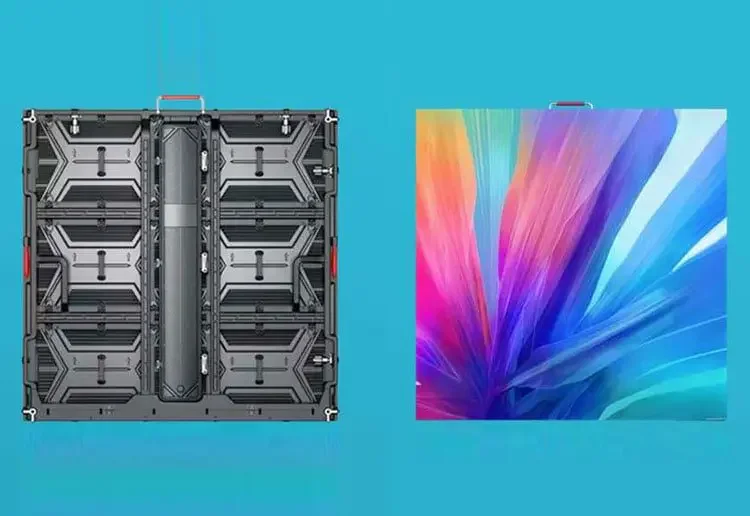

An LED billboard is a large-format outdoor advertising display built with high-brightness SMD LEDs and a weatherproof cabinet, designed to deliver bright, dynamic, and long-lasting visual advertising in open-air environments. The REISSOPTO OF-AF series LED billboard combines a die-cast aluminum 960×960mm cabinet with front and rear maintenance, IP66 full protection, and a brightness of ≥5500 cd/m² UP 20000 cd/m², making it clearly visible even under direct sunlight.

Available in P4, P6.67, P8, and P10 pixel pitches, this outdoor LED billboard covers viewing distances from close-range commercial streets to long-distance highway roadside advertising. Each cabinet uses a 480×320mm module with pin-connected hubs for stable signal transmission, a wide 140°/140° viewing angle, a high 5000:1 contrast ratio, and a 3840–7680Hz refresh rate that guarantees flicker-free video capture on camera.

Engineered for 24/7 outdoor operation, the OF-AF LED billboard delivers a 100,000-hour lifespan, energy-saving performance that reduces power consumption by 30–60%, and a lightweight cabinet that lowers installation and shipping costs. The fully sealed modules support front-access maintenance, so any single module or power supply can be replaced quickly without dismantling the whole screen—minimizing downtime and keeping advertising running.

REISSOPTO LED billboards are widely deployed along highways, city roads, shopping mall façades, commercial buildings, transport hubs, stadiums, and public squares. As a durable, high-visibility outdoor advertising display, it enables remote content updates, multiple rotating campaigns on a single screen, and stable weatherproof performance across rain, dust, heat, and long-term daytime exposure.

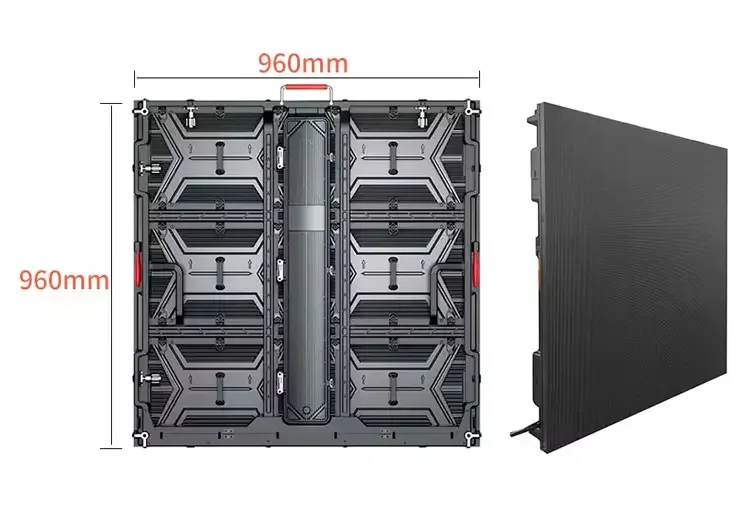

Perfect Dimension Of LED Billboards

1: 960*960mm cabinet design, aluminum material
2: Magnesium alloy material, the lightest, the module shell is also made of aluminum alloy material
3: High precision, seamless connection
4: Quick and easy installation, saving manpower
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP66

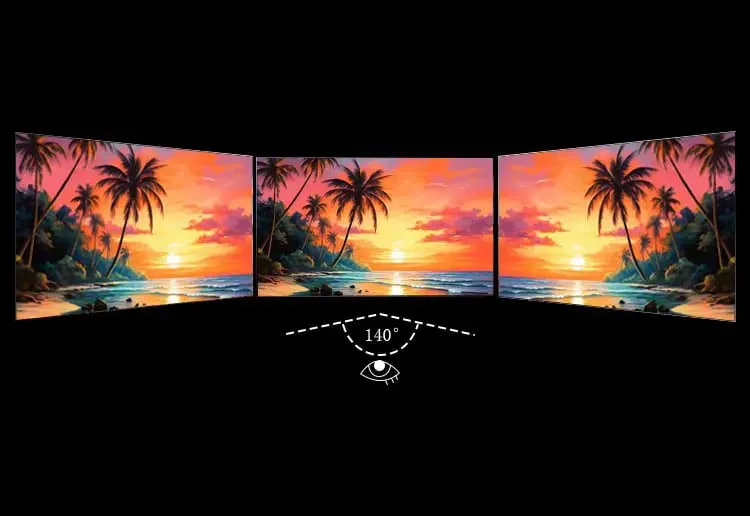

Wide Viewing Angle

The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

Front Maintenance

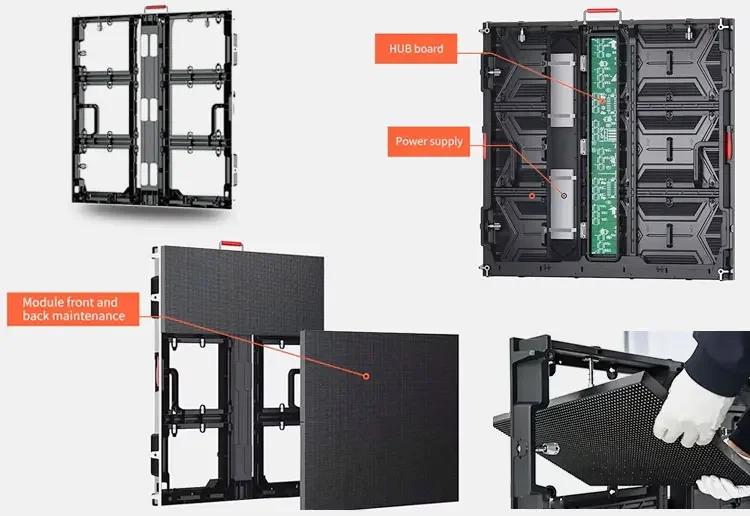

Benefits of Front and Rear Maintenance

Fully sealed module, supporting front and rear maintenance, no maintenance access, low installation and maintenance cost;
Module can be quickly assembled.disassembled and maintained from the front;
The power box can be quickly assembled, disassembled and maintained from the front;

Ultra-thin and Lightweight Design Features

Cabinet size:960*960*94mm. Outdoor LED Billboards significantly enhances their usability in various applications, particularly for outdoor LED Billboards. These features facilitate convenient installation methods and improve overall performance, making them ideal for dynamic advertising environments.

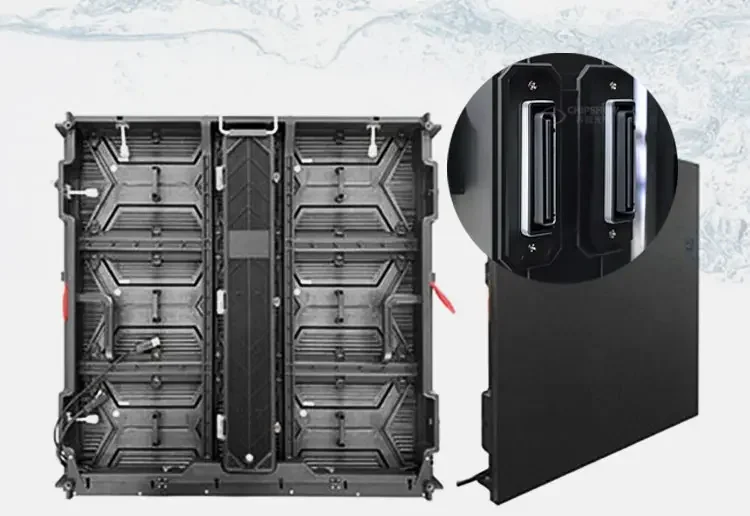

Fully Waterproof Design Function in Outdoor Displays

Ensuring its durability and reliability in a variety of environmental conditions is critical. This feature protects internal components from water ingress, dust, and other environmental factors, making it ideal for outdoor applications.

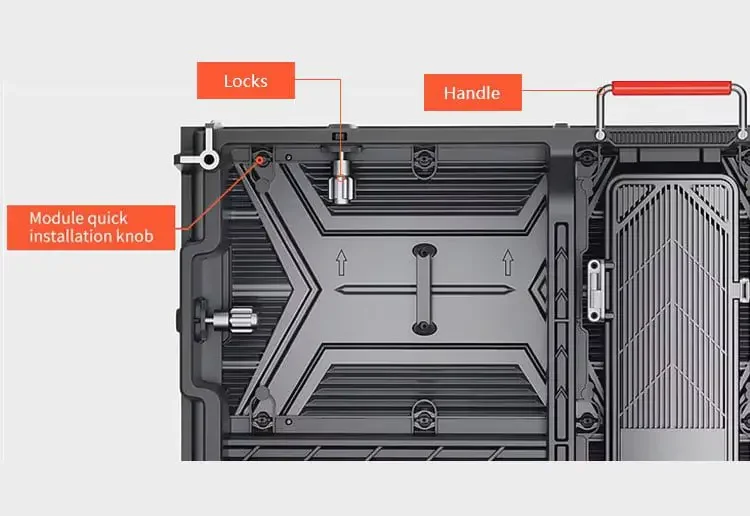

Quick Connection Design Function

Simplify installation and maintenance of network and power interfaces. These designs prioritize user-friendliness, ensuring setup and service are both efficient and intuitive.

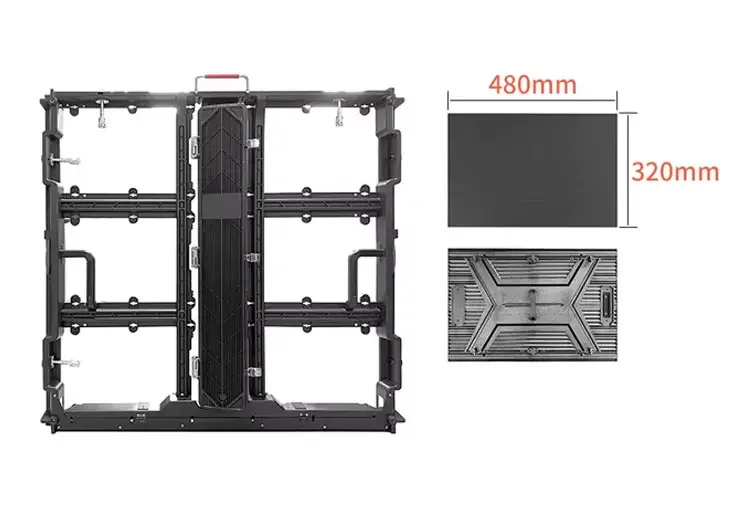

LED Module With Hub Pin Design

Module Size:480*320mm. With pin connection, the module will be much more stable than the ribbon cable solution.

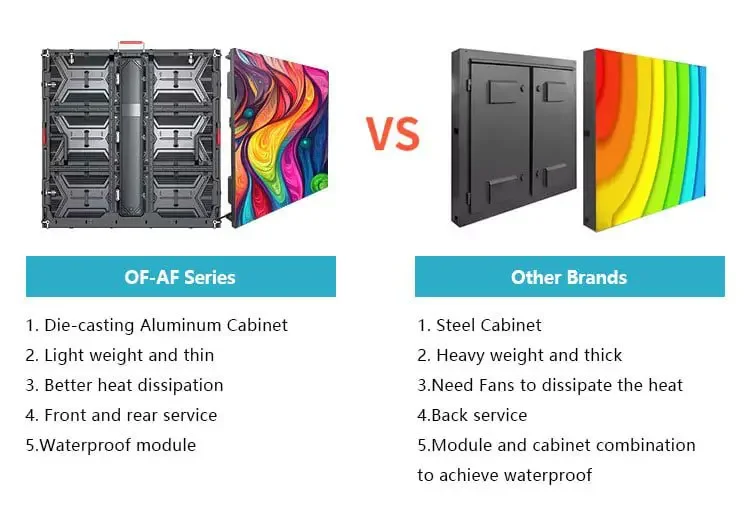

OF-AF series Product Features

1.Newest design private mold, standardization;
2.Cable-free connection, whole control box can beseparating, any issue on panels can be quickchanged, do not delay whole business plan;
3.Use high quality led and newest SPW driving IC to ensure stable quality and high performance;
4.Ladder-style led module back shell design, have preciselocating and well-proportioned of pressure to avoid plasticframe deforming, keep stable flatness;
5.PCB board is anti-collision design, leds an-easy to breakdown when install and disassemble;
6.The product is easy to maintain; rear and front maintenance; curved joint.

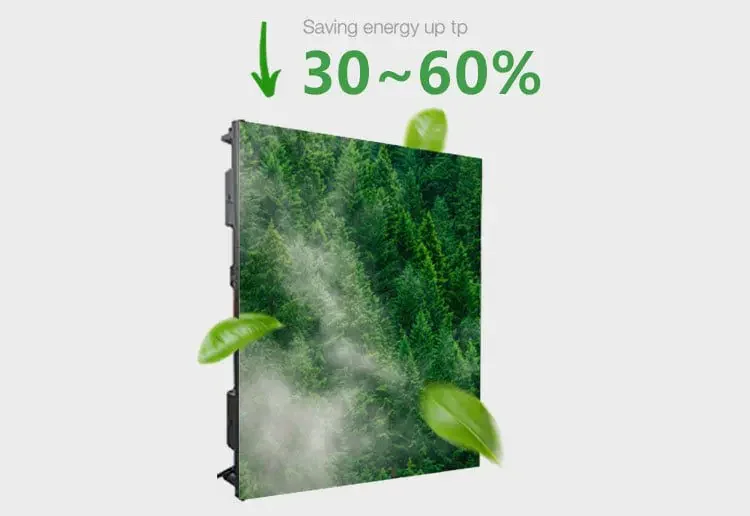

Energy-Saving 30-60%

Outdoor energy-saving LED Billboards are designed to provide high-quality visual output while minimizing energy consumption. These displays are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.

High Grayscale in LED Billboards

High grayscale capability in LED displays refers to the ability to render a wide range of shades between black and white, enhancing the overall quality and realism of the images displayed. This feature is particularly important for applications that require detailed visual performance, such as photography, video production, and artistic installations.

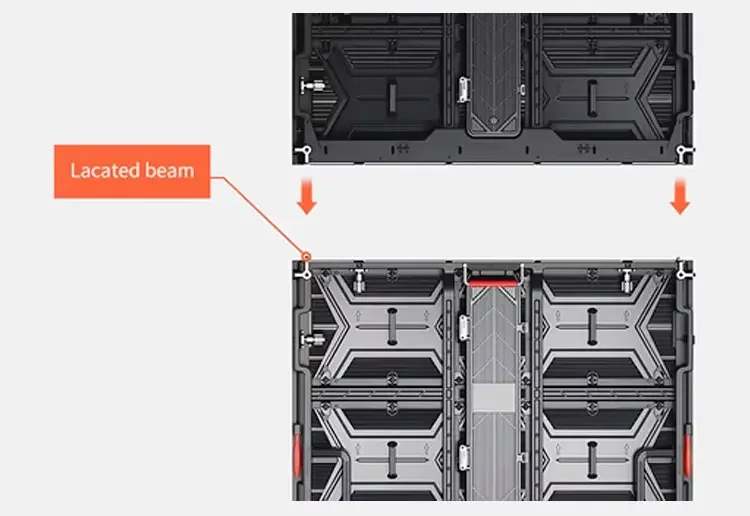

Flawless Display for Outdoor LED Billboard

Due to high-precision engineering and manufacturing, the mounting frame has high tolerance. XYZ axes alignment is easy and can be done without removing the LED module. This will result in perfectly aligned, seamless, and flat LED walls.

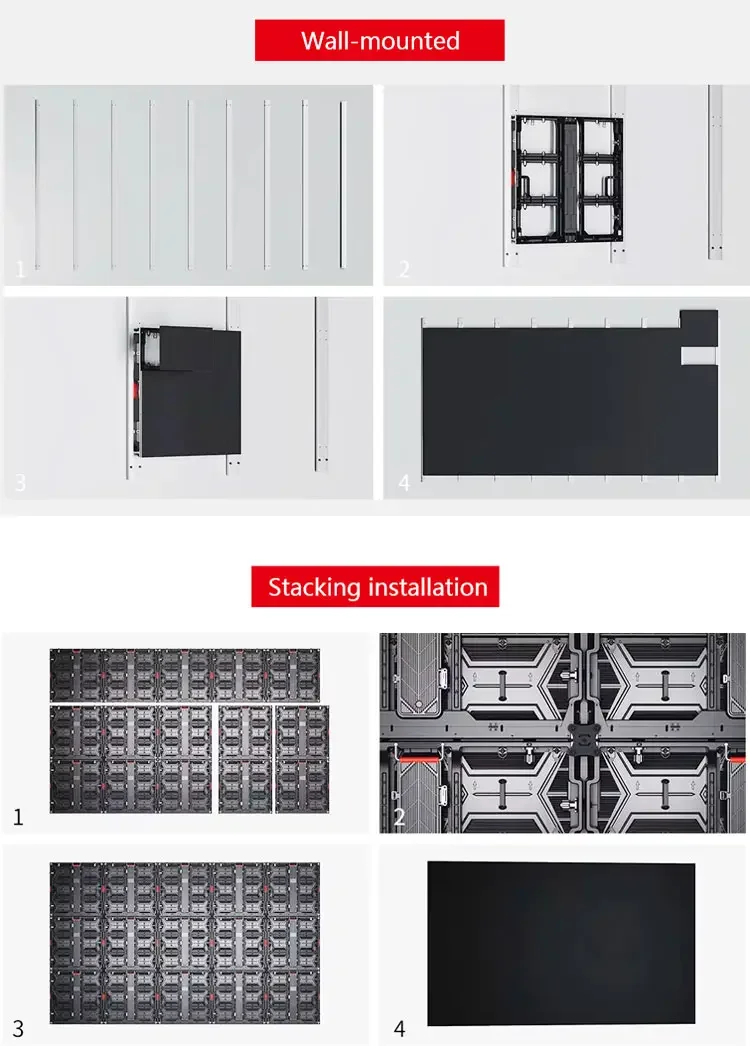

Various Installation Methods for Outdoor LED Billboard

Outdoor LED Billboards offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.

Specifications

Outdoor LED Billboard Parameters
Model *For more models, please consult customer service	OF-AF4	OF-AF6.67	OF-AF8	OF-AF10
Pixel Pitch	4 mm	6.67 mm	8 mm	10 mm
Pixel Configuration	3in1 SMD
Pixel Density (dots/㎡)	62,500	22,500	15,625	10,000
Module Size	480×320 mm
Module Resolution	120×80	72×48	60×40	48×32
Cabinet Size	960×960×94 mm
Cabinet Resolution	240×240	144×144	120×120	96×96
Cabinet Material	Die-cast aluminum
Brightness	≥5500 cd/m²
Color Temperature	2000–12500K
Viewing Angle (H/V)	140°/140°
Best Viewing Distance	≥4 m	≥7 m	≥8 m	≥10 m
Contrast Ratio	5000:1
Grayscale	14–18 bit
Refresh Rate	3840–7680 Hz
IP Protection Rating	IP66
Working Voltage	DC 4.2–5V
Max. Power Consumption	800 W/m²
Avg. Power Consumption	300 W/m²
Service Life	100,000 h
Maintenance	Front & rear
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is an LED Billboard?

An LED Billboard is a large digital advertising display that uses LED technology to show videos, images, text, animations, and promotional content. It is commonly installed outdoors or in high-traffic commercial areas to deliver bright, dynamic, and eye-catching advertising messages to pedestrians, drivers, and public audiences.

What are the advantages of an LED Billboard?

An LED Billboard offers high brightness, strong visibility, dynamic content display, remote content updates, wide viewing angles, long service life, and flexible advertising scheduling. Compared with traditional static billboards, it can display multiple campaigns on one screen and attract more attention with videos and motion graphics.

Where can LED Billboards be used?

LED Billboards are widely used along highways, city roads, shopping mall façades, commercial buildings, airports, train stations, bus terminals, stadiums, public squares, entertainment districts, schools, churches, and retail centers. They are suitable for outdoor advertising, brand promotion, event announcements, public information, and commercial media networks.

What brightness is suitable for an outdoor LED Billboard?

The suitable brightness for an outdoor LED Billboard depends on the installation location and sunlight exposure. For general outdoor advertising, 5,000–7,000 nits is commonly used. For direct sunlight or large roadside applications, 7,000–10,000 nits can help ensure clear visibility and strong image contrast during daytime operation.

What pixel pitch should I choose for an LED Billboard?

The best pixel pitch for an LED Billboard depends on the viewing distance, screen size, traffic speed, and content type. Common outdoor billboard pixel pitches include P2, P2.5, P3, P4, P5, P6, P8, P10, and P16. For close-view commercial areas, a smaller pixel pitch provides sharper details, while larger pixel pitches are more cost-effective for long-distance roadside viewing.

How do I choose the right LED Billboard?

To choose the right LED Billboard, consider viewing distance, screen size, pixel pitch, brightness, IP rating, cabinet material, installation structure, front or rear maintenance, power consumption, control system, local weather, and advertising content needs. A reliable LED billboard should provide clear visibility, stable outdoor performance, easy content management, and long-term advertising value.
