P6 Outdoor LED Screen | 6mm Pitch Advertising Display

Name: P6 Outdoor LED Screen | 6mm Pitch Advertising Display
Brand: REISSOPTO
SKU: SKU-645
Availability: InStock

OES-MX Series

The P6 Outdoor LED Screen from REISSOPTO is a high-brightness, weatherproof full-color display with a 6mm pixel pitch and a pixel density of 27,777 dots/m², purpose-built for large-format outdoor advertising viewed from 6 meters and beyond. Each P6 outdoor LED screen is built in a rugged 960×960mm die-cast cabinet delivering a 160×160 pixel resolution per cabinet, with an IP65 waterproof rating on both front and rear for stable operation from -20°C to +50°C. Featuring SMD 3-in-1 encapsulation, up to 6,500 nits brightness, a 160°/140° wide viewing angle, 16-bit gray scale, and a 3,840Hz high refresh rate, this P6 LED display screen ensures clear, flicker-free visuals under direct sunlight for both cameras and the human eye. With a 100,000-hour lifespan, the P6 outdoor LED screen is the cost-effective choice for outdoor billboards, roadside advertising, stadiums, and building facades.

Get a quote Set OEM

Outdoor LED screen Details

What Is a P6 Outdoor LED Screen?

A P6 outdoor LED screen is a full-color digital display with a 6mm pixel pitch, meaning the center-to-center distance between adjacent LED pixels is 6 millimeters. This pixel pitch gives the P6 LED screen a pixel density of 27,777 dots/m² and a best viewing distance of 6 meters or more, making it ideal for large outdoor screens where audiences view content from a distance rather than up close.

The P6 outdoor LED screen is built from modular SMD 3-in-1 units housed in a standard 960×960mm die-cast cabinet, with each cabinet offering a 160×160 pixel resolution. This modular design lets the P6 screen scale seamlessly to any width and height, so it can be configured into billboards, curved facades, or free-standing advertising structures with fast, tool-light installation and easy front or rear maintenance.

P6 Outdoor LED Screen — Key Performance

Engineered for demanding outdoor environments, the P6 outdoor LED screen delivers up to 6,500 nits of brightness, keeping images sharp and vivid even in direct sunlight, while adjustable color temperature (3,200K–9,300K) and 16-bit gray scale preserve accurate, consistent colors throughout the day. A high 3,840Hz refresh rate eliminates flicker and scan lines for smooth on-camera capture, and the IP65-rated cabinet resists rain, dust, and fog across a -20°C to +50°C working range. With a 100,000-hour lifespan and lightweight magnesium-alloy construction, the P6 LED display combines long-term reliability with low running and maintenance costs for continuous outdoor advertising.

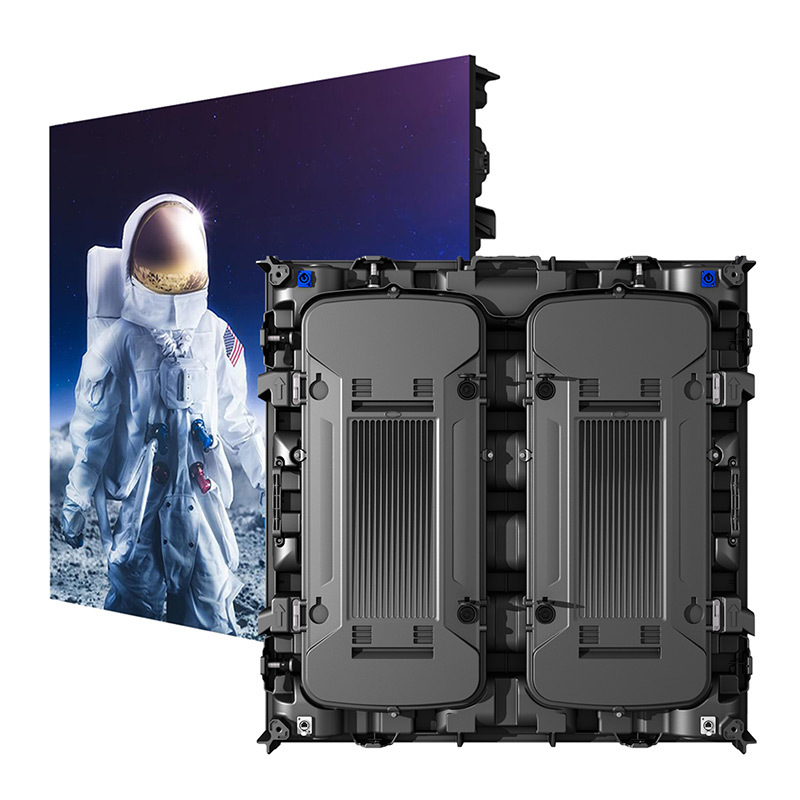

Fixed Cabinet 960*960mm

Ultra-lightweight - The weight of the case is 40% lighter than traditional aluminum cases, significantly reducing costs. Ultra-thin - Due to the high strength of magnesium alloy, it can be designed to be about 30% thinner than iron. Interference-resistant - Unique function to resist electromagnetic interference.

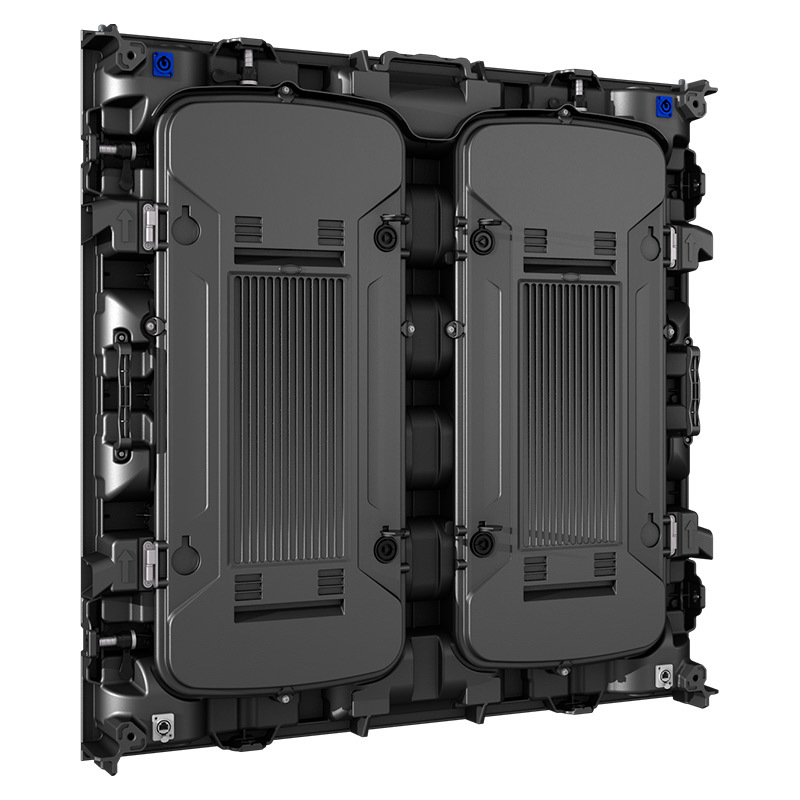

Box Features

Ultra-light --- The box weight is 40% lighter than traditional aluminum boxes, significantly saving costs.
Ultra-thin --- Due to the high strength of magnesium alloy, it can be designed to be thinner than iron, about 30% thinner.
Anti-interference --- Unique electromagnetic wave interference resistance function.
Fast heat dissipation --- Good heat dissipation performance effectively protects the module circuit.
Quick installation --- Installation only takes 20 seconds.
High precision --- The box is processed by CNC, achieving higher precision and seamless splicing.
Strong versatility --- Can be processed according to kit hole positions, suitable for indoor use.
High cost performance --- A complete production supply chain for large-scale production.

Supporting Products

PCB Board: P4/P5/P6.67/P8/P10/P13.33
Kit Specification: 320mm*160mm
Flight Case: One pack five, one pack six.
Power Supply: 200W-5V 40A, 300W-5V 60A.
Power Connector: 20A 3*2.5㎡ National Standard.

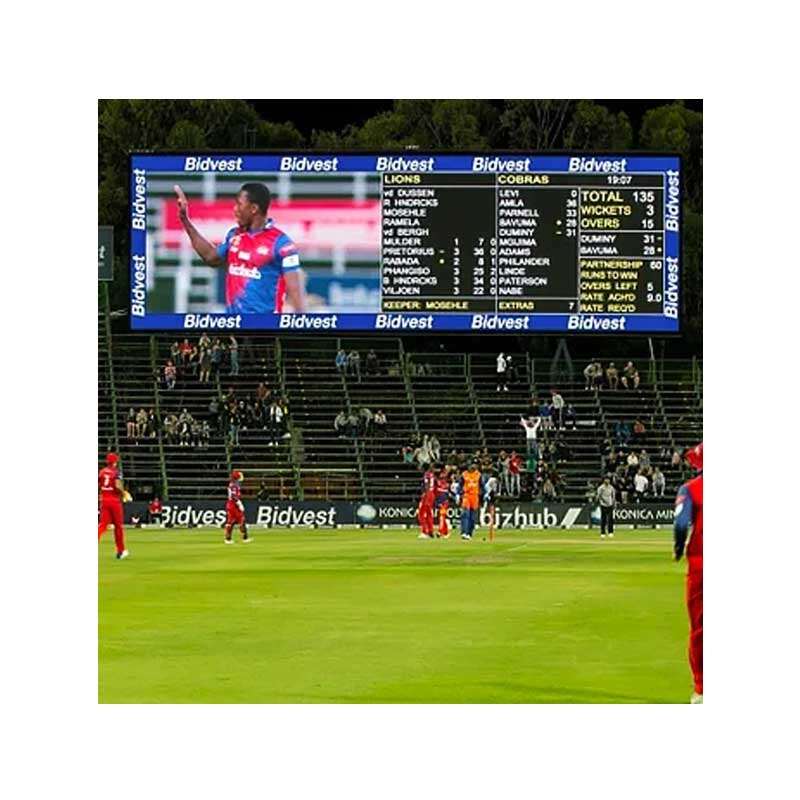

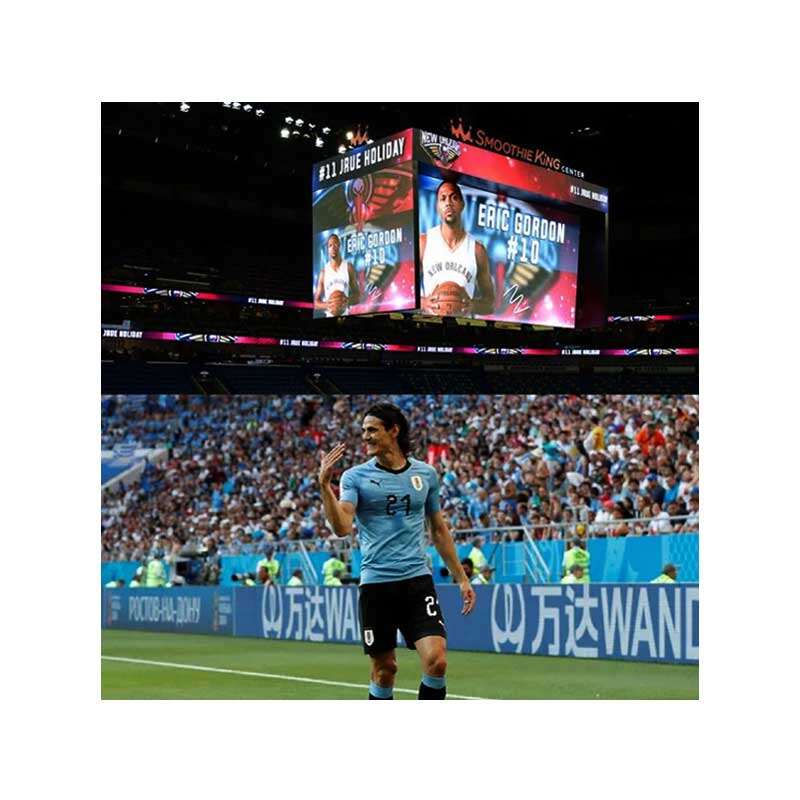

Stadium Screen

Sport Stadium LED displays are specialized visual communication solutions designed for sports environments. They utilizes advanced SMD LED technology to deliver dynamic visuals that enhance the spectator experience. It can display a wide range of content, including live video feeds, instant replays, scoreboards, player statistics, and advertisements. With their ability to engage and captivate audiences, sport LED displays play a crucial role in delivering an immersive and exciting visual experience during sporting events.

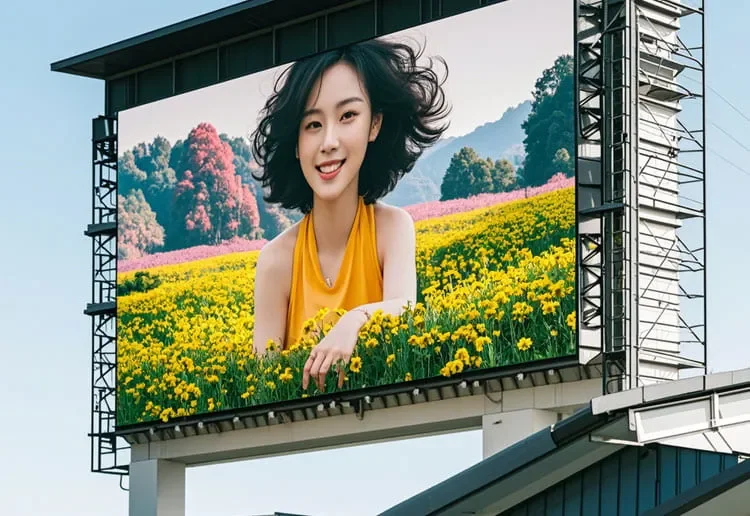

Better Visual Effect

Equipped with SMD 3in1 full-color LED encapsulation and high-brightness LED technology, the delivers clear and vibrant displays.

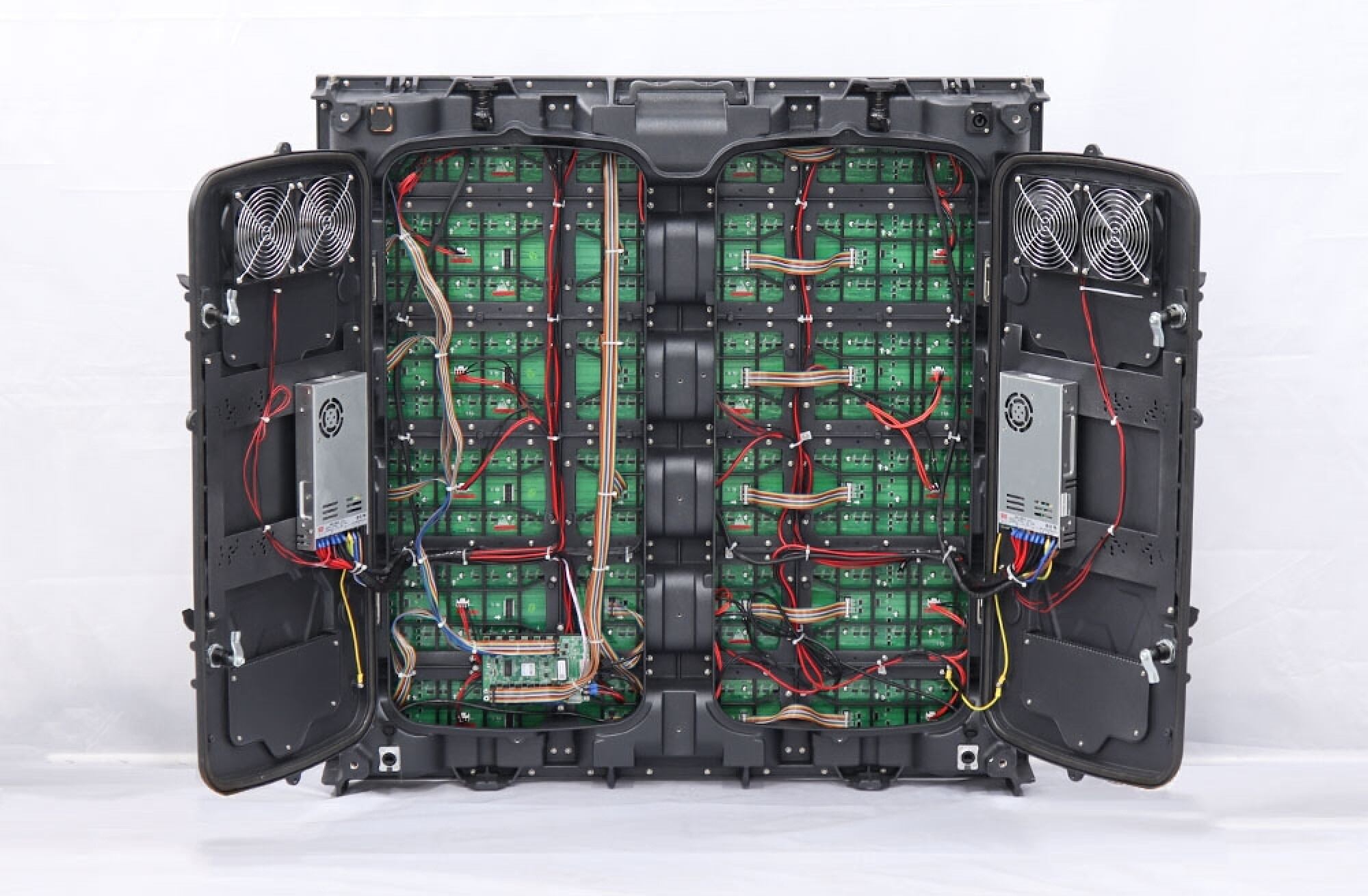

Cabinet Structure

With its innovative cabinet structure design featuring located bins, fast locks, cable holes, handles, and more, the cabinet ensures effortless assembly and disassembly, optimizing installation efficiency.

Large Viewing

Provides an expansive viewing experience with a horizontal and vertical viewing angle of 160°/140°, ensuring excellent visibility from various vantage points.

IP65 Waterproof

The cabinet size is 960*960 mm, and the protection level reaches IP65, which can withstand harsh outdoor environments. It is waterproof, dustproof and fogproof.

Scheduled Content Management

Allows operators to pre-program content playlists by time and date, making it suitable for time-sensitive messaging like store promotions, daily announcements, or event agendas.

Specifications

Outdoor LED Screen — Display Parameters (P2 / P2.5 / P3 / P4 / P5 / P6)
Model *For more models, please consult customer service	P2	P2.5	P3	P4	P5	P6
Pixel Pitch	2 mm	2.5 mm	3 mm	4 mm	5 mm	6 mm
Pixel Density (dots/㎡)	250,000	160,000	111,111	62,500	40,000	27,777
Cabinet Resolution (px)	480 × 480	384 × 384	320 × 320	240 × 240	192 × 192	160 × 160
Brightness (nits)	≥5,000	≥5,500	≥6,000	≥6,500	≥6,500	≥6,500
Best Viewing Distance	≥2 m	≥2.5 m	≥3 m	≥4 m	≥5 m	≥6 m
LED Type	SMD 3-in-1 Full Color
Cabinet Size	W960 × H960 × D90 (mm)
Refresh Rate	≥7,680 Hz
Gray Scale	16 bit
Color Temperature	3,200K – 9,300K adjustable
Viewing Angle (H/V)	160° / 140°
IP Rating	IP65 (front & rear)
Working Temperature	-20°C – +60°C
Lifespan	100,000 hours
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Application	Outdoor advertising, billboards, stadiums, building facades

Frequently Asked Questions

What is an outdoor LED screen?

An outdoor LED screen is a high-brightness, weatherproof full-color display used for outdoor advertising, billboards, stadiums, and building facades. REISSOPTO outdoor LED screens are available in P2, P2.5, P3, P4, P5, and P6 pixel pitches, built in a 960×960mm die-cast cabinet with IP65 waterproof protection for stable long-term outdoor performance.

Which pixel pitch should I choose — P2, P2.5, P3, P4, P5, or P6?

The right pixel pitch depends on your viewing distance. Smaller pitches like P2 and P2.5 offer higher resolution for close-up viewing (2–2.5m), while P4, P5, and P6 suit larger screens viewed from farther away (4–6m or more). As a rule, the viewing distance in meters roughly matches the pixel pitch number, so P6 is ideal for 6m+ outdoor billboards.

How bright is an outdoor LED screen?

Outdoor LED screens deliver up to 6,500 nits of brightness, ensuring clear, vivid images even under direct sunlight. Combined with adjustable color temperature (3,200K–9,300K) and 16-bit gray scale, they maintain strong contrast and accurate colors for daytime outdoor advertising and branding.

Are outdoor LED screens waterproof?

Yes. REISSOPTO outdoor LED screens reach an IP65 protection rating on both front and rear, making them waterproof, dustproof, and fog-resistant. The 960×960mm magnesium or aluminum alloy cabinet is built to withstand rain, humidity, and dust across a working temperature range of -20°C to +50°C.

What is the difference between P2, P3, P4, P5, and P6 outdoor LED screens?

The main difference is pixel pitch and image sharpness. A smaller pixel pitch (P2, P2.5, P3) packs more pixels per square meter for higher resolution and closer viewing, while larger pitches (P4, P5, P6) are more cost-effective for large screens viewed from a distance. For example, P2 offers 250,000 dots/m² versus 27,777 dots/m² for P6.

Where are outdoor LED screens commonly used?

Outdoor LED screens are widely used for outdoor billboards, roadside advertising, building facades, shopping malls, stadiums, public squares, and commercial signage. Their high brightness, IP65 waterproofing, wide 160°/140° viewing angle, and 100,000-hour lifespan make them reliable for long-term outdoor advertising.
