Transparent LED Display Screen | Up to 90% See-Through, RGB

Name: Transparent LED Display Screen | Up to 90% See-Through, RGB
Brand: REISSOPTO
SKU: SKU-21
Availability: InStock

TIF Series

Transparent LED display screen features high transparency, vivid visuals, lightweight design, easy installation, and seamless integration for glass walls, retail windows, malls, showrooms, and stage displays.

Get a quote Set OEM

Transparent LED screen Details

Transparent LED Screen (TIF Series) Overview

The REISSOPTO TIF Series transparent LED screen is a see-through display designed for glass facades, retail windows, showrooms, and stage backdrops. With a slim, lightweight panel and up to 90% transparency, it lets natural light and outward visibility pass through while delivering bright, high-contrast RGB video content — so the space behind the screen stays visible and open.

Built for commercial installations, the TIF Series combines a high refresh rate for flicker-free on-camera performance, wide viewing angles, and front/rear maintenance access. Its low-power, low-heat design and modular cabinets make it suitable for large curtain-wall projects as well as compact window media displays.

Key Advantages

High transparency: up to 90% see-through rate keeps sightlines and daylight open.
Lightweight & slim: easy to mount on existing glass structures with minimal load.
High brightness: clearly visible against ambient daylight in retail windows.
Full-color RGB: vivid video, animation, and branded content playback.
Easy maintenance: modular panels for fast service and replacement.

Typical Applications

Glass curtain walls, shopping-mall atriums, retail storefront windows, automotive and luxury showrooms, stage and event backdrops, and corporate lobby branding.

Transparent LED Display Screen Simple operation, New configuration, High Contrast ratio, Smart control, Super transparent

High Transparency: 70-90% permeability ensures lighting requirements and viewing angles are maintained, preserving the original glass curtain wall function.
Seamless Integration: Ultrathin design allows direct installation into the glass curtain wall without bulky steel frames, saving space and costs.
Unique Aesthetics: The transparent background creates a captivating “suspended” advertising effect with high visual impact.
Easy Maintenance: Indoor access enables fast and safe servicing, optimizing resources.
Energy Efficiency: 30-50% energy savings compared to traditional LED displays, with no need for cooling systems.
This cutting-edge technology from REISSOPTO redefines digital signage, delivering unparalleled transparency, integration, and performance for transformative visual experiences.

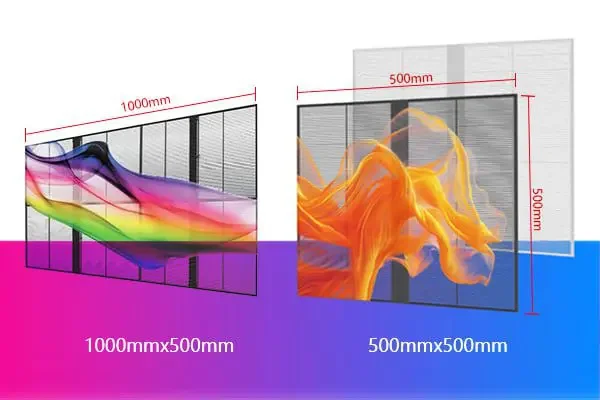

Transparent LED Screen Size

Transparent LED display screen Light transmission, light and thin, transparent, high definition, easy installation etc. 1000*1000mm, 1000*500mm, 500*500mm cabinet.

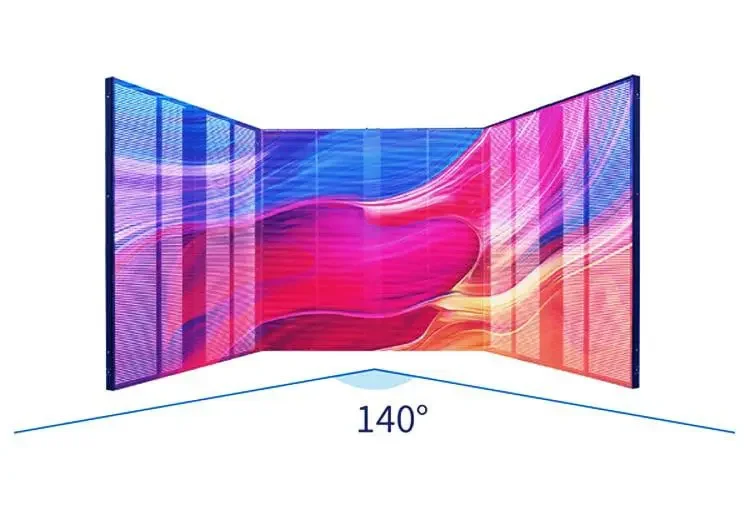

Ultra Wide Viewing Angle

Wide Horizontal and Vertical Angles

140° ultra-wide viewing angle, perform the same wonderful effect from different angles

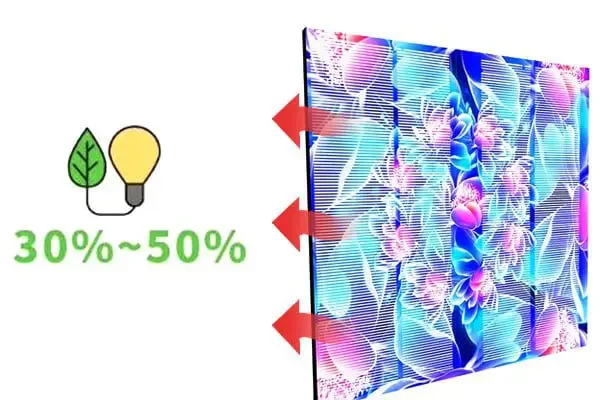

Quick Heat Dissipation and Energy Saving

30~50% lower in power consumption than traditional led displays.

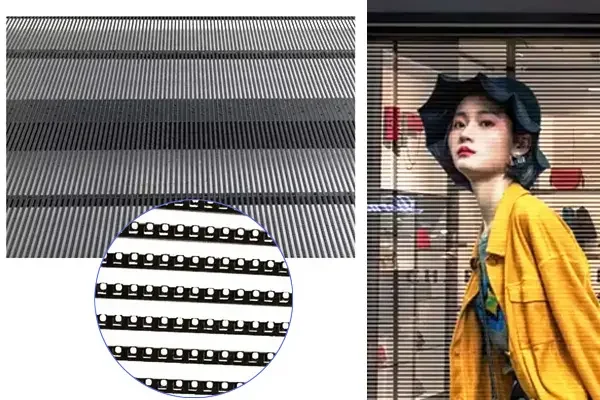

High Permeability

Professionally designed box structure and size, with a transparency rate of up to 90%, load-bearing performance, and reinforcement design for structural consistency.

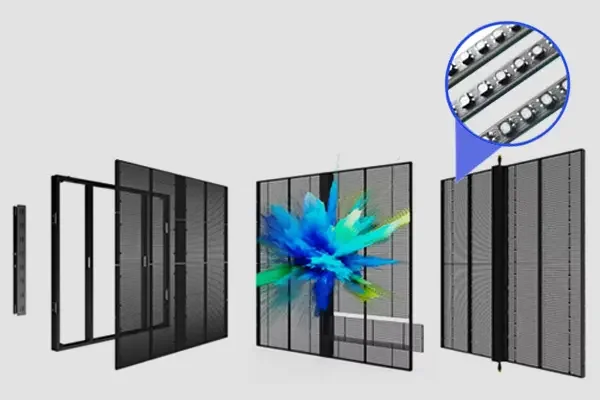

Maintenance Convenient

Modular design, replace only defective lamp modules, fast and cheap.

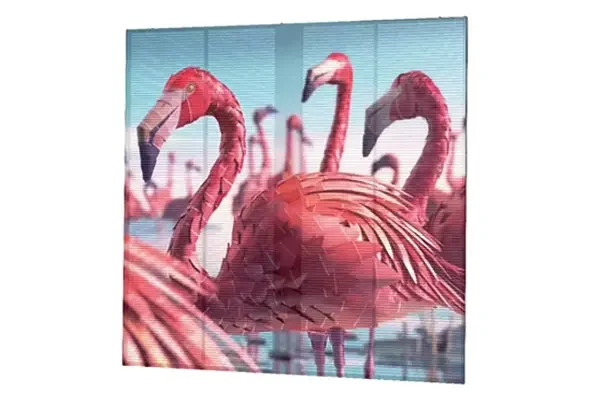

HD Full Color Display

Each pixel is composed of 1R1G1B independent lamps for high-definition full-color output, delivering vivid, high-contrast video and a better visual experience across the entire transparent panel.

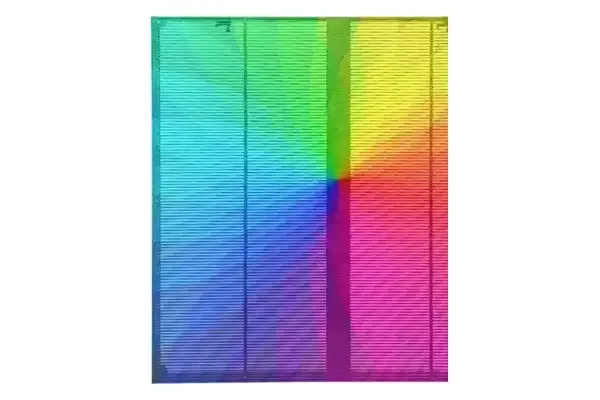

Wire Rod Design, Simple But Beautiful!

The connecting line between the cabinets can be hidden inside the box, giving a simple, elegant, and beautiful appearance.

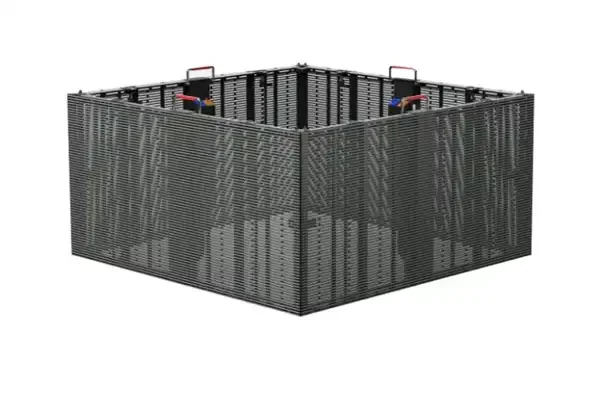

Transparent LED Displays Arbitrary Customization

Customized into square, triangle, circle, cylinder(allow bending into arc)and other irregular shapes. (Detailed introduction on TIF series customizable transparent LED displays)

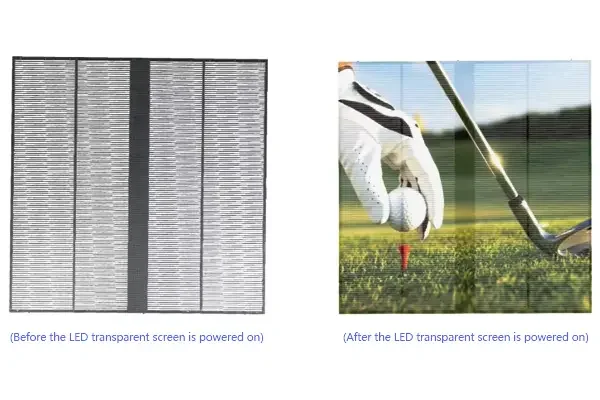

High Speed Transmission

HD transmission interface, fast transmission and clear image quality.

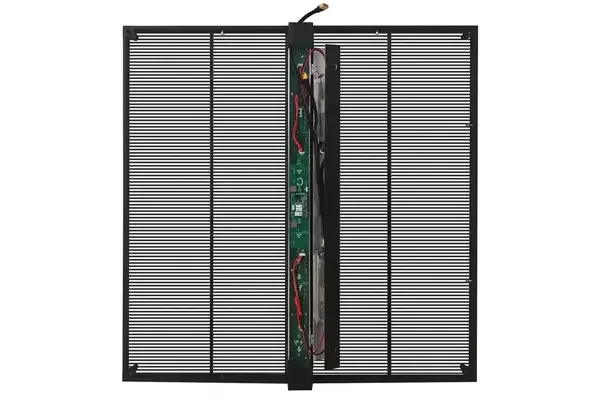

Quick and Easy Maintenance

With no complex components, our screens can be repaired quickly and efficiently, maintenance and repairs can be performed with minimal disruption to your operations, and the streamlined maintenance process can result in significant cost savings over time. The power and HUB board is accessible at the back.

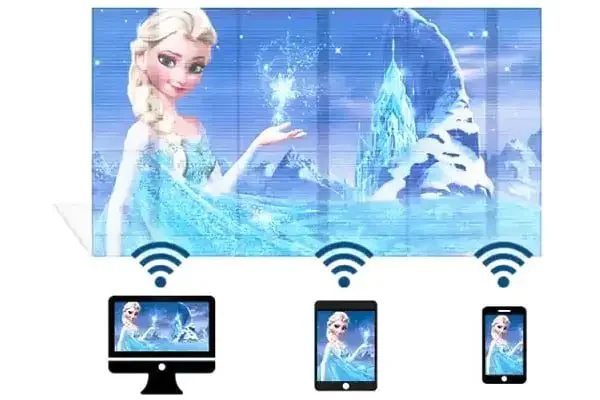

Intelligent Control Remote Cut

Transparent LED smart glass LED display can realize mobile phone playing.

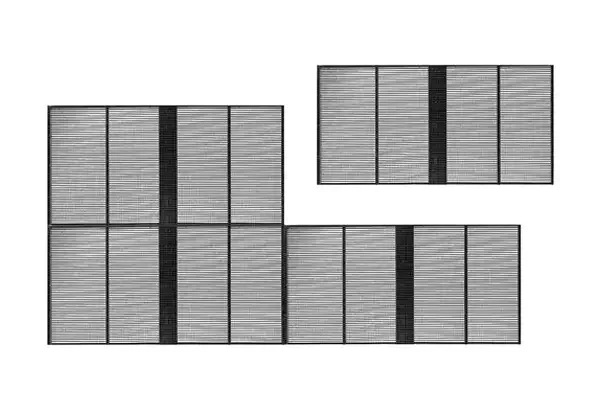

Unlimited Splicing Transparent LED Wall

The REISSOPTO Transparent LED wall offers unlimited splicing for expansive, seamless installations, revolutionizing digital experiences across diverse settings with exceptional visual quality and transparency.

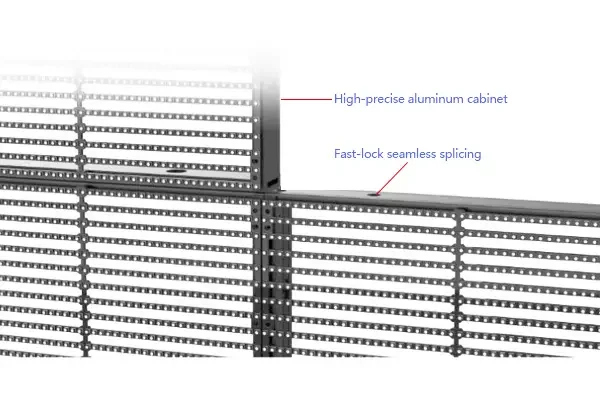

Easy Installation

High-precise aluminum cabinet, plug-in led lamp board, fast-lock seamless splicing, secure and reliable.

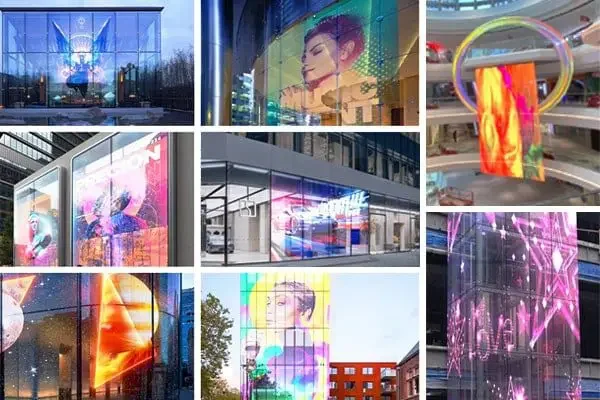

Application Areas

Wide range of scene applications to meet a variety of needs

Windows, glass walls and facades
Corporate buildings and offices
Retail stores and shopping malls
Stadiums and arenas
Hotels and airports
Car showrooms

Specifications

Transparent LED Display Screen (TIF Series) Parameters
Model *For more models, please consult customer service	TIF P5.2	TIF P3.9-7.8	TIF P7.8	TIF P10.4
Pixel Pitch (mm)	5.2 × 5.2	3.9 × 7.8	7.8 × 7.8	10.4 × 10.4
Transparency	70%	80%	85%	90%
Brightness (nits)	4500-6500	5000-10000	4000-7500	4500-7000
Refresh Rate	3840Hz Up 15360Hz
Color	Full color RGB
Cabinet Size (W×H)	1000 × 500 mm / 1000 × 1000 mm
Cabinet Weight	≤ 10 kg
Cabinet Thickness	≤ 60 mm
Viewing Angle	140° / 140° (H/V)
Power (Max / Avg)	≤ 500 / 200 W/m²
Input Voltage	AC 110–240V
Protection Rating	IP45 (indoor) / IP68 (outdoor)
Lifespan	100,000 hours
Maintenance	Front & rear access
Control System	Novastar / Colorlight
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a Transparent LED Display Screen?

A Transparent LED Display Screen is a see-through LED display designed to show videos, images, animations, and brand content while allowing light and visibility to pass through the screen. It is commonly installed on glass walls, shop windows, building façades, showrooms, shopping malls, airports, museums, and commercial spaces where both digital advertising and transparency are required.

What are the advantages of a Transparent LED Display Screen?

A Transparent LED Display Screen offers high transparency, lightweight structure, creative visual impact, natural daylight transmission, space-saving installation, and attractive digital advertising effects. Compared with traditional LED screens, it can display dynamic content without completely blocking the view behind the glass, making it ideal for retail windows and architectural media façades.

Where can Transparent LED Display Screens be used?

Transparent LED Display Screens are widely used in retail store windows, shopping malls, glass curtain walls, airports, car showrooms, museums, exhibition halls, hotels, commercial buildings, chain stores, restaurants, bars, stage designs, and corporate showrooms. They are suitable for brand promotion, product advertising, digital art, event visuals, and architectural decoration.

How transparent is a Transparent LED Display Screen?

The transparency rate of a Transparent LED Display Screen usually depends on the pixel pitch, LED strip design, and screen structure. Common transparency can range from about 70% to 90%. A higher transparency rate allows more light and visibility through the glass, while a smaller pixel pitch usually provides better image detail but lower transparency.

Can a Transparent LED Display Screen be installed on glass walls?

Yes. A Transparent LED Display Screen is often installed behind or on glass walls, shop windows, and curtain wall structures. It can be mounted with lightweight frames or customized support systems, allowing the screen to display advertising content while keeping the building’s glass appearance and indoor daylight effect.

How do I choose the right Transparent LED Display Screen?

To choose the right Transparent LED Display Screen, consider transparency rate, pixel pitch, brightness, viewing distance, screen size, installation method, glass structure, indoor or outdoor environment, maintenance access, control system, content design, and project budget. A suitable transparent LED display should balance image clarity, see-through effect, installation safety, and long-term reliability.

Does higher transparency reduce the brightness of a transparent LED screen?

There is a trade-off between transparency and brightness. A larger pixel pitch increases the see-through rate (up to 90%) but reduces pixel density, while a smaller pitch shows finer images with slightly lower transparency. The REISSOPTO TIF Series is engineered to keep brightness at daylight-visible levels across the full 70%–90% transparency range, so you can choose the right balance for storefront windows, glass facades, or stage backdrops without losing visibility.
