Transparent Crystal Film Screen | 85% Clear LED Film

Name: Transparent Crystal Film Screen | 85% Clear LED Film
Brand: REISSOPTO
SKU: SKU-19
Availability: InStock

TIF Series

Transparent crystal film screens are widely used across retail, commercial, architectural, and cultural spaces worldwide—from shopping mall windows and corporate lobbies to airports, showrooms, museums, and stage design. Adhering directly to glass without steel structures, the REISSOPTO transparent crystal film screen turns any glazed surface into vivid digital signage while keeping natural light and views intact, serving brands and integrators across North America, Europe, the Middle East, and Asia-Pacific.

Get a quote Set OEM

Transparent LED screen Details

What Is a Transparent Crystal Film Screen?

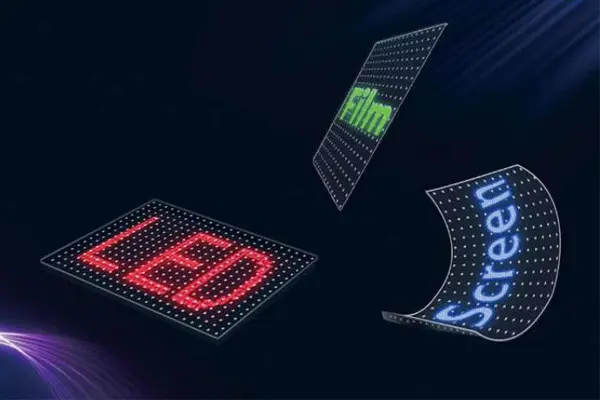

A transparent crystal film screen is an ultra-thin (1–3mm) transparent LED display film with up to 95% transparency that adheres directly to glass, turning windows, curtain walls, and façades into vivid digital displays without blocking natural light or the view behind it. Weighing only 2–3.5kg per square meter and requiring no steel frame, it combines high-performance LED technology with unmatched see-through clarity.

Built on a high-temperature-resistant PET base, the REISSOPTO transparent crystal film screen is flexible, cuttable to any size or shape, and simple to install—making it ideal for retail windows, shopping malls, showrooms, airports, museums, and building glass. Available in P4, P6, P8, and P10 pixel pitches, it delivers a captivating, immersive visual experience across diverse commercial and architectural applications.

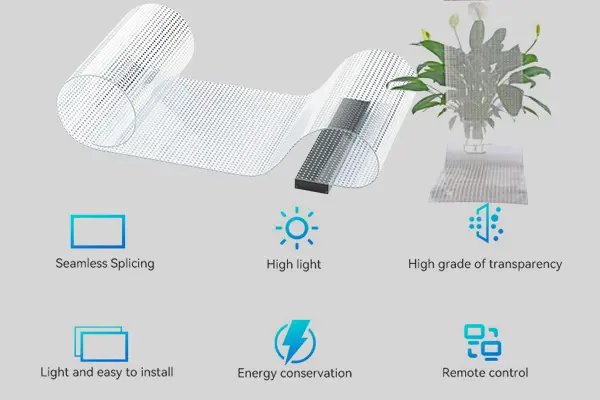

Flexible Transparent Film Screen Advantages

Ultra-thin and Ultra-light
• The Transparent Crystal Film Screen has a thickness of just 1-3mm and a weight of only 2KG/㎡, making it an exceptionally lightweight and compact solution.
Supports Cutting and Highly Flexible
• Can be easily cut to desired size
• Can be applied to glass/wall surfaces of any curvature.
Cost-saving Installation
• The Transparent Crystal Film Screen requires no steel frame structure or changes to the building’s appearance, effectively reducing transportation and installation costs.
High Transparency Rate and Easy to Install
• The Transparent Crystal Film Screen boasts a transparency rate of up to 95%, ensuring it does not affect daily lighting. Installation is a simple matter of lightly sticking the film screen and connecting the signal and power, thanks to the point-to-point transmission solution.
Resume from Breakpoints
• The light-emitting chips use a micron-level light source and a four-in-one package method, with no other electronic or device components. The screen adopts a solution of resuming from breakpoints, so that if one point fails, it will not impact the normal display of other chips.

Transparent Crystal Film Screen Features

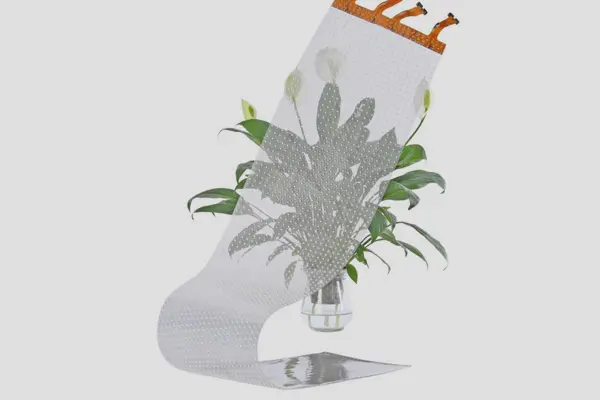

1. Superb Transparency: Our Transparent Crystal Film Screen offers exceptional transparency. Its base material, a high-temperature resistant PET film, seamlessly integrates into the glass when not in use.
2. Incredibly Slim: With a mere 3mm thickness and weighing just 3.5kg per square meter, it’s impressively lightweight.
3. Flexibility: This screen is highly flexible and can be attached to curved glass buildings with ease.
4. Customizable: You can cut it to any size or shape, enabling creative displays that meet your exact requirements.
5. Wide Viewing: Enjoy a wide 140° viewing angle, ensuring no blind spots or color distortion from any perspective.
6. Safety and Elegance: This screen conceals all components, with hidden power supplies for a safe, clean, and reliable look.
7. Speedy Installation: Installation is a breeze – simply adhere it directly to the glass surface for a quick and hassle-free setup.

Ultra-Wide View

Wide Horizontal and Vertical Angles

The Transparent Crystal Film Screen offers a wide 140° horizontal and vertical viewing angle, providing a truly immersive visual experience.

Energy Saving Transparent Crystal Film Screen

Low Energy Consumption · High Efficiency · Create a Sustainable Future

The Transparent Crystal Film Screen does not require a traditional refrigeration system or air conditioning for heat dissipation, resulting in 38% energy savings compared to ordinary LED displays. This significant reduction in energy consumption translates to long-term cost savings and a positive contribution to the environment.

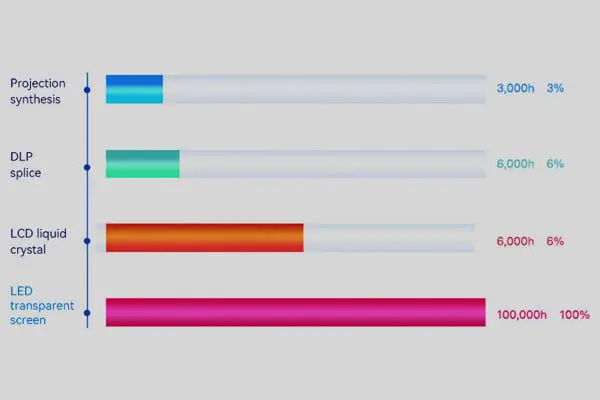

Transparent Crystal Film Screen Long Service Life

The Transparent Crystal Film Screen boasts an ultra-long service life of 100,000 hours, equivalent to the lifespan of 33.3 projectors.

Transparent Crystal Film Screen Has High Light Transmittance

The Transparent Crystal Film Screen offers a light transmittance of up to 85%, ensuring it does not interfere with lighting. When the display screen plays videos, it creates a stunning 3D effect.

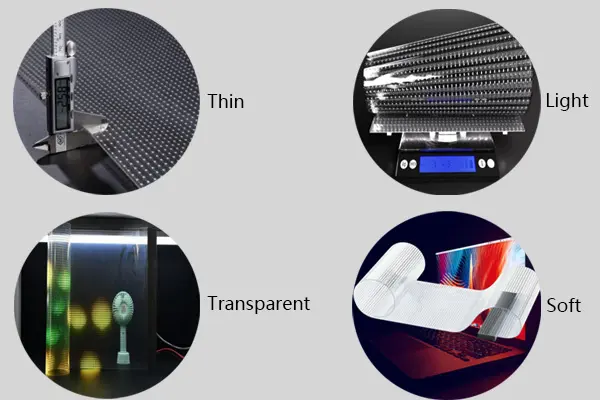

Transparent Crystal Film Screen Lightweight Design and Customizable Size

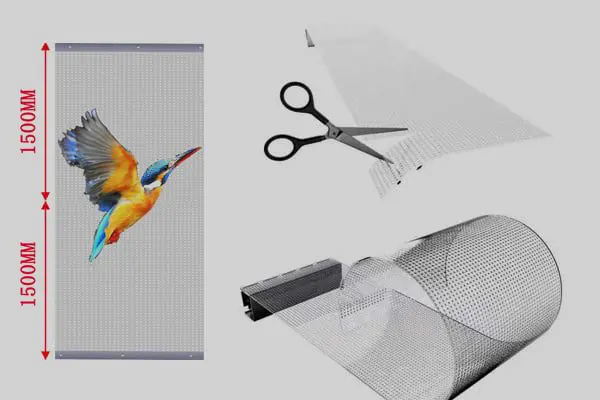

The size of the Transparent Crystal Film Screen can be customized, with a maximum length of 3 meters for the spliced screen and no limit on the length. The screen’s flexible design, made of adaptable materials, allows it to be bent and curved with a minimum diameter of 6cm, enabling it to fit a variety of curved shapes, such as cylindrical or arched, providing greater flexibility in design and installation.

Product Concerns

The Transparent Crystal Film Screen has a weight of no more than 3KG per square meter and a thickness of 3MM or less, making it easy to transport and install.

Flexible Transparent Film Screen

Transparent LED display is a new type of display technology, characterized by high transparency, bright colors, and high brightness.

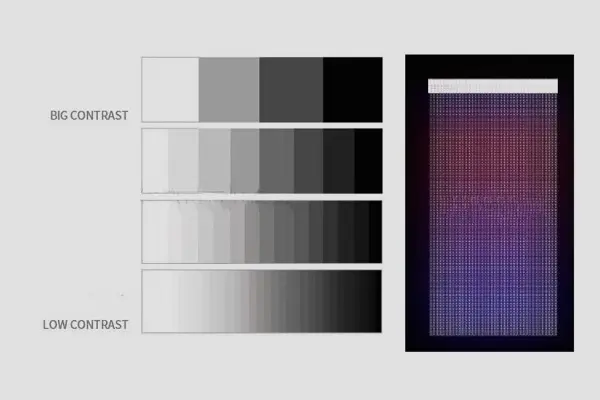

High Grayscale Display (True 16bit)

The RGB channel adopts a 32-level current linear adjustment, maintaining a 16-bit grayscale display at any current, making it suitable for a wide range of indoor, semi-outdoor, and outdoor applications.

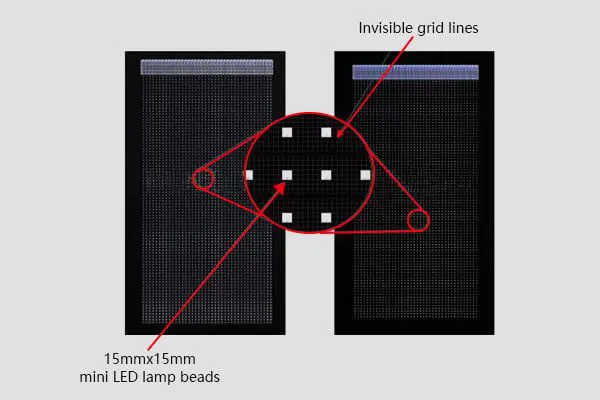

High Transparency Screen

• Use the integrated MiniLED lamp beads to improve its own permeability
• Use invisible grid circuit to improve its permeability
Self- developed chip puts the chip inside the LED beads, simplifying the circuit design and ensuring extremely high permeability.

Simple Installation

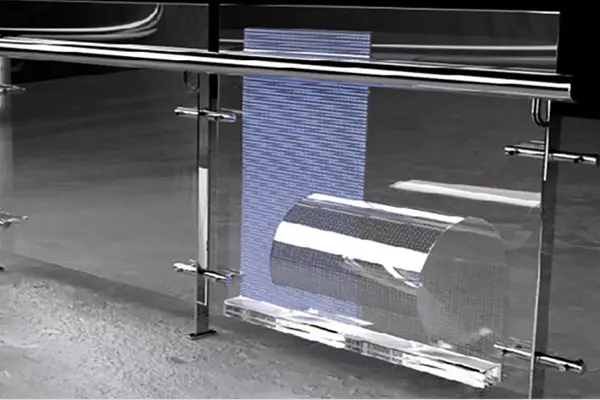

The Transparent Crystal Film Screen requires no steel structure, as it can be directly adhered to the glass surface with a self-developed glue filling process. The screen’s own viscosity allows for strong adhesion, which increases over time due to the inherent characteristics of the adhesive.

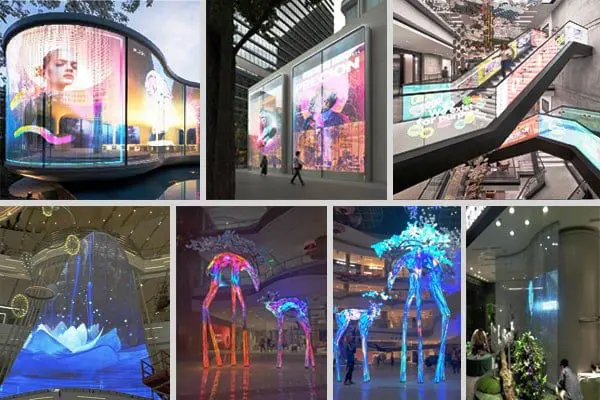

Wide Application Scenarios to Meet Various Needs

• Application scenario of commercial center
• Application scenario of window advertising
• Application scenario of airport lobby
• Application scenario of museum
• Application scenario of automobile 4S store
• Application scenario of building curtain wallThe REISSOPTO Transparent Crystal Film Screen is a groundbreaking, versatile solution, seamlessly blending high transparency, flexibility, and easy installation to redefine digital displays across diverse settings, empowering businesses and transforming engagement.

Specifications

Transparent Crystal Film Screen Parameters
Model *For more models, please consult customer service	P4	P6	P8	P10
Pixel Pitch	4 mm	6 mm	8 mm	10 mm
Module Size	1000×240 mm
Module Resolution	250×60	167×40	125×30	100×24
Permeability (Transparency)	≥85%
Pixel Density (dots/㎡)	62,500	27,889	15,625	10,000
Box Wiring Mode	Internal wiring (clean back)
Grayscale	16 bit
Brightness	3000–4000 nits
Contrast Ratio	10,000:1
Refresh Rate	3840 Hz
Viewing Angle	140°/140° (H/V)
IP Protection Rating	IP30
Frame Change Frequency	60 Hz
Input Voltage	AC 100–240V 50/60Hz
Working Temperature	-10℃ – +40℃
Working Humidity	10%RH – 90%RH
Service Life	100,000 h
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a Transparent Crystal Film Screen?

A Transparent Crystal Film Screen is a lightweight transparent LED display film that can be attached directly to glass surfaces. It provides bright digital content while maintaining high transparency, making it suitable for glass windows, retail storefronts, shopping malls, exhibition spaces, building façades, and indoor commercial displays.

What are the advantages of a Transparent Crystal Film Screen?

A Transparent Crystal Film Screen offers high transparency, ultra-thin structure, lightweight design, flexible installation, strong visual impact, and low space occupation. It can turn glass walls or windows into digital advertising displays without blocking natural light or the original view, making it ideal for modern commercial and architectural applications.

Where can Transparent Crystal Film Screens be used?

Transparent Crystal Film Screens are widely used in retail stores, shopping malls, brand showrooms, glass curtain walls, airports, hotels, museums, exhibition halls, car dealerships, restaurants, office buildings, and commercial window displays. They are especially suitable for projects that require both advertising display and glass transparency.

How is a Transparent Crystal Film Screen installed?

A Transparent Crystal Film Screen is usually installed by attaching the transparent LED film directly to the inside surface of glass. The installation is simple and does not require heavy steel structures, which helps reduce installation time, labor cost, and impact on the existing building design.

Is a Transparent Crystal Film Screen suitable for window advertising?

Yes. A Transparent Crystal Film Screen is very suitable for window advertising because it can display videos, images, logos, promotions, and brand messages while keeping the storefront bright and transparent. It helps attract attention from outside without completely blocking the view into the store.

How do I choose the right Transparent Crystal Film Screen?

To choose the right Transparent Crystal Film Screen, consider glass size, viewing distance, pixel pitch, brightness, transparency rate, installation location, control method, content type, power supply layout, and maintenance requirements. A suitable transparent LED film screen should balance visual clarity, transparency, installation convenience, and long-term reliability.
