Rental Transparent LED Screen | Lightweight IP65 Mesh Display for Events

RTF-RX Series

The RTF-RX rental transparent LED screen is a lightweight see-through mesh display built from die-cast aluminum cabinets weighing just 18kg/m² at 75mm thick. With around 50% transparency, ≥5000 nits brightness and an IP65 rating, it delivers vivid, high-impact visuals while keeping the space behind fully visible. Quick locks and positioning pins enable fast setup, single-person maintenance, and flexible flat, curved, or 90° installations.

Get a quote Set OEM

Transparent LED screen Details

What Is a Rental Transparent LED Screen?

A rental transparent LED screen (also called a transparent mesh LED screen) is a see-through display built from lightweight die-cast aluminum cabinets, weighing just 18kg per square meter with a 75mm thickness. With around 50% transparency and a fast lock-and-pin design, it can be set up and dismantled quickly for temporary events while keeping the space behind it fully visible.

Key Advantages of the RTF-RX Rental Transparent Screen

This transparent rental screen combines high transparency with high-quality lamp beads to deliver bright, vivid visuals without blocking sightlines. Its ≥5,000 nits brightness stays clearly visible even under direct sunlight, while the IP65-rated cabinet handles both indoor and outdoor conditions. The 500×500mm and 500×1000mm cabinets are freely combinable, and -15° to +15° curve locks support flat, concave, convex, and 90-degree corner installations.

Ultra-lightweight: only 18kg/m², no load on building structures.
High transparency: ~50%, preserving views and airflow.
Fast rental setup: multi-lock positioning, single-person install.
Weatherproof: IP65 for indoor and outdoor use.
Flexible shaping: curved, arc, and 90° corner configurations.

Where Are Rental Transparent LED Screens Used?

Rental transparent LED screens are ideal for concerts, stage backdrops, exhibitions, trade shows, product launches, retail displays, and TV studios. The see-through mesh design creates immersive visual effects while keeping the venue open and airy, making it a popular choice for event rental companies and stage production teams that need fast, reusable, high-impact displays.

How to Choose a Rental Transparent LED Screen

When selecting a rental transparent LED screen, consider pixel pitch (P3.9–7.8 for finer detail or P10.4 for higher transparency), transparency level, cabinet weight, installation method, and control system compatibility. Matching these to your event type and viewing distance ensures the best balance between image clarity and see-through effect.

Product Features & Advantages

Indoor Outdoor Rental& Fixed Transparent Mesh LED Screen

Indoor/Outdoor Rental & Fixed Transparent Mesh LED Screens combine cutting-edge technology with a unique design that allows for both high-quality digital content display and architectural integration. These screens are widely used in temporary (rental) settings for events like concerts, trade shows, and sports arenas, as well as in permanent (fixed) installations on building facades, public spaces, and urban areas.

Transparent LED Screen Rental Easy Installation / Precise Positioning

Rental case, multilock positioning; Ultra-thin and ultra-light (8.5kg per cabinet), No need to change any building structure for installation.

Ultra-Wide View

Wide Horizontal and Vertical Angles

> H140° and V140° large angle perfectly present a visual experience

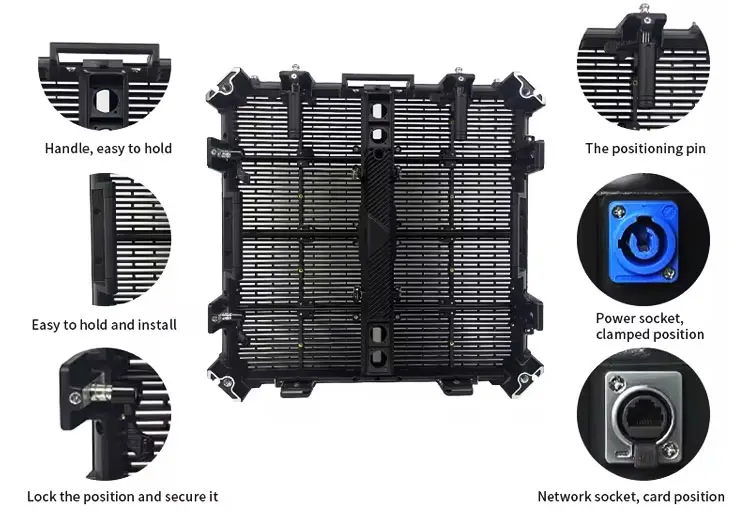

Rental Transparent Display Cabinet Functionality Details

> Features upper and lower positioning pins along with left and right quick locks.
> Power and network card connectors designed.
For convenient and rapid installation.

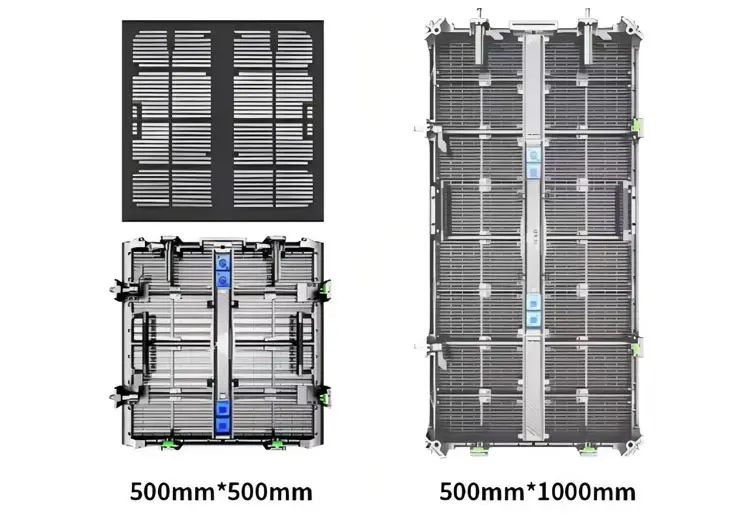

Transparent Screen Rental Standard Cabinet

Standard straight cabinet 500*500mm and 500*1000mm, cabinet size can be customized and allow bending into arc according to application, match the building glass perfectly

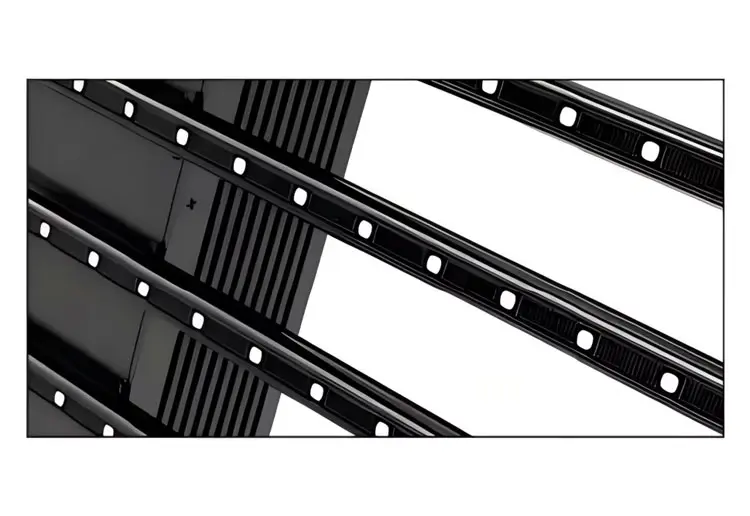

Using High Quality Lamp Beads

Transparent mesh LED screens combine high transparency with high-quality lamp beads to offer a unique display solution that blends visual appeal with functionality. The mesh structure allows light and air to pass through, preserving the architectural integrity of the surroundings, while the high-quality lamp beads ensure that the screen delivers vibrant, sharp images with excellent brightness and color accuracy.

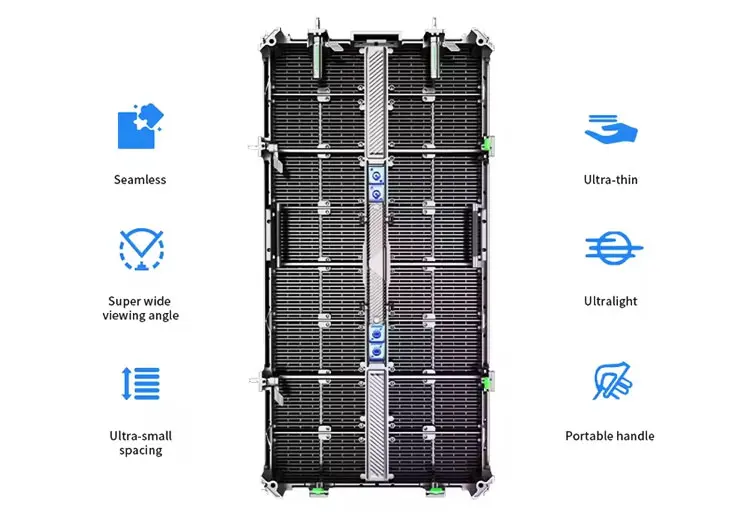

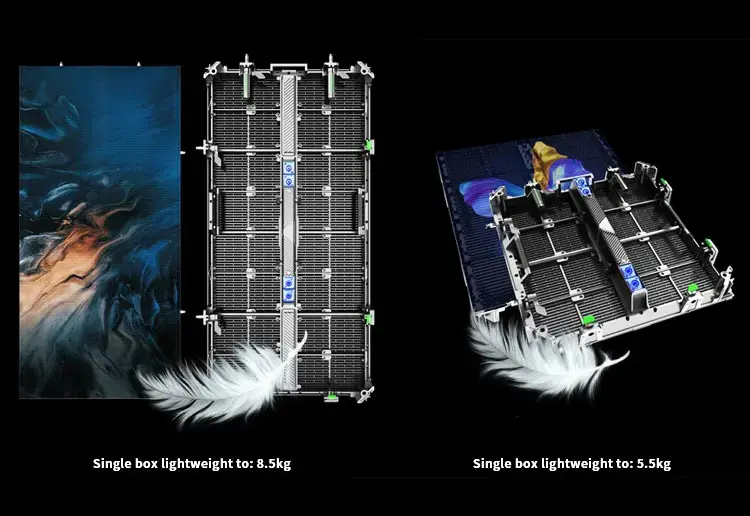

Transparent Screen Rental Lightweight Design

Arc-Shaped Right – Angle Splicing

> The cabinet features a die-cast aluminum design, weighing only 18kg per square meter, ensuring no pressure on building structures.
> With a thickness of just 75mm, it allows for easy installation and maintenance by a single person.

Transparent Screen Rental Lightweight Design - RTF-RX Series

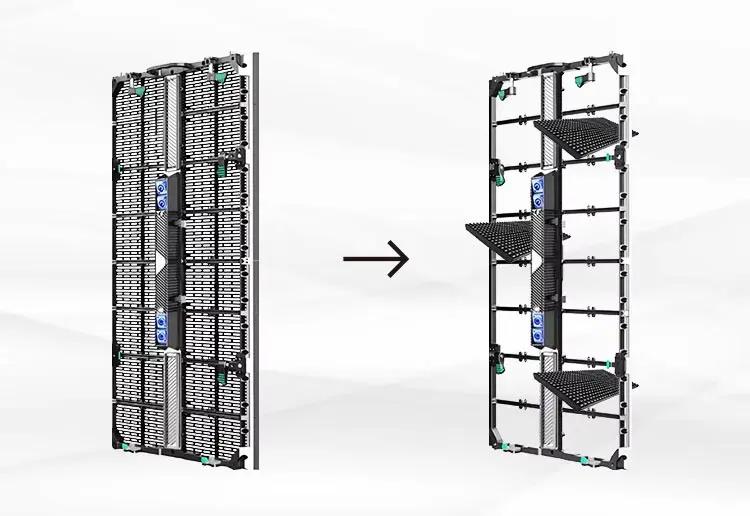

Transparent Screen Easy Maintenance

> Maintenance is convenient, with modules removable from the rear of the cabinet for easy plug-and-play access, allowing for quick servicing.

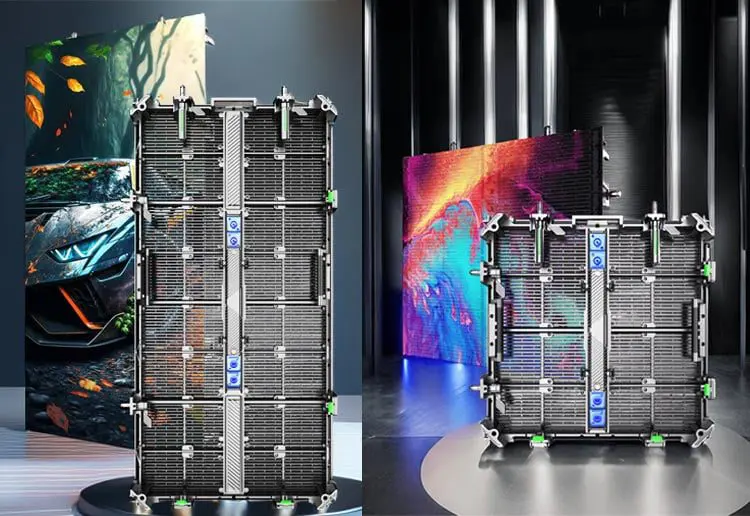

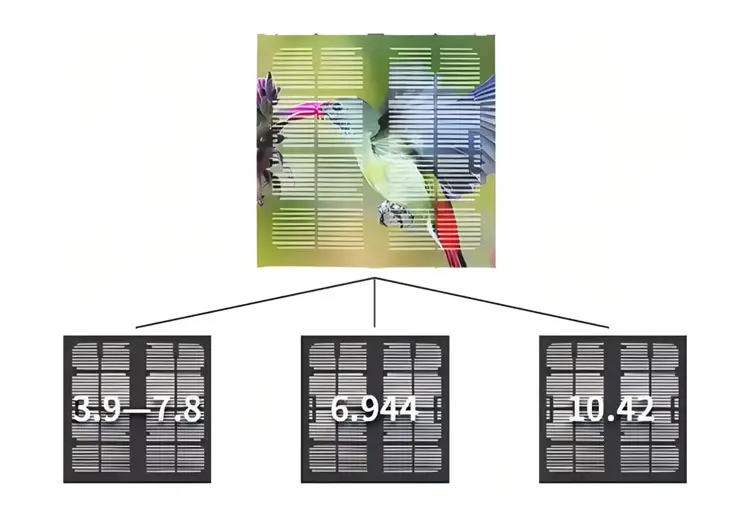

Compatible Cabinet For Different Pixel Pitch

pixel pitch such as P3.9-7.8, P10.4-10.4

IP65 Waterproof Design

> The cabinet features a waterproof design with an IP65 protection rating, making it suitable for use in various harsh weather conditions

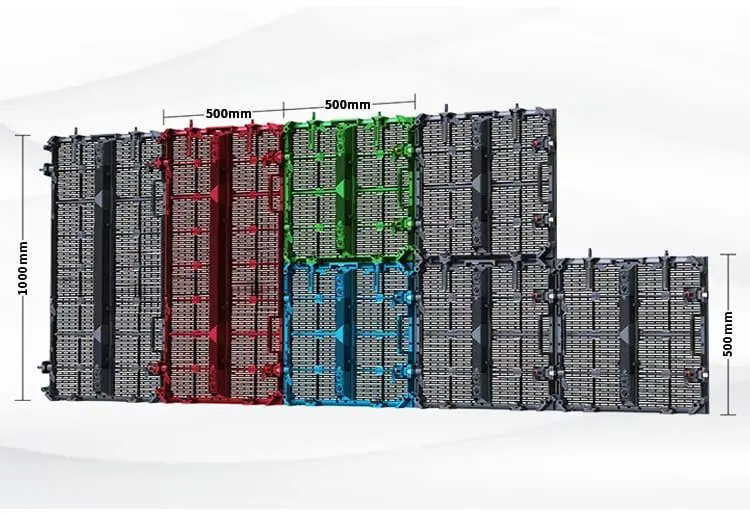

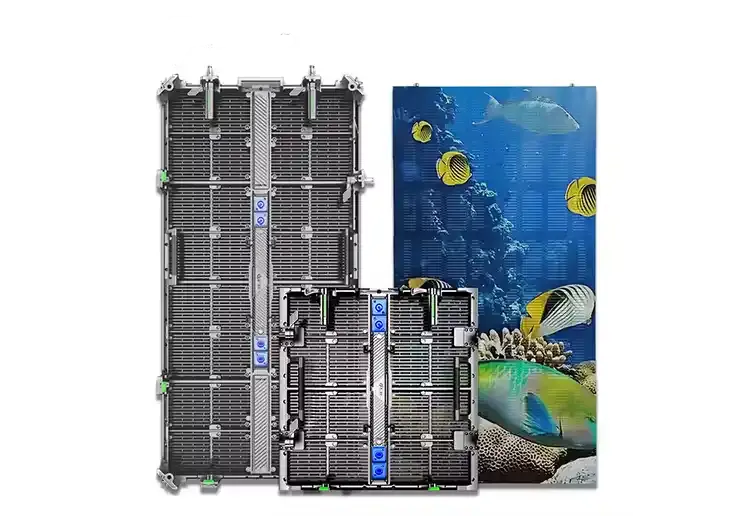

Two Cabinet Sizes

> The 500×500mm and 500×1000mm cabinet sizes can be freely combined and used together vertically, saving operational costs and installation time.

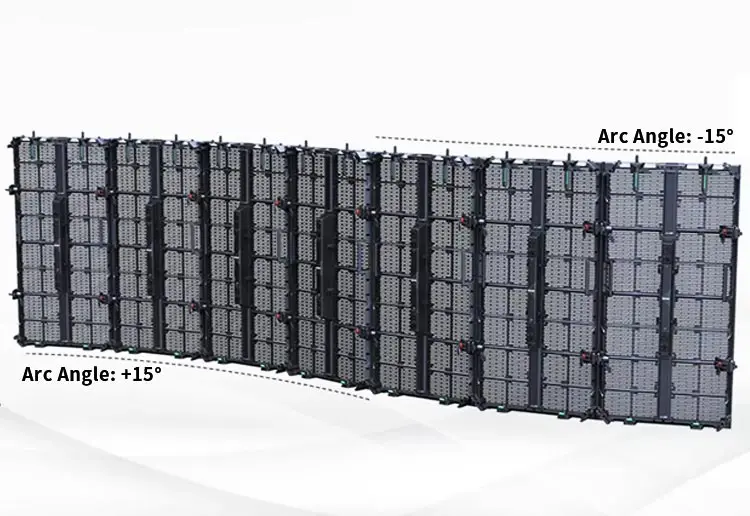

Concave and Convex Curve Lock

> The -15° to +15° curve locks allow compatibility with straight, concave, and convex configurations, making them suitable for various application scenarios.

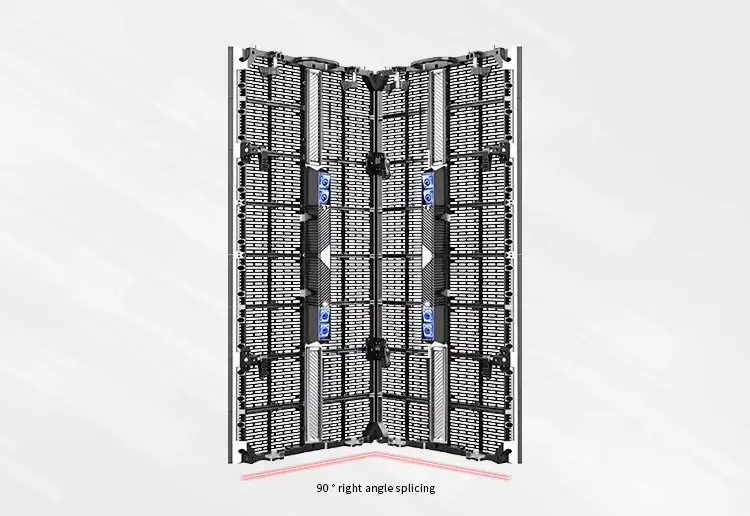

Outer 90-Degree Angle Installation

> Supports outer 90-degree angle installation, allowing for a variety of creative displays in rental applications.

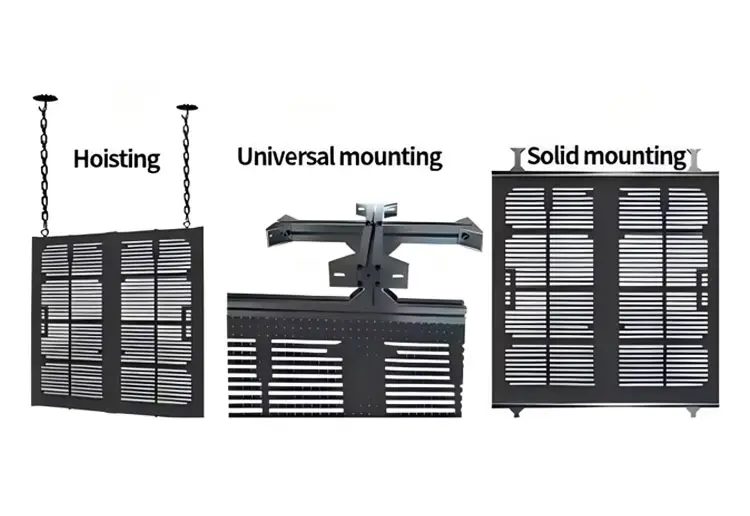

Rental Transparent Display Multiple Installation Modes

Transparent mesh LED screens offer high transparency while providing flexible installation options, making them ideal for a variety of settings and applications. These screens can be configured in multiple installation modes, allowing for both dynamic visual impact and seamless integration into different environments.
– Fixed Installations
– Curved/Custom Shaped Displays.
– Hanging/Wall-Mounted

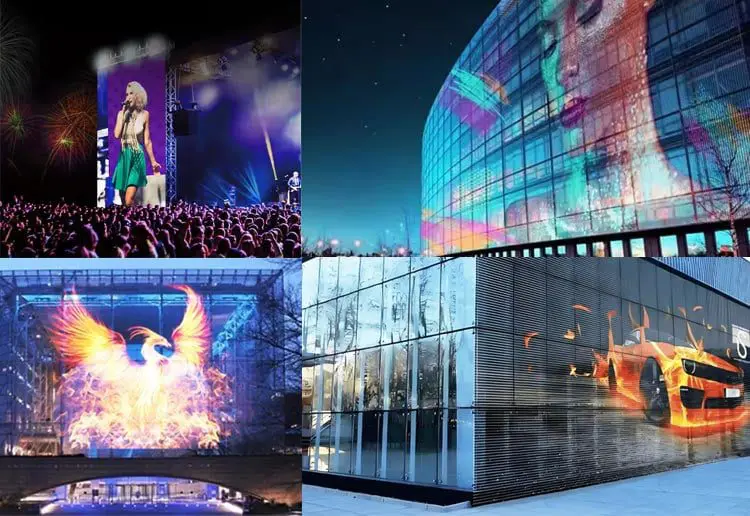

Transparent Rental LED Screens Applications

Transparent Mesh LED Screens seamlessly integrate into modern architecture, offering dynamic advertising and artistic displays without blocking the view. Ideal for outdoor advertising, these screens remain visible even in direct sunlight and can be installed on various surfaces. Their customizable shapes and sizes make them perfect for event displays at concerts, trade shows, and live events, delivering immersive, eye-catching visuals. With multiple installation modes and a transparent design, they provide both creative flexibility and functional versatility for both permanent and temporary applications.

Specifications

Indoor Transparent LED Screen Parameters (RTF-RX Series)
Model *For more models, please consult customer service	P1.526	P1.953	P2.5	P2.604	P2.976	P3.91
Pixel Pitch	1.526 mm	1.953 mm	2.5 mm	2.604 mm	2.976 mm	3.91 mm
Module Size	500×125×12 mm
Module Resolution	328×82	256×64	200×50	192×48	168×42	128×32
Pixel Density (dots/㎡)	429,424	262,180	160,000	147,475	112,910	65,410
Cabinet Size	500×500×75 mm / 500×1000×75 mm
Cabinet Weight	6 kg (500×500) / 9 kg (500×1000)
Cabinet Material	Die-casting Aluminum
Transparency	65%
Brightness	≥5000 nits
Refresh Rate	≥3840 Hz
Viewing Angle	140°/140° (H/V)
IP Protection Rating	IP65
Max Power Consumption	700 W
Ave Power Consumption	150 W
Maintenance	Rear maintenance
Control System	NovaStar / Colorlight (optional)
Certification	EMC / CE / RoHS / CCC / FCC
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Outdoor Transparent LED Screen Parameters (RTF-RX Series)
Model *For more models, please consult customer service	P2.604	P2.976	P3.91	P3.9×7.8
Pixel Pitch	2.604 mm	2.976 mm	3.91 mm	3.9×7.8 mm
Module Size	500×125×12 mm
Module Resolution	192×48	168×42	128×32	128×16
Pixel Density (dots/㎡)	147,475	112,910	65,410	32,768
LED Type	SMD1921
Cabinet Size	500×500×75 mm / 500×1000×75 mm
Cabinet Weight	6 kg (500×500) / 9 kg (500×1000)
Cabinet Material	Die-casting Aluminum
Transparency	65%
Brightness	≥5000 nits
Refresh Rate	≥3840 Hz
Viewing Angle	140°/140° (H/V)
IP Protection Rating	IP65
Max Power Consumption	700 W
Ave Power Consumption	150 W
Maintenance	Rear maintenance
Installation	Crane girder hoisting and fixed installation
Control System	NovaStar / Colorlight (optional)
Certification	EMC / CE / RoHS / CCC / FCC
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a rental transparent LED screen?

A rental transparent LED screen is a see-through mesh display made from lightweight die-cast aluminum cabinets (about 18kg/m², 75mm thick) with roughly 50% transparency. It uses quick locks and positioning pins for fast setup and takedown, making it ideal for concerts, exhibitions, and temporary event installations while keeping the space behind it visible.

How transparent is a transparent LED screen?

The RTF-RX rental transparent LED screen offers around 50% transparency, allowing light and air to pass through so audiences can see the environment behind the display. Transparency depends on pixel pitch: wider pitches like P10.4 give higher transparency, while finer pitches like P3.9 provide sharper image detail.

Can a transparent LED screen be used outdoors?

Yes. This transparent LED screen has an IP65 waterproof rating and up to 5,000 nits brightness, so it works reliably both indoors and outdoors, staying clearly visible even in direct sunlight and under various weather conditions.

How much does a transparent LED screen cabinet weigh?

Each cabinet weighs approximately 4.8kg (excluding aluminum door and power supply), and the full screen weighs only about 18kg per square meter. This ultra-light design puts no pressure on building structures and allows single-person installation and maintenance.

What sizes are available for the rental transparent screen cabinet?

The rental transparent LED screen comes in two standard cabinet sizes, 500×500mm and 500×1000mm, both 75mm thick. They can be freely combined vertically and support curved, concave, convex, and 90-degree corner installations for flexible creative displays.

How do I install and maintain a rental transparent LED screen?

Installation uses upper and lower positioning pins plus left-and-right quick locks, so cabinets align fast without changing the building structure. Maintenance is rear-access with plug-and-play modules, allowing quick servicing by a single technician.
