P1.953 LED Display for Rental – Fine Pitch Stage Screen

RXR-RF Series

Designed for the global rental and staging industry, the Rental LED Screen adapts to a wide range of professional environments:

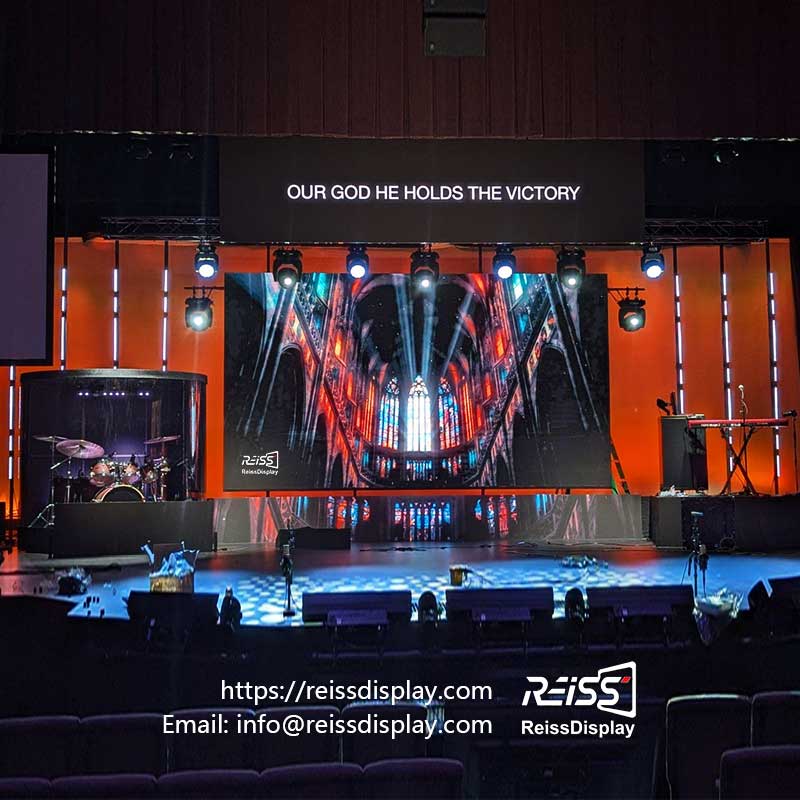

Concerts & Live Stage Performances — Curved or flat backdrops with broadcast-grade refresh for live streaming and on-camera capture.
Corporate Events & Conferences — High-contrast indoor panels for keynote stages, product launches and AGMs.
Exhibitions & Trade Shows — Lightweight, tool-free assembly for booths at international expos and venues.

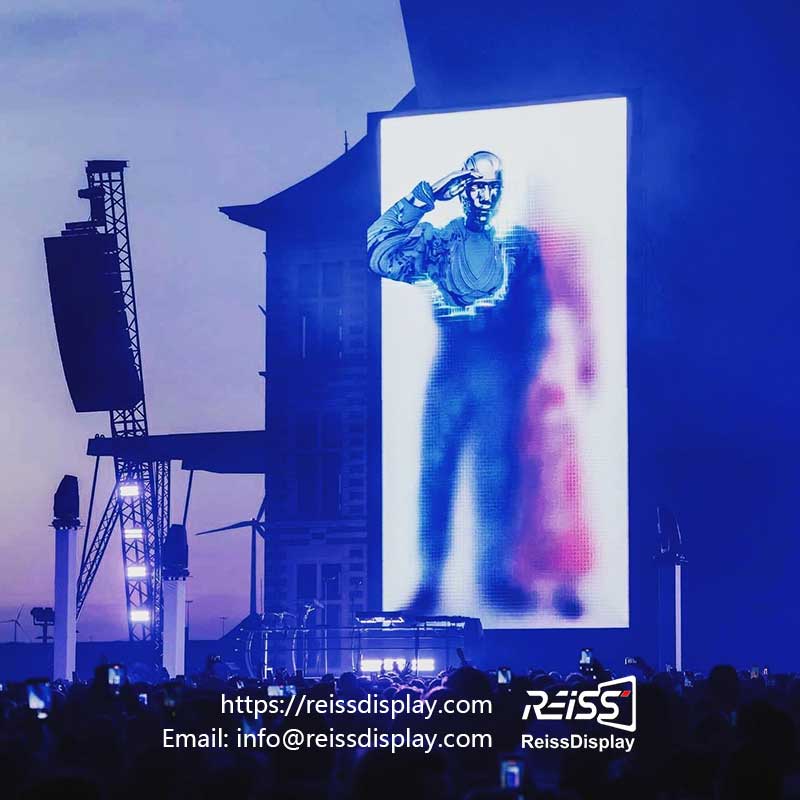

Outdoor Festivals & Sports Events — IP65–IP66 waterproof cabinets with 4000 cd/m² brightness for daytime outdoor visibility.
Weddings, Galas & Touring Productions — Fast setup/teardown and flight-case-ready cabinets for repeated global transport.
Broadcast & Rental Fleet Operations — Standardized 500×500 mm cabinets for scalable, mix-and-match rental inventory.

Get a quote Set OEM

Rental LED display Details

Rental LED Screen — Modular Display Solution for Global Stage, Event & Exhibition Applications

Our Rental LED Screen is engineered for fast deployment, repeated transport and reliable performance across worldwide event environments. Built on standard 500×500 mm die-cast aluminum cabinets weighing only 7.5 kg each, the panels support quick-lock assembly, seamless splicing and both front and rear maintenance — allowing rental teams to install, dismantle and relocate a full stage backdrop within tight production schedules.

Available in indoor pixel pitches from P1.953 to P3.91 and outdoor pitches from P2.6 to P4.81, the series delivers high-density resolution up to 262,144 dots/m², a refresh rate of 3840Hz–7680Hz and a grayscale of up to 22-bit, ensuring flicker-free, broadcast-grade image quality for on-camera productions. Outdoor cabinets reach IP65–IP66 protection and 4000 cd/m² brightness for direct-sunlight readability, while indoor units are tuned for balanced brightness and superior contrast in controlled lighting.

Compatible with NovaStar and Colorlight control systems and certified to CE, RoHS, FCC, ETL, UL and ISO9001, the Rental LED Screen meets the technical and compliance requirements of markets across Europe, North America, the Middle East, Southeast Asia and Latin America — making it a dependable choice for rental operators, AV integrators and event production companies serving international clients.

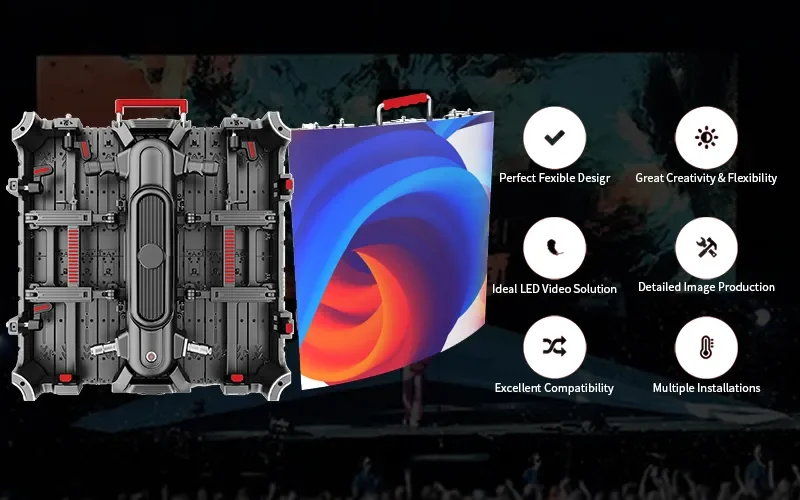

Adjustable Flexible LED Display Screen Panel

Flexible and Creative Design: The cabinet supports C, D and S-shaped adjustments and is equipped with a 45° quick-lock system for multiple installation methods.

High-Quality Display: With a refresh rate of up to 3840Hz/7680Hz, the GOB module provides vivid colors, 16-bit grayscale, and a color temperature range of 6500-9500K.

Easy Installation and Maintenance: Only 8 panels are needed to build a 1.2-meter round screen. The removable power box ensures fast rear maintenance.

Lightweight and Slim: Made of die-cast aluminum, the lightweight and slim design simplifies transportation and installation.

– Flexible Cabinet Design
– Light Weight
– Seamless Connection
– Excellent Performance
– 3840Hz~7680Hz
– Large Viewing Angle
– High Brightness
– Easy Maintenance

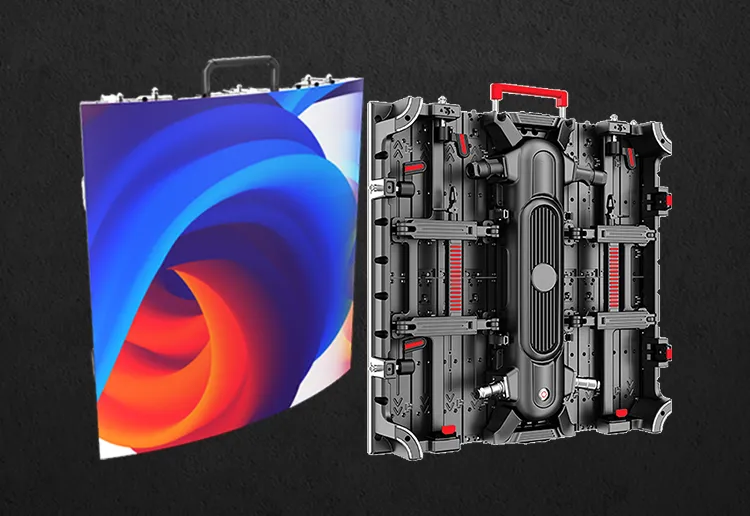

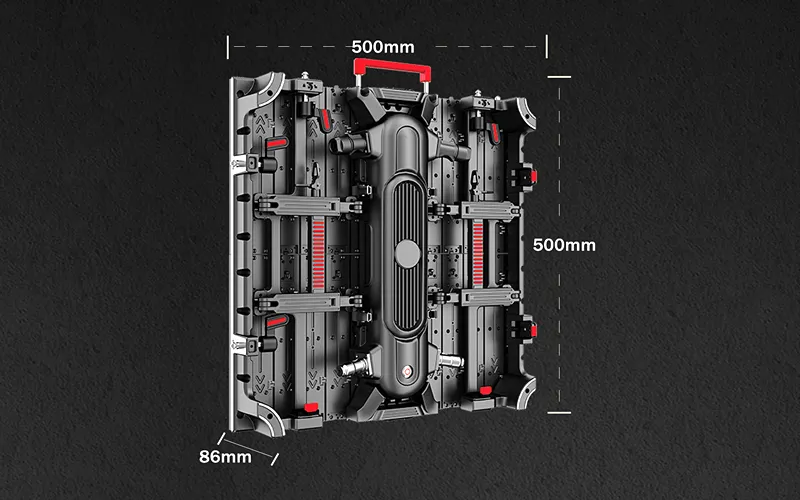

Basic Information

Cabinet Dimensions: 500x500x71mm
Weight: 7.5kg
Model: P1.9 P2.6 P2.9 P3.91 P4.81

Cabinet Dimensions: 500x500x71mm Weight: 7.5kg Model: P1.9 P2.6 P2.9 P3.91 P4.81

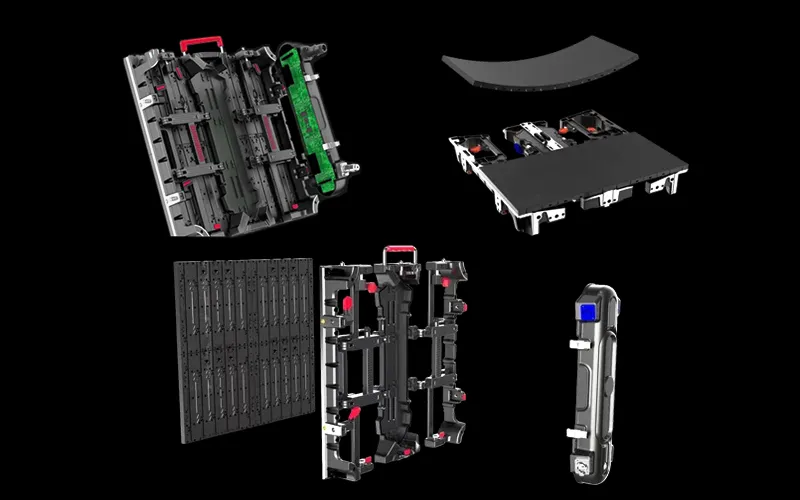

Modular rental LED screen, fast maintenance and enhanced protection Tool-free rear panel module design allows the power/signal card to be replaced in 30 seconds, while anti-collision buffers and reinforced corner protectors protect the LED modules during ground placement and transportation.

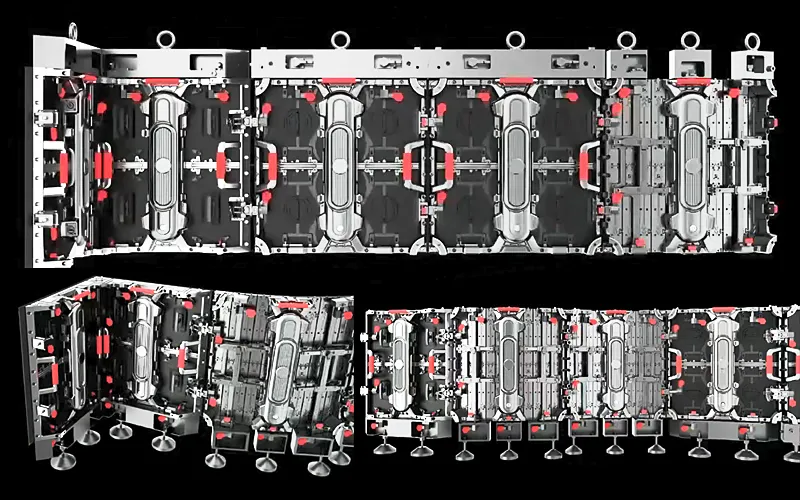

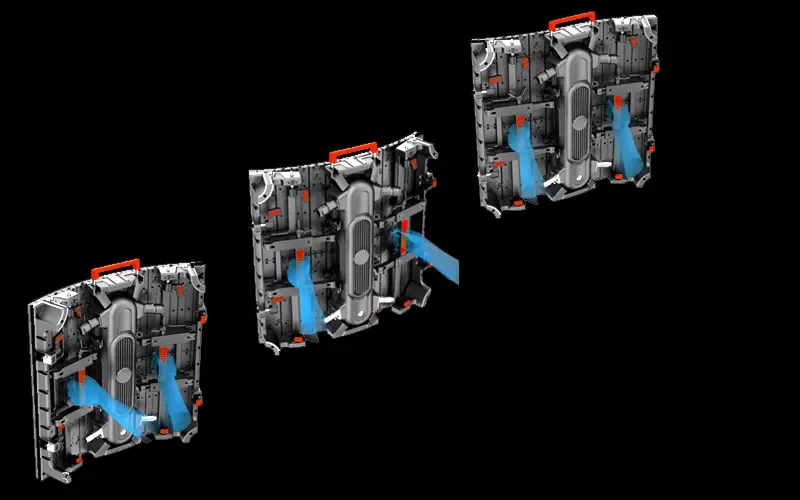

Adjustable At Multiple Angles, Unprecedented Flexibility

The handle system designed for the RXR-RF series allows the shape of the cabinet to be easily adjusted to a C-shape (curved inward), D-shape (curved outward) or S-shape (curved outward), providing more creative and flexible settings.

Flexible Adaptation To a Variety of Arcs

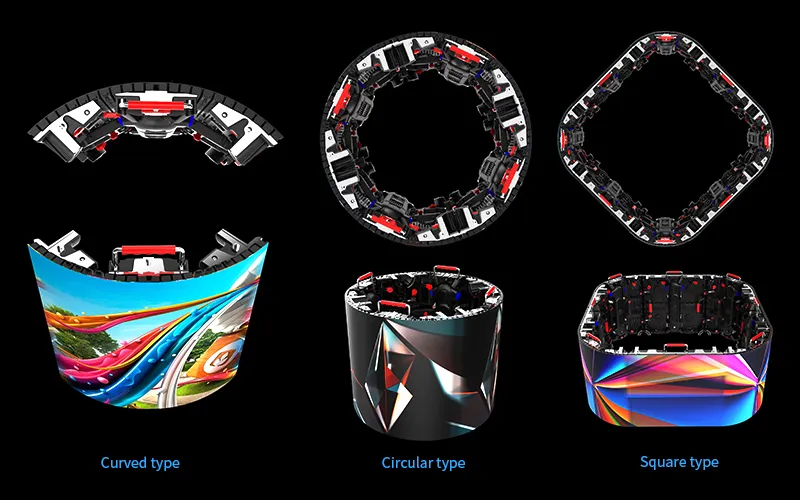

Flexible adaptation to a variety of arcs Wave, arc (inside/outside arc), square, round, etc. Customizable arc splicing (indoor/outdoor), support inside/outside 57.5° gradient adjustment, and achieve <0.2mm frame gap. They can seamlessly match the complex arc structures in stages and shopping malls, providing non-deformed visual effects for immersive spherical/cylindrical designs.

High Refresh Rate From 3840Hz to 7680HZ

2K 4K 8KHigh-Definition Resolution

The high refresh rate ensures the smoothness of each frame displayed on the screen and effectively prevents flickering of the LED display when captured by a high-frequency camera. In addition, it can ensure image stability and avoid flickering or blurring caused by fast image conversion, thereby improving the overall image quality.

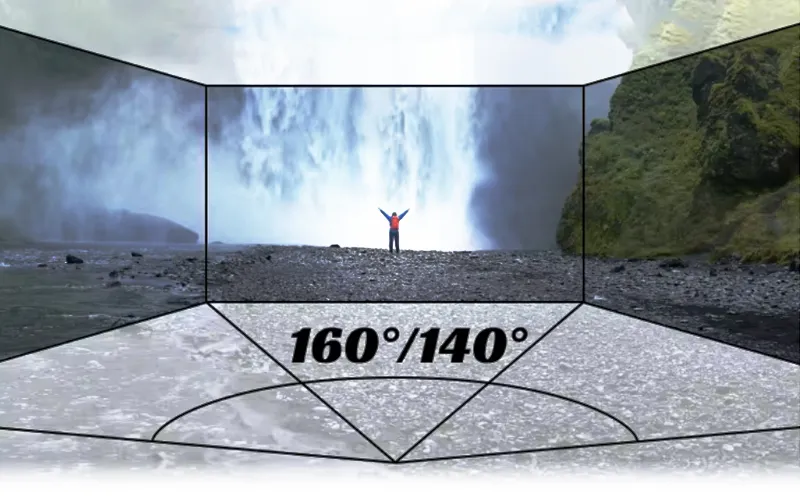

Large Viewing Angle

The high-precision die-cast cabinet ensures the screen has excellent flatness, and combined with advanced GOB packaging technology, the viewing angle of the LED display can reach up to 160°. In addition, the screen adopts a seamless design.

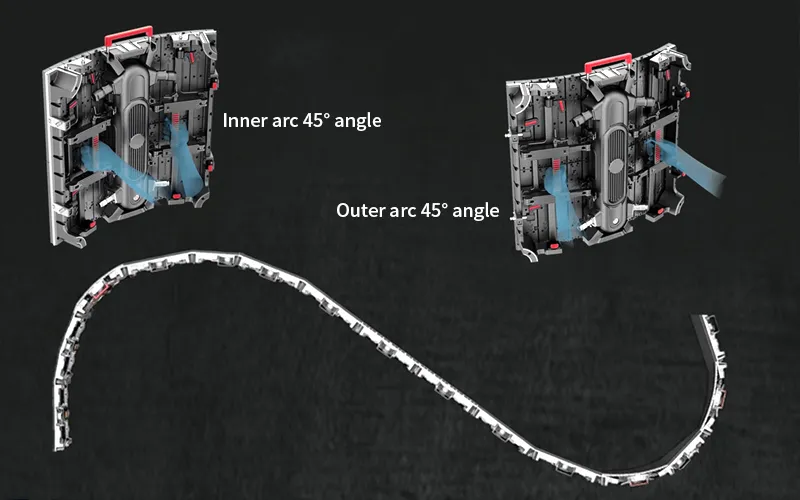

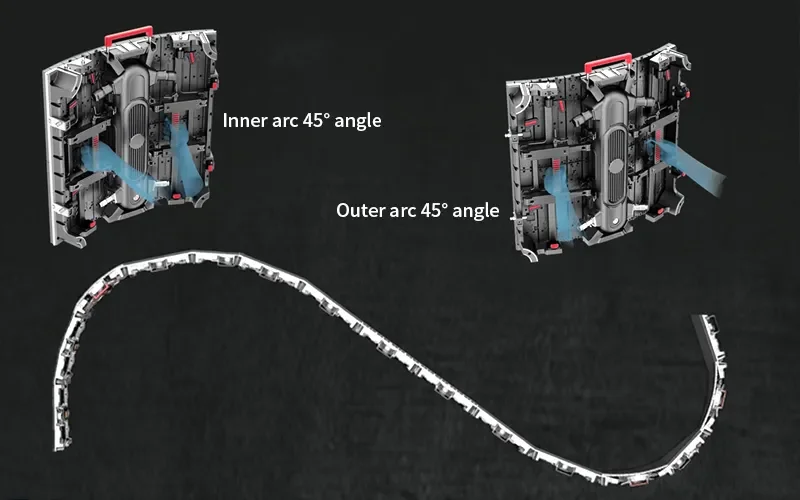

Reinforced Locking and Adaptive Leveling

Arc range: -45 degrees +4 5 degrees
Variable form: compatible with 0, C, S, U and other custom shapes.

Reinforced locking and adaptive leveling our LED rental screens use stainless steel locks to ensure precise alignment and mixed installation (flat/curved/right angle), while triple upper and lower locks stabilize the hanging load, and self-adjusting positioning beads compensate for uneven ground during assembly.

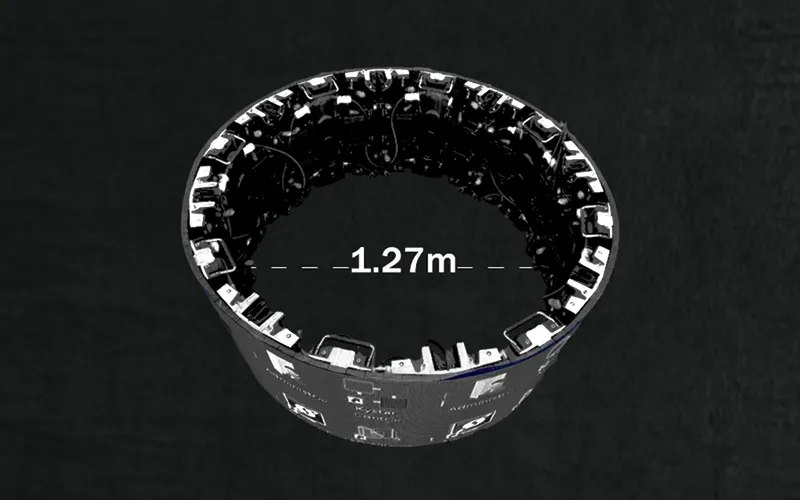

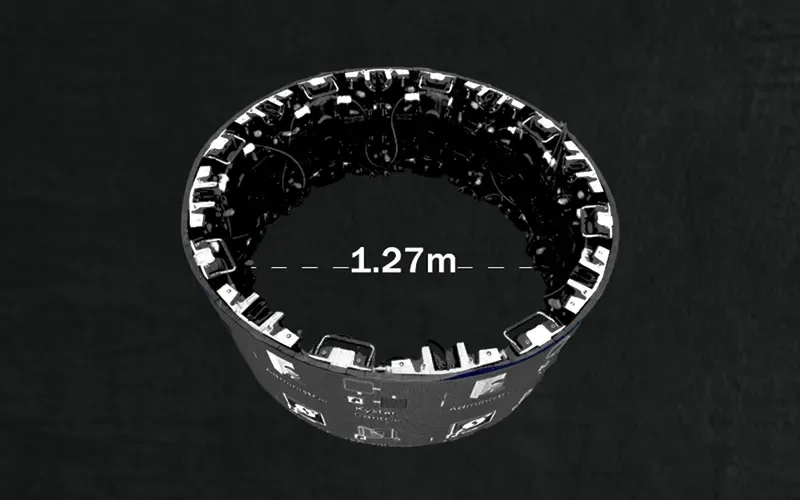

Compact Cylindrical Stage Setup

Holding ability: can weld inner and outer rings, with a minimum diameter of 1.27 meters

Thanks to the great flexibility of the RXR-RF series flexible rental LED display, a compact and elegant 1.27 m cylinder can be built with only 8 panels. Small venues can provide visually pleasing stage decoration.

Optimized Compatibility Solutions

Splicing with each other: flexible connection.

The RXR-RF series flexible rental LED display can work with ordinary flat and curved flat panels on one screen. This is a great combination that can reduce your purchase cost and ensure that you get an optimized return on investment.

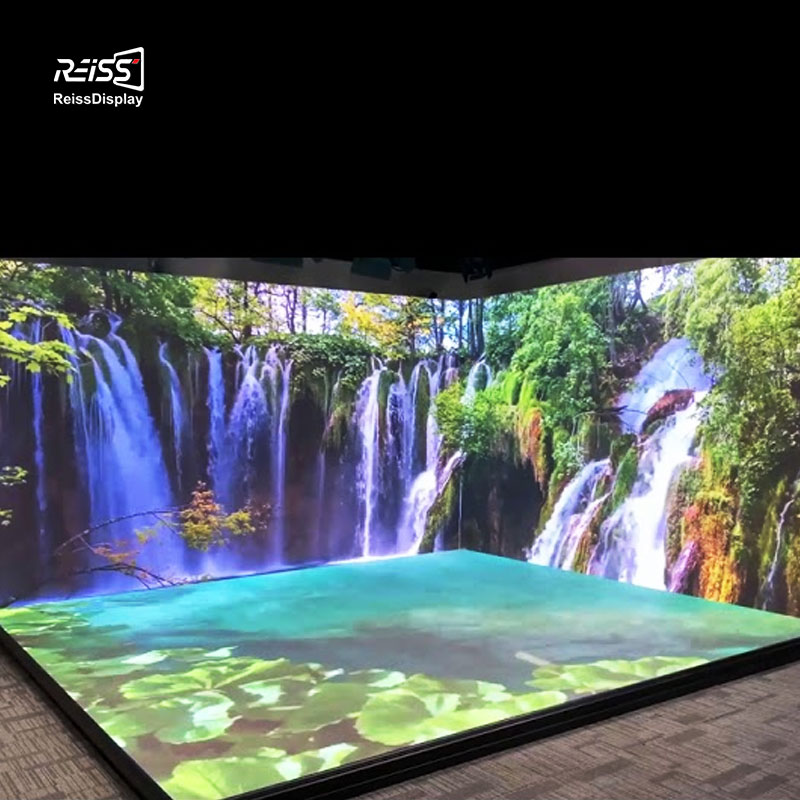

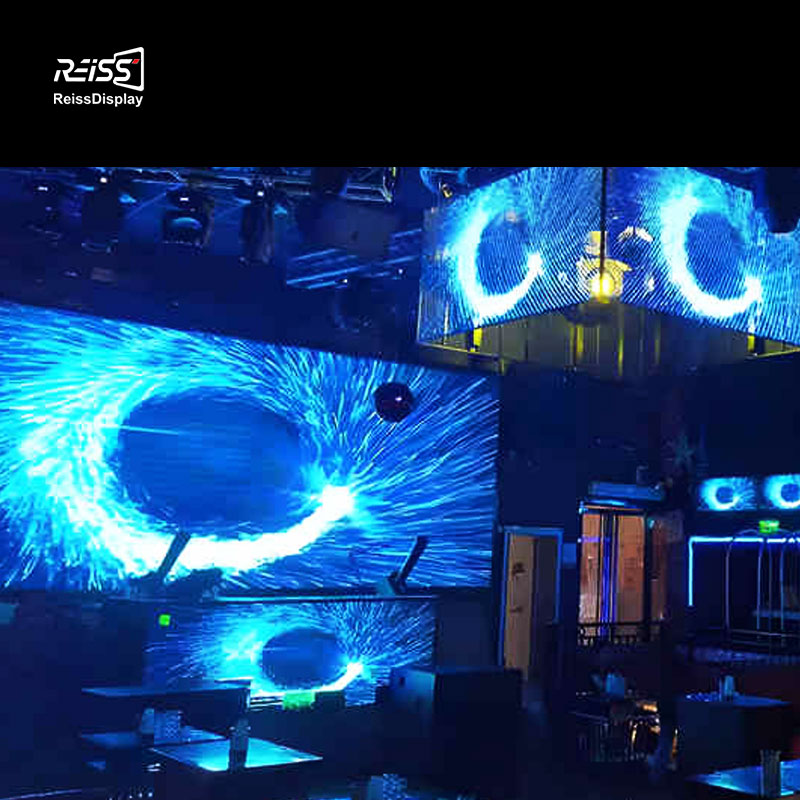

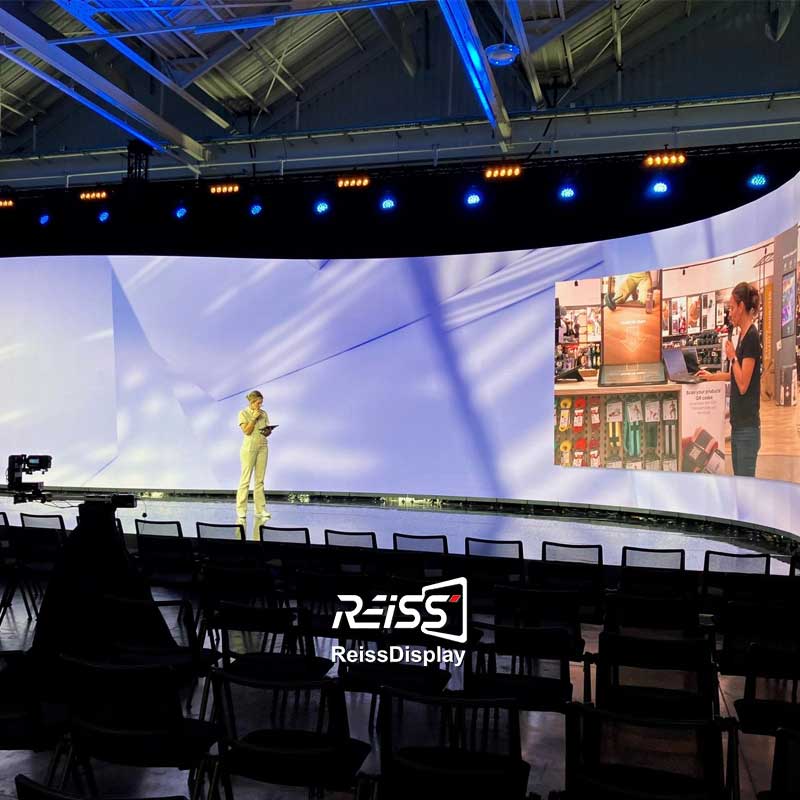

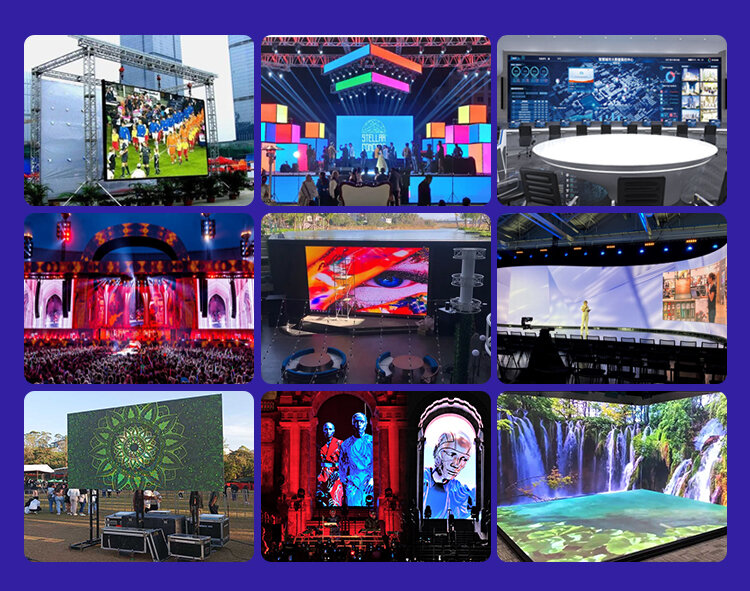

Application Fields

Activity;
Stages;
Exhibition hall;
XR virtual shooting;
Sports Events.
This product is suitable for a wide range of application scenarios, including hoisting, stacking, rental, and fixed installation. It can be used in various events such as concerts, exhibitions, and stage shows to create dynamic and creative visual effects.

Specifications

Outdoor LED Screen Rental Parameters
Model *For more models, pls consult customer service	P2.6	P2.97	P3.91	P4.81
Module Size	250×250 mm (9.84×9.84 in)
Module Pixel	96×96	84×84	64×64	52×52
Scanning Method	32	21	16	13
Pixel Configuration	1R1G1B
Maintenance Method	Front/rear maintenance
Box Size	500×500 mm (19.68×19.68 in)
Box Pixel	192×192	168×168	128×128	104×104
Density (DOT/SQM)	147456	112896	65536	43264
Brightness (CD/SQM)	3000	3000	4000	4000
Best Viewing Distance	≥2.6 m	≥3 m	≥4 m	≥5 m
Color Temperature	3200K–9300K adjustable
Box Material	Die-cast aluminum box
Cabinet Weight	7.5 kg
Cabinet Connection	Quick-lock connection, supports curve design (±10°)
Installation Method	Hanging / Stacking / Ground support
Waterproof Level	IP65	IP65	IP66	IP66
Contrast Ratio	5000:1, other
Grayscale Level	14–18 bit
Refresh Rate	3840Hz, 7680Hz, other
Frame Frequency	60Hz
View Angle	160°/140° (H/V)
Flatness	≤0.5 mm
Blind Spot Rate	≤1/10000
Working Voltage	DC 4.2–5V
Max. Power Consumption	800 W/SQM
Ave. Power Consumption	300 W/SQM
Working Temperature	-20℃ – +60℃
Working Humidity	10%RH – 90%RH
Service Life	100,000 h
Signal Input	HDMI / DVI / SDI / VGA / DP
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Application	Outdoor concerts, festivals, sports events, stage backdrops & outdoor advertising
Indoor LED Screen Rental Parameters
Model *For more models, please consult customer service	P1.953	P2.604	P2.976	P3.91
Module Size	250×250 mm (9.84×9.84 in)
Module Pixel	128×128	84×84	64×64	52×52
Scanning Method	32	32	21	16
Pixel Configuration	1R1G1B
Maintenance Method	Front/rear maintenance
Box Size	500×500 mm (19.68×19.68 in)
Box Pixel	256×256	192×192	168×168	128×128
Density (DOT/SQM)	262144	147456	112896	65536
Brightness (CD/SQM)	800–1500
Best Viewing Distance	≥2 m	≥2.6 m	≥3 m	≥4 m
Color Temperature	3200K–9300K adjustable
Box Material	Die-cast aluminum box
Cabinet Weight	7.5 kg
Cabinet Connection	Quick-lock connection, supports curve design (±10°)
Installation Method	Hanging / Wall-mounted / Stacking
Waterproof Level	IP31 / IP32 / IP54
Contrast	2000:1 – 5000:1
Grayscale Level	14 bit – 22 bit
Refresh Frequency	3840Hz / 7680Hz
Frame Change Frequency	60Hz
Viewing Angle	160°/140° (H/V)
Flatness	≤0.5 mm
Blind Spot Rate	≤1/10000
Operating Voltage	DC 4.2–5V
Maximum Consumption	800 W/SQM
Average Consumption	300 W/SQM
Operating Temperature	-20℃ – +60℃
Operating Humidity	10%RH – 90%RH
Service Life	100,000 h
Signal Input	HDMI / DVI / SDI / VGA / DP
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Application	Indoor concerts, conferences, exhibitions, TV studios, weddings & corporate events
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a P1.953 LED Display for rental?

A P1.953 LED Display for rental is a fine pixel pitch rental LED screen with a 1.953mm pixel pitch, designed for temporary events that require high-resolution image quality. It is commonly used for corporate events, exhibitions, conferences, product launches, TV studios, luxury brand shows, control rooms, and indoor stage applications with close viewing distances.

What are the advantages of a P1.953 LED Display for rental?

A P1.953 LED Display for rental offers ultra-clear image details, seamless splicing, high refresh rate, vivid color performance, wide viewing angles, and flexible screen size. Compared with larger pixel pitch rental LED screens, it provides sharper visuals for close-view audiences, making it ideal for premium indoor events and high-end visual presentations.

Where can a P1.953 LED Display for rental be used?

P1.953 LED Displays for rental are widely used in exhibitions, trade shows, corporate meetings, conference rooms, product launches, fashion shows, TV studios, broadcast events, live streaming rooms, luxury retail events, museums, showrooms, and indoor stage backgrounds. They are suitable for presentations, branding, video playback, live feeds, and high-resolution digital content.

What is the recommended viewing distance for a P1.953 LED Display for rental?

The recommended viewing distance for a P1.953 LED Display for rental is usually around 2 meters or more. Because of its fine pixel pitch, it can deliver clear and detailed images for close viewing, making it suitable for indoor events where audiences stand near the screen or need to read text and see detailed visuals.

Is a P1.953 LED Display for rental suitable for indoor events?

Yes. A P1.953 LED Display for rental is highly suitable for indoor events that require high-definition visuals, smooth video playback, and close viewing performance. It is often used for conferences, exhibitions, product launches, broadcast backgrounds, and premium stage designs where image clarity and professional presentation are important.

How do I choose the right P1.953 LED Display for rental?

To choose the right P1.953 LED Display for rental, consider screen size, viewing distance, resolution requirement, brightness, refresh rate, cabinet weight, installation method, front maintenance, control system, content format, transportation protection, and setup efficiency. A reliable P1.953 rental LED screen should provide sharp image quality, stable operation, easy installation, and strong performance for repeated rental use.
