P2.604 Rental LED Screen for Stage: 500×500mm, 7680Hz, IP65

Name: P2.604 Rental LED Screen for Stage: 500×500mm, 7680Hz, IP65
Brand: REISSOPTO
SKU: SKU-655
Availability: InStock

RF -500K-II Series

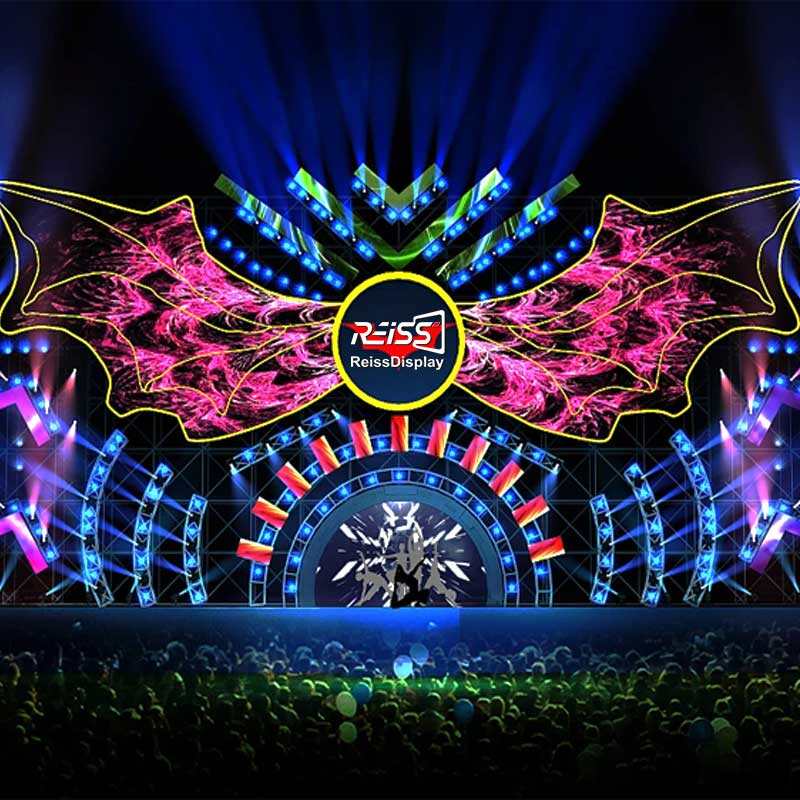

As a reusable event display, the P2.6 stage LED screen is trusted worldwide by rental companies, AV integrators, and production teams. It performs reliably as a concert backdrop, conference main screen, exhibition video wall, TV studio display, wedding stage panel, and trade-show advertising screen — across indoor and outdoor venues. Seamless splicing, high brightness up to 4500 nits, and durable IP65 construction make it a stable, camera-ready solution for touring and fixed installations in any market.

Get a quote Set OEM

Rental LED display Details

A P2.604 rental LED screen (P2.604) is a modular 500×500mm die-cast aluminum display with a 2.6mm pixel pitch, engineered for fast setup and repeated use at professional stage events. The REISSOPTO RF-500K-II Series pairs a lightweight 7.5kg cabinet and 250×250mm modules with a 7680Hz refresh rate, delivering flicker-free, true-color images with no smearing on camera. It supports −15° to +15° curved splicing, quick-lock assembly, and front & rear maintenance, with indoor pitches from P1.25 to P2.976 and outdoor options up to P4.81 at IP65.

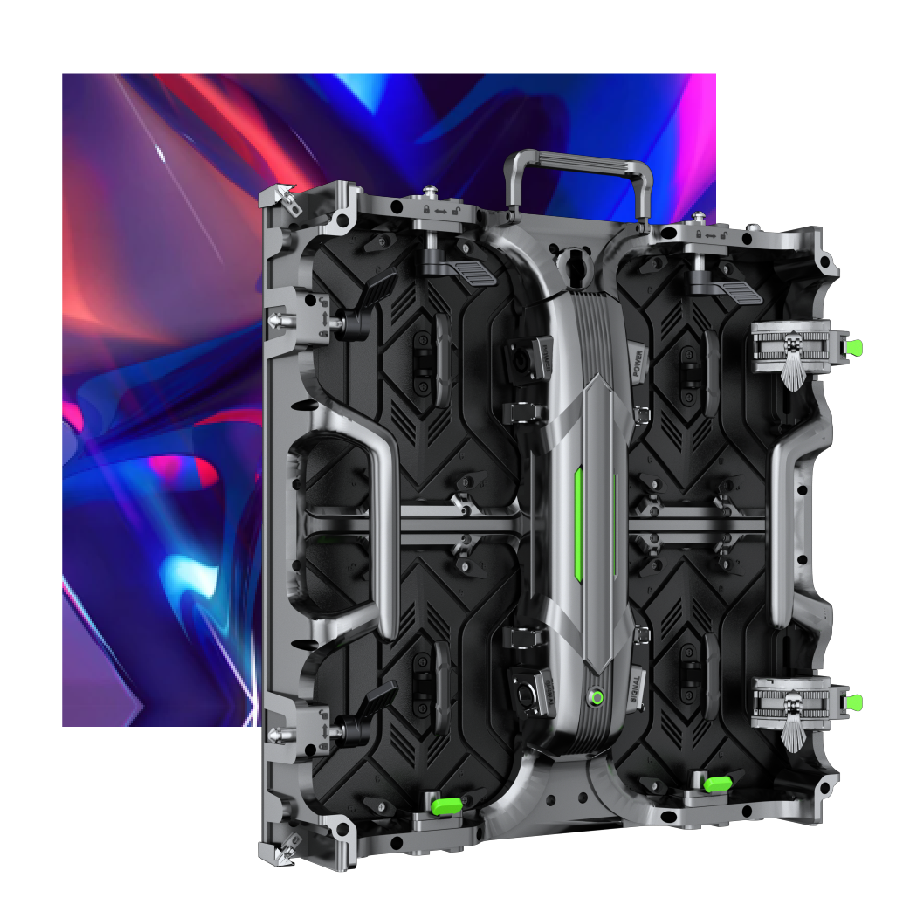

Die-cast aluminum cabinet

Advantages of die-cast aluminum material:

Cabinet size：500*500mmframe
Cabint material：Full die-cast aluminum
Module: 250*250mm
Weight: 7.5kg

With a high refresh rate of7680Hz, the screen picture has a sense of layering, clear and detailed, true colors, no water ripples, no smearing!

Lightweight: One person can carry it with one hand, easy to install.
Thin: Die-cast aluminum has high strength, good toughness,
high precision, is not easy to deform, and is easy to transport.
Reliable: high strength and hardness, good heat dissipation
effect, which is beneficial to prolong the service life of the screen.

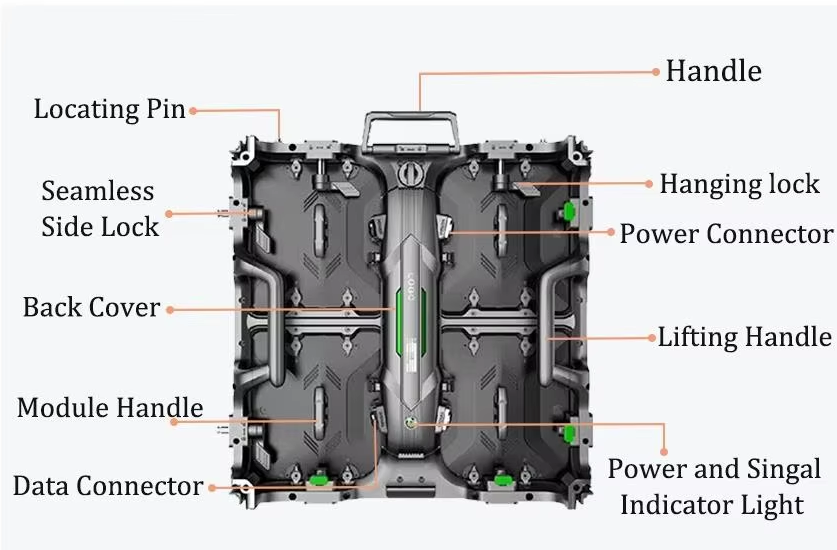

Excellent Cabinet Structure

The humanized structural design, corner guard, cabinet handle, locating beam, power/signal connector, control box, and quick locks make assembly and disassembly extremely simple, convenient, and fast.

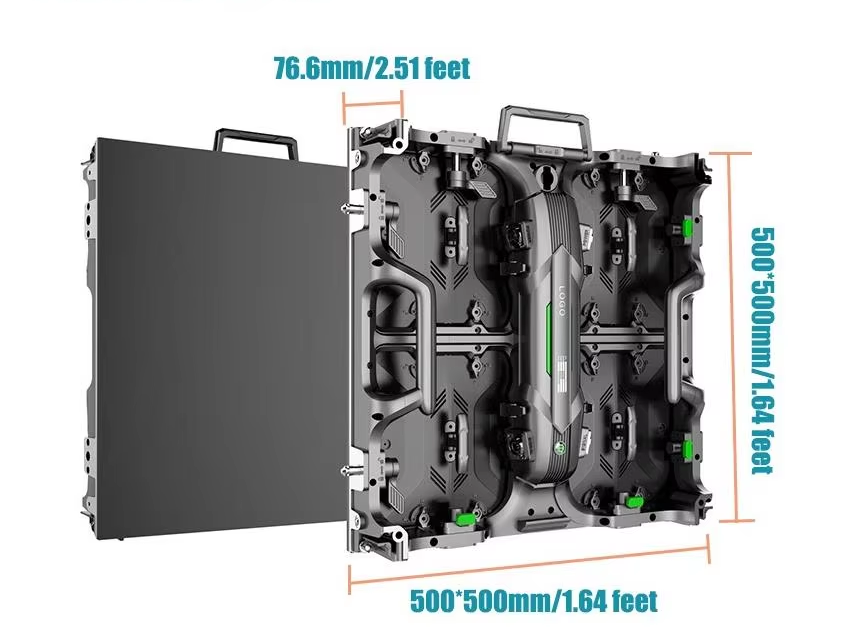

500*500mm Series Die Casting Aluminum Cabinet Details

Mutiple Pixel Pitch For Your Options P1.9/P2.6/P2.9/P3.9/P4.8
Size:500x500mm

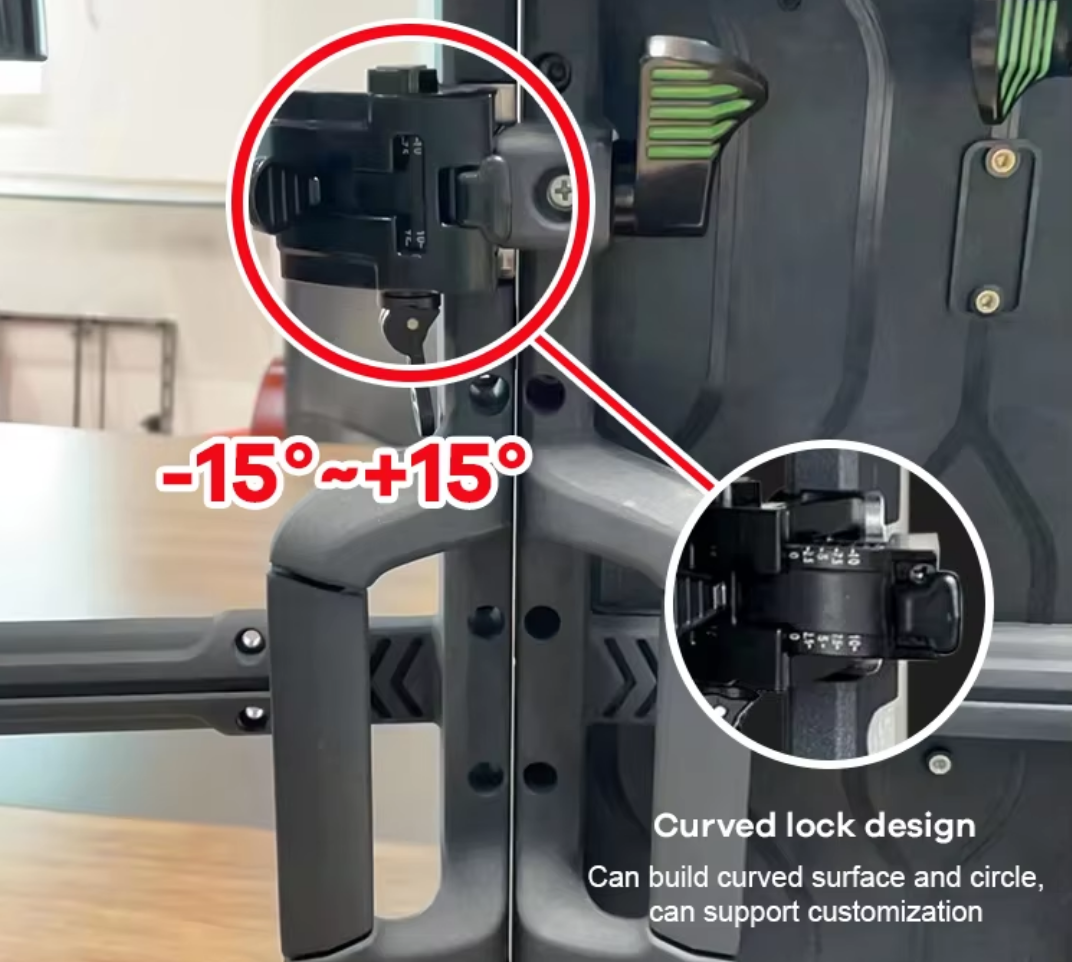

Support Curved Splicing

Adopt high-precision curve lock design (-15°to +15°), rotation control more accurate,easy to use, and quickly adjust the degree of curve.

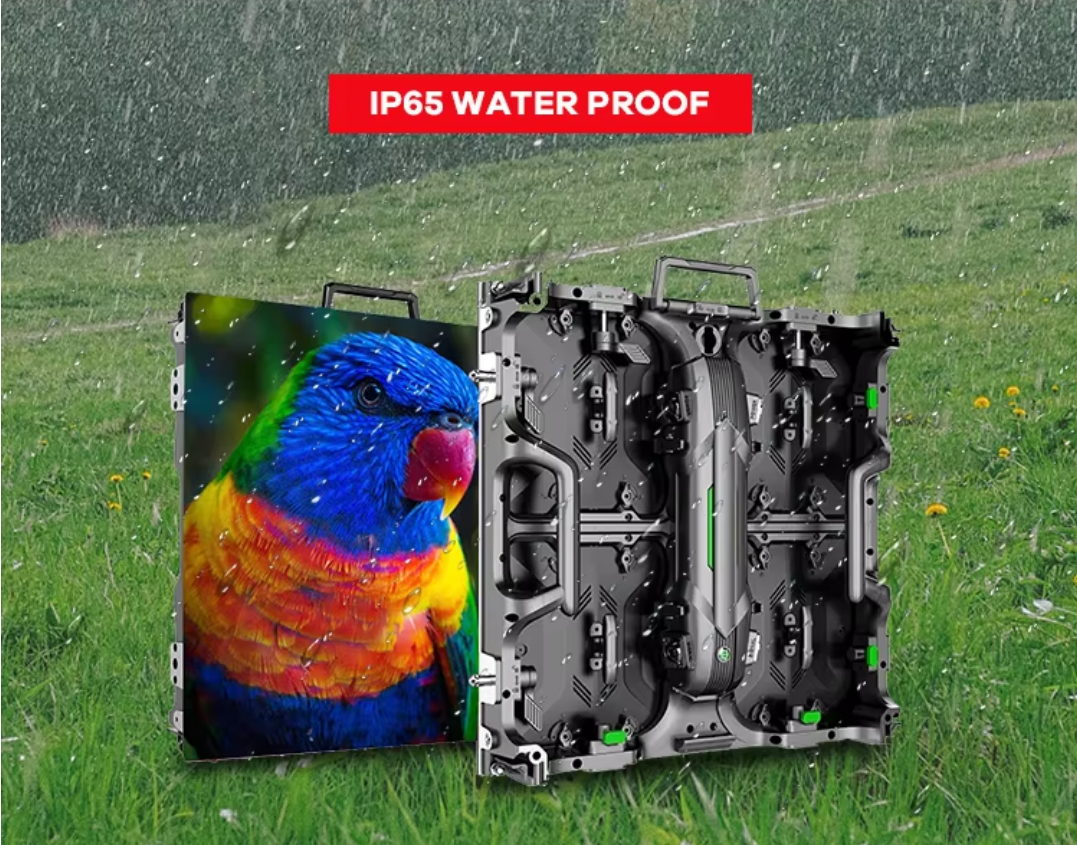

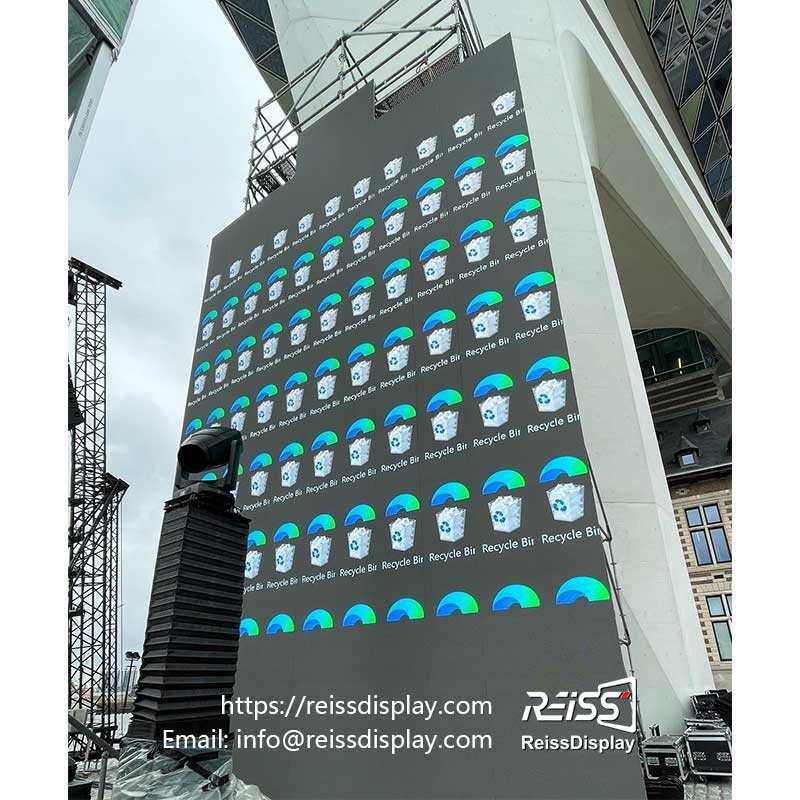

Outdoor Waterproof IP65

Both cabinet and module are waterproof. Protect led display from rain, snow and dust in all weather.

Seamless splicing, modular design

The seamless, borderless, high-precision unit screens between modules ensure consistent dot pitch, achieving true zero-seam splicing to show you a seamless and flat wonderful view.

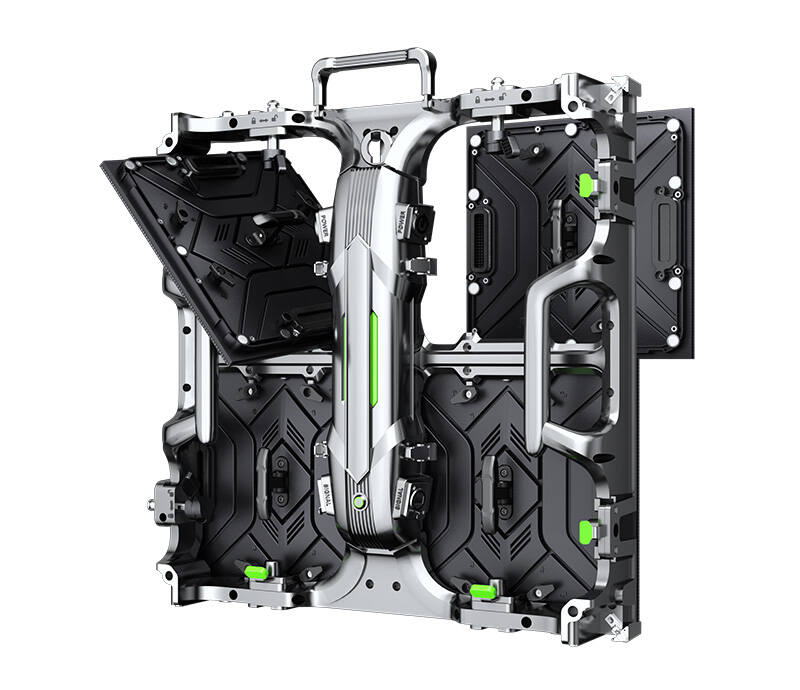

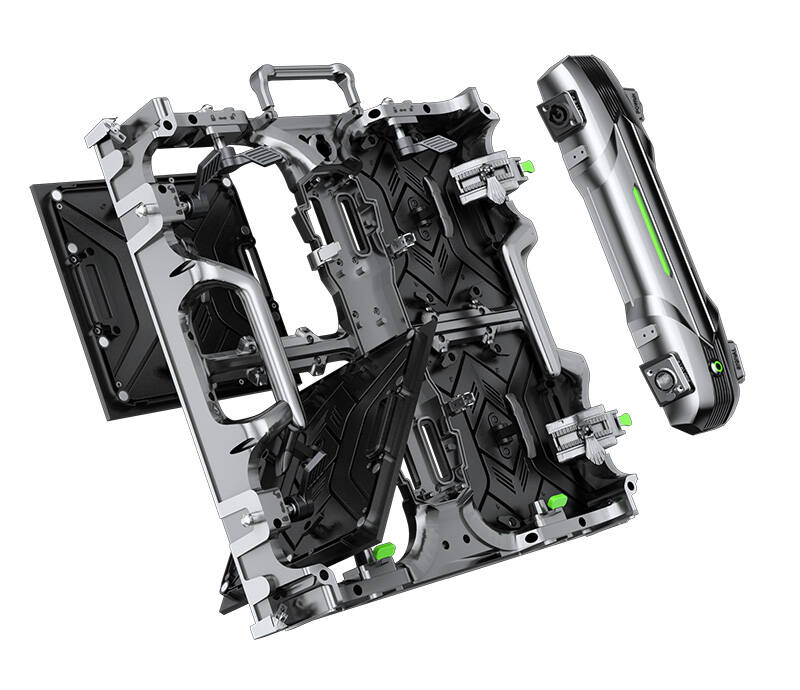

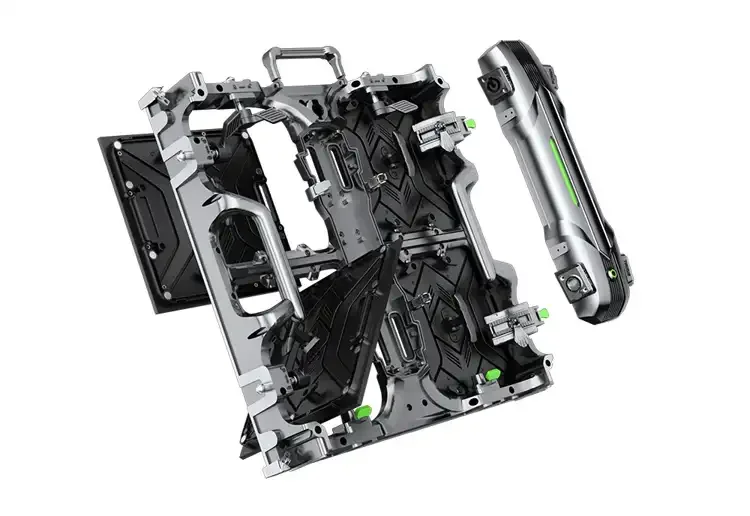

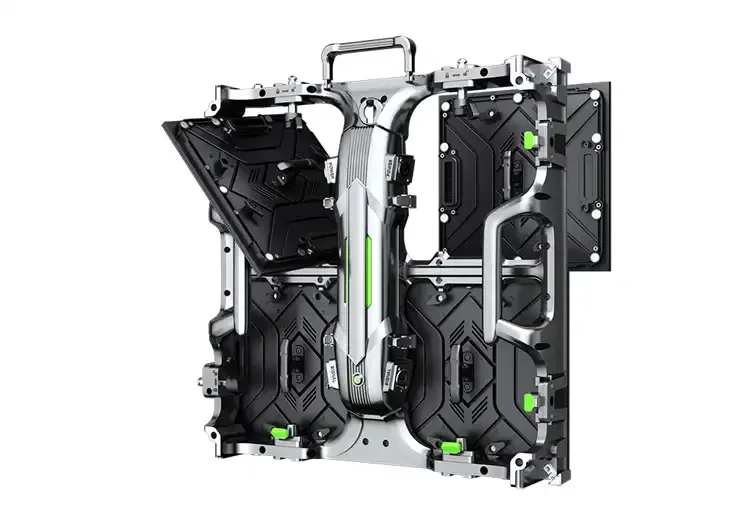

Front & Rear Maintenance

· Without wires connection, signal and power can transfer more stable and reliable.
· HUB board connect modules and power supplies directly instead of wires.
· Directly take out back cover, easy to change within 5 seconds.

Support front service design with strong magnetic suction modules, the modules can be easily taken off in just 30 seconds.

Multi Installation Ways

Meet your installation needs in a variety of scenarios.

Specifications

Indoor LED Screen Specifications

Indoor Rental LED Screen Parameters
Pixel Pitch	Module Resolution	Cabinet Resolution	Pixel Density (dots/㎡)	Brightness	Refresh Rate	IP Rating
P1.25	200×200	400×400	640,000	≥800 nits	3840/7680Hz	IP43
P1.5625	160×160	320×320	409,600	≥800 nits	3840/7680Hz	IP43
P1.95	128×128	256×256	262,144	≥1000 nits	3840/7680Hz	IP43
P2.604	96×96	192×192	147,456	≥1000 nits	3840/7680Hz	IP43
P2.976	84×84	168×168	112,896	≥1200 nits	3840/7680Hz	IP43

Outdoor LED Screen Specifications

Outdoor Rental LED Screen Parameters
Pixel Pitch	Module Resolution	Cabinet Resolution	Pixel Density (dots/㎡)	Brightness	Refresh Rate	IP Rating
P1.95	128×128	256×256	262,144	≥4000 nits	3840/7680Hz	IP65
P2.604	96×96	192×192	147,456	≥4500 nits	3840/7680Hz	IP65
P2.976	84×84	168×168	112,896	≥5000 nits	3840/7680Hz	IP65
P3.91	64×64	128×128	65,536	≥5500 nits	3840/7680Hz	IP65
P4.81	52×52	104×104	43,264	≥6000 nits	3840/7680Hz	IP65

Common Parameters

Shared System & Certification
Cabinet Size	500×500 mm (die-cast aluminum)
Module Size	250×250 mm
Cabinet Weight	7.5 kg
Curved Splicing	-15° to +15°
Maintenance	Front & Rear service
Input Voltage	AC 100–240V 50/60Hz
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a Rental LED Screen?

A Rental LED Screen is a modular LED display system designed for temporary installation and repeated use at events. It is commonly used for concerts, exhibitions, conferences, weddings, churches, product launches, festivals, trade shows, sports events, and stage productions. Rental LED screens are usually lightweight, easy to assemble, and flexible in screen size.

What are the advantages of a Rental LED Screen?

A Rental LED Screen offers fast installation, lightweight cabinet design, seamless splicing, high refresh rate, vivid image quality, flexible configuration, easy maintenance, and convenient transportation. It is ideal for event companies and rental businesses because the same LED panels can be reused for different venues, screen sizes, and stage designs.

Where can Rental LED Screens be used?

Rental LED Screens are widely used in concerts, corporate events, exhibitions, trade shows, conferences, weddings, churches, festivals, nightclubs, TV studios, fashion shows, sports events, product launches, and live broadcast productions. They can be used as stage backdrops, side screens, advertising displays, information screens, and immersive video walls.

What pixel pitch should I choose for a Rental LED Screen?

The right pixel pitch for a Rental LED Screen depends on viewing distance, venue size, content detail, and budget. Common rental LED screen pixel pitches include P1.25, P1.95,P2.604, P2.976, P3.91, P4.81, and P5.95. Smaller pixel pitches are better for close-view indoor events, while larger pixel pitches are more cost-effective for outdoor stages and long-distance viewing.

Can a Rental LED Screen be used indoors and outdoors?

Yes. A Rental LED Screen can be used for both indoor and outdoor applications if the correct model is selected. Indoor rental LED screens focus on high refresh rate, fine image quality, and lower brightness, while outdoor rental LED screens require higher brightness, waterproof protection, wind-resistant installation, and durable cabinet construction.

How do I choose the right Rental LED Screen?

To choose the right Rental LED Screen, consider indoor or outdoor use, viewing distance, screen size, pixel pitch, brightness, refresh rate, cabinet weight, fast-lock system, front and rear maintenance, curve or flat installation, control system compatibility, transportation case design, and setup efficiency. A good rental LED screen should be easy to install, stable during events, visually clear, and suitable for repeated rental use.
