Stage LED Display Screen

Name: Stage LED Display Screen
Brand: REISSOPTO
SKU: SKU-15
Availability: InStock

RF-PRO+ Series

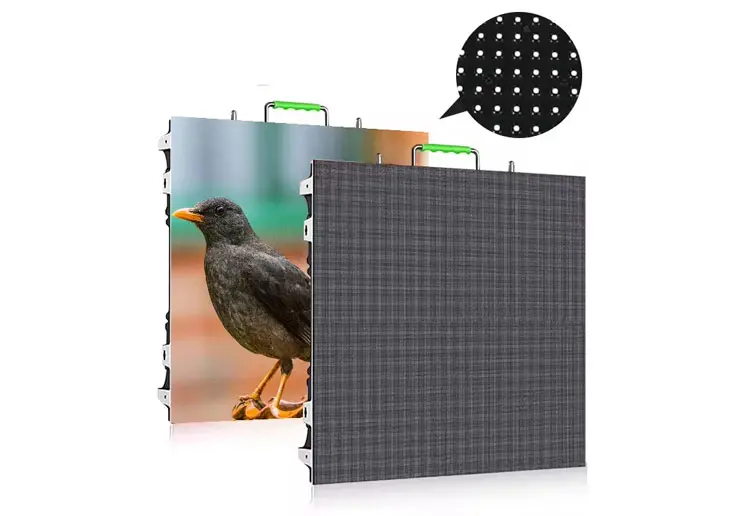

The REISSOPTO Stage LED Display Screen (RF-PRO+ Series) is a modular rental LED video wall built for concerts, live shows, exhibitions, TV studios, and festivals. It supports pixel pitches from P1.56 to P4.81, a 7680Hz refresh rate, ≥4000 nits brightness, and IP67 protection for both indoor and outdoor stages. The die-cast aluminum cabinet (500×500mm / 500×1000mm) weighs only 7kg/12kg, with front and rear maintenance and a ±10° curve lock for curved stage backdrops.

Each cabinet uses magnetic modules, corner protectors, and detachable power boxes for fast setup and safe transport. With seamless splicing, 160° wide viewing angles, and stacking or hanging installation, it delivers stable, high-impact visuals for professional stage events.

Get a quote Set OEM

Rental LED display Details

Stage LED Display-The Creative Possibilities Are Endless!

REISSOPTO stage LED display is suitable for every large – scale event Stage background led screen. Bring different visual effects to the event venue.

LED Screen Wall team will cooperate better with our customers and provide the best solution.which can be customized in any size and model. To meet your needs.

LED screen for events led video wall we provide: We will provide professional customized services.

ReissOpto Every LED display Panels applications include concerts, fashion shows, concerts, music festivals, sports events, exhibitions, commercial releases, super parties and other LED display Screen solutions.

Stage LED Display Engineered for Flawless Visual Impact

– Available in multiple panel sizes 500x500mm, 500x1000mm die-cast aluminum
– Excellent Performance
– Seamless Display and Better Visual Effects
– Aluminum Cabinet, Lightweight, Safetyand – Reliability, No Distortion
– Easy to Install and Maintain
– High Performance Driving IC
– Ultra-thin design
– Removable back cover
– High-precision curve lock, arc installation
– LED corner protection
– Magnetic module modules are arranged regardless of left and right
– High outdoor waterproof

High Refresh Rate Smoother Stage LED Screen

High refresh rate of 7680Hz, clearer display, no flash screen, no jitter, no drag screen display more smooth and stable.

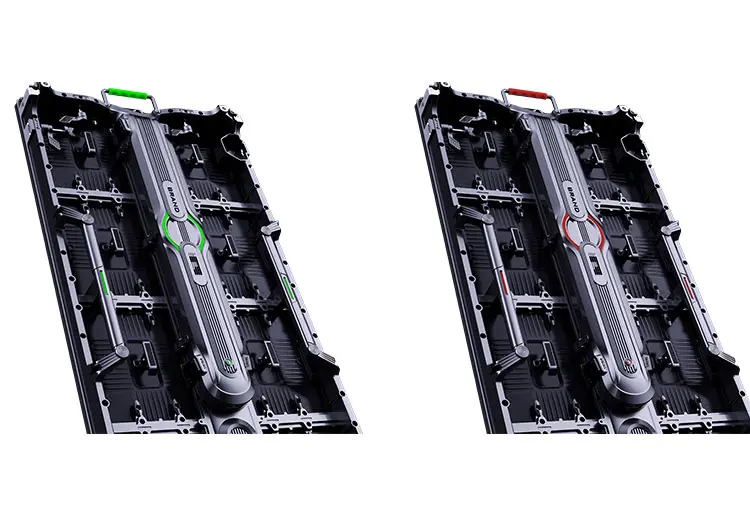

Color

Two different color theme for your option.

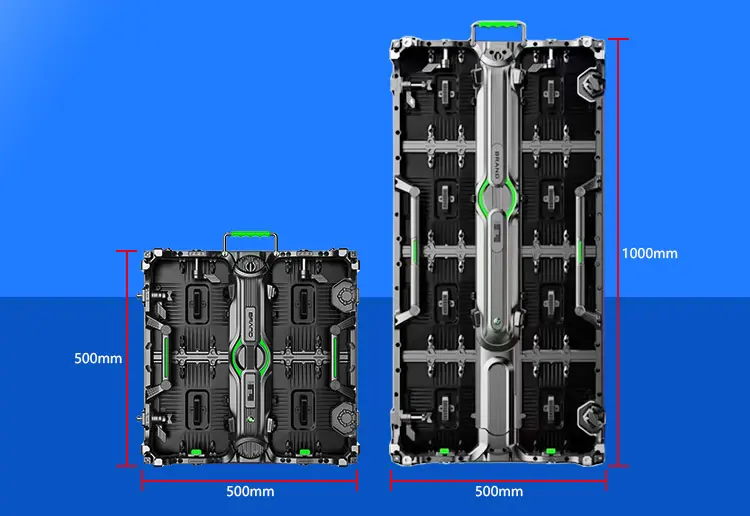

Ultra-light And Slim Design

The standard cabinet size is 500x500mm/500x1000mm (1.64×1.64ft/1.64×3.28ft), suitable for 250x250mm standard size modules, made of ultra-light die-cast aluminum, with a thickness of only 71mm, which is convenient for transportation and carrying.

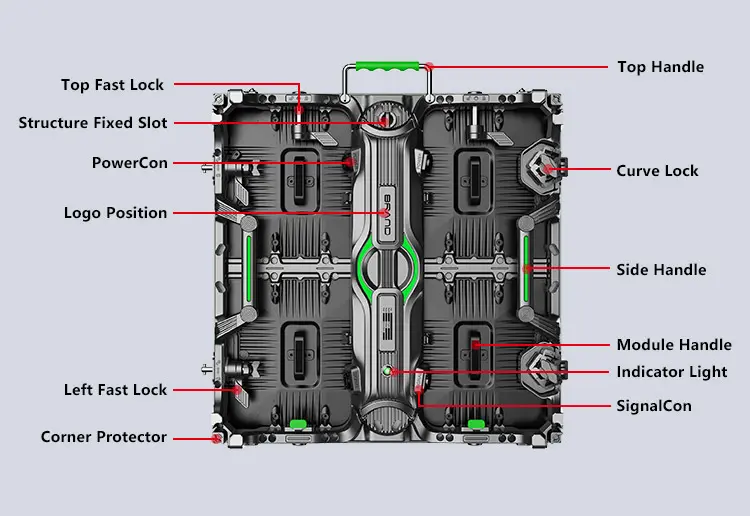

UPerfect Lightweight Cabinet Design

From cabinet handles, fixing slots, to quick locks, magnetic modules, mounting knobs, and removable power supply boxes, every detail reflects excellent design principles.

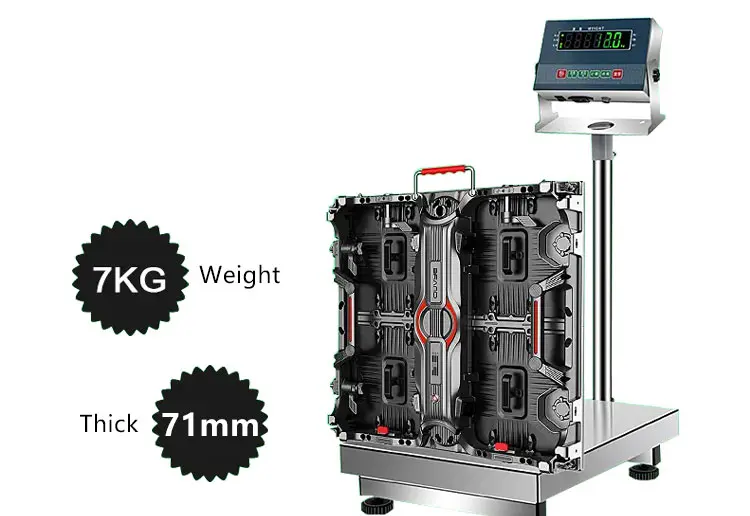

Lightweight, Ultra-thin

As the cabinet uses aluminum material, the weight of the panel is only 7kg/12kg, and it has great heat dissipation.

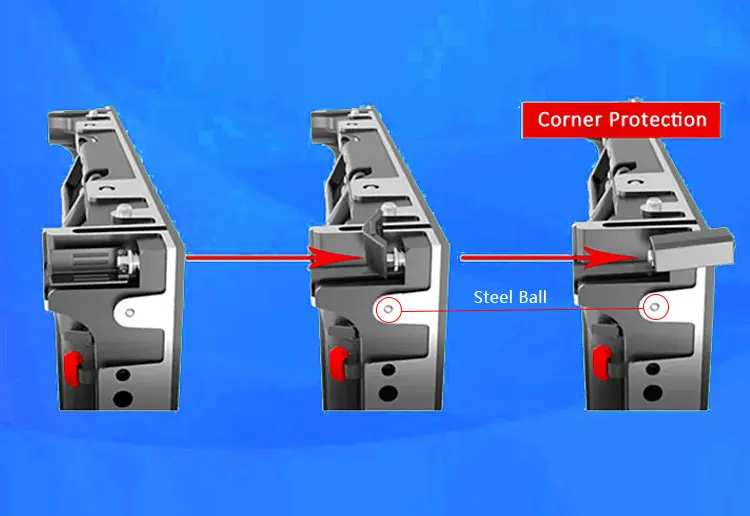

LED Corner Protectors

RF-PRO+ Series front service LED signs have four corner protectors at each corner to prevent LED damage, and the foldable design is safer for transportation, installation, operation, and assembly and disassembly, and is easy to use.

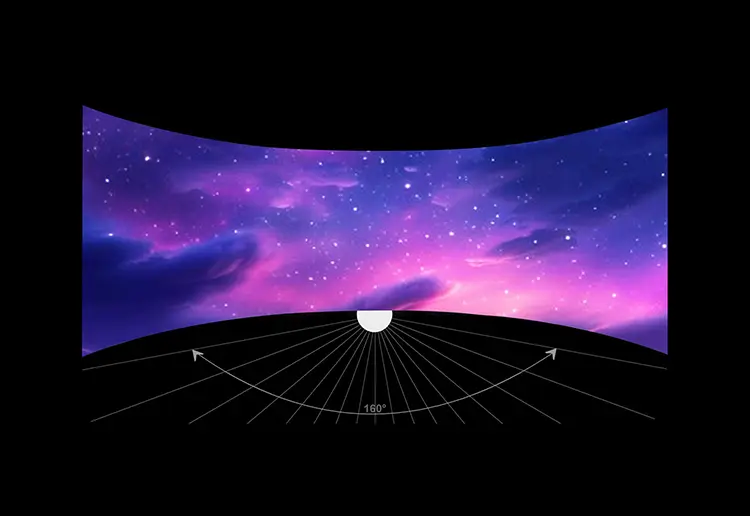

Wide Viewing Angle

With wide viewing angle capability (160° h/V) and wide visual coverage ensure optimal visibility from every vantage point.

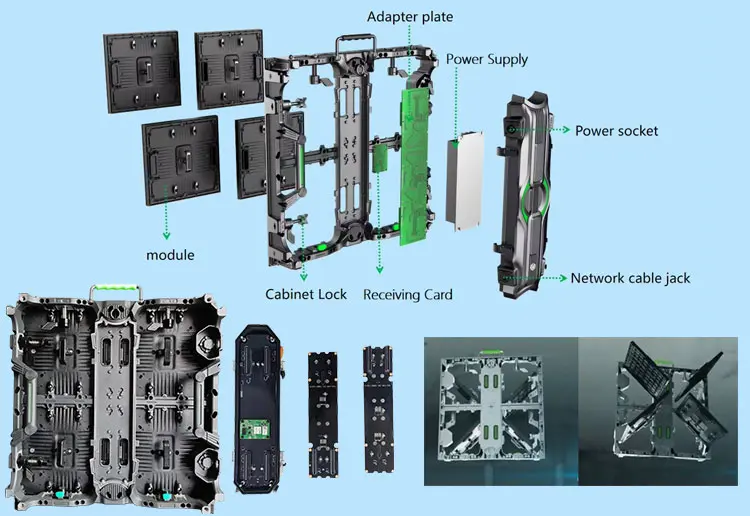

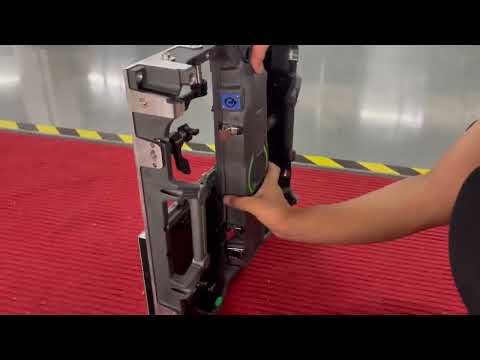

Double Maintenance Design

Front and rear maintenance rental LED display screen uses magnets to absorb LED panels, module installation knobs, power and signal connectors, detachable power supply boxes, etc. The cabinet adopts front and rear design, and the LED panel is easy to install. The power box and HUB board are detachable hard connection design, double sealing rubber ring high IP67 waterproof, and quick installation buckles are used for the installation and removal of the back cover.

Full Color Stage LED Display

ReissDisplay stage LED display, clearer picture, using high-quality lamp beads, high LED chips, longer service life.

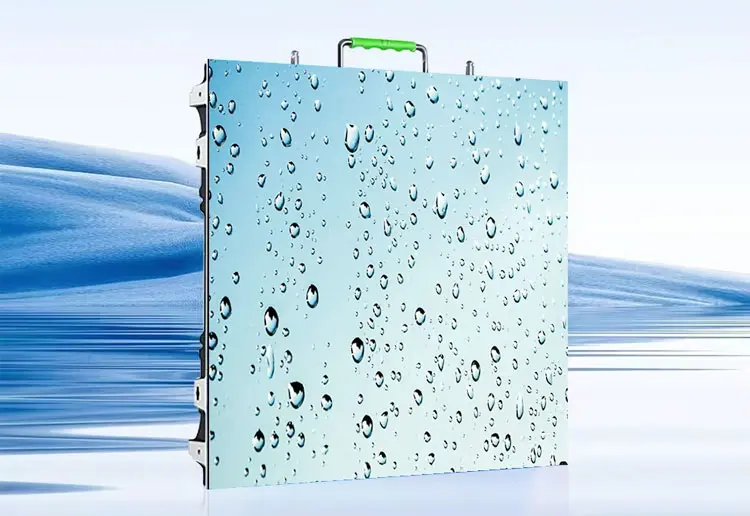

Waterproof Stage LED Display

Outdoor Stage LED display supports Ip67 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

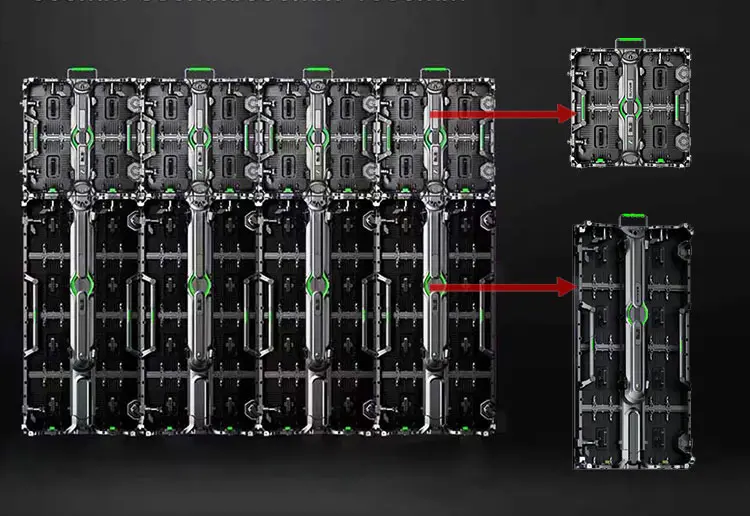

Mixed And Match

500x500mm and 500x1000mm cabinets canbe easily connected horizontally and vertically for different configurations.

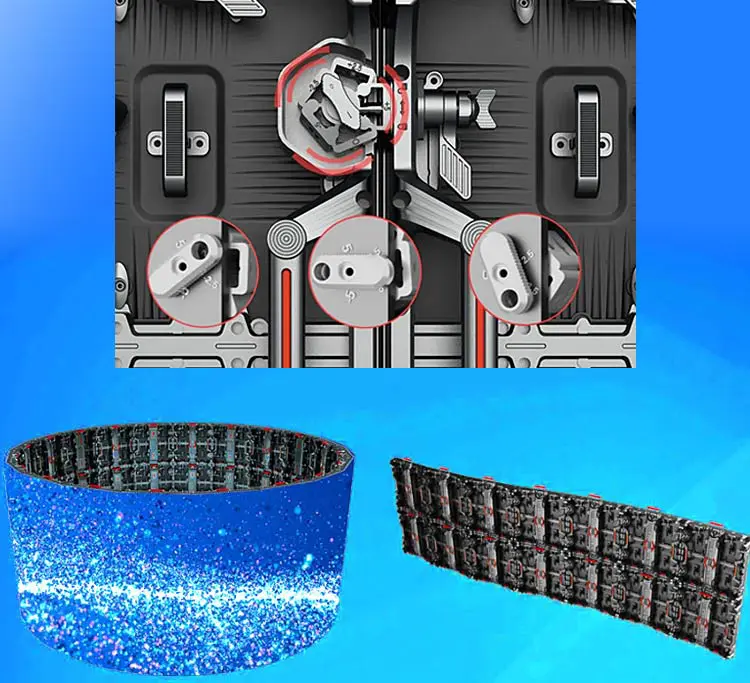

High-precision Curve Lock

High precision curve lock (-10° to +10°) can make curve LED screen seamless. Rotational control makes it easier to faster to adjust curve degree. It can used for curved stage backdrop.

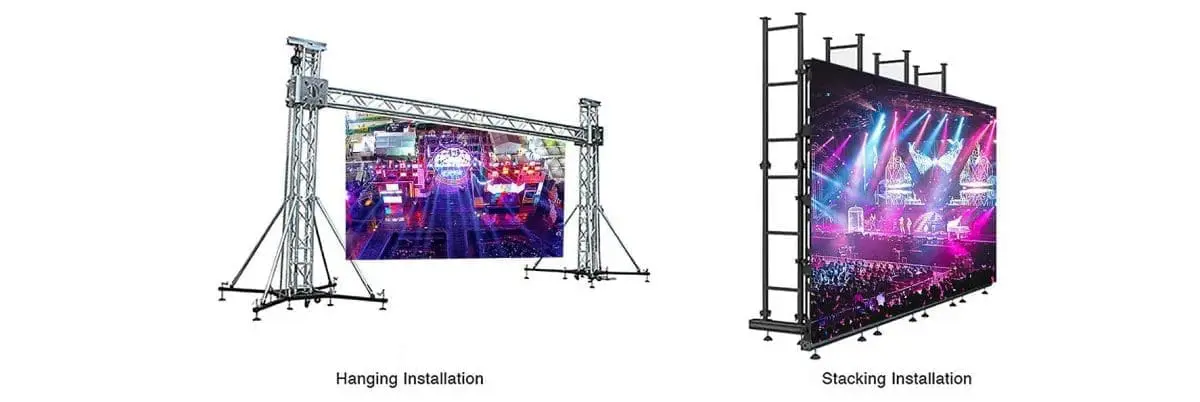

Stacking And Hanging System Optional

Hanging and Stacking Avaiable : can meet the different demands of movable occasions with hanging bar or back bracket

Indoor Series｜Fine Pitch Stage LED Display
Pixel Pitch (mm)	P1.56	P1.953	P2.604	P2.976	P3.91
Module Resolution	160×160	128×128	96×96	84×84	64×64
LED (HS/RS/Nationstar)	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020
Driver IC	DP3264S/ICN1065S	DP3153/ICN2153
Driver Mode	1/40	1/32	1/32	1/28	1/16
Brightness (nits)	600–1200
Refresh Rate	≥7680Hz
Viewing Distance	2m–30m
Protection Level	IP45 (Indoor)
Outdoor Series｜Waterproof Stage LED Display
Pixel Pitch (mm)	P2.604	P2.976	P3.91	P4.81	—
Module Resolution	96×96	84×84	64×64	52×52	—
LED (HS/RS/Nationstar)	SMD1415	SMD1415	SMD1921	SMD1921	—
Driver IC	DP3153/ICN2153
Driver Mode	1/24	1/21	1/16	1/13	—
Brightness (nits)	≥4500–8000
Refresh Rate	≥7680Hz
Viewing Distance	3m–30m
Protection Level	IP67 (Outdoor)
Common Specifications (Indoor & Outdoor)
Module Size	250×250 mm
Cabinet Size	500×500 mm / 500×1000 mm
Cabinet Weight	7 kg / 12 kg
Cabinet Material	Die-Cast Aluminum
Gray Scale	8-bit input, 16–18-bit correction
Display Color	16.7M
Viewing Angle	140° (H) / 140° (V)
Operation Power	AC100–240V, 50–60Hz (switchable)
Max Power Consumption	750W/m²
Average Power Consumption	350 W/m²
Frame Update Frequency	50-60Hz
Gamma Correction	-5.0 – 5.0
Color Temperature	5000–9300K adjustable
Support Input	Composite Video, S-Video, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600, 1024×768, 1280×1024, 1600×1200
Applicable Environment	Indoor / Outdoor
Operating Temp	-20°C – 60°C
Operating Humidity	10–95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Out of Control Pixel Rate	0.01%
Continuous Working Time	≥48 hours
Standard Fittings	Power Airplug, Signal Airplug

Frequently Asked Questions

What is a Stage LED Display Screen?

A Stage LED Display Screen is a modular LED video wall designed for stage events, live performances, concerts, conferences, exhibitions, churches, product launches, festivals, theaters, and broadcast productions. It displays videos, graphics, live camera feeds, branding content, and visual effects, helping create strong visual impact and immersive stage experiences.

What are the main advantages of a Stage LED Display Screen?

A Stage LED Display Screen offers high brightness, seamless splicing, vivid color performance, wide viewing angles, fast installation, flexible screen size, high refresh rate, and strong visual impact. It can be built as a main stage backdrop, side screen, curved display, hanging screen, floor screen, or creative LED wall for different event designs.

Where can Stage LED Display Screens be used?

Stage LED Display Screens are widely used in concerts, music festivals, corporate events, exhibitions, trade shows, churches, weddings, nightclubs, theaters, TV studios, award ceremonies, fashion shows, sports events, product launches, and live streaming productions. They are suitable for stage backgrounds, live video playback, sponsor advertising, event branding, lyrics display, and immersive visual effects.

What pixel pitch should I choose for a Stage LED Display Screen?

The right pixel pitch for a Stage LED Display Screen depends on viewing distance, venue size, content detail, and budget. For indoor close-view stages, This RF-PRO+ stage screen supports P1.56–P4.81, 7680Hz refresh, IP67 are commonly used. For outdoor concerts or larger venues, P3.91, P4.81 can provide a good balance between image clarity, brightness, and cost.

Can a Stage LED Display Screen be used outdoors?

Yes. A Stage LED Display Screen can be used outdoors if it is designed with high brightness, waterproof protection, durable cabinets, sealed connectors, wind-resistant installation, and a stable support or rigging system. Outdoor stage LED screens are commonly used for concerts, festivals, sports events, public celebrations, and temporary advertising displays.

How do I choose the right Stage LED Display Screen?

To choose the right Stage LED Display Screen, consider indoor or outdoor use, viewing distance, screen size, pixel pitch, brightness, refresh rate, cabinet weight, installation method, curve or flat configuration, front and rear maintenance, control system compatibility, camera shooting requirements, transportation protection, and setup time. A professional stage LED display screen should provide clear visuals, stable performance, easy installation, and reliable operation during live events.
