P1.5625 Fine Pitch Stage LED Display | Rental LED Screen

Name: P1.5625 Fine Pitch Stage LED Display | Rental LED Screen
Brand: REISSOPTO
SKU: SKU-649
Availability: InStock

RF- U Series

Across North America, Europe, the Middle East, and Asia-Pacific, the P1.5625 fine pitch stage LED display is trusted by rental companies, AV integrators, houses of worship, and event production teams that require broadcast-grade image quality. Its close-viewing clarity makes it the preferred choice for corporate keynotes, fashion shows, award ceremonies, and hybrid conferences where cameras capture the screen at short range. For global projects, REISSOPTO supports multi-voltage power systems, international certifications (CE/RoHS/UL), OEM/ODM customization, and worldwide logistics — ensuring the display meets local standards in any market.

Get a quote Set OEM

Rental LED display Details

The P1.5625 Fine Pitch Stage LED Display delivers ultra-high-resolution visuals engineered for professional stage and broadcast environments. With a 1.5625 mm pixel pitch, it produces razor-sharp images, smooth video playback, and vivid color reproduction that stay flawless even under close-up camera shooting and 4K/8K live streaming. Built on lightweight die-cast aluminum cabinets (500×500 mm and 500×1000 mm), it supports fast-lock assembly, seamless splicing, and 90° right-angle installation for creative stage designs. A high refresh rate up to 3840 Hz eliminates flicker and moiré, while removable power supplies simplify on-site maintenance. Ideal for concerts, conferences, TV studios, and premium live events, this fine pitch rental LED display combines cinema-grade clarity with rugged, event-ready reliability.

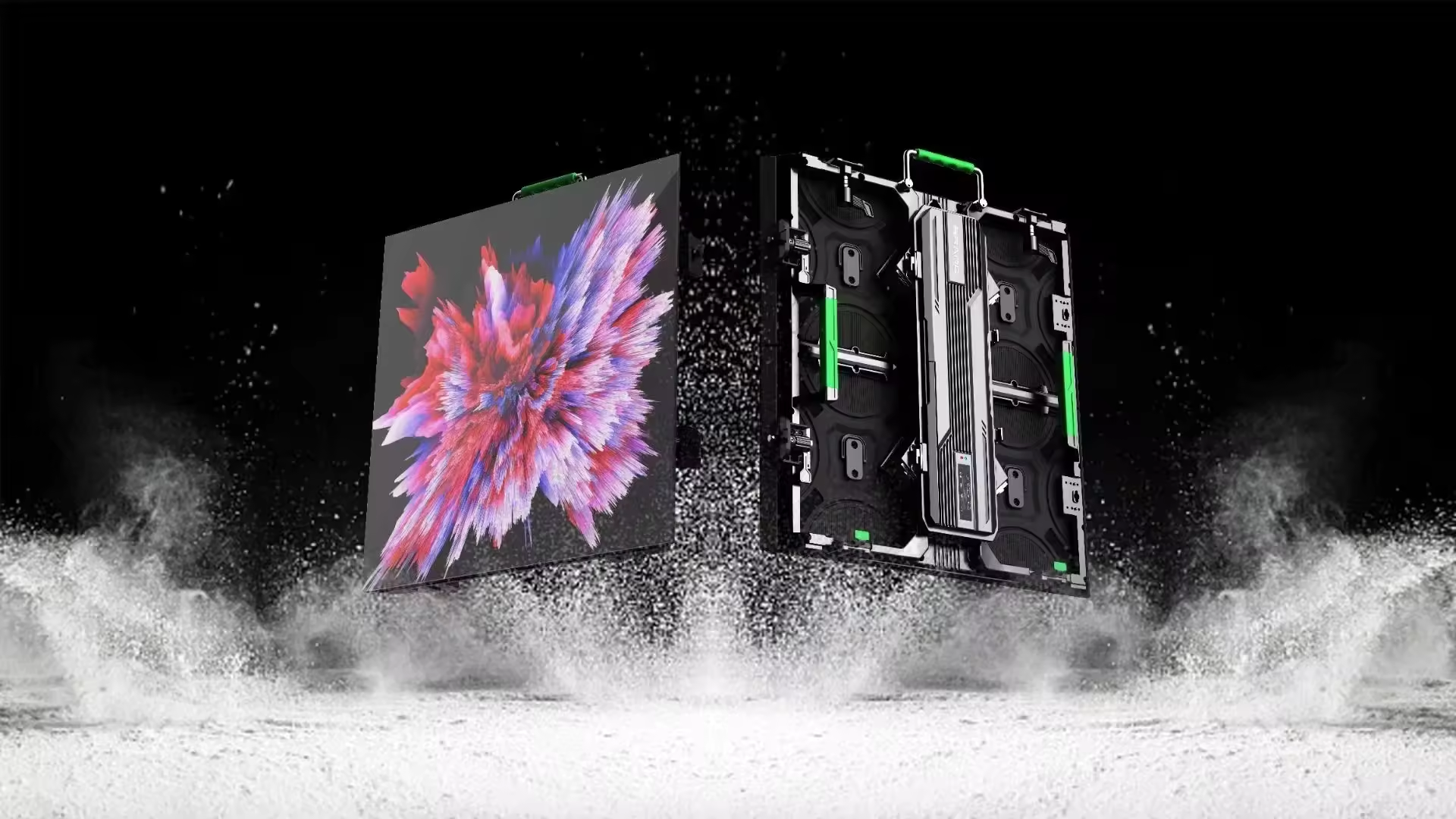

One-stop solution for your event

Indoor/outdoor rental LED display screens are easy to install, light and portable, and have various installation methods. Suitable for indoor and outdoor stages, advertisements and other scenes. We provide P1.5 P1.9 P2.5 P2.6 P3.91 P4.81 LED rental screens for selection, with optional refresh rates of 1920HZ (2K)-3840HZ (4K)-7680HZ (8K). For other configurations, you can also contact our sales staff for customized procedures!

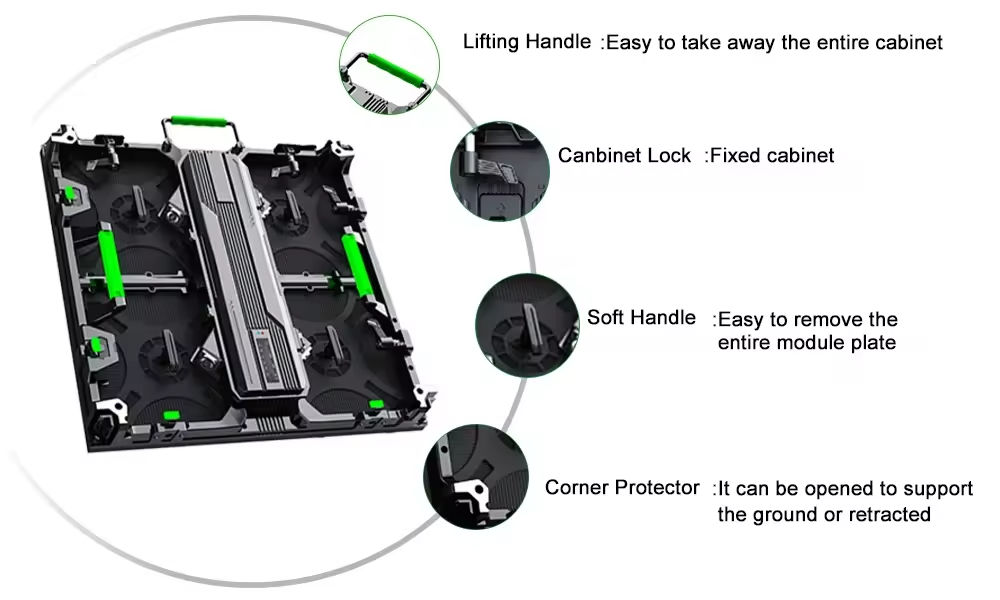

Great Cabinet Design

Rental LED screen aims at different kinds of outdoor events. Multiple ways of protection effectively protect the LED module from damage. Fast locks for tighter assemble with no gap. Dia-casting aluminum makes the cabinet dissipate heat greatly for outdoor applications.

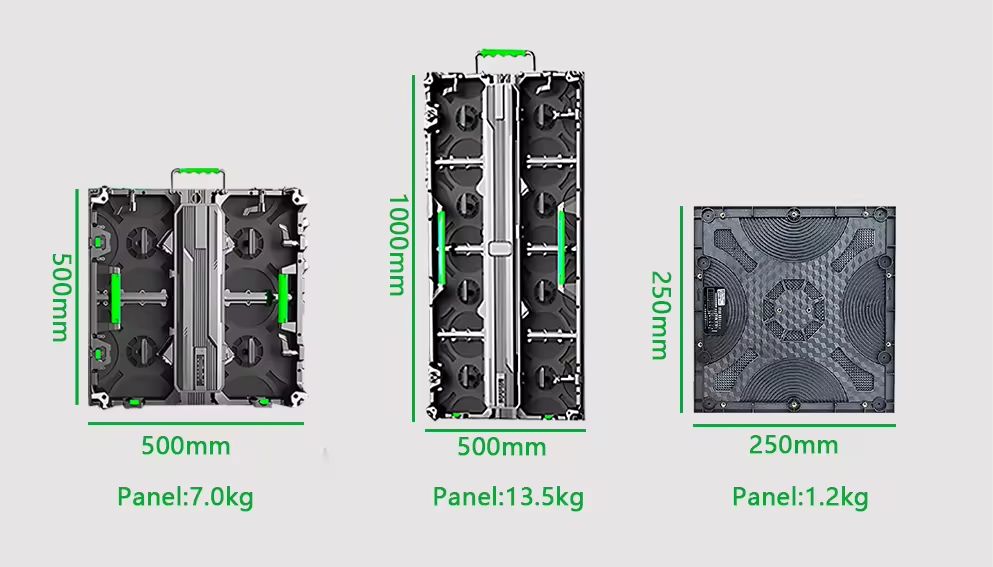

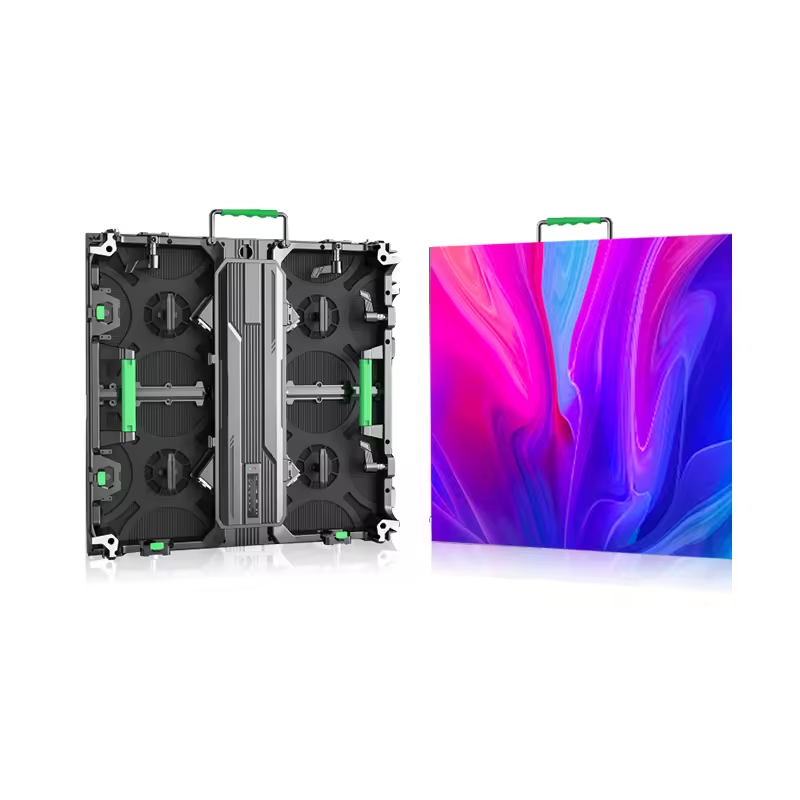

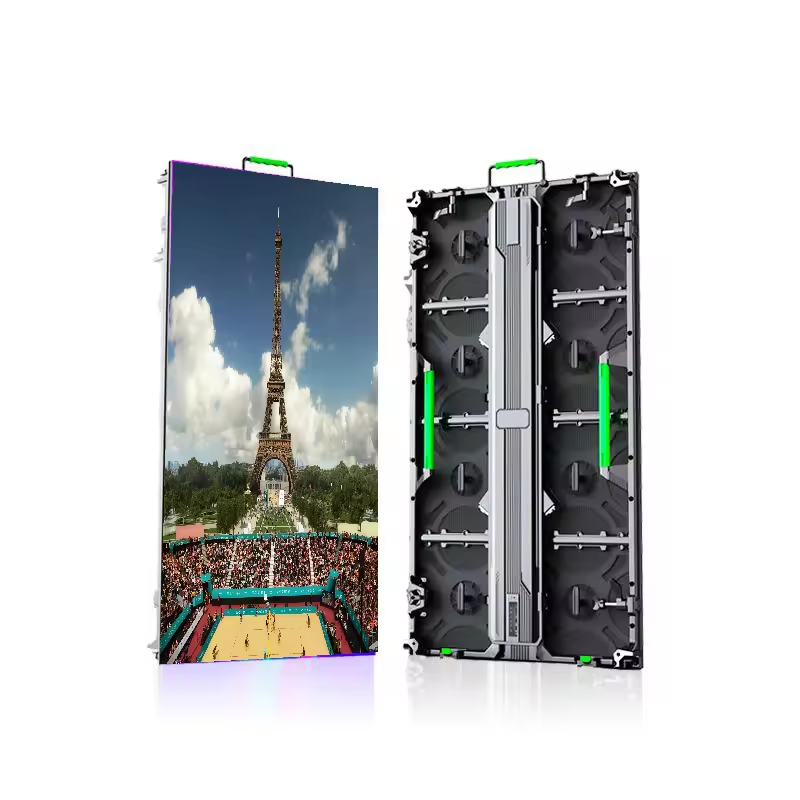

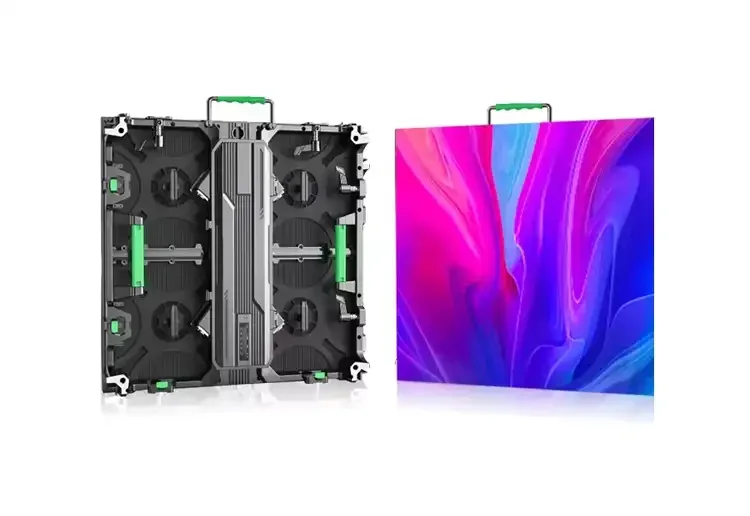

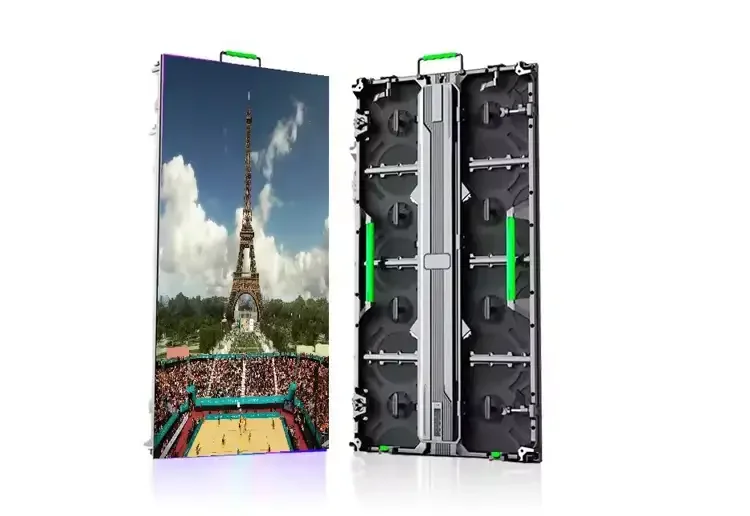

500x500/1000mm Cabinet

Designed with a high-precision die-casting aluminum cabinet, two sizes of standard ratio are availab.

Ultra lightweight with only 7.5kg for 500×500mm panel, 13 kg for 500×1000mm panel. Portable transportation.

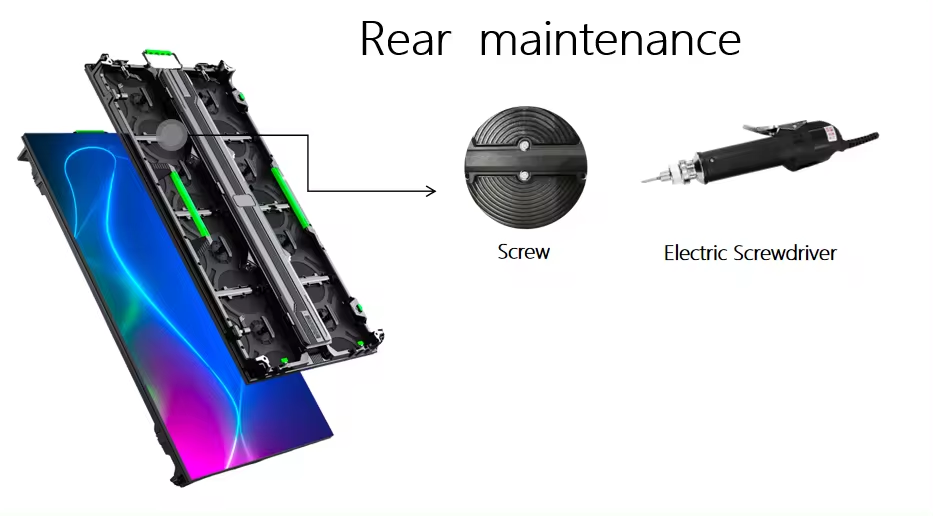

Removable power supply

Remove the screws from the rear of the cabinet using an electric screwdriver.

The power supply box is easy to disassemble, you only need to open the button next to the box, and you can easily replace it.

High and low temperature resistance

Working Temperature: -20°C~ +60°C

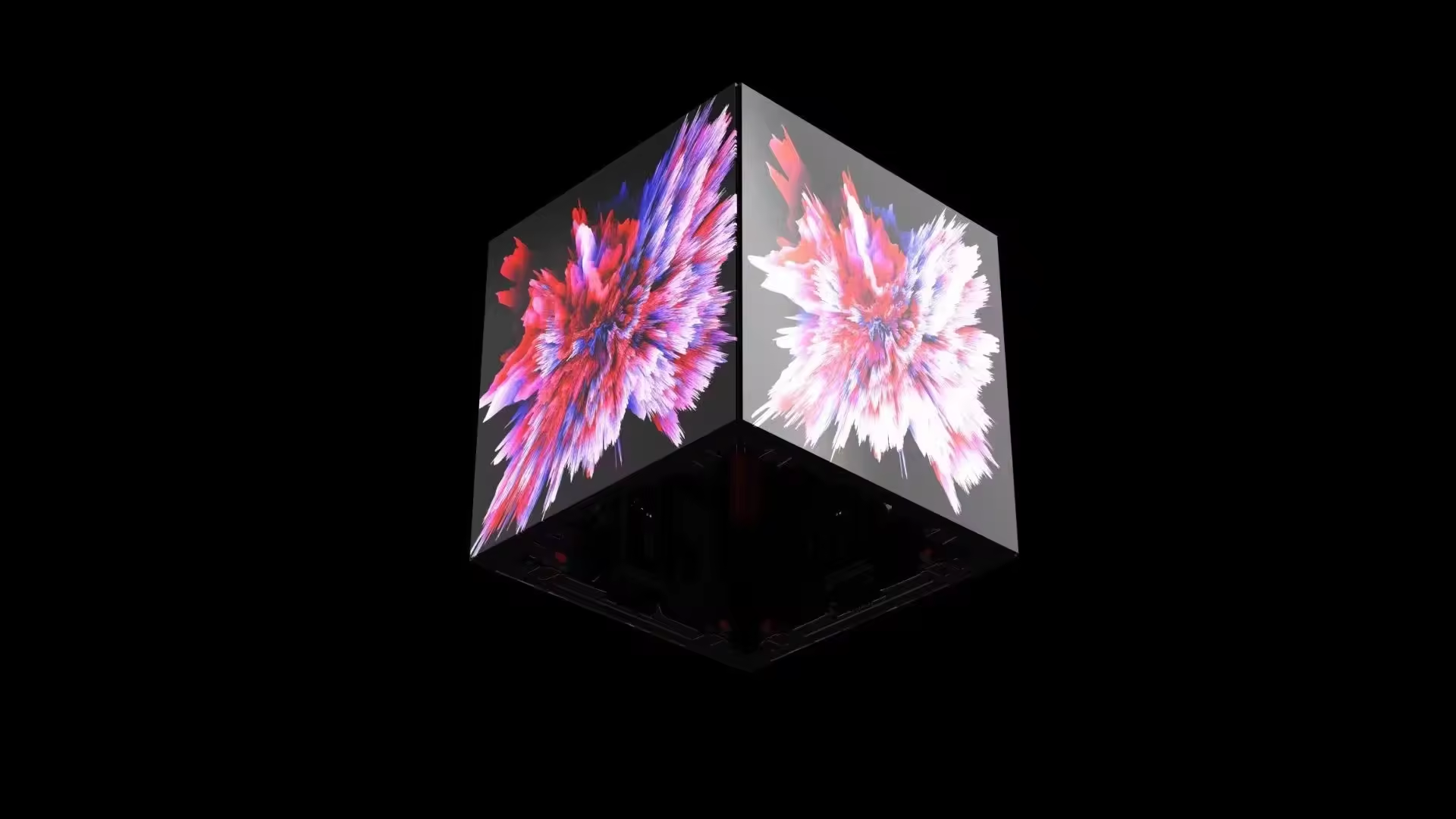

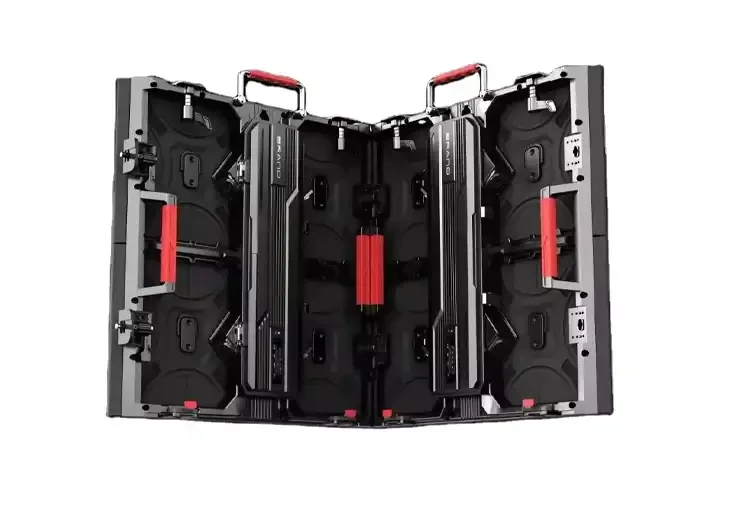

Support Right Angle Splicing

Supports 90° right angle installation for the big screen, offering an immersive visual experience.

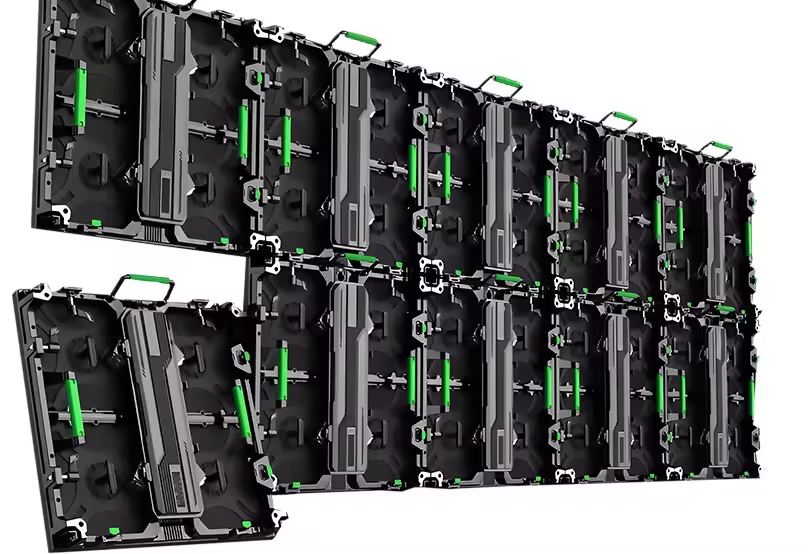

Seamless splicing

The seamless splicing cabinet adopts high-end CNC technology, which has higher flatness, brings seamless splicing pictures and immersive visual experience.

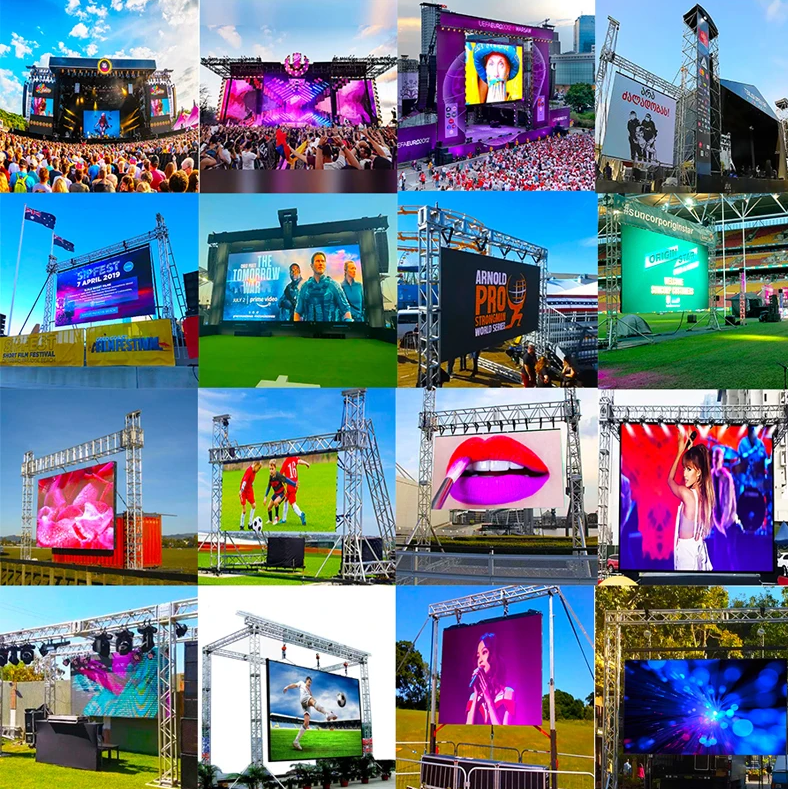

Application Files

Cinemas; Stages; Advertisements; Sports Events.

Specifications

Fine Pitch Stage Rental LED Display Parameters
Model *For more models, please consult customer service	P1.5625	P1.953	P2.604	P2.976	P3.91
Pixel Pitch	1.5625 mm	1.953 mm	2.604 mm	2.976 mm	3.91 mm
Cabinet Size	500×500 mm / 500×1000 mm
Cabinet Material	Die-cast aluminum
Cabinet Resolution (500×500 mm)	320×320	256×256	192×192	168×168	128×128
Pixel Density (dots/㎡)	409,600	262,144	147,456	112,896	65,536
Cabinet Weight	7.5 kg (500×500 mm) / 13 kg (500×1000 mm)
Grayscale	16 bit
Brightness	≥800 nits indoor / ≥45000 nits outdoor
Contrast Ratio	5000:1
Refresh Rate	7680 Hz
Viewing Angle	160°/160° (H/V)
IP Protection Rating	Indoor IP44 / outdoor IP66
Frame Change Frequency	50/60 Hz
Input Voltage	AC 100–240V 50/60Hz
Working Temperature	-20℃ – +60℃
Working Humidity	10%RH – 90%RH
Service Life	100,000 h
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a Fine Pitch Stage LED Display?

A Fine Pitch Stage LED Display is a high-resolution LED video wall designed for stage applications that require sharp image quality, close viewing performance, and seamless visual presentation. With smaller pixel pitches such as P1.25, P1.5, P1.9, P2.6, P2.9, and P3.91, it is commonly used for conferences, broadcast stages, product launches, corporate events, exhibitions, churches, theaters, and premium live productions.

What are the advantages of a Fine Pitch Stage LED Display?

A Fine Pitch Stage LED Display provides higher pixel density, clearer text, smoother video playback, vivid color reproduction, wide viewing angles, and seamless splicing. It helps create professional stage visuals for close-up audiences, camera shooting, live streaming, and high-end event presentations where image detail and visual consistency are important.

Where can Fine Pitch Stage LED Displays be used?

Fine Pitch Stage LED Displays are widely used in indoor stages, conference halls, TV studios, broadcast rooms, corporate events, exhibitions, product launches, churches, theaters, museums, fashion shows, award ceremonies, and hybrid event spaces. They are suitable for keynote presentations, stage backdrops, live camera feeds, branding videos, data visualization, and immersive visual effects.

What pixel pitch should I choose for a Fine Pitch Stage LED Display?

The right pixel pitch for a Fine Pitch Stage LED Display depends on viewing distance, screen size, content resolution, and camera requirements. For close-view indoor stages,P1.25, P1.5, P1.9 or P2.6 can deliver sharper image details. For medium-size stages and general event rental use, P2.9 or P3.91 provides a good balance between image quality, installation flexibility, and project cost.

Is a Fine Pitch Stage LED Display suitable for live streaming and filming?

Yes. A Fine Pitch Stage LED Display is suitable for live streaming, filming, and broadcast environments when it has a high refresh rate, good grayscale performance, accurate color calibration, and stable brightness control. These features help reduce flicker, moiré effects, color inconsistency, and image distortion during camera shooting.

How do I choose the right Fine Pitch Stage LED Display?

To choose the right Fine Pitch Stage LED Display, consider viewing distance, pixel pitch, screen resolution, brightness, refresh rate, grayscale level, color calibration, cabinet flatness, installation method, maintenance access, control system compatibility, camera shooting requirements, and event usage frequency. A professional fine pitch stage LED display should provide sharp visuals, stable performance, easy setup, and reliable operation for high-end stage productions.
