LED Stage Screen | P1.56–P4.81, 7680Hz Rental Display

Name: LED Stage Screen | P1.56–P4.81, 7680Hz Rental Display
Brand: REISSOPTO
SKU: SKU-13

RF-RH Series

REISSOPTO LED Stage Screen is a high-performance rental display for concerts, live events, TV studios, and outdoor festivals. Built on a lightweight die-cast aluminum cabinet with low load capacity, it enables fast setup, seamless splicing, and stable on-stage performance. Indoor models offer P1.25–P2.976 pitches, 800–1500 nits, and IP47 rating; outdoor models range P1.95–P5.95 with 4500–6500 nits and IP65–IP68 waterproof protection. A 7680Hz refresh rate with full RGB color delivers flicker-free, camera-friendly visuals, while modular cabinets support flat and curved setups with front and rear maintenance for every indoor and outdoor performance.

Get a quote Set OEM

Rental LED display Details

The REISSOPTO RH series rental LED stage screen is engineered for concerts, live events, TV broadcast studios, and outdoor festivals where fast setup and reliable performance are critical. Each cabinet is available in two standard sizes — 500 × 500 mm and 500 × 1000 mm — built from lightweight die-cast aluminum weighing just 7.5–13 kg per panel, allowing quick installation, seamless splicing, and easy transport for touring productions.

Indoor models cover pixel pitches from P1.25 to P2.976 with 800–1500 nits brightness, while outdoor models range from P1.95 to P5.95 with 4500–6500 nits and an IP65 waterproof rating for rain-resistant open-air stages. A 7680Hz refresh rate combined with full RGB color reproduction delivers flicker-free, camera-friendly visuals for live broadcast and video streaming.

The modular cabinet design supports flat, concave, and convex curved configurations, along with front and rear maintenance for fast module, power supply, and receiving card replacement — making the RH series a versatile stage backdrop screen and concert LED wall for both indoor and outdoor rental applications.

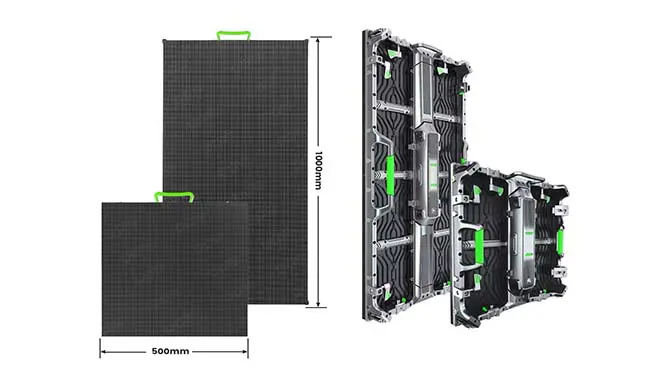

Perfect Dimension Of Led Stage Screen

1: 500*500 and 500*1000mm cabinet design, die-cast aluminum
2: Magnesium alloy material, the lightest, only 7.5kg-13kg
3: High precision, seamless connection

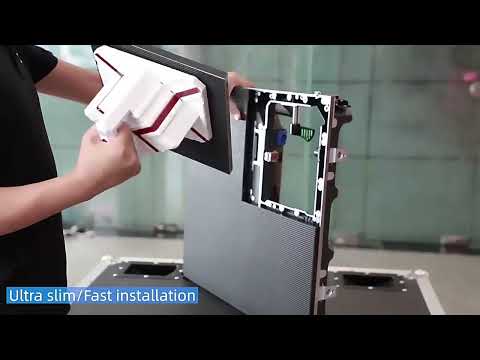

4: Quick and easy installation, saving labor
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP65

8K 4K 2K effects

8K LED Screens

Resolution: 7680*4320 pixels Use Cases: Primarily used in ultra-high-end applications such as large – scale events, immersive installations, and advanced broadcasting. Incredible Detail: Offers unparalleled image clarity and detail, suitable for close viewing without pixelation. Enhanced Immersion: Ideal for virtual reality environments and immersive experiences where detail is crucial.

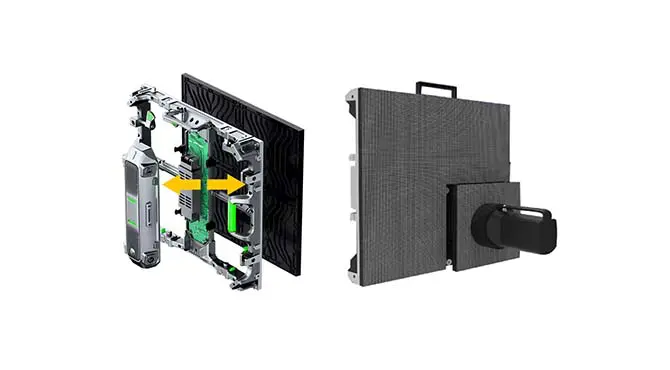

Front maintenance

Benefits of Front and Rear Maintenance

Stage LED display cabinets designed for front and rear maintenance offer significant advantages in terms of accessibility and efficiency. These features are crucial for ensuring minimal downtime during events while facilitating easy servicing and upkeep of the display.

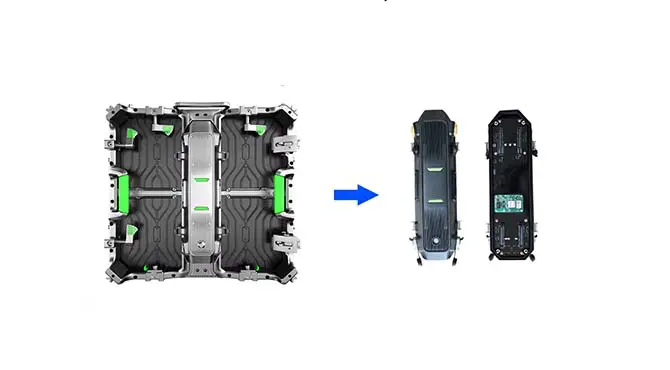

HUB Connection and Hot-Swappable Features

LED Stage Screen cabinets equipped with separated HUB connections and hot – swappable capabilities enhance flexibility and reliability in dynamic environments. These features are essential for maintaining seamless operations during live events and reducing downtime.

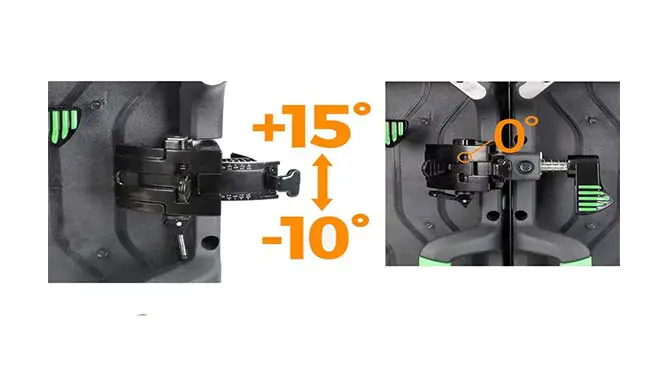

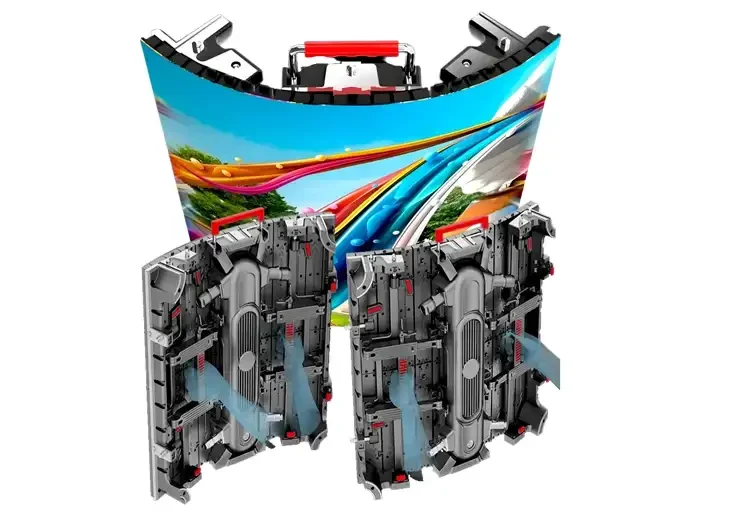

LED Stage Screen Cabinet: Rapid Arc Splicing Function

The rapid arc splicing function in stage LED display cabinets represents a significant advancement in display technology. By facilitating quick and precise connections between panels, this feature enhances the overall efficiency and quality of LED installations, making it an invaluable tool for events and productions that demand high-performance visual solutions.

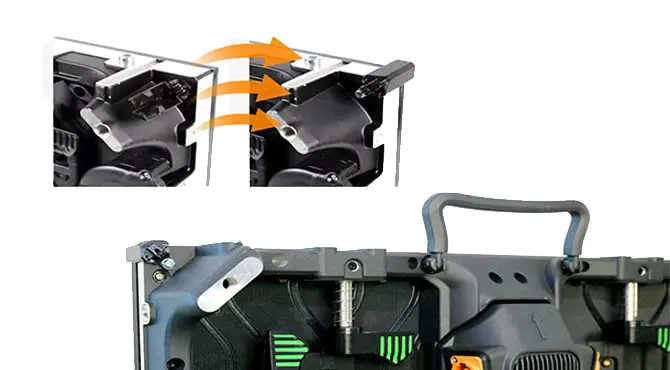

Stage LED Display Cabinet: Corner Protection Function

The corner protection function in stage LED display cabinets is designed to enhance durability and safety, especially in high – traffic environments. This feature is essential for preserving the integrity of the display during transport, setup, and operation, minimizing the risk of damage.

Creatively installed

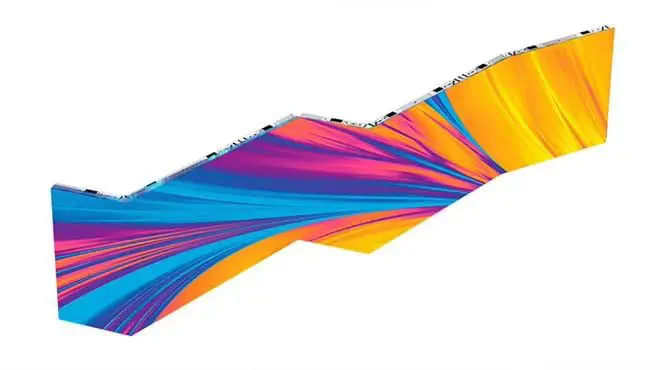

Arc – Shaped Right-Angle Splicing

The multifunctional LED display cabinet with arc-shaped right – angle splicing capability is designed to offer flexibility and creativity in visual presentations. This innovative feature allows for the seamless integration of displays into various configurations, enhancing their aesthetic appeal and functionality.

HDR Effect and High Grayscale

In the realm of XR ( Extended Reality ) photography, stage LED displays equipped with HDR ( High Dynamic Range ) effects and high grayscale capabilities play a pivotal role in delivering stunning visual experiences. These technologies enhance the quality of imagery, making them essential for immersive environments, live performances, and creative productions.

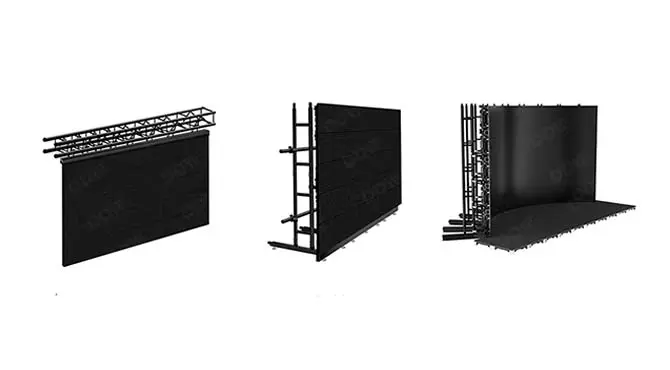

Various installation methods for stage LED displays

Stage LED displays offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.

Specifications

Indoor LED Display for Rental Parameters
Model *For more models, please consult customer service	P1.25	P1.56	P1.953	P2.6
Module Size	250×250 mm (9.84×9.84 in)
Module Pixel	200×200	160×160	128×128	96×96
Pixel Configuration	1R1G1B (SMD)
Box Size	500×500 mm / 500×1000 mm
Density (DOT/SQM)	640000	409600	262144	147456
Brightness (CD/SQM)	800–1500 nits
Best Viewing Distance	≥1.25 m	≥1.56 m	≥2 m	≥2.6 m
Color Temperature	3000K–9500K adjustable
Box Material	Die-cast aluminum box
Cabinet Weight	7.5 kg
Cabinet Connection	Quick-lock connection, supports curve design (±10°)
Installation Method	Hanging / Wall-mounted / Stacking
Maintenance Method	Front & rear maintenance
Waterproof Level	IP31 / IP32 / IP54
Contrast Ratio	2000:1 – 5000:1
Grayscale Level	14 bit – 22 bit
Refresh Rate	3840Hz / 7680Hz
Frame Frequency	60Hz
Viewing Angle	160°/160° (H/V)
Flatness	≤0.5 mm
Blind Spot Rate	≤1/10000
Working Voltage	DC 4.2–5V
Max. Power Consumption	800 W/SQM
Ave. Power Consumption	300 W/SQM
Working Temperature	-10℃ – +40℃
Working Humidity	10%RH – 90%RH
Service Life	100,000 h
Signal Input	HDMI / DVI / SDI / VGA / DP
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Application	Indoor concerts, conferences, exhibitions, TV studios, weddings & corporate events
Outdoor LED Display for Rental Parameters
Model *For more models, please consult customer service	P2.6	P2.976	P3.91	P4.81
Module Size	250×250 mm (9.84×9.84 in)
Module Pixel	96×96	84×84	64×64	52×52
Pixel Configuration	1R1G1B (SMD)
Box Size	500×500 mm / 500×1000 mm
Density (DOT/SQM)	147456	112896	65536	43264
Brightness (CD/SQM)	4500–6500 nits
Best Viewing Distance	≥2.6 m	≥3 m	≥4 m	≥5 m
Color Temperature	3000K–9500K adjustable
Box Material	Die-cast aluminum box
Cabinet Weight	7.5 kg
Cabinet Connection	Quick-lock connection, supports curve design (±10°)
Installation Method	Hanging / Stacking / Ground support
Maintenance Method	Front & rear maintenance
Waterproof Level	IP65	IP65	IP66	IP66
Contrast Ratio	5000:1
Grayscale Level	14 bit – 18 bit
Refresh Rate	3840Hz / 7680Hz
Frame Frequency	60Hz
Viewing Angle	140°/140° (H/V)
Flatness	≤0.5 mm
Blind Spot Rate	≤1/10000
Waterproof	Yes (rain-resistant)
Working Voltage	DC 4.2–5V
Max. Power Consumption	800 W/SQM
Ave. Power Consumption	300 W/SQM
Working Temperature	-20℃ – +50℃
Working Humidity	10%RH – 90%RH
Service Life	100,000 h
Signal Input	HDMI / DVI / SDI / VGA / DP
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Application	Outdoor concerts, festivals, sports events, stage backdrops & outdoor advertising
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

Can the REISSOPTO LED stage screen be used both indoors and outdoors?

Yes. The stage screen comes in both indoor and outdoor versions. Indoor models offer 800–1500 nits brightness with an IP47 rating, while outdoor models reach 4500–6500 nits with an IP65–IP68 waterproof rating for rain-resistant open-air stages, concerts, and festivals.

What pixel pitches are available for indoor and outdoor use?

Indoor stage screens offer P1.25, P1.56, P1.95, P2.6, and P2.976 for close-up detail, while outdoor models use P1.95, P2.6, P2.976, P3.91, P4.81, and P5.95 to balance brightness and long-distance viewing at large venues.

What is the waterproof rating for the outdoor stage screen?

The outdoor version is rated IP65–IP68, providing full dust protection and strong waterproof performance for reliable operation in rain and unpredictable outdoor weather.

What refresh rate and color performance does it deliver?

Both indoor and outdoor models support a 7680Hz high refresh rate with full RGB color reproduction, delivering flicker-free, camera-friendly visuals for live broadcast, TV studios, and video streaming.

What cabinet material is used and what is the load capacity requirement?

The cabinet is made of lightweight die-cast aluminum, offering high flatness and rigidity with a low load capacity requirement on trusses and hanging structures — ideal for fast rental setup and touring.

Does the stage screen support curved and creative installations?

Yes. The modular die-cast aluminum cabinets support flat, concave, and convex curved configurations, enabling creative stage shapes and immersive backdrops for both indoor and outdoor productions.

Is front and rear maintenance supported outdoors?

Yes. Both indoor and outdoor models support front and rear service access, allowing quick module, power supply, and receiving card replacement without dismantling the wall — even under tight outdoor touring schedules.
