Transparent Holographic LED Film Screen | See-Through Glass Display

TIF Series

Designed for global commercial spaces, the transparent holographic LED film screen fits diverse markets and installation environments. In retail and shopping malls, it transforms storefront glass and window displays into eye-catching digital signage without blocking daylight. For corporate lobbies, showrooms, and museums, it creates immersive holographic branding on glass walls and partitions. In airports, subways, and transport hubs, its see-through LED display format supports high-visibility advertising in high-traffic areas. Compatible with worldwide voltage standards and customizable in any size, it is an ideal glass LED display solution for international projects.

Get a quote Set OEM

Transparent LED screen Details

Transparent Holographic LED Film Screen: The Future of Visual Technology

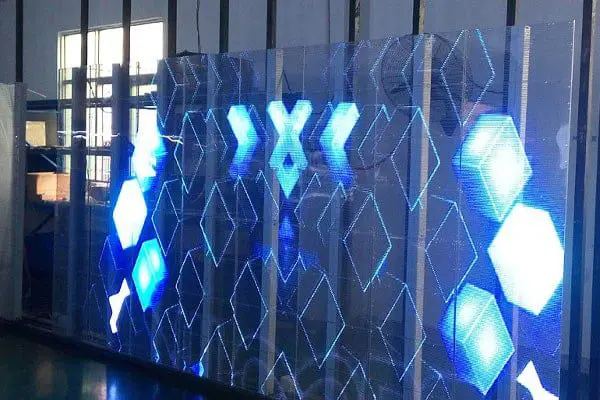

A transparent holographic LED film screen is an ultra-thin, gridded LED display film (1-3mm thick) that adheres directly to glass, turning windows and glass walls into see-through digital displays. With up to 90% transparency and 5000 cd/m2 brightness, it delivers vivid, 3D-like holographic visuals while preserving natural daylight and outward views. Weighing only 3kg/m2, the frameless film can be freely cut, bent, and seamlessly spliced to any shape, enabling fast one-person installation for retail windows, glass facades, showrooms, and exhibitions.

Transparent Holographic LED Film Screen

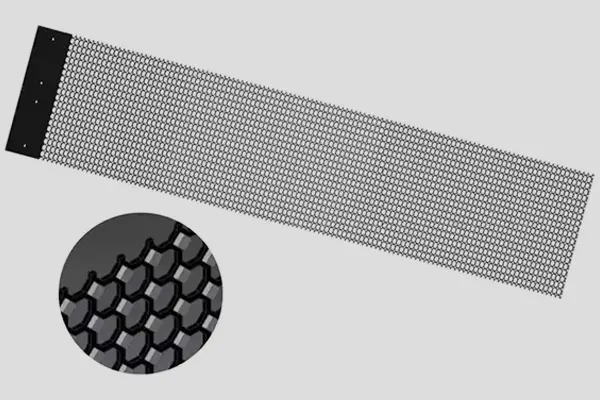

Transparent holographic LED film screen is also called holographic invisible screen, holographic film screen. The screen is in a grid shape and uses a specially designed transparent LED display element, so that light can penetrate the display without causing significant obstruction to the background. It is not only thin and transparent, simple installation, the most important thing is higher definition, the product into a grid, the visual effect is more transparent, there is no PC carrier, the heat dissipation effect is better. The product adopts the integrated design of the lamp area, and the front and back of the module have no other components except the lamp beads, which is very beautiful. The size supports arbitrary customization, can be bent at will, cut at will, can be pasted on the front and back, to meet more applications.

LED Holographic Film Screen Features

Adaptable: Fits any shape or setting.
Ultra-Thin and Light: Easily mounted on glass, simple to install and maintain.
Crystal Clear: 90% transparent with high-definition images (9000:1 contrast ratio).
Easy Configuration: Mix and match 1*1m or 2*2m units as needed.
Excellent Visibility: 90% transmittance, minimal light obstruction.
Brilliant in Sunlight: High 5000cd/m2 brightness for vivid colors, even in direct sunlight.

Ultra-Wide View

Wide Horizontal and Vertical Angles

The Transparent Crystal Film Screen offers a wide 140° horizontal and vertical viewing angle, providing a truly immersive visual experience.

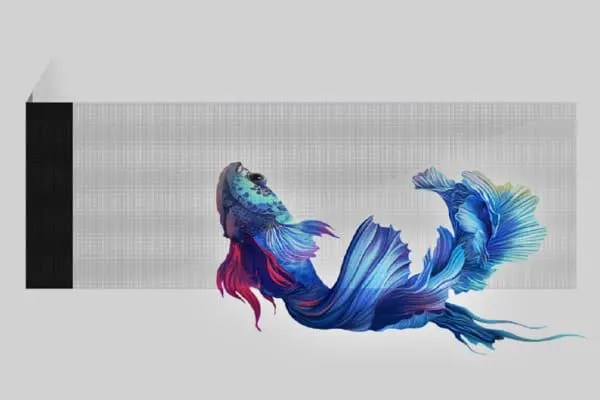

Transparent Holographic LED Film Screen Customizable

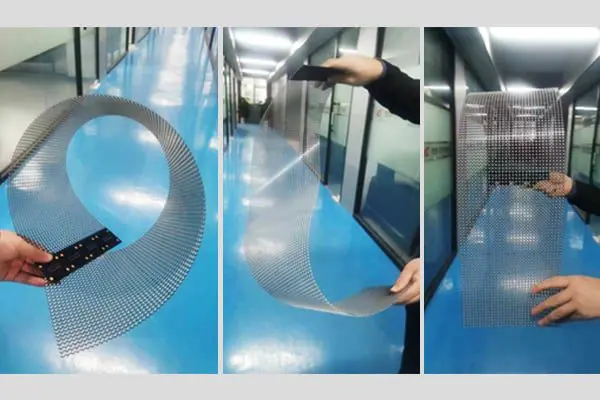

With great flexibility, the panel of hologram film screen can be bent and arbitrarily cut into the desired shape to meet more applications.
Weighing only 3kg/ ㎡, the hologram film screen is easy and quick to install. Just one person can easily install and handle products, save installation time and cost.

No keel Design, Thin and Transparent

Lightweight(3kg/m2)
Easily installed without a back frame and can be cut or bent to fit any space.
Thin(1-3mm)
Seamlessly integrates with glass and other surfaces.
Great heat dissipation effect
Adopting light and driving integrated design, the holographic film screen without PC carrier, showing superb heat dissipation effect.

Up to 90% Transparency

With up to 90% transparency, the holographic invisible screen blends seamlessly into any environment.

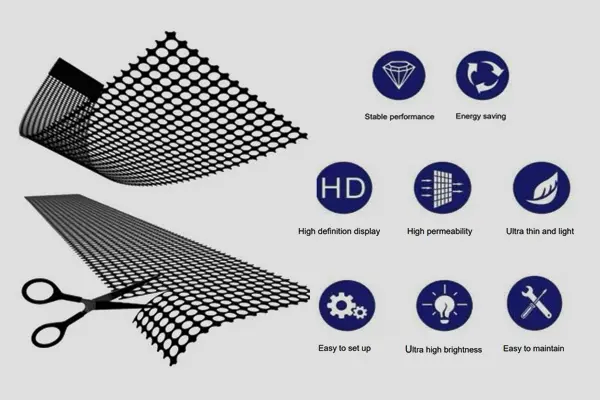

Arbitrary cutting, Seamless Spiced Display

Arbitrary cutting, seamless spiced display
The screen size can be arbitrarily cropped, the closer the distance between, the screen beads of the seamless splicing screen the clearer the pixel density. And the seamless cropped screen is more flexible to match the installation and regional carrier.

3D Stereoscopic Display

Exquisite structure, immersive “magic” experience

The exquisite structural design with high transparency enables the scenes in front and behind the screen to be three-dimensionally integrated with the pictures on the screen.
The product can form a strong sense of three-dimensional suspension when displayed, which not only supports traditional videos.
The ultimate 3D rendering capability ensures a large enough lighting angle.

Delicate and Realistic Colors

High-definition image quality–High-definition multi-point high-pixel full-color promotion of various rich pictures-video content.

Seamless Stitching

When viewing images, the images are not deformed, discolored or distorted.

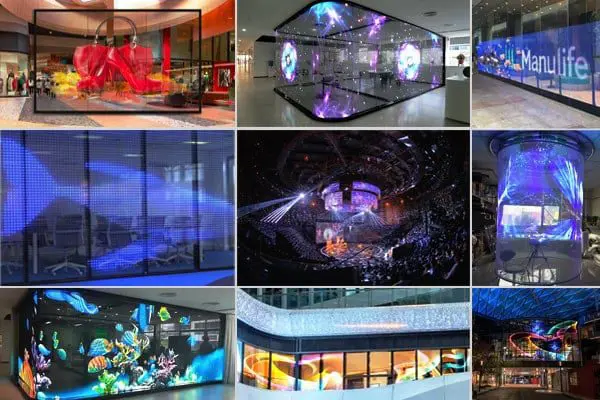

Where Can You Use Transparent Holographic LED Film Screen?

Main application

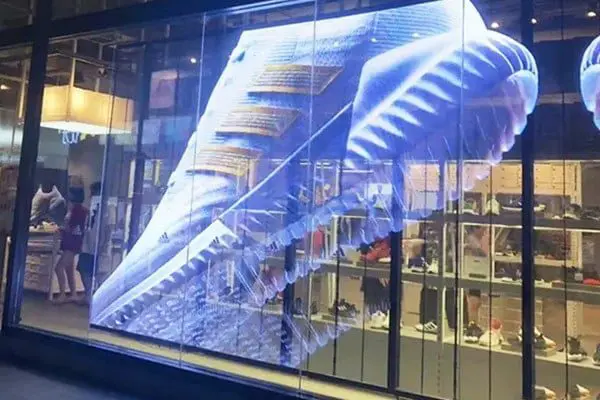

Commercial Spaces:
Architectural Elegance: Includes glass curtain walls, atriums, glass guardrails, glass showcases, sightseeing elevators, and more.
Brand Presence: Home to chain brands, encompassing tea and catering, bakeries, fashion and jewelry stores, 3C technology experience shops, and bank business centers.
Advertising Platforms:
High-Traffic Areas: Advertising opportunities at transportation hubs like airports, high-speed rail stations, subways, buses, and more.
Entertainment and Arts:
Cultural Hubs: Hosts bars, nightclubs, stage performances, dance shows, diverse cultural and tourism attractions.

Where Can You Use Transparent Holographic LED Film Screen? - TIF Series

Specifications

Transparent Holographic LED Film Screen Parameters
Model *For more models, please consult customer service	PH3.508	PH3.91	PH5	PH6.25	PH8	PH10	PH16
Pixel Pitch (mm)	3.508	3.91	5	6.25	8	10	16
LED Chip	SMD1515	SMD2020	SMD2020	SMD2020	SMD2020	SMD2020	SMD2020
Module Size (mm)	1150×225	1152×125	1150×160	1150×200	1160×256	1150×320	1152×256
Pixel Density (px/㎡)	81,225	65,536	40,000	25,600	15,625	10,000	3,906
Transparency	70%	80%	85%	90%	90%	92%	93%
Optimal Viewing Distance	3–250m	4–250m	6–250m	8–250m	10–250m	10–250m	16–250m
Color	1R1G1B
Weight (kg/㎡)	3
Thickness	1–3mm
Viewing Angle	Horizontal ≥160°, Vertical ≥140°
Brightness (cd/㎡)	≥ 800 indoor / ≥ 5000 outdoor
Refresh Rate (Hz)	≥3840
Average Power (w/㎡)	≤300
Max Consumption (w/㎡)	≥800
IP Protection Rating	IP45
Service Life	≥100,000 h
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a transparent LED film screen and how does it work?

A transparent LED film screen is an ultra-thin (1–3mm), lightweight (about 3kg/㎡) display made from flexible LED film that adheres directly to glass. It uses SMD chips spaced at wide intervals to achieve 70%–93% light transmittance, so viewers see through it like clear glass while dynamic content plays. It is ideal for glass storefronts, curtain-wall facades, showrooms, and retail windows where daylight and outward visibility must be preserved.

What pixel pitch options are available, and how do I choose the right one?

This series covers PH3.5, PH7.8, PH10, and up to PH16. A smaller pixel pitch (PH3.5) gives higher resolution for close-up viewing but lower transparency, while a larger pitch (PH16) offers a higher see-through rate for large facades viewed from a distance. As a general rule, the minimum viewing distance in meters roughly equals the pixel pitch value, so select the pitch based on how far your audience stands from the glass.

How transparent is the LED film, and will it block daylight indoors?

The film delivers 70%–93% transparency depending on pixel pitch, preserving natural daylight and outward views even when mounted on windows or glass walls. Because the LED lines are extremely thin and widely spaced, indoor lighting and sightlines remain largely unaffected, making it a preferred solution for retail windows and architectural glass where an unobstructed view is essential.

How is the transparent LED film installed on glass?

Installation is simple and non-destructive: the flexible film modules are attached directly to the inner surface of the glass with adhesive backing, requiring no steel frame or heavy structure. Thanks to its light weight (about 3kg/㎡), it adds minimal load to the glass and can be applied to flat or gently curved surfaces. This lets existing storefronts and facades be upgraded quickly without construction or damage to the building.

Is the transparent LED screen bright enough for outdoor and shop-window use?

Yes. The transparent LED film reaches high brightness levels suitable for shop windows and semi-outdoor facades, remaining clearly visible even in daylight. Brightness can be adjusted to match the environment, ensuring content stays legible against bright backgrounds while avoiding excessive glare at night, which makes it effective for both retail advertising and architectural media facades.

What are the main applications of transparent LED film displays?

Transparent LED film displays are widely used for retail shop windows, glass curtain-wall facades, showrooms, museums, stage backdrops, chain-store branding, and commercial-building media facades. Their see-through design lets brands display dynamic advertising and video content without blocking natural light or the view through the glass, making them a modern alternative to traditional opaque LED walls in glass-heavy architecture.
