REISSDISPLAY RFR-RF Series: Premium rental LED screen with high refresh rate, modular setup, and exceptional brightness for vibrant visuals in any event or staging environment.

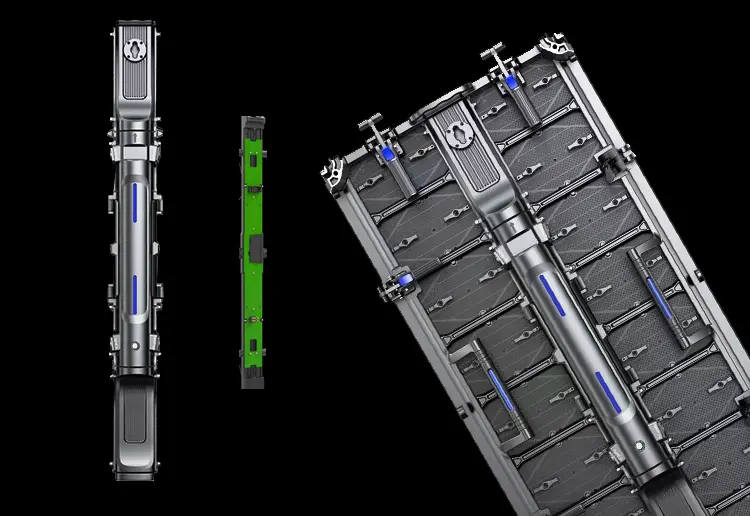

Interchangeable modules. Only one type of module for all positions on the Stage LED Screen Better design, more rigidity. New customized PSU, higher integration and narrower.

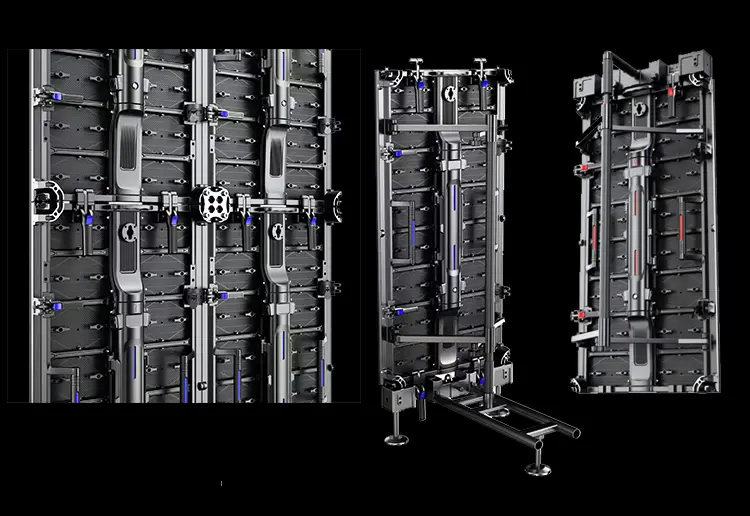

The Optional Lightweight Air – Truss adds the extra strength needed to your Stage LED Screen when build-in vertical or angled positions.

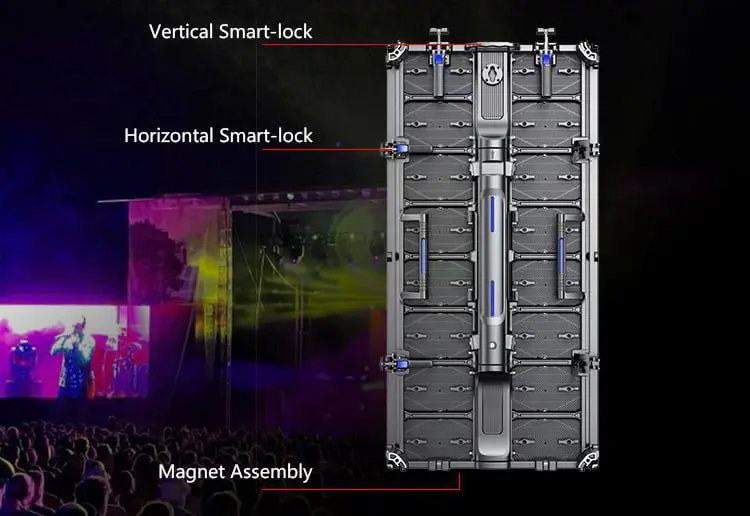

Building large rental LED Screen fast is paramount, reducing valuable production time. RF series accommodates fast – building with its large, lightweight panels, integrated magnet-assisted assembly, and smart – lock system. Using the quick smart-lock system, you can achieve a time saving of about 40% compared to standard LED panels.

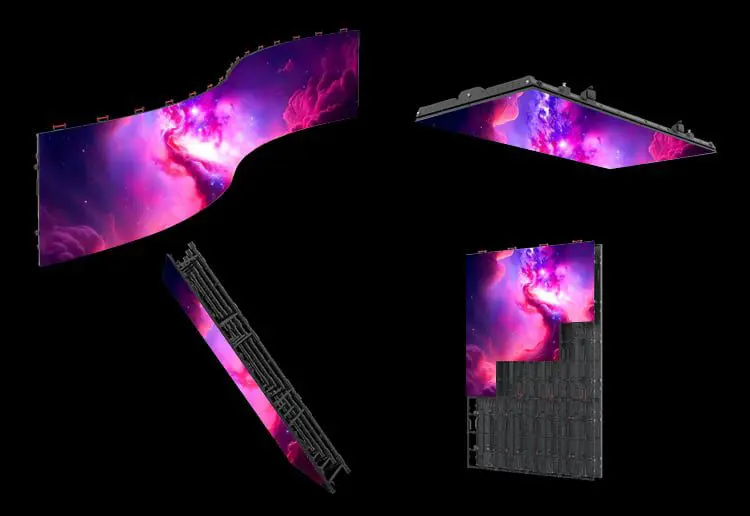

Rental screen RF series offers creative freedom through its ffexible application options, whether in straight or curved designs. With RF series, you can create LED displays at every position, like a wall, ceiling, or raked at any angle; even double-sided use is possible.

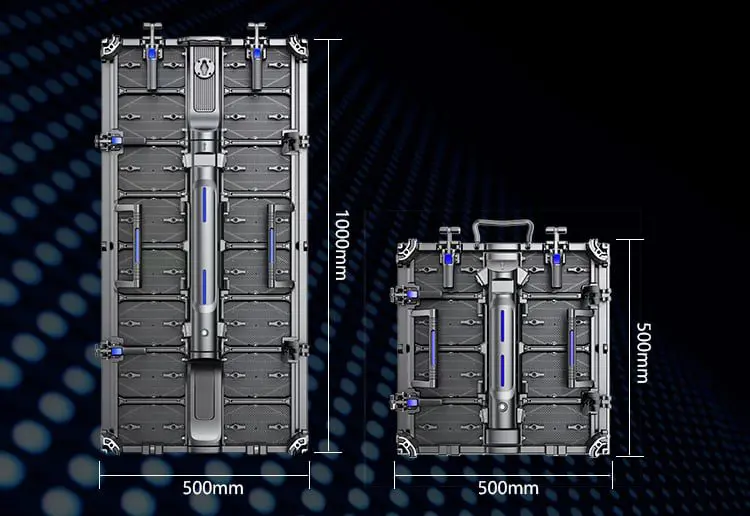

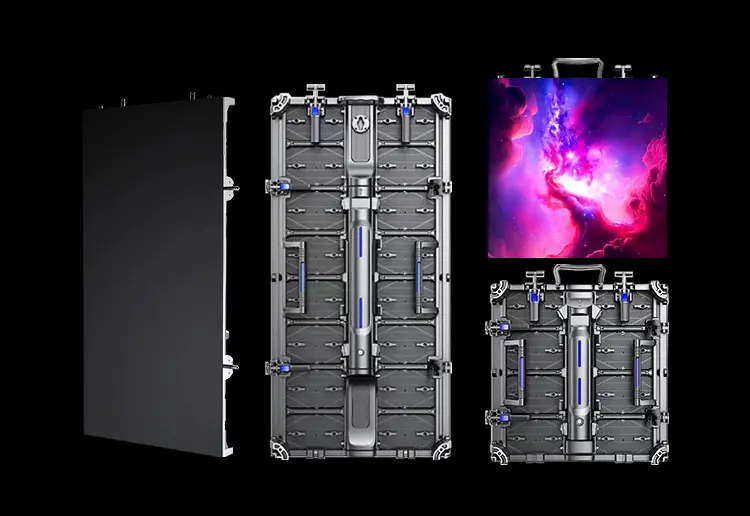

RF series products are designed to be lightweight, with standard box sizes of 500x500mm, 500x1000mm, 250mmx500mm modules, P2.604, P2.976, P3.91, P4.81 models optional, and are an integrated solution that supports seat mounting, hoisting and easy transportation.

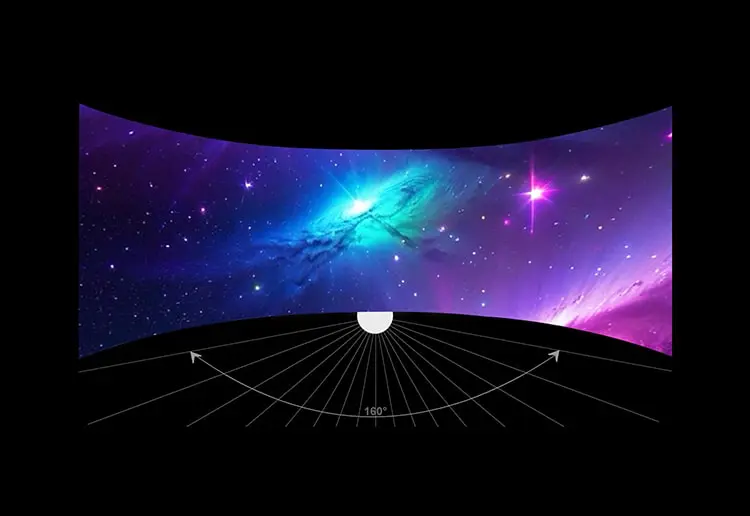

Rental screen RF series offers a wide viewing angle capability (160° h / V) and expansive visual coverage, ensuring optimal visibility from various vantage points

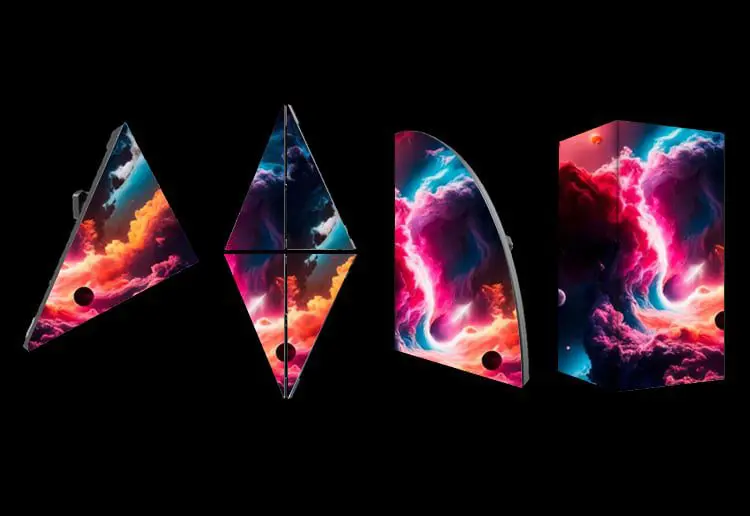

The multifunctional LED display cabinet with arc-shaped right-angle splicing capability is designed to offer flexibility and creativity in visual presentations. This innovative feature allows for the seamless integration of displays into various configurations, enhancing their aesthetic appeal and functionality.
In the realm of XR ( Extended Reality ) photography, stage LED displays equipped with HDR ( High Dynamic Range ) effects and high grayscale capabilities play a pivotal role in delivering stunning visual experiences. These technologies enhance the quality of imagery, making them essential for immersive environments, live performances, and creative productions.

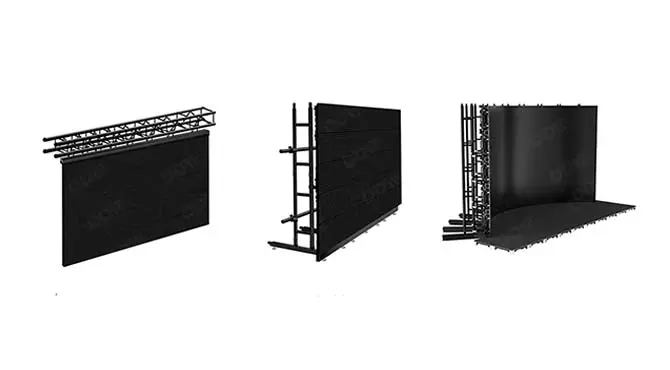

The diverse installation methods for stage LED screen allow for flexibility and creativity in display setups. By carefully selecting the appropriate method based on venue and event requirements, organizers can create impactful visual experiences that captivate audiences while ensuring stability and safety.
Model | P1.95 | P2.604 | P2.976 | P3.91 |
Pixel Pitch | 1.95mm | 2.604mm | 2.976mm | 3.91mm |
Density | 262,144 dots/m2 | 147,928 dots/m2 | 123904dot/m2 | 65,536dots/m2 |
Led Type | SMD1515/SMD1921 | SMD1515/SMD1921 | SMD2121/SMD1921 | SMD2121/SMD1921 |
Panel Size | 500 x500mm & 500x1000mm | 500 x500mm & 500x1000mm | 500 x500mm & 500x1000mm | 500 x500mm & 500x1000mm |
Panel Resolution | 256x256dots / 256x512dots | 192x192dots / 192x384dots | 168x168dots / 168x336dots | 128x128dots / 128×256 dots |
Panel Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
Screen Weight | 7.6KG / 14KG | 7.6KG / 14KG | 7.6KG / 14KG | 7.6KG / 14KG |
Drive Method | 1/64 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
Best Viewing Distance | 1.9-20m | 2.5-25m | 2.9-30m | 4-40m |
Brightness | 900 nits / 4500 nits | 900 nits / 4500 nits | 900 nits / 4500 nits | 900 nits / 5000nits |
Input Voltage | AC110V/220V ±10% | AC110V/220V ±10% | AC110V/220V ±10% | AC110V/220V ±10% |
Max Power Consumption | 800W | 800W | 800W | 800W |
Average Power Consumption | 300W | 300W | 300W | 300W |
Waterproof (for outdoor) | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 |
Application | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor |
Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
