Outdoor LED Video Wall | High Brightness IP67 Panel

Name: Outdoor LED Video Wall | High Brightness IP67 Panel
Brand: REISSOPTO
SKU: SKU-7
Availability: InStock

OF-FC Series

An outdoor LED video wall is a large-format, high-brightness LED display engineered for permanent outdoor advertising, signage, and public display environments. REISSOPTO's OF-FC Series delivers this with a common-cathode design and a lightweight aluminum cabinet that serves as a modern alternative to traditional 960×960mm steel cabinets. Featuring a reinforced structure, fast installation, and front-and-rear maintenance, it offers an IP67 protection rating and dependable outdoor durability. With a 3840Hz refresh rate, 16-bit color processing, and a 100,000-hour service life, it provides reliable, energy-saving performance for large-scale applications.

Get a quote Set OEM

Outdoor LED screen Details

Outdoor LED Video Wall: Revolutionizing Outdoor Advertising and Signage

FC series is a high-brightness outdoor LED video wall that can adopt common cathode design. It is a perfect alternative to traditional 960*960mm steel cabinets. It is lightweight, has a reinforced structure, supports fast installation, and can be maintained from front to back. It has IP67 protection level and outdoor durability. With 7680Hz refresh rate, 16-bit color processing and 100,000 hours of service life, it provides reliable and energy-saving performance for large applications.

Outdoor LED Video Wall Product Description

1. Dimension: 960x960x75mm
2. Energy-Saving with Low Power Consumption;
3. Ultra-Light and Thinness;
4. Simple Structure, Hard Link with Wireless;
5. High Protection Level, Security and Stability;
6. Easy to Realize Front and Rear Maintenance;
7. Great Heat-Dissipation, Strong Environmental Adaptability;
8. Its cabinet is to adopt aluminum profile material, weight is just 26KG, the design of whole cabinet is to utilize technically structure to hide cables, namely, it is hard link, “Wireless Connection”.
9. Its appearance looks more beautiful and easy to operate.
10. Adopt full aluminum material, not easy to be ignited, also can’t be distorted under high temperature condition, fast heat-dissipation, its lampshade is VO standard material with flame resistance.

140-degree Wide Viewing Angle

The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

Outdoor LED Video Wall Super Energy Saving Cabinet

Considering the energy consumption of outdoor advertising LED video wall, thanks to the latest PCB, lCs and power supply design, it is 35%–65% more energy-efficient than traditional outdoor screens. The design of outdoor advertising display screens focuses on energy saving and environmental protection. They have low power consumption, reduce energy costs and minimize carbon footprint.

Self-Cooling Technology

The fan has strong heat dissipation, no noise, and low power. Both the front and back sides have reached IP67 waterproof level. Full aluminum module chassis and Power box with heat sink.

HUB Design Safe And Stable

Full rear power box easy maintenance

REISSOPTO outdoor LED video wall reduces the possibility of cable-induced failures and also makes the entire screen neat and beautiful. The modules and power boxes can be quickly assembled and maintained from the front.

HUB Design Safe And Stable - OF-FC Series

Front and Rear Double Maintenance Outdoor LED Panel

In order to help customers better maintain outdoor LED display billboards, the dual service mode designed on the front and back can save you maintenance costs. The LED panels can be assembled and disassembled easily and quickly.

Front or Rear Maintenance Is Optional

High modular design, easy maintenance

This design does not require ribbon cables, so the signal connection of the module is much better than the common designs on the market. In addition, we use single-row pin sockets, which are characterized by: High precision: precise pin spacing ensures stable connection between electronic components and improves the overall performance of the circuit board. High reliability: Made of high-quality materials, it has good conductivity and corrosion resistance, which can ensure the stable operation of the circuit.

Front or Rear Maintenance Is Optional - OF-FC Series

Anti reflective SMD mask.

It is worth noting that the pixels and internal components of the LED display must always be protected. This involves a lot of content, especially for outdoor displays. This is extremely important for outdoor equipment, adding a mask to the module to help better protect the pixels and components.

High Protective Performance

Full waterproof, fully-sealed design and die-casting aluminum module chassis, offering high protection rating (front and rear) lP67. Aluminum material LED module, high temperature durability, fast heat-dissipation. The whole product can Reach 5VB fireproofing level.

Seamless Splicing

The installation is fast, convenient and flexible, and supports multiple installation methods to achieve seamless splicing.

Curved Splicing and Right-angle Splicing

OF-FC Series supports right angles and curved angles, the best choice for creating 3D large screens

High Brightness Outdoor LED Video Panels

The brightness reaches up to 7000~10000 nits, can instantly captivate attention and deliver content even under strong light.

Multiple Installation Methods

OF-FC Series LED display screens offer a variety of installation methods to suit different venues and event requirements. Choosing the right installation method is essential to maximize visual impact and ensure stability and safety.

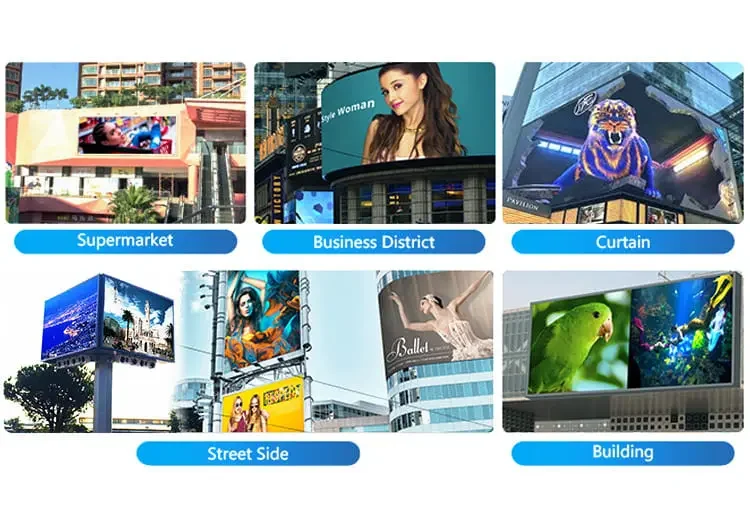

Application Fields

In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. This product is usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.

Specifications

LED Display Screen Parameters
Model *For more models, please consult customer service	P4.4	P5.7	P6.67	P8	P10
Pixel Pitch	4.4 mm	5.7 mm	6.67 mm	8 mm	10 mm
LED Type	SMD1921	SMD2727	SMD2727	SMD2727	SMD2727 / 3535
Module Resolution	108×72	84×56	72×48	60×40	48×32
Module Size	480×320×25 mm
Cabinet Resolution	216×216	168×168	144×144	120×120	96×96
Cabinet Weight	22 kg/pcs
Pixel Density (dots/㎡)	50,625	30,625	22,500	15,625	10,000
Brightness	≥5000 cd/㎡	≥5500 cd/㎡	≥6500 cd/㎡	≥6000 cd/㎡	≥6000 cd/㎡
Optimum Viewing Distance	>4.4 m	>5.7 m	>6.67 m	>8 m	>10 m
Optimum Viewing Angle	H:140° V:120°
Grayscale	14–18 bit
Refresh Rate	3840 / 7680 Hz (optional)
Frame Frequency	50–60 Hz
Input Voltage	110–220V AC ±10%
Max. Power Consumption	500–720 W/㎡
Avg. Power Consumption	230–360 W/㎡
Operating Temperature / Humidity	-10℃ ~ 50℃ / 10 ~ 98%RH
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is an Outdoor LED Video Wall?

An Outdoor LED Video Wall is a large-format LED display designed for outdoor environments. It uses high-brightness LED modules, weatherproof cabinets, and seamless splicing technology to deliver clear images and videos in sunlight, rain, wind, and other challenging conditions.

What are the advantages of an Outdoor LED Video Wall?

An Outdoor LED Video Wall offers high brightness, wide viewing angles, strong weather resistance, seamless display performance, long service life, and flexible screen size customization. It is ideal for outdoor advertising, stadiums, concerts, building façades, shopping malls, transportation hubs, and public event displays.

What brightness is recommended for an Outdoor LED Video Wall?

The recommended brightness for an Outdoor LED Video Wall usually ranges from 5,000 to 10,000 nits, depending on the installation location and sunlight conditions. For direct sunlight applications, higher brightness helps maintain clear visibility and strong image contrast during daytime operation.

What pixel pitch should I choose for an Outdoor LED Video Wall?

The best pixel pitch depends on the viewing distance and screen size. For closer viewing areas, a smaller pixel pitch such as P4.4, P5.7, P6.67, P8, and P10 can provide sharper image details. For long-distance viewing, P6, P8, or P10 may be more cost-effective while still delivering good visual performance.

Can an Outdoor LED Video Wall work in rain and harsh weather?

Yes. A professional Outdoor LED Video Wall is designed with waterproof modules, sealed power and signal connections, corrosion-resistant cabinets, and high IP protection ratings. For outdoor installation, an IP67 or higher front protection rating is commonly recommended to ensure stable operation in rain, dust, humidity, and changing weather conditions.

How do I choose the right Outdoor LED Video Wall for my project?

To choose the right Outdoor LED Video Wall, consider the viewing distance, screen size, pixel pitch, brightness level, IP rating, installation structure, front or rear maintenance, refresh rate, power consumption, and local climate conditions. A suitable outdoor LED video wall should provide clear visibility, reliable weather resistance, easy maintenance, and long-term performance.
