The P3 indoor LED screen delivers an outstanding combination of fine pixel pitch and high brightness, designed for professional indoor environments where clarity, detail, and vivid color reproduction are essential.

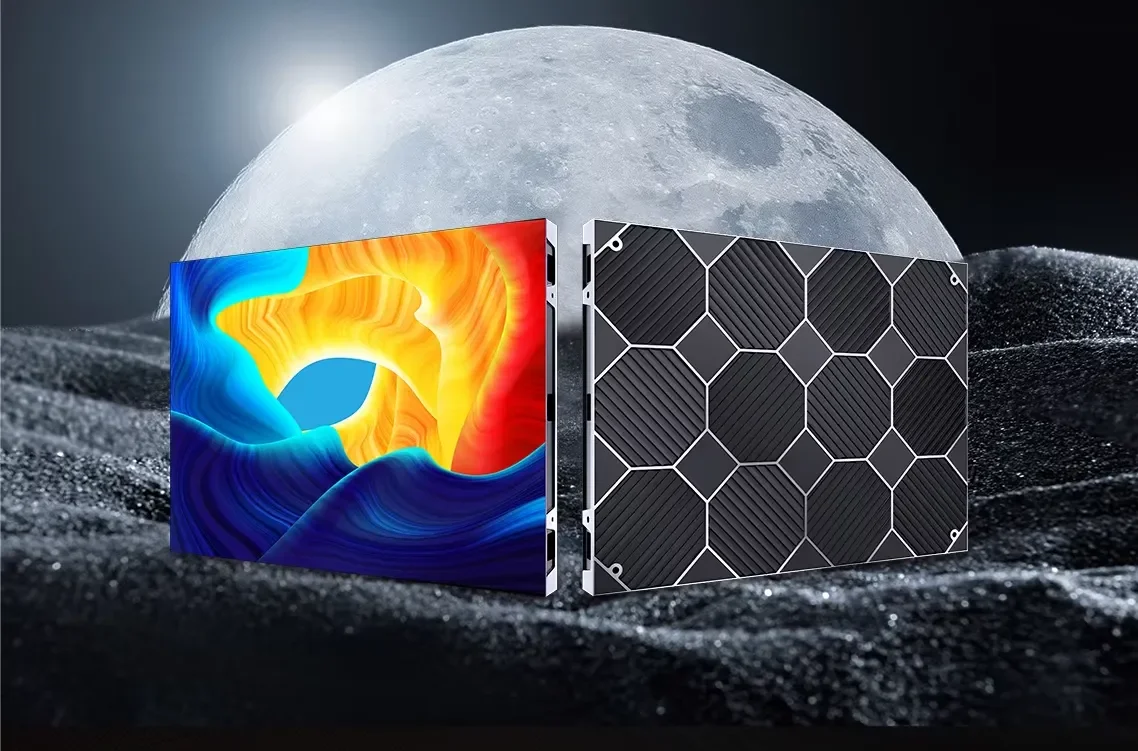

With a pixel pitch of 3.076mm, this small-pitch LED display provides sharp and vibrant visuals, making it a preferred choice for conference rooms, control centers, broadcast studios, museums, and retail stores.
The term “P3” refers to the 3.076mm pixel pitch, meaning the distance between LED pixels.
Smaller pixel pitch equals higher resolution and smoother image performance at shorter viewing distances.
This makes P3 indoor LED displays an ideal choice for indoor applications that demand fine detail, color accuracy, and wide viewing angles — from business presentations to immersive digital signage.
Delivers sharp image detail and smooth text rendering, ideal for close-range indoor viewing.
Ensures clear visibility even in well-lit environments such as conference rooms and retail spaces.
Provides flicker-free performance for cameras, live broadcasts, and large presentations.

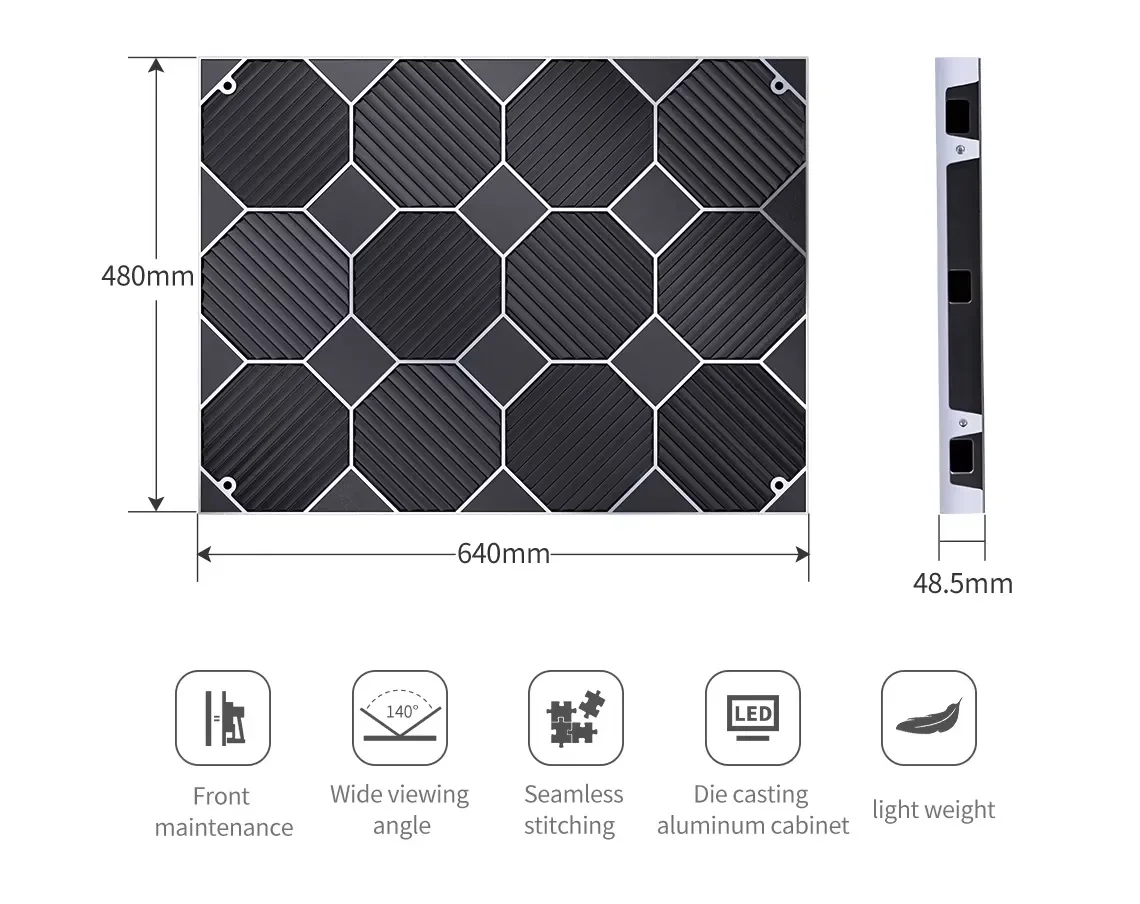

The 640×480 mm cabinet creates perfect 4:3 configurations for professional video walls.

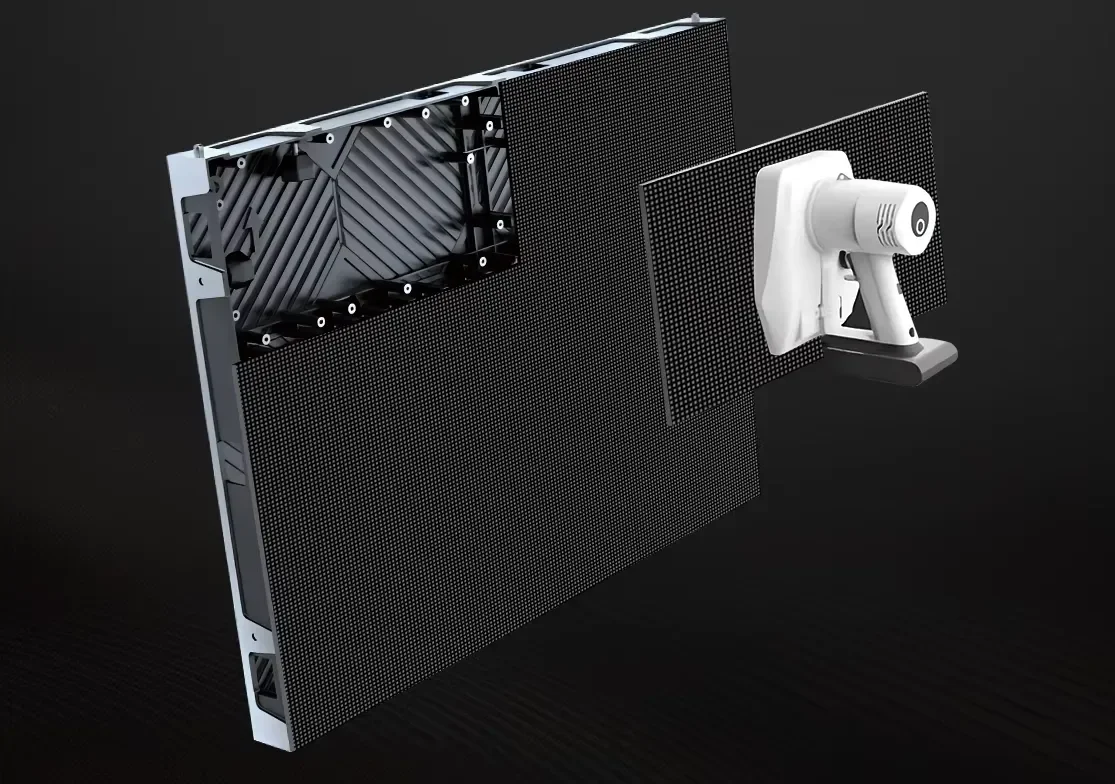

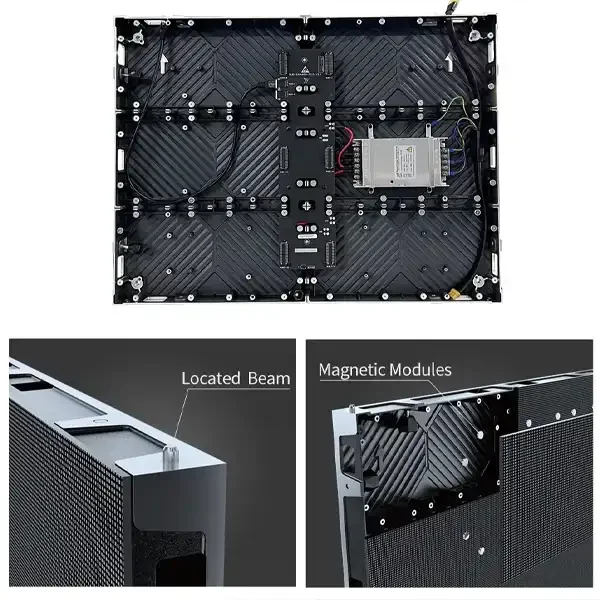

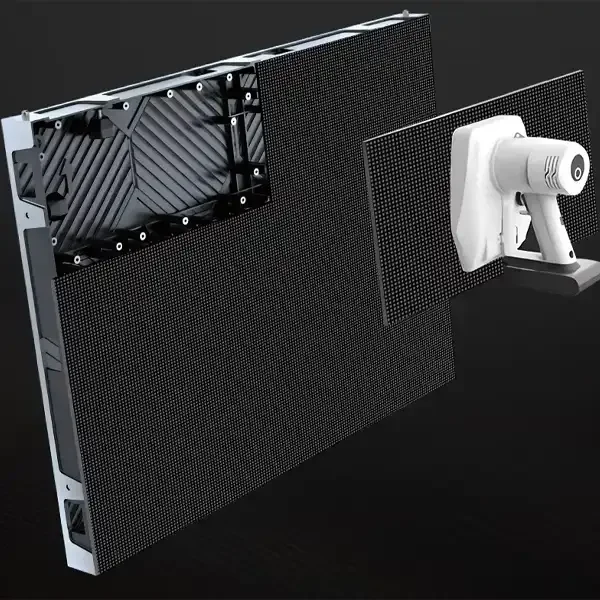

Modules, power supplies, and receiving cards can be accessed from the front for quick servicing.
High-quality SMD LEDs ensure rich colors, high contrast, and smooth grayscale performance.
Low power consumption and optimized heat dissipation ensure long-term reliability.
Supports wall-mounting, hanging, or fixed installation for various indoor environments.

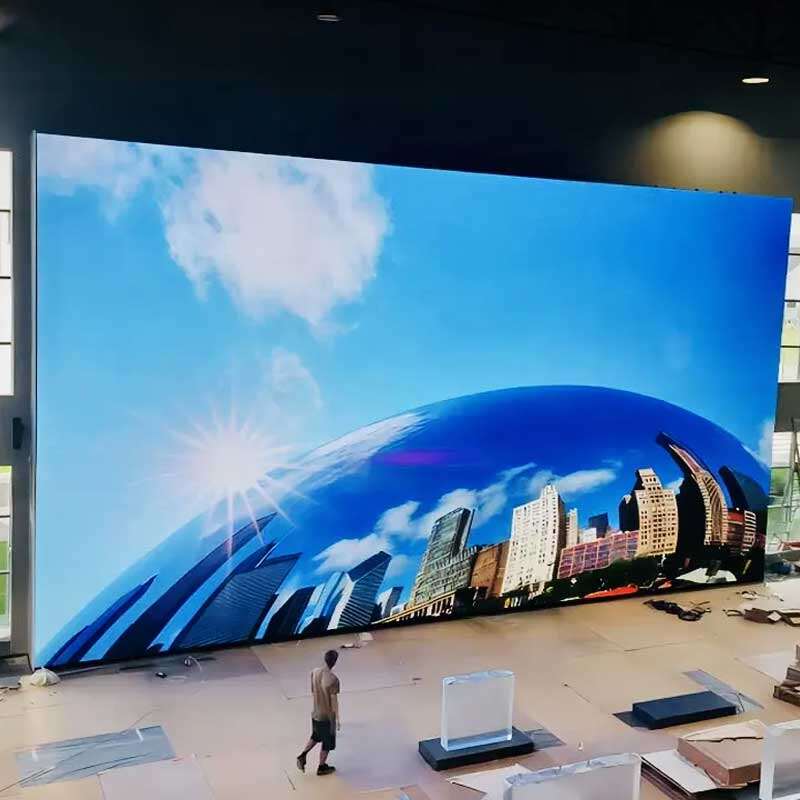

P3 indoor LED displays are highly versatile and suitable for nearly any indoor commercial or professional setting.

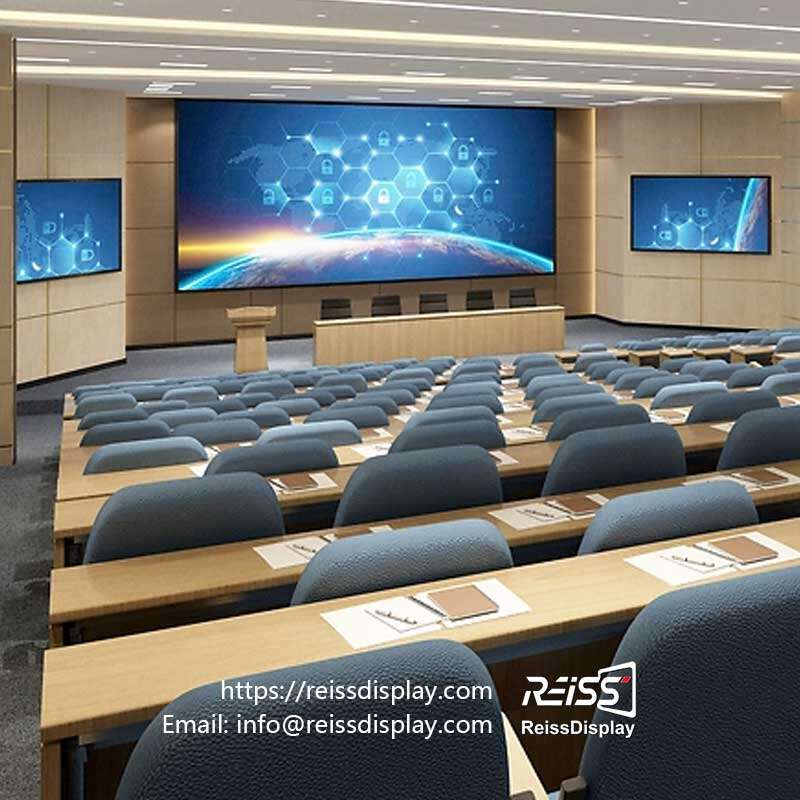

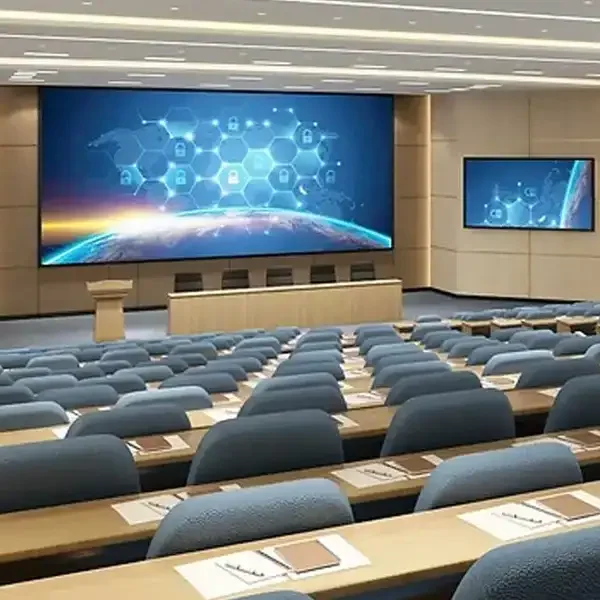

Conference Rooms & Control Centers – Present clear data, graphics, and video content with precision.
Retail Stores & Shopping Malls – Attract customers with bright, detailed visuals and dynamic content.
TV Studios & XR Production Stages – Capture ultra-smooth images under camera lighting.
Museums & Exhibitions – Deliver interactive, informative digital experiences.

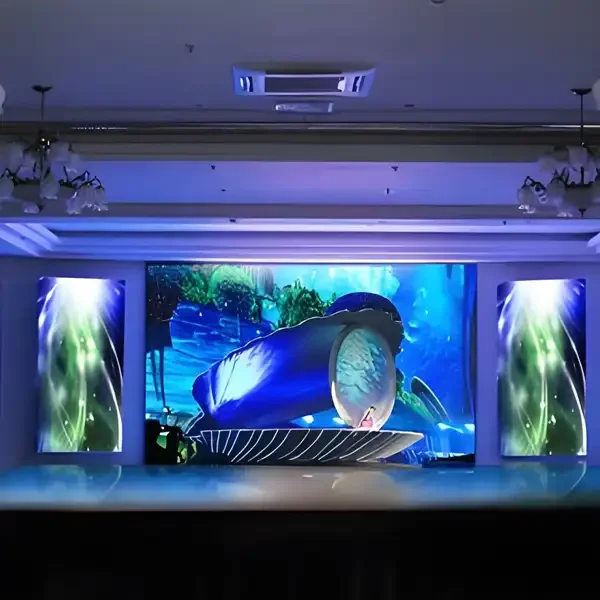

Churches & Auditoriums – Enhance live events and performances with clear and immersive visuals.
| Feature | P2.5 Indoor LED Display | P3 Indoor LED Display |
|---|---|---|
| Pixel Pitch | 2.5mm | 3.076mm |
| Resolution | Higher | High |
| Brightness | 800–1000 nits | 800 nits |
| Cost | Higher | More cost-effective |
| Best Viewing Distance | 2.5m | 3m |
| Application | Close-viewing environments (studios, control centers) | Medium-distance applications (conference rooms, retail, churches) |
👉 Choose P2.5 if your audience is very close to the screen.
👉 Choose P3 if you need a balance between resolution, brightness, and cost efficiency.

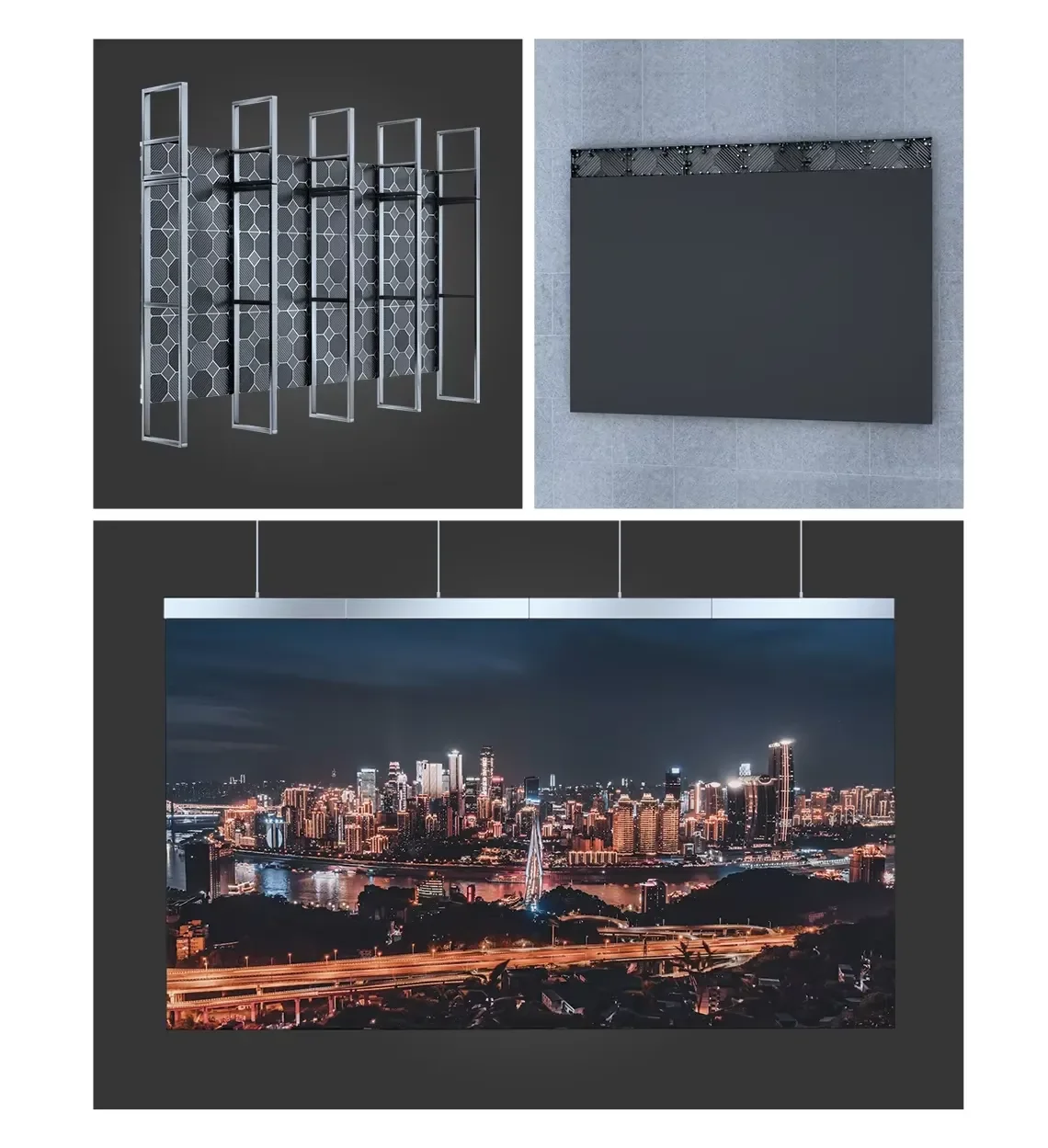

The P3 indoor LED display supports various installation options:

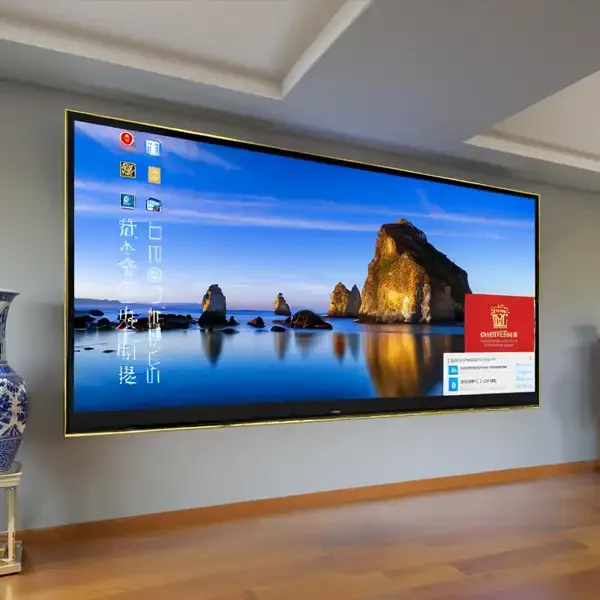

Wall-mounted installation – saves space and blends with interior decor.
Hanging installation – ideal for rental and event applications.
Embedded installation – flush with the wall for a sleek and modern finish.
Each option ensures seamless splicing and perfect flatness, delivering a professional and elegant LED video wall.
The price of a P3 indoor LED display varies depending on several factors, including cabinet size, LED configuration (SMD2121 / SMD1515), refresh rate, brightness level, and whether you choose a full display system or individual modules.
As a direct LED display manufacturer, we offer competitive factory pricing for P3 LED screens, with options for standard 640×480 mm cabinets or customized sizes. For accurate quotations based on your project size—such as conference rooms, control centers, retail installations, or exhibition displays—please contact us for a detailed price list and project evaluation.
The P3 LED module adopts a 3.076 mm pixel pitch, delivering sharp image detail suitable for close-range indoor viewing. Each module offers stable brightness around 800 nits, ensuring clear and vibrant performance under typical indoor lighting conditions. With a 3840–7680 Hz high refresh rate, the display maintains smooth, flicker-free visuals for cameras, presentations, and dynamic content.

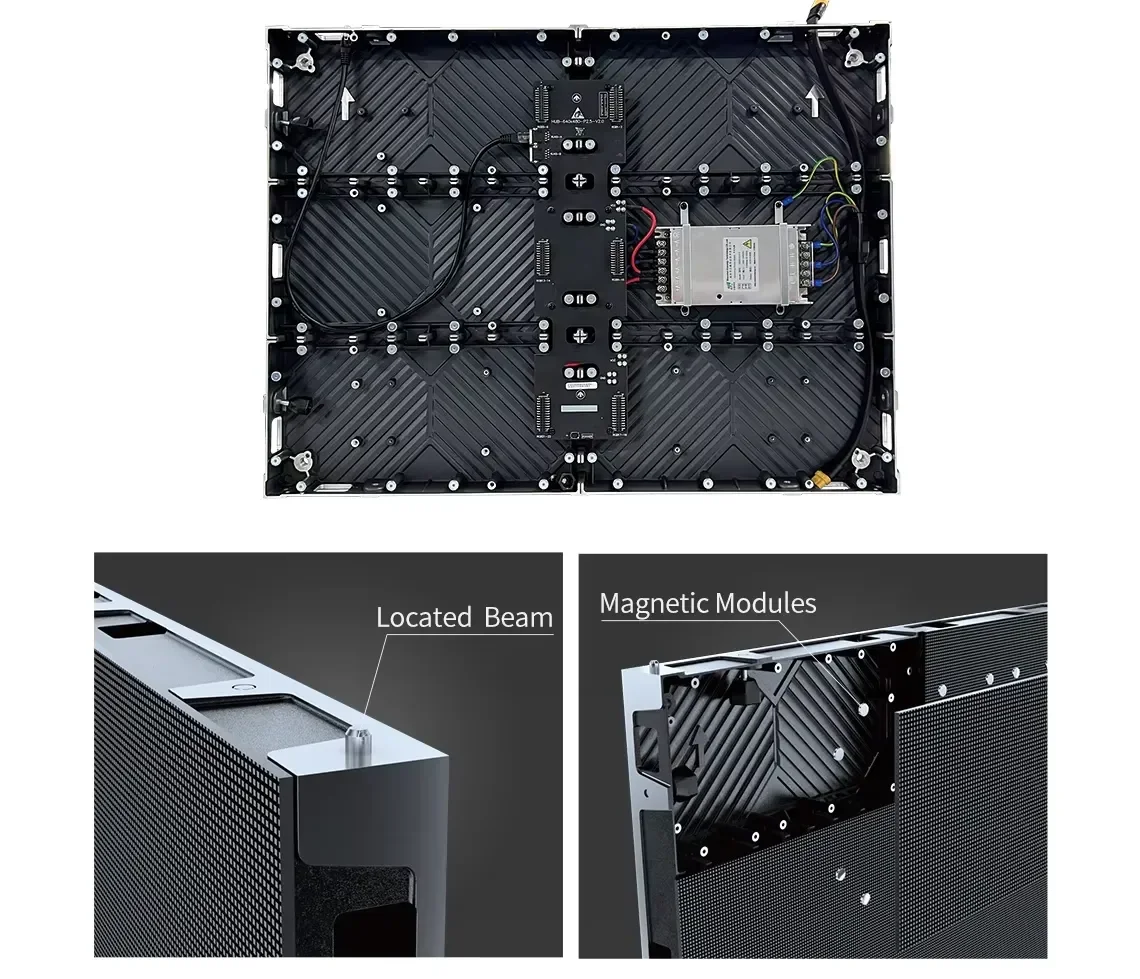

Designed for standard 320×160 mm or cabinet-compatible configurations, the P3 module supports front maintenance, seamless splicing, and flexible integration into 640×480 mm die-cast aluminum cabinets. With an optimal viewing distance of approximately 3 meters, it is widely used in conference rooms, control centers, retail spaces, exhibitions, and other professional indoor environments.
| Model | P3.07 | P1.5 | P1.6 | P1.86 | P2.0 | P2.5 | P1.2 |
| Pixel pitch | 3.076mm | 1.53mm | 1.667mm | 1.86mm | 2mm | 2.5mm | 1.25mm |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 104x52 | 208x104 | 192x96 | 172x86 | 160x80 | 128x64 | 256x128 |
| Physical density | 105688 dots/㎡ | 422754 dots/㎡ | 359856 dots/㎡ | 289053 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ | 640000 dots/㎡ |
| LED type | SMD2020 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD1010 |
| Cabinet size | 640*480*48mm | 640*480*48mm | 640*480*48mm | 640*480*48mm | 640*480*48mm | 640*480*48mm | 640*480*48mm |
| Cabinet resolution | 208*156 | 416*312 | 384*288 | 344*258 | 320*240 | 256*192 | 512*384 |
| Cabinet weight | 6.5kgs | 6.5kgs | 6.5kgs | 6.5kgs | 6.5kgs | 6.5kgs | 6.5kgs |
| Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Maintenance way | Front | Front | Front | Front | Front | Front | Front |
Best viewing distance | 3m | 1.5m | 1.6m | 1.8m | 2m | 2.5m | 1m |
| Best viewing angle | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° |
Driving method (Constant Current) | 1/26 Scan | 1/52 Scan | 1/48 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan | 1/64 Scan |
| Video frame rate | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz |
| Refresh rate | 3840~7680Hz | 3840~7680Hz | 3840~7680Hz | 3840~7680Hz | 3840~7680Hz | 3840~7680Hz | 3840~7680Hz |
| Brightness | 800nits | 800nits | 800nits | 800nits | 800nits | 800nits | 800nits |
| Grey Level | 14-22bit | 14-22bit | 14-22bit | 14-22bit | 14-22bit | 14-22bit | 14-22bit |
| Ingress protection | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Life Time | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
At ReissOpto, we specialize in designing and manufacturing high-quality indoor LED displays with professional engineering and global support.
✅ Over 10 years of LED manufacturing experience
✅ Factory-direct pricing — no middlemen
✅ Custom OEM/ODM service available
✅ Strict quality testing and ISO-certified production
✅ Global delivery and technical support
Our P3 indoor LED screen is trusted by system integrators, rental companies, and end-users worldwide for its reliability and performance.
Q1: What is the typical brightness of a P3 indoor LED screen?
A1: Standard brightness is 800 nits, ideal for indoor environments with controlled lighting.
Q2: What is the best viewing distance for a P3 LED display?
A2: The optimal viewing distance is about 3 meters, offering perfect clarity without visible pixelation.
Q3: Can P3 LED screens support front maintenance?
A3: Yes, the 640×480mm cabinet design allows full front access for modules, power supply, and receiving card.
Q4: What is the lifespan of ReissOpto’s P3 indoor LED displays?
A4: Each display is rated for ≥100,000 hours, ensuring long-term reliability.
Q5: Can you customize screen size and shape?
A5: Yes. We offer custom-built P3 LED walls in any size or aspect ratio, including curved and irregular designs.
Looking for a reliable P3 indoor LED screen manufacturer?
ReissOpto provides factory-direct solutions, OEM customization, and global delivery.
📩 Contact us today for a free quote and design consultation — transform your space with the clarity and brilliance of ReissOpto LED technology.
