P0.9 Ultra-fine pitch led screen indoor

Name: P0.9 Ultra-fine pitch led screen indoor
Brand: REISSOPTO
Availability: InStock

IFM-MIP Series

Delivers high-resolution visuals with seamless splicing, vibrant colors, wide viewing angles, low power consumption, and stable indoor performance.

The P0.9 ultra-fine pitch indoor LED screen is ideal for control rooms, broadcast studios, meeting rooms, exhibition halls, luxury retail stores, museums, and digital art displays.Its seamless image quality and sharp detail make it perfect for presenting complex data, video content, or high-impact visuals in premium indoor environments.

If you need to customize other scenes, please contact customer service!

Get a quote Set OEM

Indoor LED display Details

What is a P0.9 Ultra-fine Pitch Indoor LED Screen?

The P0.9 ultra-fine pitch indoor LED screen is a high-definition display solution featuring a 0.9mm pixel pitch. It is designed for environments that require precise, detailed, and smooth image reproduction at close viewing distances.

With advanced LED technology, it offers seamless image presentation, accurate color performance, and wide viewing angles. Its slim, lightweight design supports easy installation and maintenance, while delivering stable and energy-efficient operation.

Cutting Edge Technology - MIP indoor LED Display

The latest models of MIP LED display products, including P0.78125, P0.9375, P1.25, and P1.5625, utilize a 16:9 ratio LED cabinet size of 600mmx337.5mm made from die-casting aluminum material.

The full name of MIP, Mini/Micro LED in Package, refers to an integrated packaging technology. Initially, a significant quantity of Micro LED chips is transferred onto the carrier board on the epitaxial wafer. These chips are then directly packaged and divided into individual or multiple-in-one small chips before being separated and mixed for patching and screen surface lamination to finalize display screen production.

The advantages of MIP lie in its flexibility and cost-effectiveness due to the adaptability of MIP packaging technology to various point spacing requirements across diverse fields such as commercial displays, consumer electronics, vehicle displays etc., Additionally, the utilization of existing machinery for production enables a reduction in the company's investment in production line equipment.

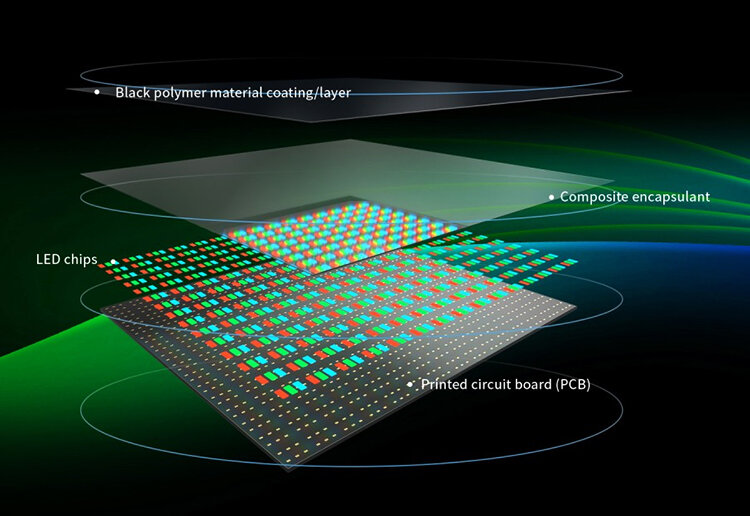

REISSOPTO MIP LED Display Technology

MIP series is equipped with REISSOPTO MIP technology, which utilizes LED light-emitting chips ranging from 50um to 100um for achieving superior fine/small pixel pitch display. In conjunction with flip chip and common-cathode technologies, this product ensures higher reliability and lower power consumption. Multiple coatings on the screen surface enhance color and black consistency while offering low glare, low reflection, and minimal moiré effects, delivering a more comfortable visual experience for users. REISSOPTO products have a Pixel Pitch Range of 0.78125mm, P0.9375mm, 1.25mm, and 1.5625mm along with features like color consistency, high brightness, high contrast, energy efficiency, and comfortable visual experience.

Features Highlights For MIP LED Display

The MIP technology employs Micro-LED chips and high-precision carrier boards to achieve fan-out packaging, effectively addressing the challenges associated with testing and downstream placement. It offers several notable features that contribute to its popularity in display applications.

Vivid Realistic Screen : MIP technology effortlessly achieves an impressive contrast ratio of 10,000:1, enabling the creation of distinct and intricate gradations between bright and dark display areas. Combined with extensive support for wide color gamut, it delivers an immersive visual experience that captivates the audience.

Energy Efficiency : Product utilizes common cathode and flip chip technologies, along with an energy-efficient driver chip, resulting in a significant reduction of 30% in power consumption.

Easier to Lamp Repairable: MIP technology enables customers to locally repair the damaged lamp if necessary, eliminating the need to send the malfunction module back to the factory. This not only saves significant time but also reduces costs.

Easier to Clean: The surface of the LED module is easily cleanable. In case screen cleaning becomes necessary, a damp cloth can be used for gentle wiping, thereby facilitating efficient cleaning and reducing maintenance costs.

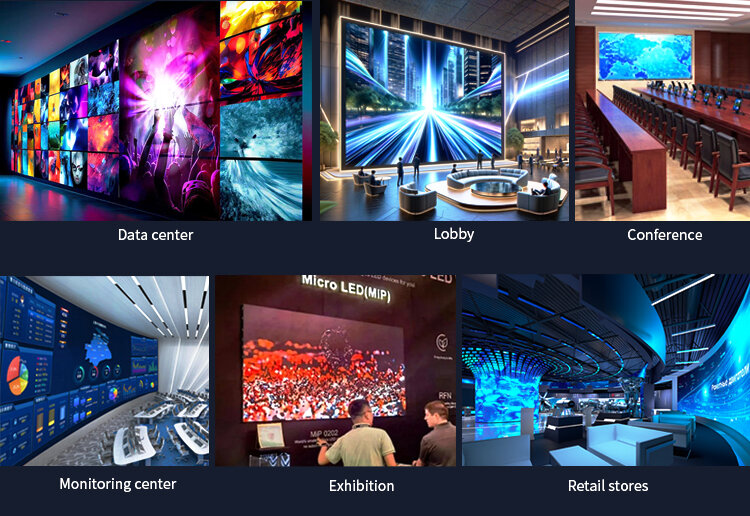

REISSOPTO MIP LED Display Various Applications

The application of MIP LED displays is extensive across various industries, including consumer electronics, professional displays, general lighting, and more. The utilization of MIP LED technology has significantly enhanced energy efficiency, longevity, and lighting quality within the realm of LED displays. Our LED video wall products find extensive application in churches, retail stores, educational institutions, rental companies, events management firms, television studios, exhibition centers, audiovisual production facilities (AVP), shopping malls, airports, cinemas, and various other visual experiences.

MIP LED Display Screen High Brightness

Standard brightness is up to 1,000 nits. With a contrast ratio of over 1,000,000:1, images are crisp and bright, with every detail fully visible.

Excellent Visual Performance

The high refresh rate of 7680Hz, high dynamic range, high-resolution display, and advanced 24-bit grayscale function provide excellent color performance and visual impact, thereby providing an excellent viewing and shooting experience.

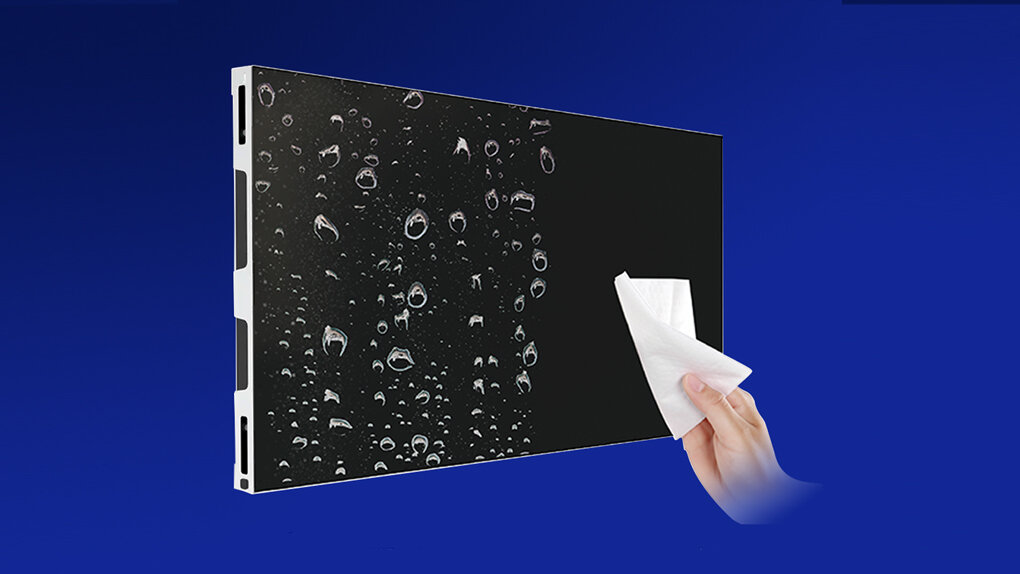

Easy to Clean

The MIP series surface is easy to clean. If you need to clean the screen, just wipe it gently with a damp cloth to achieve efficient cleaning and reduce maintenance costs.

Application Cases

indoor

MIP LED Display technology parameters

Series	MIP (Micro LED In Package)
Pixel pitch（mm）	0.93	1 .25
Cabinet size(mm)	600*337.5	600*337.5
Module size（mm）	168.75*150	168.75*150
Contrast	25000: 1	20000:1
luminance	900cd/m²	800cd/m²
Colour	6500K/9000K	6500K/9000K
Temperature
Scanning mode	1/30 scan	1/27 scan
Power dissipation(㎡)	250W ±10%	250W ±10%

Cabinet material	Die cast aluminum	Aluminium alloy
Cabinet weight	4.4±10% Kg	5±10% Kg
Cabinet resolution	640*360	480*270
Number of modules/Cabinet	8 piece

Working environment	Temperature:-30°C~+45C; humidness
	15%~90%RH
Reliability experiment	+85°C(85%RH)/-20C
Input video signal interfac	DVI/HDMI/DP/VGA/LAN/USB

Display system	NovaStar NovaLCT / Colorlight LEDvision
