Indoor LED Display Video Wall | Fine Pitch HD LED Screen

Name: Indoor LED Display Video Wall | Fine Pitch HD LED Screen
Brand: REISSOPTO
SKU: SKU-611
Availability: InStock

IF-B Series

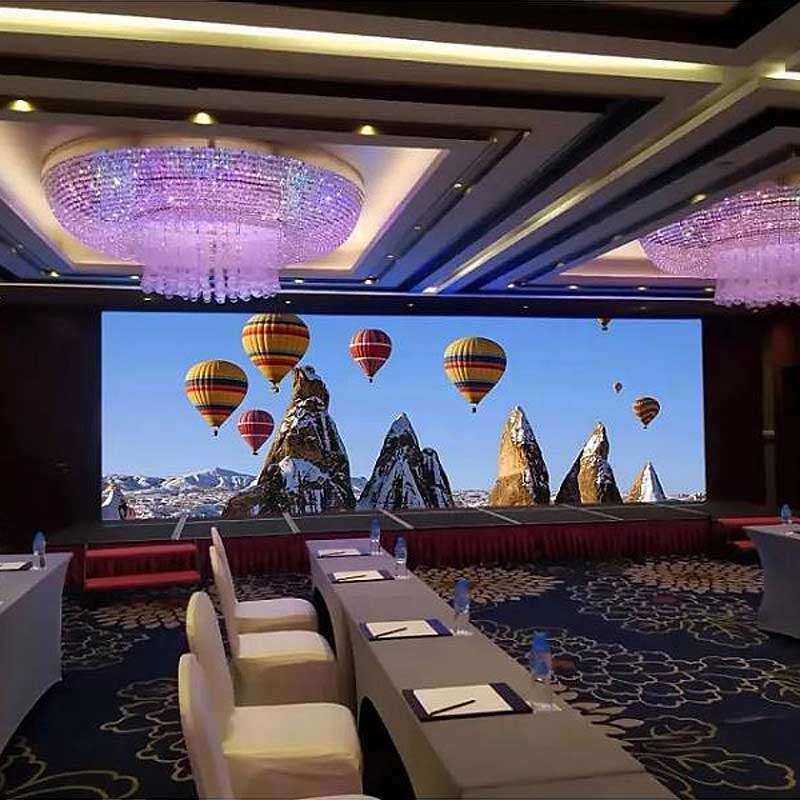

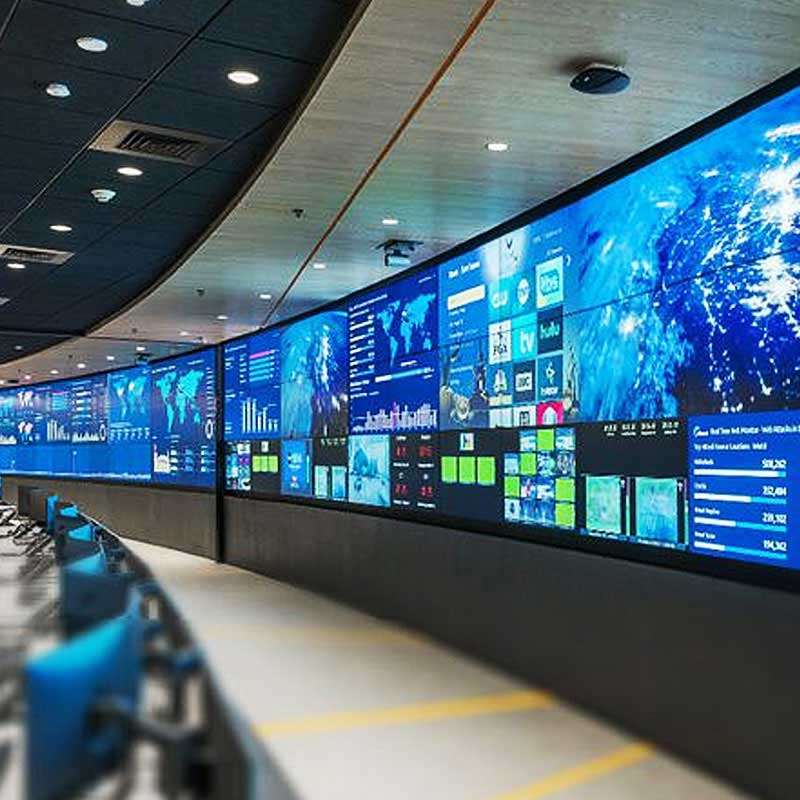

From corporate headquarters in New York to broadcast studios in London and command centers across Asia and the Middle East, our indoor LED display is trusted worldwide as a versatile visual platform. In modern offices, a fine pitch LED display transforms the conference room LED display into a crystal-clear hub for video conferencing, data dashboards, and presentations. In retail flagships and hotel lobbies, a seamless LED video wall captivates visitors with immersive brand storytelling. Control rooms, security operations, and traffic-monitoring centers rely on the pixel-perfect detail of a small pitch LED screen to display critical information around the clock. For auditoriums, exhibition halls, and broadcast sets, an indoor LED video wall provides a scalable, borderless canvas that adapts to any content and any room size—meeting the demanding standards of global enterprises, government agencies, and premium venues alike.

Get a quote Set OEM

Indoor LED display Details

Our indoor LED display combines fine pitch LED display technology with seamless modular design to create a stunning, borderless LED video wall for any professional space. Available from P0.9 to P2.5, this small pitch LED screen delivers ultra-high resolution, vivid color, and wide viewing angles—perfect for close-up clarity. Whether you need an indoor LED video wall for a lobby or a compact conference room LED display for meetings, our screens offer 100,000+ hour reliability, front-service maintenance, and full size customization. Engineered for enterprises, control centers, and premium venues worldwide, it turns any wall into an immersive, high-impact visual experience.

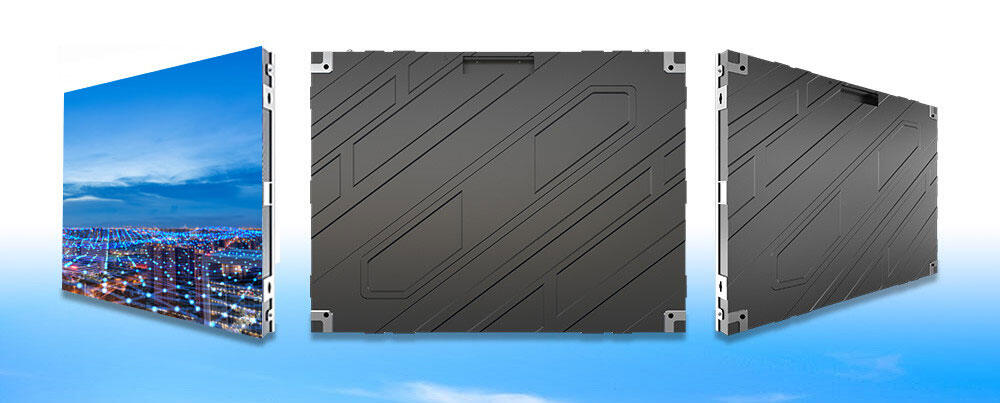

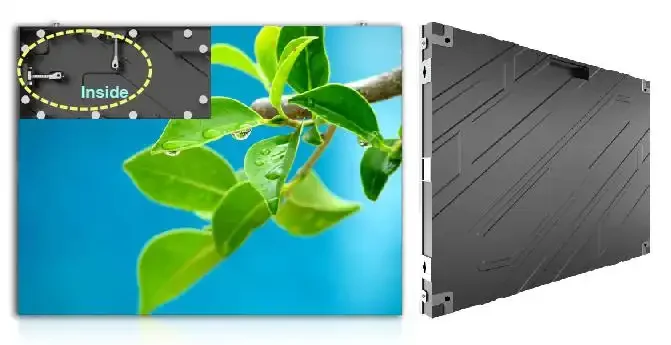

Indoor 640X480mm Front Service LED Display Screen

REISSOPTO product 640×480mm series indoor die-cast magnetic front service HD LED display panel LED video wall for indoor fixed installation applications. fine pixels, perfect desgin, front service for LED power supply, cards and modules, ultra lightweight, die casting aluminum cabinet design

Ultra HD Perfect Picture Quality

REISSOPTO high quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image.

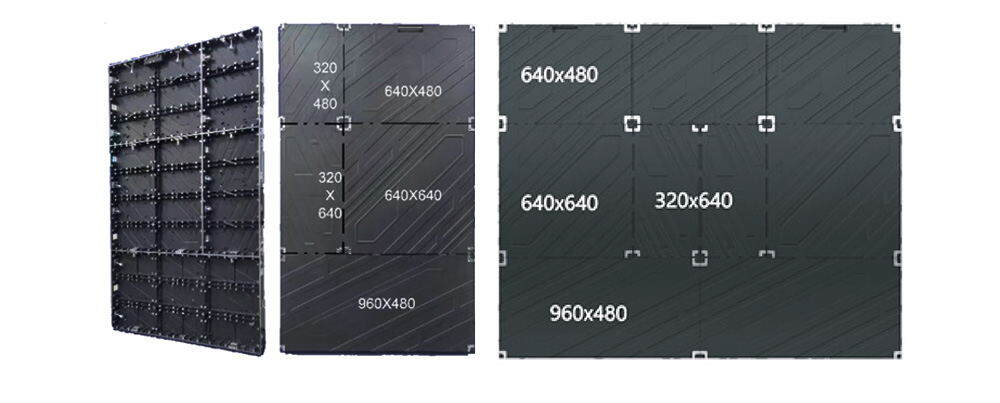

Different sizes of cabinets splicing LED screens to adapt to different size requirements

Indoor full front maintenance different sizes of cabinets: 960*480mm, 640*480mm, 640*640mm, 320*640mm. These different sizes of cabinets can be mixed and spliced to suit different LED screens size requirements.

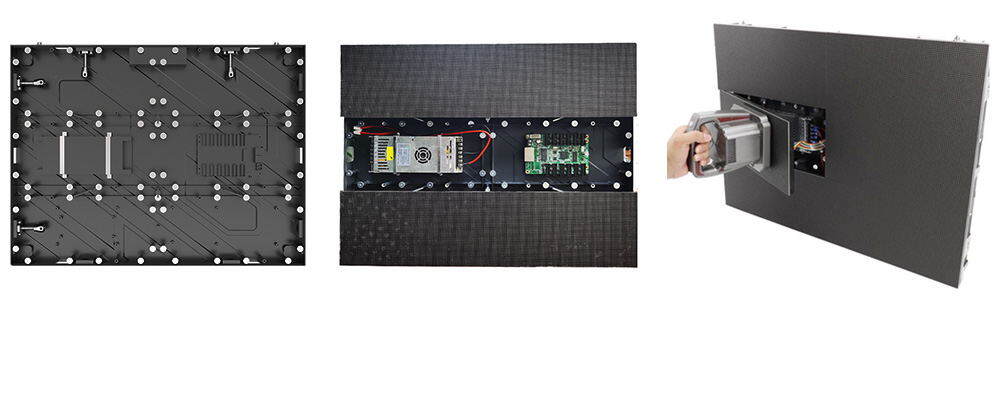

Full Front Maintenance

LED display with frontal service. The magnet lED modules can be removed by tools on the front side for only 5 seconds. easy and convenient, save you cost and labor.

No frame. No seam. Thanks to Die-casting Aluminum design and inner cable connection, alyou need to do is put it on the wall for enjoying the splendid visual feast. Also the dedicatemagnet behind support amazing magnet absorption installation.

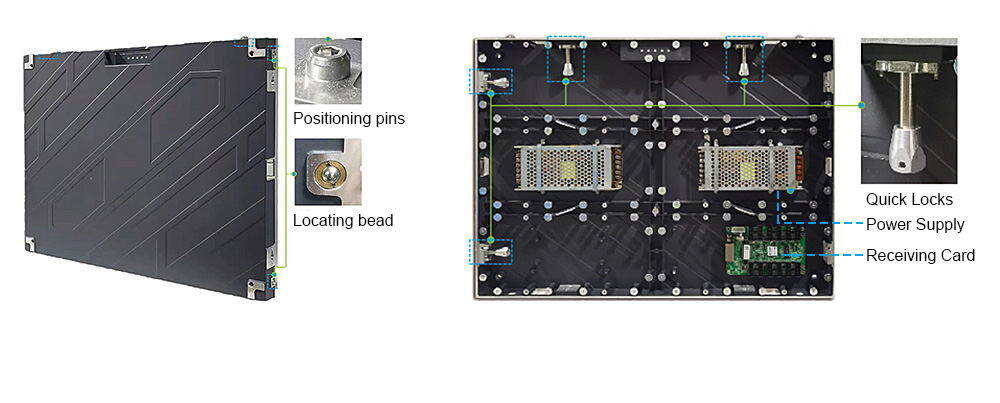

Seamless Splicing, Excellent display experience

REISSOPTO Seamless splicing design with fast locks and simple interna
ectly realizes the splicing of the cabinet. The LED display has no gaps and the LED screen is ultra-high flatness.

LED Display Screen Advantage

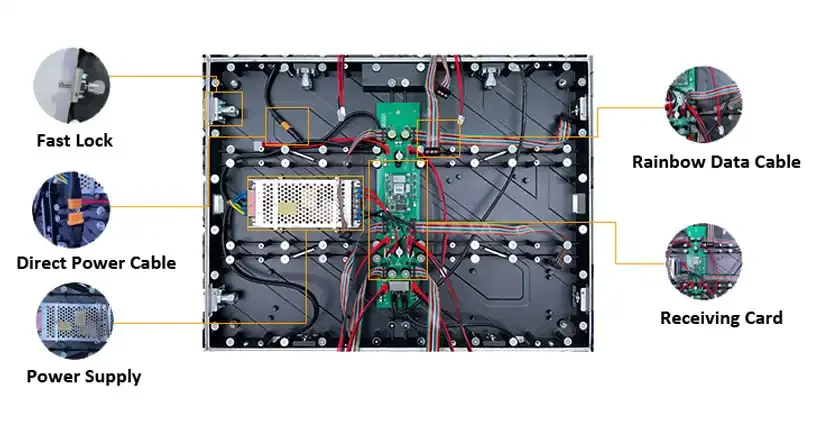

Magnetic suction module front maintenance design Precision die-cast aluminum material, CNC precision machining, ultra-high flatness, the cabinet adopts the front maintenance design, reducing the rear maintenance space, the screen is lighter and thinner, and the module, power supply, and receiving card are all front maintenance.

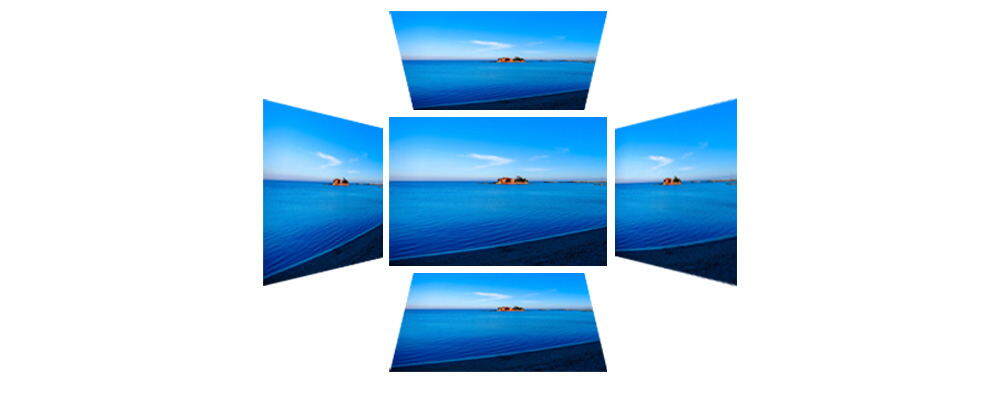

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.

Multiple Installation

Support wall-mounted, frame installation, magnet absorption fast installation and hanging installation. Also, 90 degree splicing is supported to adapt your different demands.

you can doany events with the limited budget.

P2.5 vs Other LED Display Models

Model	Pixel Pitch	Ideal Viewing Distance	Typical Application
P1.8	1.8mm	1.8–3m	Broadcast & XR stage
P2.5	2.5mm	2.5–4m	Indoor fixed installation
P3.9	3.9mm	4–6m	Rental & events
P4.8	4.8mm	5–8m	Large venues & concerts

Installation & Maintenance

The P2.5 LED display supports magnetic front service, lightweight die-cast aluminum cabinets, and modular design — making installation fast and maintenance simple.
Both wall-mounted and hanging structures are supported, adaptable for permanent or temporary use.

Why Choose Reissopto

Reissopto is a professional LED display manufacturer with 15+ years of production experience, offering one-stop solutions including R&D, OEM/ODM, customization, installation, and after-sales support.

Factory-direct pricing with no middleman
Flexible customization (size, brightness, control system)
Professional global support team
Fast delivery and lifetime technical service.

Technical Specifications

The following table shows the detailed technical specifications of the Reissopto indoor LED display. Each parameter is carefully engineered to ensure optimal performance, stability, and visual precision in professional indoor environments such as control rooms, conference halls, and retail spaces.

Indoor LED Display Parameters
Model *For more models, please consult customer service	P1.2	P1.5	P1.6	P1.8	P2	P2.5	P3	P4
Pixel Pitch (mm)	1.25	1.53	1.66	1.86	2	2.5	3	4
Pixel Matrix Per Sq.m	422500	422500	360000	288906	250000	160000	90000	62500
Pixel Configuration	SMD1212	SMD1212	SMD1212	SMD1515	SMD1515	SMD1515	SMD2121	SMD2121
Cabinet Resolution	415x312	415x312	384x288	344x258	320x240	256x192	192x144	160x120
Power Con. (W/㎡) Max / Avg	600W/200W	600W/200W	600W/200W	580W/180W	580W/180W	550W/160W	450W/160W	450W/160W
Refresh Rate (Hz)	≥7680
Brightness (cd/㎡)	650–1500
Module Dimension	320x160mm / 1.05x0.53ft
Cabinet Dimension	640x480mm / 2.10x1.57ft
Cabinet Material	Die Casting Aluminum
Cabinet Weight	4.6KG
Service Access	Front
Grey Scale (bit)	14-22bit
Viewing Angle (H/V)	160°/160°
IP Rating	IP45
Operation Temperature	-20℃ ~ +80℃
Input Voltage (AC)	110V / 220V
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is an indoor LED display and how is it different from an LED video wall?

An indoor LED display is a modular screen built from LED cabinets for indoor environments. When multiple cabinets are tiled seamlessly, they form an LED video wall—delivering one large, borderless image ideal for lobbies, control rooms, and conference room LED display setups.

What pixel pitch should I choose for a fine pitch LED display?

For close-viewing indoor applications, a fine pitch LED display of P0.9–P1.5 is recommended. A small pitch LED screen (P1.5–P2.5) suits meeting rooms and retail, while larger halls can use P2.5 and above without losing clarity.

What viewing distance works best for a small pitch LED screen?

As a rule, the minimum viewing distance (in meters) roughly equals the pixel pitch value. A P1.2 small pitch LED screen looks sharp from about 1.2m, making fine pitch ideal for conference room LED display and command-center use.

Is an indoor LED video wall better than an LCD video wall?

Yes. An indoor LED video wall offers a fully seamless surface with no bezel gaps, higher brightness, wider viewing angles, and flexible sizing—advantages LCD walls cannot match for premium and mission-critical displays.

How long does an indoor LED display last?

A quality indoor LED display delivers 100,000+ hours of operation (10+ years). Front-service maintenance, modular cabinets, and spare parts make repairs fast and keep total cost of ownership low.

Can you customize the size and installation of a conference room LED display?

Absolutely. We tailor resolution, aspect ratio, and mounting—wall-mounted, floor-standing, or embedded—so every fine pitch LED display and conference room LED display fits your space and content perfectly.
