Flexible & Creative LED Displays are innovative indoor display solutions that allow bending, curving, and unique shaping for stunning visual designs in retail spaces, exhibitions, and stage background
Retail Stores: Build creative product display backdrops and attention-grabbing window displays.
Stage Design: Create immersive stage sets with curved LED backdrops.
Museums & Galleries: Design curved exhibition walls for immersive storytelling.

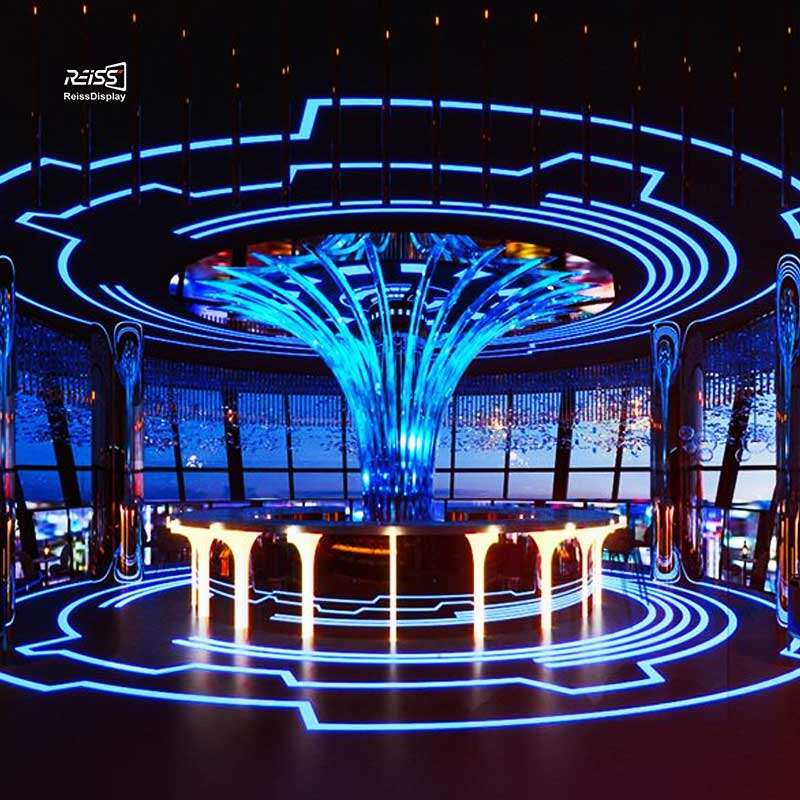

Hotels & Casinos: Add iconic visual elements in lobbies and entertainment areas.
Corporate Spaces: Enhance corporate environments with futuristic architectural displays.
Flexible & Creative LED Displays offer unparalleled freedom for innovative indoor visual designs, enabling businesses to create striking, immersive environments. Whether for retail, exhibitions, or entertainment venues, these displays unlock endless creative possibilities.
For custom design assistance and pricing inquiries, contact our product specialists today.

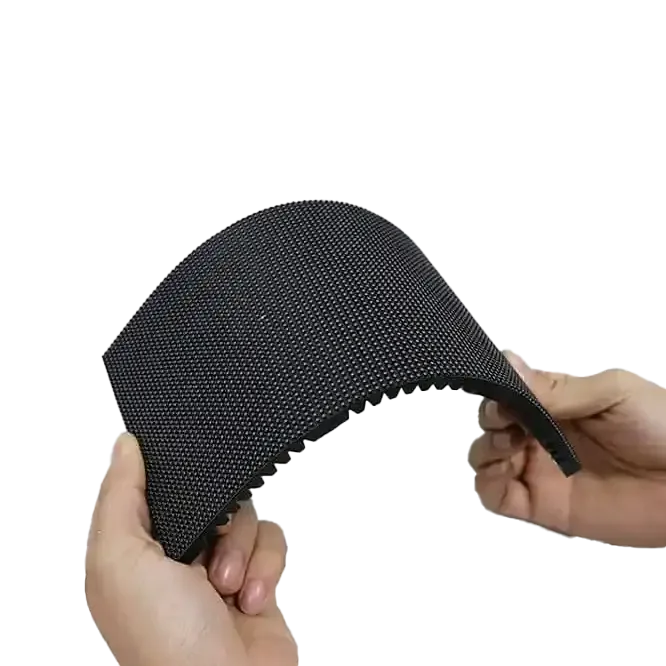

The main feature of Flexible LED Display is that the LED panel is soft, flexible.
indoor fixed LED display fixed LED display, the soft flexible LED panel can be any designed forrolled,
bend and swing to do any shape LED video wall as you want.

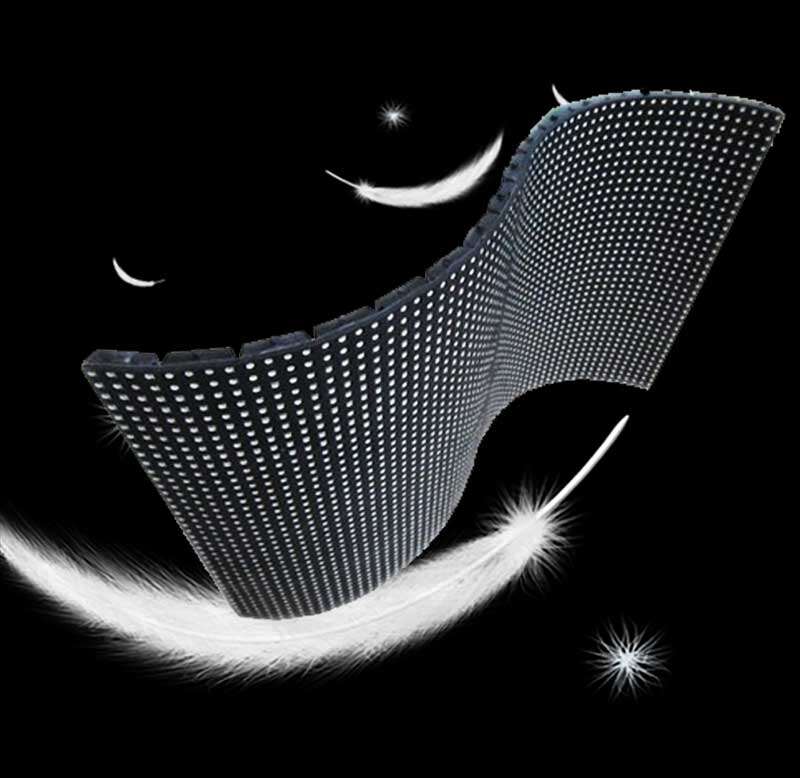

Flexible Soft LED Display module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won’t break LEDs as well design of mask covers.
At present, 240x120mm series, 320x160mm series and 256x128mm series are available.

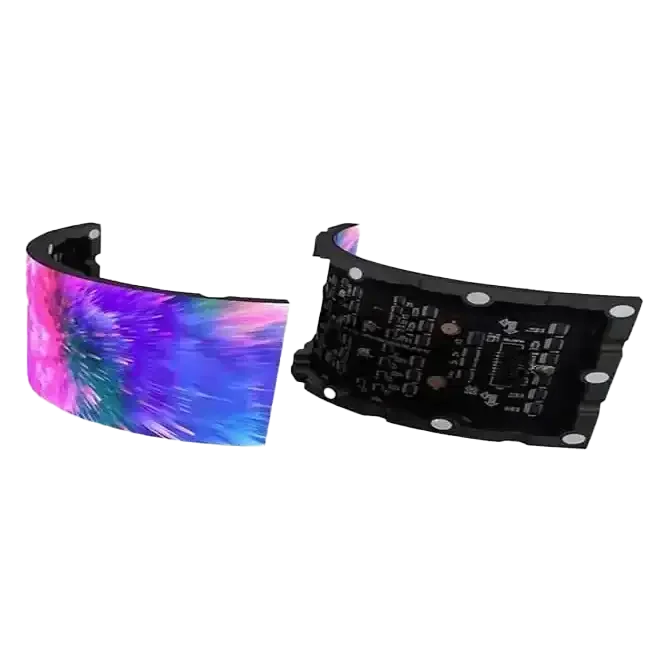

The flexible soft LED display uses a flexible material circuit board, and the mask is made of silica gel.
The module is flexible, and various screen shapes can be customized at will,

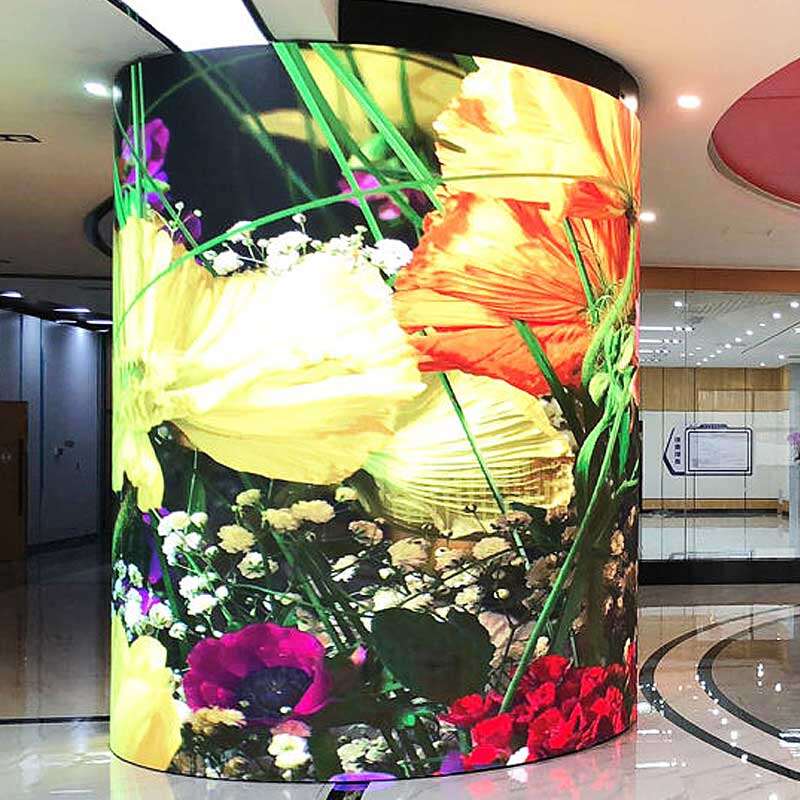

such as cylindrical, arched, wavy, convex, concave etc, to create an amazing and unbelievable viewing effect.

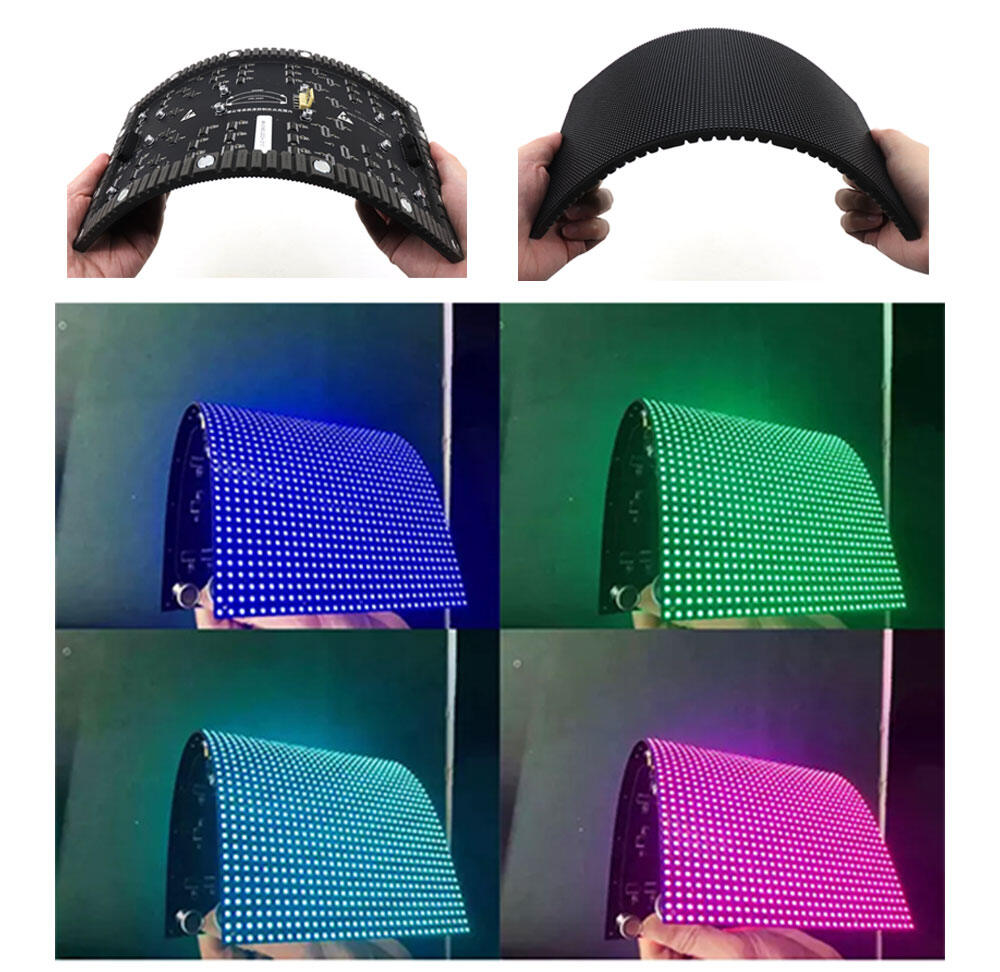

Module’s thickness is only 8.6mm. Ultra-thin design takes up less space.
Soft,thin and light features are suitable to create more curved effects possibilities.

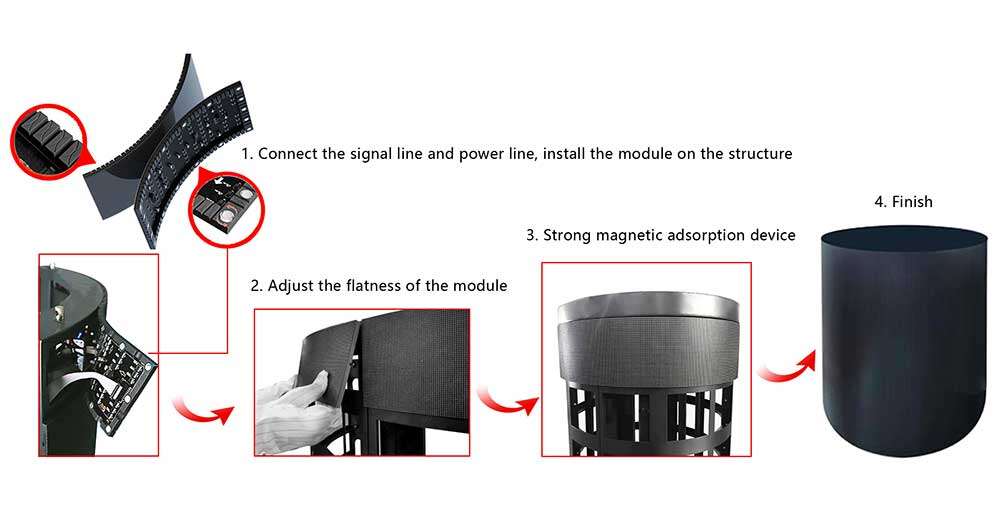

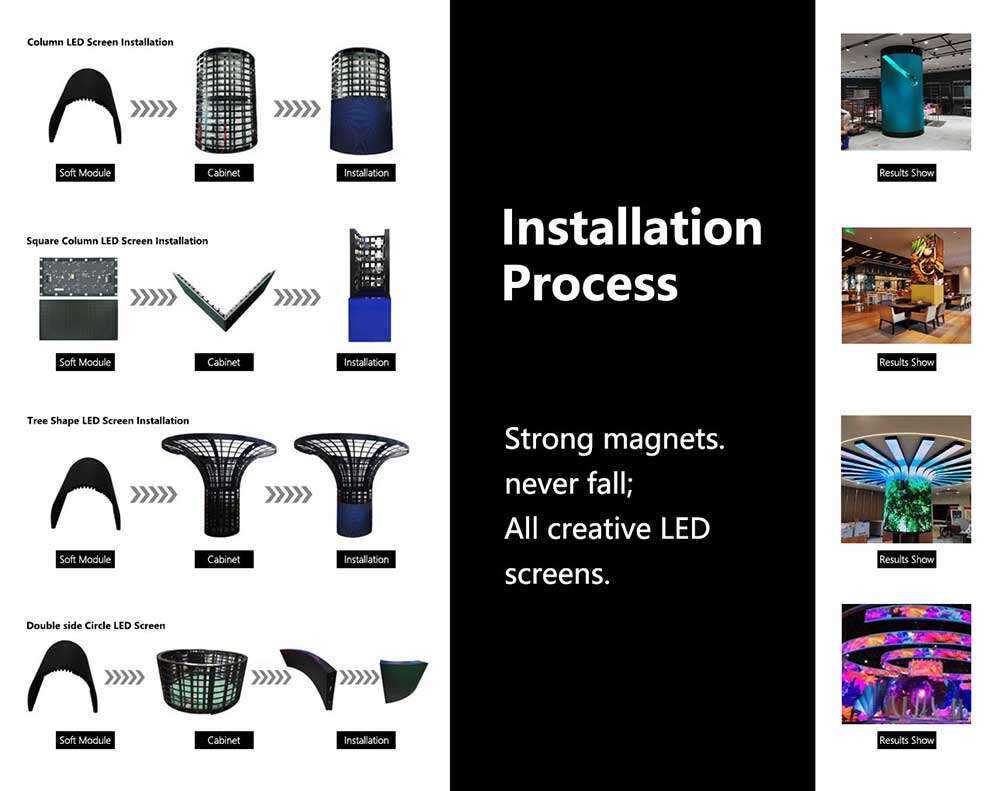

REISSOPTO soft led module series LED display adopts strong magnetic suction assembly design, which can be quickly installed or replaced, precise and seamless, arbitrary splicing, diverse installation, flexible and efficient, meet personalized design.
Thanks to the magnetic design, it can be easily attached to any metal surface/structure, saving frame, space and maintenance costs.
With special tools, front-end maintenance can be completed, which is convenient and quick.
REISSOPTO LED flexible LED screen adopts the latest advanced SMT technology, high-performance IC chip drive, stable quality, high refresh, you will see delicate and soft pictures and get an excellent visual experience.

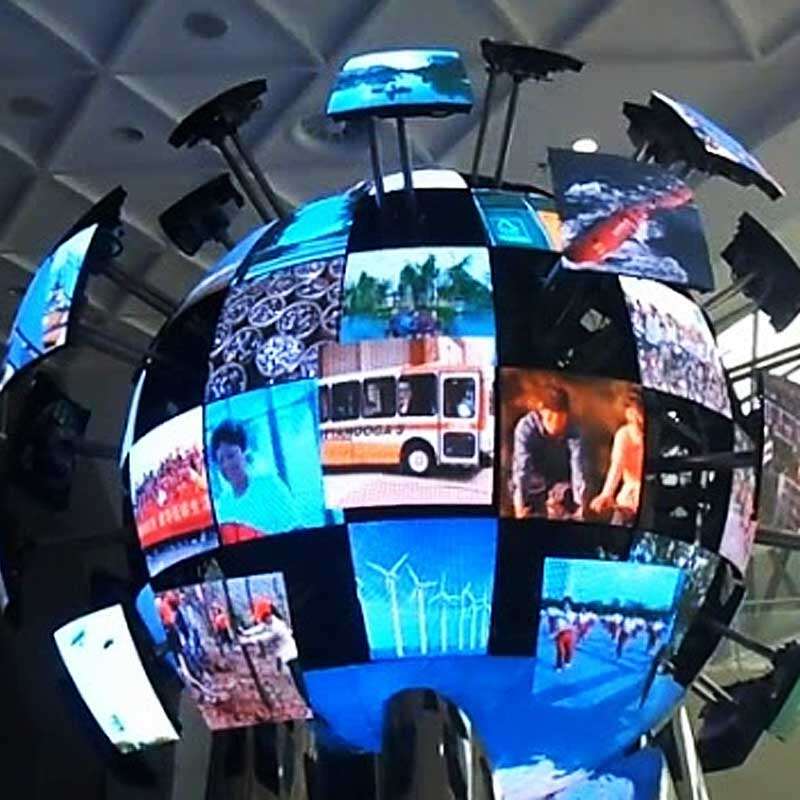

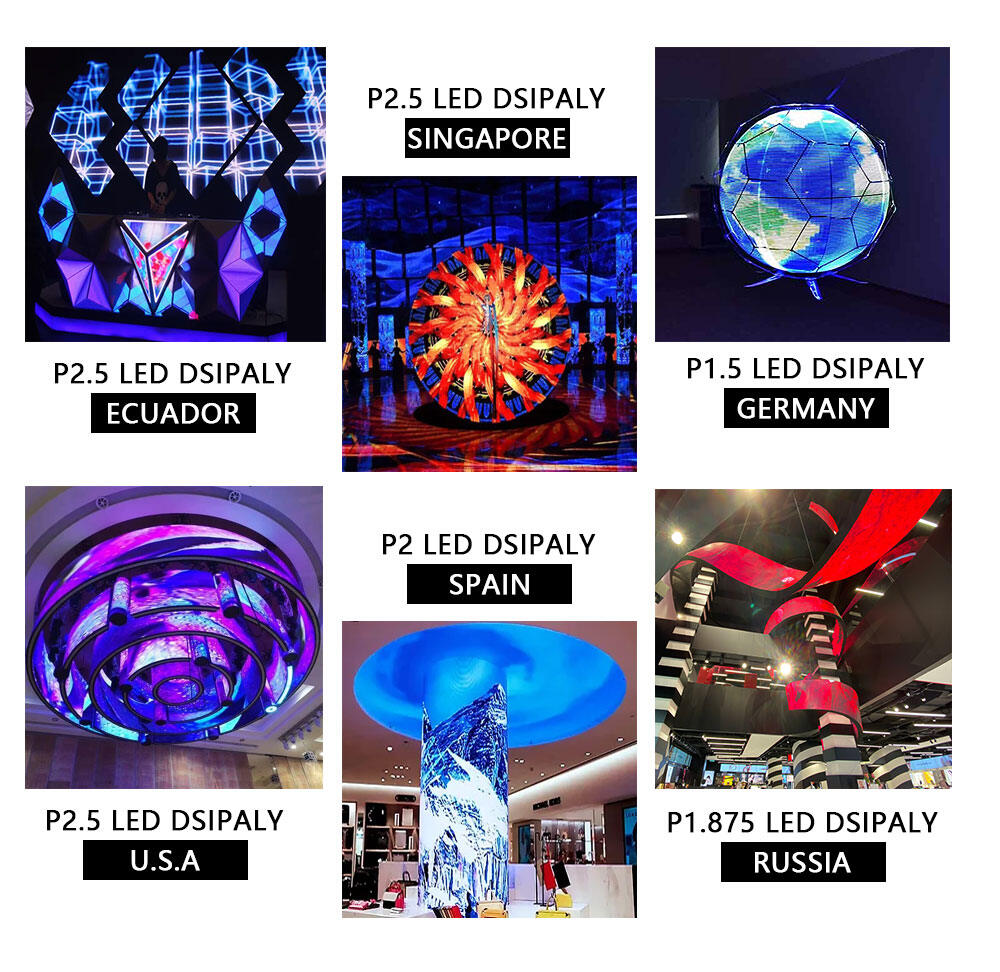

REISSOPTO Indoor Soft Flexible LED Screen Display LED sign can be customized any shape as customer’s need, can be used in various fields and application, such as shpping center, mall, bar, disco, stage, indoor building, outdoor buliding, television, exhibition, show.
Especially for all kinds of irregular buildings, REISSOPTO LED flexible LED screen is suitable very well.
Enables creative architectural designs.
Eliminates the need for rigid frame modifications.
Perfect for high-end, design-focused venues.
Smooth, flexible integration with modern interiors.
Simple, magnetic module design allows easy mounting and disassembly.
Front maintenance supports quick module swapping without dismantling the entire display.
Lightweight construction makes it suitable for suspended applications.
| Pixel Pitch (mm) | P1.56 | P1.667 | P1.875 | P2 (240x120) | P2 (256x128) | P2.5 (240x120) | P2.5 (320x160) | P3 | P3.076 | P4 (240x120) | P4 (256X128) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Brightness (CD/㎡) | ≥800 | ≥800 | ≥1,000 | ≥1,000 | ≥1,000 | ≥800 | ≥800 | ≥1,000 | ≥800 | ≥700 | ≥1,000 | |
| Density (Pixels/㎡) | 410,913 | 359,856 | 284,444 | 250,000 | 249,999 | 160,000 | 160,000 | 111,111 | 105,689 | 62,500 | 62,500 | |
| Driving Mode (Duty) | 1/40 | 1/36 | 1/32 | 1/30 | 1/32 | 1/24 | 1/32 | 1/20 | 1/26 | 1/15 | 1/16 | |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | |
| Gray Grade (Bits) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | |
| Max. Power Consumption (W/㎡) | 150 | 150 | 150 | 150 | 200 | 100 | 200 | 100 | 200 | 450 | 450 | |
| Module Resolution (Pixel) | 160x80 | 144x72 | 128x64 | 120x60 | 128x64 | 96x48 | 128x64 | 80x40 | 104x52 | 60x30 | 64x32 | |
| Module Size (mm) | 250x125 | 240x120 | 240x120 | 240x120 | 256x128 | 240x120 | 320x160 | 240x120 | 320x160 | 240x120 | 256x128 | |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | |
| Pixel Configuration | NationStar Gold Wire SMD1010 | NationStar Gold Wire SMD1010 | NationStar Gold Wire SMD1010 | NationStar Gold Wire SMD1515 | NationStar Gold Wire SMD1515 | NationStar Gold Wire SMD1515 | NationStar Gold Wire SMD1515 | NationStar Gold Wire SMD2020 | NationStar Gold Wire SMD2020 | NationStar Gold Wire SMD2020 | NationStar Gold Wire SMD2020 | |
| Protecting Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | |
| Refresh Frequency (Hz) | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 | ≥3,840 |
No. Flexible LED Displays are primarily designed for indoor environments where protection from weather conditions is not required.
The achievable curvature depends on the specific model, with some models supporting radii as tight as 240mm.
Yes. These displays can be fully customized to meet your project's design and dimensional requirements.
Typically, these displays have a lifespan of 50,000 to 100,000 hours under normal operating conditions.
If you are interested in our products, please contact us promptly
Reach out to our sales team to explore customized solutions that perfectly meet your business needs and address any questions you may have.
Email Address:info@reissopto.comFactory Address:Building 6, Huike Flat Panel Display Industrial Park, No. 1, Gongye 2nd Road, Shiyan Shilong Community, Bao'an District, Shenzhen city , China
whatsapp:+86177 4857 4559
