P4 Indoor LED Screen | Fine Pixel Pitch, High Brightness Display

IF-H Series

Product Information

Series: IF-H Series

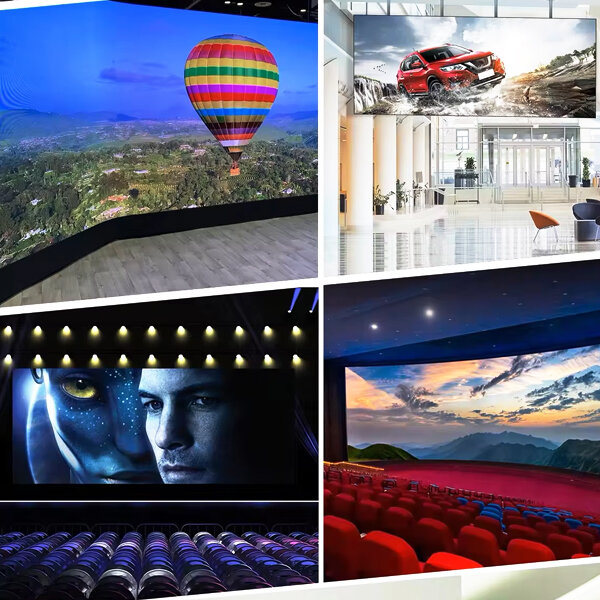

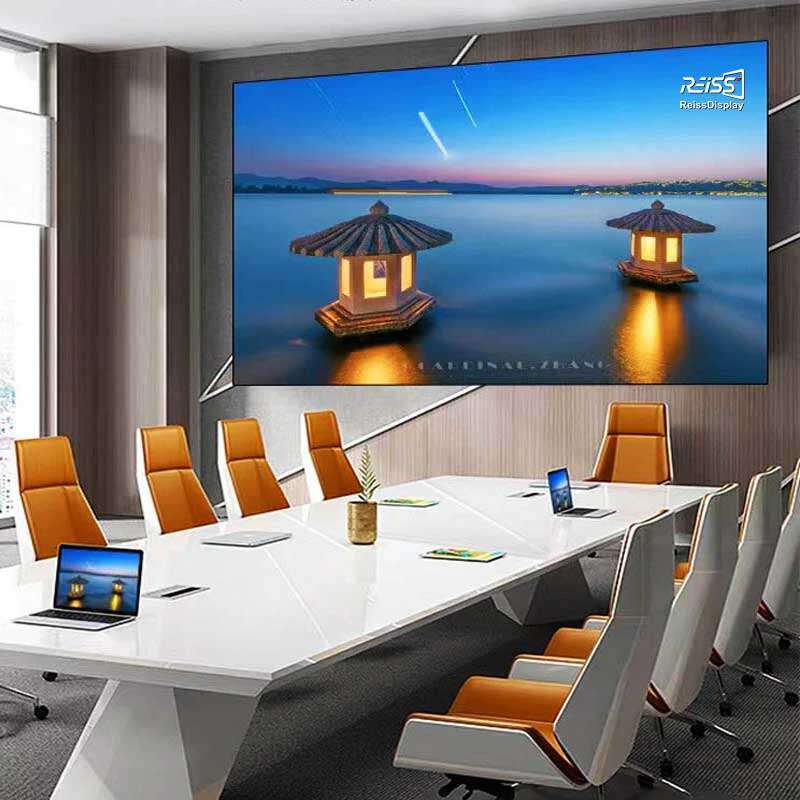

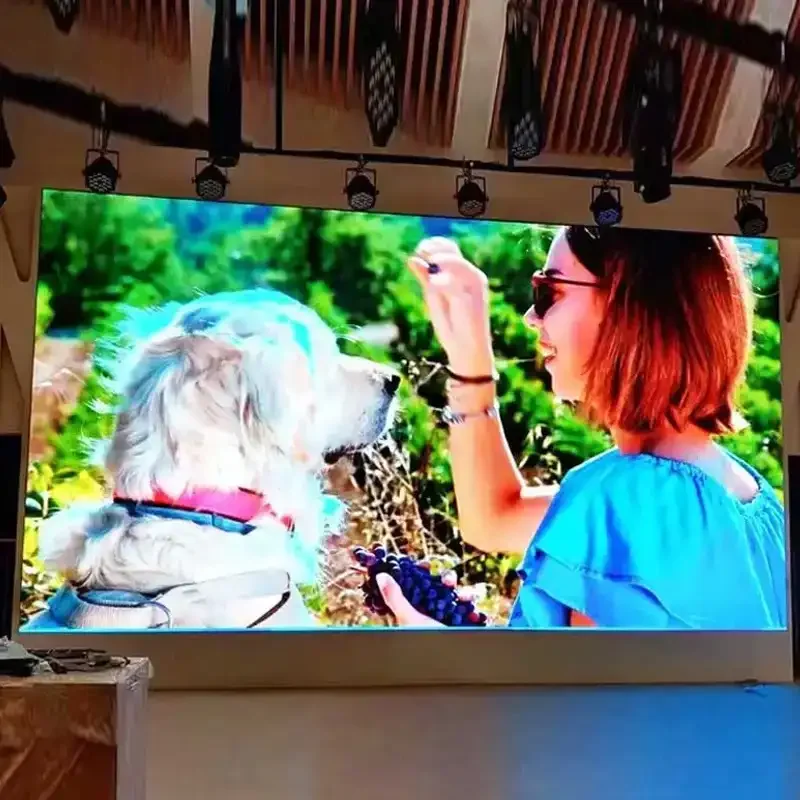

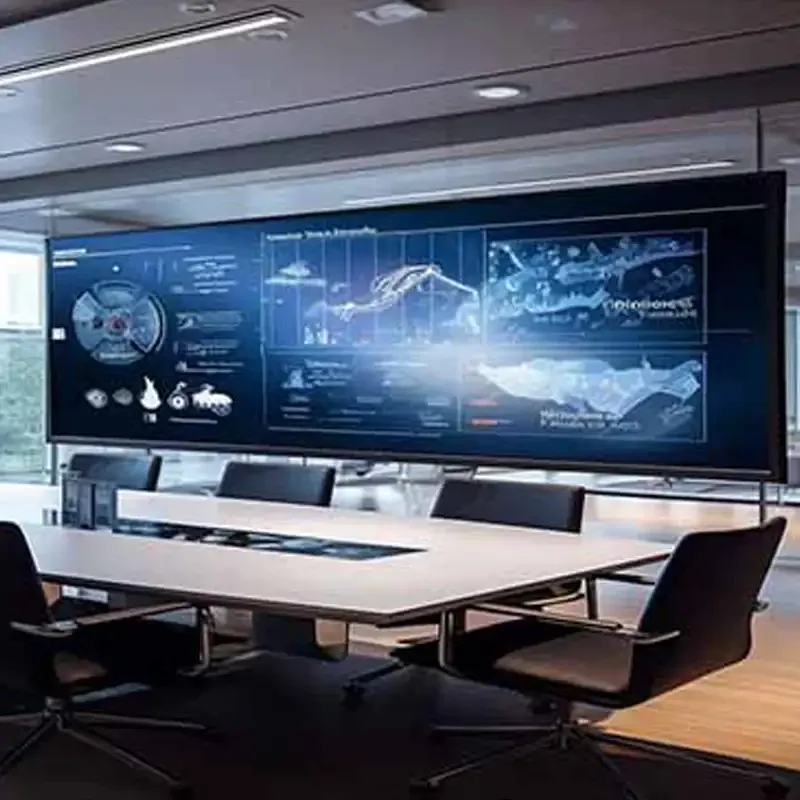

P4 indoor LED screens are widely deployed across global markets for both commercial and professional applications. In North America and Europe, they are commonly used in corporate meeting rooms, control rooms, broadcast studios and retail flagship stores. In the Middle East and Asia-Pacific, they power shopping malls, hotel lobbies, airports and exhibition halls. Typical use cases include digital signage, brand advertising, video conferencing, live events, product launches and wayfinding. Whether for a small conference wall or a large-scale indoor LED video wall, the P4 offers flexible, customizable sizing to fit any indoor space and viewing requirement.

Get a quote Set OEM

Indoor LED display - Product Details

What is a P4 Indoor LED Screen with Small Pitch and High Brightness?

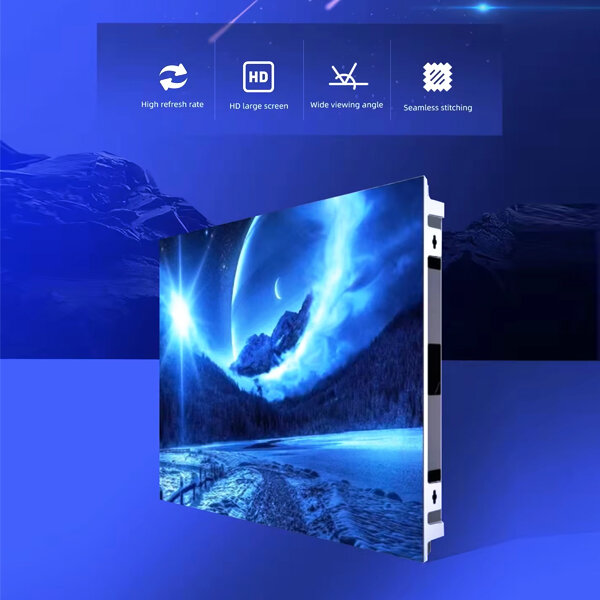

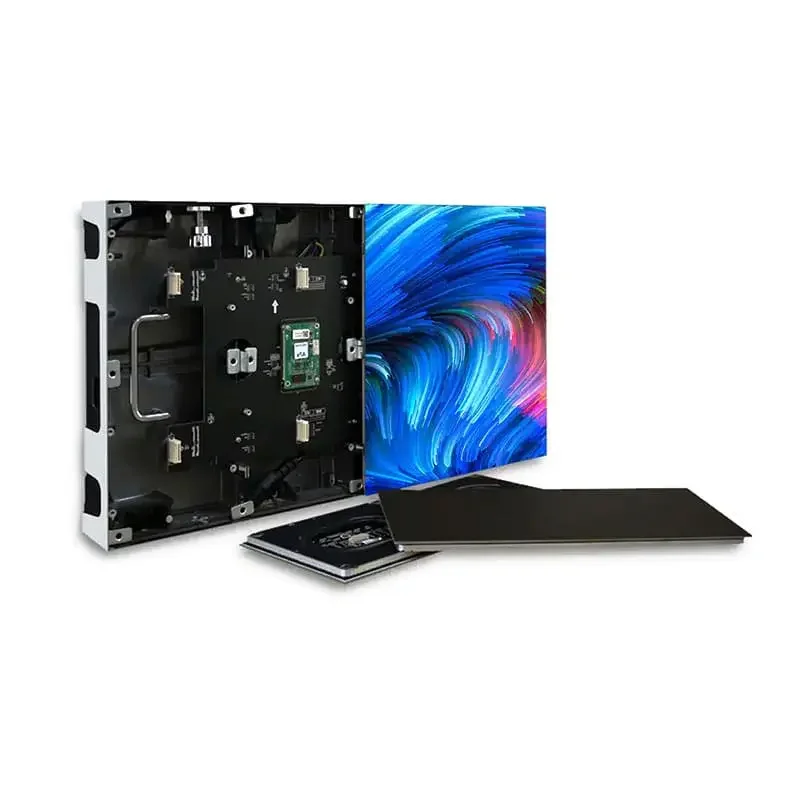

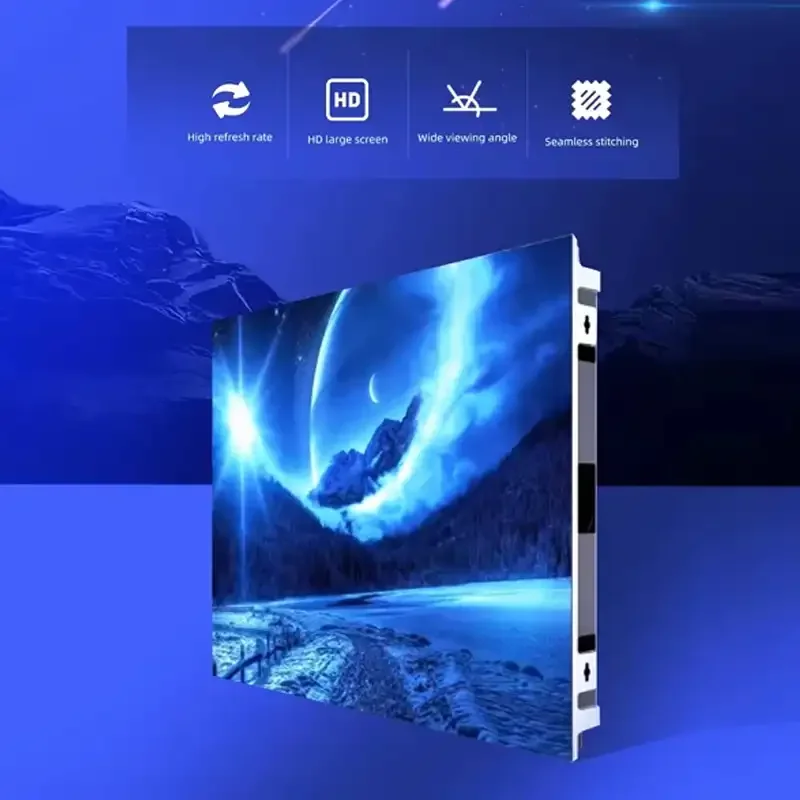

A P4 indoor LED screen is a fine-pitch LED display with a 4mm pixel pitch and about 62,500 dots per square meter, delivering sharp, seamless images at indoor viewing distances of 4 meters and beyond. With 1000–1200 nit brightness, a 160° viewing angle and a refresh rate of ≥3840Hz, it stays clear and flicker-free on camera and under bright lighting. The die-cast aluminum cabinet supports front maintenance and wall mounting, enabling fast, bezel-free installation. As a cost-effective indoor LED video wall, the P4 balances resolution, brightness and price for professional display projects.

Product Features & Advantages

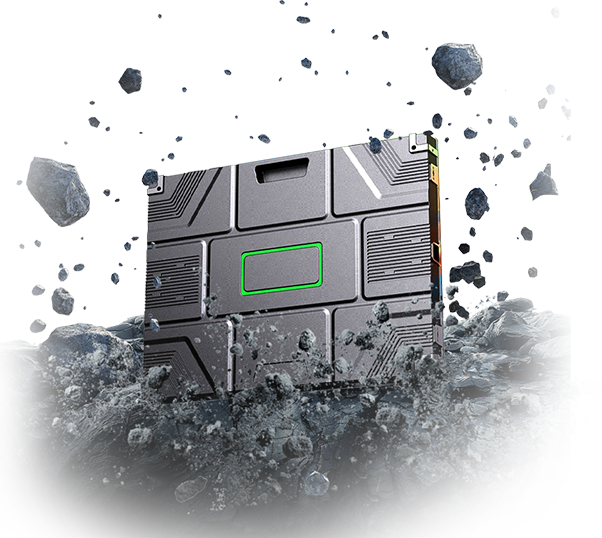

Unique Cabinet Craftsmanship: Lightweight Design

Adopting CNC finishing die-casting aluminum cabinet, high precision, ultra-thin and light, occupies less space, supports wall mounting, no need to reserve maintenance channel, the cabinet supports front maintenance, supports a variety of mounting methods, installation and maintenance is more convenient, seamless splicing, fast installation.

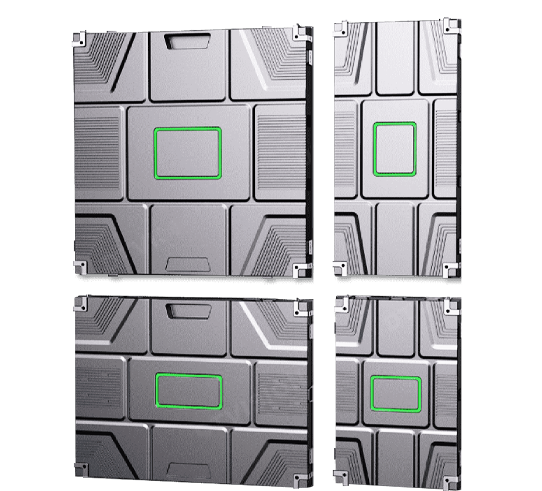

Diverse Panels Size Customization

Based on the standard 640*480mm panel size, there are more panel sizes 640*640mm, 320*640mm, and 320*480mm for option, which can meet the needs of flexible sizes splicing.

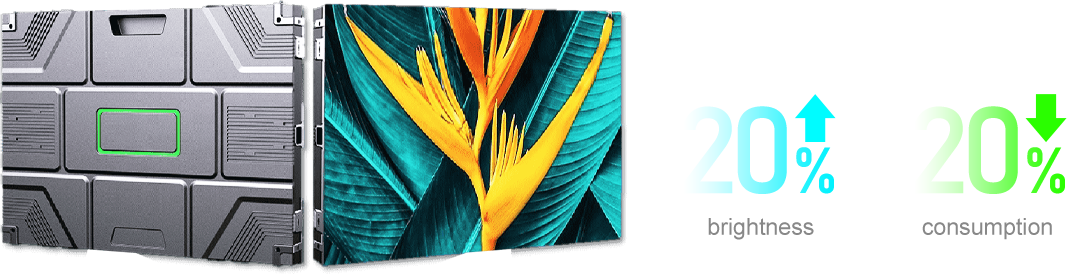

Energy Saving Technology

With high brightness and low energy consumption, it can increase brightness by 20% or decrease consumption by 20% for better heat dissipation and contrast.

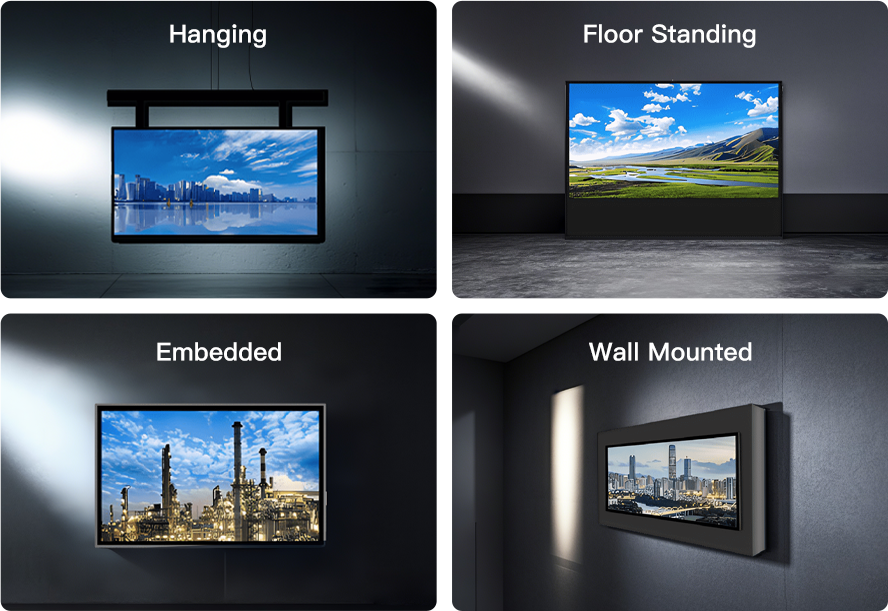

Multiple Installation Methods

Provide Customers with Various Option :

- Hanging

- Floor Standing

- Embedded

- Wall Mounted

Product Specifications

Indoor LED Screen Parameters
Model *For more models, please consult customer service	P3	P4	P5
Pixel Pitch (mm)	3.0	4.0	5.0
Operating Environment	Indoor
Module Size (mm)	320 × 160
Cabinet Size (mm)	640 × 480 × 48	640 × 640 × 48	640 × 640 × 48
Cabinet Resolution (W×H)	256 × 256
IP Rating	Front IP33, Rear IP33
Weight (kg/cabinet)	6.5
White Balance Brightness (nit)	800–1000	1000–1200	1000–1200
Viewing Angle (°)	160 (H/V)
Power Consumption (W/㎡)	450±15% / 150±15%
Refresh Rate (Hz)	≥3840
Control System	NovaStar
Certifications	CE, FCC, ETL
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is an LED screen indoor display?

An LED screen indoor display is a digital LED display designed for indoor spaces such as meeting rooms, retail stores, shopping malls, hotels, churches, schools, airports, exhibition halls, and corporate showrooms. It provides seamless images, vivid colors, high brightness, and flexible screen sizes for advertising, presentations, branding, and information display.

What are the main advantages of an LED screen indoor solution?

An LED screen indoor solution offers seamless splicing, high resolution, wide viewing angles, high refresh rate, vivid color performance, flexible installation, and long service life. Compared with LCD video walls, indoor LED screens can create a bezel-free large display with stronger visual impact and better customization options.

Where can an LED screen indoor display be used?

An LED screen indoor display can be used in conference rooms, control rooms, retail stores, shopping centers, airports, hotels, museums, exhibition halls, broadcast studios, command centers, schools, churches, restaurants, and corporate lobbies. It is suitable for product promotion, video playback, live events, digital signage, wayfinding, and business presentations.

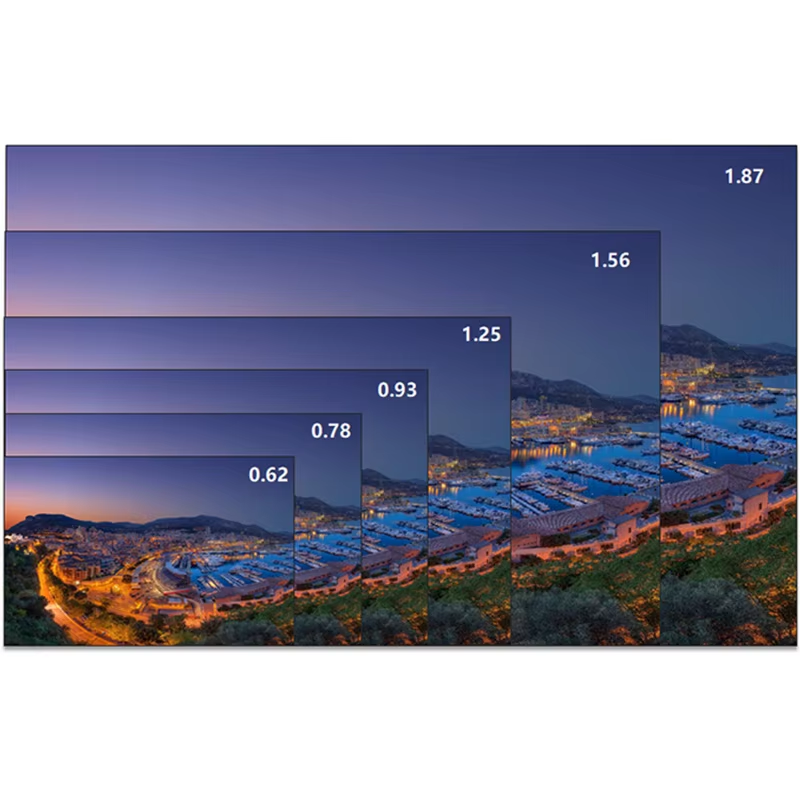

What pixel pitch should I choose for an LED screen indoor display?

The right pixel pitch for an LED screen indoor display depends on the viewing distance, screen size, resolution requirement, and budget. Common indoor LED pixel pitches include P0.9, P1.2, P1.5, P1.8, P2.5, P3, and P4. For close viewing, a smaller pixel pitch provides sharper details, while a larger pixel pitch is more cost-effective for longer viewing distances.

Is an LED screen indoor display suitable for advertising and presentations?

Yes. An LED screen indoor display is highly suitable for advertising, presentations, video conferences, product launches, brand promotion, information display, and immersive visual experiences. It can show videos, images, text, live feeds, and dynamic content with strong visual performance and flexible content management.

How do I choose the right LED screen indoor display?

To choose the right LED screen indoor display, consider screen size, viewing distance, pixel pitch, brightness, refresh rate, contrast ratio, installation method, maintenance access, control system, content type, and project budget. A suitable indoor LED screen should provide clear image quality, stable operation, easy maintenance, and long-term value for your application.
