P1.9 LED Screen | Ultra-Fine Pitch Indoor LED Display

Name: P1.9 LED Screen | Ultra-Fine Pitch Indoor LED Display
Brand: REISSOPTO
SKU: SKU-3
Availability: InStock

IXR -V Series

Ultra-fine pitch LED screens are ideal for executive meeting rooms, command centers, broadcast studios, XR virtual production, corporate showrooms, luxury retail stores, financial data centers, education spaces, medical research centers, and high-end private theaters. With ultra-high resolution, seamless image quality, close-viewing clarity, accurate color reproduction, and stable long-term performance, they deliver a premium visual experience for professional indoor applications.

Get a quote Set OEM

Indoor LED display Details

What is a P1.9 Ultra-fine Pitch LED Screen Indoor?

The P1.9 ultra-fine pitch indoor LED screen is a high-resolution display designed to deliver sharp, detailed images with excellent color accuracy and smooth gradients. Its fine pixel pitch ensures crisp visuals, even at close viewing distances, providing a seamless and immersive viewing experience.

Built with advanced LED technology, this display offers uniform brightness, wide viewing angles, and consistent color reproduction across the entire screen. Its modular design allows for easy installation and maintenance, while energy-efficient components ensure reliable and long-lasting performance in indoor environments.

Meticulously Crafted for Visual Excellence

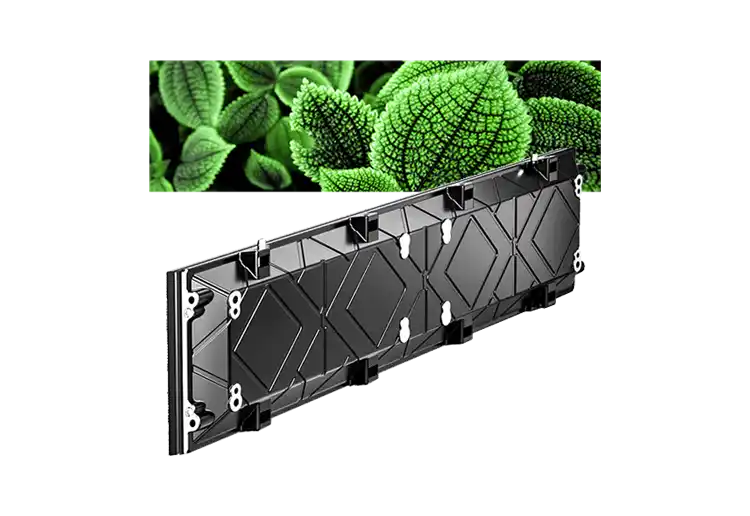

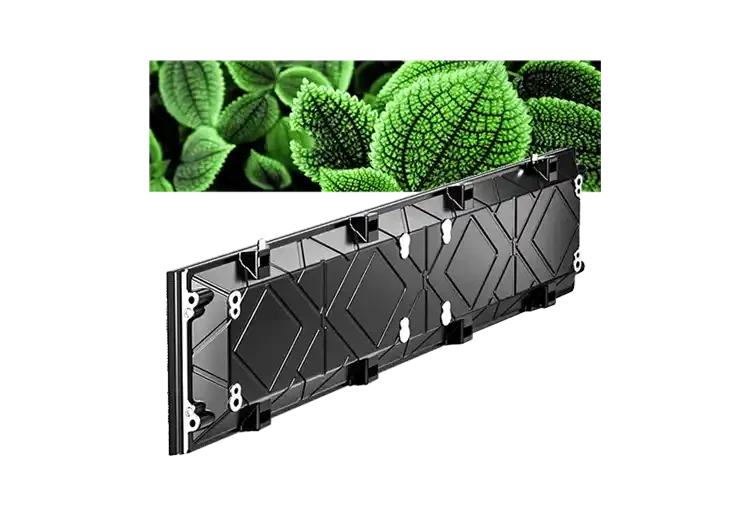

Boasting a sleek and streamlined design, ReissOpto LED displays are engineered with precision. The die -cast aluminum cabinets prioritize lightweight construction, optimizing both space and mobility.

Designed for long-lasting performance, these panels achieve an impressive MTBF (Mean Time Between Failures) of 10,000 hours or more. Through advanced pixel-by-pixel brightness and color correction, we ensure unparalleled uniformity across the entire display.

Leveraging cutting-edge SMD (Surface Mount Device) technology, each lamp incorporates three LED chips. This innovative approach delivers superior color uniformity compared to traditional DLP (Digital Light Processing) solutions, elevating the overall visual experience.

Whether your needs are for large-scale events or captivating commercial spaces, our exquisitely crafted LED displays will leave a lasting impression. Discover the exceptional quality and performance that comes from meticulous design and engineering.

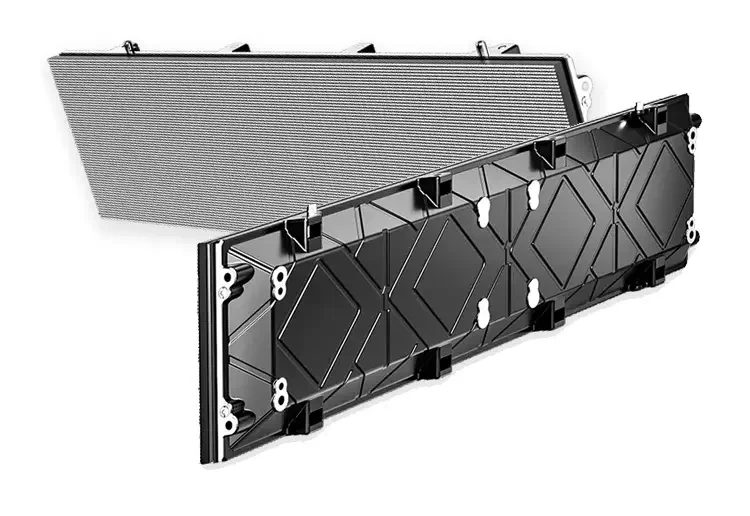

Indoor Fixed Frontal Service LED Display

LED Fixed Screen

– Cabinet Size：250*500mm/250*750mm/250*1000mm/500*500mm/500*1000mm
– Module size: 250x250mm
– Pixel Pitch:1.9mm;2.6mm;2.9mm;3.91mm;4.81mm
– High Video Contrast
– Wide Viewing Angle
– Vhite balance brightness: 800-1500 nits
– Input AC100-240V 50/60HZ
– Maintenance Method: Front maintenance
– Material:Die-cast aluminum
– Usage:Indoor
– Fast Installation
– Wall-mounted/Hanging/Stack Installation

Indoor Fixed Frontal Service LED Display - IXR -V Series

2-Way Access

Excellent Performance

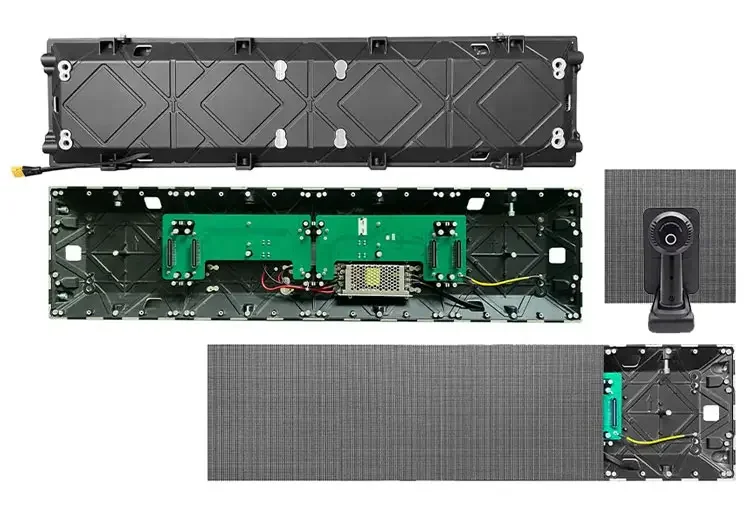

The long LED cabinet can be accessed from the front of the body. All cables, power supplies, control cards, hub cards and other electronic components can be removed from the front and back. You can easily replace new parts and save a lot of time.
Rich colour & vivid displays – up to 16bit grey level
New viewing angle experience, High contrast ratio; High consistency; Elimination of afterimage shadow circuit design; No ghosting, no trailing when dynamic;

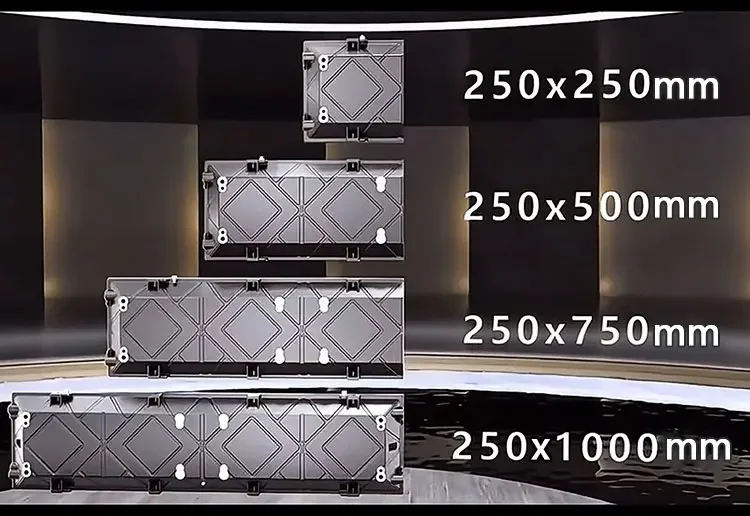

Cabinet Optional

250*500mm/250*750mm/250*1000mm/500*500mm/500*1000mm

High Definition LED Display

ReissDisplay common cathode technology, improved brightness and better heat dissipation

· Uses high brightness matte black LEDs, guaranteeing low
attenuation, high reliability, good consistency and superior
weather resistance.
· With a high contrast ratio 5000:1, provides exceptionally vivid
images.

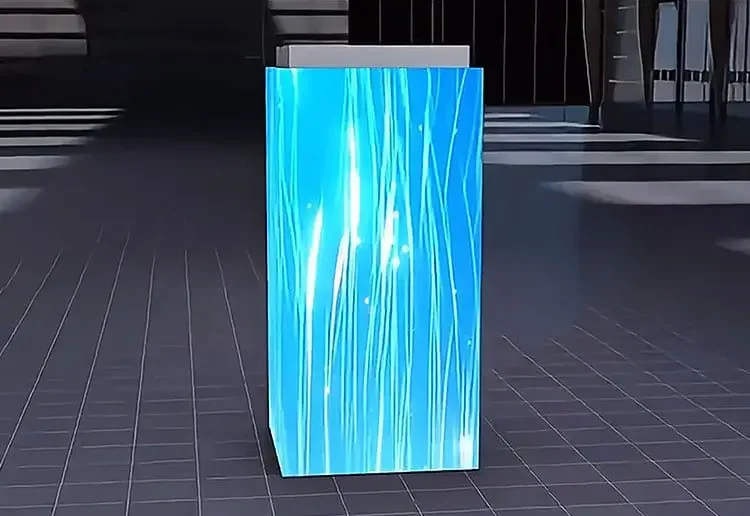

Multiple creative installations

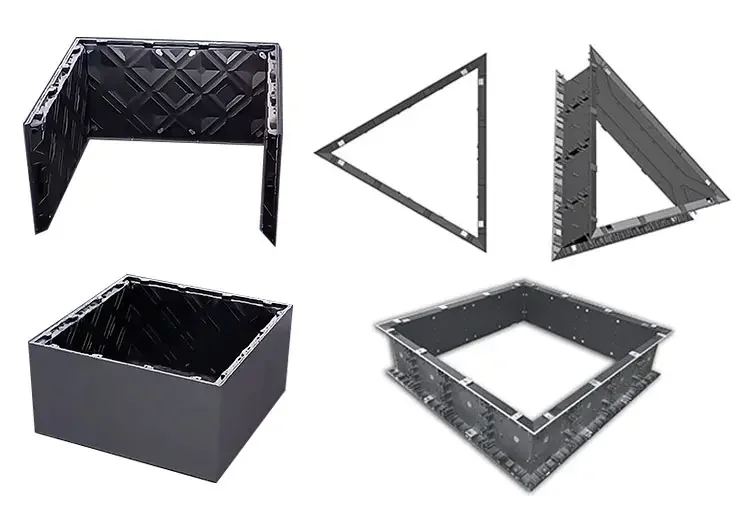

Customized cut-edge panels

Customized cut-edge panels, which can be connected into creative shapes such as triangles and squares, help create memorable and effective LED display projects.

Multiple creative installations - IXR -V Series

Best Image Quality

Pixel-to-pixel 4K 8K and FHD resolution

HDR image algorithm technology provides optimal peak brightness and contrast for each frame of the image to display realistic images and stunning visual effects.
Wider viewing angle reaches 160 degrees horizontally and 160 degrees vertically.

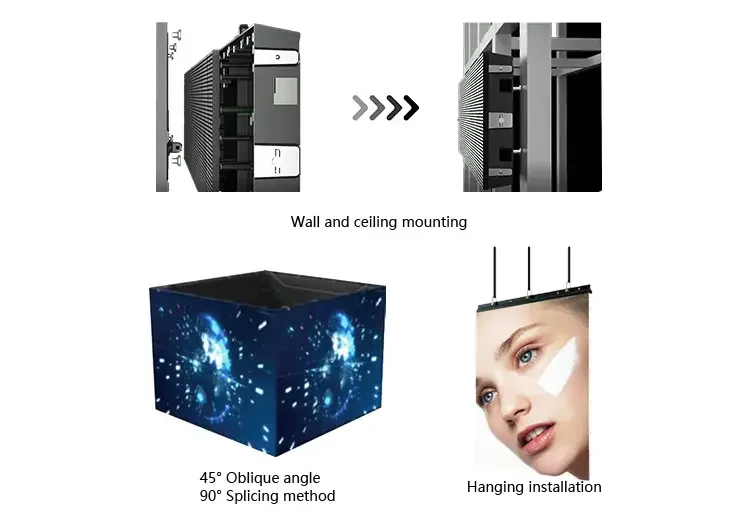

Convenient Installation

Various installation methods

Front maintenance LED modules can be fixed to the cabinet structure with simple tools.
There are no screws between the LED module and the cabinet, making the disassembly and assembly process very simple.
It only takes a few seconds to remove the LED module from the cabinet, greatly improving work efficiency
Various installation methods; optional applications; wall-mounted, suspended and ceiling mounted; seamless right-angle installation.

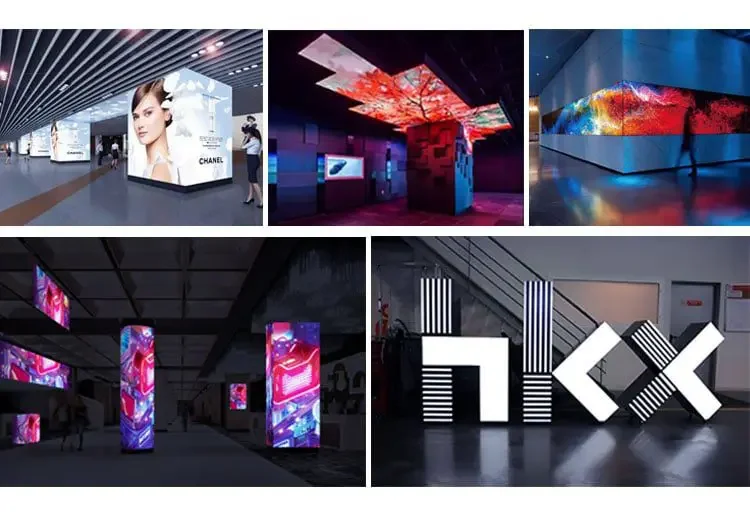

Typical Applications

Seamless Cabling for Stability and Aesthetics

The ultra-thin 4K/8K LED display is usually installed in: conference rooms; TV studios; convention centers; shopping malls; airports.

Specifications

P1.9 Ultra-Fine Pitch Indoor LED Screen Parameters
Model *For more models, please consult customer service	P1.953	P2.604	P2.976	P3.91	P4.81
Pixel Pitch (mm)	1.953	2.604	2.976	3.91	4.81
Pixel Density (dot/m²)	262,144	147,456	112,896	65,536	43,264
LED Type	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Module Size (mm)	250×250
Cabinet Size (mm)	1,000×250×40	1,000×250×40	1,000×250×40	1,000×250×40	1,000×250×40
Cabinet Size (mm)	750×250×40	750×250×40	750×250×40	750×250×40	750×250×40
Cabinet Weight (kg)	5.2	5.2	5.2	5.2	5.2
Cabinet Weight (kg)	4	4	4	4	4
Cabinet Resolution (px×px)	512×128	384×96	336×84	256×64	208×52
Cabinet Resolution (px×px)	384×128	288×96	252×84	192×64	156×52
Maintenance Way	Front & Rear
Viewing Angle (H/V)	140°/140°
Brightness (cd/m²)	>800 nits indoor / >4500 nits outdoor
Gray Scale	16–22 bit
Refresh Rate	3,840 Hz / 7,680 Hz
Scan Way	1/32	1/32	1/28	1/16	1/13
Max/Ave Power Consumption	680 / 230 W/m²
Input Voltage	AC 100–240V
Ingress Protection	indoor IP45 /outdoor IP65
Working Environment	Indoor / outdoor
Life Span	>100,000 hours
MTBF	>10,000 hours
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is the pixel density of the P1.9 ultra-fine pitch LED screen?

The P1.9 ultra-fine pitch LED screen (P1.953) delivers a pixel density of 262,144 dots/m², using SMD1515 lamps on a 250×250mm module. This ultra-high density produces razor-sharp text, smooth gradients and detailed 4K/8K content that stays crisp even at close viewing distances

What is the best viewing distance for a P1.9 LED screen?

The recommended minimum viewing distance for a P1.9 LED screen is around 1.9 meters, and it stays sharp from roughly 2–6 meters. This makes it ideal for indoor spaces where audiences sit or stand close to the display, such as meeting rooms, control rooms and broadcast studios.

What cabinet sizes are available for the P1.9 LED screen?

The P1.9 LED screen uses lightweight die-cast aluminum cabinets in 1,000×250×40mm and 750×250×40mm, weighing about 5.2kg and 4kg respectively. The slim 40mm depth and standard module design allow fast installation and flexible screen sizes for wall-mounted, hanging or stacked setups.

What are the brightness and grayscale specifications of the P1.9 LED screen?

The P1.9 LED screen offers 1,000 nits brightness, 16–22 bit grayscale, a 3,840Hz/7,680Hz refresh rate and a 140°/140° viewing angle. This combination ensures flicker-free capture on camera, vivid color reproduction and stable image quality for studios and control centers.

Where is the P1.9 ultra-fine pitch LED screen used?

The P1.9 ultra-fine pitch LED screen is widely used in executive meeting rooms, command and control centers, TV and broadcast studios, XR virtual production, corporate showrooms and luxury retail. Its close-view clarity and seamless splicing make it a premium choice for data visualization and high-end digital signage.

How is the P1.9 LED screen maintained?

The P1.9 LED screen supports both front and rear maintenance, and modules can be removed in seconds without screws using simple tools. With an MTBF of over 10,000 hours and a lifespan exceeding 100,000 hours, it minimizes downtime and lowers long-term maintenance costs.
