P2.5 Stage LED Display Screen for Indoor Events and Live Shows

T Series

Seamless stitching, vibrant colors, and smooth performance for close viewing.

Widely used in indoor stages for concerts, conferences, exhibitions, weddings.

Get a quote Set OEM

Rental LED display Details

What Is a P2.5 Stage LED Display Screen?

A P2.5 stage LED display screen refers to an LED panel with a pixel pitch of 2.5mm, meaning the distance between each pixel is 2.5 millimeters. This relatively fine pixel pitch allows for high-definition visual performance, especially suitable for close viewing distances typically found in indoor stage environments.

These screens are made up of multiple LED modules seamlessly spliced together to form a large, unified display. Controlled by specialized software and hardware systems, P2.5 LED screens are capable of delivering synchronized, dynamic content including video, graphics, and real-time feeds to support various event and production needs.

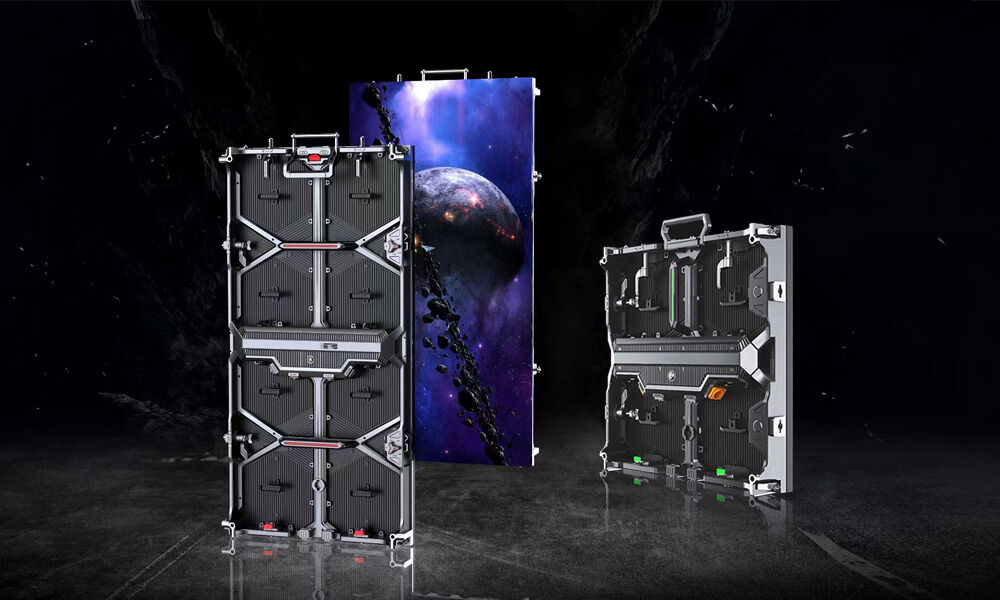

High Performance Rental Solution for Events LED Visuals

T series curved rental LED display is a high=end rental LED screen, crafted to deliver exceptional visual performance for a variety of events. This series is characterized by its advanced curved lock mechanism, offering a flexible installation.

It is purposefully designed for rental applications, making it an ideal choice for stages, churches, weddings, music festivals, and other significant events. Its design emphasizes flexibility and ease of use, ensuring that it meets the diverse needs of event organizers.

500×500/1000mm cabinet standard Size
Dual maintenance front and rear serviceable way.

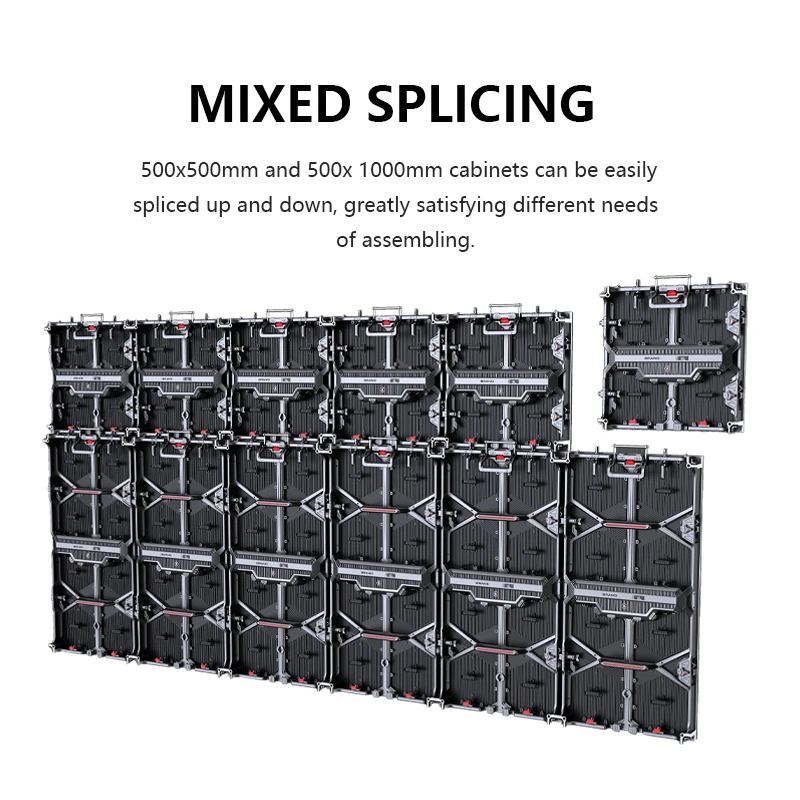

Support mixed installation,
High-precision die-casting aluminum panel design.
SMD 3in1 Full color LED encapsulation.
Ultra Lightweight Cabinet for easy transmission and portable.
Fan-free design, good heat dissipation.
Energy efficient, waterproof grade IP65.
Seamless splicing, better flatness.

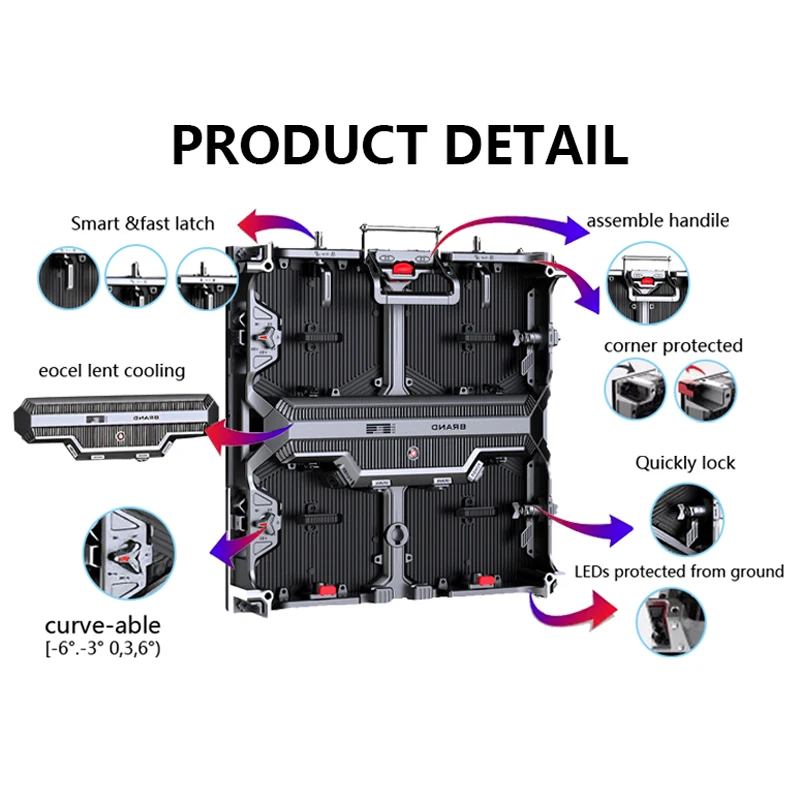

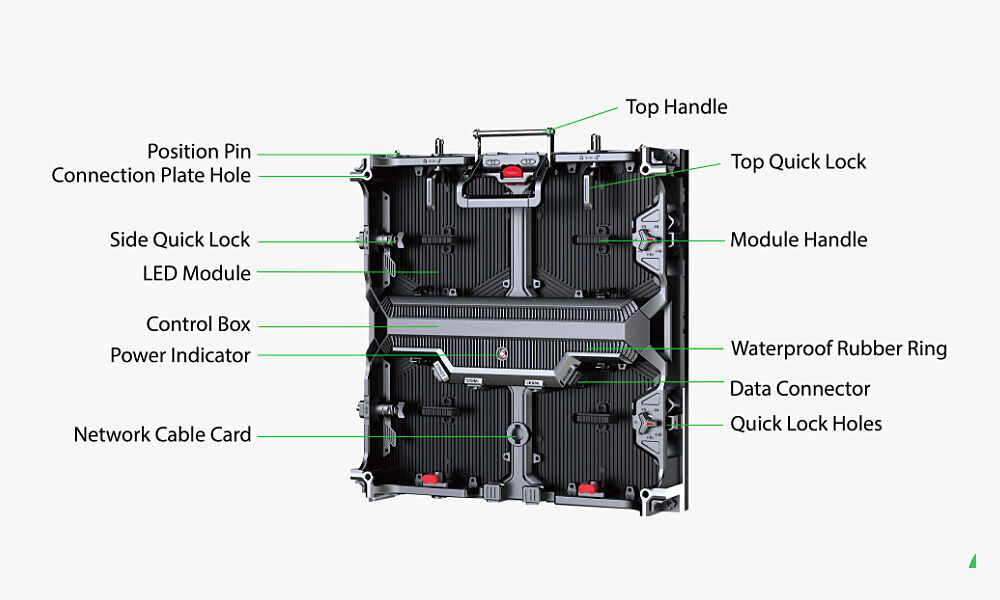

Perfect Cabinet Structure

The design combines aesthetics and industrial concepts. From the cabinet material, top handle, cabinet fixing slot, quick connection lock, LED module, positioning slot, power and signal interface, back cover and other details, all reflect top quality.

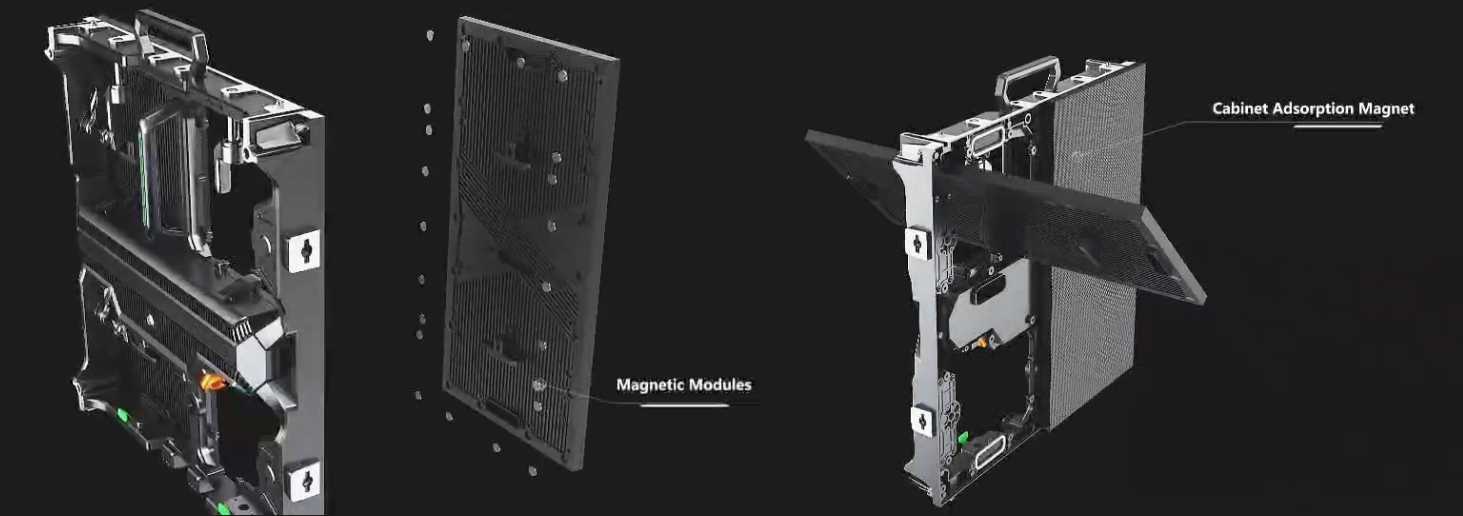

Dual Service

The LED cabinet is designed with dual service front and rear. Easy operation and maintenance. The modules can be mounted with magnetic adsorption.

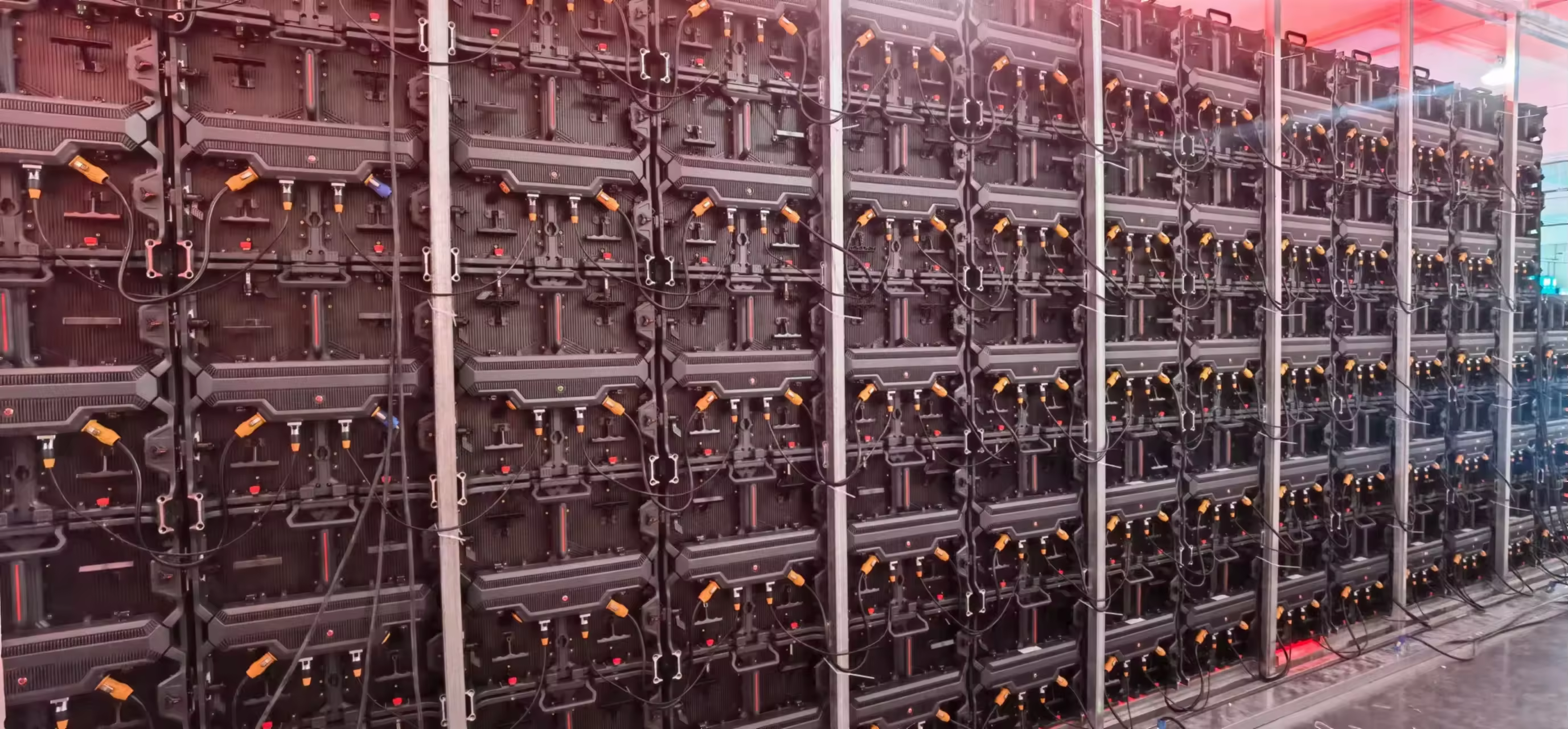

Seamless splicing

The seamless splicing cabinet adopts high-end CNC technology, which has higher flatness, brings seamless splicing pictures and immersive visual experience.

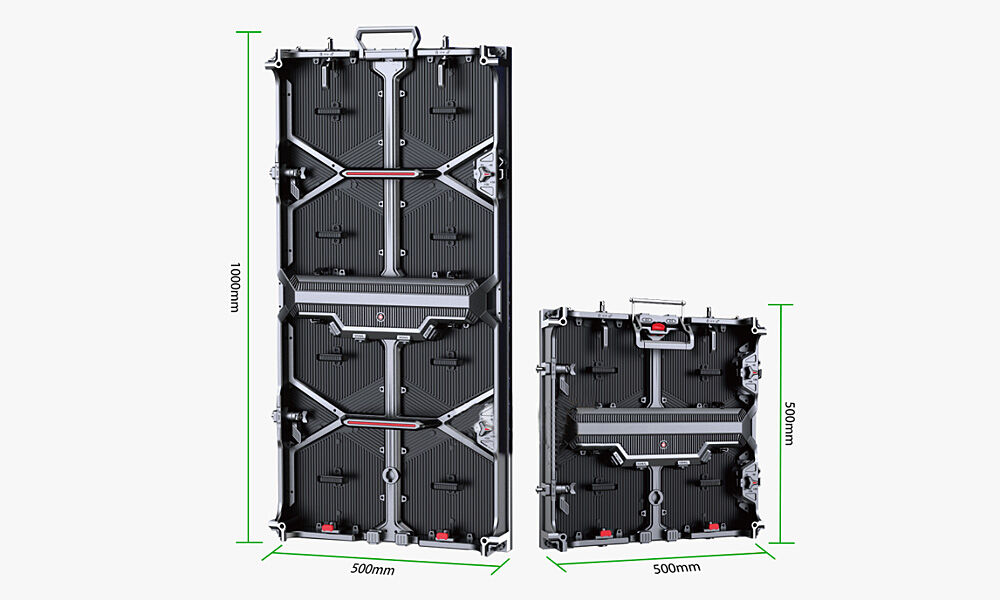

Two Sizes Available

P2.6mm, P2.98mm, P3.91mm, P4.81mm front and back dual service
Design 250*250mm module size 500*500/1000mm cabinet size
Die-cast aluminum panel CE, ROHS, FCC certification
5 years warranty and 5% spare parts

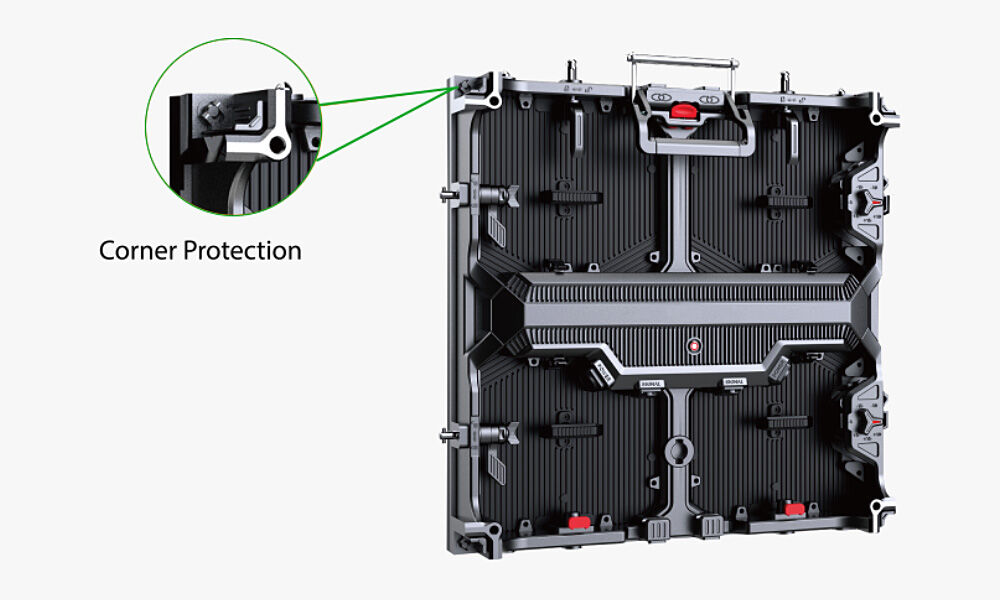

Corner protection

The rental LED display is available in two sizes: 500*500mm and 50*1000mm to meet more installation requirements. The 500*500mm cabinet weighs only 8kg, and the 50*100mm cabinet weighs only 14kg. The high-precision aluminum cabinet frame makes the image and video display seamlessly spliced, providing you with a perfect visual experience from any angle.

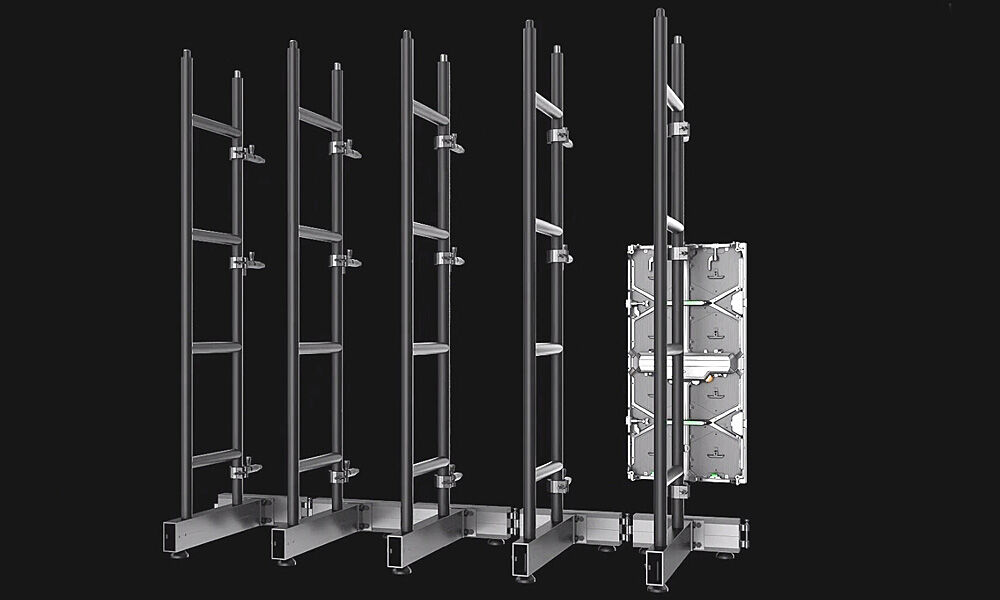

Stackable cabinets

The cabinets of the rental LED display series can be stacked and installed to form a large screen or LED wall to meet more viewing needs.

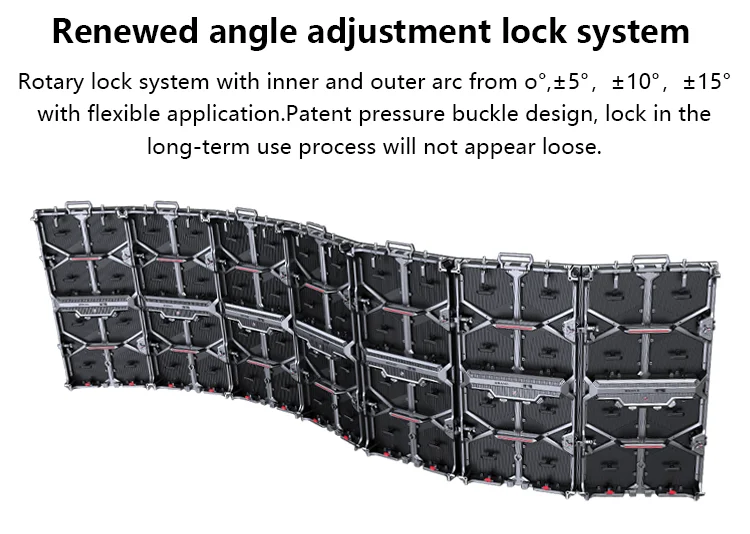

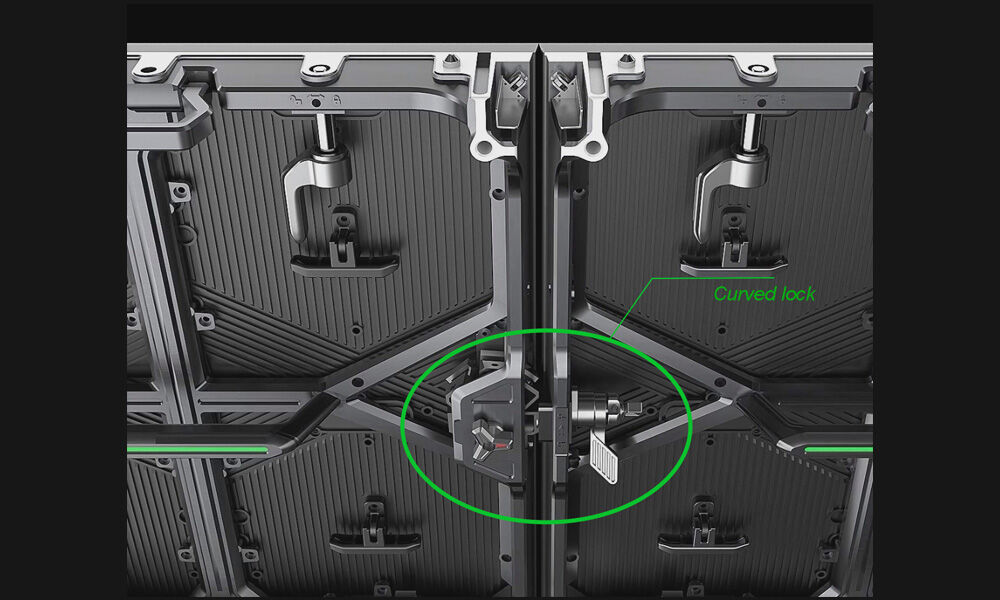

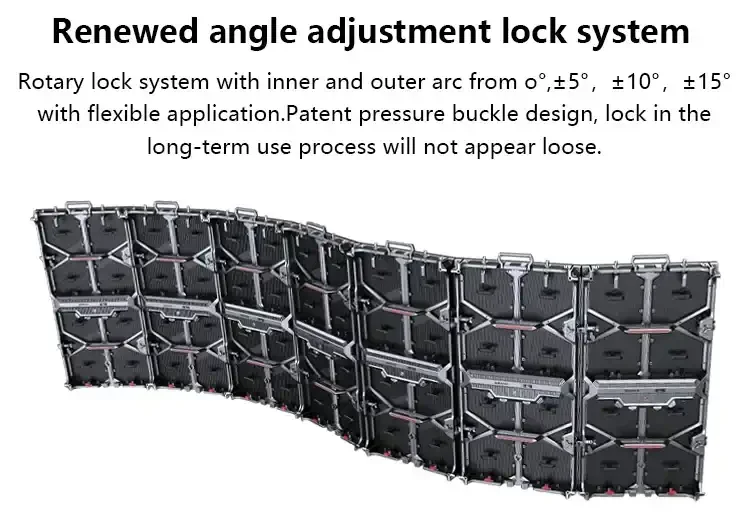

High-precision curve lock

Supports screen partitioning to display various types of content simultaneously, such as performance footage, speaker information, and subtitles, enhancing information delivery.

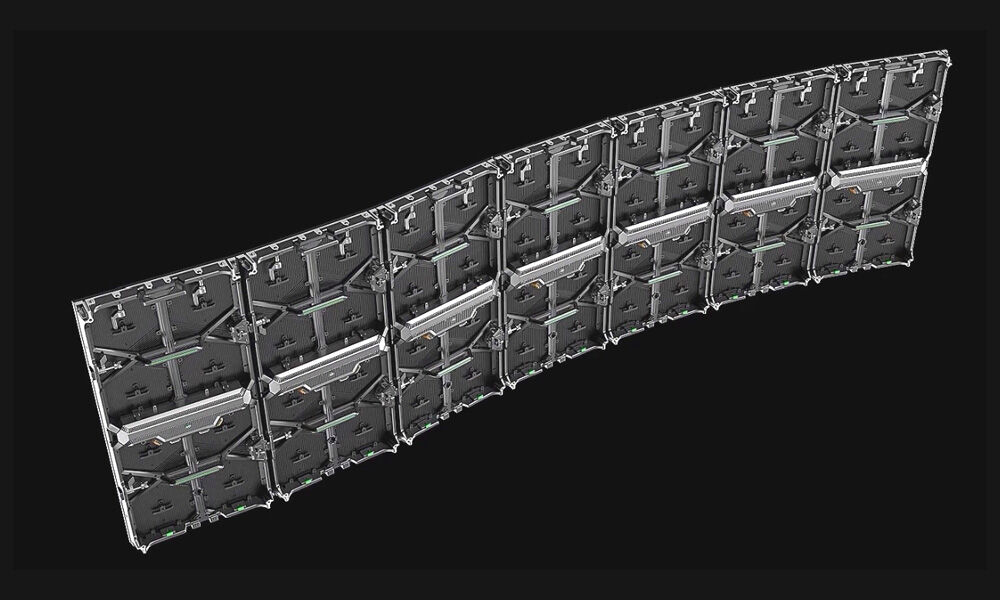

Curved surface installation

Uses audio-visual synchronization to make screen visuals react to music beats, boosting rhythm and impact during live performances.

Specifications for LED Stage Rental Displays

Cabinet Model No.	T Series
Cabinet Size	Straight 500mm500mm67mm Curve 500mm500mm67mm
Cabinet Weight	4.2 kg (Aluminum Door/Suite and power supply not included)
Cabinet Material	Aluminum
Suite Quan.	8pcs of Modules 250mm*500mm per cabinet
Installation	Crane girder hoisting and fixed installation
Color	Cabinet color: Black Door color: Black / Blue /Orange
Application Scope of Pixel Pitch	P2 P2.5 P2.604 P2.976 P3.91 P4.81 P5.95
Working Environment	Both indoor and outdoor
Standard Accessories	1 door 1 handle 2 positioning lins 1.3 Connecting pieces 4 Quick locks (2 quick locks+2radian lock)
