Street Light Pole LED Display | Smart Pole Screen for Outdoor Advertising

OES-SLP Series

Widely deployed on city arterial roads, pedestrian streets, commercial districts, parks, communities, campuses, transport hubs, and scenic areas, the outdoor pole mounted LED display serves both public-service and commercial media. It broadcasts real-time traffic guidance, emergency alerts, and municipal notices, while enabling targeted, time-based advertising for local businesses. As a low-cost, energy-efficient solution compatible with solar and renewable power, it scales easily from a single smart pole to a city-wide display network across global markets.

Get a quote Set OEM

Outdoor LED screen Details

Street Light Pole LED Display Solution-Innovative Technology

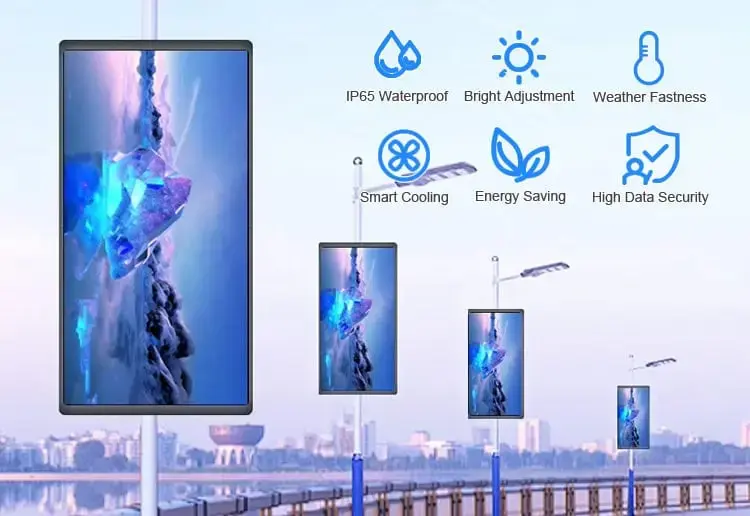

The street light pole LED display turns ordinary urban poles into intelligent media terminals by integrating a smart pole LED screen into city lighting infrastructure. Built for outdoor advertising and smart city networks, it delivers high brightness for clear daytime visibility, IP65 waterproof protection, and stable performance in rain, heat, and cold. Single- or double-sided configurations reach viewers on both sides of the street, while remote 4G/5G/WiFi and cluster control let operators update content, schedule campaigns, and automatically adjust brightness across many poles at once.

Product Features & Advantages

Street Light Pole LED Display Cabinet

P2.5/P3/P4/P5/P6/P8/P10 Street Light Pole LED Display (Single Side or Double-sided)
√ Cabinet Material Aluminium/Steel
√ Customized Size
√ Remote cluster control
√ High brightness,easy installation
√ Optional -Synchronous stereo
√ Automatic brightness adjustment
√ Optional- Remote power off control
√ 3G, 4G, 5G, USB, CLOUD, WIFl control

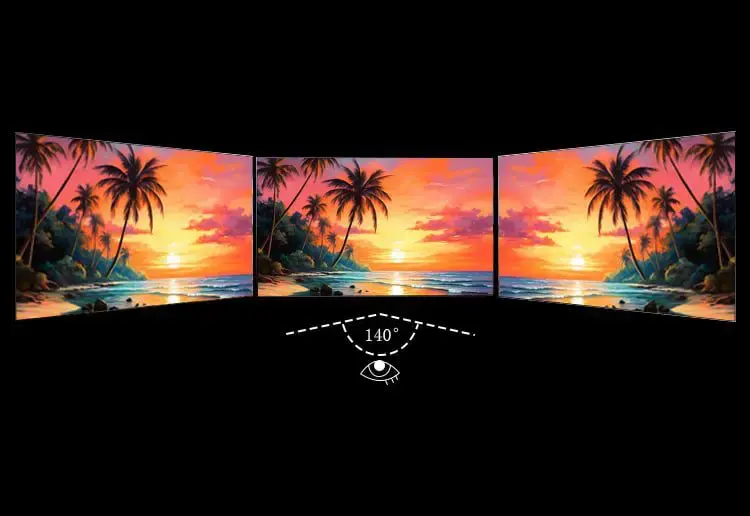

140-degree Wide Viewing Angle

The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

Outdoor Waterproo LED Screen Cabinet

The LED screen of outdoor smart light rods has excellent structural strength and excellent waterproof performance, reaching the IP65 waterproof level. This enables it to be widely used in the outdoor environment and can work normally under various bad weather conditions, including rain, snow, high and low temperature, etc., ensuring its reliability and durability under unpredictable outdoor climate.

High Refresh Rate, High Contrast

High brightness, good flatness, stable performance, and uniform color.

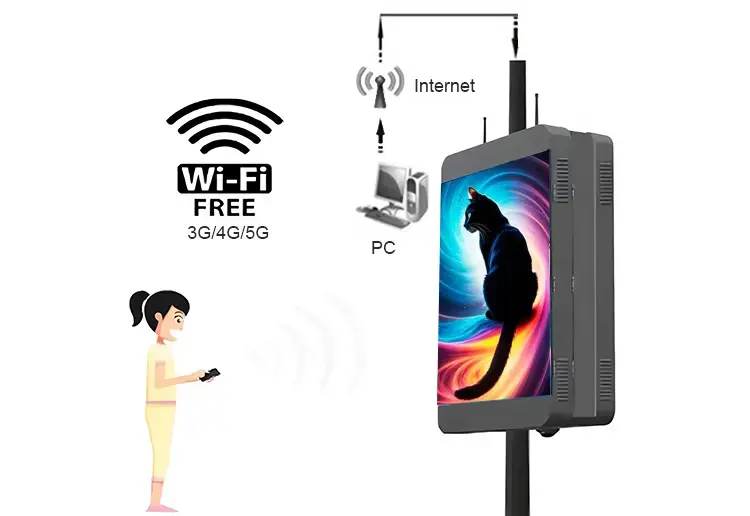

Netwok Remote Control

Street Light Pole Led Display has a variety of control methods, supporting 3G, 4G, 5G, WiFi, LAN, telephone control and cluster control. This various control methods make the management of the street light rod LED display more flexible and convenient.

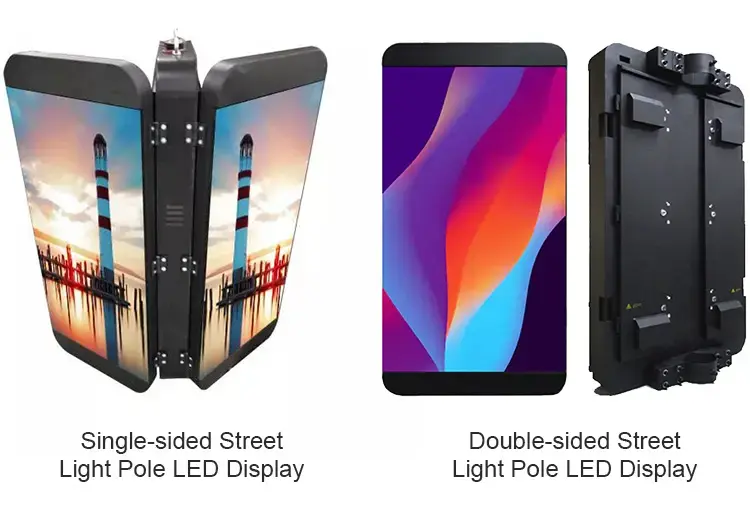

Single/double -sided Smart Light Rod LED Screen

Single or double display

This function is very important because it can increase the ratings of the content display on the LED screen. In essence, it is achieved by ensuring that the LED system has the back and front screen. This ensures that people from different sides of the street can see the content at the same time.

Automatic Brightness Adjustment

The screen brightness automatically adjusts as the brightness of the outside changes

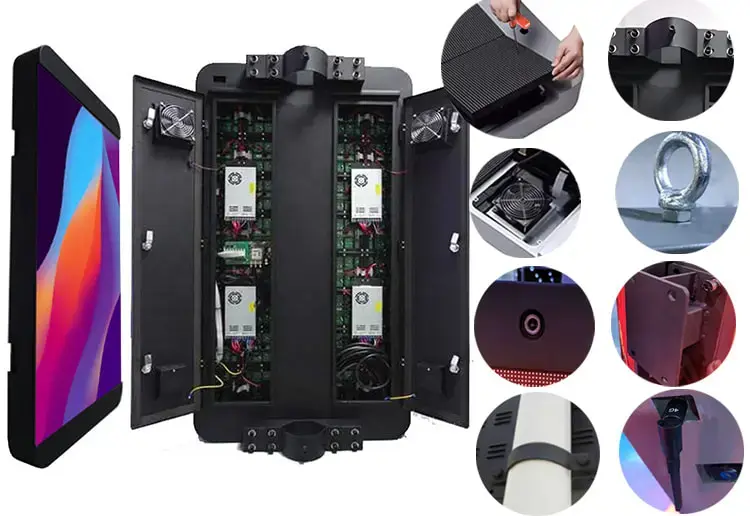

Unique Cabinet Design – Easy to Install & Transport

Side-open and back-open maintenance allow it more optional installation positions

The assembly module, power supply, receiving card, send card and other accessories feature a comprehensive set of components including easy installation hardware, automatic brightness adjustment, power delivery, SIM card support, optimal cabinet configuration, cooling, robust power supply, dust protection, circuit protection, lightning surge protection, and power control – all designed to enable reliable, high-performance operation.

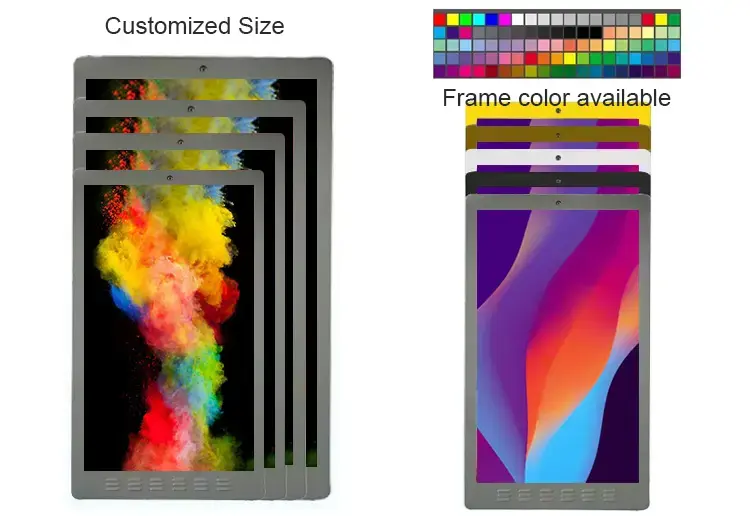

Customized LED Screen

Size and Pixel Pitch are customized

Cabinet Size 800x1600mm，960*1600mm or customized design needs. Module Size: 200*200mm, 320*160mm
Color Is Customized
The screen frame’s color is optional.meets different occasions to keep the same as the original environment design.

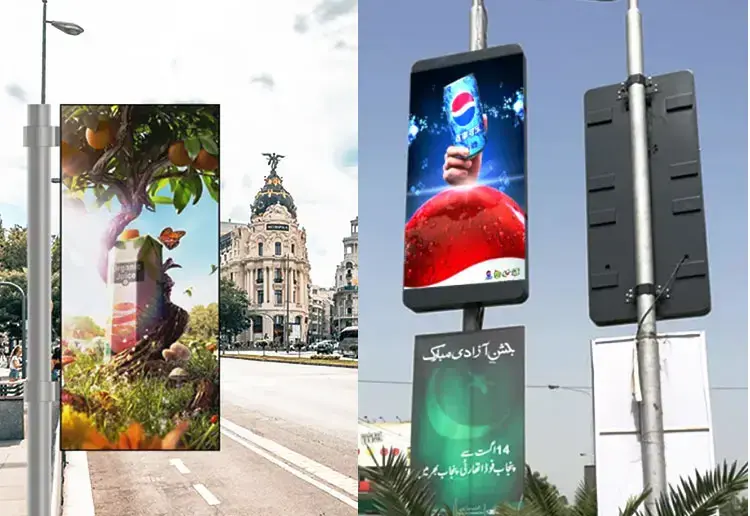

High Brightness, Suitable For Outdoor Viewing

The outdoor environment requires clear content. Therefore, the LED screen on the pole should have high brightness and luminescence. This is achieved by using high pixel density LED modules.
The brightness during the day cannot produce sufficient contrast, and it cannot be clearly seen as clearly as it is closed. Therefore, a high -brightness screen is required to improve visibility.

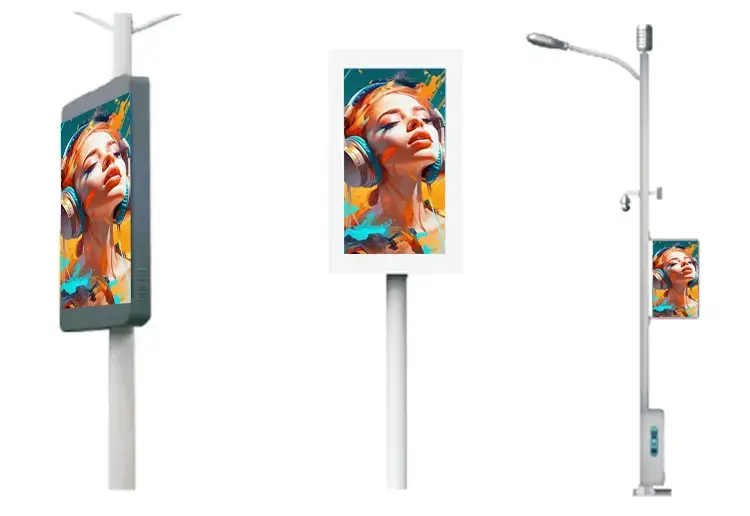

Street Light Pole LED Display Multiple Installation Methods

Street Light Pole Led Display provides a variety of flexible installation methods, including side installation, mid -set installation, roof installation, wall -mounted installation, etc. Each installation method is simple to design, which saves time and cost, so that the smart light rod screen can easily adapt to various scenarios and provide users with greater flexibility.

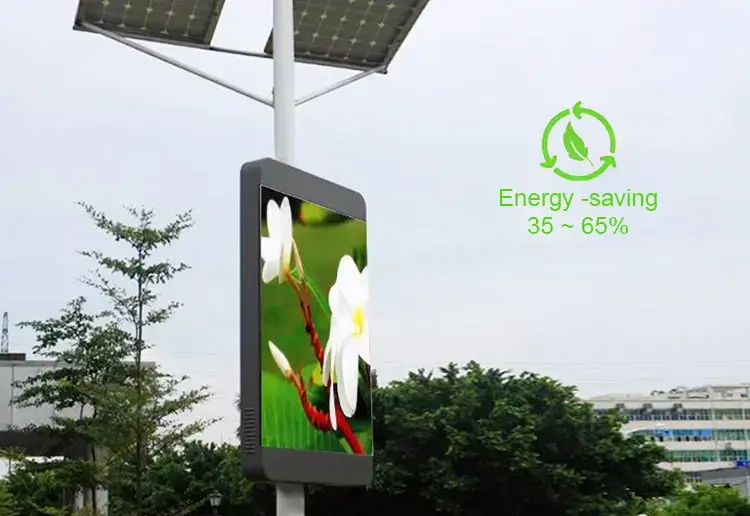

Energy -saving Technology

One of the main concerns of the world is energy consumption, especially in the main smart city. Therefore, consciously use energy to avoid the destructive effects of excessive consumption of non -renewable energy.
In this case, you will find that most street light rod LEDs use renewable energy such as wind and solar energy. These energy sources are cleaner and safer to the environment. If their access is limited, intelligent technology surveillance and control of unable renewable resources can be used to achieve the same goals.

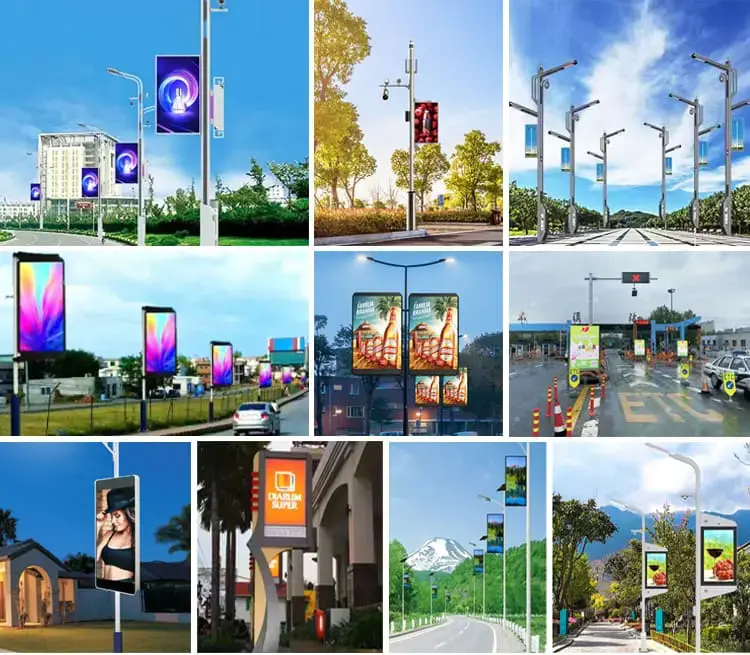

Street Light Pole Led Display Use Scene

The street light pole LED display system offers a versatile and impactful solution for both traffic safety and community advertising:
LED smart light pole screens can be widely used in urban arterial roads, pedestrian streets, subway entrances, airports, stations, shopping malls, communities, scenic spots and other areas. All specifications can be customized.
With a large information capacity, the displays can showcase rich, dynamic content on a flexible schedule – from real-time traffic instructions and emergency notifications, to commercial advertisements and community service announcements.
As a low-cost, environmentally-friendly option, these modular displays are widely deployed on outdoor street light infrastructure, providing high visibility and reach to passing vehicles and pedestrians.
For traffic safety, the displays relay critical real-time information to drivers and pedestrians, helping to avoid congestion and accidents. They can also instantly broadcast emergency alerts, prompting appropriate safety measures.
In the advertising realm, the displays enable targeted, time-based messaging – showcasing commercial ads, social communications, and community resources. This flexibility increases the exposure and impact of local businesses and services.
Overall, this comprehensive street light pole LED display system delivers a smart, cost-effective solution that enhances both public safety and community engagement.

Specifications

Street Light Pole LED Display Parameters
Model *For more models, please consult customer service	P3	P3.33	P4	P5
Pixel Pitch	3.00 mm	3.33 mm	4 mm	5 mm
Pixel Density (dots/㎡)	105,656	90,180	62,500	40,000
Pixel Configuration	1R1G1B
LED Encapsulation	SMD1921
Module Size	192×192×15 mm	320×160×15 mm	256×128×15 mm	320×160×18 mm
Module Resolution	64×64	96×48	64×32	64×32
Driving Mode	1/16S	1/12S	1/8S	1/8S
Brightness	>5500 nits	>6000 nits	>6500 nits	>6500 nits
Grayscale	16 bit
Refresh Rate	>3840Hz
Frame Frequency	50-60 Hz
Viewing Angle	160°/140° (H/V)
Module Working Voltage	4.8–5.2 V
Module Power Consumption	<32.5 W	<32.5 W	<32.5 W	<24 W
Max. Power Consumption (W/㎡)	<650	<650	<650	<650
Operating Temperature / Humidity	-20℃ to +50℃ / 20%RH to 90%RH
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a street light pole LED display?

A street light pole LED display is a slim LED screen mounted on urban light poles, turning existing lighting infrastructure into a smart advertising and information terminal. It integrates with city poles to show ads, traffic guidance, and public notices, and is built for outdoor use with high brightness and waterproof protection.

How bright is a pole mounted LED screen for daytime viewing?

A street light pole LED display reaches over 5,500–6,500 nits, ensuring clear, readable content under direct sunlight. Automatic brightness adjustment lowers output at night to save energy and avoid light pollution, keeping visuals sharp around the clock.

Is the street light pole LED display waterproof and weatherproof?

Yes. The smart pole LED screen is engineered for permanent outdoor installation, with an IP65-rated cabinet that resists heavy rain, dust, and humidity. It operates reliably from -20°C to +50°C, so it performs stably through summer heat, winter cold, and coastal or high-humidity environments. This weatherproof construction makes it suitable for arterial roads, seafront promenades, and open plazas without additional shelter.

How is the content on multiple LED poles controlled remotely?

Content is managed remotely over 4G, 5G, or WiFi through a cloud-based control system, so operators never need to visit each pole. From a single dashboard you can update ads, schedule campaigns by time slot, group poles into clusters, and push emergency alerts across an entire street or city network at once. This centralized control drastically cuts on-site maintenance and lets one team manage hundreds of displays efficiently.

What are the main applications of street light pole LED displays?

They serve both commercial and public-service roles across the smart city. Typical deployments include city arterial roads, commercial districts, pedestrian streets, parks, campuses, transport hubs, and scenic areas, where they broadcast targeted advertising, real-time traffic information, weather updates, and municipal announcements. Because each pole is a networked node, cities and advertisers can localize content by district and monetize high-traffic locations while delivering useful public information.

Can street light pole LED displays be customized and powered by solar energy?

Yes. Pixel pitch (P3 to P5), single- or double-sided design, screen size, and mounting height can all be customized to match the pole and viewing distance. As a low-power, energy-efficient solution, it is compatible with solar panels and other renewable power sources, making it ideal for green smart-city projects and remote roadside locations where grid power is limited. Custom specifications and quotations are available on request.
