Outdoor Fixed LED Display

OF-SW Series

Ideal for billboards, building facades, roadsides, stadiums, squares, transport hubs, and commercial outdoor advertising projects.

Get a quote Set OEM

Outdoor LED screen Details

Outdoor Fixed LED Display Transform Your Space With Dynamic Visuals Tthat Captivate and Inspire

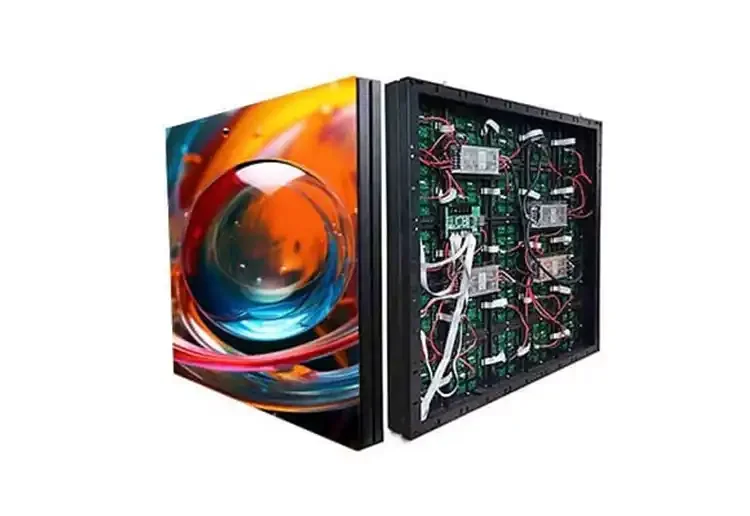

OF-SW Series semi-waterproof outdoor fixed LED display is a fixed installation P2.5, P3, P4, P3.91, P4.81, P5, P6, P8, P10, P16 pixel pitch. High definition and high refresh output, very low price. Adopting simple style iron cabinet, extremely thin thickness is only 100mm, screen weight is less than 28 KG/m2. Fully maintainable, its brightness is very high, more than 6500 nits. Iron or aluminum cabinet for your choice; strong and solid material, suitable for outdoor permanent installation, wall installation project is very cost-effective!

Outdoor Fixed LED Display Product Advantages

1. High Definition: Sharp and detailed visuals for crystal-clear clarity.

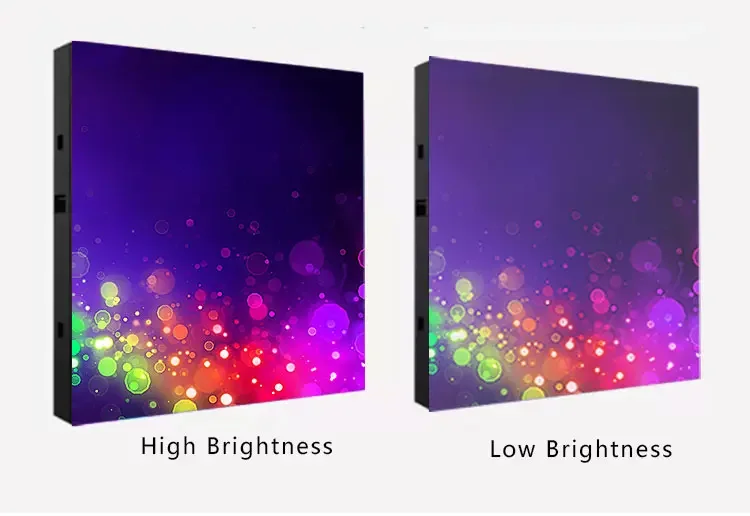

2. High Brightness: Vibrant and visible even in bright environments.
3. Image Vividness: Lifelike colors and deep contrasts for immersive experiences.
– 960mm×960mm cabinet standard size, support customized size.
– Front or rear maintenance optional
– Support cabinet internal wiring, beautiful and practical, with simple wiring.
– High-precision iron cabinet, high protection IP65
– SMD 3-in-1 full-color LED package.
– High brightness, good heat dissipation.
– Energy-saving design.
– Seamless splicing, better flatness.

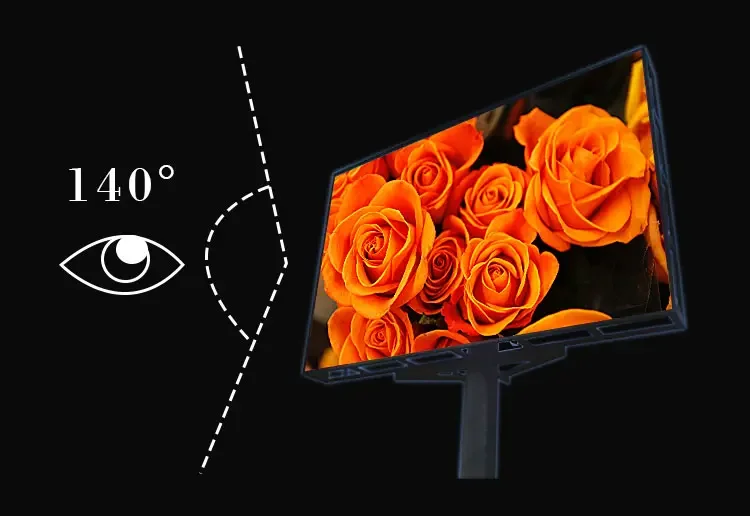

140-degree Wide Viewing Angle

The viewing angle is up to 140° vertically and horizontally, providing a wide viewing angle.
The ultra-wide viewing angle provides you with the largest screen viewing area. It provides you with a clear and natural image.

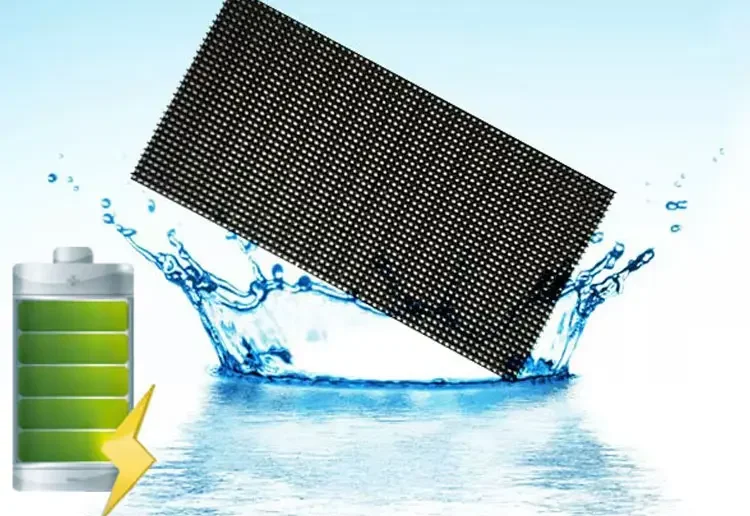

50% Energy Saving, Safe and Reliable

The LED screen module uses high-quality lamp beads, precision packaging, waterproof and dustproof. When installed in outdoor areas, protection is important. Special protective devices can protect it from environmental hazards. At the same time, it saves energy by 50% and consumes less electricity.

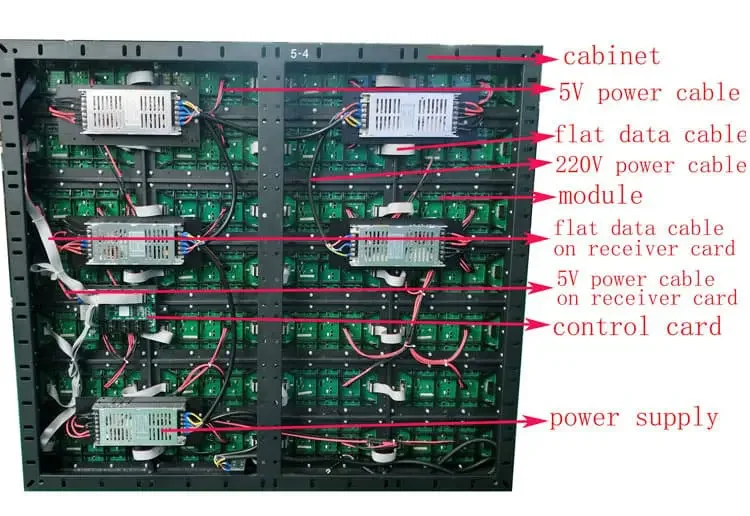

Outdoor LED Screen Panel Structures

· Material: usually made of aluminum profiles or steel, lightweight and durable.
· Power module: built-in high-efficiency switching power supply, supporting wide voltage input.
· Power redundancy: some designs support dual power backup to improve reliability.
· Receiving card: built-in receiving card, supporting multiple signal inputs.
· Sending card: external sending card, connected to a computer or video source.
· Control software: matching software, supporting content editing and playback control.

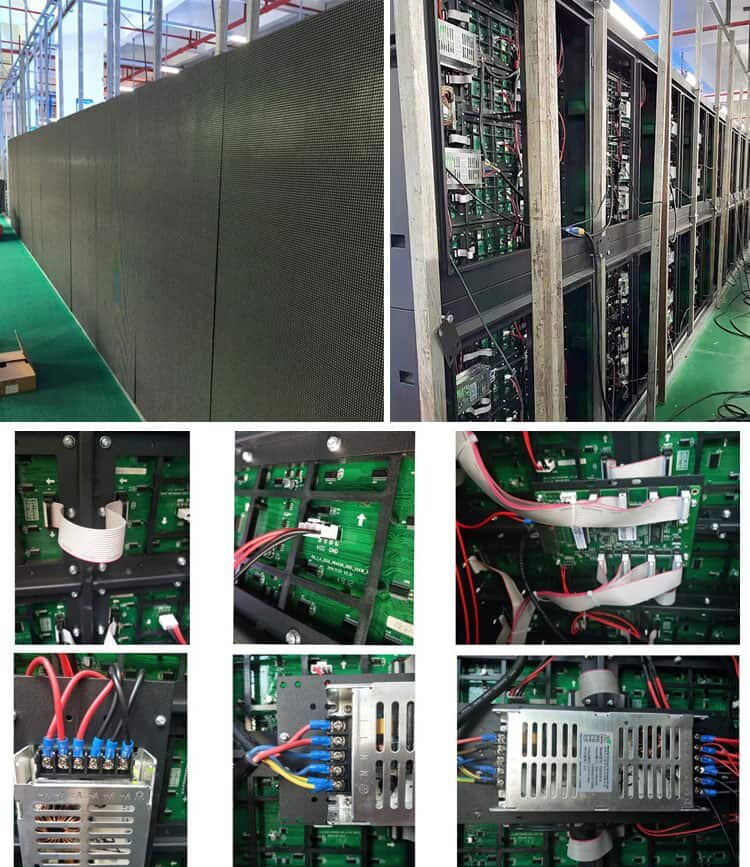

Outdoor LED Display Power system, control system

Get every detail in the picture

Data line: used to connect the control card and LED unit board wiring.

Transmission line: used to connect the control card with the computer.

Power line: used to connect the power supply and control card with the LED unit board, the copper core diameter of the power line connecting the unit board is not less than 1mm

Outdoor LED Display Power system, control system - OF-SW Series

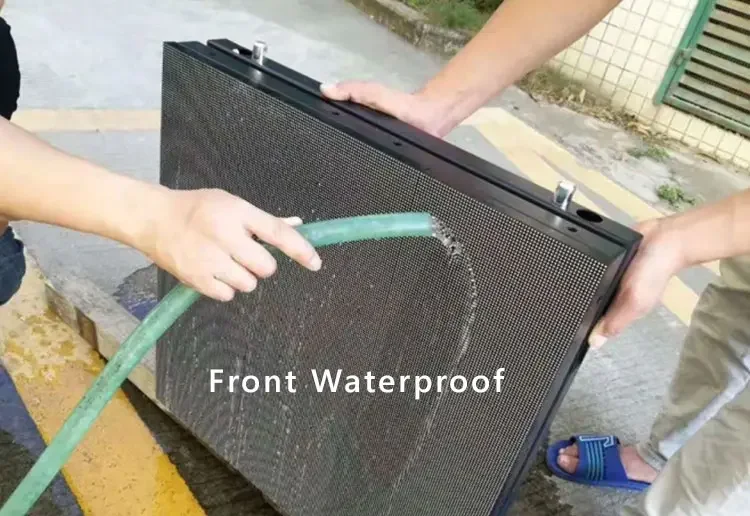

Outdoor LED Panel Waterproof Design

Protection level: IP65 on the front, IP45 on the back, dustproof and splashproof, waterproof on the front, but not completely waterproof on the back.

Sealing strip: There is a waterproof sealing strip at the cabinet joint to prevent water vapor from intruding.

Drainage hole: A drainage hole is designed at the bottom to prevent water accumulation.

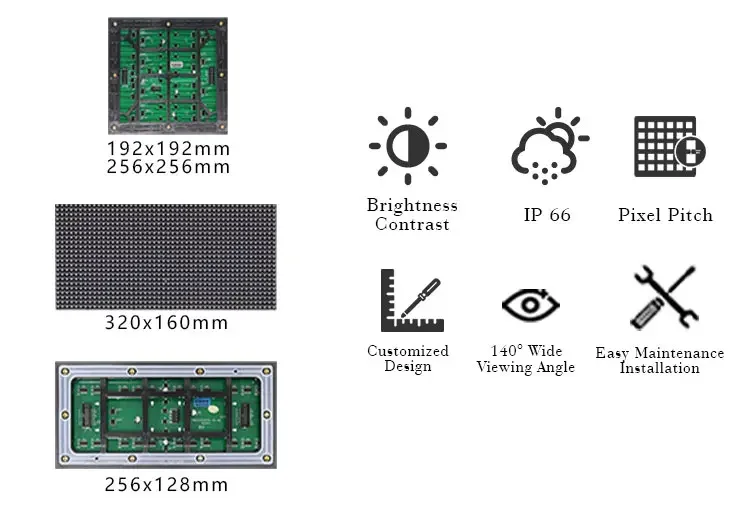

Display Module

Based on 320×160mm 256×128mm192 ×192mm 256 ×256mm module design

LED module: High-brightness LED lamp beads, with common spacing of P4, P5, P6, P8, and P10.

Driver IC: Built-in constant current driver IC to ensure stable display.

PCB board: High-precision PCB board to improve display effect.

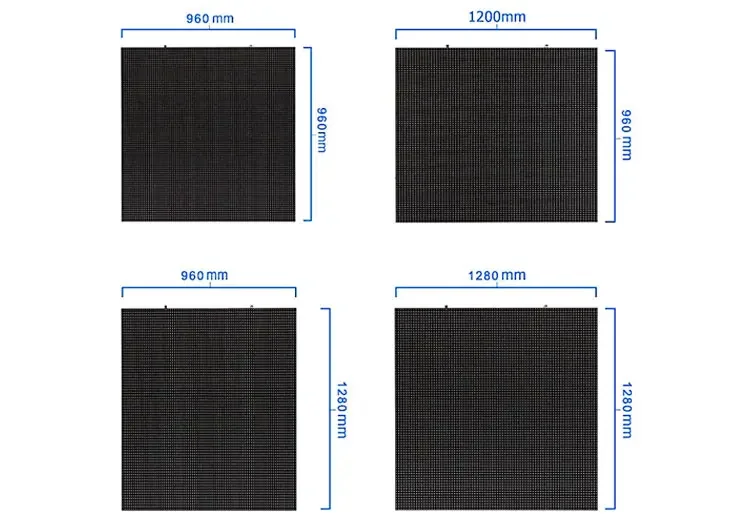

Outdoor LED Screen Cabinet Customized Size

Supports customized size, allowing displays of any scale to be tailored to specific project requirements. Whether it is a large outdoor billboard or a smaller signage display, the OF-SW series can be configured to fit seamlessly into any space.
Outdoor fixed LED display video wall has high brightness, high refresh rate, high contrast, P2, P2.5, P3.076, P5, P4, P6, P8, P10. Various sizes are available common 960mm x 960mm or 1000mm x 1000mm, thickness 80-120mm etc.

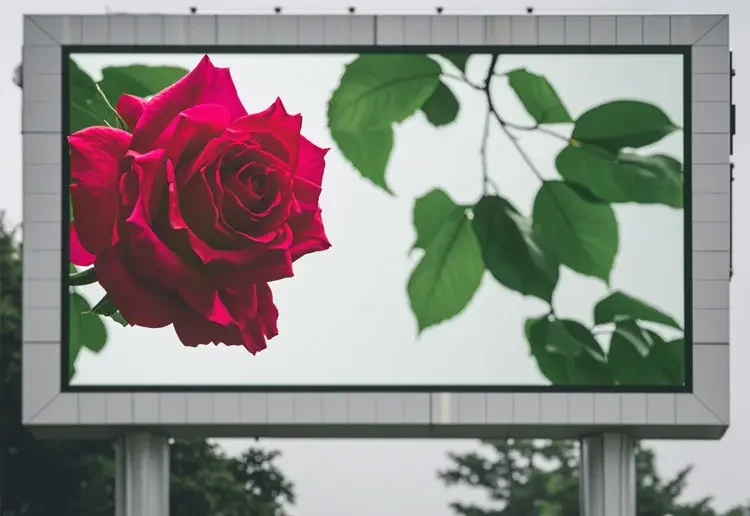

Excellent Display Effect

OF-SW series provides vivid display effect and realistic color performance with SMD technology, high brightness, high refresh rate and high contrast.

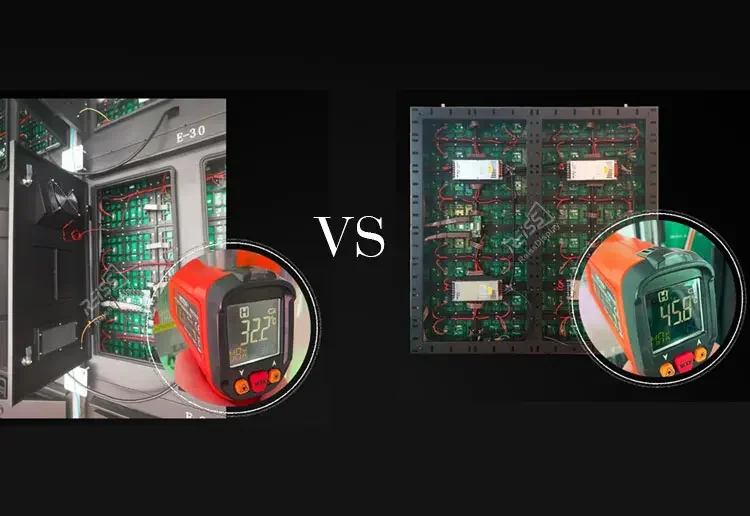

Low Temperature Technology

LED display adopts the core technology of low-temperature energy saving to reduce the heat value of key electronic components inside the LED display, which can improve the reliability and prolong the service life of LED display.

High Definition

Good Color Consistency, High contrast, Clear picture. The picture quality and the audience are faced with a whole new sensory experience.

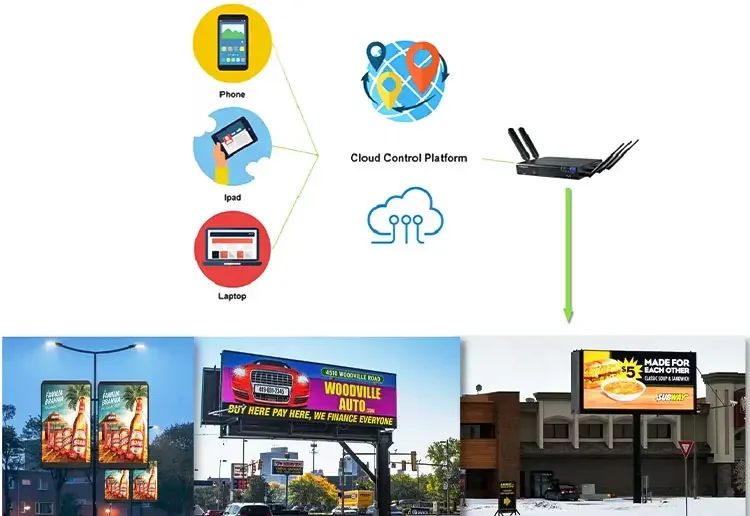

Cloud Server Content UUpdate and Management

When there are many outdoor LED displays, it will be very troublesome to update them one by one. Therefore, each outdoor LED display has a built-in LED control system that can receive signals from the cloud.
The advantage of this is that we only need to set the instructions in the cloud to update the screen content to receive signals in batches.

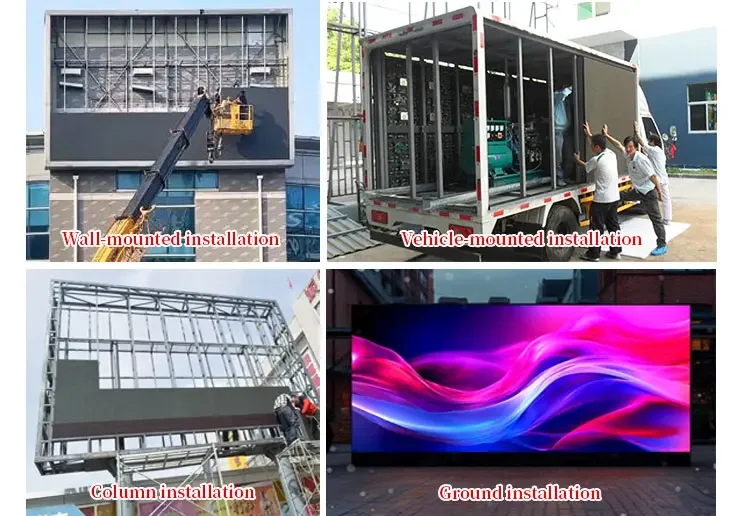

Outdoor LED Video Wall Displays Multiple Installation Types

There are 5 main installation methods for outdoor LED displays, namely:
· Wall mounting
· Column mounting
· Ground mounting
· Suspension mounting
· Vehicle mounting

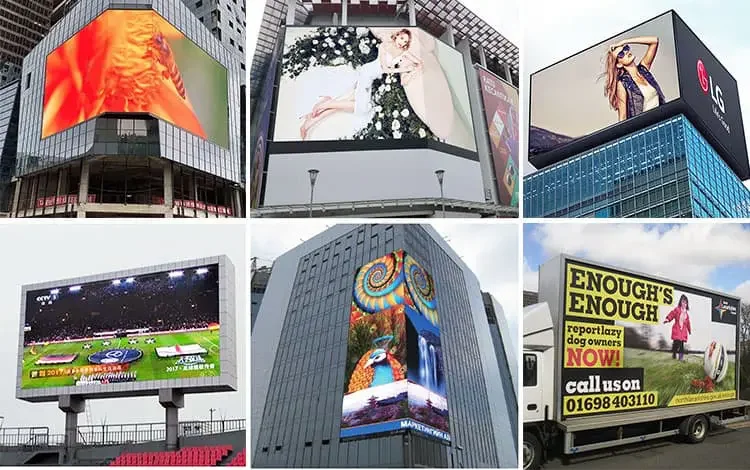

Outdoor LED Display for Different Scenes

In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. This product is usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.

Model	P2.5	P3	P4	P5	P6	P8	P10
Pixel Pitch(mm)	2.5	3.076	4	5	6.67	8	10
Color	Full Color / 1R1G1B
LED Type	SMD1921	SMD2727	SMD2727	SMD2727	SMD2727	SMD3535	SMD3535
Scan	1/16	1/13	1/10	1/8	1/6	1/4	1/2
Pixel Density(dots/㎡)	160,000	105,625	62,500	40,000	22,500	15,625	10,000
Module Size(mm)	32016018
Cabinet Size(mm)	960960100
Cabinet Resolution(dots)	384*384	312*312	240*240	192*192	144*144	120*120	96*96
Cabinet Weight(Kg)	28
Cabinet Material	Waterproof Iron
Grey Scale	14 Bit-18 Bit
Refresh Rate(Hz)	≥3840
Brightness(cd/㎡)	≥6000
Viewing Angle(H/V)	140°/140°
Maintenance Method	Rear/Front
Life Span	100,000 Hours
Waterproof	IP65/IP45
Max. Power Consumption	≤700W/㎡
Average Power	≤235W/㎡
Working Temperature	-20-60℃
Working Humidity	10%-98%PH

Frequently Asked Questions

What is an Outdoor Fixed LED Display?

An Outdoor Fixed LED Display is a permanent LED screen installed in an outdoor location for long-term use. It is designed with high-brightness LED modules, weatherproof cabinets, strong structural support, and stable control systems to deliver clear images and videos in sunlight, rain, wind, dust, and changing weather conditions.

What are the advantages of an Outdoor Fixed LED Display?

An Outdoor Fixed LED Display offers high brightness, wide viewing angles, weather resistance, seamless large-screen display, long service life, flexible size customization, and stable 24/7 operation. It is ideal for outdoor advertising, building façades, shopping malls, stadiums, transportation hubs, highways, public squares, and commercial media displays.

Where can Outdoor Fixed LED Displays be used?

Outdoor Fixed LED Displays are widely used in shopping mall façades, commercial buildings, stadiums, airports, train stations, bus terminals, highways, city squares, schools, hotels, theme parks, churches, and outdoor advertising billboards. They are suitable for applications that require permanent installation and long-term visual communication.

What brightness is suitable for an Outdoor Fixed LED Display?

The suitable brightness for an Outdoor Fixed LED Display usually depends on the installation direction and sunlight exposure. For general outdoor applications, 5,000–7,000 nits is commonly used. For direct sunlight or high-ambient-light environments, 7,000–10,000 nits may be recommended to ensure clear visibility during daytime operation.

What pixel pitch should I choose for an Outdoor Fixed LED Display?

The right pixel pitch depends on the viewing distance, screen size, content type, and budget. Common options for an Outdoor Fixed LED Display include P3.91, P4.81, P5, P6, P8, and P10. For closer viewing areas, smaller pixel pitches provide sharper image details, while larger pixel pitches are more cost-effective for long-distance viewing.

How do I choose the right Outdoor Fixed LED Display?

To choose the right Outdoor Fixed LED Display, consider pixel pitch, brightness, screen size, IP rating, cabinet material, installation structure, front or rear maintenance, refresh rate, power consumption, ventilation, control system, and local climate conditions. A reliable outdoor fixed LED screen should provide clear image quality, weatherproof performance, easy maintenance, and long-term stable operation.
