Double Sided LED Display | Outdoor Two-Sided LED Advertising Screen

OES-DS Series

Widely deployed worldwide for outdoor advertising: roadside smart poles, highway and city billboards, shopping streets, gas stations, transport hubs (airports, train and metro stations), shopping malls and commercial building facades. The double sided design lets one structure serve both traffic directions, cutting installation cost while doubling advertising exposure.

Get a quote Set OEM

Outdoor LED screen Details

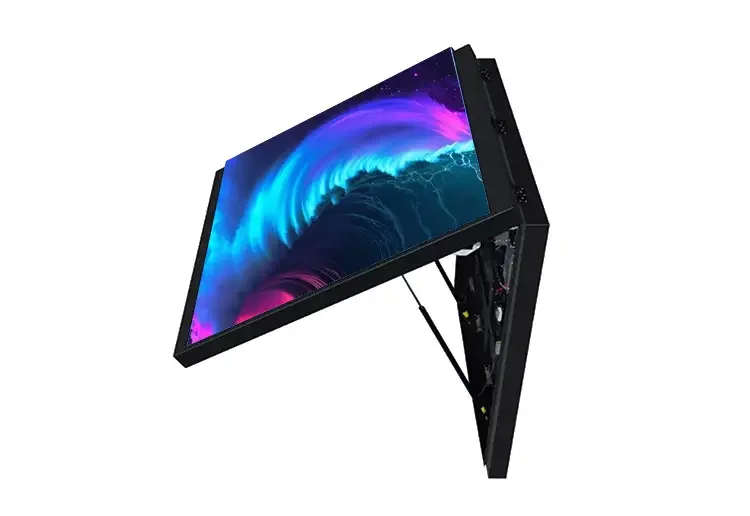

Double Sided LED Display: Outdoor Two-Sided Front Service LED Advertising Screen

A double sided LED display is an outdoor LED screen with two active display faces, showing full-color video on both sides at the same time to reach traffic from two directions. Built with a front service cabinet, IP65 waterproof protection and a 140° wide viewing angle, this two sided LED screen delivers up to 7000 nits brightness for clear visibility under direct sunlight. It supports pixel pitches from 2.5mm to 10mm and fully customized sizes, making it ideal for pole mounted billboards, roadside advertising, shopping streets and transport hubs.

Product Features & Advantages

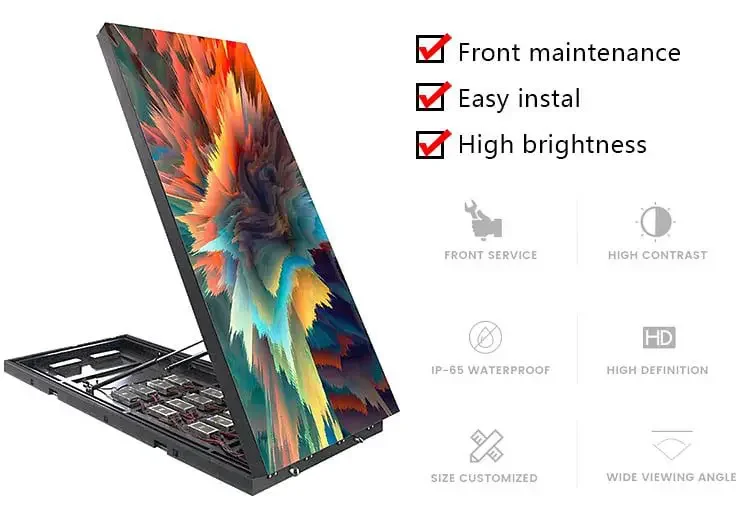

Front Service Double Sided LED Display Cabinet

Pixel Piitch :2.5mm 3mm 4mm 5mm 6mm 8mm 10mm
√ Easy to maintain
√ Saving Space
√ IP-65 Waterproof
√ Fixed or Rental Use
√ Size Customized

140-degree Wide Viewing Angle

The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

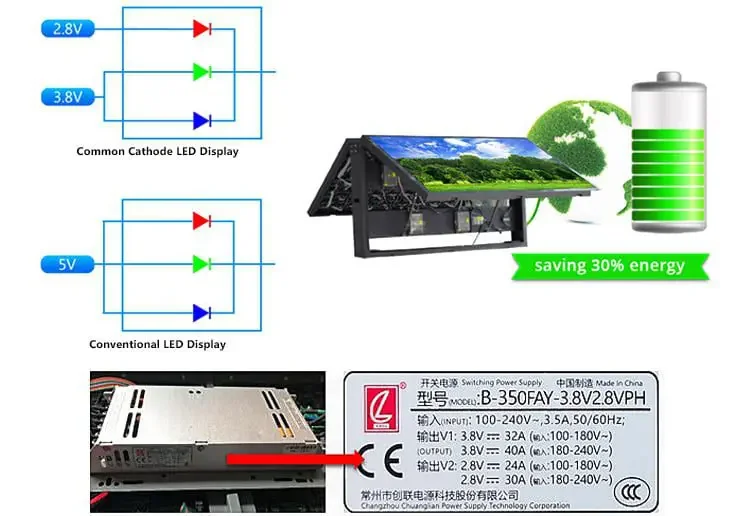

Outdoor Double-sided LED Screen Energy Saving Cabinet

The double-sided LED screen, Advanced common cathode technology with highly efficient ICs can reduce 30%~60% power consumption than conventionalpanels.

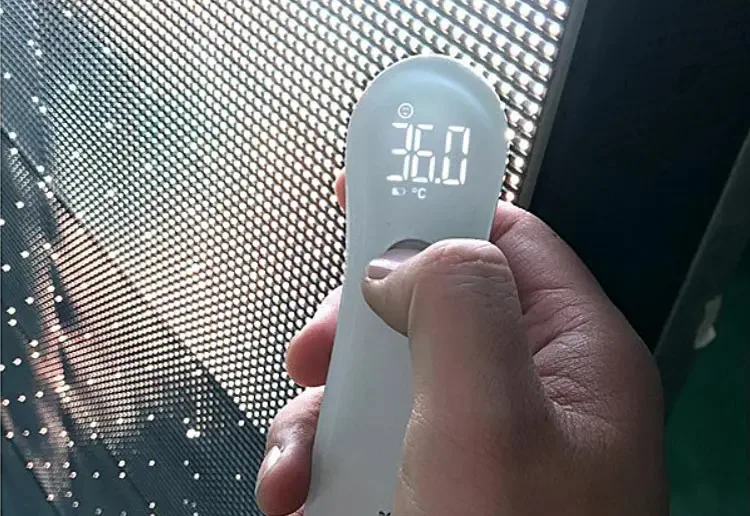

Super Cold and Heat Resistant

It will also greatly reduce the surface temperature lower to 36°, protecting all components from failure caused by high temperature.

Double Sided LED Display Lighter & Thinner

45~60kg/sqm, Lightweight design and safe on the wall no matter brick or cement wall

Outdoor Double Sided LED Display Wide Applcations

Seamless Splicing Outdoor LED Video Panels

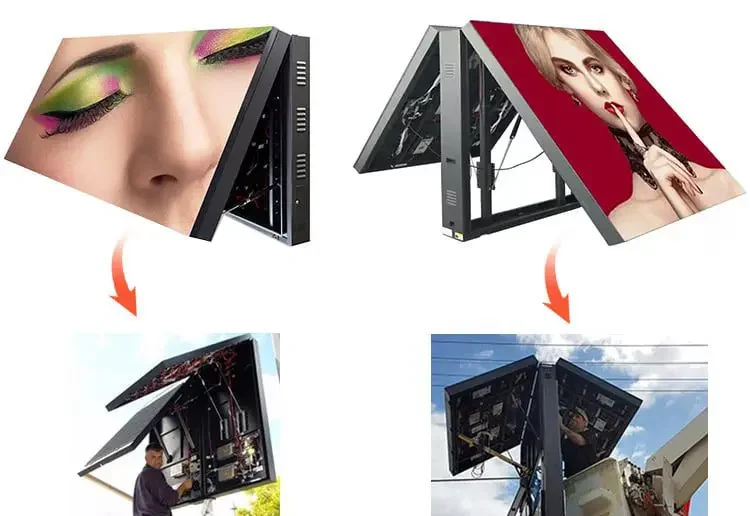

There wil be single front open and double-sided for options. Single one mainly for wall mounted, and double sided is best for billboard on poles.

Solid Reliability

Reinforcing ribadditional design to greatly improve the loading capacity.

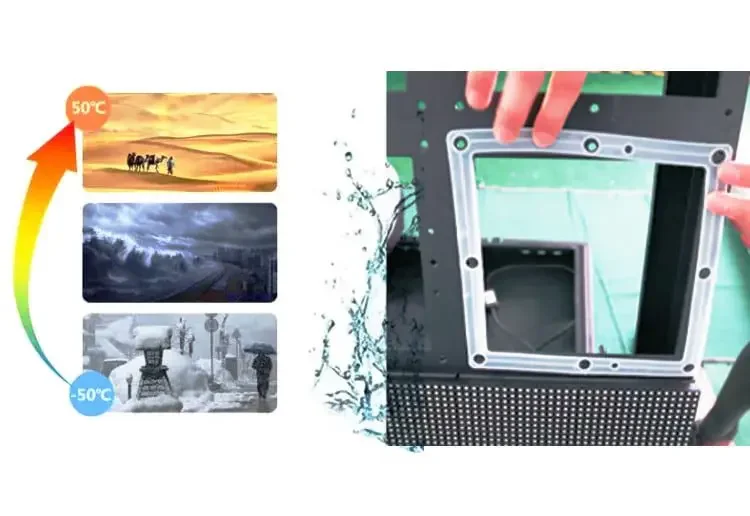

IP-65 Weather Rating

Special treatment of protection rating with IP65/lP54, fully waterproof panel. The ability to adapt to the environment is very strong, and it can work outdoors all day long.

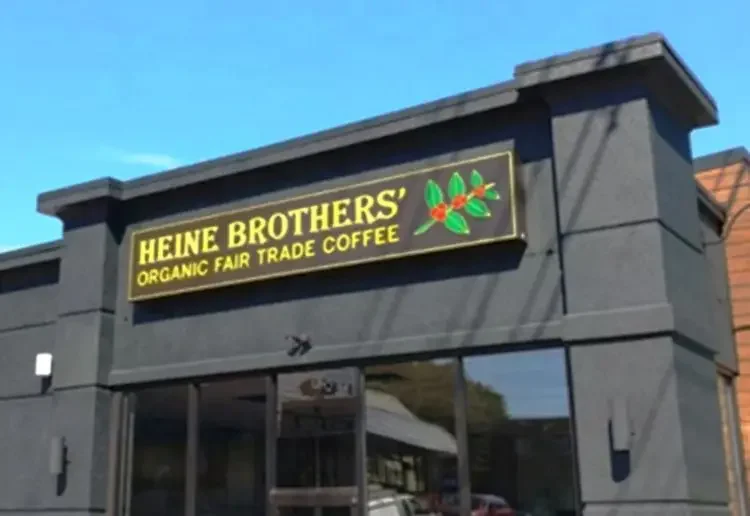

Superb Visuals Outdoor Screen

P4 and p6 are recommended with more pixel density per sqm with outstanding image quality. Stunning full color video screens with high resolution.

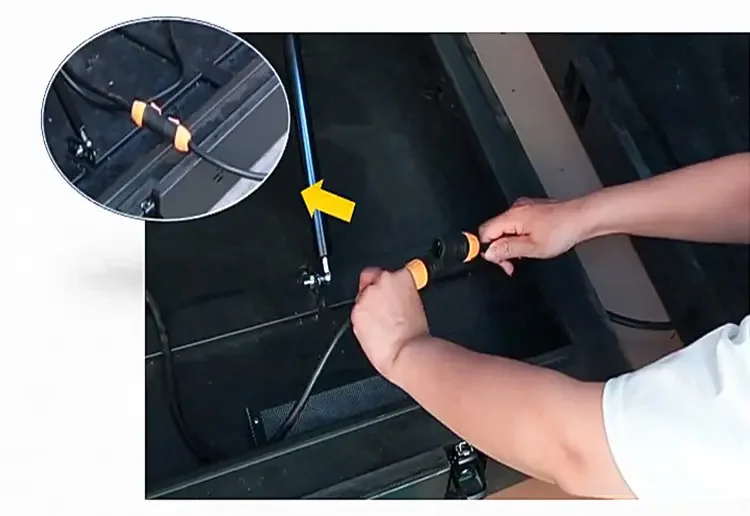

Fast Assembly

Power cable connector replacing the traditional power cable terminal connections. Fast assembly and will be safe from electric shock caused by improper operation.

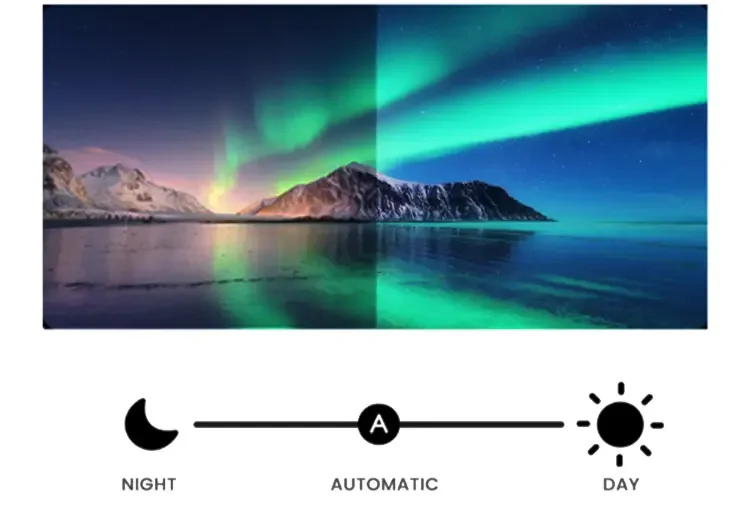

Adjustable Auto-brightness

√ matic adjustable brightness with light sensor, money-saving.
√ Offer comfortable vision experience.

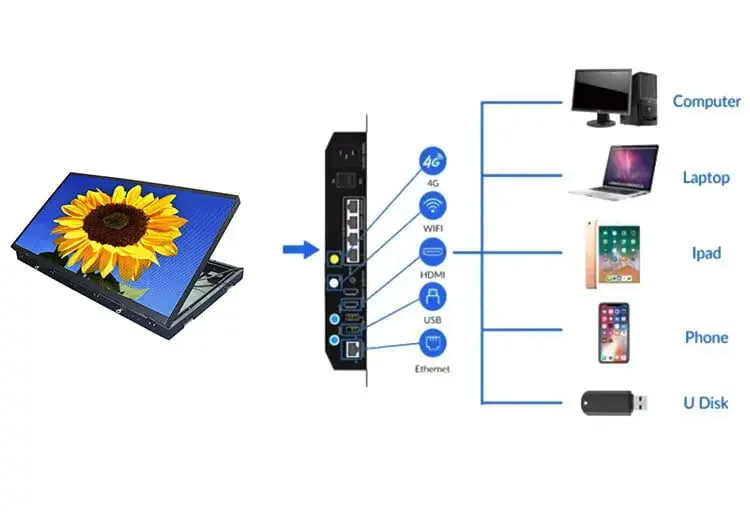

Easy Control Via WlF

Support PC, mobile phone, laptop, USB drive. Can be controlled wirelessly, easily configure your screen.

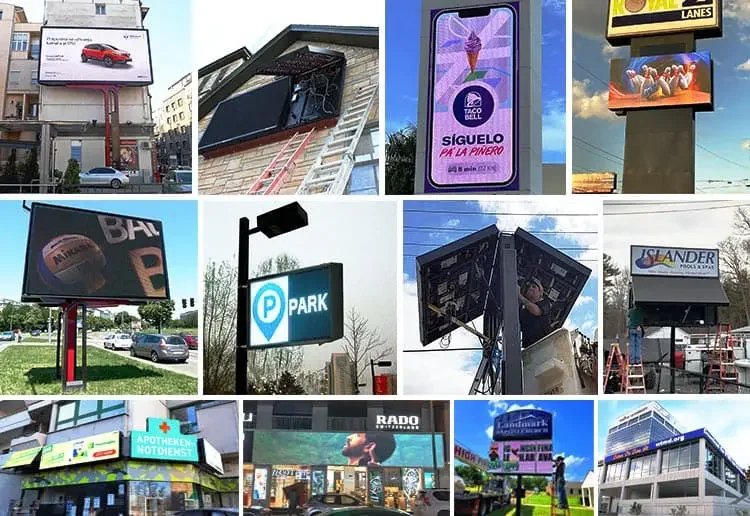

Applications

Allow customizing different sizes & right-angle splicing
FC series LED panels support right-angle installation.
With the FC series LED rounded corner panels, users can easily build outdoor 3D screens and deliver stunning video content to their audiences.

Specifications

Outdoor Double Sided LED Display Parameters
Pixel Pitch *For more models, please consult customer service	2.5mm	3mm	4mm	5mm	6mm
Module Size	320×160mm	192×192mm	256×128mm	320×160mm	192×192mm
Module Resolution	128×64	64×64	64×32	64×32	32×32
LED Type	SMD1415	SMD1921	SMD1921	SMD2727	SMD3535
Brightness	5000 Nits	5500 Nits	5500 Nits	6000 Nits	7000 Nits
Pixel Density (dots/㎡)	160,000	111,111	62,500	40,000	27,777
Driving Method	1/16 Scan	1/16 Scan	1/8 Scan	1/8 Scan	1/4 Scan
Optimal View Distance	2–8m	3–10m	4–13m	5–16m	6–20m
Avg. Power	430W/㎡	460W/㎡	500W/㎡	310W/㎡	350W/㎡
Max. Power	850W/㎡	880W/㎡	900W/㎡	600W/㎡	780W/㎡
IC	ICN2153 / MBI5153
Refresh Rate	>3840Hz
Brightness Control	256 Grade / Each Color
Viewing Angle	140°
IP Protection Rating	IP65
Input Voltage	AC110/220V, 50/60Hz
Operating Temperature	-30℃ ~ +60℃
Gross Weight	50Kg/㎡
Service Life	100,000 Hours
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a Double Sided LED Display?

A Double Sided LED Display is an LED screen with display surfaces on both sides, allowing content to be shown in two directions at the same time. It is commonly used in retail stores, shopping malls, airports, transportation hubs, roadside advertising, exhibition halls, and commercial spaces where audiences can view the screen from different angles or traffic directions.

What are the advantages of a Double Sided LED Display?

A Double Sided LED Display offers two-way visibility, higher advertising exposure, better space utilization, dynamic content display, high brightness, and flexible installation. Compared with a single-sided screen, it can deliver more visual impact and attract audiences from both front and back sides, making it ideal for high-traffic commercial areas.

Where can Double Sided LED Displays be used?

Double Sided LED Displays are widely used in shop windows, shopping malls, airports, train stations, bus stations, metro stations, roadside billboards, exhibition booths, commercial streets, hotels, restaurants, museums, corporate lobbies, and public information areas. They are suitable for advertising, branding, wayfinding, promotions, and real-time information display.

Can a Double Sided LED Display show different content on each side?

Yes. A Double Sided LED Display can usually show the same content or different content on each side, depending on the control system and media player configuration. This allows businesses to target different viewing directions with separate advertisements, promotional messages, schedules, or information content.

Is a Double Sided LED Display suitable for window advertising?

Yes. A Double Sided LED Display is very suitable for window advertising because it can display promotional content to people outside while showing brand messages or product information to customers inside. For storefronts, it improves advertising visibility without requiring two separate LED screens.

How do I choose the right Double Sided LED Display?

To choose the right Double Sided LED Display, consider indoor or outdoor use, viewing distance, pixel pitch, brightness, screen size, cabinet thickness, weight, installation method, content control, heat dissipation, power consumption, and maintenance access. A suitable double sided LED screen should balance image clarity, structural safety, visibility, and long-term reliability.
