COB LED Display | Fine Pitch Indoor LED Video Wall

Name: COB LED Display | Fine Pitch Indoor LED Video Wall
Brand: REISSOPTO
SKU: SKU-31
Availability: InStock

COB Series

COB LED displays from REISSOPTO serve high-end indoor projects worldwide, including command and control rooms, TV broadcast and XR virtual production studios, corporate lobbies and showrooms, boardrooms and conference centers, museums, exhibition halls, airports, financial trading floors, retail flagship stores, and education and lecture spaces. With fine pixel pitches from P0.62 to P2.5, seamless splicing, 10,000:1 contrast and a resin-sealed impact-resistant surface, they deliver clear close-range viewing and long-term stability for 24/7 mission-critical use. Custom sizes, OEM/ODM service, multi-voltage AC 110–240V support, and NovaStar/Colorlight control systems make deployment easy across North America, Europe, the Middle East, and Asia-Pacific.

Get a quote Set OEM

LED Module Details

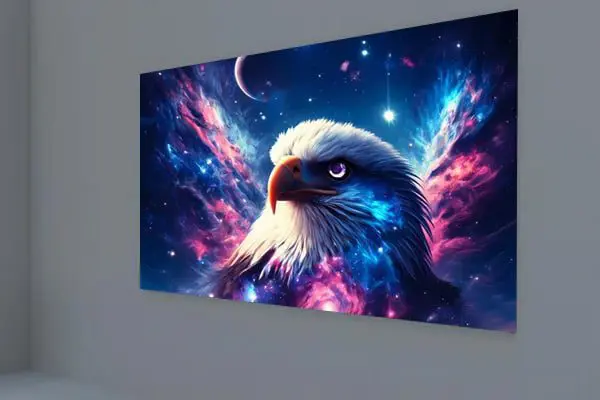

COB LED Display: Fine Pitch Indoor LED Video Wall

A COB (Chip-on-Board) LED display bonds LED chips directly onto the PCB under a protective resin layer, delivering higher contrast, better heat dissipation, and stronger durability than SMD screens. It is engineered for fine pitch indoor LED video walls in control rooms, studios, boardrooms, and command centers where close-viewing clarity and long-term stability matter most.

Why Choose a COB LED Display

Unlike SMD packaging, the full flip-chip COB structure covers the LED chips with a cured epoxy resin surface. This gives the screen strong resistance to bumps, impacts, moisture, dust, and electrostatic breakdown, and it can be wiped clean directly with a damp cloth. The seamless protective face also lowers the risk of dead pixels, making COB more reliable than a conventional SMD LED display for high-end indoor projects.

High Contrast and Comfortable Viewing

With a contrast ratio up to 10,000:1 and a 160° ultra-wide viewing angle, the COB fine pitch LED display reproduces deep blacks, rich grayscale, and accurate color from any seat. Professional COB correction technology suppresses Moiré and light refraction, producing a soft, low-glare image that stays comfortable for long-duration, close-range viewing under indoor ambient light.

Energy Efficient and Easy to Maintain

The flip-chip COB packaging combined with a common-cathode circuit design cuts power consumption by up to 40% versus conventional LED screens, with low thermal resistance and no color shift after long operation. Front-maintenance installation lets every part be serviced from the front, while the modular die-cast aluminum cabinet keeps the video wall lightweight, flat, and stable over time.

Applications

This indoor LED video wall suits control centers, broadcast and XR studios, corporate showrooms, exhibition halls, boardrooms, and education spaces. Its 16:9 cabinet splices cleanly into FHD/4K/8K resolutions, and bevel-shape cabinets support right-angle and cube installations for flexible creative layouts.

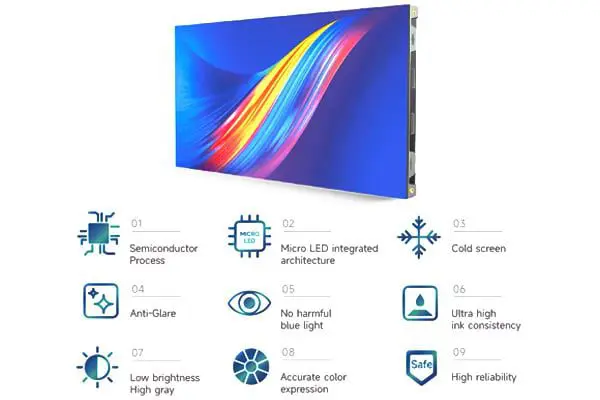

Full Flip-Chip COB LED Display

Accurate Color Performance Professional COB Correction Technology

– Reduce the impact of speckle noise on image quality
– Ensure the optimization of the image and the true restoration of color,enrich the scene space
– A+color performance, high chroma retention rate, more uniform color, picture quality is more perfect

Full Flip-Chip COB LED Display - COB Series

COB LED Screen 160° Ultra Wide Viewing Angle

COB LED Display 160° large viewing angle allows you to get the full view no matter where you’re sitting, while UHD picture and video content assures you an immersive viewing experience.

Full Flip-chip COB Design

With Ultra-High Contrast Ratio and Ultra-High Refresh Rate

With ultra-high contrast ratio and ultra-high refresh rate, the whole screen is more vivid, also effectively suppress Moiré and reducing light refraction and making colors more concentrated.

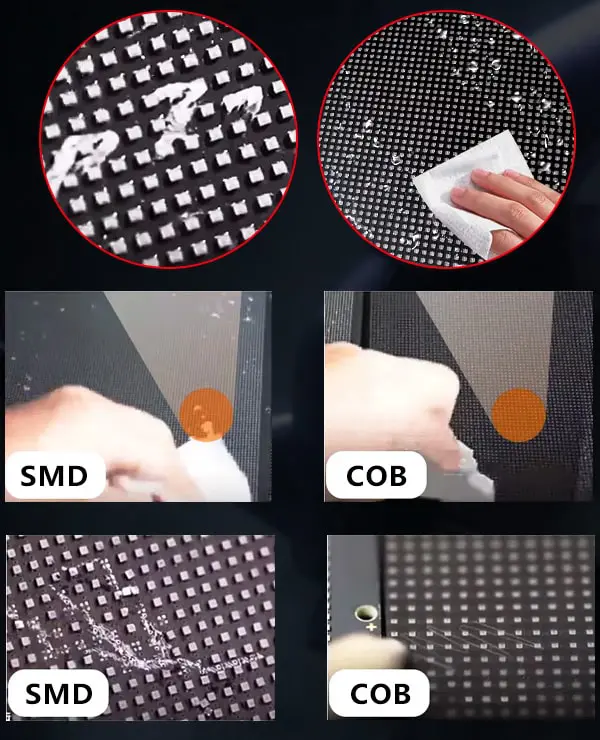

High Protection Package Technology

Can be cleaned directly with wet cloth, completely solve the damage caused by bumps, impacts, moisture, salt spray corrosion, electrostatic breakdown etc, suitable for the application of wet or coastal places.

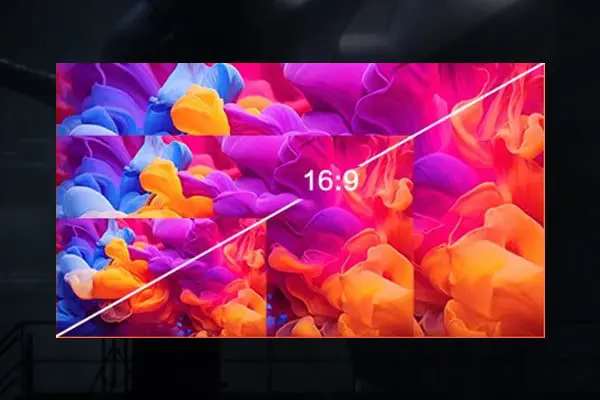

16:9 Golden Ratio

Standard 27.5″Size

Fine pitch led display has a perfect 16:9 display ratio, which can splice this LED display into FHD/4K/8K standard resolution.

Great Energy Efficiency

The flip chip COB packaging technology, combined with a common cathode circuit design, enhances display effects while Saving 40% energy than conventional LED screens.
The chip has low thermal resistance, and with the common cathode solution, it can achieve very low power consumption, that is highly energy saving. Even if it is used for a long time, there is no color block and no color cast.

High Contrast Ratio: Up to 10000:1

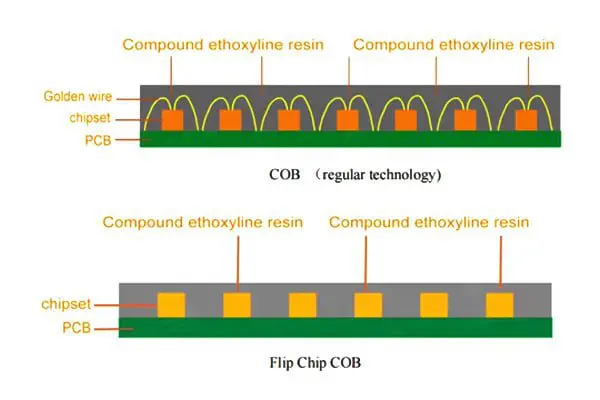

Overview of COB Technology

Up to 10000:1 contrast ratio, bringing clearer picture quality, more picture details and more grayscale levels.

High Contrast Ratio: Up to 10000:1 - COB Series

History of LED Display Package Technology

COB packaging achieves better video optical performance through chip level packag-ing, resulting in more comfortable and soft image quality No significant pixel graini-ness, more suitable for “closer range”, “indoor ambient light”, “longer duration Appli-cations under conditions such as long-term viewing.

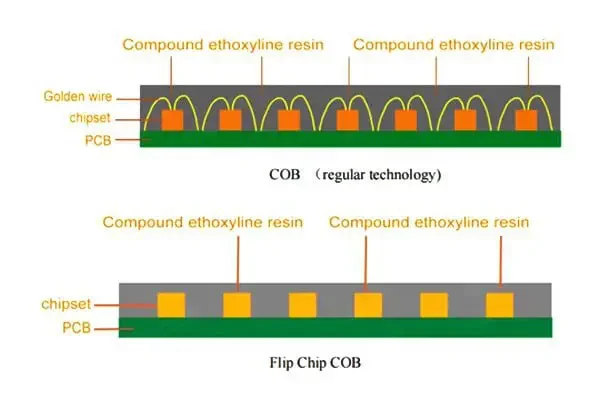

High Protection Performance

Cured with epoxy resin to improve the protective performance.

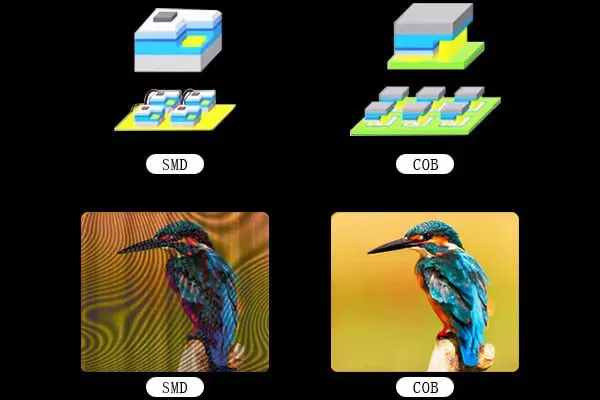

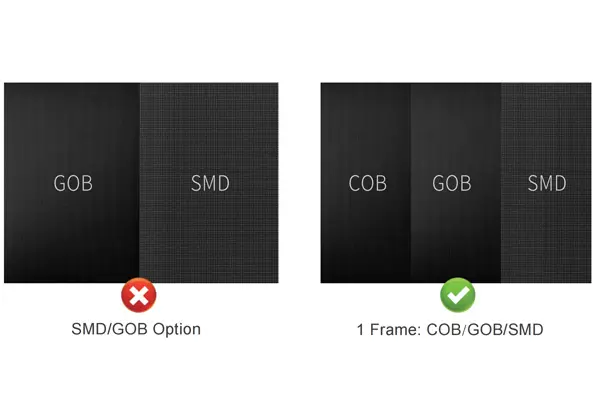

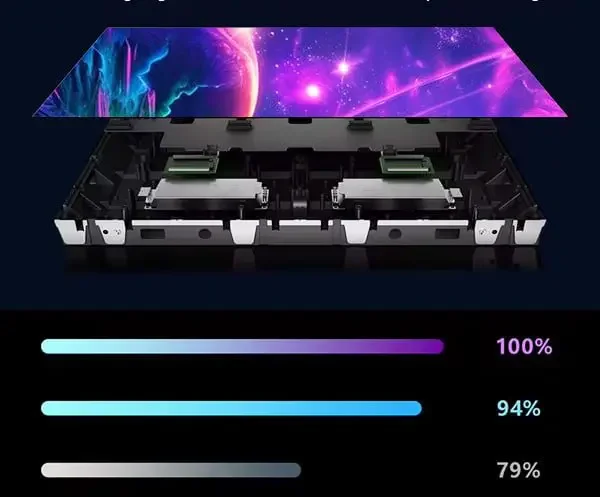

MIP VS COB

Full Flip-Chip COB LED Display upcompared to Flip Chip SMD and SMD.

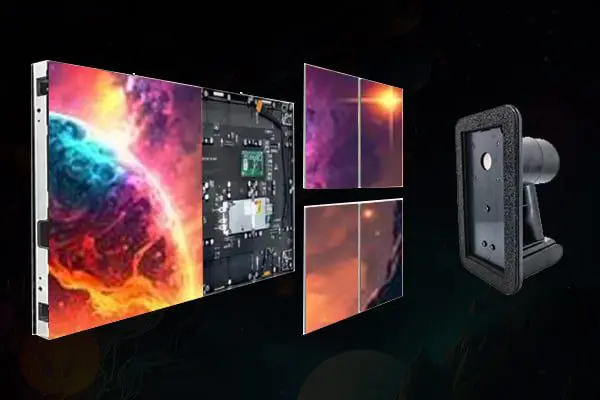

Front-maintenance Installation For Easier & Faster Repair

Due to the ultra-light weight of the panels , they canbe installeddirectly on wooden or concrete walls ,and all parts areserviceable from the front
Modular design for eassplicing, true color, highstability and long life;
Automatic wave soldering ,solid welding, lamp beads donot fall off , longer life span;
High-quality die-castingaluminum , solid, lightweight ,beautiful and generous; Innovative structural design, light and thin box easy toconnect and level;

High Brightness

The brightness configuration of up to 4000nits makes the fine pitch led display provide more application possibilities.

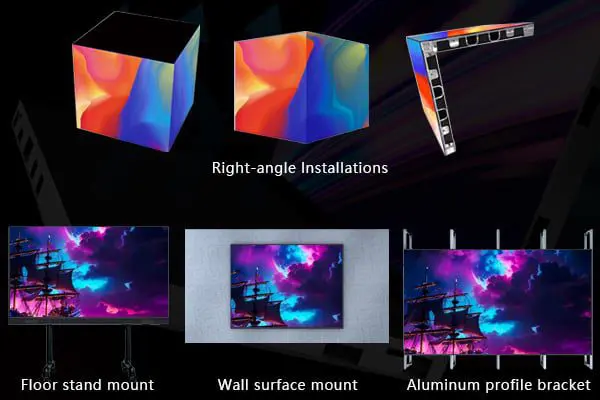

Various Installation Modes

The cabinet supports bevel shape, enabling various splicing methods such as right-angle and cube installations, creating more possibility of indoor applications.

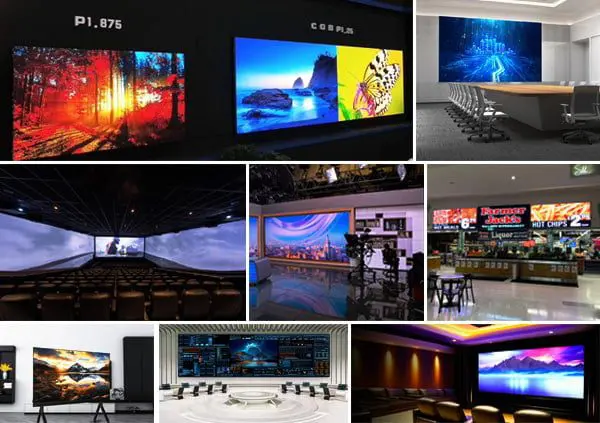

Application Scenario COB LED Display

Wide application range, suitable for Control Center, Studio, Business center, Exhibition hall, Stage, Technology venues, Entertainment venues, Company exhibition hall, party and government propaganda, etc.

Specifications

COB Fine Pitch LED Display Parameters
Model *For more models, please consult customer service	P0.62	P0.78	P0.93	P1.25	P1.5	P1.87
Pixel Pitch (mm)	0.62	0.78	0.93	1.25	1.5	1.87
LED Package	COB (Chip-on-Board)
Pixel Density (dots/㎡)	2,560,000	1,638,400	1,137,777	640,000	409,600	284,444
Brightness (nits)	600 / 1000
Contrast Ratio	10,000:1
Viewing Angle (H/V)	160° / 160°
Refresh Rate (Hz)	3840Hz -15360Hz
Frame Rate (Hz)	60
Color Temperature	3000K – 9300K
Cabinet Size (mm)	600 × 337.5 × 75
Cabinet Size (inch)	23.6″ × 13.26″ × 1.55″
Cabinet Weight	4 kg / 8.8 lbs
Max Power (W/㎡)	95	85	75	70	70	65
Input Voltage (AC)	110V / 240V, 50/60Hz
Working Temp / Humidity	-10℃ – +40℃ / 10%RH – 90%RH
IP Protection Rating	IP54 / IP33
Service Life	100,000 h
Warranty	24 months
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a COB LED Display?

A COB LED Display is an LED screen using Chip on Board technology, where LED chips are directly bonded onto the PCB and covered with a protective layer. This structure provides high protection, excellent heat dissipation, high contrast, and stable image performance, making it suitable for fine pitch indoor LED video wall applications.

What are the advantages of a COB LED Display?

A COB LED Display offers strong impact resistance, dust protection, moisture resistance, better heat dissipation, high contrast ratio, wide viewing angles, and excellent color consistency. It is especially suitable for control rooms, conference rooms, broadcast studios, corporate showrooms, education spaces, and other high-end indoor display projects.

How is a COB LED Display different from an SMD LED Display?

A COB LED Display directly packages LED chips on the PCB surface with a protective coating, while an SMD LED Display uses individual surface-mounted LED lamps. Compared with SMD, COB provides better protection, smoother surface performance, lower risk of dead pixels, and stronger durability, especially for fine pitch LED display applications.

Where can COB LED Displays be used?

COB LED Displays are widely used in command centers, control rooms, meeting rooms, boardrooms, broadcast studios, XR studios, retail stores, exhibition halls, museums, airports, financial centers, education rooms, and corporate showrooms. They are ideal for indoor LED video walls that require close viewing, high resolution, and long-term stable operation.

Is a COB LED Display suitable for fine pitch LED video walls?

Yes. A COB LED Display is highly suitable for fine pitch LED video walls because it supports small pixel pitches, high pixel density, seamless splicing, high contrast, and excellent image details. Its protective surface also makes it more reliable for long-term indoor commercial and professional display applications.

How do I choose the right COB LED Display?

To choose the right COB LED Display, consider pixel pitch, screen size, viewing distance, brightness, refresh rate, grayscale, contrast ratio, installation method, maintenance access, protection level, control system, and project budget. For close-view indoor applications, a smaller pixel pitch COB LED screen can provide clearer image details and a more premium visual experience.
