P1.86 Fine Pitch Indoor LED Screen | HD LED Video Wall

Name: P1.86 Fine Pitch Indoor LED Screen | HD LED Video Wall
Brand: REISSOPTO
SKU: SKU-1
Availability: InStock

IF-H Series

As a professional fine pitch LED display manufacturer, REISSOPTO ships the P1.86 indoor LED screen to over 140 countries with worldwide delivery, installation guidance and after-sales support. It is chosen by integrators, AV contractors and facility teams for command centers, broadcast studios, corporate lobbies, retail flagships and museums where detailed, close-range visuals matter. Compared with P2.5 it offers higher resolution; compared with P1.5 it gives a more cost-efficient balance of image detail and budget, making it a practical choice for indoor HD display projects.

Get a quote Set OEM

Indoor LED display Details

What is a P1.86 Ultra-fine Pitch Indoor LED Screen?

The P1.86 indoor LED screen is a fine pitch LED display with a 1.86 mm pixel pitch, built for close-range HD viewing. Using front-service 640×480 mm die-cast cabinets, a ≥3840 Hz refresh rate and a 6000:1 contrast ratio, this indoor LED video wall delivers sharp text, smooth gradients and accurate color even at 1.9 m. Its modular HD LED display panel design allows fast splicing, front-side maintenance and stable 24/7 operation for control rooms, studios and conference room LED wall projects.

Indoor LED Screen 4:3 – Optimized for Indoor Spaces

The 4:3 cabinet design with a 640*480 mm dimension offers a high – quality visual solution for indoor applications. This compact and lightweight cabinet features a high-flatness screen, making it easy to install and disassemble.

Leveraging the REISSOPTO small cabinet size, this display boasts an ultra-lightweight and space – saving design. It is equipped with a high-quality, high-refresh-rate LED panel, measuring 320mm*160mm, providing exceptional image quality in an HD Indoor Led Screen.

The dual-service approach, allowing access from the front or rear, ensures convenient maintenance and serviceability. This indoor LED display delivers a visually stunning and versatile solution for various indoor environments.

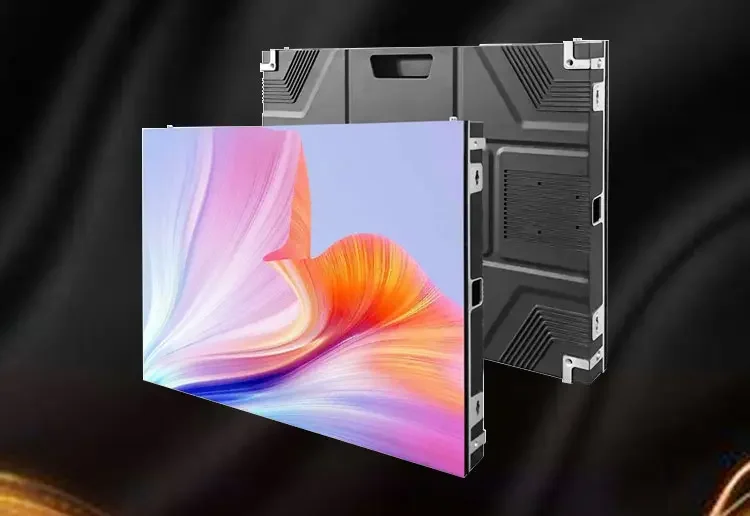

Indoor 640x480mm Frontal Service LED Display

4 : 3 Cabinet Design, Die – casting Aluminum

1: Frontal service design
2: Ultra light & thin efficient heat dissipation, only 6kg
3: Vivid visual experience
4: Anti-collision design
5: High – flatness screen
6: Easy to install and disassemble

Indoor 640x480mm Frontal Service LED Display - IF-H Series

High Grayscale At Low Brightness

Exceptional Contrast and Grayscale Performance

Contrast ratio exceeding 6000:1
16-bit grayscale depth
Reveals details even in low brightness conditions
This indoor LED display offers exceptional contrast ratio of over 6000:1 and 16-bit grayscale depth, delivering exceptional image quality even in low brightness.
The advanced technology maintains fine details, making it ideal for applications requiring visual quality and visibility, such as conference rooms and museums.
The high contrast and deep grayscale provide a visually immersive and comfortable experience, regardless of ambient lighting. This versatility and performance make this indoor LED display a standout choice for discerning indoor applications.

Full Front Maintenance Indoor Led Screen

Indoor LED Display Offers Exceptional Front – facing Maintenance

Supporting full front maintenance with vacuum tools, reach easy operation and assembly, no need special maintenance channels

Full Front Maintenance Indoor Led Screen - IF-H Series

REISSOPTO Energy – Saving Echnology

High – Efficiency Indoor LED Display – Balanced Brightness and Energy Savings

High brightness and low energy-consumption, it can increase 30 % brightness or decrease 30 % consumption for better heat dissipation and better contrast.

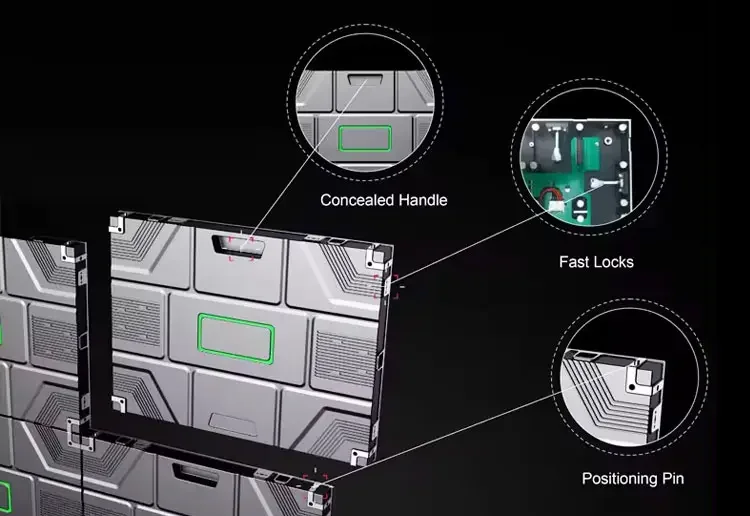

Easy Installation

Precise Positioning and Effortless Installation

With positioning spring plunger piston design, can reach accurate positioning and convenient installation, save installation time.

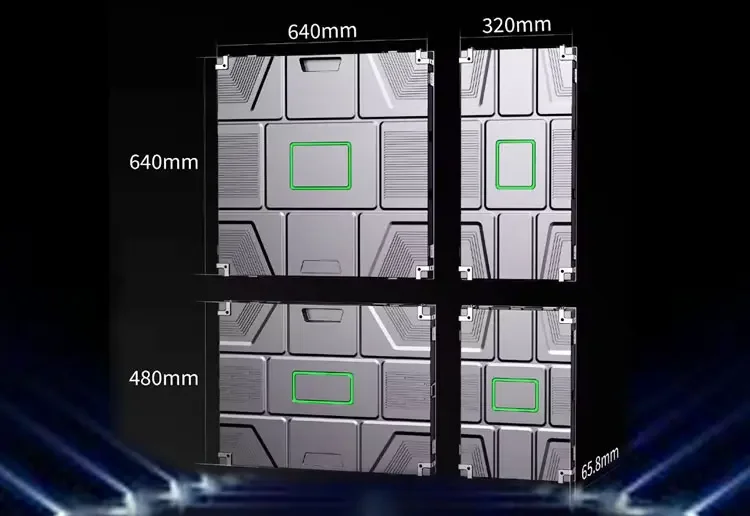

Panels Size Customization

Flexible Panel Configurations with Durable Construction

Based on standard 640*480mm panel size, there are more panel sizes 640*640mm, 320*640mm, 320*480mm for option, which can meet the needs of flexible sizes splicing.
The panel is designed with high-strength alloy material.

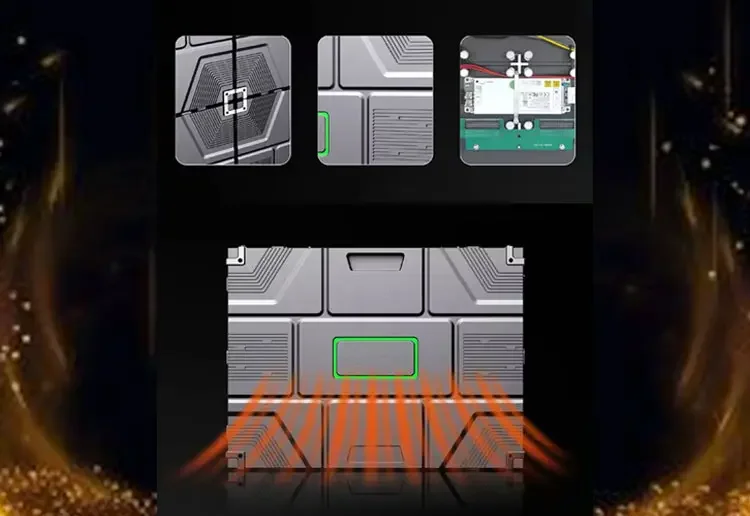

Efficient Heat Dissipation

Advanced Thermal Management for Optimal Performance

Multiple unique heat dissipation designs, which is 5C lower than conventional LED display;
Contact thermal conductance accelerates heat dissipation; hollowed & wave design for bigger heat dissipation area, Textured Heat dissipation rib.

Efficient Heat Dissipation - IF-H Series

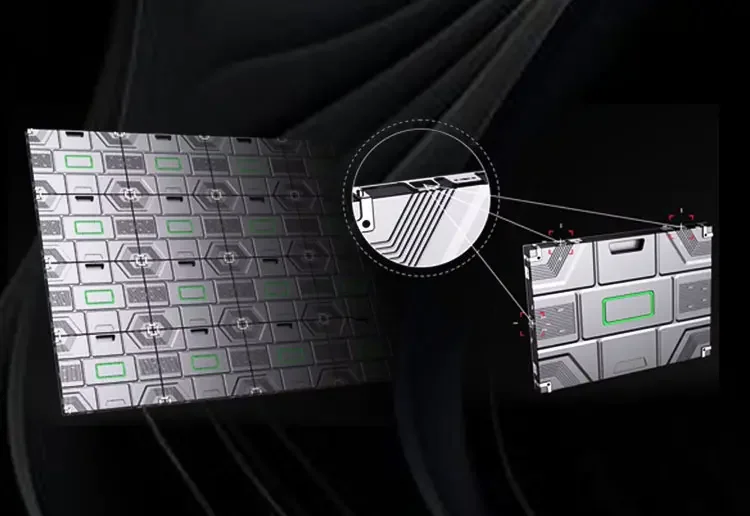

Wireless Connection

Seamless Cabling for Stability and Aesthetics

There are no cables between panels and no apparent cables outside the panel. Inner cable connection will make the transmission of signal and power more stable, and the whole wil look more neat and simple.

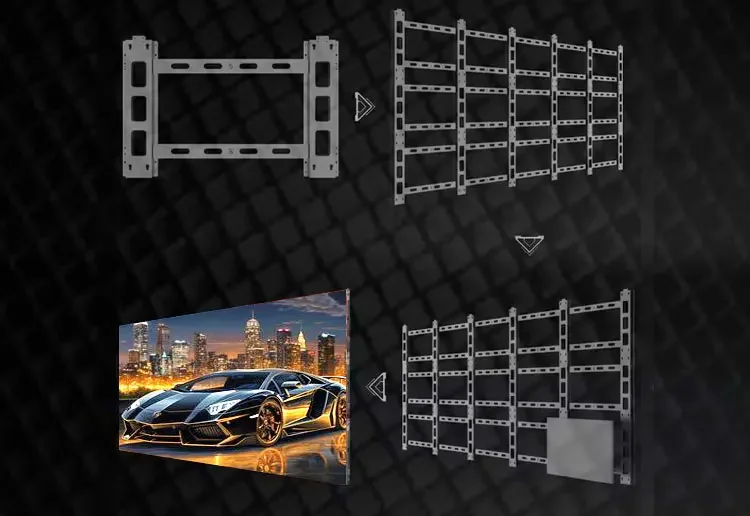

Complete Package Available LED Wall

Seamless Splicing, Excellent display experience

Ready-made brackets, ensuring the wholescreen flat and seamless, Just 4 steps can finish the installation.

Complete Package Available LED Wall - IF-H Series

Specifications

Fine Pitch Indoor LED Screen Parameters
Model *For more models, please consult customer service	P1.25	P1.53	P1.66	P1.86	P2	P2.5
Pixel Pitch	1.25 mm	1.53 mm	1.66 mm	1.86 mm	2 mm	2.5 mm
LED Encapsulation	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD2020
Pixel Density (dots/㎡)	640,000	422,500	360,000	288,925	250,000	160,000
Module Size	320×160 mm
Module Resolution	256×128	208×104	192×96	172×86	160×80	128×64
Scanning Mode	1/64s	1/52s	1/48s	1/43s	1/40s	1/32s
Best Viewing Distance	>1.3 m	>1.6 m	>1.7 m	>1.9 m	>2 m	>2.5 m
Cabinet Size	640×640×50 mm, 640×480×50 mm or customized
Brightness	650–1200 cd/㎡
Contrast Ratio	10,000:1
Refresh Rate	≥7680 Hz
Viewing Angle	H: 160° / V: 140°
IP Protection Rating	Front: IP41 / Back: IP45
Power Consumption	Max <800 W/㎡; Average <420 W/㎡
Input Voltage	AC 100–240V ±15% 50/60Hz, Output: DC 5V
Working Temperature	Working: -20℃ – +60℃; Storage: -35℃ – +80℃
Working Humidity	10%RH – 90%RH
Cabinet Material	Die-casting Aluminum
Maintenance Type	Front Maintenance
Service Life	>100,000 h
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is the best viewing distance for a P1.86 indoor LED screen?

The optimal viewing distance is about 1.9 to 3 meters, making the P1.86 indoor LED screen ideal for conference rooms, control centers, studios and retail displays that need close-up, detailed HD visuals.

How does P1.86 compare to P2.5 or P1.5 LED screens?

Compared with P2.5, P1.86 offers higher resolution and smoother image quality for fine pitch indoor environments. Compared with P1.5, it provides a more cost-efficient balance between image detail and budget.

What resolution and pixel density does the P1.86 LED display provide?

The P1.86 fine pitch LED display delivers a pixel density of about 288,925 dots per square meter with a 320×160 mm module resolution of 172×86 dots. On standard 640×480 mm cabinets this produces crisp Full HD and higher resolutions on larger indoor LED video walls, ideal for text, dashboards and detailed graphics.

Is the P1.86 indoor LED screen suitable for 24/7 operation in control rooms?

Yes. The IF-H Series uses high-reliability components, die-cast aluminum cabinets and multiple heat-dissipation designs that run about 5°C cooler than conventional panels, ensuring stable, continuous 24/7 performance for control rooms, command centers and broadcast studios.

How is the P1.86 LED display installed and maintained?

The P1.86 indoor LED screen supports full front maintenance with vacuum tools, so no rear service channel is needed. It can be wall-mounted, hung or free-standing, and the spring-plunger positioning design enables fast, accurate splicing that saves installation time.

Can REISSOPTO customize the P1.86 LED screen size and ship worldwide?

Yes. As a fine pitch LED display manufacturer serving 140+ countries, REISSOPTO customizes cabinet sizes (640×640, 640×480, 320×640 mm and more), shapes and control systems, and provides worldwide shipping, installation guidance, spare parts and responsive after-sales support.
