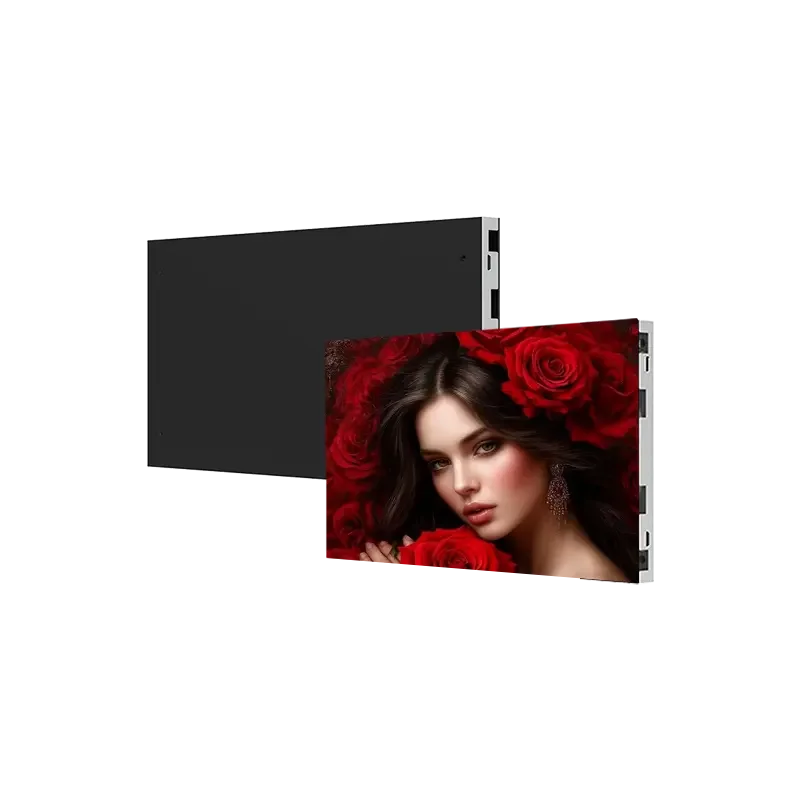

P0.6 Ultra-fine pitch indoor LED display

IFM-MIP Series

Seamless display with ultra-high resolution, vibrant colors, wide viewing angles, low power use, and reliable indoor performance.

Ultra-fine Pixel Pitch (0.625mm - 1.875mm) Black Consistency Technology Energy-saving Design Seven Protection Mechanisms Easy-to-Clean Surface High Brightness Performance (1,000 nits, 3,500 nits optional) Compact Cabinet Size (600x337.5x28 mm) Seamless Splicing & Flat Installation Front Maintenance Design HDR Support for Enhanced Visuals

The P0.6 ultra-fine pitch indoor LED display is designed for environments where ultra-high resolution, seamless images, and precise color reproduction are critical. With a pixel pitch of just 0.6mm, it delivers stunning visual clarity even at very close viewing distances. Typical application scenarios include:

Command and Control Centers、Broadcast Studios、High-end Conference Rooms、Luxury Retail and Flagship Stores、Art Galleries and Digital Museums、Medical Imaging and Simulation、High-end Home Cinemas、Financial Institutions.

If you need to customize other scenes, please contact customer service!

Get a quote Set OEM

Indoor LED display Details

What is a P0.6 Ultra-fine Pitch Indoor LED Display?

The P0.6 ultra-fine pitch indoor LED display is a state-of-the-art display solution featuring an ultra-narrow 0.6mm pixel pitch, enabling extremely high pixel density and delivering ultra-high-definition (UHD) visuals. Designed for close-distance viewing, it provides crisp, sharp images with rich detail and smooth transitions, making it ideal for environments where clarity and precision are critical.

Built with advanced LED technology, the P0.6 display offers seamless splicing, wide viewing angles, and superior color uniformity. Its fanless design ensures quiet operation, while efficient heat dissipation and low power consumption contribute to long-term reliability and energy savings. With its ultra-slim form factor and flexible installation options, it sets a new standard for high-performance indoor LED display systems.

The Future Trends and Applications of MIP LED Display Technology

It is evident that MIP (Micro Inorganic Pixel) LED display technology is particularly suitable for smaller chips, offering significant potential for reducing pixel spacing and lowering costs. With the future trend firmly pointing towards Micro LED, MIP technology holds distinct advantages, especially in high-density, high-resolution displays. Leyard, a global leader in visual-effect technology, fully embraces its responsibility to explore new technological trends and has strategically positioned itself in MIP packaging technology to drive industrial development.

By continuously innovating, Leyard enhances the quality of display performance and propels the industry to new heights. The applications of MIP technology are vast, enabling finer and more realistic visual experiences across both indoor and outdoor displays. This meets the growing market demand for high-quality visuals. With a commitment to transforming advanced technologies into practical products, Leyard delivers unprecedented visual spectacles to customers. Furthermore, by promoting this innovative technology globally, Leyard supports the digital transformation across various industries. Through these efforts, Leyard not only leads but also shapes the future of display technology.

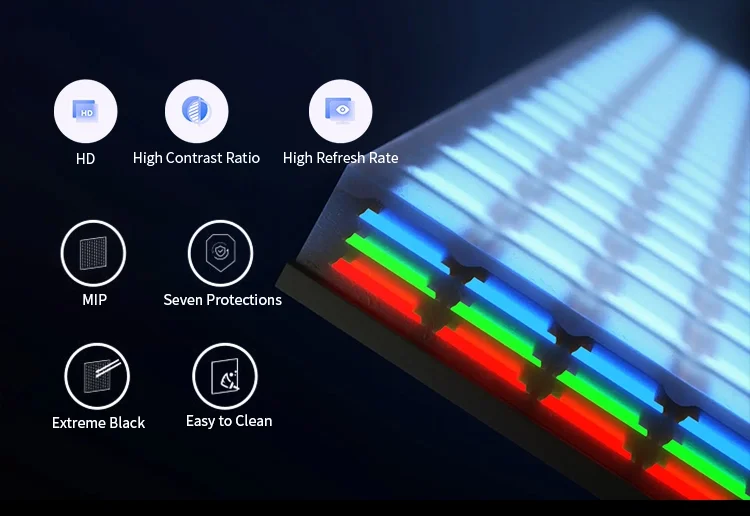

MIP LED Screen Technology

Innovative Chip Design for High-Quality Displays

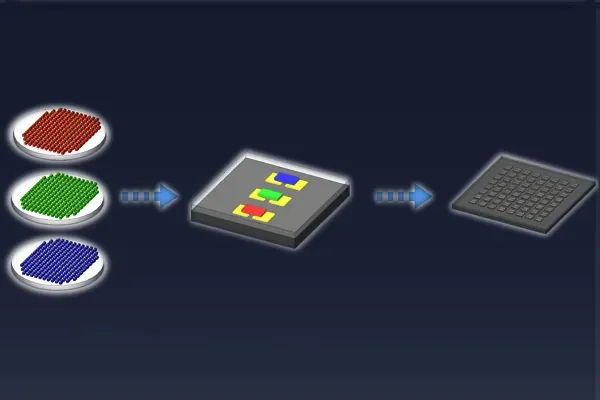

MIP LED technology – The MIP series adopts the MIP technology independently developed by ReissDisplay, and uses 50um to 100um LED light emitting chips to achieve excellent small-pitch display effect. Combining flip chip and common cathode technology, the product ensures higher reliability and lower power consumption. The screen surface is made of multi-layer coating to enhance color and black consistency, while reducing glare, reflection and moiré, giving users a more comfortable visual experience.

· Pixel range: 0.6-1.8 mm

· Color consistency

· High contrast

· Energy saving

· Comfortable visual experience

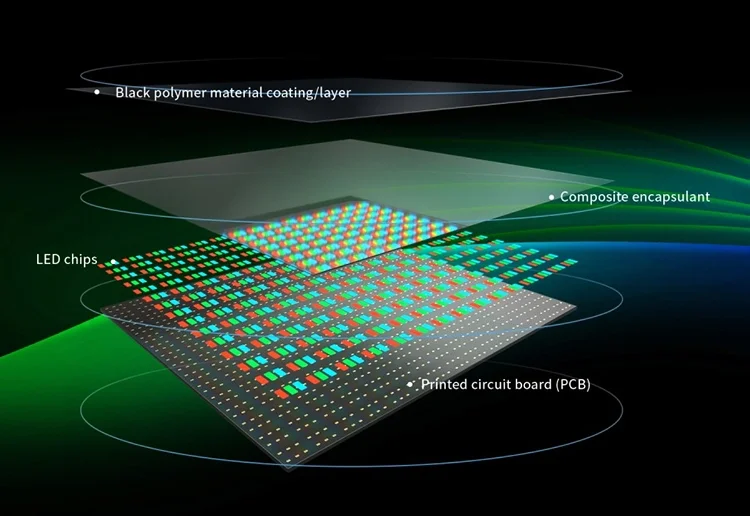

MIP Full Flip Chip Common Cathode Packa

Ultra-low power consumption

No pad blocking, high luminous efficiency, reduced lamp bead failure rate. Larger pad size, more secure connection. Smaller chip size, higher contrast.

The product uses common cathode and flip-chip technology, as well as an energy-saving driver chip, which significantly reduces power consumption by 34%.

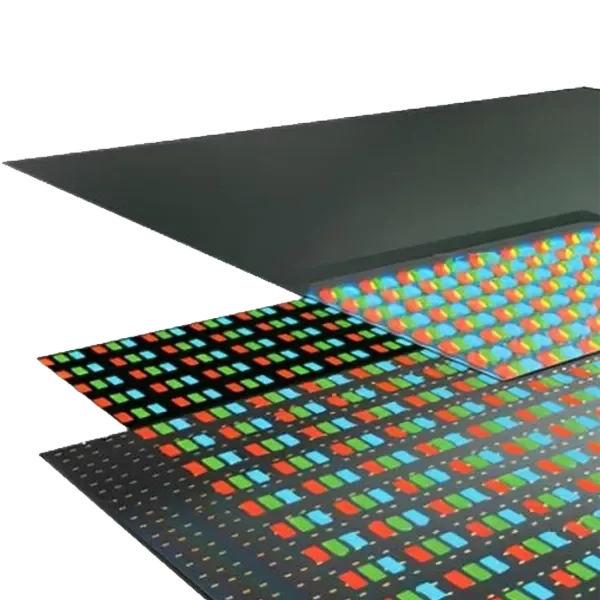

The MIP Series Products Have a Seven-layer Protection

Seven-layer protection system, which performs well in various complex environments, and has excellent performance such as dustproof, moisture-proof, anti-collision, anti-static, and blue light filtering. Designed for environments that are prone to dirt and complex environments such as subway internal tracks, the product has excellent reliability and significantly extends the product life.

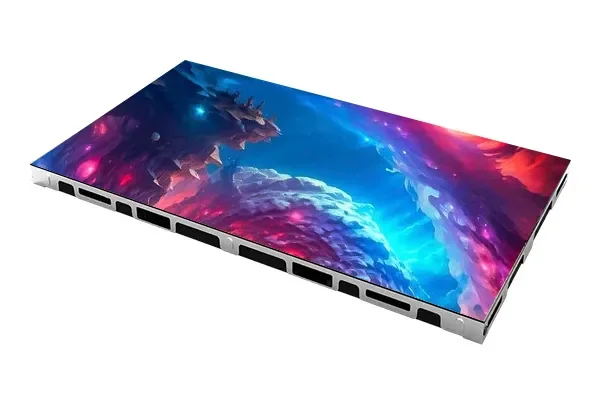

MIP LED Display Screen Ultra-light and Ultra-thin

The thickness of a cabinet is only 28 mm, and the weight of the cabinet is only 4.8 kg, as light as a feather.

MIP LED Display Screen High Brightness

Standard brightness is up to 1,000 nits. With a contrast ratio of over 1,000,000:1, images are crisp and bright, with every detail fully visible.

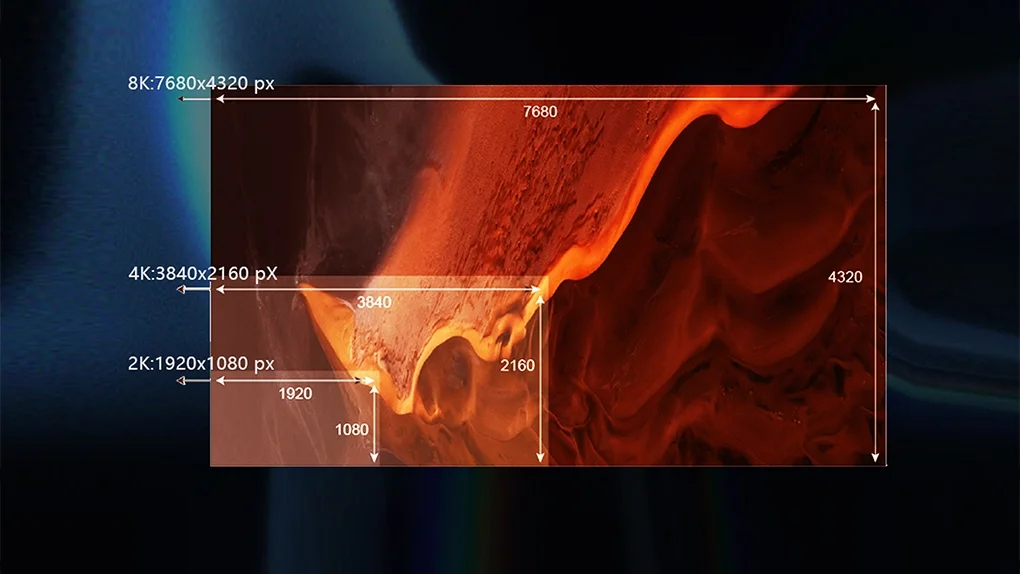

Excellent Visual Performance

The high refresh rate of 7680Hz, high dynamic range, high-resolution display, and advanced 24-bit grayscale function provide excellent color performance and visual impact, thereby providing an excellent viewing and shooting experience.

Wider Viewing Angle

Ultra-wide viewing Angle, up to 170°/170°

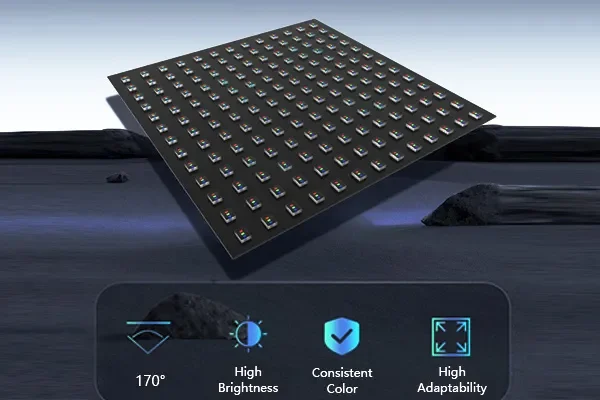

Micro Chip Package

Pixel-level light color mixing bin 99% ultra high consistency.

Broad visual experience of bright images without color

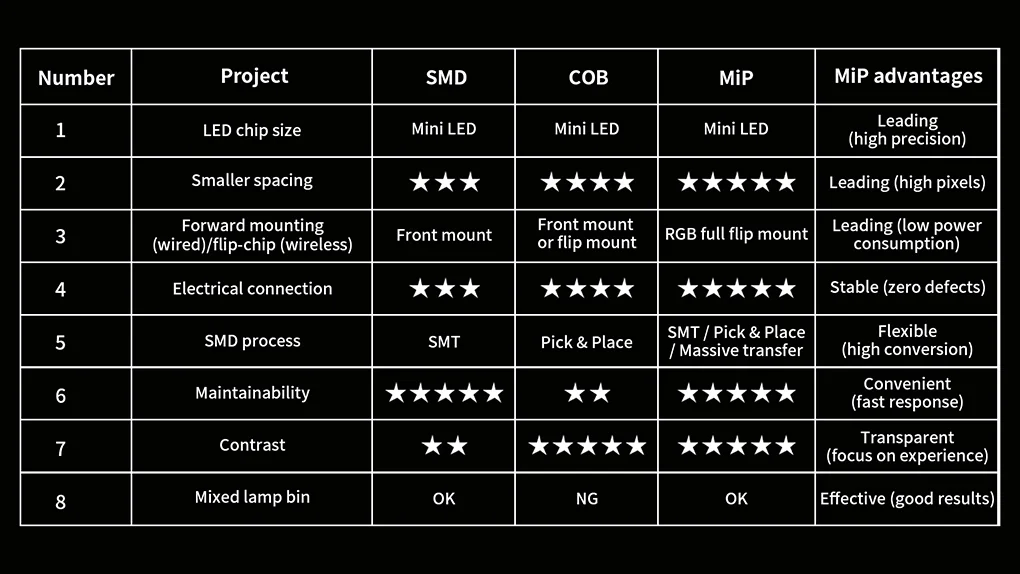

SMD & COB & MIP

At the display level, the point spacing of MIP can be minimized, followed by COB, and SMD is more restrictive in point spacing;

Overall, MIP is better than SMD and COB in terms of LED chip size, electrical connection, contrast, mounting link, repairability, flatness, mixed lamp bin, etc.

It can be seen that MIP is suitable for smaller chips, with more room for reducing spacing and cost reduction. In the future, the trend of Micro LED is determined, and MIP has obvious advantages. Leyard fully practices the responsibility and responsibility of a global leader in visual-effect technology, actively explores the trends of new technologies, lays out MIP packaging technology, and leads industrial development.

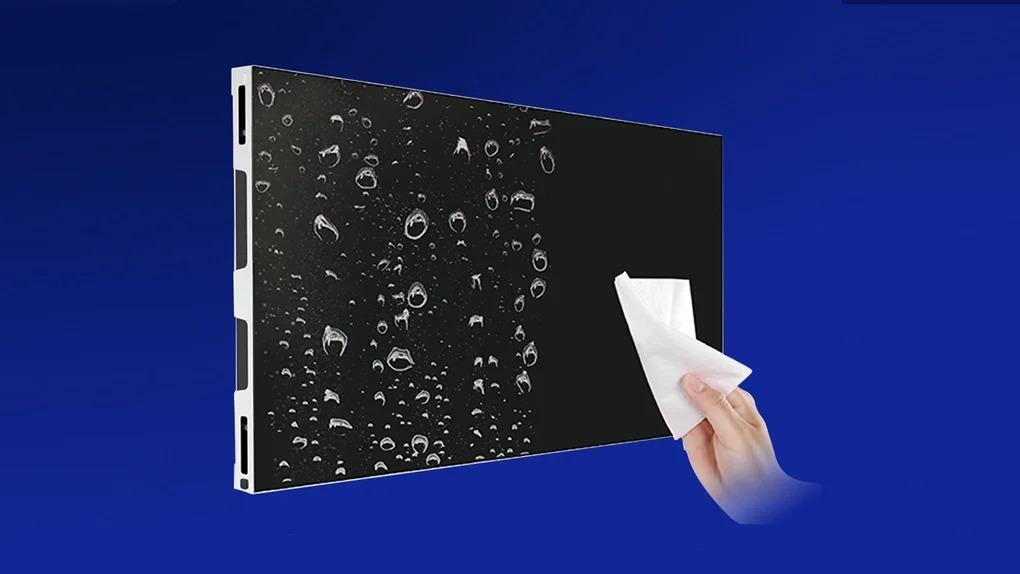

Easy to Clean

The MIP series surface is easy to clean. If you need to clean the screen, just wipe it gently with a damp cloth to achieve efficient cleaning and reduce maintenance costs.

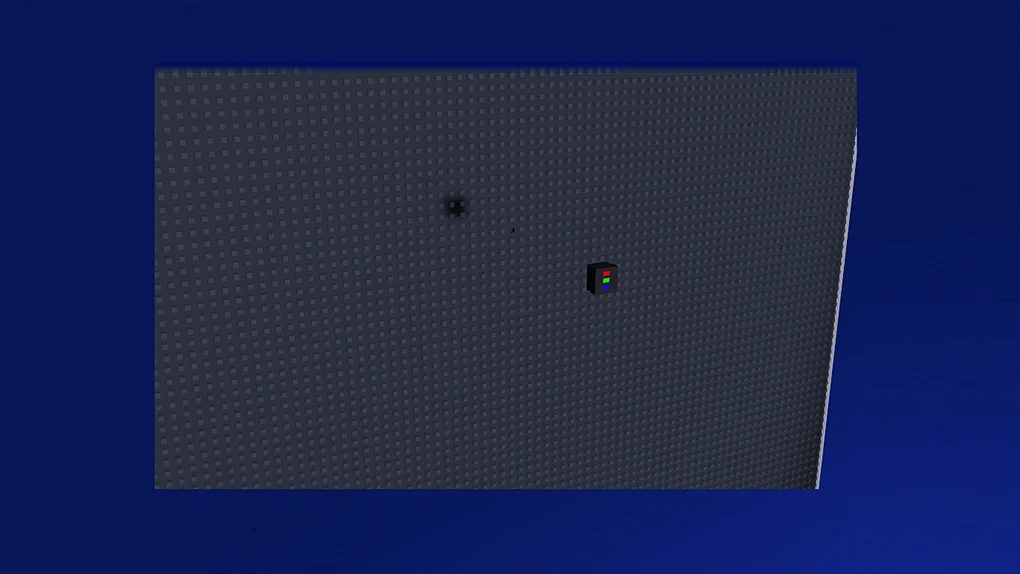

MIP LED Display Screen Technology Lamp Repairable

MIP LED technology allows repair of damaged lights when necessary, and customers can repair them locally without sending the faulty module back to the factory, greatly saving time and cost.

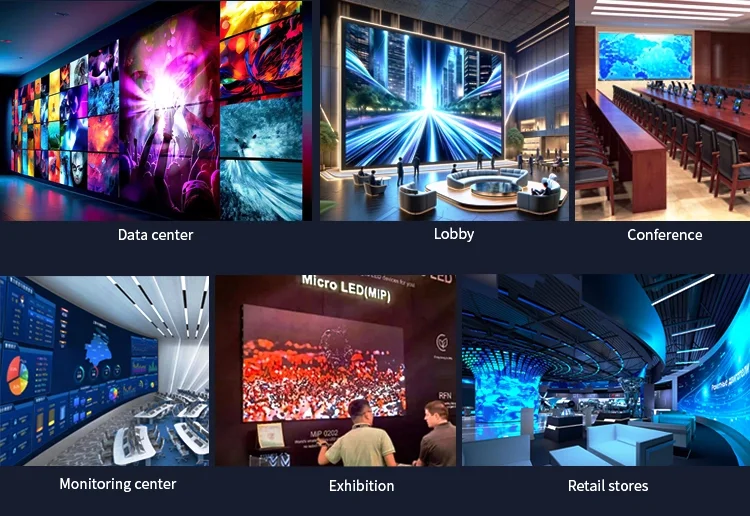

MIP LED Display Screen Application Scenarios

· Conference Room
· Control room
· Command Center
· Data Center
· Exhibition
· Retail
· Hall

Application Cases

Micro LED Display-0001

Specifications

Model	M0.6	M0.7	M0.9	M1.2	M1.5	M1.8
Pixel Configuration	MIP	MIP	MIP	MIP	MIP	MIP
Pixel Pitch(mm)	0.625	0.78	0.93	1.25	1.56	1.875
Cabinet Size(mm)(WxHxD)	600×337.5×28	600×337.5×28	600×337.5×28	600×337.5×28	600×337.5×28	600×337.5×28
Cabinet Resolution(WxH)	960×540	768×432	640×360	480×270	384×216	320×180
Cabinet Weight(kg/cabinet)	4.8	4.8	4.8	4.8	4.8	4.8
Refresh Rate(Hz)	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680
Contrast Ratio	15,000:1	15,000:1	15,000:1	15,000:1	15,000:1	15,000:1
Grayscale(bit)	16	16	16	16	16	16
Brightness(nits)	1,000(3,500 optional)	1,000(3,500 optional)	1,000(3,500 optional)	1,000(3,500 optional)	1,000(3,500 optional)	1,000(3,500 optional)
Max. Power Consumption(W/㎡)	≤450	≤450	≤450	≤450	≤450	≤450
Avg. Power Consumption(W/㎡)	≤150	≤150	≤150	≤150	≤150	≤150
Viewing Angle（H/V）	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°
Working Voltage	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Lifetime(H)	100,000	100,000	100,000	100,000	100,000	100,000
