P1.5 Ultra-fine pitch indoor led display

Name: P1.5 Ultra-fine pitch indoor led display
Brand: En
SKU: RF-GK Series
Availability: InStock

Delivers sharp, high-definition visuals with seamless image quality, vibrant colors, wide viewing angles, and energy-efficient, reliable performance.

Display Type: Full-color SMD LED Panel (P3 / P3.9 / P4.8 / P6 / P10 options) Brightness: ≥ 800 nits (adjustable up to 2000+ nits) Color Depth: 16.7 million colors, 14–16 bit color processing Refresh Rate: ≥ 3840Hz Viewing Angle: H: ±160° / V: ±140° Module Resolution: Varies by pitch (e.g., 96×96 dots for P3 modules) Cabinet Material: Lightweight die-cast aluminum Cabinet Size: Standard 500×500mm / 500×1000mm Installation Method: Quick-lock magnetic system; floor-standing, hanging, or truss-mount compatible Operating Temperature: -20°C ~ +50°C

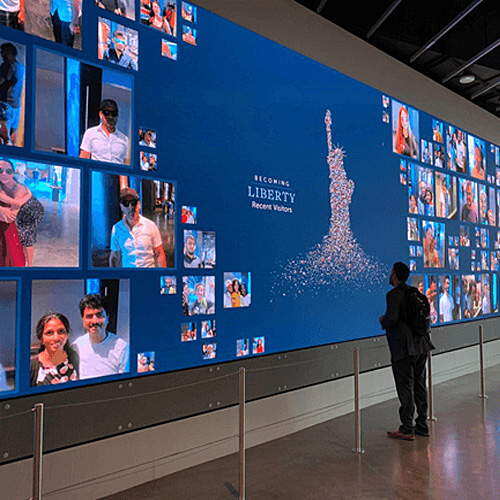

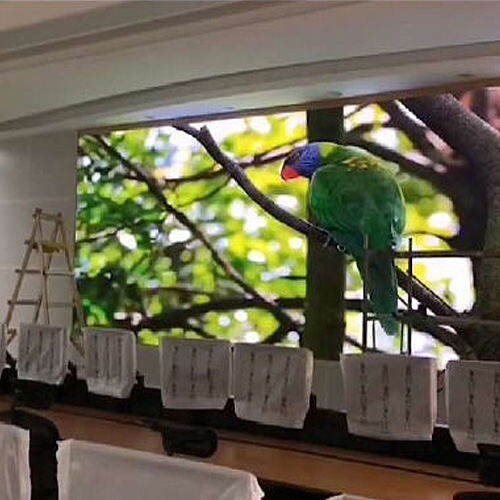

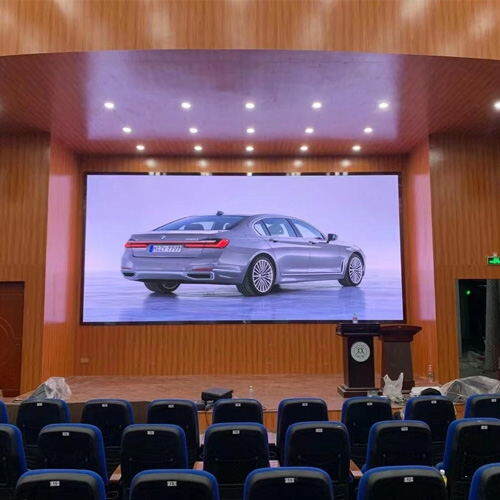

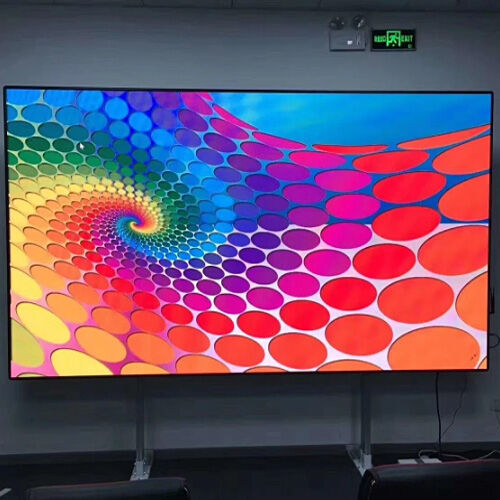

The P1.5 ultra-fine pitch indoor LED display is ideal for use in control rooms, monitoring centers, TV studios, corporate boardrooms, conference halls, exhibition venues, luxury retail stores, and museums. It’s also suitable for education and training environments that require high visual clarity for close-range viewing.

If you need to customize other scenes, please contact customer service!

Get a quote Set OEM

Indoor LED display Details

What is a P1.5 Ultra-fine Pitch Indoor LED Display?

The P1.5 ultra-fine pitch indoor LED display is a high-resolution digital screen featuring a 1.5mm pixel pitch. It delivers sharp, clear images with smooth color transitions and excellent brightness uniformity, ensuring precise and vivid visuals.

Designed for close-range viewing, this display offers seamless image quality, wide viewing angles, and stable performance. Its modular and slim design allows for easy installation and maintenance, while energy-efficient operation supports long-term reliability.

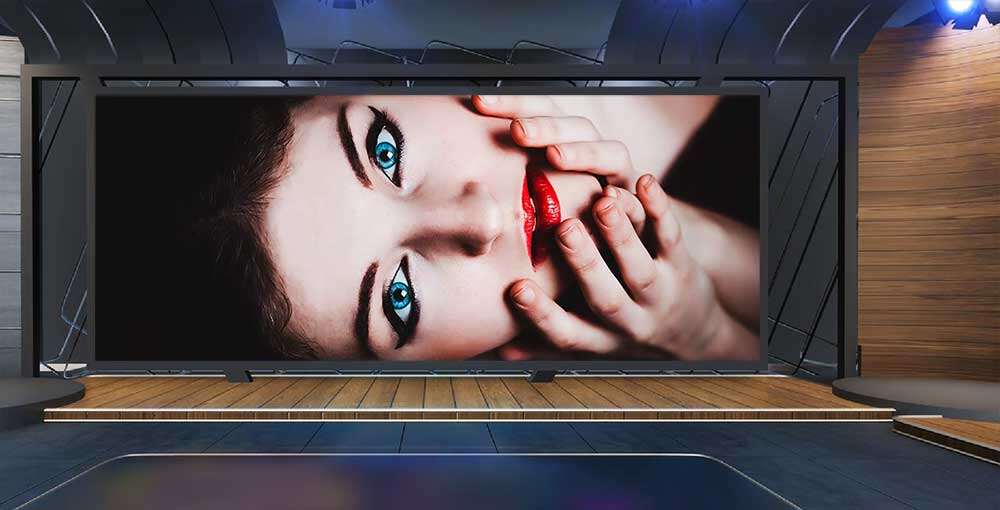

Stage Background LED Display

A Stage Background LED Display is a high-performance, modular LED screen designed for dynamic events, concerts, exhibitions, and immersive visual experiences. These displays feature ultra-thin cabinets, high brightness (≥800 nits), and 7680Hz refresh rates to eliminate flicker, ensuring smooth playback for cameras and live audiences. With CNC-machined precision (0.1mm tolerance) and seamless splicing, they deliver sharp, vivid visuals in straight, curved, or 45° right-angle configurations. Ideal for stage backdrops, the RF-GK series combines IP68 waterproofing, GOB technology, and die-cast aluminum cabinets for durability in both indoor and outdoor environments.

Why Choose Stage Background LED Displays?

Stage Background LED Displays are engineered for versatility and reliability in event setups. The RF-GK series, for example, supports 500×500mm and 500×1000mm modules, enabling complex layouts like L-shapes, vertical stacks, or curved screens. With 178° ultra-wide viewing angles, these displays ensure consistent color and brightness from any angle, perfect for close-up performances or large-scale venues. Their quick-lock installation system (10-second setup) and front/rear maintenance access reduce downtime, while low power consumption (≤600W/m²) and >100,000-hour lifespan make them cost-effective for frequent rentals. Whether for concerts, retail promotions, or public art installations, these displays blend cutting-edge technology with user-friendly design.

RF-GK Series Stage Background LED Display

Perfect for Events, Concerts, and Exhibitions

The RF-GK Series stage background LED display combines high-definition visuals, modular flexibility, and durable design for dynamic events. It supports straight, curved, and 45° right-angle configurations, enabling seamless splicing and immersive visual experiences.

High-Definition Display with Flicker-Free Performance

7680Hz Refresh Rate for Camera and Broadcast Compatibility

Equipped with a 7680Hz refresh rate, 65,536 gray levels, and billions of colors, the RF-GK Series eliminates flicker for smooth playback. CNC-machined modules with 0.1mm precision ensure seamless splicing, even in large-scale installations.

Ultra-Light & Ultra-Thin Design

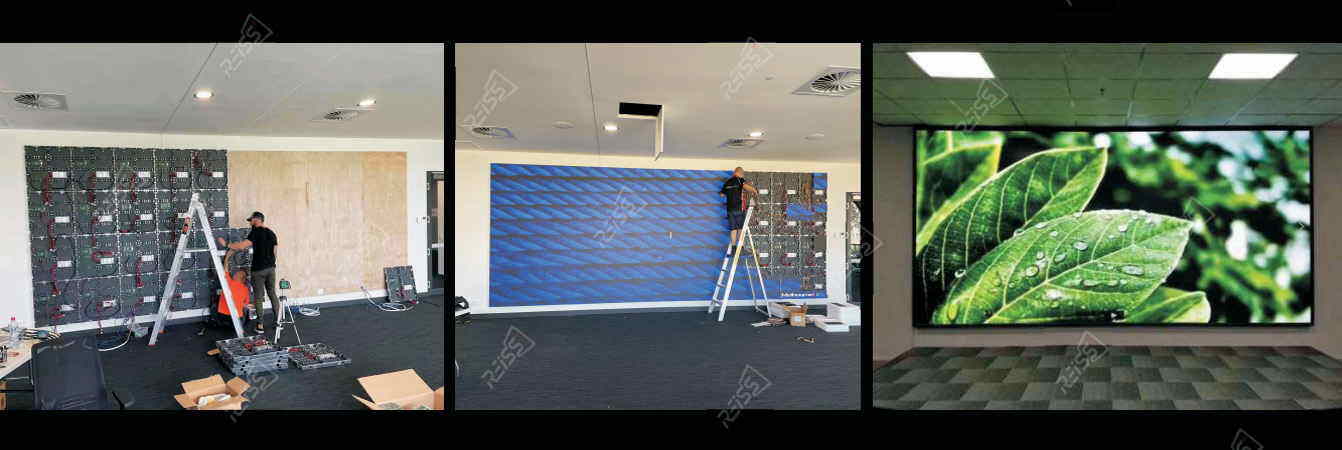

One-Handed Installation and Space-Saving Profile

Weighing under 20kg per cabinet and featuring a 45mm ultra-thin profile, the RF-GK Series is designed for easy handling. Die-cast aluminum cabinets and a one-handed lift mechanism reduce labor and transport costs, ideal for frequent rentals.

Modular Flexibility for Curved & Straight Configurations

500×500mm & 500×1000mm Modules for Versatile Installations

Supports straight, curved, or 45° right-angle configurations. 500×500mm and 500×1000mm modules allow complex structures like L-shapes or vertical stacks. Arc-shaped locks and 45° cabinets enable quick curvature adjustments.

IP68 Waterproof & Anti-Collision Durability

GOB Technology for Harsh Environments

With IP68 waterproofing and GOB (Glob Top) technology, the RF-GK Series thrives in outdoor or high-humidity environments. Anti-collision rubber padding and reinforced aluminum alloy cabinets protect against physical damage during transport.

IP68 Waterproof & Anti-Collision Durability

Wide Viewing Angle for Maximum Audience Engagement

178° Ultra-Wide Viewing for Consistent Visuals

178° ultra-wide horizontal/vertical viewing ensures vibrant, sharp content from any angle. Full RGB color and advanced calibration maintain uniform brightness and color across the display.

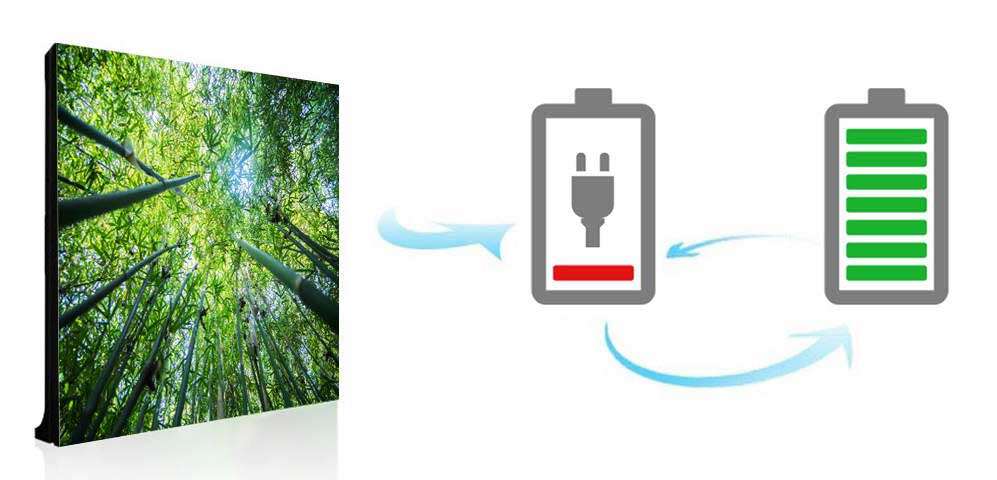

Energy Efficiency & Long Lifespan

Low Power Consumption and Thermal Stability

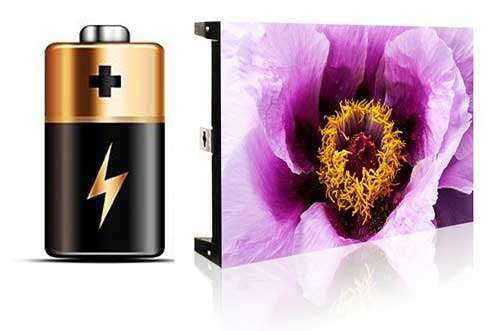

Typical power consumption ≤ 600W/m² with >100,000-hour lifespan. Superior thermal conductivity and redundant power supply ensure stability during prolonged use.

Front & Rear Maintenance for Seamless Repairs

30-Second Module Replacement for Minimal Downtime

Designed for front and rear maintenance access, modules can be removed in 30 seconds. Plug-in connectors simplify repairs without disassembling the entire display.

Applications Across Events & Industries

From Concerts to Retail, Versatile and Impactful

Concerts/Festivals: Dynamic backdrops for immersive performances.
Corporate Events: Interactive displays for product launches.
Retail/Exhibitions: Eye-catching digital signage for brand promotion.
Sports Events: Real-time visuals for fan engagement.
Public Art/Museums: Immersive art installations.

Triple Anti-Collision Design

Reinforced Structure for Stability

Reinforced Frame: High-strength aluminum alloy resists deformation.
Shock-Absorbing Padding: Protects internal components.
Extended Lifespan: Ensures durability under high-stress conditions.

Advantages of GOB LED Display Modules

Advanced Technology for Superior Performance

IP68 Waterproofing: Reliable operation in harsh environments.
Impact Resistance: Anti-collision rubber padding extends lifespan.
Premium Visuals: High-transparency materials ensure vivid, true-to-life displays.
Efficient Heat Dissipation: Enhances stability and longevity.

500mm/1000mm Die-Cast Aluminum Cabinet

Four-in-One Design for Complex Installations

Adaptable Configurations: Straight, curved, flexible, or 45° right-angle screens.
Self-Adjusting Glass Beads: Automatically adjust for uneven surfaces.
Lamp Bead Protection: Raised platform prevents damage during storage.
Corner Protection: Suspended design avoids cabinet collisions.

Why Choose RF-GK Series?

Cost-Effective, Reliable, and Future-Ready

Cost-Effective: Reduces labor, energy, and transport costs.
High Reliability: Built for frequent rentals with minimal downtime.
Innovative: Modular design and advanced tech adapt to evolving needs.

Application Cases

Rental-LED-screen6

Application Cases

Model	P1.95	P2.604	P2.976	P3.91
Pixel Pitch	1.95mm	2.604mm	2.976mm	3.91mm
Density	262,144 dots/m²	147,928 dots/m²	123904dot/m2	65,536dots/m²
Led Type	SMD1515/SMD1921	SMD1515/SMD1921	SMD2121/SMD1921	SMD2121/SMD1921
Panel Size	500 x500mm & 500x1000mm	500 x500mm & 500x1000mm	500 x500mm & 500x1000mm	500 x500mm & 500x1000mm
Panel Resolution	256x256dots / 256x512dots	192x192dots / 192x384dots	168x168dots / 168x336dots	128x128dots / 128×256 dots
Panel Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Screen Weight	7.5KG / 13KG	7.5KG / 13KG	7.5KG / 13KG	7.5KG / 13KG
Drive Method	1/64 Scan	1/32 Scan	1/28 Scan	1/16 Scan
Best Viewing Distance	1.9-20m	2.5-25m	2.9-30m	4-40m
Brightness	900 nits / 4500 nits	900 nits / 4500 nits	900 nits / 4500 nits	900 nits / 5000nits
Input Voltage	AC110V/220V ±10％	AC110V/220V ±10％	AC110V/220V ±10％	AC110V/220V ±10％
Max Power Consumption	800W	800W	800W	800W
Average Power Consumption	300W	300W	300W	300W
Waterproof (for outdoor)	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54	Front IP65, Rear IP54
Application	Indoor & Outdoor	Indoor & Outdoor	Indoor & Outdoor	Indoor & Outdoor
Life Span	100,000 Hours	100,000 Hours	100,000 Hours	100,000 Hours

Configuration
