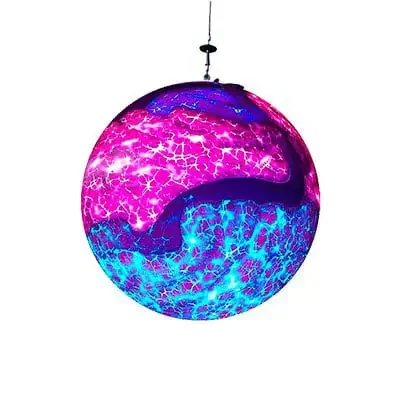

Sphere LED Display Screen | Spherical LED Ball Screen

Name: Sphere LED Display Screen | Spherical LED Ball Screen
Brand: REISSOPTO
SKU: SKU-28
Availability: InStock

IFF-SP Series

Sphere LED Displays are widely deployed across global commercial and cultural environments where immersive, eye-catching visuals are essential. Common applications include shopping mall atriums, brand flagship stores, museum and science-center exhibits, corporate lobbies, airports, stage and event backdrops, planetariums, and digital-out-of-home advertising. Their 360° visibility makes them ideal as central focal points that draw attention from any direction, while customizable diameters and pixel pitches allow tailored solutions for both intimate indoor spaces and large-scale outdoor landmarks worldwide.

Get a quote Set OEM

Creative LED Display Details

A Sphere LED Display is a seamless, curved LED screen assembled from precision-arced aluminum modules that wrap 360° around a spherical frame, delivering distortion-free imaging from every viewing angle. Available in P1.8, P2.5, P3, and P4 pixel pitches with customizable diameters from 0.8 m to 6 m, it supports both indoor and outdoor use with brightness up to 5000 cd/m² and IP65 protection. Engineered with ≤0.10 mm panel flatness, a 3840–7680 Hz refresh rate, and NovaStar/Colorlight control systems, it provides stable, high-fidelity playback and a service life exceeding 100,000 hours.

Unlike traditional flat panel displays, these displays are designed in a spherical or spherical shape using flexible LED modules, allowing images and videos to be viewed from any angle and direction. It is ideal for environments where viewers can approach the display from any angle.

1. SMD Technology: Utilizes surface mount device (SMD) LEDs for superior performance.
2. Pixel Resolution: 2mm, 2.5mm, 4mm, 3mm, 5mm pixel pitches are available.
3. Spherical: Perfect spherical shape with excellent visual performance.
4. Multiple Sizes: 1m, 1.2m, 1.5m, 2m, 2.5m, support customized sizes.
5. Multiple Types: Support indoor and outdoor.
6. Easy Control Methods: Support multiple control methods, quickly update content.
7. Wide Viewing Angle: Multiple angles without loss of color or clarity
8. Portable: Easy to install, light weight, easy to carry.

Excellent Performance

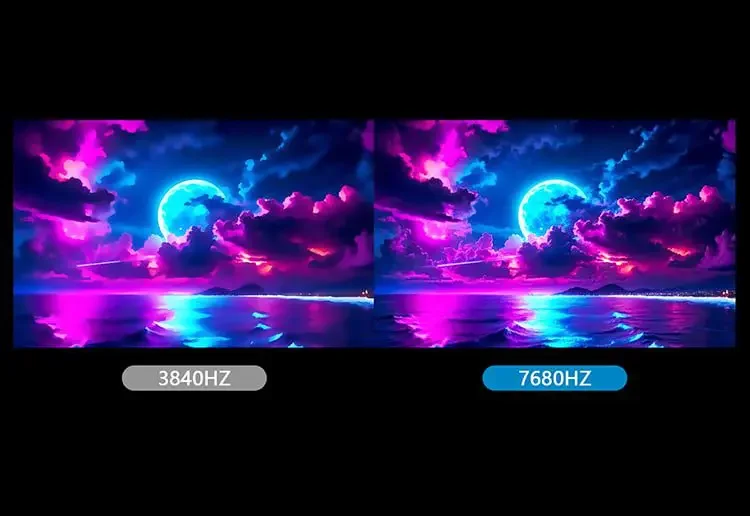

Immerse yourself in a captivating visual experience with REISSOPTO 7680Hz display, delivering unparalleled clarity and seamless motion.

LED Sphere Ball Screen Sizes

The size of sphere LED screens can be customized to suit a variety of applications.

Small Diameter (under 2 meters): High pixel density, ideal for close indoor viewing.
Medium Diameter (2 – 5 meters): Balances cost and visibility for indoor and specific outdoor use.
Large Diameter (6 – 10 meters): Wide audience viewing in spacious indoor or outdoor settings.
Extra Large (over 10 meters): Long-distance outdoor visibility and large audience engagement.
Custom Sizes: Tailored to fit specific space requirements perfectly.

LED Sphere Ball Screen Sizes - IFF-SP Series

Customized Spherical LED Display Solution

The most suitable spherical LED display solution can be customized according to customer requirements and on-site environment.

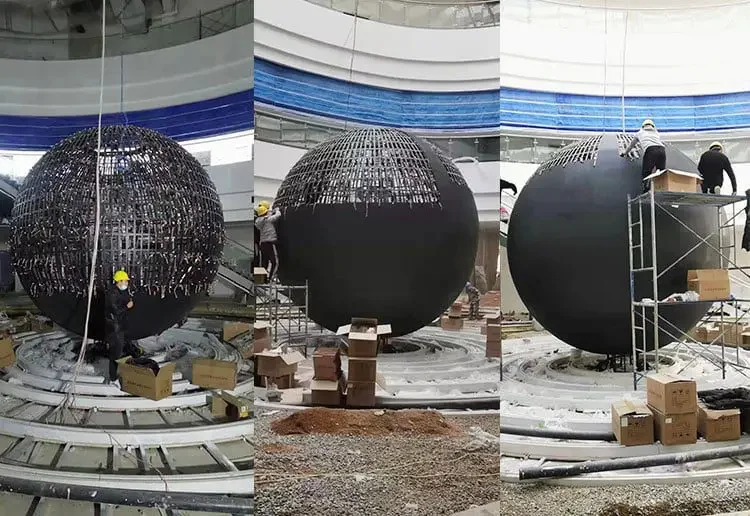

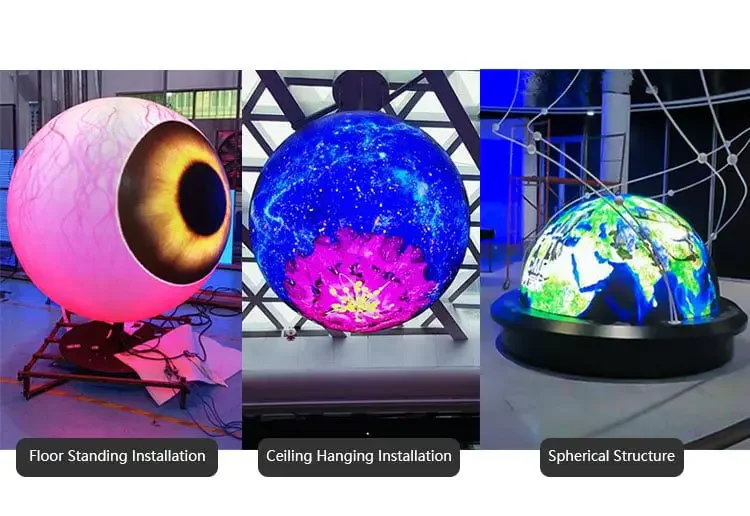

The installation, movement and lifting of the LED spherical display can be designed according to customer requirements.
The diameter of the spherical LED display can be designed and produced according to customer requirements.
The sphere is completely CNC machined, and the precise module size ensures the consistency of the overall circular curvature of the LED sphere.

Excellent Performance

The spherical LED display has the advantages of light weight, good wind resistance, easy installation, good heat dissipation, convenient front and rear maintenance, good waterproof performance, good earthquake resistance, low cost of auxiliary mounting frame, silent, etc. Similarly, the all-aluminum structure design is light weight and sturdy structure. The spherical LED display adopts trapezoidal line design, which can achieve seamless splicing.

Strong Visual Impact

The spherical LED display screen adopts bar display units, which has strong visual impact and high safety factor.
The spherical LED display screen can be used outdoors and indoors, with good light transmittance and large pixel spacing. After special processing, the display unit can be assembled into various special-shaped screens, such as inner arc display screen, outer arc display screen, inner circle display screen, S display screen, spherical display screen, with display effects that ordinary traditional display screens cannot achieve.

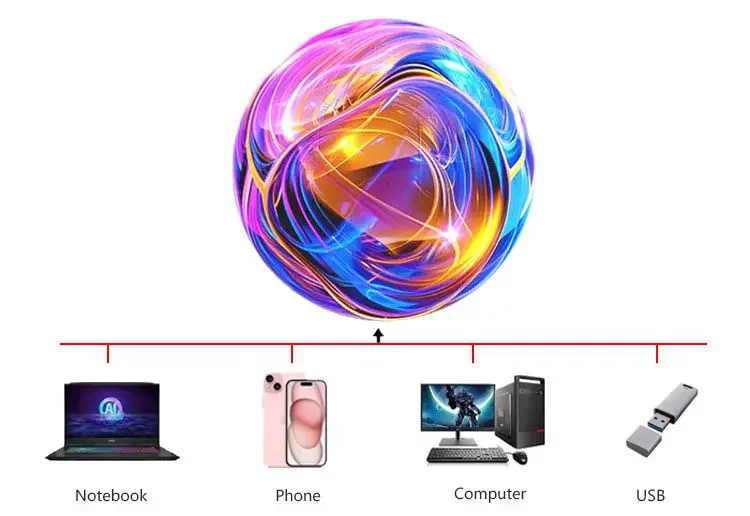

Multiple Control Methods

Leverage Ethernet, Wi-Fi, 4G/5G or USB interfaces for real-time content updates and management. Allows flexible synchronization of video presentations or asynchronous content on different display surfaces

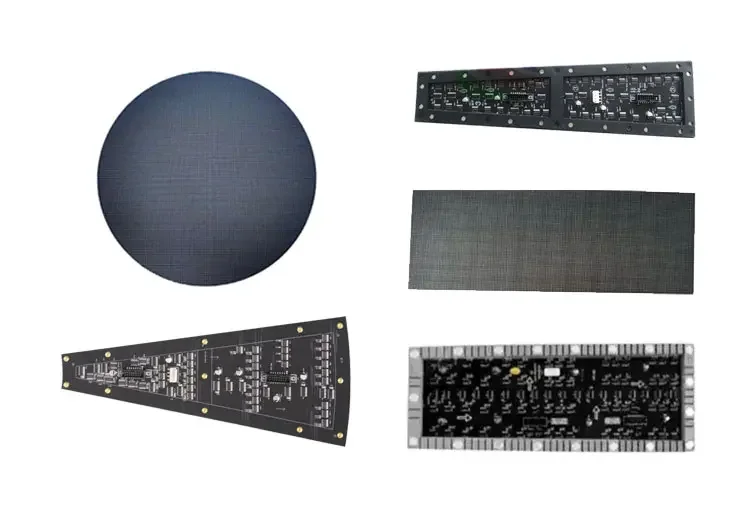

Flexible LED Modules

Reissopto uses LED modules of different shapes to seamlessly assemble into a perfect LED spherical screen

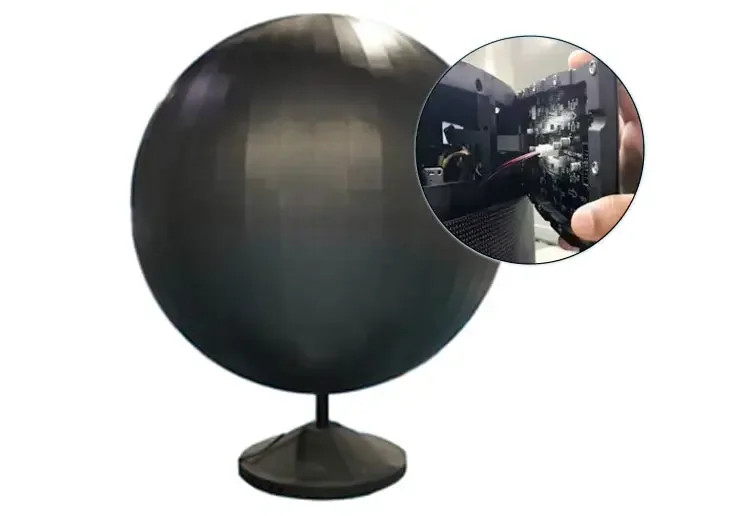

Maintenance Method

Pre-service design supporting magnetic screw LED modules and flexible LED modules.
Quick assembly and replacement. Troubleshooting and repairs can be done quickly and easily without taking away all our modules.

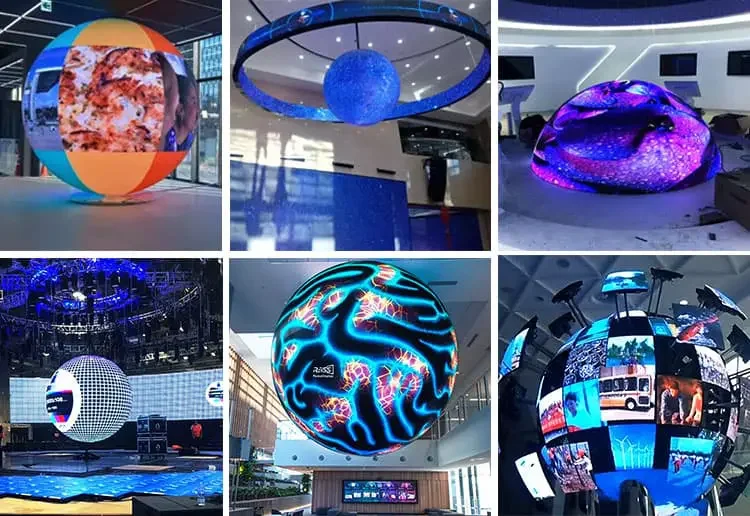

Multiple Applications

Widely used in museums, planetariums, exhibition halls, stadiums, airports, hotels, railway stations, shopping malls, bars, etc.

Specifications

Sphere LED Display Screen Parameters
Model *For more models, please consult customer service	P1.8	P2.5	P3	P4
Usage	Indoor
Pixel Pitch	1.8 mm	2.5 mm	3 mm	4 mm
LED Type	SMD1515	SMD2020	SMD2020	SMD2020
Pixel Density (dots/㎡)	284,000	160,000	111,111	62,500
Scanning Mode	1/43	1/32	1/32	1/16
Spherical Diameter	0.8m / 1m / 1.2m / 1.5m / 1.8m / 2m / 2.5m / 3m / 4m / 5m / 6m (arbitrary diameter customizable)
Panel Material	Aluminum
Panel Weight	30 kg/㎡
Panel Flatness	≤0.10 mm
Brightness	≥800 cd/㎡ (indoor) / ≥5000 cd/㎡ (Outdoor)
Viewing Angle	≥160° / 160° (H/V)
Refresh Rate	3840 – 7680 Hz
IP Protection Rating	indoor IP43 / Outdoor IP65
Input Voltage	AC 110–220V
Max. Power Consumption	≤700 W/㎡
Avg. Power Consumption	≤300 W/㎡
Working Temperature	-10℃ – +40℃
Working Humidity	10%RH – 90%RH
Service Life	≥100,000 h
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a Sphere LED Display?

A Sphere LED Display is a fully curved, seamless LED screen built from precision-arced aluminum modules that wrap 360° around a spherical frame, delivering distortion-free visuals from every viewing angle.

What pixel pitches and diameters are available?

Standard pixel pitches include P1.8, P2.5, P3, and P4, with spherical diameters from 0.8 m up to 6 m. Any custom diameter can be manufactured to fit your project.

an a Sphere LED Display be used outdoors?

Yes. With brightness up to 5000 cd/m² and IP65 protection, it performs reliably outdoors, while the indoor configuration offers ≥800 cd/m² and IP43 rating.

How bright and clear is the display?

It reaches up to 5000 cd/m² brightness with a 3840–7680 Hz refresh rate and ≤0.10 mm panel flatness, ensuring smooth, flicker-free, high-fidelity playback.

What control systems does it support?

The Sphere LED Display is compatible with NovaStar and Colorlight control systems, allowing flexible content management and stable synchronized playback.

Where are Sphere LED Displays commonly used?

They are widely used in shopping malls, museums, corporate lobbies, airports, exhibitions, stage events, and outdoor advertising, serving as 360° visual focal points that attract attention from all directions.
