Curved LED Display | Flexible & Mobius Ring LED Screen

Name: Curved LED Display | Flexible & Mobius Ring LED Screen
Brand: REISSOPTO
SKU: SKU-733
Availability: InStock

FR-MR Series

Widely adopted across global markets, curved LED displays power shopping malls, museums, corporate lobbies, concert stages, airports, and architectural facades. From landmark art installations in Europe to retail flagship stores in the Middle East and Asia, ReissOpto delivers custom curvature, IP65 outdoor reliability, and one-stop design support — helping brands worldwide build futuristic, high-impact visual experiences.

Get a quote Set OEM

Creative LED Display Details

What Is a Curved LED Display?

A Curved LED Display is a customized LED screen shaped into concave, convex, circular, or spiral forms using flexible modules or segmented aluminum frames, with pixel pitches from P1.25 to P4 and up to 90° bending curvature. Unlike flat displays, it delivers a 160° wide viewing angle, seamless 3D visuals, and brightness up to 5500 nits, creating immersive imaging for creative and architectural spaces.

Whether it’s a small-radius cylindrical LED display or a large-scale Mobius ring LED display, the structure is precisely engineered to maintain perfect pixel alignment and color consistency.

Types of Curved LED Displays

Type	Description	Typical Application
Concave / Convex LED Display	Panels connected at fixed angles to create curved surfaces	Stage backdrops, control rooms
Flexible LED Display	Ultra-thin PCB modules that bend freely	Museums, creative ceilings
Mobius Ring LED Display	360° twisted LED loop structure	Art installations, exhibitions
Cylindrical LED Display	Circular LED wall with seamless connection	Retail atriums, brand showcases

Each model can be customized in size, curvature, and pixel pitch according to your project requirements.

Key Features and Advantages

Seamless arc connection using precision-engineered modules
High curvature accuracy for perfect alignment
Pixel pitch options from P1.8 to P6.25
Lightweight die-cast aluminum cabinet for easy setup
Front or rear maintenance design
160° wide viewing angle with uniform brightness
High refresh rate (≥3840Hz) for flicker-free video
Energy-efficient design — up to 35% power saving

With these features, ReissOpto curved LED displays provide unmatched performance for both indoor and semi-outdoor creative installations.

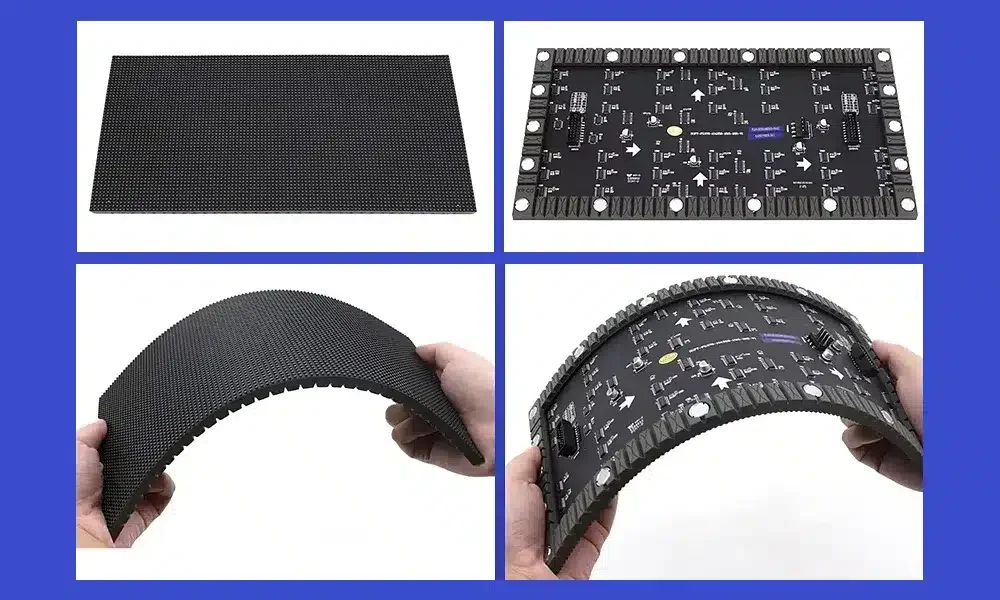

Ultra-Flexible Design (Up to 90° Curvature)

The flexible PCB and soft silicone mask allow each module to bend up to 90 degrees without deformation or pixel damage.
This makes it possible to form continuous curved, circular, or S-shaped LED surfaces for architectural, retail, and exhibition environments.

Whether you need a large concave video wall or a compact cylindrical LED display, the module offers maximum creative freedom and structural stability.

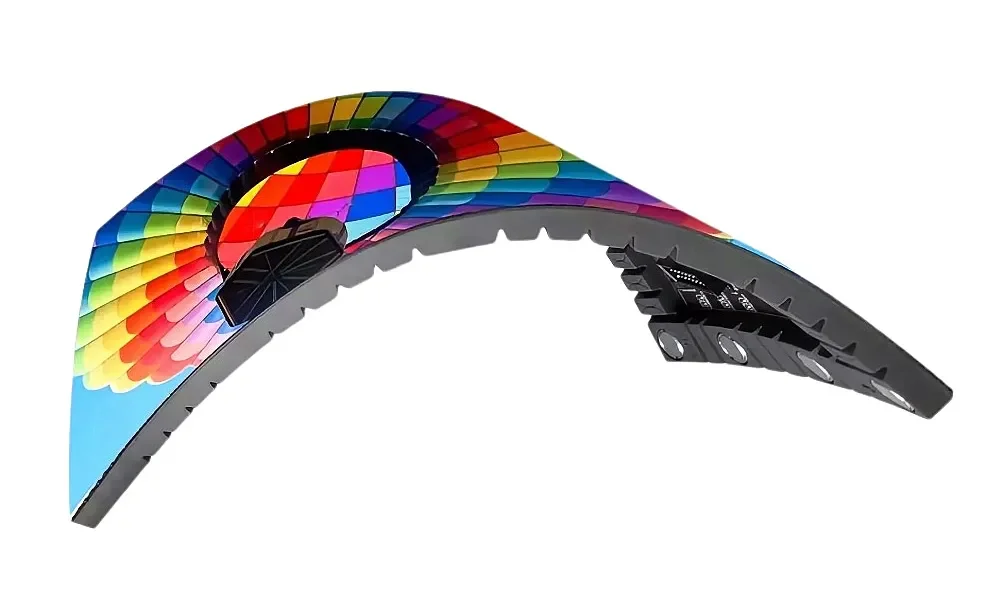

Ultra-Thin and Lightweight

Each module is designed with a slim profile of just 8mm and weighs only 170 grams, making installation and maintenance effortless.
The ultra-thin structure significantly reduces frame weight and space requirements, providing an elegant and cost-efficient display solution for complex shapes.

Using high-strength flexible materials and precision molding, the module resists warping, glue failure, and seam deformation, ensuring long-term reliability.

Seamless Splicing for Perfect Visual Continuity

Through advanced CNC manufacturing and magnetic alignment, the flexible modules connect seamlessly, forming a truly continuous LED surface with no visible gaps.
This technology enhances color uniformity and contrast, delivering a smooth and immersive viewing experience across the entire display area.

Seamless splicing is especially critical for Mobius Ring LED Displays, where visual continuity defines the artistic value of the installation.

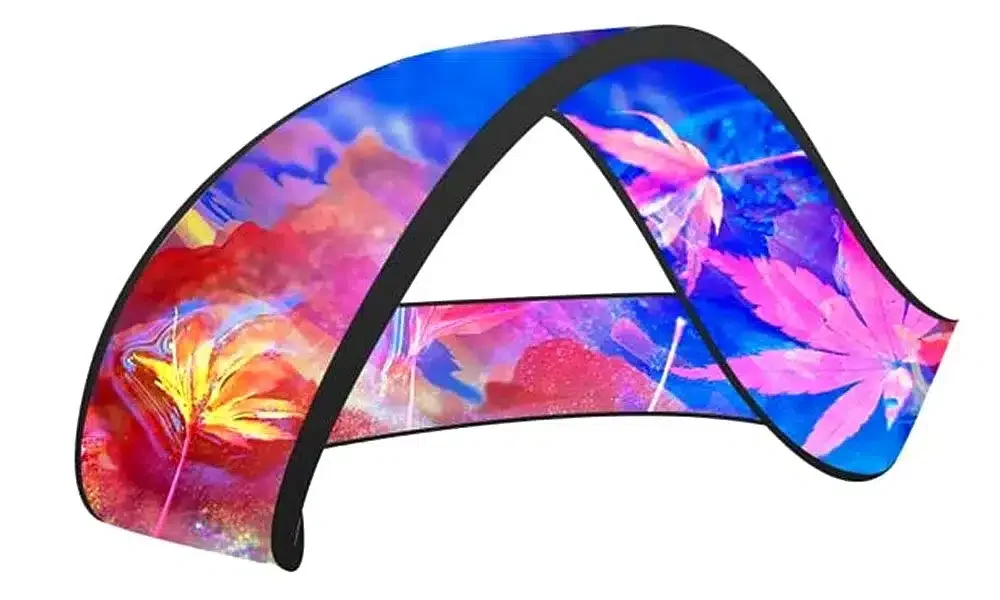

High Resolution and Brightness

Equipped with high-density LED chips and precision driving ICs, the modules offer excellent image quality with high refresh rates (≥3840Hz) and brightness levels up to 5500 nits.
No matter the ambient lighting — day or night — your content remains vivid, clear, and consistent from every angle.

The result: crisp visuals, vibrant colors, and lifelike motion ideal for branding, stage, or immersive exhibition experiences.

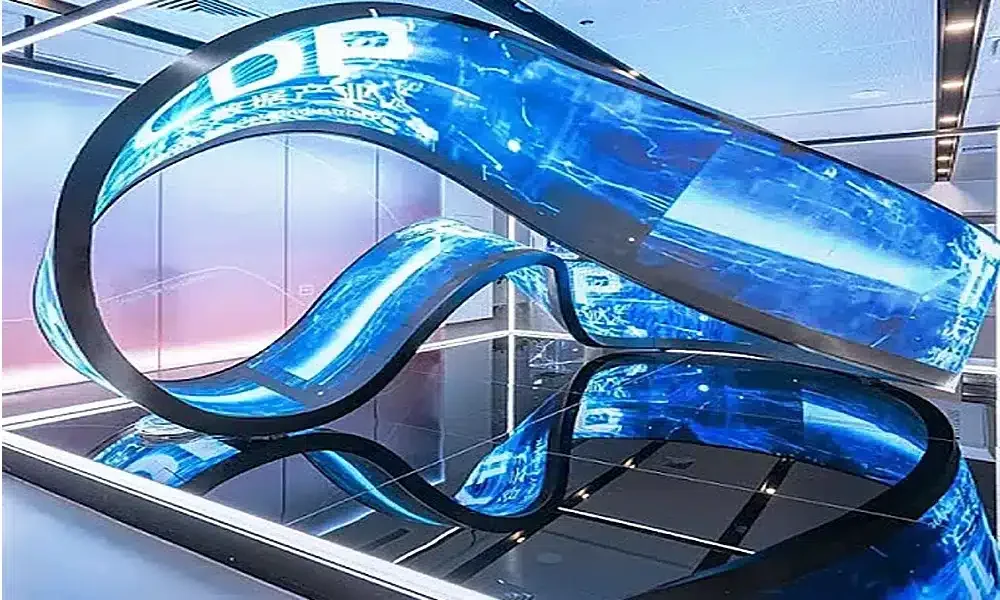

Dynamic and Programmable Content Display

The flexible LED module supports multi-format content playback, including videos, animations, logos, and interactive effects.
Using modern control systems such as Novastar or Colorlight, you can synchronize multiple screens and customize display effects in real time, creating engaging and immersive digital storytelling.

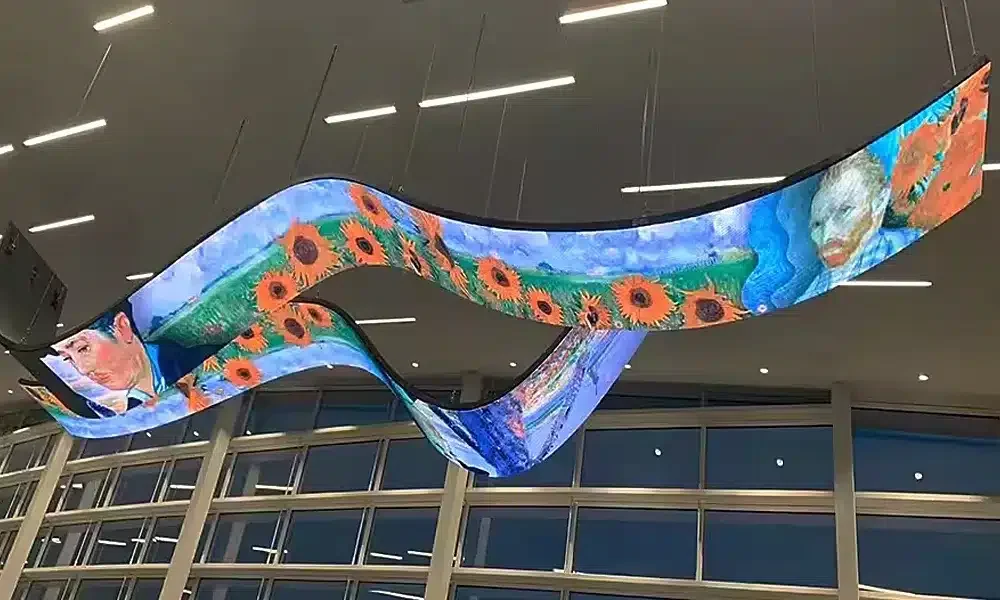

Energy-Efficient and Eco-Friendly

Built on advanced LED and driver technologies, the system delivers up to 35% energy savings compared to conventional LED panels.
It also features low heat emission, long operational lifespan, and stable performance — reducing both carbon footprint and maintenance costs.

ReissOpto ensures each module complies with global energy efficiency and environmental protection standards.

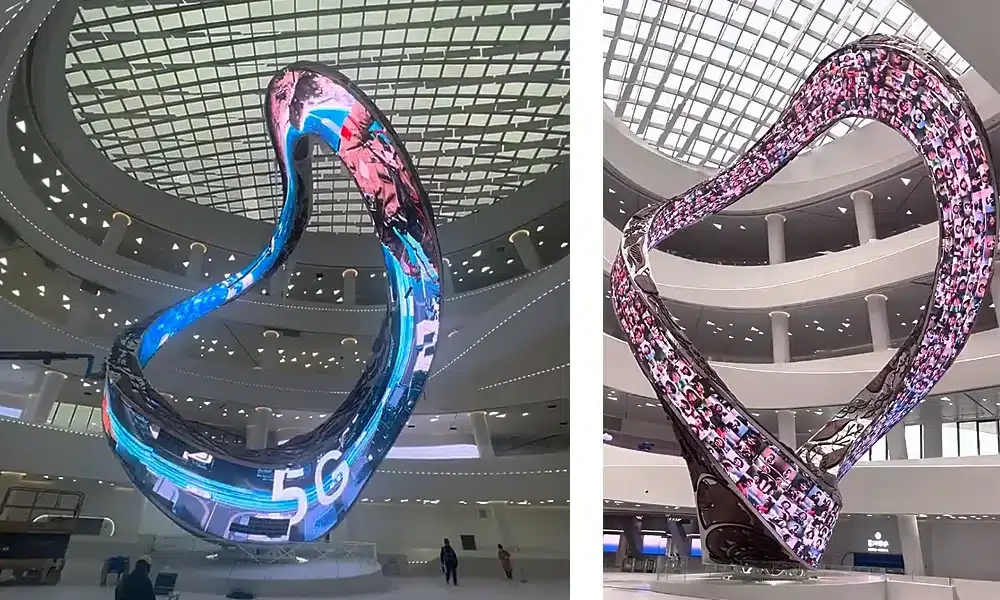

Advanced COB Technology (Optional)

For high-end applications, ReissOpto offers COB (Chip On Board) soft LED modules that provide enhanced durability and visual quality.
COB modules are dust-proof, moisture-resistant, and shock-proof, making them suitable for demanding indoor or semi-outdoor environments.

They deliver outstanding color consistency, smooth surface curvature, and enhanced impact resistance — ideal for installations requiring ultra-high reliability and precision.

After multiple generations of innovation, the COB flexible LED module now achieves perfect image reproduction with lower power consumption and higher mechanical strength.

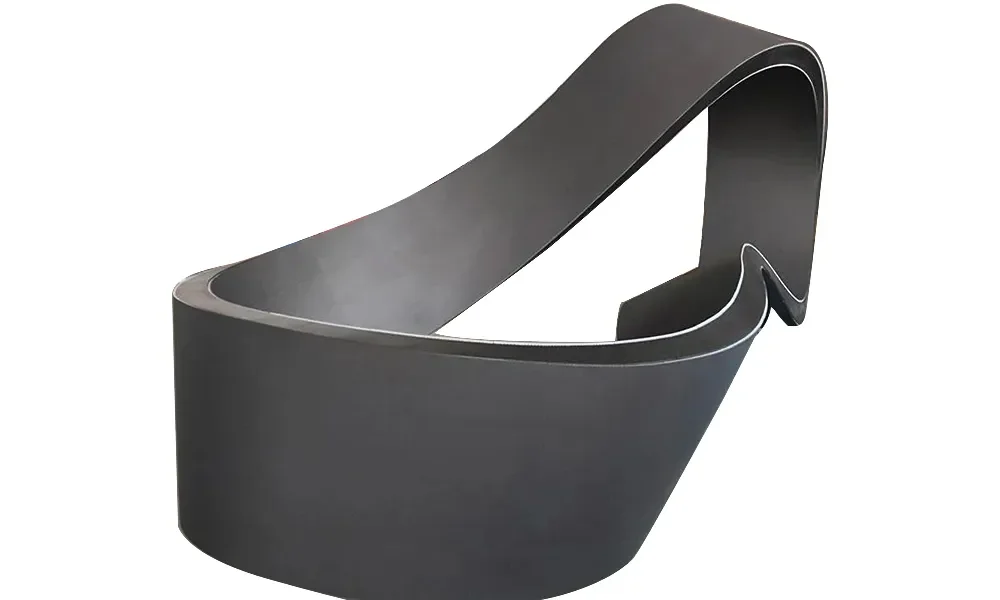

Mobius Ring LED Display – Limitless Creativity

The Mobius Ring LED Display is one of the most innovative LED creations, forming a continuous twisted loop that symbolizes infinity. Built with flexible modules, it offers a seamless visual surface with no start or end point.
This design allows 360° viewing angles and is often used in landmark projects, art centers, and luxury exhibitions to create futuristic and symbolic visual experiences.

ReissOpto engineers precisely calculate each module’s curvature and positioning to ensure a perfect fit, even for complex 3D twisted designs.

Curved vs Flat LED Display: What’s the Difference?

Feature	Curved LED Display	Flat LED Display
Visual Effect	Immersive, dynamic 3D look	Standard 2D appearance
Structure	Custom curved or flexible modules	Flat rigid panels
Cost	Slightly higher due to customization	Lower
Applications	Museums, exhibitions, creative spaces	Advertising and general use

If your project values artistic presentation or immersive storytelling, a curved LED screen delivers stronger visual engagement and brand differentiation.

Applications of Curved LED Displays

Shopping malls and retail showrooms
Museum exhibits and art installations
Corporate lobbies and brand experience centers
Concert stages and entertainment venues
Airport / Metro stations with circular LED pillars
Architectural facades with creative curved structures

Curved LED screens can be installed on walls, ceilings, floors, or even as standalone 3D objects.

How to Choose the Right Curved LED Display

To ensure your curved LED project runs smoothly, consider these steps:

Determine your desired shape — concave, convex, circular, or Mobius ring
Choose the correct pixel pitch based on viewing distance
Confirm the minimum curvature radius with the manufacturer
Request 3D CAD drawings and technical validation before production
Ensure structural support and maintenance accessibility
Work with an experienced factory that provides one-stop solution design

ReissOpto provides full design support from concept to installation — ensuring your creative LED project is not only beautiful but also reliable.

Why Choose ReissOpto

Over 10 years of LED display engineering experience
In-house R&D for flexible and creative LED modules
Full customization for size, curvature, and control system
Factory-direct pricing — no middlemen
15–25 days production lead time
Global technical support and long-term maintenance

ReissOpto is trusted by international clients for high-end curved and creative LED display projects worldwide.

Specifications

Curved / Mobius Ring LED Display Parameters
Model *For more models (P1.56 / P3), please consult customer service	P1.25	P1.875	P2.5	P4
Pixel Pitch	1.25 mm	1.875 mm	2.5 mm	4 mm
Module Thickness	8 mm
Module Weight	170 g
Maximum Curvature	90° bend (customizable)
Brightness	1000–5500 nits
Refresh Rate	≥3840 Hz
Viewing Angle	160°
Maintenance	Front or Rear Access
Technology Option	SMD / COB Soft Module
IP Protection Rating	IP43 (indoor) / IP65 (outdoor)
Control System	NovaStar / Colorlight / Linsn (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

Can I customize the curvature and size?

Yes. ReissOpto provides custom curvature, dimensions, and structure based on your project drawings.

Can curved LED screens be used outdoors?

Yes. We offer both indoor and IP65-rated outdoor curved LED solutions.

What is the minimum bending radius?

Typically ≥500mm, depending on module design and pixel pitch.

How is the curved LED display maintained?

Front or rear maintenance options are available, using magnetic modules for quick replacement.

Do you provide installation and technical support?

Yes. Our team can assist with design, installation, calibration, and after-sales support globally.

What pixel pitch and brightness options are available?

Curved LED displays offer pixel pitches from P1.25 to P4 and brightness up to 5500 nits, with ≥3840Hz refresh rate for flicker-free, high-resolution visuals indoors and semi-outdoors.
