Cube LED Display Screen | 360° Creative LED Cube Video Wall

Name: Cube LED Display Screen | 360° Creative LED Cube Video Wall
Brand: REISSOPTO
SKU: SKU-27
Availability: InStock

IFF-CU Series

Cube LED display screens are widely used in shopping malls, exhibitions, museums, showrooms, retail stores, stages, airports, hotels, and commercial spaces across global markets. Their 360° visibility and creative cube shape capture attention from every direction, making them ideal for brand promotion, event backdrops, product launches, and immersive digital art installations worldwide.

Get a quote Set OEM

Creative LED Display Details

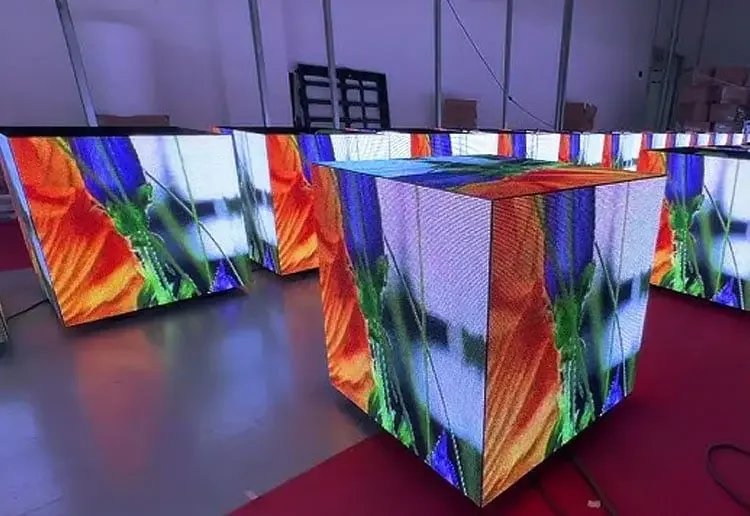

A cube LED display screen is a 3D creative LED display built from four, five, or six seamless LED panels arranged into a cube structure. Each face can play independent content or synchronize as one unified 360° visual. Using fine-pitch SMD LEDs from P2.5 to P4, the cube LED screen delivers vivid color, high brightness, and wide viewing angles for both indoor and outdoor use. With customizable sizes, pixel pitch, and number of display surfaces, REISSOPTO cube LED display screens create eye-catching, immersive visuals that draw attention from every angle.

Unlock the Future of Immersive Visuals with Our Captivating LED Cube Displays.

1. SMD Technology: Utilizes surface mount device (SMD) LEDs to achieve superior performance.
2. Pixel Resolution: 2mm, 2.5mm, 4mm, 3mm, 5mm pixel pitches are available.
3. Seamless Edge Stitching: Perfect right-angle edges for excellent visual performance.

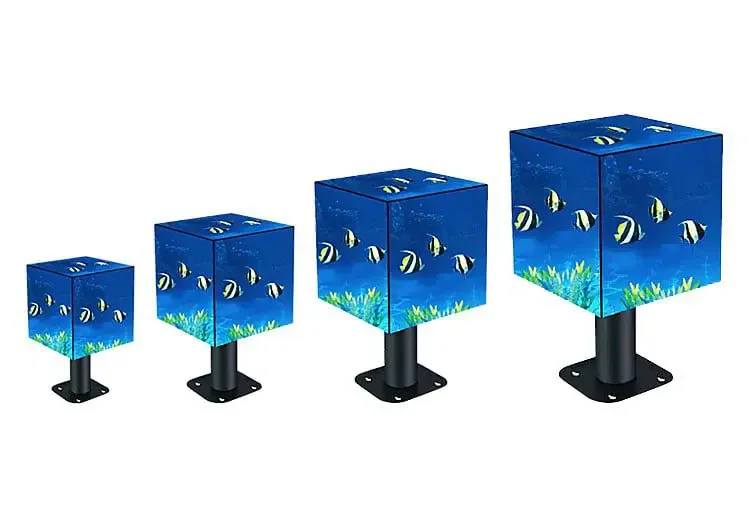

4. Multiple Sizes: 320*320mm, 480mm*480mm, 500*500mm, 512*512mm, 640*640mm, support customized sizes.
5. Multiple Types: Support indoor and outdoor.
6. Easy Control Methods: Support multiple control methods for fast content updates.
7.Wide viewing angle: multiple angles without loss of color or clarityy.

Excellent Performance

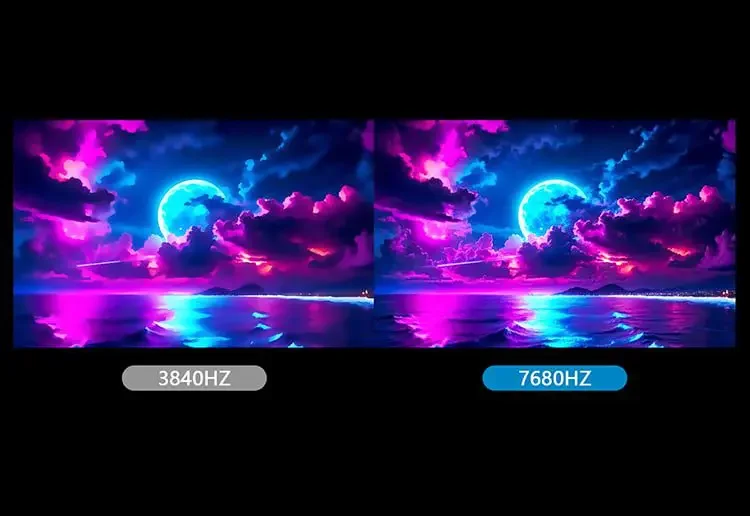

Immerse yourself in a captivating visual experience with REISSOPTO 7680Hz display, delivering unparalleled clarity and seamless motion.

Cabinet Specifications

Each side can be made into a square screen according to the module size, 4 sides, 5 sides, 6 sides are optional

Regular size: 320*320mm/384*384mm/480*480mm/500*500mm/512*512mm576*576mm/640*640mm can be customized according to different size requirements
Module size: 3250*160mm/256*128mm/160*160mm/192*192mm/250*250mmSelect the module size according to the cabinet size

Excellent Performance

The spherical LED display has the advantages of light weight, good wind resistance, easy installation, good heat dissipation, convenient front and rear maintenance, good waterproof performance, good earthquake resistance, low cost of auxiliary mounting frame, silent, etc. Similarly, the all-aluminum structure design is light weight and sturdy structure. The spherical LED display adopts trapezoidal line design, which can achieve seamless splicing.

Seamless Splicing

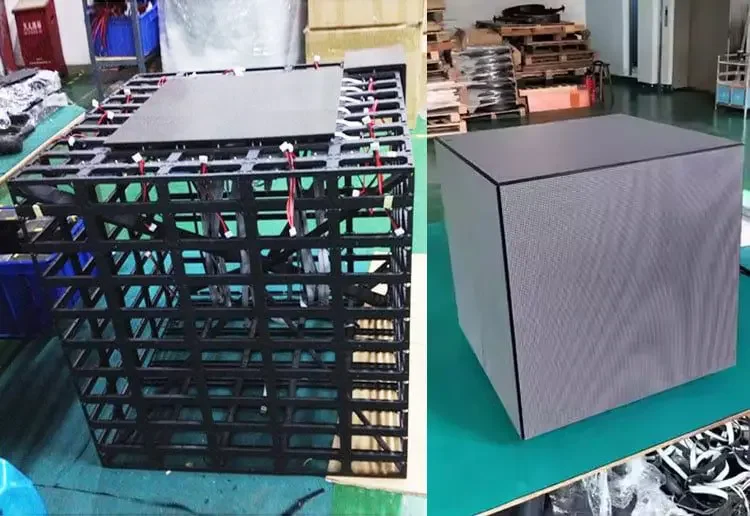

Display module using 45 °beveled edge kit bottom shell, more tightly spliced, fit gap smaller frame using iron cold rolled plate structure design, more solid, not easy to deformation. Supports Front maintenance

High-resolution LED Cubes

The display effect is dynamic and fashionable. The cool cube-shaped display adds a fashionable atmosphere and attracts more attention to your venue.

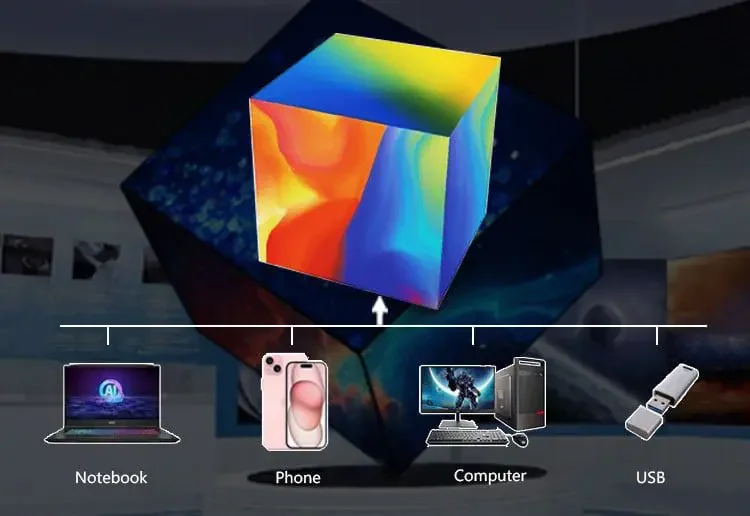

Multiple Control Methods

Leverage Ethernet, Wi-Fi, 4G/5G or USB interfaces for real-time content updates and management. Allows flexible synchronization of video presentations or asynchronous content on different display surfaces.

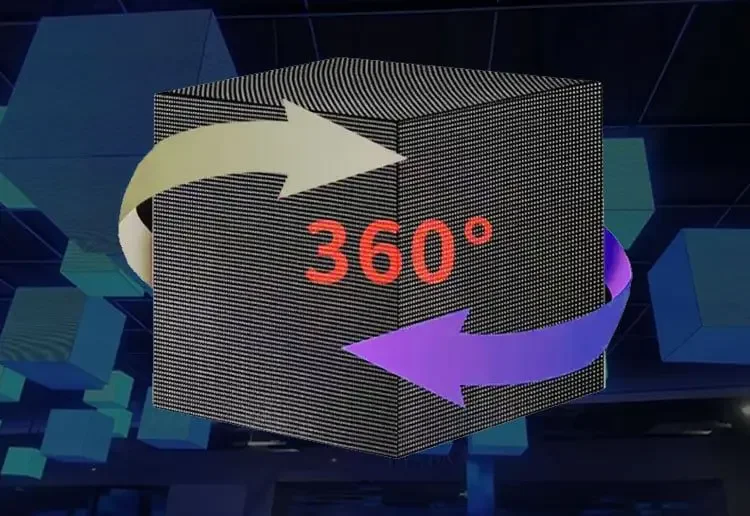

360° Viewing Angle

Can be observed from 360 “can feel good visual effect playback video, do not miss any exciting moments

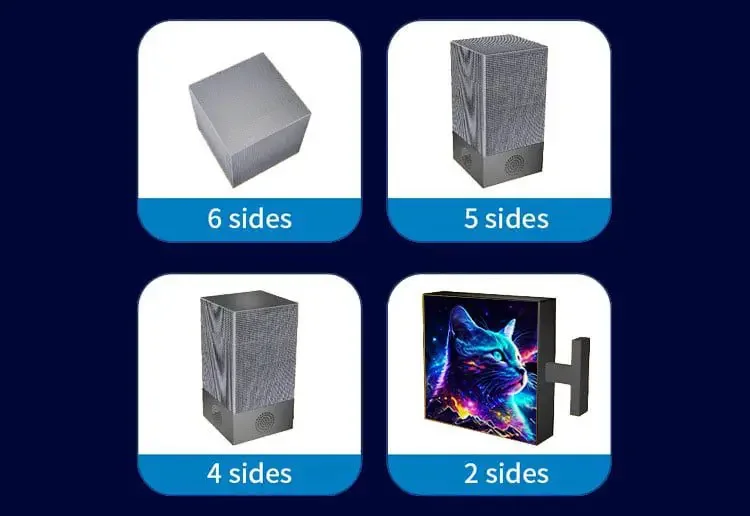

Optionalnumber of Display Surfaces

LED cube display is a 3D visual technology that combines multiple LED panels together to form a cube structure. It usually consists of 4, 5 or 6 sides, each capable of displaying high-resolution content. Each face of the cube can be operated independently to display different content or collaborate to present a unified image.

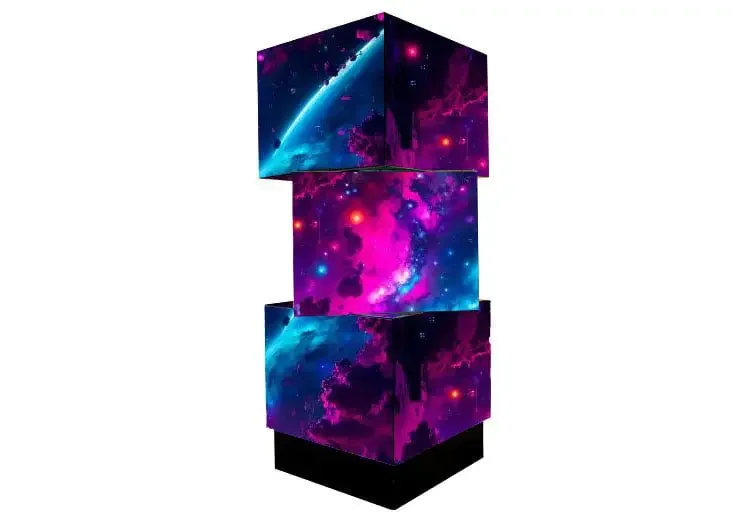

Creative Custom

Widely used in museums, planetariums, exhibition halls, stadiums, airports, hotels, railway stations, shopping malls, bars, etc.

Is A Cube LED Display Easy To Install And Maintain?

Easy And Fast Installation, Strong Applicability. Floor-standing, wall-mounted, hanging, etc.
Of course. Free tool assembly and replacement. Modular and magnetic design allows for easy assembly and reconfiguration, enabling you to create custom sizes and shapes to fit your unique display needs. Seemlessly expand your display area by adding more cubes, scaling up to massive visual walls for grand events or exhibitions.

Specifications

Cube LED Display Screen Parameters
Model *For more models, please consult customer service	Application	Number of Display Surfaces	Resolution	Screen Size	Weight	Volume (m³)
P2.5	Indoor	5	128×128	320×320×320 mm	8 kg	0.03
P2.5	Indoor	4	128×128	320×320×320 mm	7 kg	0.03
P2.5	Indoor	5	192×192	480×480×480 mm	14 kg	0.11
P2.5	Indoor	4	192×192	480×480×480 mm	13 kg	0.11
P3	Indoor	5	128×128	384×384×384 mm	12 kg	0.05
P3	Indoor	4	128×128	384×384×384 mm	11 kg	0.05
P3	Indoor	5	192×192	576×576×576 mm	17 kg	0.19
P3	Indoor	4	192×192	576×576×576 mm	16 kg	0.19
P3.91	Indoor	4	128×128	500×500×500 mm	15 kg	0.12
P3.91	Indoor	5	128×128	500×500×500 mm	16 kg	0.12
P4	Indoor	5	128×128	512×512×512 mm	17 kg	0.14
P4	Indoor	4	128×128	512×512×512 mm	16 kg	0.14
Control System	NovaStar / Colorlight (optional)
Certification	CE, RoHS, FCC, ETL, UL, ISO9001
Note	The table shows the parameters of some product models, which can be customized. For more specific information, please contact customer service.

Frequently Asked Questions

What is a cube LED display screen?

A cube LED display screen is a 3D creative LED display made of four, five, or six seamless LED panels arranged into a cube shape. Each face can show independent content or work together as one synchronized 360° visual, making it ideal for eye-catching brand promotion and immersive displays.

What pixel pitches are available for cube LED screens?

REISSOPTO cube LED display screens are available in P2.5, P3, P3.91, and P4 pixel pitches. Finer pitches like P2.5 and P3 deliver sharper, high-resolution images for close viewing, while P4 suits larger cubes and longer viewing distances.

Can a cube LED display screen be customized in size and shape?

Yes. Cube LED screens are fully customizable in size, pixel pitch, and number of display surfaces (4, 5, or 6 sides). Common cube sizes range from 320×320×320 mm to 576×576×576 mm, and custom dimensions are available to fit any project.

Where are cube LED display screens used?

Cube LED display screens are widely used in shopping malls, exhibitions, museums, showrooms, retail stores, stages, airports, and hotels. Their 360° visibility captures attention from every direction, making them perfect for advertising, event backdrops, and digital art.

Are cube LED screens suitable for indoor or outdoor use?

Cube LED display screens are primarily designed for indoor environments such as commercial spaces, exhibitions, and retail. Outdoor cube LED screens with higher brightness and IP-rated protection can be customized on request for specific projects.

What control system and certifications do cube LED screens support?

Cube LED display screens support NovaStar and Colorlight control systems (optional) for stable, easy operation. They are certified with CE, RoHS, FCC, ETL, UL, and ISO9001, ensuring reliable quality and compliance for global markets.
