COB P1.25 LED Display — European Transportation Authority Control Room, Brussels

Following a competitive evaluation process, Reiss Optoelectronics was selected to design and supply the display solution based on the technical superiority of its COB P1.25 Indoor Fine Pitch LED Display — a product specifically engineered to meet the demands of mission-critical control room environments where display performance directly impacts operational decision-making.

The Challenge: Replacing Legacy LCD With a Seamless LED Solution

The existing control room infrastructure relied on an LCD splicing wall system that presented three fundamental operational limitations. The physical bezels between LCD panels fragmented multi-camera surveillance feeds, making simultaneous monitoring of multiple traffic zones difficult and reducing operator response efficiency. The LCD system also suffered from inconsistent color uniformity across panels, brightness degradation over time, and an inability to maintain acceptable image quality under the extended continuous operation hours that a national traffic authority demands.

The authority required a replacement solution that eliminated panel seams entirely, delivered consistent high-resolution image quality across the full display surface at close viewing distances, and was rated for uninterrupted 24/7 operation with a long-term reliability profile appropriate for government infrastructure deployment.

Why COB P1.25 LED Technology Was the Right Solution

The selection of COB — Chip-on-Board — LED packaging technology at a P1.25 pixel pitch was driven by the specific operational and environmental requirements of the control room setting.

COB LED technology integrates LED chips directly onto the PCB substrate and encapsulates them within a single protective resin layer, eliminating the individual lamp structures found in traditional SMD LED displays. This construction method produces a display surface that is inherently more resistant to physical impact, dust accumulation, and humidity — all critical factors in a continuously staffed, high-usage professional environment where the display surface is in close and frequent proximity to operators throughout every shift.

At a P1.25 pixel pitch, the display delivers a pixel density that produces 4K-equivalent image resolution at close operational viewing distances of 2 to 5 meters — the typical distance range within a control room environment. At this resolution, operators can simultaneously monitor real-time traffic data overlays, multi-camera surveillance feeds, incident alerts, and infrastructure status dashboards across a single unified display surface with complete textual and visual clarity. No pixelation, no image fragmentation, no compromised detail at any point across the display.

The COB P1.25 display also delivers a brightness output of up to 1,200 nits combined with a wide viewing angle exceeding 160 degrees horizontally and vertically — ensuring that every operator workstation in the room, regardless of its position relative to the screen, receives the same consistent, high-quality visual output without color shift or brightness falloff.

Installation Scope and Technical Integration

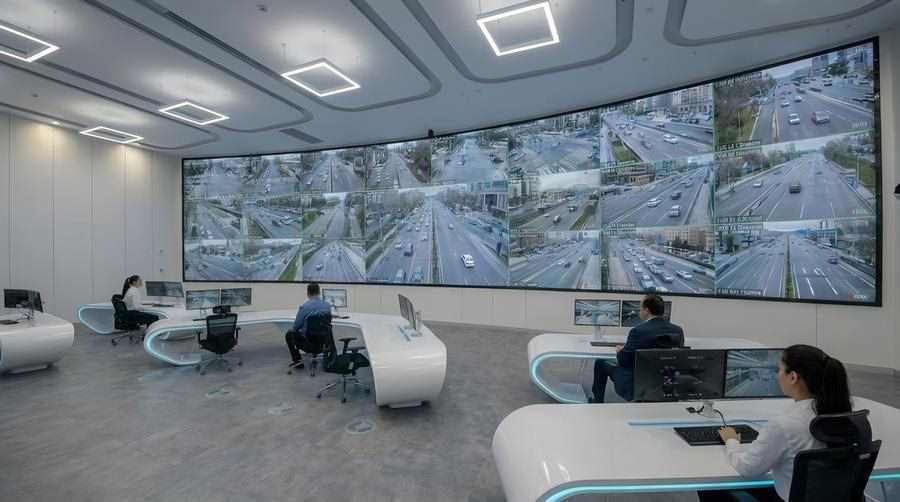

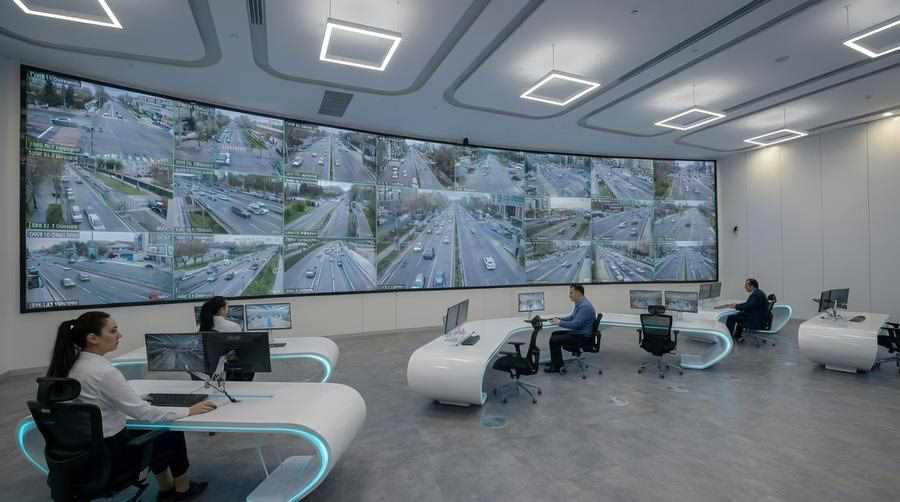

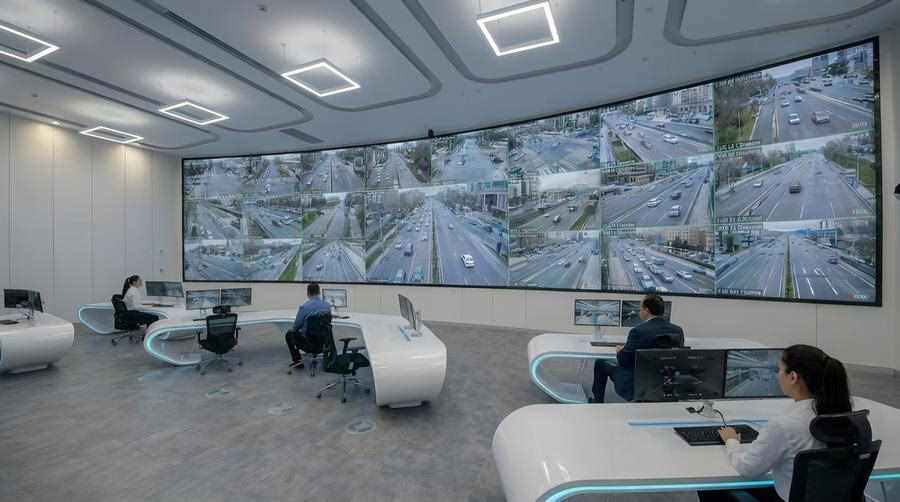

The installation comprised a 12-metre by 3.5-metre seamless LED video wall constructed across the primary monitoring wall of the control room. The display was configured to support up to 32 simultaneous input channels, allowing operators to manage a full national traffic monitoring feed — including motorway surveillance cameras, smart traffic sensor data, incident response coordination feeds, and public transport infrastructure monitoring — across one continuous, uninterrupted display surface.

The seamless integration between COB modular cabinets was achieved through precision mechanical alignment and on-site calibration, producing a display surface with no visible seam lines across the entire 42 square metre installation. The slim aluminum front-service cabinet design allowed the full installation to be completed with minimal disruption to the control room's operational schedule, and enables ongoing maintenance access from the front face of the display without requiring rear access — an important requirement for a permanently staffed facility operating 24 hours per day.

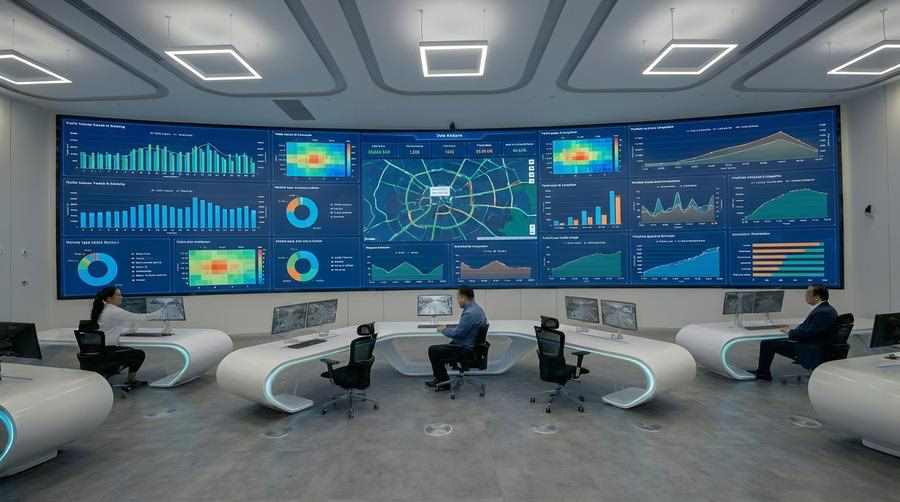

The system was fully integrated with the authority's existing traffic management software platform and configured to support real-time input switching, multi-window layout management, picture-in-picture display modes, and automated brightness scheduling to accommodate the visual comfort requirements of both day-shift and night-shift operational teams.

Technical Specifications

Results and Operational Impact

In the 18 months following installation, the authority documented measurable improvements across multiple operational performance indicators. Operator incident identification response time improved significantly, attributed directly to the elimination of LCD bezel fragmentation and the increase in overall image resolution and uniformity. Supervisors reported that the ability to view multi-camera feeds across a single seamless surface — rather than a segmented LCD grid — meaningfully improved situational awareness during high-traffic periods and incident management scenarios.

From a reliability standpoint, the COB P1.25 display recorded zero panel failures across the full 18-month post-installation monitoring period — a performance record consistent with the long-term operational reliability profile that COB LED technology is engineered to deliver. The front-service maintenance design further reduced scheduled maintenance time by approximately 60% compared to the previous LCD system, reducing operational disruption during the rare maintenance intervals required.

About This Installation

This project reflects the capability of Reiss Optoelectronics to design, engineer, and deliver indoor fine pitch LED display solutions for mission-critical professional environments — including government infrastructure, transportation management, public safety operations, broadcast and media production, and corporate command centers. Every installation is supported by dedicated technical project management, on-site commissioning, and international after-sales service.

Frequently Asked Questions — COB Fine Pitch LED Displays for Control Rooms

What pixel pitch is recommended for a control room LED display?
For control room environments with operator viewing distances of 2 to 5 metres, a pixel pitch of P1.0 to P1.5 is generally recommended. The COB P1.25 is one of the most widely specified configurations for traffic management, security operations, and command centre applications.

What is the advantage of COB LED over SMD LED in control room installations?
COB LED technology provides a fully protected, seamless display surface that is more resistant to dust, moisture, and physical contact than SMD LED displays — making it more suitable for continuously staffed environments with high display usage. COB displays also deliver superior contrast performance and more consistent color uniformity at close viewing distances.

Can a fine pitch LED video wall run 24 hours per day continuously?
Yes. The Reiss COB P1.25 series is rated for 24/7 continuous operation with an expected operational lifespan exceeding 100,000 hours under standard operating conditions.

Does Reiss Optoelectronics provide installation and integration support for international projects?
Yes. Reiss provides full project support including technical consultation, on-site installation supervision, system integration, and international after-sales service for all major markets.
