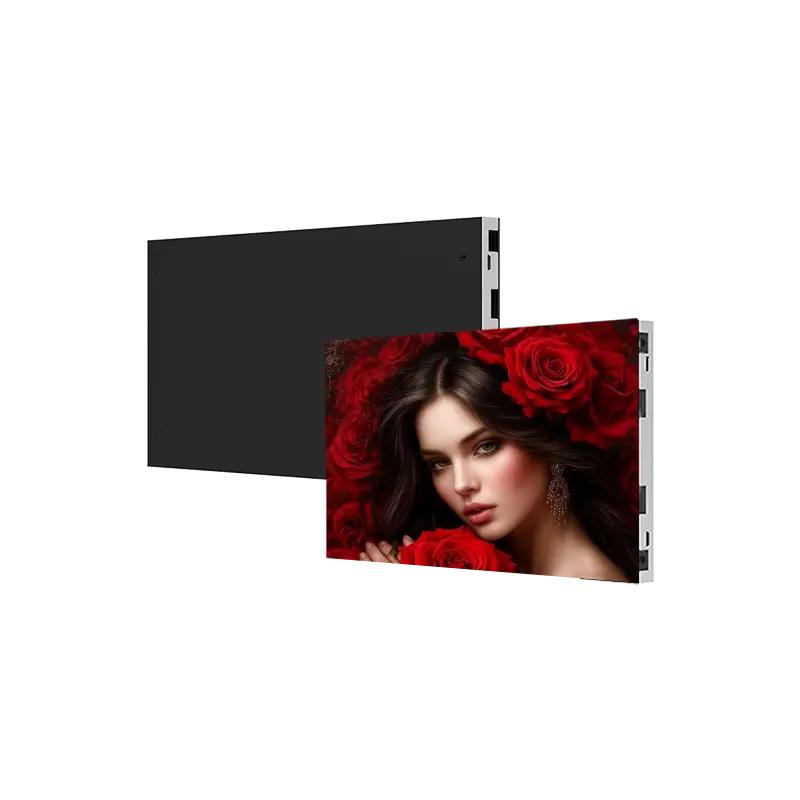

P0.6 Ultra-fine pitch indoor LED display

I-P0.6 I-Ultra-fine pitch yangaphakathi yomboniso we-LED

IFM-MIP Series

Umboniso ongenamthungo onesisombululo esiphezulu kakhulu, imibala eqaqambileyo, ii-engile zokujonga ezibanzi, ukusetyenziswa kwamandla aphantsi, kunye nokusebenza okuthembekileyo kwangaphakathi.

I-Pixel Pitch ecolekileyo kakhulu (0.625mm - 1.875mm) Ubuchwephesha boBugcisa boMnyama Uyilo olugcina amandla IiNdlela zoKhuselo eziSixhenxe Easy-to-Coca Surface Ukukhanya okuPhakamileyo okuSebenzayo (1,000 oonomoyi, 3,500 oonomoyi ngokuzithandela) Ubungakanani beKhabhinethi eChwethekileyo (600x337.5x28 mm) I-Splicing engenamthungo kunye noFakelo lweFlethi Uyilo loLondolozo lwangaphambili Inkxaso ye-HDR yeZiboniso eziPhuculweyo

I-P0.6 ye-ultra-fine pitch yangaphakathi yomboniso we-LED yenzelwe iimeko apho ukulungiswa kwe-ultra-high, imifanekiso engenamthungo, kunye nokuveliswa kombala ochanekileyo kubalulekile. Ngepixel pitch ye-0.6mm nje, inika ukucaca okubonakalayo okumangalisayo nakwimigama ekufutshane kakhulu yokujonga. Iimeko zosetyenziso oluqhelekileyo ziquka:

AmaZiko okuLawula noLawulo, izitudiyo zoSasazo, amagumbi eNkomfa akwinqanaba eliphezulu, iiVenkile eziNtofontofo kunye neeVenkile zeFlegi, iiGalari zoBugcisa kunye neeMyuziyam zeDijithali, iMifanekiso yezoNyango kunye nokulinganisa, iiCinema zaseKhaya ezikwinqanaba eliphezulu, amaZiko emali.

Ukuba ufuna ukwenza ngokwezifiso ezinye izigcawu, nceda uqhagamshelane nenkonzo yabathengi!

Fumana isicatshulwa OEM

Indoor LED ukubonisa Iinkcukacha

Yintoni iP0.6 Ultra-fine Pitch Indoor LED Display?

I-P0.6 ye-ultra-fine pitch yangaphakathi yomboniso we-LED sisisombululo se-state-of-the-art esinomfanekiso wepixel omxinwa kakhulu we-0.6mm, ovumela ukuxinana kwe-pixel ephezulu ngokugqithisileyo kunye nokunikezela okubonakalayo kwe-ultra-high-definition (UHD). Idizayinelwe ukujonga umgama okufutshane, ibonelela ngekhrisimesi, imifanekiso ebukhali eneenkcukacha ezityebileyo kunye neenguqu ezigudileyo, iyenza ilungele indawo apho ukucaca kunye nokuchaneka kubalulekile.

Yakhelwe ngetekhnoloji ye-LED ephucukileyo, isibonisi se-P0.6 sibonelela ngokudityaniswa komthungo, ii-engile zokujonga ezibanzi, kunye nokufana kombala okuphezulu. Uyilo lwayo olungenamoya luqinisekisa ukusebenza okuthe cwaka, ngelixa ukutshatyalaliswa kobushushu obusebenzayo kunye nokusetyenziswa kwamandla aphantsi kunegalelo ekuthembekeni kwexesha elide kunye nokonga amandla. Ngefom yayo ye-ultra-slim form factor kunye nokukhethwa kokufakela okuguquguqukayo, ibeka umgangatho omtsha we-high-performance yangaphakathi yeenkqubo zokubonisa i-LED.

Iindlela ezizayo kunye nezicelo ze-MIP ye-LED yokuBonisa iTekhnoloji

Kuyacaca ukuba i-MIP (i-Micro Inorganic Pixel) iteknoloji yokubonisa i-LED ifaneleka ngokukodwa kwiitshiphusi ezincinci, ezibonelela ngamandla amakhulu okunciphisa isithuba se-pixel kunye nokunciphisa iindleko. Ngomkhwa wexesha elizayo okhomba ngokuqinileyo kwi-Micro LED, itekhnoloji ye-MIP ibambe iingenelo ezahlukeneyo, ngakumbi kuxinano oluphezulu, imiboniso ephezulu. ULeyard, inkokeli yehlabathi kwitekhnoloji yempembelelo yokubona, ilwamkela ngokupheleleyo uxanduva lwayo lokuphonononga iindlela ezintsha zobuchwepheshe kwaye uzibeke ngokucwangcisekileyo kwitekhnoloji yokupakisha ye-MIP ukuqhuba uphuhliso lwamashishini.

Ngokuqhubeka nokwenza izinto ezintsha, iLeyard iphucula umgangatho wokusebenza kokubonisa kwaye iqhubela ishishini ukuya kwindawo ephezulu. Usetyenziso lwetekhnoloji ye-MIP lukhulu, luvumela amava abonakalayo aphucukileyo kunye nayinyani kuyo yonke imiboniso yangaphakathi nangaphandle. Oku kuhlangabezana nemfuno ekhulayo yemarike yembonakalo ekumgangatho ophezulu. Ngokuzibophelela ekuguquleni itekhnoloji ephezulu ibe ziimveliso ezisebenzayo, iLeyard inikezela ngemibono engazange ibonwe ngaphambili kubathengi. Ngaphaya koko, ngokukhuthaza obu buchwepheshe butsha kwihlabathi jikelele, iLeyard ixhasa inguqu yedijithali kuwo wonke amashishini ahlukeneyo. Ngale nzame, uLeyard akakhokeli nje kuphela kodwa ubumba ikamva letekhnoloji yokubonisa.

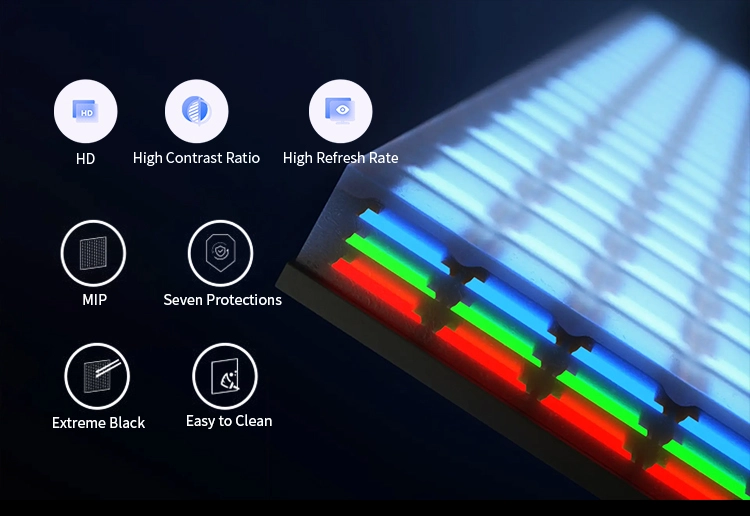

MIP LED Screen Technology

Uyilo lweChip olutsha lweZiboniso zoMgangatho oPhezulu

I-teknoloji ye-MIP ye-LED - Uchungechunge lwe-MIP luthatha iteknoloji ye-MIP ngokuzimeleyo ephuhliswe yi-ReissDisplay, kwaye isebenzisa i-50um ukuya kwi-100um ye-chips ye-LED yokukhupha ukukhanya ukufezekisa umphumo obalaseleyo wokubonisa i-pitch encinci. Ukudibanisa i-chip chip kunye neteknoloji ye-cathode eqhelekileyo, imveliso iqinisekisa ukuthembeka okuphezulu kunye nokusetyenziswa kwamandla aphantsi. Umphezulu wesikrini wenziwe nge-multi-layer coating ukomeleza umbala kunye nokungaguquguquki okumnyama, ngelixa unciphisa ilitha, ukubonakalisa kunye ne-moiré, ukunika abasebenzisi amava abonakalayo akhululekileyo.

· Uluhlu lwePixel: 0.6-1.8 mm

· Ukuhambelana kombala

· Umahluko ophezulu

· Ukonga amandla

· Amava abonwayo amnandi

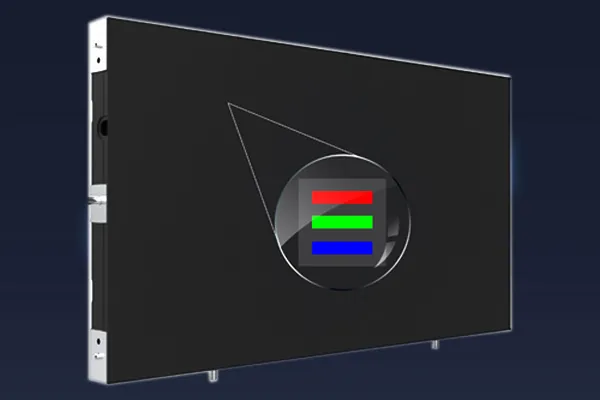

MIP Full Flip Chip Common Cathode Packa

Ukusetyenziswa kwamandla aphantsi kakhulu

Akukho zithintelo zephedi, ukusebenza kakuhle okukhanyayo, ukunciphisa izinga lokusilela kwesibane. Ubungakanani bephedi enkulu, uqhagamshelo olukhuseleke ngakumbi. Ubungakanani betshiphu encinci, umahluko ophezulu.

Imveliso isebenzisa iteknoloji ye-cathode kunye ne-flip-chip, kunye ne-chip yomqhubi wokulondoloza amandla, okunciphisa kakhulu ukusetyenziswa kwamandla ngama-34%.

Iimveliso ze-MIP Series zinoKhuseleko lwe-Seven-layer

Inkqubo yokukhusela i-Seven-layer, eqhuba kakuhle kwiindawo ezahlukeneyo eziyinkimbinkimbi, kwaye inomsebenzi ogqwesileyo njengothuli, ubungqina bomswakama, ukungqubuzana, ukuchasana kwe-static, kunye nokuhlunga ukukhanya okuluhlaza okwesibhakabhaka. Yenzelwe indawo ezihlala zichanekile kubumdaka kunye neendawo ezintsonkothileyo ezinje ngeengoma zangaphakathi zikaloliwe, imveliso inokuthembeka okugqwesileyo kwaye yandisa kakhulu ubomi bemveliso.

The MIP Series Products Have a Seven-layer Protection

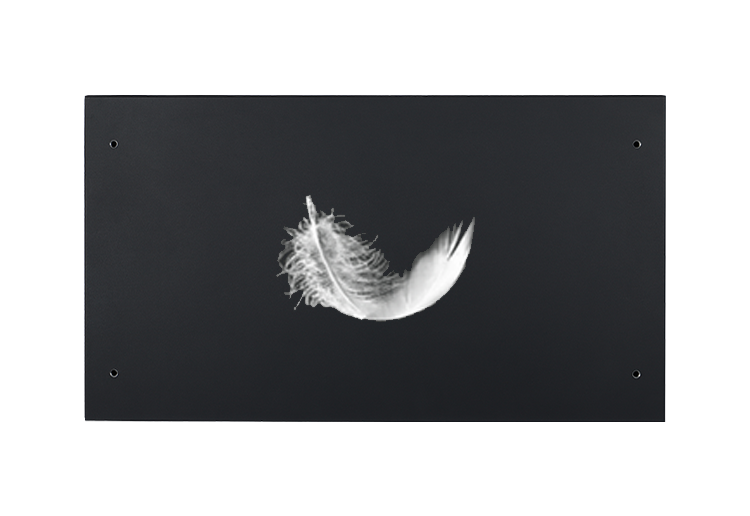

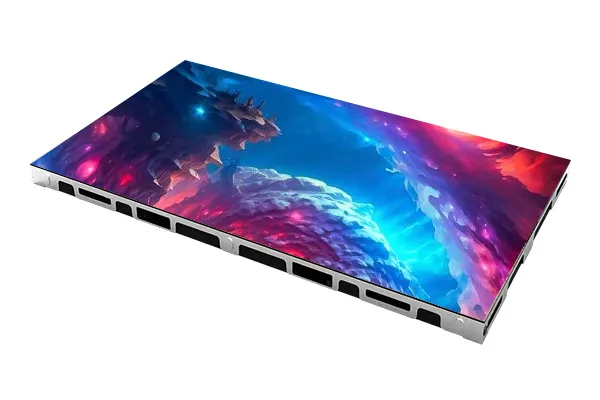

MIP LED Display Screen Ultra-light and Ultra-thin

Isikrini se-MIP se-LED Isibonisi Ultra-ukukhanya kunye ne-Ultra-thin

Ubunzima bekhabhinethi bu-28 mm kuphela, kwaye ubunzima bekhabhinethi bu-4.8 kg kuphela, njengokukhanya njengentsiba.

I-MIP ye-LED Bonisa iSkrini sokuKhanya okuPhezulu

Ukukhanya okusemgangathweni ukuya kuthi ga kwi-1,000 nits. Ngomlinganiselo wokuchasana ongaphezulu kwe-1,000,000:1, imifanekiso ibukhali kwaye iqaqambile, zonke iinkcukacha zibonakala ngokupheleleyo.

Ukusebenza okugqwesileyo okubonakalayo

Izinga eliphezulu lokuhlaziya le-7680Hz, uluhlu oluguquguqukayo oluphezulu, umboniso onesisombululo esiphezulu, kunye nomsebenzi ophucukileyo we-24-bit grayscale ubonelela ngokusebenza kombala obalaseleyo kunye neempembelelo ezibonakalayo, ngaloo ndlela zibonelela ngokugqwesileyo kokujonga kunye namava okudubula.

I-engile yokuJonga eBanzi

I-Angle yokujonga kakhulu, ukuya kuthi ga kwi-170 °/170 °

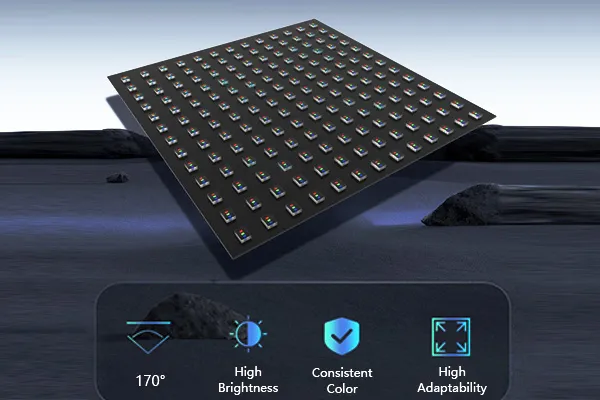

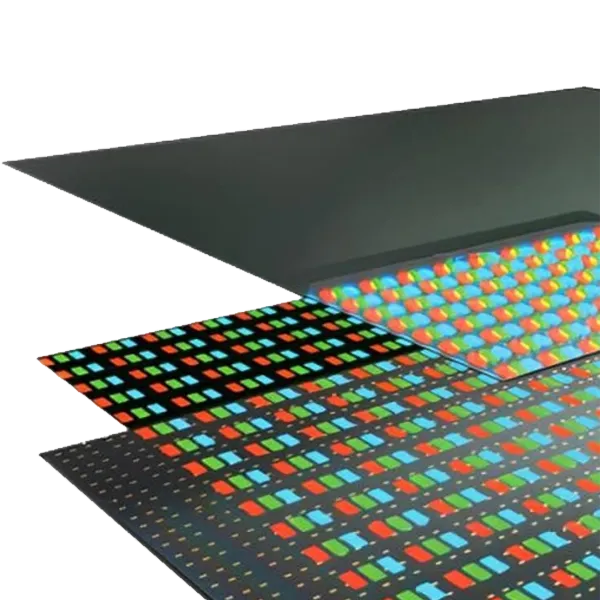

Iphakheji ye-Micro Chip

I-pixel-level light light mixing bin 99% ultra high consistency.

Amava abanzi abonakalayo emifanekiso eqaqambileyo ngaphandle kombala

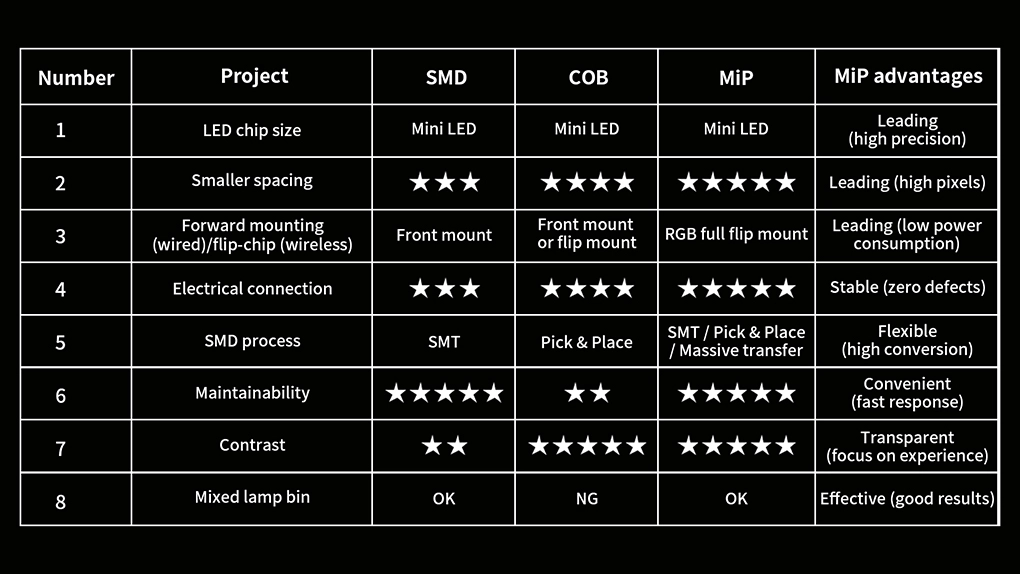

SMD & COB & MIP

Kwinqanaba lokubonisa, i-point spacing ye-MIP inokuncitshiswa, ilandelwa yi-COB, kwaye i-SMD inqande ngakumbi kwisithuba samanqaku;

Ngokubanzi, i-MIP ingcono kune-SMD kunye ne-COB ngokubhekiselele kubukhulu be-chip ye-LED, uxhulumaniso lombane, ukuchasana, ukuxhoma ikhonkco, ukulungiswa, ukunyameka, umgqomo wesibane odibeneyo, njl.

Ingabonwa ukuba i-MIP ifanelekile kwiitshiphusi ezincinci, ezinendawo enkulu yokunciphisa izithuba kunye nokunciphisa iindleko. Kwixesha elizayo, indlela ye-Micro LED izimisele, kwaye i-MIP ineenzuzo ezicacileyo. I-Leyard iqhuba ngokupheleleyo uxanduva kunye noxanduva lwenkokeli yehlabathi kwitekhnoloji yempembelelo yokubona, iphonononga ngenkuthalo iintsingiselo zetekhnoloji entsha, ibeka itekhnoloji yokupakisha ye-MIP, kwaye ikhokelela kuphuhliso lwamashishini.

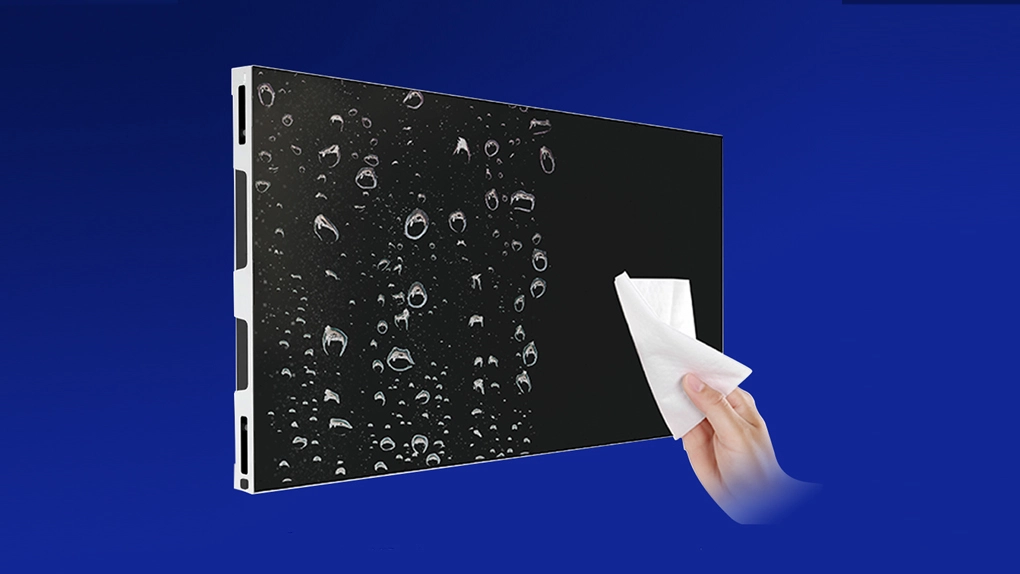

Kulula ukuCoca

I-MIP series surface kulula ukuyicoca. Ukuba ufuna ukucoca isikrini, sula nje ngobunono ngelaphu elimanzi ukuze ufezekise ukucoca okusebenzayo kunye nokunciphisa iindleko zokulondoloza.

Isibane seTekhnoloji yeTekhnoloji ye-MIP ye-LED enokulungiseka

I-teknoloji ye-MIP ye-LED ivumela ukulungiswa kwezibane ezonakalisiweyo xa kuyimfuneko, kwaye abathengi banokuzilungisa kwindawo ngaphandle kokuthumela imodyuli ephosakeleyo emva kwefektri, ukugcina kakhulu ixesha kunye neendleko.

MIP LED Display Screen Technology Lamp Repairable

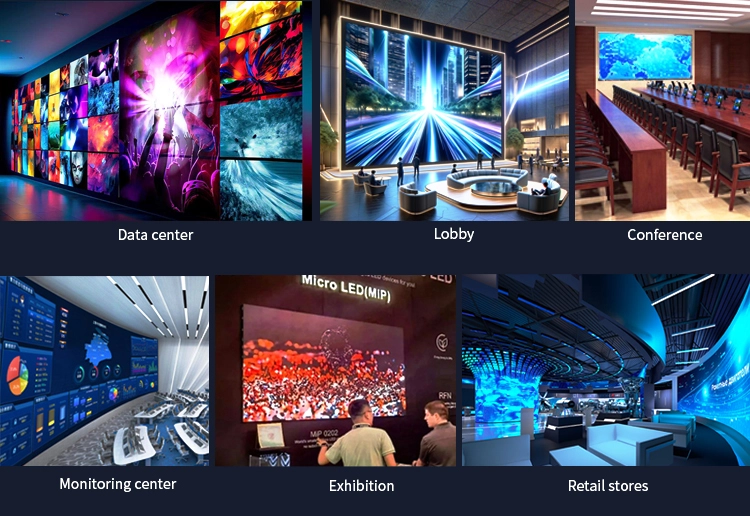

MIP LED Display Screen Application Scenarios

Iimeko zeSicelo seSicelo se-MIP se-LED

· Igumbi lekhonfirensi
· Igumbi lokulawula
· Iziko lomyalelo
· Iziko leDatha
· Umboniso
· Ivenkile
· Iholo

Iimeko zesicelo

Micro LED Display-0001

Iinkcukacha

Umzekelo	M0.6	M0.7	M0.9	M1.2	M1.5	M1.8
Uqwalaselo lwePixel	MIP	MIP	MIP	MIP	MIP	MIP
IPixel Pitch(mm)	0.625	0.78	0.93	1.25	1.56	1.875
Ubungakanani beKhabhinethi(mm)(WxHxD)	600×337.5×28	600×337.5×28	600×337.5×28	600×337.5×28	600×337.5×28	600×337.5×28
ISigqibo seKhabhinethi(WxH)	960×540	768×432	640×360	480×270	384×216	320×180
Ubunzima beKhabhinethi(kg/ikhabhinethi)	4.8	4.8	4.8	4.8	4.8	4.8
Ireyithi yokuhlaziya(Hz)	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680	3,840~7,680
Umlinganiselo wokuthelekisa	15,000:1	15,000:1	15,000:1	15,000:1	15,000:1	15,000:1
Ubungwevu (bit)	16	16	16	16	16	16
Ukukhanya	1,000(3,500 ngokuzithandela)	1,000(3,500 ngokuzithandela)	1,000(3,500 ngokuzithandela)	1,000(3,500 ngokuzithandela)	1,000(3,500 ngokuzithandela)	1,000(3,500 ngokuzithandela)
Max. Ukusetyenziswa kwamandla (W/㎡)	≤450	≤450	≤450	≤450	≤450	≤450
Avg. Ukusetyenziswa kwamandla (W/㎡)	≤150	≤150	≤150	≤150	≤150	≤150
Iengile yokujonga (H/V)	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°	170°/170°
I-Voltage esebenzayo	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz	AC 100V~240V,50~60Hz
Ubomi bonke(H)	100,000	100,000	100,000	100,000	100,000	100,000

Uqwalaselo

Configuration
