Stage LED Display Screen -RF-PRO+ Series

Icyiciro LED Yerekana Mugaragaza -RF-PRO + Urukurikirane

REISSDISPLAY icyiciro LED yerekanwe irakwiriye kuri buri nini - igipimo cyibyiciro Icyiciro cyambere cyayoboye ecran. Zana ingaruka zitandukanye ziboneka ahabereye ibirori.

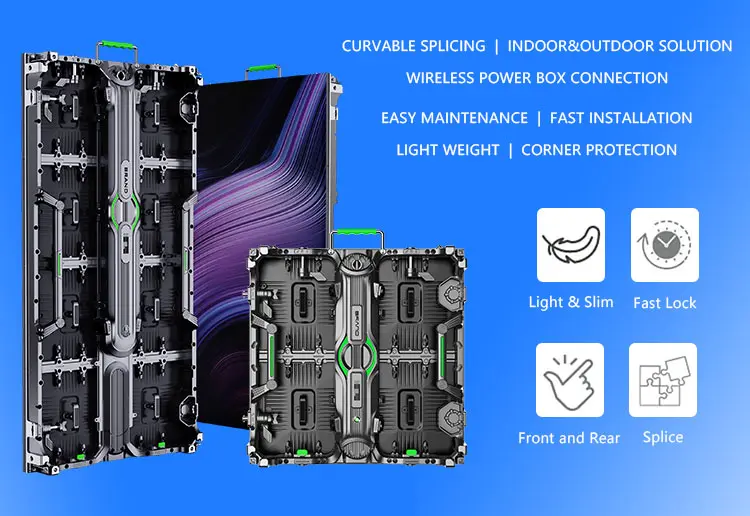

- Igishushanyo mbonera - Gukuraho igifuniko cy'inyuma - Gufunga neza-gufunga umurongo, gushiraho arc - Kurinda inguni LED - Amashanyarazi maremare yo hanze - Magnetic module module itunganijwe hatitawe ibumoso niburyo

Shaka amagambo OEM

Gukodesha LED kwerekana Ibisobanuro

Icyiciro LED Yerekana-Ibishoboka byo guhanga ntibigira iherezo!

REISSDISPLAY icyiciro LED yerekana irakwiriye kuri buri nini - igipimo cyibyiciro Icyiciro cyambere cyayoboye ecran. Zana ingaruka zitandukanye ziboneka ahabereye ibirori.

Itsinda rya LED Screen Wall rizafatanya neza nabakiriya bacu kandi ritange igisubizo cyiza.igishobora guhindurwa mubunini na moderi. Kugira ngo ubone ibyo ukeneye.

LED ya ecran kubyabaye byayoboye urukuta rwa videwo dutanga: Tuzatanga serivise zabigize umwuga.

ReissDisplay Buri LED yerekana Panels Porogaramu zirimo ibitaramo, kwerekana imideli, ibitaramo, iminsi mikuru yumuziki, ibirori bya siporo, imurikagurisha, gusohora ibicuruzwa, ibirori bidasanzwe nibindi LED yerekana ibisubizo bya ecran.

Icyiciro LED Yerekanwe Yakozwe Kubintu Bitagira inenge

- Iraboneka mubice byinshi bifite ubunini 500x500mm, 500x1000mm bipfa-aluminium
- Imikorere myiza
- Kugaragaza neza hamwe ningaruka nziza zigaragara
- Inama y'Abaminisitiri ya Aluminium, Yoroheje, Umutekano na - Kwizerwa, Nta kugoreka
- Biroroshye Gushyira no Kubungabunga
- Gutwara neza cyane gutwara ibinyabiziga IC
- Igishushanyo mbonera
- Gukuraho igifuniko cy'inyuma
- Gufunga neza-gufunga umurongo, gushiraho arc
- Kurinda inguni LED
- Magnetic module module itunganijwe hatitawe ibumoso niburyo
- Amashanyarazi maremare yo hanze

Stage LED Display Engineered for Flawless Visual Impact

High Refresh Rate Smoother Stage LED Screen

Igipimo Cyinshi cyo Kuvugurura Icyiciro Cyoroheje LED Mugaragaza

Igipimo kinini cyo kugarura 3840Hz, kwerekana neza, nta flash ya ecran, nta jitter, nta gukurura ecran yerekana neza kandi bihamye.

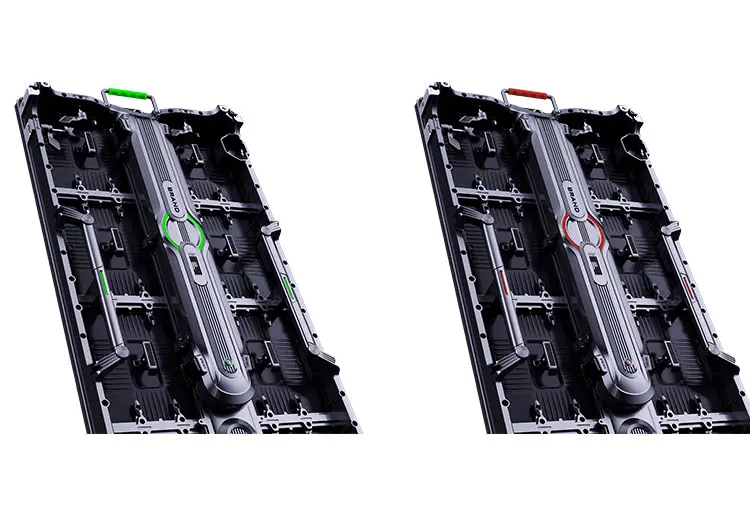

Ibara

Ibintu bibiri bitandukanye byamabara kuburyo bwawe.

Ultra-Light na Slim Igishushanyo

Ingano y’abaminisitiri isanzwe ni 500x500mm / 500x1000mm (1.64 × 1.64ft / 1.64 × 3.28ft), ikwiranye na 250x250mm yubunini busanzwe, ikozwe muri ultra-light die-cast-aluminium, ifite umubyimba wa 71mm gusa, byoroshye gutwara no gutwara.

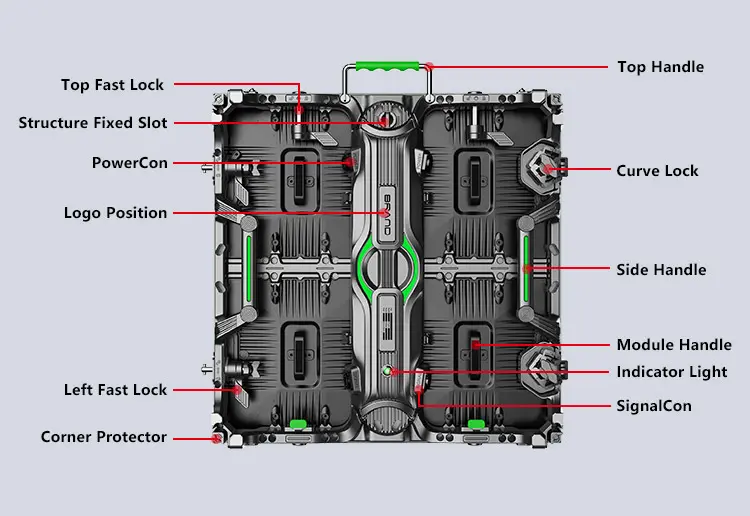

Igishushanyo mbonera cy'inama y'abaminisitiri

Kuva kumaboko yinama y'abaminisitiri, gutunganya ibibanza, kugeza gufunga byihuse, modulike ya magnetiki, kwishyiriraho imashini, hamwe nudusanduku twavanyweho amashanyarazi, buri kantu kerekana amahame meza yo gushushanya.

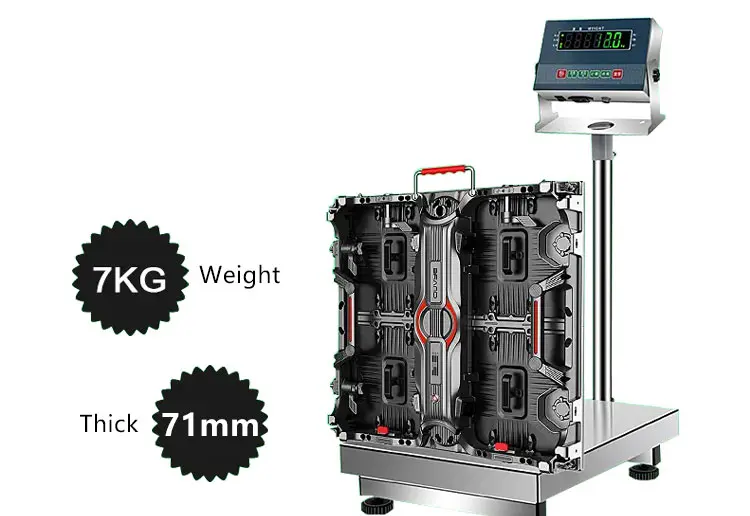

Umucyo woroshye, Ultra-thin

Nkuko abaminisitiri bakoresha ibikoresho bya aluminium, uburemere bwikibaho ni 7kg / 12kg gusa, kandi bufite ubushyuhe bukabije.

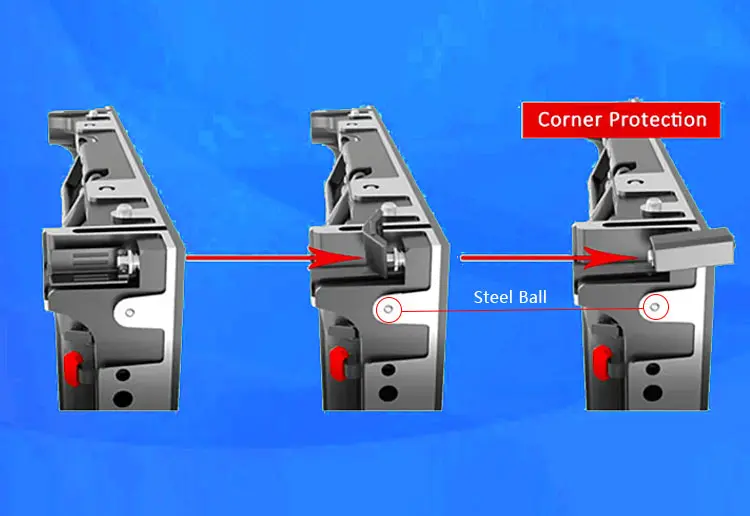

LED Kurinda Inguni

RF-PRO + Urukurikirane rwa serivise ya LED ibyapa bifite uburinzi bune kuri buri nguni kugirango birinde kwangirika kwa LED, kandi igishushanyo mbonera gishobora kuba cyiza cyo gutwara, gushiraho, gukora, no guteranya no gusenya, kandi biroroshye gukoresha.

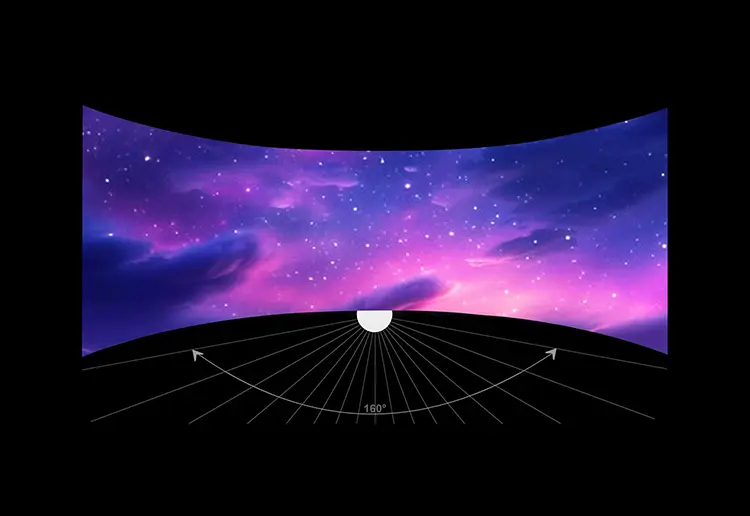

Kureba Inguni

Hamwe n'ubushobozi bwagutse bwo kureba (160 ° h / V) hamwe no kwaguka kwagutse byerekana neza ko bigaragara neza kuri buri mwanya.

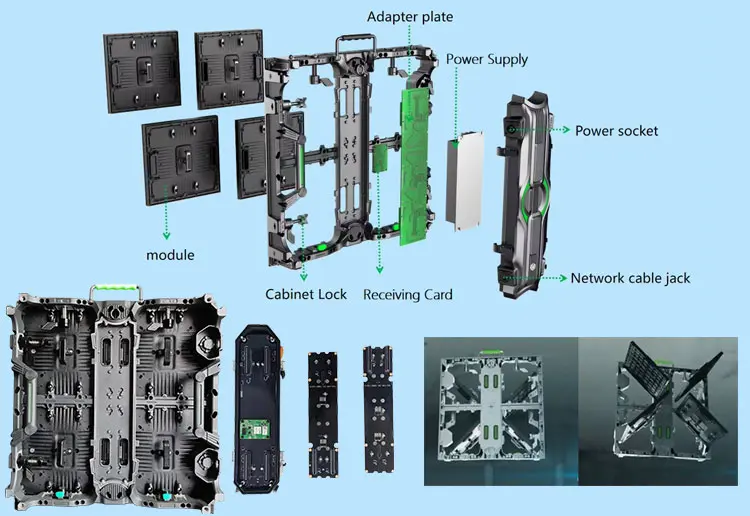

Igishushanyo mbonera cyo gufata neza

Imbere ninyuma yo gukodesha LED yerekana ecran ikoresha magnesi kugirango yinjize panne ya LED, imiyoboro yo kwishyiriraho module, amashanyarazi n’ibimenyetso, udusanduku two gutanga amashanyarazi, n'ibindi. Agasanduku k'amashanyarazi hamwe nubuyobozi bwa HUB ntibishobora gutandukana muburyo bukomeye bwo guhuza, gufunga kabiri impeta ya reberi hejuru ya IP65 idafite amazi, hamwe nudusanduku twihuse twifashisha mugushiraho no gukuraho igifuniko cyinyuma.

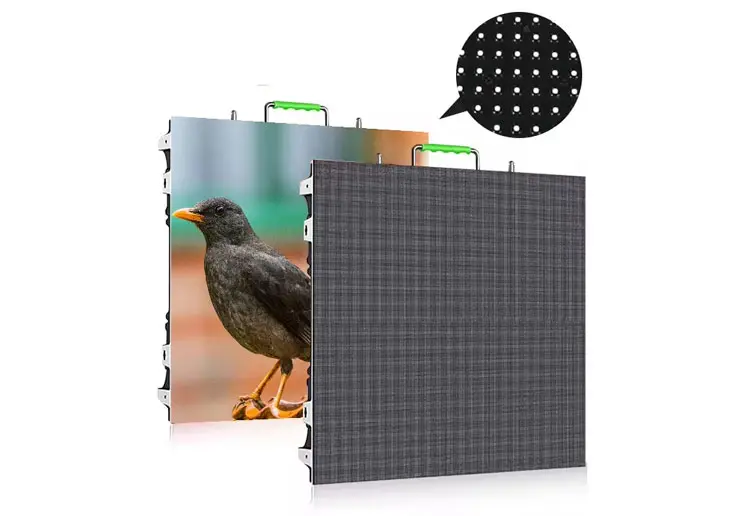

Icyiciro Cyuzuye Icyiciro LED Yerekana

ReissDisplay icyiciro cya LED yerekana, ishusho isobanutse, ukoresheje amasaro meza yo mumatara yo hejuru, amatara maremare ya LED, ubuzima bwa serivisi ndende.

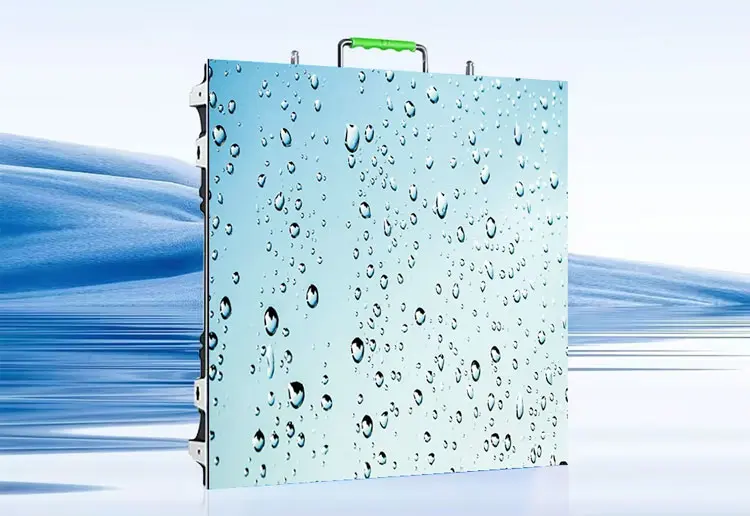

Icyerekezo kitarimo amazi LED Yerekana

Icyerekezo cyo hanze LED yerekana ishyigikira Ip65 itagira umukungugu kandi itagira amazi, irashobora guhangana nikirere gikabije mugihe cyo hanze. Kandi gupfa-aluminiyumu irwanya ruswa.

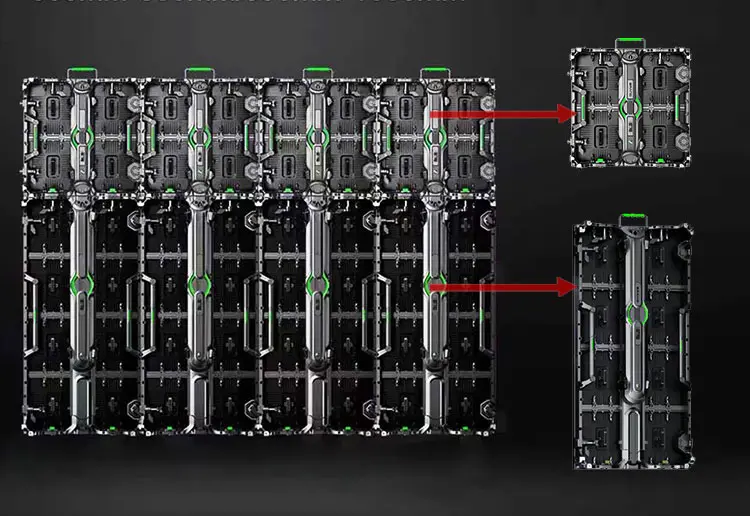

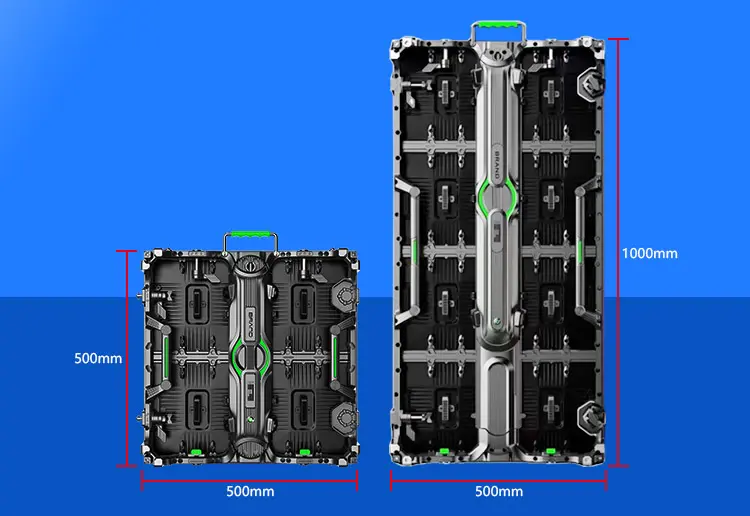

Bivanze kandi bihuye

500x500mm na 500x1000mm kabine irashobora guhuzwa byoroshye gutambuka no guhagarikwa muburyo butandukanye.

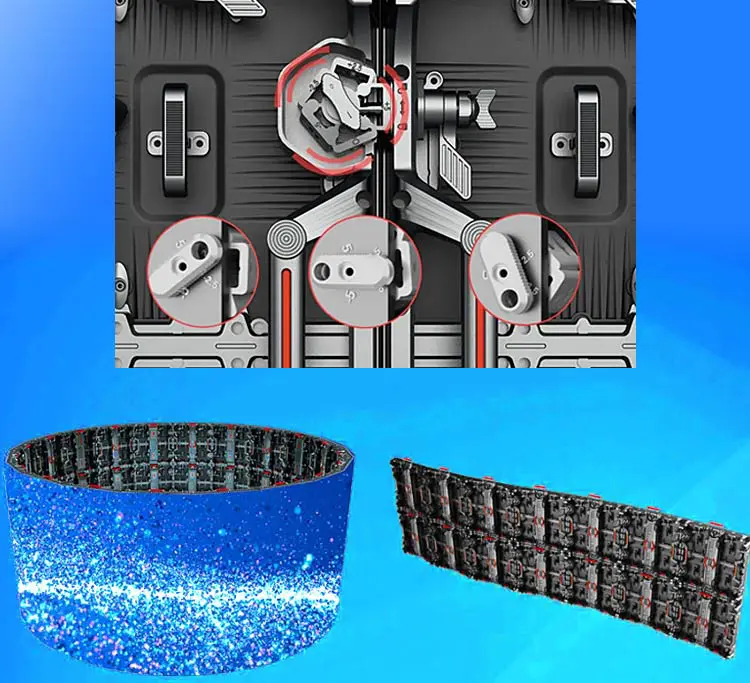

Gufunga-Byuzuye neza

Gufunga neza cyane gufunga (-10 ° kugeza + 10 °) birashobora gutuma umurongo wa LED utagira umurongo. Kugenzura kuzunguruka byoroha kwihuta kugirango uhindure umurongo. Irashobora gukoreshwa kumurongo uhetamye.

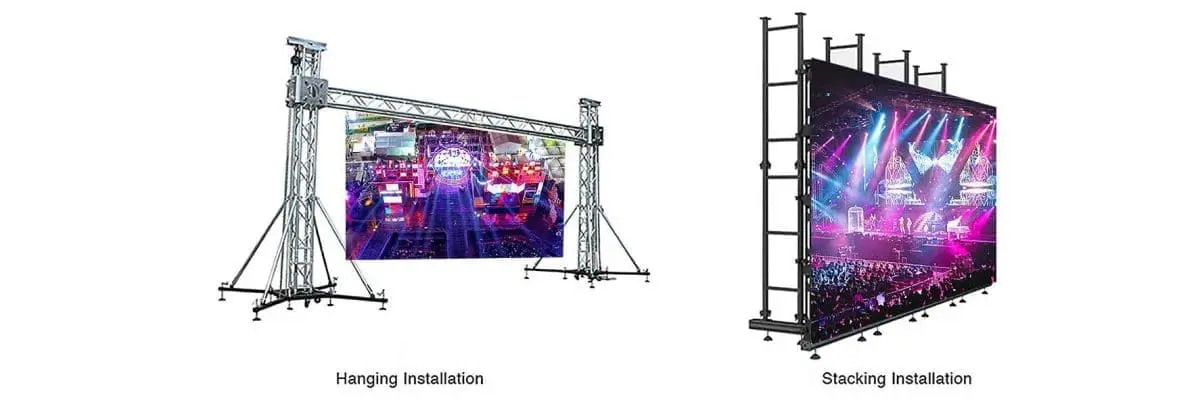

Gutondekanya no Kumanika Sisitemu Bihitamo

Kumanika no Gutondekanya Kuboneka: birashobora kuzuza ibyifuzo bitandukanye byigihe cyimukanwa hamwe no kumanika umurongo cyangwa inyuma yinyuma

1. Ibipimo fatizo
Ikibanza cya Pixel	1.56	1.953	2.604	2.976	3.91
Ingano ya Module	250 * 250mm	250 * 250mm	250 * 250mm	250 * 250mm	250 * 250mm
Icyemezo / Pixel	160*160	128*128	96*96	84*84	64*64
LED (HS / RS / NATIONSTAR)	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020
Umushoferi IC	DP3264S / ICN1065S	DP3153 / ICN2153	DP3153 / ICN2153	DP3153 / ICN2153	DP3153 / ICN2153
Uburyo bwo gutwara	1/40	1/32	1/32	1/28	1/16
2. Ibipimo by'amashanyarazi
Umucyo	550	550	550	550	550
Igipimo cy'imvi	8bits yinjiza, ikosora hamwe na 16bits
Erekana Ibara	16.7M
Reba Inguni	Impamyabumenyi 140 (horizontal) 140degree (vertical)
Reba Intera	2m-30m
3. Amashanyarazi
Imbaraga zo Gukora	AC100-240V 50-60HZ Guhindura-birashoboka
Gukoresha ingufu nyinshi	1000 W / m2
Ikigereranyo cyo gukoresha ingufu	450 W / m2
4. Sisitemu yo kugenzura
Ongera inshuro	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Urwego rwo gukosora	16bits
Kuvugurura inshuro	60Hz
Gukosora Gamma	-5.0—5.0
Ubushyuhe bw'amabara	5000-9300 irashobora guhinduka
Inkunga Iyinjiza	Gukomatanya Video, S-Video, DVI, HDMI., SDI, HD_SDI
Intera	Umuyoboro wa Ethernet 100m, fibre optique 5km
Shyigikira uburyo bwa VGA	800×600,1024×768,1280×1024,1600×1200
5. Kwizerwa
Gukoresha Temp	-20-60 Impamyabumenyi
Gukoresha Ubushuhe	10-95% RH
Gukoresha Ubuzima	Amasaha 100.000
MTBF	Amasaha 5000
Urwego rwo Kurinda	IP43
Hanze yo Kugenzura Igipimo cya Pixel	0.01%
Igihe Cyakazi	Amasaha 48


1. Ibipimo fatizo
Ikibanza cya Pixel	2.604	2.976	3.91	4.81
Ingano ya Module	250 * 250mm	250 * 250mm	250 * 250mm	250 * 250mm
Icyemezo / Pixel	96*96	84*84	64*64	52*52
LED (HS / RS / NATIONSTAR)	SMD1415	SMD1415	SMD1921	SMD1921
Umushoferi IC	DP3153 / ICN2153	DP3153 / ICN2153	DP3153 / ICN2153	DP3153 / ICN2153
Uburyo bwo gutwara	1/24	1/21	1/16	1/13
2. Ibipimo by'amashanyarazi
Umucyo	0004000cd	0004000cd	0004000cd	0004000cd
Igipimo cy'imvi	8bits yinjiza, ikosora hamwe na 16bits
Erekana Ibara	16.7M
Reba Inguni	Impamyabumenyi 140 (horizontal) 140degree (vertical)
Reba Intera	3m-30m
3. Amashanyarazi
Imbaraga zo Gukora	AC100-240V 50-60HZ Guhindura-birashoboka
Gukoresha ingufu nyinshi	1000 W / m2
Ikigereranyo cyo gukoresha ingufu	450 W / m2
4. Sisitemu yo kugenzura
Ongera inshuro	3840Hz	3840Hz	3840Hz	3840Hz
Urwego rwo gukosora	16bits
Kuvugurura inshuro	60Hz
Gukosora Gamma	-5.0—5.0
Ubushyuhe bw'amabara	5000-9300 irashobora guhinduka
Inkunga Iyinjiza	Gukomatanya Video, S-Video, DVI, HDMI., SDI, HD_SDI
Intera	Umuyoboro wa Ethernet 100m, fibre optique 5km
Shyigikira uburyo bwa VGA	800×600,1024×768,1280×1024,1600×1200
5. Kwizerwa
Gukoresha Temp	-20-60 Impamyabumenyi
Gukoresha Ubushuhe	10-95% RH
Gukoresha Ubuzima	Amasaha 100.000
MTBF	Amasaha 5000
Urwego rwo Kurinda	IP65
Hanze yo Kugenzura Igipimo cya Pixel	0.01%
Igihe Cyakazi	Amasaha 48

Module	250 × 250 mm
Ikibanza cya Pixel	P1.56 / P1.9 / P2.604 / P2.976 / P3.91
Ingano y'Abaminisitiri	500x500mm / 500mmx1000mm
Uburemere bw'Inama y'Abaminisitiri	7kg / 12kg
Ibikoresho by'Inama y'Abaminisitiri	Gupfa Aluminium
Ibidukikije	Mu nzu / Hanze
Ibikoresho bisanzwe	Amashanyarazi Yumuriro ， Ikimenyetso cya Airplug
