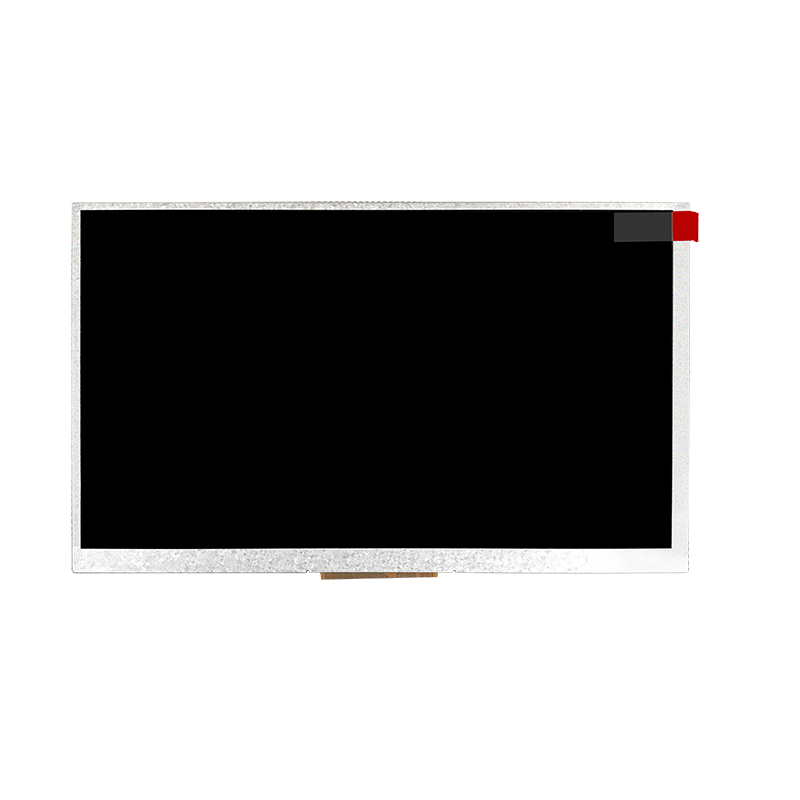

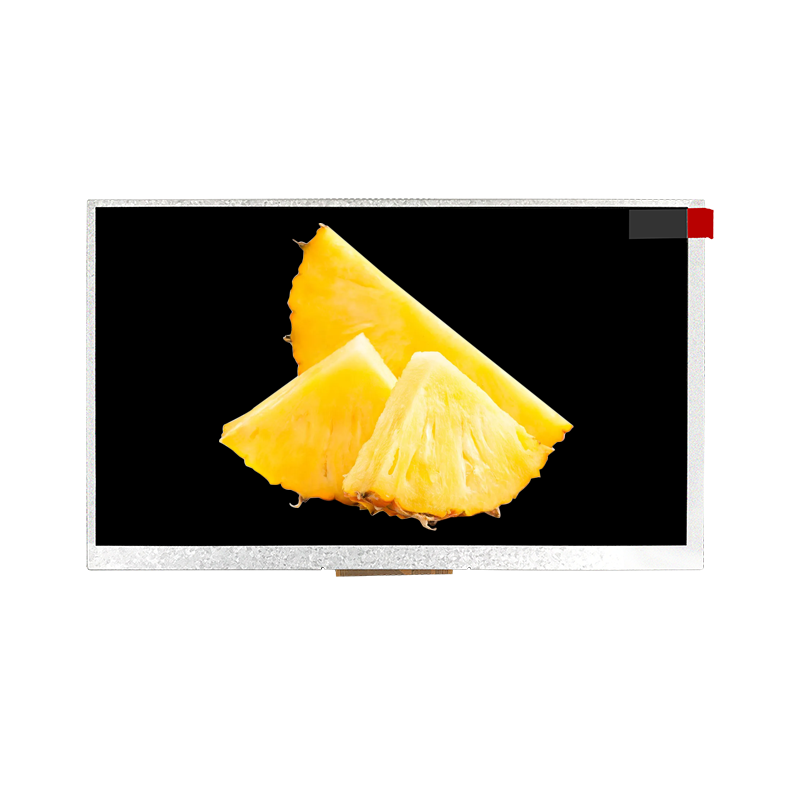

9.0″ TFT LCD Display, 1024×600, RGB

Name: 9.0″ TFT LCD Display, 1024×600, RGB
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Display Size: 9.0 inch (Diagonal)

Resolution: 1024 × 600 (WSVGA)

Panel Type: IPS (Normally Black)

Interface: RGB Interface (50 Pin)

Brightness: 500 nits (Typ.)

Operating Temperature: -20℃ to 70℃

As a leading TFT Display manufacturer in China, ReissOpto provides robust display solutions tailored for complex HMI systems. Our 9-inch module offers a perfect balance of size and clarity, making it the preferred choice for automotive infotainment, medical monitoring, and industrial automation control panels.

Get a quote Set OEM

CUSTOM TFT LCD DISPLAY Details

What Is a TFT Display?

A TFT Display (Thin-Film Transistor Liquid Crystal Display) is an active-matrix screen technology that assigns a specific transistor to each pixel. This architecture allows for precise control over light and color, resulting in sharper images, faster refresh rates, and lower power consumption compared to passive screens. It is the dominant technology for professional-grade visual interfaces.

Advanced IPS Panel Technology

Superior Color Consistency and Wide Viewing Angles

This module utilizes In-Plane Switching (IPS) technology, providing an expansive viewing angle of 85/85/85/85 degrees (Left/Right/Up/Down). Unlike traditional TN panels, our TFT Display maintains accurate color reproduction and high contrast even when viewed from extreme side angles, which is critical for collaborative work environments and dashboard applications.

High-Brightness LED Backlight

Vivid Visibility in Various Lighting Conditions

Equipped with a high-efficiency LED backlight assembly, this display achieves a typical brightness of 500 nits. This ensures that graphics and text remain legible even in brightly lit indoor environments or semi-outdoor settings, providing a vivid user experience without excessive power drain.

Standard RGB Connectivity

Seamless Integration for Embedded Systems

The module features a 50-pin parallel RGB interface, a standard in the industry for transmitting 24-bit color data. This ensures broad compatibility with common controller boards and processors, simplifying the development process for engineers integrating this TFT Display into new or existing hardware.

Industrial-Grade Durability

Built to Withstand Harsh Environmental Factors

Engineered for stability, this display supports an operating temperature range of -20℃ to 70℃ and storage temperatures from -30℃ to 80℃. Whether used in freezing warehouses or hot manufacturing floors, the module maintains consistent performance and longevity.

Customizable Touch and FPC Options

Flexible Design to Meet Specific Project Needs

We understand that off-the-shelf solutions don't fit every application. ReissOpto offers customization for the Flexible Printed Circuit (FPC) shape and interface definition. Additionally, we can bond Capacitive (PCAP) or Resistive touch panels to the TFT Display to create fully interactive HMI solutions.

Why Choose ReissOpto TFT Displays?

Custom Engineering & Manufacturing
We design and produce each TFT Display according to your project requirements. From adjusting the backlight brightness to customizing the cover glass with your logo, our modular manufacturing process ensures the final product aligns perfectly with your device design.

Factory-Direct Pricing
As a direct manufacturer, we eliminate the markup of distributors. You receive premium industrial-grade LCD panels at competitive factory prices, ensuring your project stays within budget without compromising on quality.

Global Support & Fast Delivery
We provide comprehensive technical datasheets, initialization code, and remote engineering support. Our efficient logistics network ensures timely delivery for both prototype samples and volume production runs globally.

Application Scenarios

Automotive Infotainment
The 9-inch wide aspect ratio is ideal for car navigation systems, rear-seat entertainment, and digital instrument clusters.

Medical Instrumentation
With high resolution and IPS clarity, this TFT Display is perfect for patient monitors and diagnostic equipment where detail is critical.

Industrial Automation
Rugged temperature specs make this module suitable for HMI panels, PLC controllers, and factory floor data terminals.

Smart Home Control
Enhance home security panels and smart appliance interfaces with a sleek, responsive, and colorful display.

TFT Display Technical Specifications

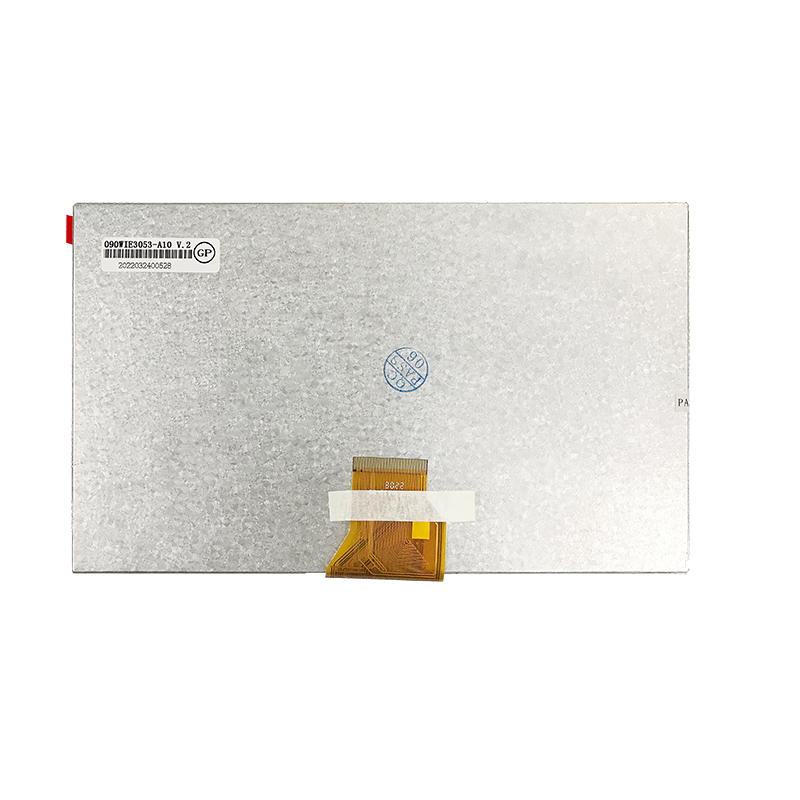

ReissOpto TFT Display modules are built to meet professional standards of clarity and reliability. Below are the detailed technical specifications for the 9.0-inch model (Product No: 090WIE3053-A4).

Item	Specification	Remark
LCD Size	9.0 inch (Diagonal)	-
Resolution	1024 (H) × 600 (V) pixels	WSVGA
Display Mode	IPS, Normally Black	Wide Viewing Angle
Active Area	196.61 (W) × 114.15 (H) mm	-
Module Size	210.7 (W) × 126.5 (H) × 5.2 (D) mm	Ultra-thin Design
Pixel Pitch	0.192 (W) × 0.190 (H) mm	-
Interface	RGB Interface	50 Pin FPC
Color Depth	16.7M Colors	24-bit
Brightness	500 nits (Typ.)	High Brightness
Contrast Ratio	800:1 (Typ.)	-
Backlight	White LED	-
Operating Temp	-20℃ to 70℃	Industrial Grade
Storage Temp	-30℃ to 80℃	-

Frequently Asked Questions (FAQ)

Q1: Does this TFT Display support touch functionality?
A1: The standard module is a display-only unit, but ReissOpto can integrate a Capacitive Touch Panel (CTP) or Resistive Touch Panel (RTP) via optical bonding upon request.

Q2: What is the viewing direction of this screen?
A2: Thanks to the IPS panel technology, this display has a "Free" viewing direction, meaning it looks clear from all angles (Top, Bottom, Left, Right), unlike older TN panels that have a limited "6 o'clock" or "12 o'clock" viewing sweet spot.

Q3: Can I use this display in outdoor sunlight?
A3: The standard 500 nits brightness is sufficient for many lighting conditions. However, for direct sunlight readability, we recommend our customized high-brightness version (up to 1000+ nits).

Q4: What is the interface voltage?
A4: The digital power supply voltage (DVDD) is typically 3.3V, compatible with most standard embedded controllers.

Q5: What is the warranty period?
A5: All ReissOpto TFT Display products come with a 1-year warranty and lifetime technical support for integration and troubleshooting.
