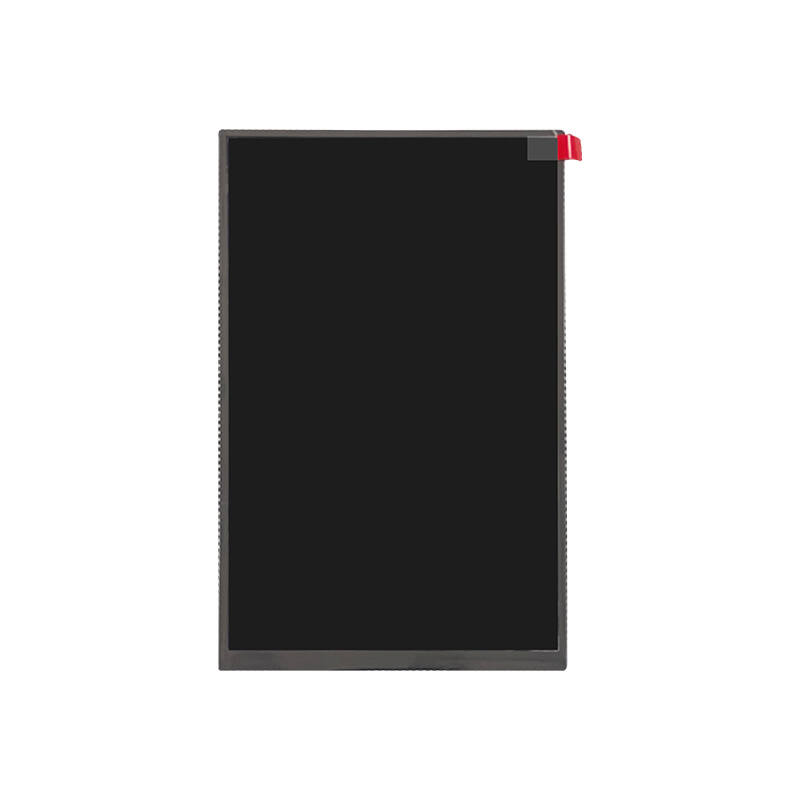

8″ TFT LCD Display, 800×1280, MIPI

Name: 8″ TFT LCD Display, 800×1280, MIPI
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Display Size: 8.0 inch (Diagonal)

Resolution: 800 (RGB) × 1280 (WXGA)

Panel Type: IPS (Normally Black)

Interface: 4-Lane MIPI

Brightness: 300 nits (Typ.)

Operating Temperature: -20℃ to 60℃

As a leading TFT Display manufacturer in China, ReissOpto delivers precision-engineered display solutions for handheld devices and vertical interfaces. Our 8-inch module offers exceptional color accuracy and a high-speed data interface, making it the ideal choice for smart home controllers, medical tablets, and industrial handheld terminals.

Get a quote Set OEM

CUSTOM TFT LCD DISPLAY Details

What Is a TFT Display?

A TFT Display (Thin-Film Transistor Liquid Crystal Display) uses active-matrix technology to control each pixel individually. This results in sharper images, faster response times, and better color reproduction compared to passive LCDs. It is the standard technology for modern digital interfaces requiring high-resolution graphics and video playback.

Crystal Clear Portrait Visuals

High-Definition 800x1280 Resolution

This 8-inch module features a high pixel density with a resolution of 800x1280 pixels. Designed primarily for portrait orientation, it delivers sharp text and detailed graphics, making it perfect for reading-heavy applications or complex control menus.

Superior IPS Wide Viewing Angle

Consistent Color from Every Direction

Equipped with In-Plane Switching (IPS) technology, this TFT Display offers a "Free" viewing direction. It maintains a contrast ratio of over 800:1 and consistent color accuracy even at extreme angles (89/89/89/89 degrees), ensuring the screen is readable regardless of how the device is held or mounted.

High-Speed MIPI Connectivity

Efficient Data Transmission for Video

The module utilizes a 4-Lane MIPI (Mobile Industry Processor Interface) DSI. This high-speed interface supports high-bandwidth data transmission with low power consumption, enabling smooth video playback and responsive UI transitions essential for modern smart devices.

Robust Industrial Reliability

Wide Temperature Operation Range

Built to withstand challenging environments, this display operates reliably in temperatures ranging from -20℃ to 60℃ and can withstand storage temperatures from -30℃ to 70℃. This durability makes it suitable for industrial equipment that may be exposed to varying climates.

Ultra-Slim and Lightweight Design

Compact Integration for Portable Devices

With a module thickness of only 2.5mm and a sleek mechanical design (184.10mm x 114.6mm), this TFT Display is optimized for slim, portable devices where internal space is at a premium.

Why Choose ReissOpto TFT Displays?

Custom Engineering & Manufacturing
We design and produce each TFT Display to meet your specific needs. While the standard model comes without a touch panel, we can integrate Capacitive (PCAP) or Resistive touch layers, adjust FPC pinouts, or increase backlight brightness for outdoor use.

Factory-Direct Pricing
As a direct manufacturer, ReissOpto eliminates middleman costs. You receive high-quality, factory-tested LCD panels at competitive prices, ensuring your BOM costs remain optimized.

Global Support & Fast Delivery
We provide complete technical documentation, including initialization code and driver IC (ER88577) support. Our logistics team ensures fast turnaround times for samples and mass production orders worldwide.

Application Scenarios

Smart Home Control Panels
The vertical aspect ratio and IPS viewing angles make this display ideal for wall-mounted smart thermostats and home automation hubs.

Medical Handheld Devices
High resolution and clarity ensure that medical charts and patient data are displayed accurately on portable medical tablets.

Industrial Handheld Terminals
Rugged temperature specs allow this TFT Display to function in warehouses and logistics centers on portable data collectors.

POS Systems
Perfect for customer-facing displays or waiter ordering tablets requiring a sleek, responsive screen.

TFT Display Technical Specifications

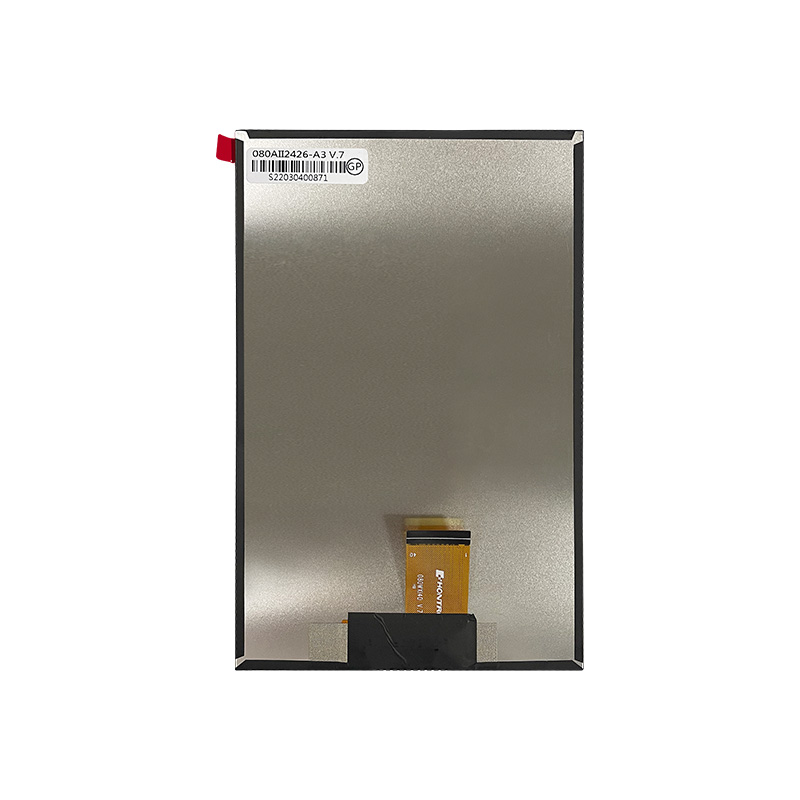

ReissOpto TFT Display modules are built to meet professional standards. Below are the detailed technical specifications for the 8.0-inch model (Product No: 080AII2426-A3 V.7).

Item	Specification	Remark
LCD Size	8.0 inch (Diagonal)	-
Resolution	800 (RGB) × 1280 pixels	Portrait Mode
Display Mode	IPS, Normally Black	Free Viewing Angle
Active Area	107.64 (W) × 172.22 (H) mm	-
Module Size	114.6 (W) × 184.10 (H) × 2.5 (D) mm	-
Interface	4-LANE MIPI	High Speed
Color Depth	16.7M Colors	-
Brightness	300 nits (Typ.)	Indoor Use
Contrast Ratio	800:1 (Typ.)	High Contrast
Driver IC	ER88577	-
Backlight	24 LEDs	White LED
Operating Temp	-20℃ to 60℃	-
Storage Temp	-30℃ to 70℃	-

Frequently Asked Questions (FAQ)

Q1: Does this 8-inch TFT Display come with a touch screen?
A1: The standard specification (080AII2426-A3) is "Without TP" (Touch Panel). However, ReissOpto can custom-bond a Capacitive Touch Panel (CTP) to the module upon request.

Q2: What is the viewing angle of this screen?
A2: This is an IPS panel with a "Free" viewing direction. It offers ultra-wide viewing angles of approximately 89 degrees from all sides (Top, Bottom, Left, Right).

Q3: Can I use this display in landscape mode?
A3: Yes, while the native resolution is 800x1280 (Portrait), the content can be rotated via software on your controller board to display in Landscape (1280x800).

Q4: Is the brightness adjustable?
A4: Yes, the LED backlight brightness can be adjusted via PWM or current control through the driver to suit different lighting environments.

Q5: What is the warranty period?
A5: All ReissOpto TFT Display products come with a 1-year warranty and comprehensive technical support.
