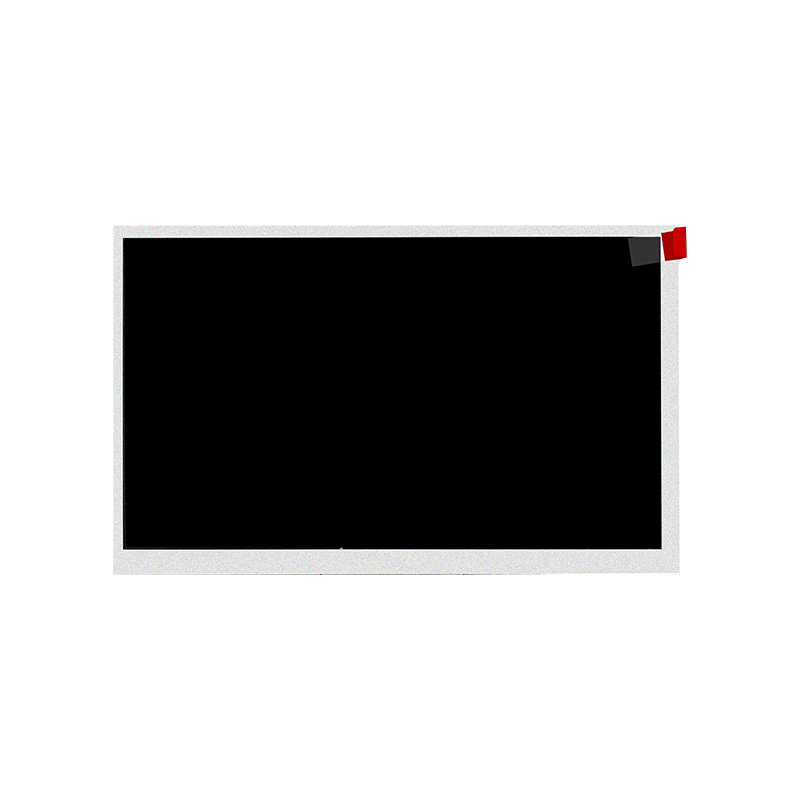

7″ TFT LCD Display, 1024×600, RGB

Name: 7″ TFT LCD Display, 1024×600, RGB
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Display Size: 7.0 inch (Diagonal)

Resolution: 1024 × 600 (RGB)

Panel Type: IPS (Normally Black)

Interface: RGB Interface (50 Pin)

Surface Treatment: Anti-Glare

Operating Temperature: -20℃ to 70℃

As a leading TFT Display manufacturer, ReissOpto offers high-performance LCD modules designed for industrial, medical, and consumer electronics. Our 7-inch module combines superior color accuracy with robust environmental resistance, making it the ideal solution for HMI interfaces, automotive displays, and smart home devices.

Get a quote Set OEM

CUSTOM TFT LCD DISPLAY Details

What Is a TFT Display?

A TFT Display (Thin-Film Transistor Liquid Crystal Display) is a type of active-matrix LCD that improves image quality, such as addressability and contrast. Each pixel on a TFT display is controlled by one to four transistors, which allows for faster response times and greater color precision compared to passive matrix screens. This technology is the industry standard for delivering sharp, vibrant visuals in compact electronic devices.

Wide Viewing Angle Technology

Immersive Visibility from Every Perspective

Utilizing IPS (In-Plane Switching) technology, this display offers an ultra-wide viewing angle of 85/85/85/85 degrees (Left/Right/Up/Down). This ensures consistent color reproduction and contrast even when viewed from sharp angles, eliminating the color shift common in traditional TN panels.

Robust RGB Interface

Seamless Connectivity for Industrial Systems

The module utilizes a standard RGB interface, supporting 24-bit color depth. This ensures high-speed data transmission and compatibility with a wide range of microcontrollers and processors, making integration into existing electronic architectures straightforward and reliable.

Industrial Temperature Range

Uncompromising Performance in Extreme Environments

Designed for harsh operating conditions, this TFT Display operates reliably between -20℃ and 70℃ and can withstand storage temperatures from -30℃ to 80℃. This thermal stability makes it perfect for outdoor equipment, automotive dashboards, and industrial control rooms.

High-Efficiency LED Backlight

Bright, Uniform Illumination with Low Power Consumption

The display features a long-life LED backlight system delivering a typical brightness of 300 nits. It is designed for energy efficiency without sacrificing visibility, ensuring a long operational lifespan (up to 25,000 hours) and uniform brightness distribution across the active area.

Customization Options

Tailored Display Solutions to Fit Your Unique Design

ReissOpto understands that every project is unique. We offer extensive customization for our TFT Display modules, including FPC shape modification, touchscreen integration (Resistive or Capacitive), and brightness enhancements to meet specific project requirements.

Application Scenarios

Industrial HMI & Control Panels
Reliable operation in varying temperatures makes this display ideal for factory automation interfaces and CNC machine controls.

Medical Devices
The high resolution (1024x600) and anti-glare surface provide the clarity needed for portable medical monitoring equipment.

Automotive Displays
With wide viewing angles and robust vibration resistance, this module serves effectively as a dashboard cluster or infotainment screen.

Smart Home & IoT
Perfect for smart thermostats, security system panels, and home automation controllers requiring a sleek, modern visual interface.

TFT Display Technical Specifications

ReissOpto TFT Display modules are built to meet professional standards of clarity, color accuracy, and reliability. Below are the detailed technical specifications for the 7.0-inch model (Product No: BR070JII2757-A3 V.1).

Item	Specification	Remark
LCD Size	7.0 inch (Diagonal)	-
Resolution	1024 × 3(RGB) × 600	High Definition
Display Mode	Normally Black, IPS	Wide Viewing Angle
Active Area	154.21(W) × 85.92(H) mm	-
Module Size	164.9(W) × 100.0(H) × 5.7(D) mm	Compact Design
Dot Pitch	0.0642(W) × 0.1790(H) mm	-
Interface	RGB Interface	50 Pin FPC
Brightness	300 nits (Typ.)	-
Contrast Ratio	1000:1 (Typ.)	Deep Blacks
Response Time	35ms (Typ.)	-
Operating Temp	-20℃ to 70℃	Industrial Grade
Storage Temp	-30℃ to 80℃	-
Surface Treatment	Anti-Glare	Reduces Reflection

Frequently Asked Questions (FAQ)

Q1: What is the benefit of an IPS TFT Display over a TN panel?
A1: IPS (In-Plane Switching) technology offers significantly wider viewing angles and better color reproduction than TN panels. This means the image remains clear and accurate even when not viewed directly from the front.

Q2: Can I add a touchscreen to this 7-inch module?
A2: Yes. ReissOpto offers customization services to bond Capacitive (PCAP) or Resistive touch panels to the display module based on your needs.

Q3: Is this display suitable for outdoor use?
A3: The standard brightness is 300 nits, which is suitable for indoor or shaded outdoor use. For direct sunlight readability, we can customize the backlight to achieve higher brightness levels (e.g., 1000 nits).

Q4: What is the lifespan of the LED backlight?
A4: The LED backlight is rated for approximately 25,000 hours of operation before brightness decreases to 50%, ensuring long-term reliability.

Q5: What is the warranty period?
A5: All ReissOpto TFT Display products come with a standard 1-year warranty and lifetime technical support for integration.
