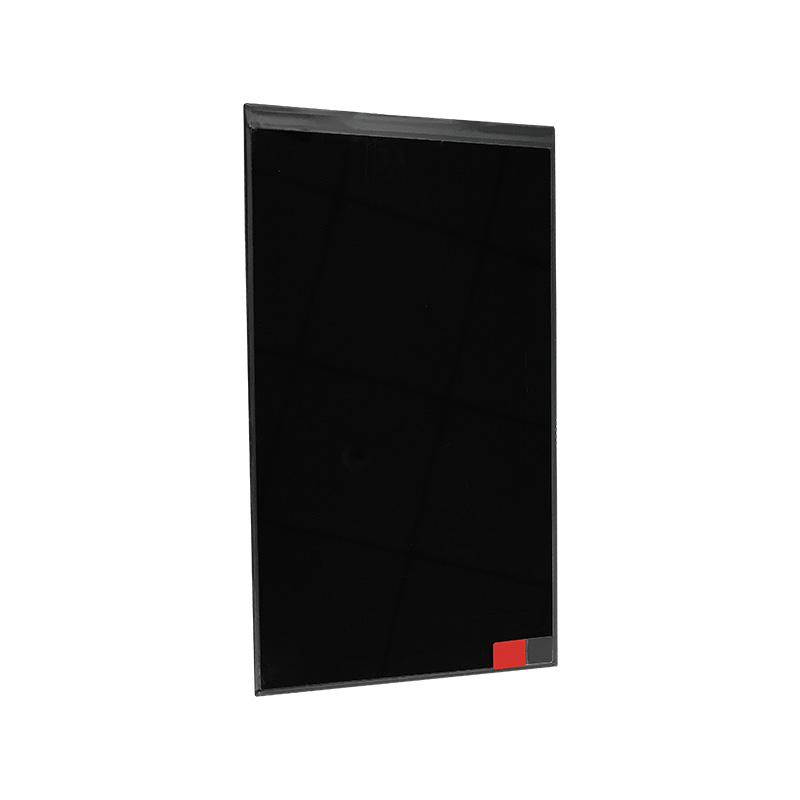

6.95″ TFT LCD Display, 600×1024, MIPI

Name: 6.95″ TFT LCD Display, 600×1024, MIPI
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Display Size: 6.95 inch (Diagonal)

Resolution: 600 (RGB) × 1024 (Portrait)

Panel Technology: IPS (Normally Black)

Interface: 4-Line MIPI

Driver IC: OTA7290B-C

Operating Temperature: -20℃ to 60℃

ReissOpto, a premier manufacturer of TFT Display solutions in China, presents this versatile 6.95-inch module designed for the next generation of handheld interfaces. Combining a slim profile with robust IPS technology, this screen is engineered for automotive mirrors, handheld POS terminals, and industrial control units.

Get a quote Set OEM

CUSTOM TFT LCD DISPLAY Details

What Is a TFT Display?

A TFT Display (Thin-Film Transistor Liquid Crystal Display) is an active-matrix screen technology that assigns a transistor to every pixel. This architecture allows for precise control over light transmission, resulting in superior image stability, faster refresh rates, and sharper contrast compared to passive screens. It is the industry standard for high-quality visual interfaces.

Immersive Vertical Visual Experience

High-Definition 600x1024 Resolution

This 6.95-inch TFT Display offers a vertical resolution of 600x1024 pixels. The portrait orientation is specifically optimized for mobile applications and vertical control panels, delivering crisp text and detailed graphics without pixelation.

Full-View IPS Technology

Consistent Color Accuracy from Any Angle

Featuring In-Plane Switching (IPS) technology, the screen provides a "Free" viewing direction. With viewing angles of 80-89 degrees from all sides (Top, Bottom, Left, Right), the display maintains vivid colors and high contrast (800:1) regardless of the user's perspective.

High-Speed Data Connectivity

4-Lane MIPI Interface Integration

Designed for modern processors, the module utilizes a 4-Line MIPI interface. This ensures high-speed data transmission required for smooth animations and video playback while maintaining low electromagnetic interference (EMI) and power efficiency.

Industrial-Grade Temperature Resistance

Reliable Performance in Extreme Conditions

Engineered for durability, this display operates flawlessly in temperatures ranging from -20℃ to 60℃ and can withstand storage conditions up to 80℃. This thermal resilience makes it an excellent choice for automotive and outdoor-facing equipment.

Slim and Lightweight Architecture

Optimized for Compact Device Design

With a module thickness of just 2.6mm and narrow bezels, this display allows for sleek, modern device designs. The lightweight construction reduces the overall weight of handheld devices, improving user ergonomics.

Why Choose ReissOpto TFT Displays?

Tailored Engineering Solutions
We understand that every project is unique. ReissOpto offers full customization for our TFT Display modules, including FPC shape modification, custom backlight intensity (up to 1000 nits), and the addition of Resistive or Capacitive touch screens.

Direct Manufacturing Advantage
By partnering directly with ReissOpto, you bypass third-party markups. We control the entire production process, ensuring that every panel meets strict quality standards while offering you the most competitive factory pricing.

Comprehensive Technical Support
From the initial design phase to mass production, our engineering team provides full support, including datasheet explanation, driver IC initialization code, and troubleshooting to ensure a smooth integration process.

Application Scenarios

Handheld POS Terminals
The portrait format and clear visibility make this display ideal for mobile payment devices and inventory scanners.

Automotive Smart Mirrors
With its wide operating temperature range and specific aspect ratio, this module fits perfectly into smart rearview mirror applications.

Industrial Control Handhelds
Rugged durability ensures reliable operation for portable diagnostic tools and factory automation controllers.

Smart Home Intercoms
The IPS panel delivers a premium look for wall-mounted video intercoms and vertical smart home control hubs.

TFT Display Technical Specifications

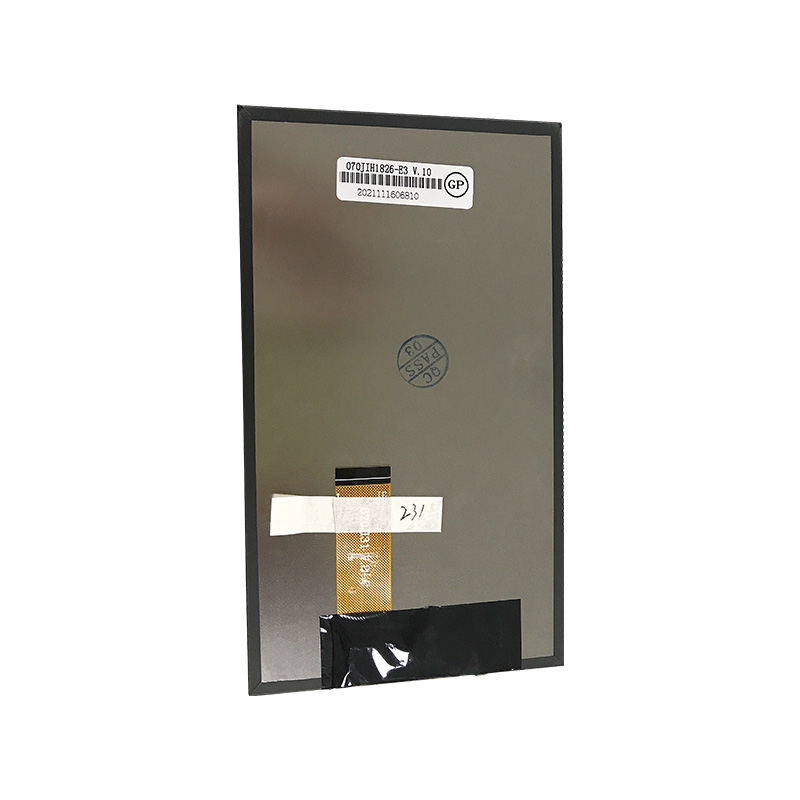

ReissOpto ensures every TFT Display meets rigorous performance metrics. Below are the detailed specifications for the 6.95-inch model (Product No: 070JIH1826-E3 V.10).

Item	Specification	Remark
LCD Size	6.95 inch	Diagonal
Resolution	600 (RGB) × 1024	Portrait Mode
Panel Type	IPS (Normally Black)	Wide Viewing Angle
Active Area	89.28 (W) × 152.37 (H) mm	-
Module Dimensions	95.1 (W) × 163.34 (H) × 2.6 (D) mm	-
Interface	4-Line MIPI	High Bandwidth
Color Depth	16.7M Colors	True Color
Brightness	300 nits (Typ.)	Standard Brightness
Contrast Ratio	800:1 (Typ.)	-
Driver IC	OTA7290B-C	-
Backlight	18 LEDs	3 Groups x 6 LEDs
Operating Temp	-20℃ to 60℃	Industrial Grade
Storage Temp	-30℃ to 80℃	-

Frequently Asked Questions (FAQ)

Q1: Can I add a touch screen to this 6.95-inch TFT Display?
A1: Yes, while the standard model (070JIH1826-E3) does not include a touch panel, ReissOpto can integrate a custom Capacitive Touch Panel (CTP) via optical bonding to meet your interactive requirements.

Q2: What is the benefit of the MIPI interface?
A2: The MIPI interface allows for faster data transfer rates with lower power consumption compared to older RGB interfaces, making it ideal for high-resolution displays and battery-powered devices.

Q3: Is this display suitable for outdoor use?
A3: The standard brightness is 300 nits, which is designed for indoor use. For outdoor readability, we can customize the backlight to achieve higher brightness levels (e.g., 800+ nits).

Q4: Does the display support landscape orientation?
A4: The physical pixel arrangement is portrait (600x1024). However, the image can be rotated 90 degrees via the host processor software to function in landscape mode (1024x600).

Q5: What is the lead time for samples?
A5: Standard samples are typically available within 3-5 working days. Custom modifications may require additional time for engineering and tooling.
