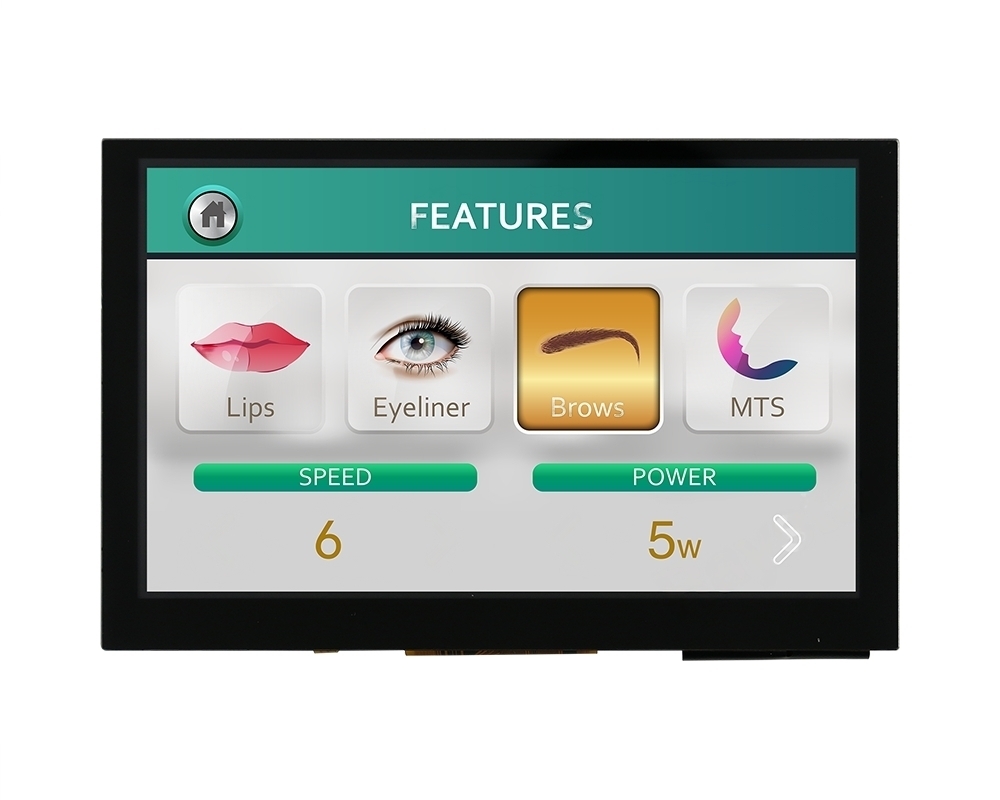

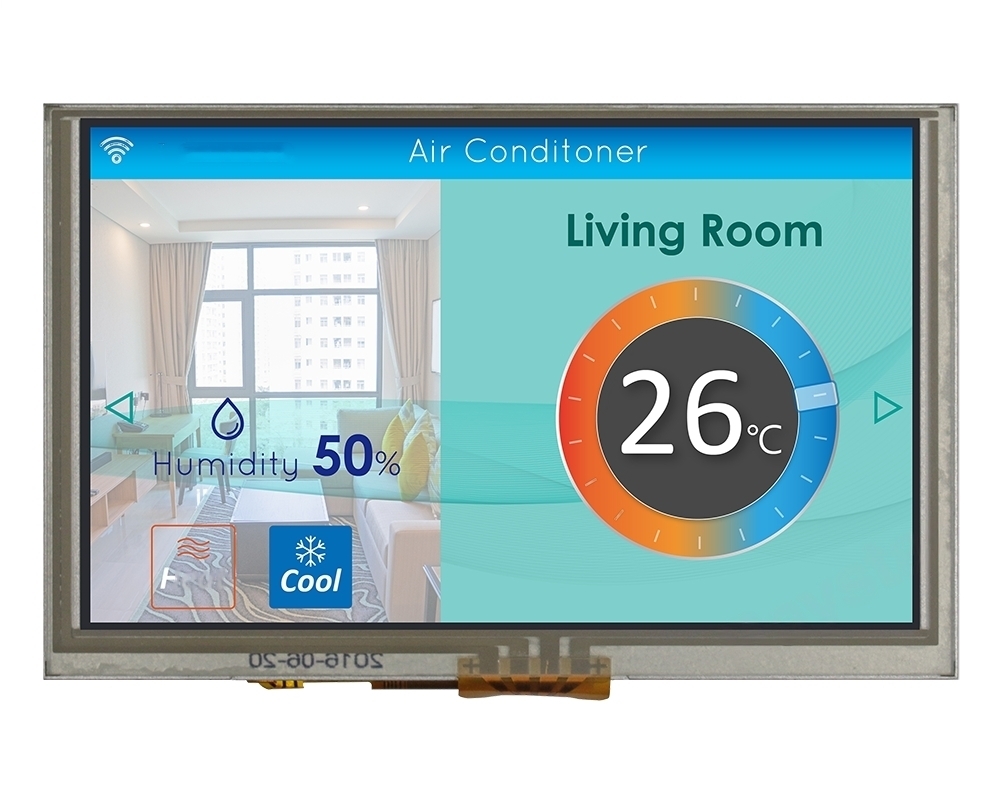

5.0″ TFT LCD Display, 800×480, RGB

Name: 5.0″ TFT LCD Display, 800×480, RGB
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Display Size: 5.0 inch (Diagonal)

Resolution: 800 (Horizontal) × 480 (Vertical)

Interface: 24-bit RGB

Brightness: 400 nits (Typ.)

Operating Temperature: -20℃ to 70℃

Backlight: 12 LEDs

ReissOpto, a trusted innovator in TFT Display manufacturing, introduces this robust 5.0-inch module. Designed with a classic 24-bit RGB interface and a high-durability form factor, this screen is the preferred choice for industrial instrumentation, security systems, and portable medical devices.

Get a quote Set OEM

CUSTOM TFT LCD DISPLAY Details

What Is a Standard RGB TFT Display?

A TFT Display (Thin-Film Transistor) utilizing a parallel RGB interface transmits data directly to the screen's pixels without an internal frame buffer. This architecture is highly favored in embedded electronics because it allows the host processor to have direct control over the display timing, resulting in smooth video performance and rich, 16.7-million color depth reproduction.

Crystal Clear WVGA Output

Optimized 800x480 Resolution

This module features a standard WVGA resolution of 800x480 pixels. With a pixel pitch of 0.135 x 0.135 mm, it delivers sharp text and detailed graphics, making it perfectly suited for Human-Machine Interfaces (HMI) where clarity is critical for reading data and operating controls.

Rich Color Reproduction

24-Bit RGB Interface Support

Supporting a 24-bit RGB interface, this TFT Display can render 16.7 million distinct colors. This capability ensures that gradients are smooth and images are lifelike, which is essential for modern user interfaces that require high-fidelity visual feedback.

Enhanced Environmental Durability

Wide Temperature Operation Range

Built for harsh environments, this display operates reliably between -20℃ and 70℃ and can withstand storage temperatures from -30℃ to 80℃. This thermal resilience protects the liquid crystal fluid from freezing or overheating, ensuring consistent performance in outdoor or industrial settings.

Superior Backlight Efficiency

Long-Life LED Configuration

The backlight unit is composed of 12 high-efficiency LEDs arranged to provide a typical luminance of 400 cd/m². This setup not only offers good visibility in standard lighting conditions but also boasts a lifespan of 30,000 hours, reducing maintenance costs for end-users.

Compact and Slim Design

Space-Saving Mechanical Profile

With overall dimensions of 120.7mm x 75.8mm and a thickness of just 3.0mm, this module is designed to fit into slim housings. The active area of 108mm x 64.8mm maximizes the usable screen real estate relative to the device footprint.

Why Partner with ReissOpto for Display Solutions?

Customization Capabilities
While this standard model comes without a Touch Screen Panel (TSP), ReissOpto offers full customization. We can integrate Resistive (RTP) or Capacitive (CTP) touch layers, adjust FPC length, or modify the backlight brightness to meet specific project needs.

Strict Quality Control
Every TFT Display undergoes rigorous reliability testing, including high-temperature storage, thermal shock cycling (-30℃ to +85℃), and vibration testing. This ensures that the product you receive is ready for the field.

Supply Chain Stability
As a direct manufacturer, we guarantee long-term supply continuity. We understand that industrial projects have long lifecycles, and we structure our production to minimize the risk of component obsolescence.

Application Scenarios

Industrial HMI Panels
The 5-inch size is the industry standard for machine control panels, offering enough space for buttons and data readouts without occupying too much space on the equipment.

Security & Intercom Systems
With clear resolution and reliable color, this display is ideal for video door phones and security monitoring stations.

Portable Medical Instruments
The wide operating temperature and compact profile make it suitable for handheld diagnostic devices used in varying environments.

GPS & Navigation Devices
The 800x480 resolution provides sufficient detail for map rendering and navigational data display.

TFT Display Technical Specifications

Below are the detailed technical parameters for the ReissOpto 5.0-inch module (Product No: BR050WBI1230-B4 V.2).

Item	Specification	Remark
LCD Size	5.0 inch	Diagonal
Resolution	800 (H) × 480 (V)	WVGA
Interface	24-bit RGB	Parallel
Module Dimensions	120.7 (W) × 75.8 (H) × 3.0 (D) mm	-
Active Area	108.0 (W) × 64.8 (H) mm	-
Pixel Configuration	R.G.B. Vertical Stripe	-
Display Mode	Normally Black	-
Color Depth	16.7M Colors	-
Brightness	400 nits (Typ.)	350 nits (Min.)
Contrast Ratio	1000:1 (Typ.)	High Contrast
Backlight	12 LEDs	Vf: 18.0V (Typ)
Operating Temp	-20℃ to 70℃	-
Storage Temp	-30℃ to 80℃	-
Touch Panel	Without TSP	Customizable

Frequently Asked Questions (FAQ)

Q1: Does this 5-inch TFT Display come with a touch screen?
A1: The standard BR050WBI1230-B4 V.2 model is supplied without a touch screen. However, ReissOpto can bond a capacitive or resistive touch panel to the module upon request.

Q2: What is the connector type for this display?
A2: The module uses a 40-pin FPC connector. The recommended mating connector is the FH19SC-40S-0.5SH manufactured by HIROSE.

Q3: Is the RGB interface compatible with common microcontrollers?
A3: Yes, the 24-bit RGB interface is a standard protocol supported by many STM32, NXP, and other industrial-grade microcontrollers and processors.

Q4: Can this display be used in direct sunlight?
A4: The standard brightness is 400 nits, which is suitable for indoor and shaded outdoor use. For direct sunlight readability, please contact us to upgrade the backlight to a high-brightness version (e.g., 1000 nits).

Q5: What is the warranty period?
A5: ReissOpto provides a standard 1-year warranty for all industrial display modules, with options for extended support on long-term projects.
