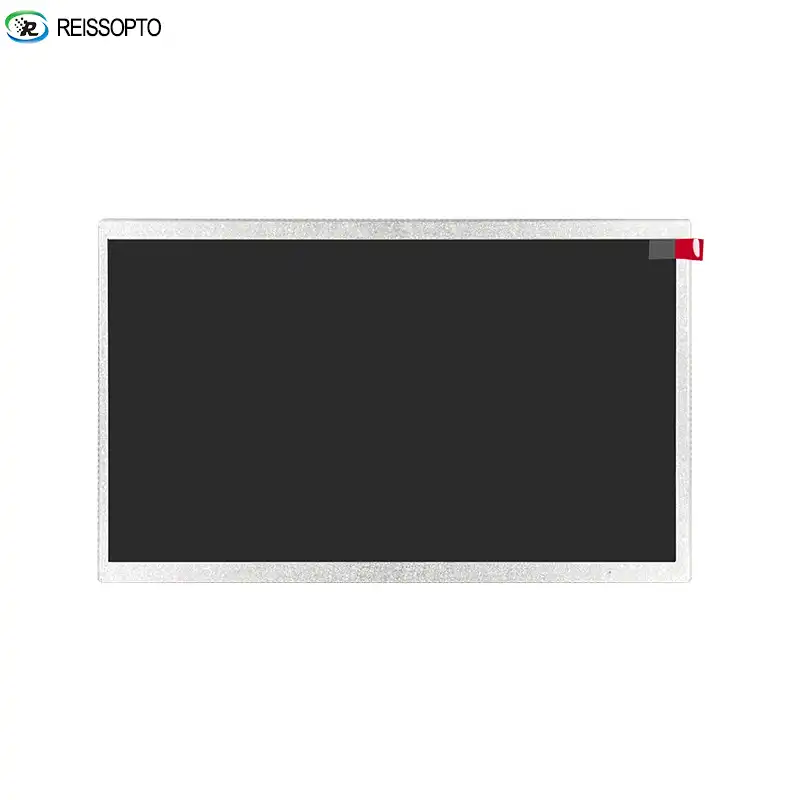

10.1″ TFT LCD Display, 1024×600, RGB

Name: 10.1″ TFT LCD Display, 1024×600, RGB
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Screen Size: 10.1 inches

Resolution: 1024(H) × 600(V)

Module Dimensions: 235(W) × 143(H) × 5.1(D) mm

Active Area: 222.72(W) × 125.28(H) mm

Interface: RGB (Parallel)

Brightness: 300 nits (Typ)

Viewing Direction: All (Free Viewing Angle)

As a leading display solutions provider, ReissOpto offers this industrial-grade TFT Display module. Designed for stability and clarity, it features a robust RGB interface and wide temperature operation range, making it ideal for industrial HMI, automotive dashboards, and medical equipment.

Get a quote Set OEM

CUSTOM TFT LCD DISPLAY Details

What Is a TFT Display?

A TFT Display (Thin-Film Transistor Liquid Crystal Display) is a type of active-matrix LCD that uses a transistor for each pixel to control the illumination of the display. This technology delivers sharper images, faster refresh rates, and better color accuracy compared to passive-matrix screens.
Our a-Si (Amorphous Silicon) TFT technology ensures reliable performance for professional applications requiring precise visual data representation.

Key Benefits:

Wide Viewing Angles: Clear visibility up to 80 degrees from all directions.
Industrial Durability: Operates reliably between -20°C and +70°C.
True Color Depth: Supports 16.7M colors for vivid imagery.
Cost-Effective Interface: Standard RGB interface for easy integration.
Long-Life Backlight: High-efficiency LED array (36 LEDs).

Wide Viewing Angle Technology

Immersive Visibility from Every Perspective

Unlike traditional LCDs that suffer from color inversion when viewed from the side, this TFT Display features "All Viewing Direction" technology. With viewing angles of 80°/80°/80°/80° (Top/Bottom/Left/Right), the image remains sharp and color-accurate regardless of the user's position.

Robust RGB Interface

Seamless Connectivity for Industrial Systems

The module utilizes a parallel RGB Interface, a standard in industrial electronics. This allows for direct communication with various microcontrollers and processors without the need for complex bridge chips, simplifying the design process for engineers.

Industrial Temperature Range

Uncompromising Performance in Extreme Environments

Designed for harsh environments, this display withstands extreme conditions. It features an operating temperature range of -20°C to +70°C and a storage range of -30°C to +80°C, ensuring reliability in outdoor kiosks, automotive systems, and factory floors.

High-Efficiency LED Backlight

Bright, Uniform Illumination with Low Power Consumption

The backlight unit consists of 36 LEDs arranged to provide uniform brightness across the entire 10.1-inch active area. With a typical brightness of 300 nits and a forward voltage of 9.0V, it balances visibility with power efficiency.

Customization Options

Tailored Display Solutions to Fit Your Unique Design

While the standard model comes without a Touch Screen Panel (TSP), ReissOpto offers full customization. We can integrate Resistive (RTP) or Capacitive (CTP) touch layers, adjust FPC length, or modify the cover glass to fit your specific enclosure requirements.

Application Scenarios

Industrial HMI (Human Machine Interface)
Reliable control panels for CNC machines and factory automation systems that require wide viewing angles for operators standing at different positions.

Automotive Displays
Dashboard clusters and rear-seat entertainment systems that demand stability under fluctuating temperatures.

Medical Equipment
Patient monitoring systems where accurate color depth (16.7M colors) is critical for reading charts and data.

POS & Retail Terminals
Point-of-sale systems that require a durable, long-lasting display for daily commercial use.

Smart Home Automation
Central control hubs for smart homes, offering a sleek 10.1-inch interface for managing lighting, security, and climate.

Technical Specifications

ReissOpto TFT Display modules are built to meet professional standards of clarity and reliability. Below are the detailed technical specifications.

Item	Specification
Display Type	a-Si TFT-LCD
Screen Size	10.1 inches
Resolution	1024 (H) × 600 (V)
Pixel Pitch	0.1695 × 0.1695 mm
Active Area	222.72 × 125.28 mm
Module Size	235.0 × 143.0 × 5.1 mm
Display Mode	Normally Black (IPS-like)
Color Depth	16.7M Colors
Brightness	300 nits (Typ)
Contrast Ratio	800:1 (Typ)
Interface	RGB (Parallel)
Backlight	36 LEDs
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C

Frequently Asked Questions (FAQ)

Q1: What is the interface type for this TFT Display?
A1: This module uses a parallel RGB interface.

Q2: Does this display support touch functionality?
A2: The standard BR101JII3650-A3 model is supplied without a touch panel. However, ReissOpto can integrate Capacitive or Resistive touch panels upon request as part of our OEM services.

Q3: Is this a TN or IPS display?
A3: This is a "Normally Black" mode display with 80-degree viewing angles in all directions, offering performance comparable to IPS technology, far superior to standard TN panels.

Q4: Can this display be used outdoors?
A4: The standard brightness is 300 nits, which is suitable for indoor use. For outdoor sunlight readability, please contact us to upgrade the backlight to a high-brightness version (e.g., 1000 nits).

Q5: What is the warranty period?
A5: All ReissOpto display modules come with a standard 1-year warranty and lifetime technical support.
