Top Choice for Outdoor Visuals-P3 LED Screen

High-resolution, high-brightness, and weatherproof design for reliable outdoor performance.

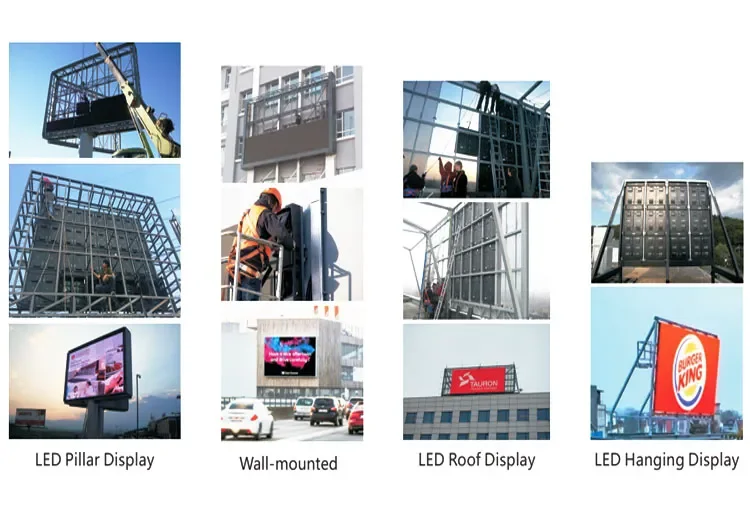

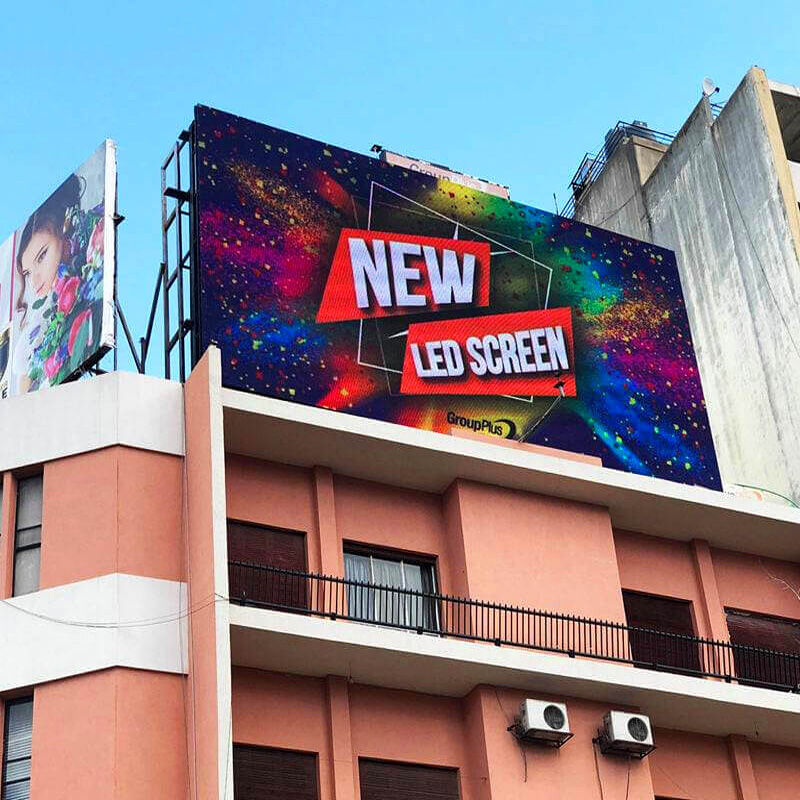

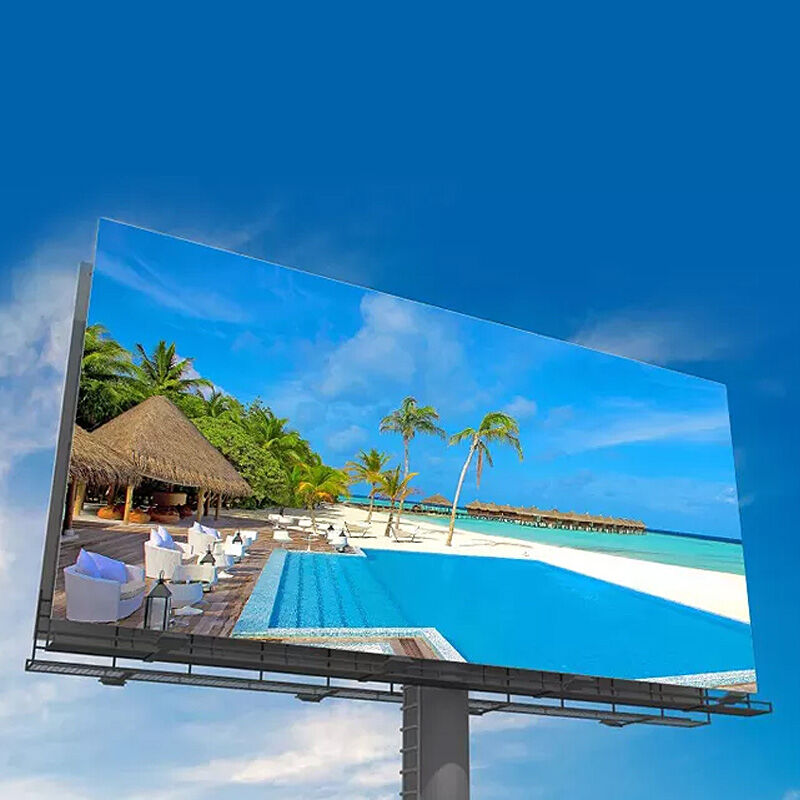

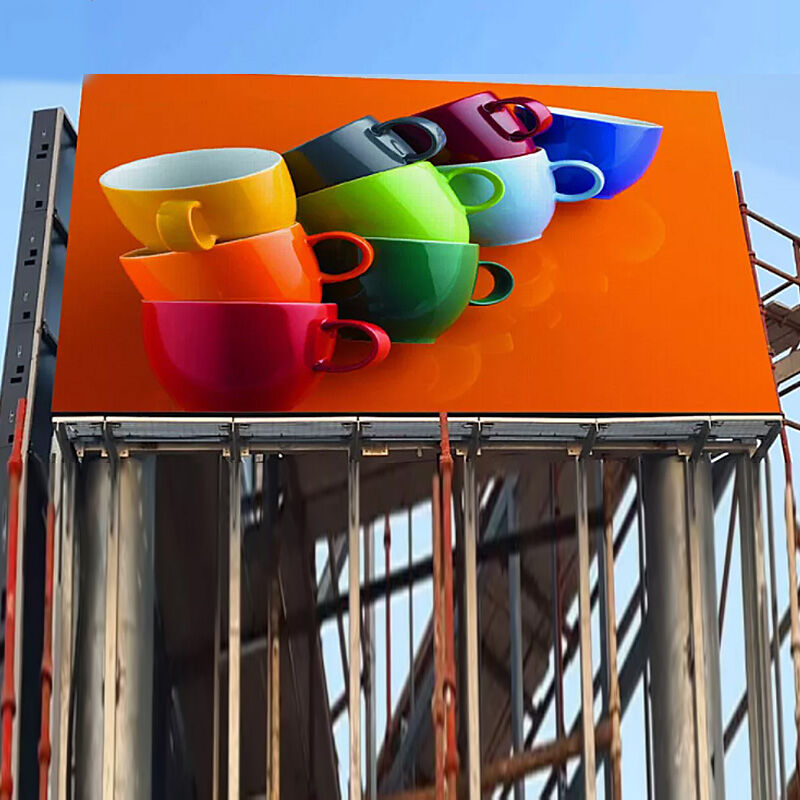

Widely used in outdoor advertising, live concerts, sports venues, city squares, and public information displays, providing impactful visuals for large audiences in open spaces.

Get a quote Set OEM

Outdoor LED screen Details

What Is a P3 Outdoor LED Screen?

A P3 Outdoor LED Screen is a cutting-edge display technology featuring a 3-millimeter pixel pitch, which means the pixels are packed tightly enough to produce sharp and vivid images that catch the eye even from a distance. This level of detail strikes a perfect balance between clarity and viewing distance, making it an ideal choice for dynamic outdoor visuals.

Built tough for the outdoors, the P3 screen boasts exceptional brightness to combat sunlight glare and uses rugged materials designed to resist harsh weather elements like rain, dust, and extreme temperatures. Its modular design ensures not only easy installation and maintenance but also the flexibility to create custom-sized displays tailored to any space or event. This combination of durability, visual quality, and adaptability makes the P3 screen a smart solution for impactful outdoor digital signage.

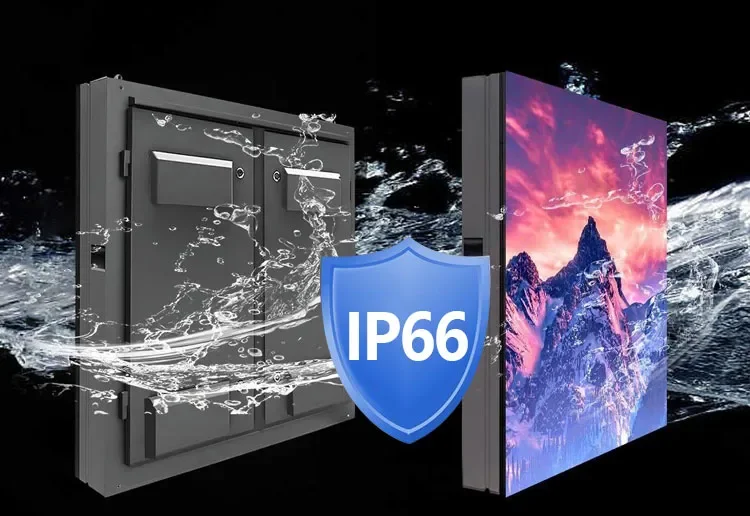

All-Weather Operation

Built with weatherproof materials and sealing technology, the screen delivers stable performance in rain, wind, heat, and dust, ensuring reliable 24/7 outdoor use.

Clear Long-Distance Visibility

Featuring high brightness and fine pixel pitch, it provides sharp and vibrant visuals that remain clear even from long distances and under direct sunlight.

Wide Viewing Angles

Offers a wide viewing range (up to 140° horizontally), maintaining consistent color and clarity across large audience areas without distortion.

Real-Time Content Playback

Supports smooth playback of live videos, animations, dynamic text, and multimedia content, ideal for real-time information and interactive displays.

Flexible Screen Expansion

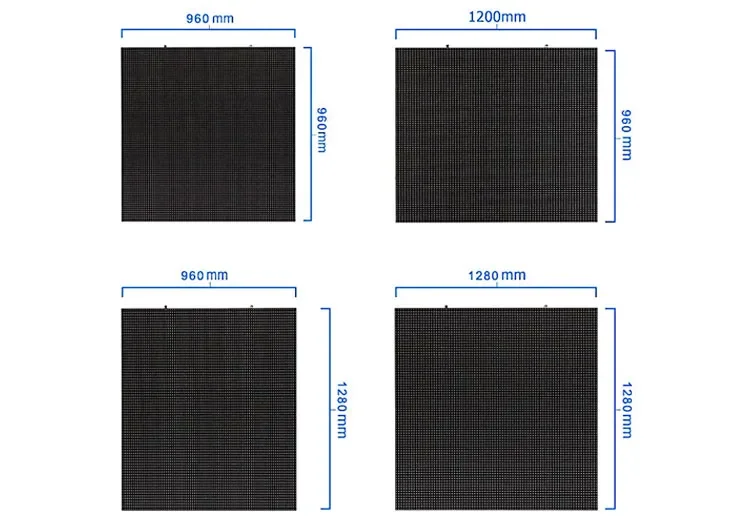

Modular panel design allows customization of screen size and shape, suitable for both small installations and large-scale displays.

Remote Control & Content Updates

Equipped with advanced control systems, users can remotely manage content, schedule playback, and update visuals in real time from anywhere.

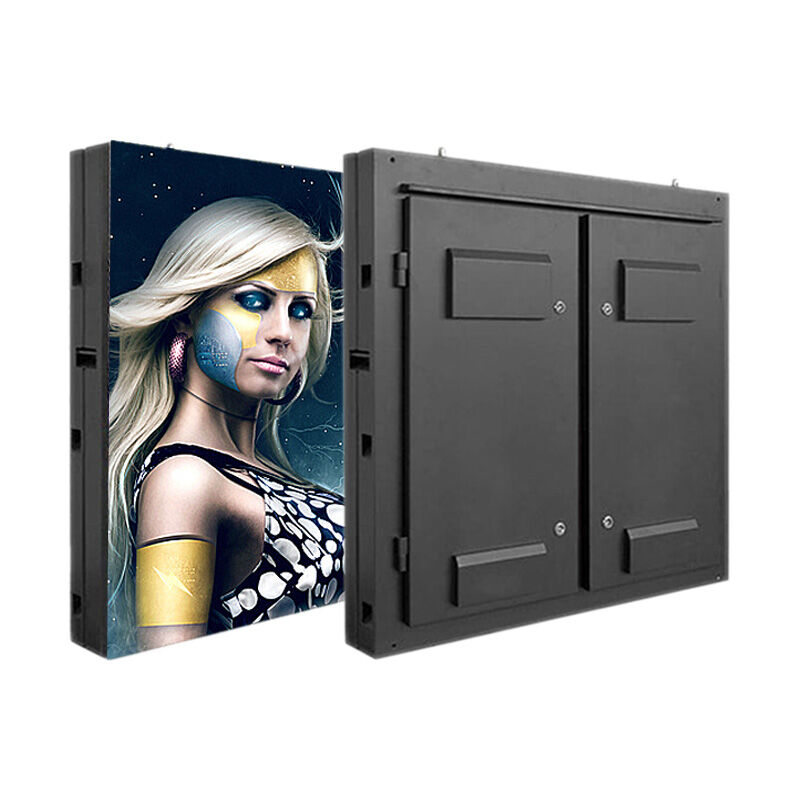

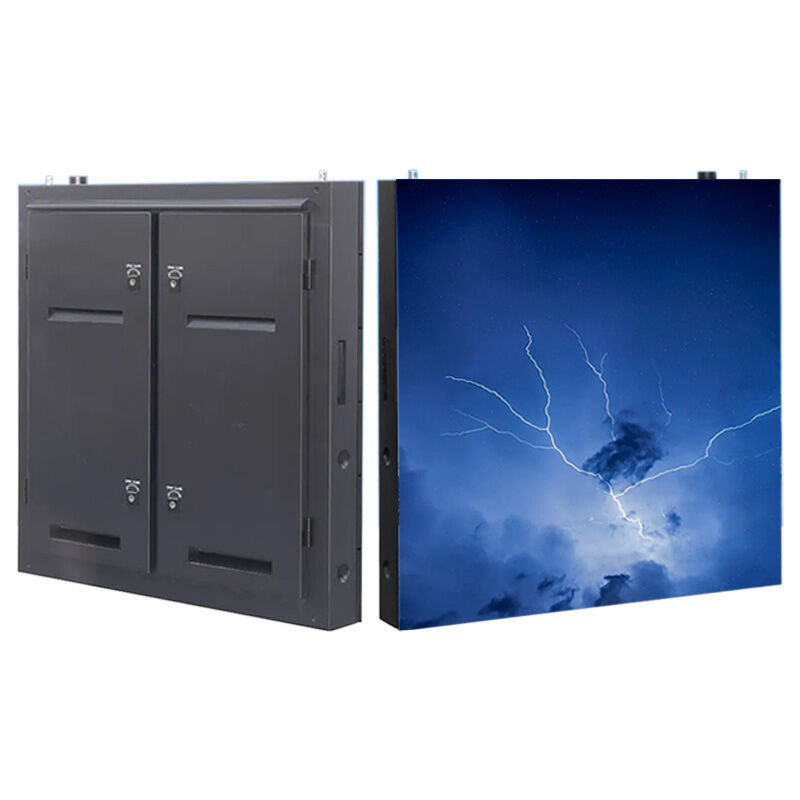

Quick Installation & Easy Maintenance

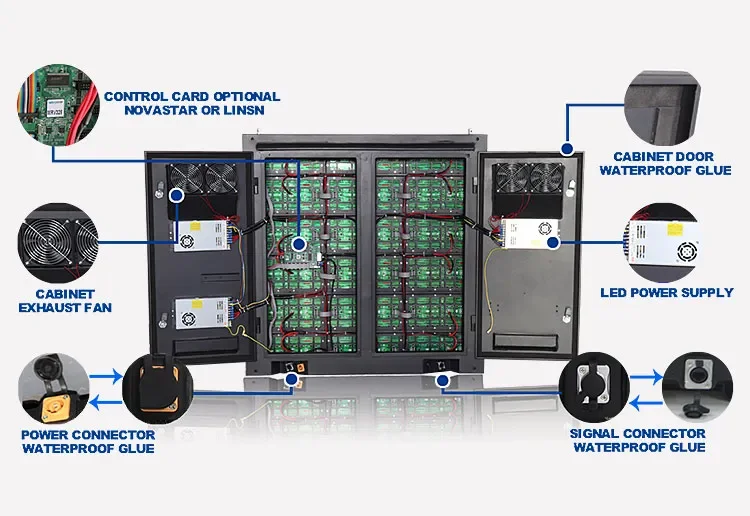

Lightweight cabinets with front or rear access enable fast installation and hassle-free maintenance.

Multi-Format Compatibility

Supports various video sources and file formats including HDMI, DVI, VGA, etc., providing flexibility for diverse content and display requirements.

Outdoor LED Screen Specifications Comparison

Specification	P2 Model	P2.5 Model	P3 Model	P3.91 Model
Pixel Pitch	2.0 mm	2.5 mm	3.0 mm	3.91 mm
Pixel Density	250,000 pixels/m²	160,000 pixels/m²	111,111 pixels/m²	65,536 pixels/m²
LED Type	SMD1415 / SMD1515	SMD1921	SMD1921	SMD1921
Brightness	≥ 5,000 nits	≥ 5,000 nits	≥ 5,000 nits	≥ 5,000 nits
Refresh Rate	≥ 1920 Hz (up to 3840 Hz)	≥ 1920 Hz (up to 3840 Hz)	≥ 1920 Hz (up to 3840 Hz)	≥ 1920 Hz (up to 3840 Hz)
Viewing Angle	140° (H) / 120° (V)	140° (H) / 120° (V)	140° (H) / 120° (V)	140° (H) / 120° (V)
IP Rating	IP65 (front) / IP54 (rear)	IP65 (front) / IP54 (rear)	IP65 (front) / IP54 (rear)	IP65 (front) / IP54 (rear)

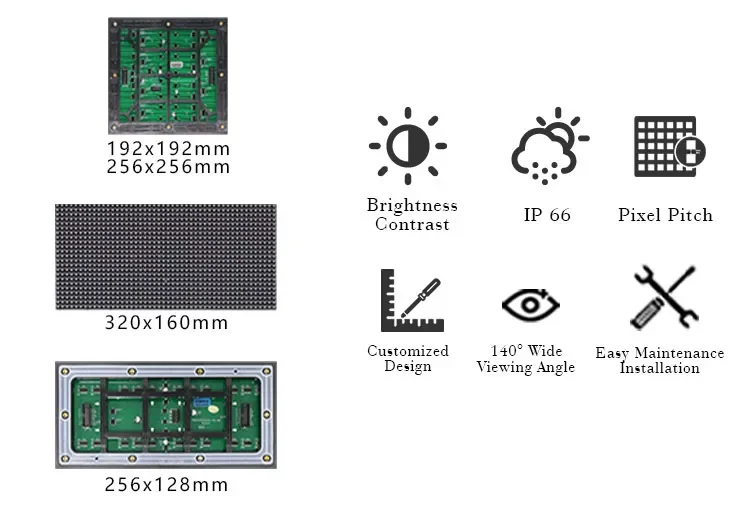

Module Size	160×160 mm	160×160 mm	192×192 mm	250×250 mm
Cabinet Size (typical)	640×640 mm / 960×960 mm	640×640 mm / 960×960 mm	960×960 mm	1000×1000 mm
Cabinet Material	Die-cast Aluminum / Steel	Die-cast Aluminum / Steel	Die-cast Aluminum / Steel	Die-cast Aluminum / Steel
Power Consumption (max/avg)	800 / 260 W/m²	780 / 250 W/m²	750 / 240 W/m²	720 / 230 W/m²
Operating Temperature	-20°C to +50°C	-20°C to +50°C	-20°C to +50°C	-20°C to +50°C
Lifespan	≥ 100,000 hours	≥ 100,000 hours	≥ 100,000 hours	≥ 100,000 hours
Control System	Novastar / Colorlight etc.	Novastar / Colorlight etc.	Novastar / Colorlight etc.	Novastar / Colorlight etc.
