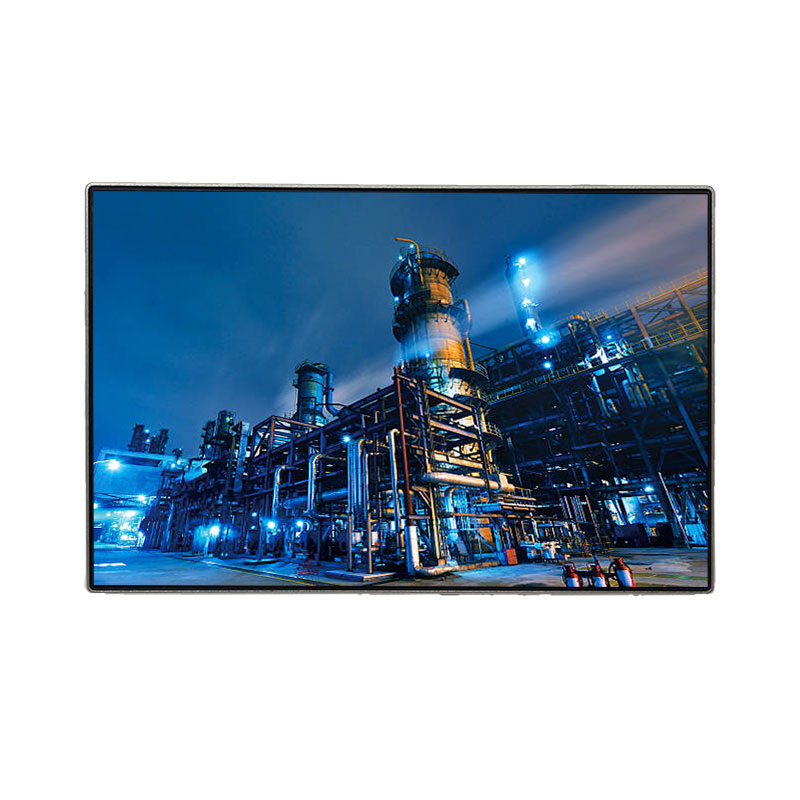

7.0″ AMOLED Display, FHD, MIPI

Name: 7.0″ AMOLED Display, FHD, MIPI
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Screen Size: 7.0 inch

Display Type: Active Matrix OLED (AMOLED)
Resolution: 1280 × 800 (HD)
Brightness: 840 nits (Typ.) High Brightness
Color Gamut: 103% NTSC
Operating Temp: -30°C to +85°C
Interface: LVDS (4-Lane)

As a leading innovator in display technology, ReissOpto offers a premium 7.0-inch OLED Display solution designed for the most demanding environments. Combining LTPS technology with a ruggedized design, this module delivers unparalleled contrast, vivid color saturation, and extreme temperature resilience—ideal for automotive, industrial HMI, and medical applications.

Get a quote Set OEM

CUSTOM OLED DISPLAY Details

What is an AMOLED Display?

An AMOLED (Active Matrix Organic Light Emitting Diode) display differs fundamentally from traditional LCDs. Instead of using a backlight, every pixel in an OLED screen is self-emissive, meaning it generates its own light.
This organic electroluminescent technology allows for true blacks, infinite contrast ratios, and significantly faster response times, providing a superior viewing experience that LCD technology cannot match.

Key Benefits:

True Black & Infinite Contrast: Self-emitting pixels turn off completely for black content.
Sunlight Readability: High brightness output ensures visibility in outdoor conditions.
Ultra-Wide Color Gamut: 103% NTSC coverage for lifelike color reproduction.
Extreme Temperature Resistance: Reliable operation from -30°C to +85°C.
Fluid Motion: <3ms response time eliminates motion blur.

1. Industrial & Automotive Grade Durability

Industrial-Grade Resilience (-30°C to +85°C)

Unlike consumer-grade screens, ReissOpto’s 7.0-inch OLED panel is engineered for harsh environments. With an operating temperature range of -30°C to 85°C, it withstands freezing cold and extreme heat. It has passed rigorous vibration testing (20G peak, 1-2000Hz), making it the perfect choice for automotive dashboards and rugged industrial handhelds.

1. Industrial & Automotive Grade Durability

2. Superior Outdoor Visibility (High Brightness)

High-Luminance 840 nits Output

Standard OLEDs often struggle in direct sunlight. Our module features a high-luminance design achieving 840 nits (Typical). Whether integrated into an outdoor meter or a vehicle console, the display remains crisp and legible under strong ambient light.

3. Cinematic Color Accuracy (103% NTSC)

Wide Color Gamut (103% NTSC)

Visuals pop with the ReissOpto AMOLED. With a color gamut covering 103% of the NTSC standard, this organic LED screen displays deeper reds, greener greens, and more vibrant blues than standard TFT-LCDs (which typically cover only 50-70% NTSC).

4. Ultra-Thin & Lightweight Form Factor

Ultra-Thin, Backlight-Free Design

By eliminating the bulky backlight unit found in LCDs, this organic light-emitting display is incredibly thin. The active area measures 150.72mm × 94.2mm within a compact module size, allowing for sleek, modern device designs with seamless integration.

5. High-Speed Response for Dynamic Content

<3ms High-Speed Response Time

With a response time of less than 3ms, this display handles fast-moving graphics and video without ghosting or blurring. This is critical for automotive rear-view streaming, medical monitoring, and high-end instrument clusters.

5. High-Speed Response for Dynamic Content

Application Scenarios

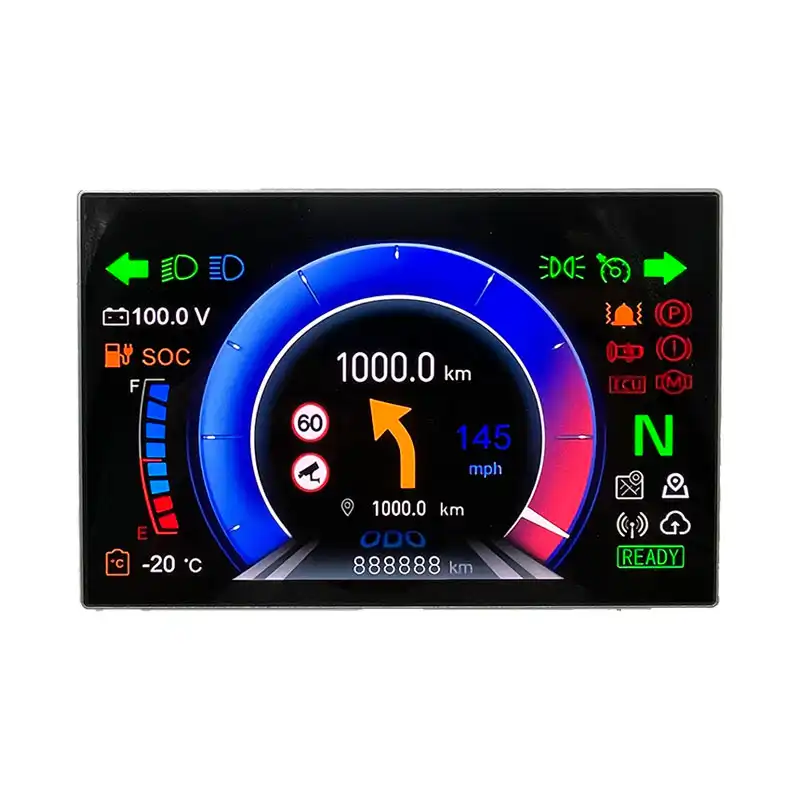

Automotive Interiors
Perfect for digital instrument clusters, climate control panels, and e-mirrors due to its wide viewing angles and temperature stability.

Industrial HMI & Handhelds
Ruggedized for portable survey instruments and factory control panels that require readability in variable lighting conditions.

Medical Devices
High contrast and precise color differentiation make it ideal for portable patient monitors and diagnostic equipment.

Smart Home & IoT
Elevate smart thermostats and control panels with a premium, smartphone-like visual interface.

OLED Display Technical Specifications

ReissOpto LED video and OLED display products are built to meet professional standards of clarity and reliability. Below are the detailed specifications for the 7.0" AMOLED Module.

Item	Specification
Panel Size	7.0 inch Diagonal
Display Technology	LTPS AMOLED (Active Matrix Organic LED)
Resolution	1280 (H) × 800 (V)
Pixel Pitch	117.75 μm
Active Area	150.72mm × 94.2mm
Brightness	840 nits (Typ.) / Range: 800-1100 nits
Contrast Ratio	200,000 : 1
Color Depth	16.7M Colors (8-bit)
Interface	LVDS (4-lane) + IIC
Driver IC	RM69C00
Operating Temp	-30°C ~ +85°C
Storage Temp	-40°C ~ +95°C

Frequently Asked Questions (FAQ)

Q1: What is the difference between this OLED display and a standard LCD?
A1: An OLED (Organic Light Emitting Diode) is self-emissive and does not require a backlight. This results in a thinner profile, lower power consumption on dark images, and "True Black" contrast that LCDs cannot achieve.

Q2: Is this display suitable for outdoor use?
A2: Yes. With a typical brightness of 840 nits and a high contrast ratio, this module is designed for excellent visibility even in bright outdoor environments.

Q3: Can this module withstand vehicle vibrations?
A3: Absolutely. The module has passed strict reliability tests, including vibration testing up to 20G (1-2000Hz) and thermal shock cycling, ensuring reliability for automotive applications.

Q4: Does ReissOpto offer technical support for integration?
A4: Yes. We provide full datasheets, initialization code, and engineering support to help you integrate the LVDS interface with your motherboard or MCU.

Why Partner with ReissOpto?

Advanced Display Technology: We specialize in cutting-edge AMOLED and PMOLED solutions.
Custom Engineering: Capability to customize FPC shape, interface, and cover lens bonding (Optical Bonding).
Factory-Direct Quality: Rigorous QC standards including high-temp aging and AOI inspection.
Global Logistics: Fast delivery and support for international projects.
