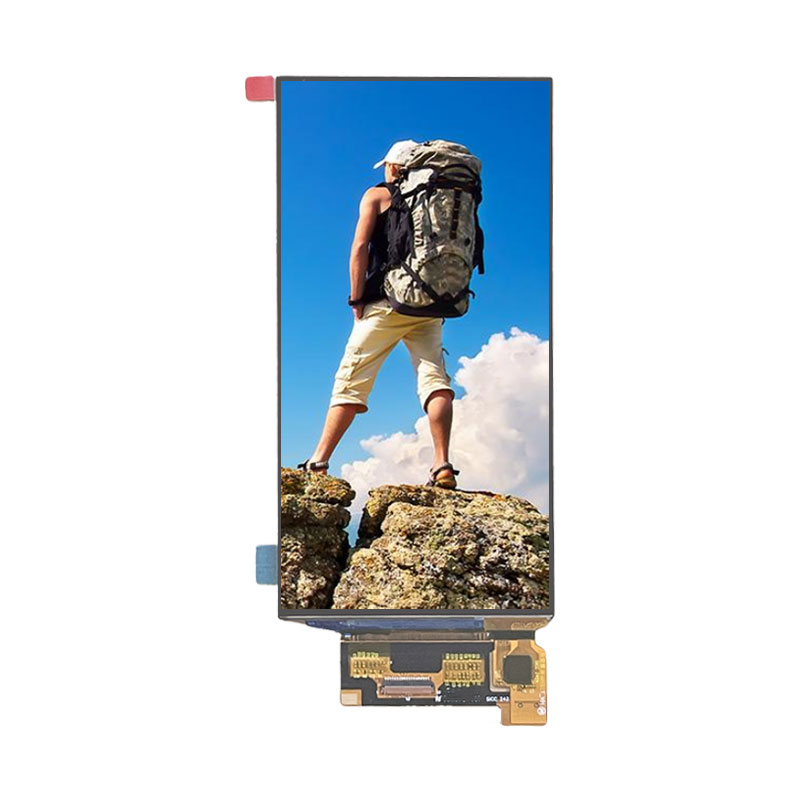

6.01″ AMOLED Display, 1080×2160, MIPI

Name: 6.01″ AMOLED Display, 1080×2160, MIPI
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Resolution: 1080(W) × 2160(H) FHD+

Active Area: 68.256 × 136.512 mm

Panel Type: LTPS AMOLED

Interface: MIPI 4-Lane

Brightness: 360 nits (Typ)

Contrast Ratio: 100,000:1

Touch IC: CST148 Integrated

As a leading AMOLED Display manufacturer, ReissOpto provides high-performance display solutions featuring vivid color reproduction, true blacks, and ultra-fast response times. This 6.01-inch module is engineered for next-generation handheld devices, industrial terminals, and smart home applications.

Get a quote Set OEM

CUSTOM OLED DISPLAY Details

What Is an AMOLED Display?

AMOLED (Active Matrix Organic Light Emitting Diode) technology represents the pinnacle of modern screen performance. Unlike traditional LCDs that require a backlight, every pixel in an AMOLED display emits its own light. This allows for individual pixels to be turned off completely to create true, deep blacks, resulting in an infinite contrast ratio and significantly lower power consumption when displaying darker content.

Key Benefits:

Self-Emissive Pixels: No backlight required, allowing for thinner and lighter modules.
Vivid Color Gamut: Achieves 100% NTSC for lifelike, saturated colors.
Ultra-Fast Response: <1ms response time eliminates motion blur.
Wide Viewing Angles: Consistent color and brightness from any angle (80/80/80/80).

1. FHD+ High-Definition Resolution

Delivering razor-sharp clarity and fine detail with 1080×2160 pixels for immersive visual experiences.

2. Superior Contrast and True Blacks

Self-emissive pixels achieve a 100,000:1 contrast ratio for vivid colors and infinite depth.

3. Integrated Capacitive Touch

Responsive on-cell touch technology powered by CST148 IC for seamless and precise user interaction.

4. Ultra-Thin and Lightweight Design

A slim 0.77mm profile enables sleek, portable device architectures without the bulk of backlights.

5. MIPI High-Speed Interface

Standard 4-Lane MIPI connectivity ensures high-bandwidth data transmission and easy system integration.

6. Wide Temperature Operation

Reliable performance from -20°C to +70°C, built to withstand demanding industrial and outdoor environments.

Application Scenarios

Handheld Gaming Consoles
The <1ms response time and 100% NTSC color gamut provide an immersive, blur-free gaming experience.

Smart Home Control Panels
Upgrade wall-mounted controllers with a sleek, high-contrast AMOLED display that looks premium in any interior.

Industrial Handheld Terminals
High resolution and wide operating temperatures ensure data is readable in diverse working conditions.

Medical Devices
The precise color accuracy and high contrast are critical for portable medical imaging and diagnostic tools.

Technical Specifications

ReissOpto ensures every AMOLED display meets rigorous quality standards. Below are the detailed specifications for the 6.01-inch module.

Item	Specification
Product Name	6.01" AMOLED Module
Display Mode	AMOLED (LTPS)
Resolution	1080 (RGB) × 2160 dots
Module Dimensions	70.066(W) × 142.297(H) × 0.773(D) mm
Active Area	68.256(W) × 136.512(H) mm
Pixel Pitch	63.2(W) × 63.2(H) um
Color Depth	16.7M Colors
Color Gamut	100% NTSC (Typ.)
Brightness	360 cd/m² (Typ.)
Contrast Ratio	≥ 100,000:1
Response Time	≤ 1 ms (Ton+Toff)
Viewing Angle	80°/80°/80°/80° (L/R/U/D)
Interface	MIPI 4-Lane
Driver IC	CH13721C
Touch IC	CST148
Power Supply (Logic)	1.65V – 3.3V (VDDIO)
Power Supply (Analog)	2.75V – 3.3V (VCI)

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of an AMOLED display over an LCD?
A1: AMOLED displays offer superior contrast ratios (true blacks), faster response times, wider viewing angles, and a thinner profile because they do not require a backlight.

Q2: Does this module support touch functionality?
A2: Yes, this 6.01-inch module includes an integrated capacitive touch panel using the CST148 Touch IC.

Q3: Is the interface compatible with standard processors?
A3: The display uses a standard MIPI 4-Lane interface, which is widely supported by most modern microcontrollers and application processors (such as STM32, Raspberry Pi, MediaTek, Qualcomm, etc.).

Q4: Can ReissOpto customize the FPC or cover glass?
A4: Yes. As a direct manufacturer, we offer customization for the FPC (Flexible Printed Circuit) shape, pinout, and cover glass design to fit your specific enclosure.

Q5: What is the lifespan of this AMOLED display?
A5: While organic materials have evolved, proper power management and usage ensure a long operational life suitable for consumer and industrial electronics.

Why Partner with ReissOpto?

Advanced AMOLED Technology: We stay at the forefront of LTPS and OLED display innovations.
End-to-End Solutions: From panel selection to driver board integration and custom cover glass.
Strict Quality Control: Every module undergoes rigorous testing for optical performance, aging, and environmental reliability (High Temp/Humidity storage).
Global Support: We provide technical datasheets, initialization code, and engineering support to ensure smooth integration.
