5.48″ AMOLED Display, 1080×1920, MIPI

Name: 5.48″ AMOLED Display, 1080×1920, MIPI
Brand: REISSOPTO
SKU: P2.5-Indoor
Availability: InStock

Screen Size: 5.48 inches

Resolution: 1080(RGB) × 1920 (FHD)

Module Dimensions: 70.36(W) × 127.34(H) × 2.17(D) mm

Active Area: 68.26(W) × 121.34(H) mm

Interface: MIPI 4-Lane

Brightness: 450 nits (Typ)

Touch Panel: Integrated Capacitive Touch (IC: CST148)

As a leading display solutions provider, ReissOpto offers this high-performance AMOLED Display module designed for handheld devices, industrial terminals, and smart home applications. With its self-emissive technology and ultra-thin profile, it fits perfectly into compact, modern electronic designs.

Get a quote Set OEM

CUSTOM OLED DISPLAY Details

What Is an AMOLED Display?

An AMOLED Display (Active-Matrix Organic Light-Emitting Diode) uses organic pixels that emit their own light when electrically activated, eliminating the need for a bulky backlight unit found in traditional LCDs.
Each pixel can be turned off completely to create true blacks, delivering infinite contrast, vibrant colors, and faster response times compared to standard screens.

Key Benefits:

True Black & Infinite Contrast: 100,000:1 contrast ratio for deep blacks.
Cinema-Grade Color: 105% NTSC color gamut for vivid imagery.
Ultra-Thin Profile: Only 2.17mm thick, ideal for sleek devices.
Wide Viewing Angles: Clear visibility up to 80 degrees from all directions.
Low Power Consumption: Energy-efficient self-emissive technology.

High-Definition Visual Experience

Experience crystal-clear visuals with 1080x1920 resolution, delivering 400+ PPI for sharp text and detailed imagery.

Featuring a resolution of 1080 x 1920 pixels, this 5.48-inch screen delivers a high pixel density that makes individual pixels imperceptible to the human eye. This ensures sharp text, detailed graphics, and immersive video playback essential for premium handheld devices.

Ultra-Thin and Lightweight Design

Achieve cinematic color accuracy with a 105% NTSC gamut and 100,000:1 contrast ratio for vibrant, lifelike performance.

Without the need for a backlight layer, this AMOLED Display achieves a thickness of just 2.17mm. This allows product designers to create thinner, lighter, and more aesthetic devices without compromising on visual performance or battery space.

Superior Color Performance (105% NTSC)

Features a responsive touch panel powered by the CST148 IC, ensuring precise and lag-free user interaction.

With a color gamut covering 105% NTSC, this module reproduces colors that are richer and more accurate than standard screens. It covers a vast spectrum of colors, making it ideal for applications requiring high color fidelity, such as photography viewfinders and medical monitoring.

Integrated Capacitive Touch

The self-emissive AMOLED technology eliminates backlights, allowing for an ultra-thin 2.17mm module depth perfect for sleek devices.

The module comes pre-integrated with a high-sensitivity capacitive touch panel driven by the CST148 touch IC. This ensures a responsive, lag-free user interface, supporting multi-touch gestures essential for modern navigation.

Wide Temperature Operation

Utilizes a 4-Lane MIPI interface to support high-bandwidth data transmission, ensuring smooth video playback and easy integration.

Built for reliability, our AMOLED Display is tested to operate effectively in temperatures ranging from -20°C to +70°C. This makes it suitable for various environments, from outdoor handheld usage to industrial control rooms.

High-Speed MIPI Interface

Designed for durability, this module operates reliably in extreme environments ranging from -20°C to +70°C.

The display utilizes a MIPI 4-Lane interface, allowing for high-speed data transmission required to drive the FHD resolution at smooth frame rates. This ensures fluid motion and seamless transitions in dynamic content.

AMOLED Display vs. LCD Display

Selecting the right technology depends on your project's power, contrast, and thickness requirements.

Feature	ReissOpto AMOLED Display	Traditional LCD Display
Backlight	None (Self-emissive)	Required (LED Backlight)
Contrast Ratio	100,000:1 (True Black)	~1,000:1 (Dark Grey)
Thickness	Ultra-thin (2.17mm)	Thicker (due to backlight)
Color Gamut	Wide (105% NTSC)	Standard (70-72% NTSC)
Response Time	Microseconds (Instant)	Milliseconds
Best For	Premium visuals, thin devices	Budget-friendly standard use

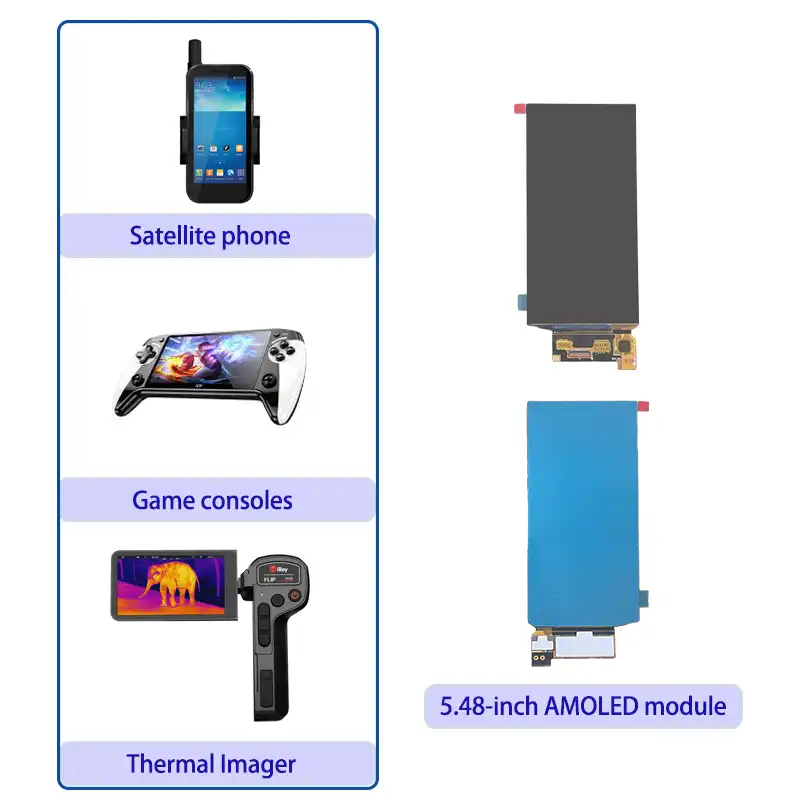

Application Scenarios

Handheld Medical Devices
Provide medical professionals with crystal-clear data visualization and accurate color representation for diagnostics on portable equipment.

Smart Home Control Panels
Enhance home automation with sleek, wall-mounted touch interfaces that offer deep blacks and blend seamlessly into modern interiors.

Industrial Handheld Terminals
Ensure readability and reliability in varying temperature conditions for logistics and warehouse management devices.

VR/AR & Gaming Consoles
Deliver immersive experiences with high refresh rates and ghost-free motion blur thanks to the fast response time of AMOLED technology.

POS & Payment Systems
Create sophisticated point-of-sale terminals with responsive touch screens and vibrant customer-facing displays.

Technical Specifications

ReissOpto AMOLED Display modules are built to meet professional standards of clarity and reliability. Below are the detailed technical specifications.

Item	Specification
Display Mode	AMOLED
Screen Size	5.48 inches
Resolution	1080 (W) × 1920 (H)
Active Area	68.26 × 121.34 mm
Module Size	70.36 × 127.34 × 2.17 mm
Pixel Configuration	RGB Vertical Stripe
Color Depth	16.7M Colors
Brightness	305 (Min) / 450 (Typ) nits
Contrast Ratio	100,000:1
Interface	MIPI 4-Lane
Driver IC	CH13721
Touch IC	CST148
Pin Count	39 Pins
Operating Temp	-20°C ~ +70°C
Storage Temp	-30°C ~ +80°C

Frequently Asked Questions (FAQ)

Q1: What is the main advantage of an AMOLED Display over an LCD?
A1: An AMOLED Display offers superior contrast ratios (true blacks), wider viewing angles, faster response times, and a thinner profile because it does not require a backlight.

Q2: Does this module support touch functionality?
A2: Yes, this 5.48-inch module includes an integrated capacitive touch panel powered by the CST148 IC.

Q3: What is the interface used for this display?
A3: It uses a MIPI 4-Lane interface, which is standard for high-resolution mobile and handheld displays.

Q4: Can ReissOpto customize the FPC or Cover Glass?
A4: Yes, we offer customization services for the FPC (Flexible Printed Circuit) shape and the Cover Glass design to fit your specific device housing.

Q5: What is the lifespan of the AMOLED module?
A5: Our industrial-grade AMOLED modules are designed for long-term reliability, subject to standard usage conditions and temperature ranges.
